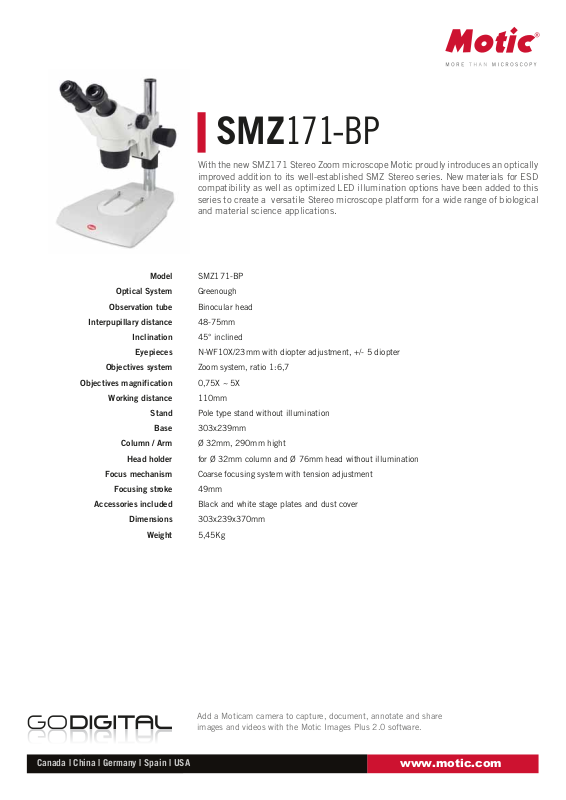

SMZ171-BP
With the new SMZ171 Stereo Zoom microscope Motic proudly introduces an optically
improved addition to its well-established SMZ Stereo series. New materials for ESD
compatibility as well as optimized LED illumination options have been added to this
series to create a versatile Stereo microscope platform for a wide range of biological
and material science applications.
Model
Optical System
Observation tube
Interpupillary distance
Inclination
Eyepieces
Objectives system
Objectives magnification
Working distance
Stand
Base
Column / Arm
Head holder
Focus mechanism
Focusing stroke
Accessories included
Dimensions
Weight
SMZ171-BP
Greenough
Binocular head
48-75mm
45° inclined
N-WF10X/23mm with diopter adjustment, +/- 5 diopter
Zoom system, ratio 1:6,7
0,75X ~ 5X
110mm
Pole type stand without illumination
303x239mm
Ø 32mm, 290mm hight
for Ø 32mm column and Ø 76mm head without illumination
Coarse focusing system with tension adjustment
49mm
Black and white stage plates and dust cover
303x239x370mm
5,45Kg
Canada | China | Germany | Spain | USA
Add a Moticam camera to capture, document, annotate and share
images and videos with the Motic Images Plus 2.0 software.
