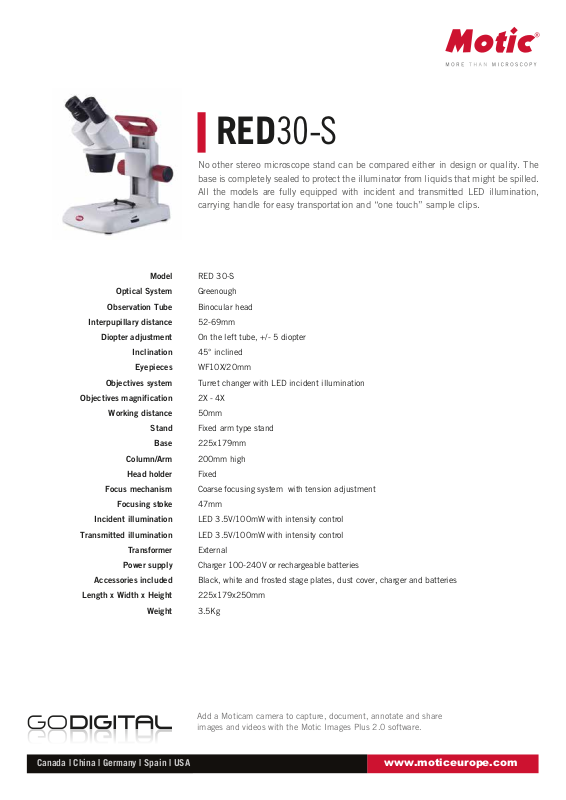

RED30-S
No other stereo microscope stand can be compared either in design or quality. The
base is completely sealed to protect the illuminator from liquids that might be spilled.
All the models are fully equipped with incident and transmitted LED illumination,
carrying handle for easy transportation and “one touch” sample clips.
Model
Optical System
Observation Tube
Interpupillary distance
Diopter adjustment
Inclination
Eyepieces
Objectives system
Objectives magnification
Working distance
Stand
Base
Column/Arm
Head holder
Focus mechanism
Focusing stoke
Incident illumination
Transmitted illumination
Transformer
Power supply
Accessories included
Length x Width x Height
Weight
RED 30-S
Greenough
Binocular head
52-69mm
On the left tube, +/- 5 diopter
45° inclined
WF10X/20mm
Turret changer with LED incident illumination
2X - 4X
50mm
Fixed arm type stand
225x179mm
200mm high
Fixed
Coarse focusing system with tension adjustment
47mm
LED 3.5V/100mW with intensity control
LED 3.5V/100mW with intensity control
External
Charger 100-240V or rechargeable batteries
Black, white and frosted stage plates, dust cover, charger and batteries
225x179x250mm
3.5Kg
Canada | China | Germany | Spain | USA
Add a Moticam camera to capture, document, annotate and share
images and videos with the Motic Images Plus 2.0 software.
