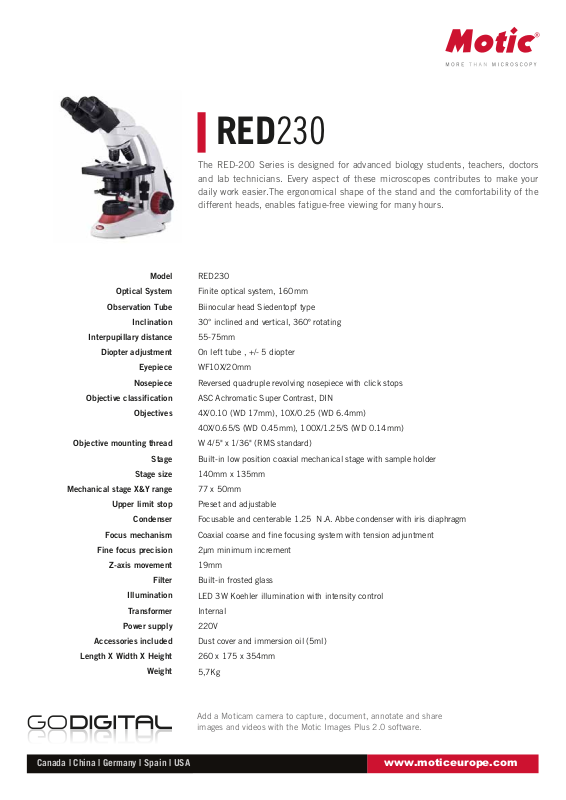

RED230
The RED-200 Series is designed for advanced biology students, teachers, doctors
and lab technicians. Every aspect of these microscopes contributes to make your
daily work easier.The ergonomical shape of the stand and the comfortability of the
different heads, enables fatigue-free viewing for many hours.
Model
Optical System
Observation Tube
Inclination
Interpupillary distance
Diopter adjustment
Eyepiece
Nosepiece
Objective classification
Objectives
Objective mounting thread
Stage
Stage size
Mechanical stage X&Y range
Upper limit stop
Condenser
Focus mechanism
Fine focus precision
Z-axis movement
Filter
Illumination
Transformer
Power supply
Accessories included
Length X Width X Height
Weight
RED230
Finite optical system, 160mm
Biinocular head Siedentopf type
30° inclined and vertical, 360º rotating
55-75mm
On left tube , +/- 5 diopter
WF10X/20mm
Reversed quadruple revolving nosepiece with click stops
ASC Achromatic Super Contrast, DIN
4X/0.10 (WD 17mm), 10X/0.25 (WD 6.4mm)
40X/0.65/S (WD 0.45mm), 100X/1.25/S (WD 0.14mm)
W 4/5" x 1/36" (RMS standard)
Built-in low position coaxial mechanical stage with sample holder
140mm x 135mm
77 x 50mm
Preset and adjustable
Focusable and centerable 1.25 N.A. Abbe condenser with iris diaphragm
Coaxial coarse and fine focusing system with tension adjuntment
2µm minimum increment
19mm
Built-in frosted glass
LED 3W Koehler illumination with intensity control
Internal
220V
Dust cover and immersion oil (5ml)
260 x 175 x 354mm
5,7Kg
Canada | China | Germany | Spain | USA
Add a Moticam camera to capture, document, annotate and share
images and videos with the Motic Images Plus 2.0 software.
