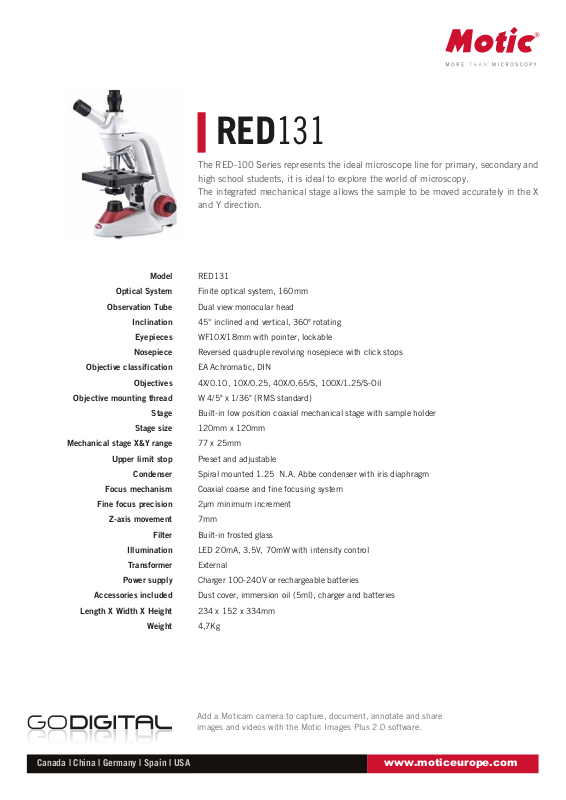

RED131
The RED-100 Series represents the ideal microscope line for primary, secondary and
high school students, it is ideal to explore the world of microscopy.
The integrated mechanical stage allows the sample to be moved accurately in the X
and Y direction.
Model
Optical System
Observation Tube
Inclination
Eyepieces
Nosepiece
Objective classification
Objectives
Objective mounting thread
Stage
Stage size
Mechanical stage X&Y range
Upper limit stop
Condenser
Focus mechanism
Fine focus precision
Z-axis movement
Filter
Illumination
Transformer
Power supply
Accessories included
Length X Width X Height
Weight
RED131
Finite optical system, 160mm
Dual view monocular head
45° inclined and vertical, 360º rotating
WF10X/18mm with pointer, lockable
Reversed quadruple revolving nosepiece with click stops
EA Achromatic, DIN
4X/0.10, 10X/0.25, 40X/0.65/S, 100X/1.25/S-Oil
W 4/5" x 1/36" (RMS standard)
Built-in low position coaxial mechanical stage with sample holder
120mm x 120mm
77 x 25mm
Preset and adjustable
Spiral mounted 1.25 N.A. Abbe condenser with iris diaphragm
Coaxial coarse and fine focusing system
2µm minimum increment
7mm
Built-in frosted glass
LED 20mA, 3.5V, 70mW with intensity control
External
Charger 100-240V or rechargeable batteries
Dust cover, immersion oil (5ml), charger and batteries
234 x 152 x 334mm
4,7Kg
Canada | China | Germany | Spain | USA
Add a Moticam camera to capture, document, annotate and share
images and videos with the Motic Images Plus 2.0 software.
