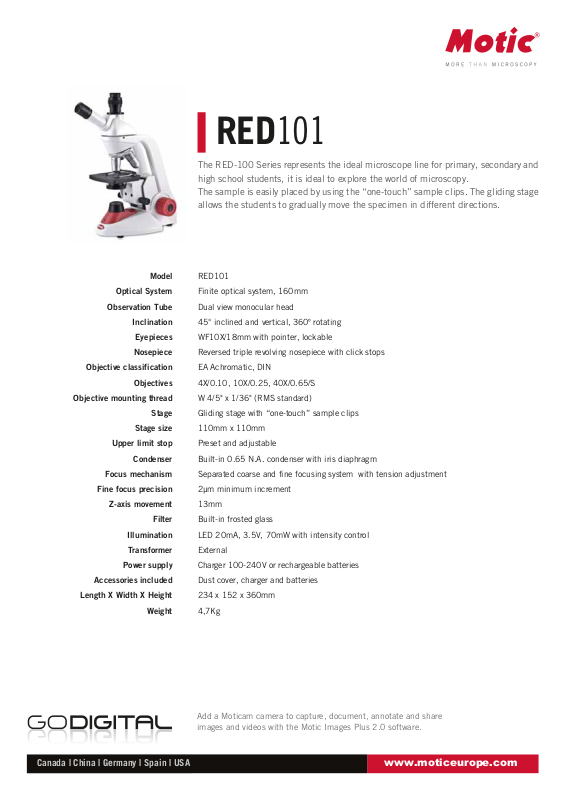

RED101
The RED-100 Series represents the ideal microscope line for primary, secondary and
high school students, it is ideal to explore the world of microscopy.
The sample is easily placed by using the “one-touch” sample clips. The gliding stage
allows the students to gradually move the specimen in different directions.
Model
Optical System
Observation Tube
Inclination
Eyepieces
Nosepiece
Objective classification
Objectives
Objective mounting thread
Stage
Stage size
Upper limit stop
Condenser
Focus mechanism
Fine focus precision
Z-axis movement
Filter
Illumination
Transformer
Power supply
Accessories included
Length X Width X Height
Weight
RED101
Finite optical system, 160mm
Dual view monocular head
45° inclined and vertical, 360º rotating
WF10X/18mm with pointer, lockable
Reversed triple revolving nosepiece with click stops
EA Achromatic, DIN
4X/0.10, 10X/0.25, 40X/0.65/S
W 4/5" x 1/36" (RMS standard)
Gliding stage with “one-touch” sample clips
110mm x 110mm
Preset and adjustable
Built-in 0.65 N.A. condenser with iris diaphragm
Separated coarse and fine focusing system with tension adjustment
2µm minimum increment
13mm
Built-in frosted glass
LED 20mA, 3.5V, 70mW with intensity control
External
Charger 100-240V or rechargeable batteries
Dust cover, charger and batteries
234 x 152 x 360mm
4,7Kg
Canada | China | Germany | Spain | USA
Add a Moticam camera to capture, document, annotate and share
images and videos with the Motic Images Plus 2.0 software.
