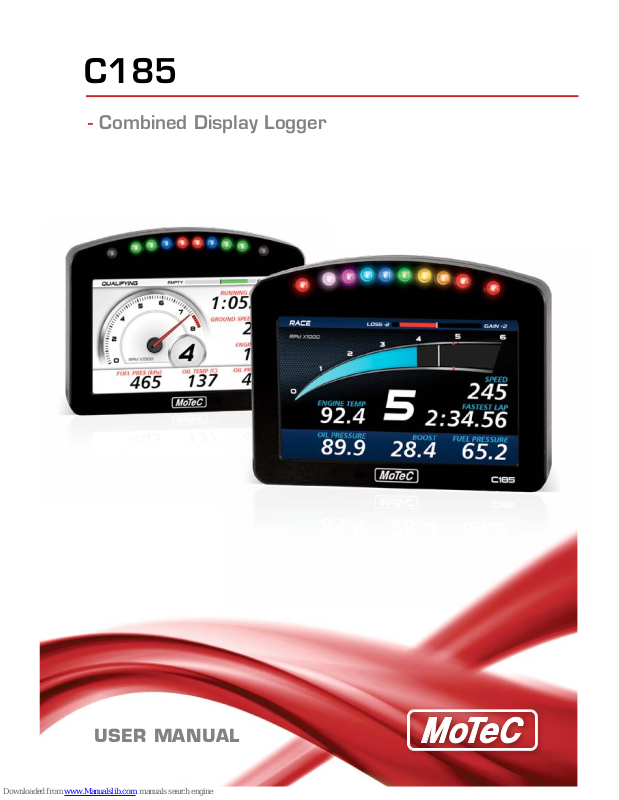

USER MANUAL

C185

- Combined Display Logger

MoTeC C185 User Manual

The information in this document is subject to change without notice.

While every effort is taken to ensure correctness, no responsibility will be taken for the

consequences of any inaccuracies or omissions in this manual.

V 1.0, November 2013

C185 User Manual

Contents

Introduction .............................................................................. 1

Features ................................................................................................ 1

System Overview .................................................................................. 3

Typical Devices Used With C185 ............................................... 4

Installation ................................................................................ 8

Mounting and Wiring ............................................................................. 8

Connecting Devices .............................................................................. 9

Inputs .......................................................................................... 9

Outputs ..................................................................................... 11

Communications ....................................................................... 11

Connecting Devices Examples ................................................ 13

Software Installation ........................................................................... 14 

C185 Dash Manager Software ................................................. 14

i2 Data Analysis Software ........................................................ 14

Telemetry Monitor Software ..................................................... 15

Connecting the C185 to a PC .................................................. 15

Configuration ......................................................................... 16

Configuration File ............................................................................... 16

Channels ............................................................................................. 17

Channel Properties ................................................................... 19

Selecting Channels .................................................................. 20

Connections ........................................................................................ 22

Configuring Inputs .................................................................... 22 

Configuring Outputs ................................................................. 22

Configuring Communications ................................................... 22

Calculations ........................................................................................ 23

Special Calculations ................................................................. 23

General Purpose Calculations ................................................. 23

Functions ............................................................................................ 24

Data Logging ............................................................................ 24

Display ...................................................................................... 28

MoTeC C185 User Manual

Other Functions ........................................................................ 34

Operation ................................................................................ 36

Retrieving the Logged Data ..................................................... 36

Sending and Retrieving Configuration Files ............................. 36

Zeroing Sensors ....................................................................... 36

Checking Operation .................................................................. 37

Configuration Versions and Updating ...................................... 37

Upgrading C185 ....................................................................... 38

Password Protection ................................................................ 38 

Other Online Activities .............................................................. 38

Appendices ............................................................................ 40

Specifications ...................................................................................... 40

C185 Upgrades................................................................................... 42

Characteristics .................................................................................... 43

Input Characteristics ................................................................. 43

Output Characteristics .............................................................. 48

Pin List by Pin Number ....................................................................... 49

Pin List by Function ............................................................................ 52 

Mounting Dimensions ......................................................................... 56

Wiring .................................................................................................. 57

Connector ................................................................................. 57

Wire Specification ..................................................................... 57

PC Connection ......................................................................... 58

CAN Bus Wiring Requirements ................................................ 59

C185 to ECU wiring (RS232) ................................................... 60 

Update Rate Summary ....................................................................... 62

Command line..................................................................................... 63

CAN Bus Bandwidth Limit .................................................................. 65

Comms Error Codes ........................................................................... 66

PC Connection - IP Address ............................................................... 69

Windows Keyboard Shortcuts ............................................................ 73 

Glossary .............................................................................................. 77

MoTeC Introduction 1

Introduction

The C185 comes standard as a combined full colour display, powerful control device and fully programmable data logger with 250 MB memory (500 optional). The anti-reflective, high contrast display is clear and vibrant in direct sunlight. Displayed channels and labels are configurable on supplied layouts; software for fully configurable custom layouts available early 2014. The C185 acquires data from devices such as an ECU and displays data channels, warning alarms, lap times, fuel calculations, maths functions and much more.

Features

The C185 comes with a range of features as standard and several options available as upgrades to customise and grow your system. These additional features are activated through a simple password acquired from MoTeC, at any time when you need it. See C185 Upgrades

General

• High resolution 125 mm (5" approx) colour LCD display, with brightness for sunlight readability

• 10 full colour (RGB) LEDs; colour, function and intensity are fully programmable

• Suitable for bikes, cars, marine and industrial applications

• Compact, durable and reliable unit

• Supports wideband Lambda from PLMs or LTCs, using Bosch LSU or NTK

UEGO 5 wire sensors

• Straightforward control for lights, fans, pumps and PID controlled devices

• Easily integrates with MoTeC CAN based product s such as ECUs and

expanders. Full I/O expansion available with use of E888, E816, VIM and SVIM expanders.

Logging and Analysis

• Internal data logging, 250 MB standard or 500 MB optional.

• Fast download via Ethernet

• Accommodating over 300 channels derived from a mixt ure of analogue

and digital inputs, RS232 and CAN data channels

• Configurable to use sensors from some existing engine management systems

• Data analysis with i2 Standard or optional i2 Pro software

2 Introduction

• Telemetry (T2) and remote logging options

Display

• Colour TFT LCD, anti-reflective

• 12 customisable layout options

• Customisable measurement units and warnings

• Configurable dial, sweep or bar graph can display any channel with

optional peak, hold and shift markers

• 48 user-defined alarms, e.g. Low Oil Pressure, Low Fuel, Fast Lap

• Programmable overrides - particularly useful for showing values such as

lap times

• Three programmable modes or 'pages' with customisable labels ensure the driver is shown only the most relevant information at any given time

• Adjustable backlight

Software

• Windows-based software designed for setup and management of the display and data logging system

• The user can generate a configuration file offline and then send the completed configuration to the C185

• Calculations including lap times, lap gain/loss, speed and distance, fuel prediction

• Monitor active channels—view all channels live

• Sensor zeroing

• Details editor including event, venue and vehicle details

• Extensive Help screens

• Latest software version is available free of charge from

www.motec.com/downloads

3 MoTeC Introduction

Compatibility

• MoTeC ECUs: M4*, M48*, M8*, M400, M600, M800, M880, M1

• MoTeC Accessories: VIM, SVIM, E888, E816, SLM, PLM, LTC, BR2,

PDM, GPS, VCS, Telemetry etc.

• Many non-MoTeC devices

*For some ECUs, an additional cable/adaptor may be required in

Required Accessories

Refer to Connecting the C185 to a PC

• Standard Ethernet cable

• Any one of the following Ethernet to Autosport connections

o #62206 C185 loom o #61131 Ethernet cable unterminated, 2 meter o #61132 Ethernet to Autosport pins cable, 1.8 m

System Overview

The C185 offers extensive possibilities to integrate with ECUs, peripheral devices and accessories to form a complete solution that powers, controls, logs, monitors and communicates virtually any automotive parameter.

The picture shows just one example. For a tailored solution to your application contact your dealer or check out the website.

4 Introduction

Typical Devices Used With C185

ECUs

The C185 can be connected to most MoTeC ECUs and some other manufacturers' models either via CAN or RS232. This avoids duplication of sensors and allows the C185 to display and log many ECU parameters.

The typical update rate is about 20 times per second for RS232 and 50 times per second for CAN.

Sensors

The C185 inputs can be connected to a wide variety of sensors. Different types of sensors are available to suit different types of measurements, for example: temperature, pressure, movement etc.

Sensors convert a physical measurement (e.g. pressure) into an electrical signal (e.g. volts).

Different types of sensors generate different types of electrical signals. For example most temperature sensors convert the temperature into a variable resistance which may be measured by an Analogue Temperature input, however most wheel speed sensors generate a variable frequency signal which must be connected to either a Digital input or a Speed input.

Expanders

VIM / SVIM

The VIM is a compact and versatile input expander module with 24 analogue inputs of various types including high speed, high resolution and differential types. The VIM also has two digital inputs with programmable trigger levels.

Several VIMs may be connected to the C185 providing more than 300 sensor inputs. The VIM supports many different types of sensors including unamplified thermocouples and strain gauges.

The Synchronous Versatile Input Module (SVIM) is a compact expander that works the C185 to facilitate the synchronised logging of high speed, high resolution inputs. Multiple SVIMs are synchronised so that every SVIM in the vehicle samples its high resolution AV inputs at the same instant in time.

SVIMs are versatile in nature and can be located close to sensors, reducing the weight and complexity of wiring. When used in multiples, up to 200 sensor inputs are available. The SVIM supports many different types of sensors, including unamplified thermocouples and strain gauges.

MoTeC Introduction 5

E888/E816

The C185 supports two E888 or E816 Expanders allowing expan sion of the number of inputs and outputs.

The E888 has 8 x 10 bit thermocouple inputs, 8 x 10 bit voltage inputs, 4 digital inputs, 2 switch inputs and 8 outputs.

The E816 has 16 x 10 bit voltage inputs, 4 digital inputs, 2 switch inputs and 8 outputs.

Note: The E888 / E816 inputs have lower resolution than the VIM/SVIM inputs and have slower update rates.

Accessories

BR2

A BR2 Beacon Receiver may be connected to the C185, which allows the C185 to calculate lap times for display and to provide lap information for the data logging analysis software.

SLM

The SLM Shift Light Module can be used for shift lights, warnings and other driver alerts.

It comprises 8 LEDs that can be programmed to display any colour.

GPS

The C185 supports many GPS (Global Positioning System) devices allowing the C185 to record speed, generate lap times and measure position information.

This information can be used in the i2 data analysis software to create track maps, and plot and compare driven lines.

Telemetry

The C185 supports transmission of data via a telemetry radio to a remote location such as a pit garage. This allows monitoring of the current vehicle condition, position on the track, lap times, fuel remaining, laps remaining etc.

The telemetry system provides three major functions:

1. Real time data that is transmitted continuously and can be shown on graphs, gauges and other displays.

2. End of lap data which shows summary information at the end of a lap such as lap time, maximum temperatures etc.

3. Telemetry analysis which exports the real time data to the i2 analysis software at the end of each lap or on demand which allows normal

6 Introduction

analysis of the data including maths calculations, while the vehicle is still on the track.

Other telemetry features include: warning alarms, position of multiple vehicles on a track map, broadcast data via DDE (Dynamic Data Exchange) or via IP (Internet Protocol).

Note: The Telemetry option is required for the basic functionality. The Remote Logging option is required in addition to the Telemetry option for the Telemetry Analysis function.

High Definition Video

MoTeC brings true high definition to motorsport with its new HD Video Capture System. The HD-VCS provides superior quality video and numerous features designed specifically for the racing environment.

Features include:

• Genuine High Definition with 1080p @ 30 frames per secon d

• Automatic Start/Stop, eliminating the possibility of drivers forgetting to

turn it on

• 12 V power direct from the vehicle - no batteries to recharge

• Live gauges

automatically recorded on the video

• Over 5 hours of recording at 1080p

• Records to removable storage up to 32 GB

• Video can be played directly from the card

• Automatic CAN Synchronisation with data in i2 (available late 2013)

• Compact, lightweight recording unit

Lambda Measurement

PLM

The PLM Professional Lambda Meter measures the air fuel ratio over a wide range of mixtures with fast response time. It is compatible with Bosch LSU and NTK UEGO Lambda sensors and displays the Lambda readings via the integrated display.

LTC/LTCD

The LTC Lambda to CAN modules provide accurate Lambda measurements even when the exhaust gas temperature changes rapidly. They are compatible with the Bosch LSU 4.9 Lambda sensor and transmit Lambda readings via the CAN bus.

MoTeC 7 Introduction Remote Displays

A remote display device may be connected to the C185 to allow display of any value that the C185 calculates, such as lap times and warning alarm messages.

The C185 supports D153, D175 displays which are connected via CAN.

PDMs

Power Distribution Modules are designed to replace conventional relays, fuses and circuit breakers by providing electronically switched po wer to the various electrical systems in the vehicle. This simplifies wiring and switch requirements, while increasing reliability.

Full diagnostic information, including output curre nts and error status can be transmitted via CAN to the C185.

Several models are available to suit vehicles with different complexity ranging from 15 to 32 outputs and 12 to 23 inputs.

Other Devices

Many other devices can be connected to the C185. Contact your dealer for advice.

8 Installation

Installation

Mounting and Wiring

C185 has three threaded mounting posts. For further detail see Mounting Dimensions.

Mounting Tips

• Avoid twisting the case: use washers between the unit and the mounting panel to ensure that the unit is mounted only at the mounting points and do not over tighten the mounting screws.

• Vibration isolation may be desirable if the vehicle vibrates severely.

• Mount so that the connector may be easily accessed.

• Orientation: for best contrast, the display should be viewed at an a ngle of

approximately 20 degrees, However the C185 will give good contrast between 0 and 40 degrees. Display reflections should also be considered when determining the mounting angle.

20°

The C185 uses a 79 pin Autosport connector. See Connector and Pin List by Pin Number for full details.

Wiring Tips

• To ensure that the connector is sealed, plug unused holes with filler plugs. A heat shrink boot may also be used if desired.

• Use 22# Tefzel wire (Mil Spec M22759/16-22) (5 A max at 100 °C)

• Tefzel wire is difficult to strip unless the correct stripping tool is use d.

• Be careful not to nick the wires as this may result in wire failure or poor

crimping.

• Some sensor connectors may not be available with 22# terminals, in which case doubling the wire over gives the equivalent of an 18# wire. T his is suitable for many of the common sensor terminals.

MoTeC Installation 9

• Use the correct crimping tool for all contacts to ensure a reliable connection.

• Power the C185 via a separate switch and a 5 ampere fuse, to ensure the PC can communicate with the C185 without the need to power the rest of the vehicle.

• The C185 ground must have a direct connection to the vehicle battery.

• C185 is connected to other devices via the CAN bus. Refer to CAN Bus

Wiring Requirements for details.

Connecting Devices

Inputs

Input Types

A range of sensors is available to suit different types of measurement, e.g. temperatures, pressures, speed. Each type of measurement generates a different electrical signal that requires a suitable input type.

Each sensor needs to be connected to the type of input designed to suit that type of sensor.

MoTeC devices have the following input types available:

• Analogue Voltage Inputs

• Analogue Temperature Inputs

• Switch Inputs

• Digital Inputs

• Wheel Speed Inputs

Note: Some inputs require a device upgrade to make them available

In addition to sensors connected to the inputs, the C185 has internal sensors available for battery voltage, 3-axis G force and device temperature.

Analogue Voltage Inputs

Analogue Voltage inputs are normally used to measure the signals from analogue voltage type sensors, i.e. sensors with variable voltage outputs, such as:

o Rotary or linear potentiometers o Signal conditioned 3 wire pressure sensors o Thermocouple amplifiers o Accelerometers

10 Installation

These inputs can also be used to measure two wire variable resistance sensors if an external pull-up resistor is connected from the input to the 5 V sensor supply.

Additionally, on/off switch signals may be connected, which may also require an external pull-up resistor.

Analogue Temp Inputs

Analogue Temperature inputs are identical to Analogue Voltage inputs, except that they contain a 1000 ohm resistor which is connected internally from the input pin to the 5 V sensor supply. This allows the Analogue Temperature inputs to be used with two wire variable resistance sensors such as:

o Two wire thermistor temperature sensors o Two wire variable resistance pressure sensors

Some voltage output sensors can also be used if they can drive the 1000 ohm resistor without causing an error in their reading (e.g. MoTeC Thermocouple Amplifier).

Additionally, on/off switch signals may be connected.

Switch Inputs

Switch inputs are generally used for the external switches required to operate the display. These inputs have a 4700 ohm resistor connected internally from the input pin to the 5 V sensor supply so that a switch can be simply connected between the input pin and 0 V.

They can also be connected to a brake switch or other switch.

Digital Inputs

Digital Inputs are identical to Switch Inputs except that they include the following additional measurement methods:

o Frequency: The frequency of the input signal is measured o Period: The time between successive pulses is measured o Pulse width: The low time of the pulse is measured o Count: Counts the number of pulses o Beacon: For connection of a lap beacon

Speed Inputs

Speed Inputs are identical to Digital Inputs except that they can also be configured to suit Variable Reluctance (Magnetic) se nsors e.g. some wheel speed sensors. Because the amplitude of the signal from these

MoTeC Installation 11

sensors varies with speed of rotation, variable trigger levels are required, which must vary with the frequency of the input signal.

The Speed Inputs can also be used with Hall Effect type wheel speed sensors.

The Pulse Width measurement method measures the high time of the pulse rather than the low time as measured by the Digital Inputs.

Input Specifications

For full specifications refer to Input Characteristics.

Expanders

If additional sensors are required, input expanders can be used e.g. E888, E816, VIM, SVIM. Sensors can be connected to the expander inputs and communicate via either RS232 or CAN. See Configuring Com munications.

Outputs

Auxiliary Outputs are used to control various vehicle functions e.g.

o Gear Change Lights o Warning Lights o Thermatic Fan o Gear Box Oil Pump

Note: Devices that consume more than the maximum current (e.g. motors) should be driven via a relay or PDM.

Output Specifications

Full specifications can be found in Output Characteristics.

Expanders

If additional outputs are required, output expanders can be used e.g.E888, PDM. Expander outputs can perform the same tasks as the device outputs and can be driven by communication via either RS232 or CAN. See Configuring Communications.

Communications

Communications are used to send and receive data from one devic e to another. There are two communication protocols; RS232 an d CAN. Generally older devices use RS232 and newer devices use CAN.

12 Installation CAN (Controller Area Network) Communications

This protocol enables communication between all de vices connected to the same bus. The CAN bus allows communicating at high speeds. The C185 has two independent CAN communications ports that can be connected to other devices with a compatible CAN port. The bus speed for ea ch interface can be set independently.

Typical devices communicating over CAN:

o 'Hundred series' ECU: M400, M600, M800, M880 o Shift Light Module: SLM o Lambda meters: LTC, PLM o Expanders and input modules: E888/E816, VIM o Displays: SDL o Beacon receiver: BR2

These devices communicate at 1 Mbit/sec, so any other devices connected on the CAN bus must also communicate at 1 Mbit/sec. If a device communicates at another speed, it should be wired to the other CAN bus, and the speed of that CAN bus must be set to match the speed of the device.

RS232 Serial Communications

This is a one to one protocol, communicating from one device to one other device. Typical devices communicating over RS232:

o M4, M48 ECUs o Radio telemetry device o Global positioning system: GPS

Note: The C185 can communicate with devices for which it has the appropriate communications protocol defined. For other devices, users can define their own custom communication settings.

MoTeC Installation 13

Connecting Devices Examples

Device

Connect via Remarks

Sensors

Inputs: The appropriate input type depends on the sensor type

MoTeC supplies datasheets with wiring details for all sensors via the website

External Buttons for:

- Display mode

- Display next line (and

optional previous line)

- Alarm acknowledge

- Lap number reset

- etc.

Inputs: Switch input Alternatively Digital or Analogue Voltage inputs can be used

Wire between C185 input and C185 0V. If wired to an Analogue Voltage input connect an external pull-up resistor between the input pin and the 5 V sensor supply.

External LED Lights

Outputs: Auxiliary output

Wire between one of the Auxiliary Outputs and battery positive and include a current limiting resistor

SLM Shift Light Module

Communications:

CAN

K-type Thermocouples

Inputs: Analogue Voltage or Analogue Temperature input

Communications: CAN

Connect via TCA

Connect via E888 or VIM/SVIM

ECU M4, M48, M8

Communications: RS232

Uses the Telemetry feature of the ECU to send data to the C185

ECU 'hundred series': (M400, M600, M800, M880), M1

Communications: CAN

Ensure the ECU and C185 are connected on the same CAN bus

Telemetry

Communications: RS232

Wiring is dependent on the particular telemetry system; refer to the wiring details supplied with the telemetry system

14 Installation

Software Installation

C185 Dash Manager Software

C185 Dash Manager software is used for configuration, testing, retrieving the logged data, and for general management of the C185.

C185 Dash Manager supports configuration of the following connected devices: VIM, SVIM, E888/E816, SLM.

PC Requirements

C185 Dash Manager runs under Windows XP or Vista operating systems. The minimum recommended PC specification is a Pentium 90 with 16MB RAM and an Ethernet port

Installing C185 Dash Manager Software

• Go to the MoTeC website at www.motec.com and navigate to software/latestreleases/C185 Dash Manager software OR Locate C185 Dash Manager software on the MoTeC Resource Disc

• Save the selected file in your preferred location (for example desktop)

• When downloading is finished, double click on the file and select run

• Follow the instructions on the InstallShield Wizard

• To start the program after installation, click the C185 Manager icon on the

desktop or click Start > All Programs > MoTeC > C185 > C185 Dash Manager

Updating C185 Dash Manager Software

• Software updates are available to give access to the latest features. Download the latest software version from the website and follow the software installation instructions to update to the new version.

• To update the associated firmware in the device select Upgrade Dash Version from the Online menu. See Configuration Versions and Updating.

i2 Data Analysis Software

i2 data analysis software is used to analyse the logged data that has been

recorded by the C185. Any number and combination of graphs, gauges and reports can be analysed simultaneously. The i2 environment can be customised to specific user requirements.

There are two levels of analysis functionality available; i2 Pro and i2 Standard.

MoTeC 15 Installation

i2 Standard is included, while i2 Pro requires the optional Pro Analysis

upgrade. See C185 Upgrades. i2 Pro provides advanced mathematics, multiple overlay laps, and unlimited

components, workbooks and worksheet s.

Telemetry Monitor Software

The Telemetry Monitor software is used to monitor the optional telemetry link and allows viewing of live data in various graphical formats such as charts, bar graphs and dial gauges. It can also show the vehicle's current track position on a track map and compare the current vehicle data to reference data.

Telemetry Monitor software requires the optional Telemetry upgrade. See C185 Upgrades.

Connecting the C185 to a PC

The C185 connects to the Ethernet port on the PC. This requires a connector for the standard Ethernet cable in the loom.

The C185 loom #61213 incorporates this connector. Alternatively the connector can be wired into an existing loom using the unterminated Ethernet cable (#61131) or the Ethernet to Autosport pins cable (#61132).

All options are used in conjunction with a standard Ethernet cable. Connection details are described in Wiring.

PC Communications Setup

To enable PC communications a connection must be setup in the C185 Da sh Manager to match the C185 serial number.

• On the Tools menu click Connection Settings and then click Add

• Click OK to choose IP (Ethernet). This is the only available connecti on

type

• Enter the C185 serial number

If the PC needs to communicate with more than one C185, repeat the steps. Only one connection can be active at a time. To switch to a different C185

select the appropriate connection and click Make Act i ve.

Network Connection

Optionally, the C185 can be connected to a network. This allows for any PC on the network to communicate with the C185.

For more information on IP addresses see PC Connection - IP Address.

16 Configuration

Configuration

All aspects of the C185 can be configured including, which sensor is connected to which input, the calibration of each sensor, what to display an d where to display it, what to log and how fast to log it, tacho range, warning alarms, multi stage shift lights, etc.

The configuration is stored in a configuration file on the PC. When starting C185 Dash Manager the menu items related to cha nging the configuration are unavailable. To make them available, load a configuration file either by opening an existing file or by creating a new one.

All changes to the C185 configuration are performed ‘Offline’, i.e. without the PC communicating with the C185. The changes are saved in the config uration file on the PC. The file must be sent to the C185 before the changes take effect. See Operation.

Tip: When using a laptop in and around a car, it is often not practical to use a mouse to navigate through the program. Using the keyboard to select options is easier. An overview is given in Windows Keyboard Shortcuts.

Configuration File

From the File menu the following option are available:

• New creates a new configuration based on a predefined template.

• Open selects an existing file.

Right-click the configuration file to Rename, Delete, Send to a disk etc.

• Save after a new configuration has been defined, it should be saved with a meaningful name.

• Save as can be used to create a copy of an existing configuration file by giving it a new name.

• Edit Details allows for entering event, venue and vehicle details to be stored with the configuration file.

• Check Channels verifies that all channels are co rrectly generated.

• Edit Configuration Comments allows for other comments to be stored with

the configuration file.

• View Configuration Summary gives a quick overview of the configuration file.

• Convert Logging Image allows users to manually convert a log file for use in i2.

• Exit exits the program.

MoTeC Configuration 17

Tip: The most recently used files appear at the bottom of the File menu. This is often the easiest way to open an existing file.

Backups

Whenever a file is saved, the previous content of the file is saved in the Save Backups directory. The total number of files is limited to 100.

Channels

Channels are used to convey information between the various systems of the C185. For example an input pin may feed a channel called ‘Fuel Pressure’. This channel may then be used by another system, such as the Display System or Data Logging systems.

The C185 channel scheme allows complete flexibility in channel usage, as any available channel can be used by any other function, i.e. any channel can be logged, displayed, used in conditions, used in alarms, used as an input to the user definable tables, etc.

All systems within the C185 that generate values must feed one of the channels.

Pre-defined Channels

MoTeC has defined an extensive list of channels.

General Purpose Channels

Since the use of all channels cannot be predetermine d, a number of general purpose channels have been included for occa sions when a suitable predefined channel is not available.

These general purpose channels may be required when measuring an uncommon value, or when a general purpose function needs to generate a special output channel. For example, a 3D table may generate an output channel to control a valve of some sort, in which case a general purpose channel may be used and named appropriately.

18 Configuration

Fuel Pressure

Oil Pressure

Wheel Speed Fr ont

Wheel Speed Rear

Engine R PM

Engi ne Tem perature

larm Warning Light

Gear

Channels

Sensors

Anal ogue

Inputs

Speed

Inputs

CAN

Comms

ECU

Data Logging

System

Loggi ng Memory

Display System

LCD Display

Alarm System

Gear Detection

Auxiliary Outputs

Warning Light

Cha nne l Co nne cti o n Exam ple

RS232 Comms

Telemetry

MoTeC Configuration 19

Channel Properties

Each channel has defined properties, some of which may be modified by the user. Predefining these properties makes the channels easy to use throughout the rest of the software.

• Properties that may be modified by the user o Name

The channel names (and abbreviations) may be changed if necessary. However name changes should be limited to name preferences rather than redefining the purpose of the channel, except for the general purpose channels which may be renamed to suit the current use.

o Abbreviation o Units (e.g. degrees Celsius, degrees Fahrenheit)

The units for a channel can be selected from a predefined list, for example the Engine Temperature channel may have units of degrees Celsius, Fahrenheit or Kelvin. Conversion between units is automatically handled by the software. Note: The units are used for display purposes only. This means that the units can be changed at any time without affecting the calibration of the channel.

• Fixed properties o Measurement type (e.g. Temperature)

Defining the measurement type allows the channels to be displayed in any unit suitable for that type, with automatic conversion between the units. For example all temperature channels can be displayed in degrees Celsius, Fahrenheit or Kelvin.

o Resolution

The resolution of all channels is fixed, for example the resolution of the Engine Temperature channel is fixed at 0.1 °C. Fixed channel resolutions ensure that the unit conversion system works properly and that channel comparisons can be performed correctly.

o Suitable logging rates o Suitable display filtering o Minimum and maximum range

20 Configuration

Selecting Channels

There are two methods of selecting channels, either the Category Method or the Search Method.

Category Method

This method divides all the channels into categories and sub categories, so that the list can be narrowed down to a small list of channels. For example, the ‘Engine Sensors / Cooling’ category shows a list of channels associated with the cooling system of the engine.

When selecting a channel from the complete list of channels, it is usually easiest to use the category selection method, for example when assigning a channel to an input pin.

Tip: To expand a category click on the plus sign (+) next to the category name.

MoTeC 21 Configuration Search Method

This method lists all channels in alphabetical order and allows a channel to be found either by typing the first few letters of any word in the channel name, or by scrolling through the list.

Note: The words may be typed out of order so that ‘Engine Oil Temp’ could be found by typing "temp eng oil" or "oil t eng" or "e o t”

his method is most useful when selecting a channel from the available

only

T channels. For example, if ‘Engine Temperature’ has been assigned to an input pin, it can be easily located in the Search list, since this list normally contains 50 to 100 items.

22 Configuration

Connections

Configuring Inputs

• On the Connections menu, click Devices

• Select the device (e.g. C185) and then click the Input pins tab

This will list all inputs available for this product Note: Some inputs require the 52 I/O Upgrade to make them available.

See C185 Upgrades

• Select the input and click Channel (or double click the input)

• Assign a measurement channel to the input and click OK

The channel needs to be calibrated using one of two options

• Select Load Cal if a pre-defined calibration is available OR

• Double-click the input to enter a calibration

Other tasks:

• Change Cal – to change the calibration

• Spd Levels – only for speed inputs

• Settings – to set default

Configuring Outputs

• On the Connections menu, click Devices

• Select device (e.g. C185) and then click the Output Pins tab to list all

outputs available for this product Note: Some outputs require 52 I/O Upgrade to make them available. See

C185 Upgrades.

• Select the output and click Change (or doubleclick the output)

• Select a mode to make appropriate settings available

• Follow the directions on the screen and when all settings are do ne click

Configuring Communications

• On the Connections menu, click Communications

• Select an available communications section (CAN or RS232)

• Click Select and choose one of the available communications templates

MoTeC Configuration 23 Comms Templates

Communication templates are available for most connected MoTe C devices. When MoTeC releases new products, new communication templates will also be released. These will be incorporated in the latest software versions. See Updating C185 Dash Manager Software on how to update to a new software version to make the latest communication templates available.

Calculations

The C185 has special and user definable general purpose calculations available. They are set up from the Calculations menu.

Special Calculations

• Lap Time and Number click on the tabs to set up Lap Time, Lap Speed, Running Lap Time, Split Lap Times, Lap Number, Laps Remaining

• Speed and Distance click on the tabs to set up Ground Speed, Drive Speed, Wheel Slip, Lap Distance, Trip Distance, Odometer

• Lap Gain / Loss to set up a continuous indication how far behind or ahead the vehicle is compared to a reference lap

• Gear Detection to set up Current Gear

• Fuel Prediction click on the tabs to set up Fuel Used, Fuel Usage, Fuel

Remaining, Laps Remaining, Fuel Used per Lap

• Running Min / Max to set up Minimum Corner Speed, Maximum Straight Speed and other Min/Max values

General Purpose Calculations

• Tables to set up 2D and 3D Lookup Tables

• Timers to set up General Purpose Timers

• User Conditions to activate items such as a Thermatic Fan or Gearbox Oil

Pump

• Channel Maths to perform basic calcula t ions on channels

• Advanced Maths to perform advanced calculations

• Bit Combine to set up a bit mask

• PID Control to set up the p

roportional,integralandderivativegain control

For details refer to C185 Dash Manager online help.

24 Configuration

Functions

Data Logging

Data logging allows sensor readings and calculated values to be stored in the C185 memory for later analysis using the i2 Data Analysis software.

To configure logging

• On the Functions menu, click Logging

• Select the relevant tabs to set up the logging parameters

Refer to C185 Dash Manager online help for additional information.

Power

The C185 power can be turned off at any time without losing the logged data, because it uses FLASH memory that does not require an internal battery to keep it alive.

Logging Memory

The C185 comes with 250 MB memory as standard. The Data Logging upgrade will increase this to 500 MB. See C185 Upgrades.

Start and Stop Logging Conditions

To avoid logging unnecessary data, logging can be started and stopped by user definable conditions.

For example logging might start when the vehicle exceeds 50 km/h, and stop when the engine RPM is below 500 RPM for 10 seconds.

C185 provides the normal logging type; this will continuously log data to memory whenever the Start Condition is true and the Stop Condition is false.

Memory Usage

When the logging memory is full the C185 may be configured to either stop logging, or to overwrite the oldest data, which ensures that the most recent data is always available. This is referred to as cyclic logging.

For most applications it is recommended that cyclic logging is used.

Logging Time

The maximum logging time is dependent on the logging memory size, the number of items logged and the rate at which they are logged. The configuration software will report the total available logging time.

MoTeC Configuration 25 Logging Setup Files

The logging list can be saved and loaded from a file. This allows multiple logging setups to be used.

Logging Rate

The logging rate sets how often each channel is logged and can be set individually for each channel. The C185 can store values at up to 1000 times per second.

The rate at which the values are logged must be fast enough to record all variations in the reading. If the value is logged too slowly, the readings can be totally meaningless. For example, suspension position may need to be logged at 200 times per second or more.

However, if a value is logged faster than necessary it will not improve the accuracy of the logged data. It will just reduce the total logging time available. For example, the engine temperature only needs to be logged at once per second.

CAN Bus Bandwidth Limit

High logging rates also increase the amount of data that is being received from the measurement devices, which increases the amount of data on the CAN bus. This can lead to exceeding the CAN bus bandwidth limit. See CAN Bus Bandwidth Limit.

Note: The C185 Manager will warn if the bandwidth is likely to be exceeded.

Maximum Logging Rate

The maximum logging rate is limited to the update rate of the particular channel. This varies significantly depending on the source of the channel. For example, some VIM inputs update at 5000 Hz, whereas some communications devices may only update at 50 Hz. Also so me internal calculations may be limited to 100 Hz.

Update Rate

Each input is measured at a maximum rate which is dependent on the capabilities of the measuring device and may also vary between inputs on that device. For example the VIM has some inputs that update at 500 Hz and others that update as fast as 5000 Hz. See Update Rate Summary.

Anti-Alias Filter

If a channel is logged at a rate slower than its specified update rate then an optional anti-alias filter can be applied.

26 Configuration

The anti-alias filter is used to average out any variations in the signal between logged values. This ensures that unrepresentative values are not logged.

The anti-alias filter is implemented by averaging the channel values between logging events. For example, if a channel has an update rate of 1000 Hz a nd it is logged at 100 Hz then the preceding 10 samples will be averaged each time it is logged.

The anti-alias filter is normally turned on by default when a channel is added to the logging list, but may be turned off if required. For normal purposes it is recommended that the anti-alias filter is left turned on.

Note: For some channels the anti-alias filter cannot be turned on because the averaging performed by the filter would cause incorrect values. This is the case for on/off channels and channels where the bit value s have a particular meaning, for example error group channels.

Real Time Value (VIM/SVIM, ADL2, SDL)

For channels that come from a VIM, SVIM an ADL2 or an SDL the logging anti-alias filter also affects the real-time value of the channel. This is the value that all other parts of the system see, such as the various calculations.

Note: The anti-alias filter is limited to 50 Hz for real time values even if the channel is logged at a lower rate. For example, a channel logged at 10 Hz will be filtered and updated at 10 Hz in the logging and 50 Hz for the real time value.

Note: Channels that are not logged are updated at 50 Hz.

Real Time Value (For devices other than VIM, SVIM, ADL2, SDL)

The real time value from other devices and from internal calculations is not anti-aliased at the logging rate, however the value can be anti-aliased in the logging.

Phase Shift

The anti-alias filter will cause a phase shift (time delay) of half the logging rate. For example, a channel logged at 100 Hz is logged every 10 milliseconds, so it is delayed by 5 milliseconds.

For most purposes this time delay is not an issue. Channels logged at the same rate are delayed by the same amount, which

negates this effect when comparing these channels. This applies to all channels whether they are generated internally from a

calculation or whether they are generated externally from devices such as a VIM or a display device.

MoTeC Configuration 27 Track Map Sensor Requirements

In order for the i2 Data Analysis software to plot a track map the following sensors are required and must be logged.

• Lateral G force (internal sensor)

• Wheel Speed

• Lap Beacon (the ‘Beacon’ Channel must be logged)

• Optionally Longitudinal G force (internal sensor)

A Longitudinal G force sensor should be used if the vehicle has only one wheel speed sensor. This allows the analysis software to eliminate wheel lockups which is essential when creating or using a track map.

28 Configuration

Display

The C125 display is a high contrast, high brightness colour LCD display. The displayed channels and labels are configured on a display style chosen

from predefined styles.

To configure the display

1. On the Functions menu, click Display

2. Select the required mode (Race, Practice, Warmup) by selecting the relevant tab.

3. Select the required display style.

4. Set the labels and channels you want to display for each of the numeric displays. To do this:

a. Select the display. b. Select the Change button. Alternatively, double click on the relevant display.

29 MoTeC Configuration

Display Modes (Pages)

The display has three display modes; the default names are Race, Practice and Warmup. The mode is changed by pressing the button assigned to this function.

The mode names can be changed to suit your individual needs; this is done by double-clicking on the Page Label field.

Race Page

The Race display is normally used to display minimal information, e.g. RPM, Lap Time, Fuel Remaining or Laps Remaining.

Practice Page

The Practice display is normally used to display basic information, plus information to help the driver improve lap times, e.g. Lap Time, Lap Gain/Loss, Maximum Straight Speed, Minimum Corner Speed or Corner Exit Speed.

Warm-up Page

The Warm-up display is normally used to display important engine sensor readings during engine warm-up, e.g. RPM, Battery Voltage, Engine Temperature, Oil Pressure, Oil Temperature an d Fuel Pressure.

Gain / Loss Bar

The Gain / Loss bar can be configured to graphically represent the current value of the Lap Gain/Loss Running channel. If not configured the Gain / Loss Bar does not display.

Example Bar / Loss Bar

This bar can be customised to suit a user's preference. For example:

• Setting the scale and the time units.

• Customise the labels at either end of the bar (in the example above, Left

and Right is used, another example is +2 and -2, where 2 is the scaling value).

• Invert colours, that is - red or green on either side.

• Specify the negative to the left or right.

30 Configuration

Dial or Bar Graph (depending on style chosen)

Example dial

Example sweep bar

Example linear bar

The dial or bar graph has a user definable range and is typically used as a tacho, however it can be used to display any other value.

A fully programmable shift point can be displayed, which can also be gear dependent.

31 MoTeC Configuration

Top Displays

The three numeric displays shown above can be pro grammed to display any channel value.

The numeric displays can show any channel value plus up to two overri de values. Override values display each time their value is updated. This is useful for values that are updated periodically. The override values are shown for a programmable period of time. For example, a numeric display coul d normally show the Running Lap Time (which is continuously updating), then be overwritten by the Lap Time for 10 seconds each time the Lap Time is updated.

The label above each of the numeric displays can be changed to suit the channel assigned.

32 Configuration Centre Display

The centre display is normally used to display the current gear but can be used for other purposes.

Bottom Display

33 MoTeC Configuration

At the bottom, up to 20 lines can be accommodated, with each line containing up to 3 channel values at a time.

The label above each value can be changed to suit the chann el assigned. The 20 lines can be scrolled up or down using external buttons. Similar to the top numeric displays, the bottom display can show up to four

override values.

Four Line Style

Where the four line style is chosen, it shows four lines of values at a time, with up to three values per line. The 20 lines can be scrolled up or down, 4 lines at a time, using external

buttons.

Alarms

Any alarms generated are displayed at the bottom of the display. The active alarm message displays across the complete row, overriding all other values until the alarm is acknowledged. To draw the driver's attention to the display, it is recommended to activate a warning light.

The message can be defined as required and can include the current sensor reading or the sensor reading when the alarm was triggered.

The alarms remain active until they are acknowledged, either by a driver activated switch or automatically after a defined period of time.

34 Configuration

The warning alarm limits are fully programmable and may include up to 6 comparisons to ensure that the alarms are only activated at the correct time.

For example, an engine temperature alarm may activate at 95 °C if the ground speed has been above 50 km/h for 30 seconds. The speed comparison avoids the alarm showing during a pit stop due to heat soak. Additionally another comparison could be set at a higher temperature to cover all other situations.

The comparison values can be automatically incremented or (decremented) when an alarm occurs. For example the engine temperature alarm may be set at 95 °C with and increment of 5 °C, so the second time the alarm activates at 100 °C. A limit may be set on the number of times the comparison value is allowed to increment. An alarm may return to its original value after a period of time, in case the alarm condition was temporary.

The alarms can be dependent on the current display Mode (for example Warm-up, Practice or Race).

Display Formatting

Units

All display units can be changed to suit the driver preferences, for example, show temperatures in Fahrenheit rather than in Celsius.

Note: This is independent of the units used for other purposes.

Decimal Places

The number of decimal places can be reduced for display purpos es, for example the engine temperature is measured to 0.1 °C but is better displayed with no decimal places.

Other Functions

The C185 can perform many other functions accessible from the Functions menu including the following:

• Shift Lights – to configure the shift point values for use with the Shift Lights.

• Shift Light Module – to configure the C185 10 stage shift lights as well as an additional MoTeC's SLM-C or SLM.

• Telemetry to set up telemetry channels

• Tell-tales Setup to store minimum or maximum values

• Engine Log Setup to set up four separate engine logs with separate

conditions

MoTeC 35 Configuration

• Diagnostics Log Setup to set up conditions and channels for the diagnostics log

• Preserved Channels to set up the conditions when to prese rve channels

Refer to C185 Dash Manager online help for additional information.

36 Operation

Operation

To perform any of the activities in the Online menu, the PC needs to communicate to the C185.

Note: All other menu items perform offline activities.

Retrieving the Logged Data

• On the Online menu, cli ck Get Logged Data

A personal computer is used to unload the logged data from the C185. The logged data is then stored on the computer hard disk.

After each unload the user has the option to clear the logging memory. The unload may be interrupted part way through if necessary by

disconnecting the computer. The partial unload will contain the most recently logged data and will be stored on the computer hard disk. In this case the C185 logging memory is not cleared and logging will continue as normal at the end of the existing data. Next time the logged data is unloaded both the new data and the previously partly unloaded data will be retrieved.

Sending and Retrieving Configuration Files

• On the Online menu, cli ck Send Configuration to send the currently open configuration file

When a configuration file is sent to the C185 the existing C185 data is retrieved and stored in the From Dash Backups directory to use in case the data in the C185 needs to be restored. The maximum number of files is 10.

• On the Online menu, cli ck Get Configuration to retrieve the current configuration file

This is normally not necessary unless the original file is not available on the PC.

Zeroing Sensors

Some sensors require regular zeroing, for example Steering Angle, Suspension Position, Ride Heights, G Force Sensors & Throttle Position. C185 Dash Manager provides a feature for easy zeroing of all these senso rs.

MoTeC Operation 37

Checking Operation

Monitor Channels

• On the Online menu, cli ck Monitor Channels

• To show any channel on an oscilloscope style screen, click Utilities and

then Oscilloscope

The currently active channels can be monitored to check the opera tion of all functions and measurements.

Simulate

• On the Online menu, cli ck Simulate

The Simulate feature allows most input channels to be manually changed so that the C185 operation can be checked under abnormal conditions, e.g. High Engine Temp. This is extremely useful for checking that the C185 is working as expected.

Test

• On the Online menu cli ck the appropriate test

A number of tests are provided to check the operation of the C185, such as the Display Test.

Configuration Versions and Updating

• On the Online menu, cli ck Upgrade Dash Version

The software inside the C185 (firmware) can be updated by the user at any time to take advantage of the latest features.

Matching Versions

The firmware version must match the version of the C185 Dash Manager software on the PC in order to communicate. C185 Dash Manager will show a warning if the versions do not match.

Tip: To check the version of C185 Dash Manager, click About MoTeC C185 Dash Manager on the Help menu. The firmware version is displayed on the bottom line of the display for 2 seconds when the C185 is powering up.

Matching Configuration File

The configuration file must also match the software and firmware versions used. The display will show a warning if the file does not match.

38 Operation

Configuration files can be updated by choosing the option to automatically update the configuration file while updating the software (firmware). It can also be done manually by upgrading the configuration file and sending it to C185:

• On the File m enu, click Open

• In the Files of type box select the new version file extension.

The file will be converted to the new version format and saved with the same file name but with the new version file extension. Note: The old file is not changed.

• On the Online menu, cli ck Send Configuration to send the configuration file to the C185

Upgrading C185

• On the Online menu, cli ck Enable Dash Options Several options are available as upgrades to customise and grow your

system. The currently enabled options can be listed and new options can be activated

through a password acquired from MoTeC.

Password Protection

• On the Online menu, cli ck Set Access Passw ords Several C185 capabilities can be protected from unauthorised access by

using the password protection.

Other Online Activities

Many other activities are accessible from the Online menu including the following:

• Set Reference Lap to send a reference lap to the C185 used in the lap gain/loss system. See Calculations.

• View to view:

o configuration settings e.g. Tell-tales, Engine Log o GPS Beacon Definitions o saved details e.g. Running Totals o Device Halt Counts

• Retrieve to retrieve Tell-tales and Engine Log

• Communication to list the current Connections Settings

• Miscellaneous

MoTeC 39 Operation

o Erase Logged Data without unloading o Serial Number to view the Serial and Hardware Number.

The Serial Number is required when ordering upgrade passwords. The Hardware Number is for MoTeC internal use.

o Change Display Mode to switch between Race, Warm-up and Race

mode

Refer to C185 Dash Manager online help for additional information.

40 Appendices

Appendices

Specifications

Specifications listed as optional are available as upgrades to customise and grow your system. These additional features are activated through a simple password acquired from MoTeC, at any time when you need it. An overview of the upgrades can be found in C185 Upgrades.

Logging

• 250 MB standard logging memory (500 MB optional)

• Logging rates up to 1000 samples per second

• Fast Ethernet download

Display

• Type: Colour TFT LCD, anti-reflective

• Resolution: 800 x 480, anti-aliased graphics

• Layouts: selectable fixed layouts, user programmable layouts available in

future releases

• 48 user-defined, scrollable message lines with programmable overrides

• 3 programmable modes with customisable labels

Inputs

• 10 (20 with I/O upgrade*) analogue voltage inputs:

- 4 (8*) x 0 to 5.46 V, 1.33 mV resolution

- 6 (12*) x 0 to 15.0 V, 3.66 mV resolution

• 4 (8 with I/O upgrade) analogue temperature inputs

- 0 to 15 V, 3.66 mV resolution

• 4 x Digital inputs

• 4 x Speed inputs with voltage measuring capability

• 2 x Switched inputs

• Compatible with VIM/SVIM input expanders

Outputs

• 6 x PWM, digital or switched outputs (8 optional)

• 1.0 Amp max, current limited and thermal overload protected

• Compatible with up to 2 E888/E816 input/output expanders

MoTeC Appendices 41 Internal Sensors

• 3 axis G sensor

• Dash temperature sensor

• Sensor supply voltage

• Battery voltage

Communications

• 4 configurable CAN buses, with individually programm able CAN bus speeds. One can be used as RS232 Receive. Only 2 of the CAN buses support VIM/SVIM Expanders

o Maximum data range 1 Mbit/sec o Recommended terminating impedance 100 ohm

• 2 dedicated RS232 ports

Physical

• Size: 134.5 x 103.9 x 20.2 mm excluding connector

• Weight 410 g

• 1 x 79 pin Autosport connector

Power Supply

• Operating voltage: 6 to 32 volt DC

• Operating current: 0.5 ampere typical (excluding sensor currents)

• Reverse Battery protection

• Battery Transient protection

Operating Temperature

• Internal Temperature Range: –20 to 70 °C (above 60 °C maximum backlight brightness progressively reduced)

• Ambient Temperature Range: –20 to 55 °C

Sensor Supply Current

• 5 V Sensor supply: 0.25 ampere maximum

• 8 V Sensor supply: 0.25 ampere maximum

42 Appendices

C185 Upgrades

Several options are available as upgrades to customise and grow your system. These additional features are activated through a password acquired from MoTeC, at any time when you need it.

For the C185 Dash Logger the following upgrades are available:

Data Logging

Increases the internal logging memory to 500 MB. (Standard 250 MB memory available)

Pro Analysis

Provides access to advanced i2 Pro data analysis software with multiple graph overlays, X-Y plots, advanced maths functions, synchronised video (automatic alignment), and flexible layouts to accommodate virtually any user preference.

T2 Telemetry

Enables transmission of live data from the vehicle to the pit where it can be viewed in real time using the MoTeC Telemetry Monitor software. Requires radio modems or other means of transmission.

The upgrade allows use of the older Telemetry Monitor or T2 Telemetry.

Remote Logging

Enables conversion of telemetry data into a log file to use with i2 analysis software. Requires the Telemetry upgrade.

I/O

Provides additional input/output functionality consisting of:

• 10 extra analogue voltage inputs

• 4 extra analogue temperature inputs

• Advanced Functions, which provides:

- Advanced Maths

- Channel Maths

- 16 x 2D Tables (instead of 4)

- 16 x 3D Tables (instead of 4)

- 50 User Conditions (instead of 20)

MoTeC Appendices 43

Characteristics

Input Characteristics

Analogue Voltage Inputs

Suitable for: Potentiometers

Voltage output sensors Variable resistance sensors with pull-up

resistor

Measure Voltage Range:

Inputs 1—4 and 11—14: 0 to 5.46 V All other Inputs: 0 to 15.0 V Note: Voltages outside this range may affect

the readings on other inputs. Input Resistance: 100k ohms to 0 V Resolution:

Inputs 1—4 and 11—14: 1.33 mV

All other Inputs: 3.66 mV Measurement

Methods:

Ratiometric

Absolute

Variable Resistance Off/On Update Rate: 1000 times/second Filter: 240 Hz 1st order Calibration Accuracy: Gain 0.05% max (Ratiometric method)

Gain 0.15% max (Absolute method)

Offset ± 6 mV max

Linearity ± 6 mV max

Temperature Stability 60 ppm/°C max

Calibration Schedule 12 months

44 Appendices Analogue Temp Inputs

Suitable for: 2 wire variable resistance sensors some voltage

output sensors

Measure Voltage Range: 0 to 15.0 V

Note: Voltages outside this range may affect the

readings on other inputs.

Input Resistance: 1000 ohms pull-up to 5 V sensor supply

+100 k to 0 V

Resolution: 3.66 mV Measurement Methods: Ratiometric

Absolute

Variable Resistance

Off/On

Update Rate: 1000 times / second Filter: 290 Hz 1st order Calibration Accuracy:

Gain: 0.05% max (Ratiometric method)

Gain: 0.15% max (Absolute method)

Offset: ± 6 mV max

Linearity: ± 6 mV max

Temperature Stability: 60 ppm/°C max

Calibration Schedule: 12 months

Switch Inputs

Suitable for: Switch to 0 V

Off/On Voltage signal

Pull-up Resistor: 2200 ohms to 3.3 V Voltage Range: 0 to 15 V Positive Trigger Threshold: 2.4 V max Negative Threshold: 0.6 V min Hysteresis: 0.4 V Min Measurement Methods: Off/On only Filter Time Constant: 22 usec

MoTeC Appendices 45 Digital Inputs

Suitable for: Switch to 0 V

Logic signal and open collector device (e.g. Hall

Switch)

Pull-up Resistor: 2200 ohms to 3.3 V Voltage Range: 0 to 15 V Positive Trigger Threshold: 2.4 V max Negative Threshold: 0.6 V min Hyst eresis: 0.4 V min Update Rate: 100 times / second Filter Time Constant: 22 usec Measurement Methods:

Frequency

Resolution 0.1 Hz

Maximum Frequency 3200 Hz

Rising Edge Triggered

Period 1 usec

Measures period between rising edges

Resolution 1 usec

Maximum 32 msec

Period 100 usec

Measures period between rising edges

Resolution 100 usec

Maximum 3.2 sec

Pulse Width 1 usec

Measures pulse low time

Resolution 1 usec

Maximum 32 msec

Pulse Width 100 usec

Measures pulse low time

Resolution 100 usec

Maximum 3.2 sec

46 Appendices Speed Inputs

Hall mode

A 2200 ohm pull-up resistor connected to 2.7 V.

Suitable for: Switch to 0 V

Logic signal

Open collector device (e.g. Hall Switch)

Pull-up Resistor 2200 ohms to 2.7 V Voltage Range 0 to 15V Trigger Threshold Selectable between -1.33 V and 4.68 V

Magnetic mode

The pull-up resistor is disengaged and the

trigger levels can be varied depending on the

input frequency.

Suitable for: Two wire magnetic sensor (variable reluctan ce

sensor)

Input Resistance 100k ohms to ground (no pull-up) Voltage Range -80 V to +80 V Programmable trigger

levels

-1.33 V to 4.68 V

For both modes Update Rate: 100 times / second Filter Time Constant 25 usec Hysteresis 0.17 V min Measurement Methods:

Frequency

Resolution 0.1 Hz

Maximum Frequency 3200 Hz

Falling Edge Triggered

Period 1 usec

Measures period between falling edges

Resolution 1 usec

Maximum 32 msec

MoTeC Appendices 47

Period 100 usec

Measures period between falling edges

Resolution 100 usec

Maximum 3.2 sec

Pulse Width 1 usec

Measures pulse high time

Resolution 1 usec

Maximum 32 msec

Pulse Width 100 usec

Measures pulse high time

Resolution 100 usec

Maximum 3.2 sec

48 Appendices Analogue Input Sampling

4 times oversampling is scheduled with samples taken every 250 usec, providing measurements every 1 msec. The following inputs are sampled at 250 usec, with microsecond offsets as shown in the table:

Offsets

0.0 usec +1.5 usec +3.1 usec

0.0 usec AT1 AV1 AV15

+9.3 usec AT2 AV2 AV16 +20.9 usec AT3 AV3 AV17 +30.1 usec AT4 AV4 AV18 +39.4 usec AT5 AV5 AV19 +51.0 usec AT6 AV6 AV20 +60.3 usec AT7 AV7 AV21 +71.9 usec AT8 AV8 AV22 +81.1 usec N/A AV9 AV23 +90.4 usec 8VSEN AV10 AV24

+102.0 usec 5VSEN AV11 INT TEMP +111.3 usec ACCELX AV12 SPD1 +122.9 usec ACCELY AV13 SPD2 +132.1 usec ACCELZ AV14 SPD3 +141.4 usec N/A BAT VOLTS SPD4

Output Characteristics

Output Type: Open Collector (Drives to ground) with weak pull-up

(10 kΩ) to battery positive Current: 1.0 A max, current limited & thermal overload protected Output Clamp: 40 V Flyback Clamp (no clamp diode to supply).

MoTeC Appendices 49

Pin List by Pin Number

Pin Name Function

1 AV15 Analogue Voltage Input 15 2 AV16 Analogue Voltage Input 16 3 AV17 Analogue Voltage Input 17 4 AV18 Analogue Voltage Input 18 5 AV19 Analogue Voltage Input 19 6 0V Sensor 0 V 7 BAT- Battery Negative 8 BAT+ Battery Positive 9 AUX1 Auxiliary Output 1 10 AUX2 Auxiliary Output 2 11 AUX3 Auxiliary Output 3 12 AUX4 Auxiliary Output 4 13 AUX5 Auxiliary Output 5 14 AUX6 Auxiliary Output 6 15 RS232-2 TX RS232-2 Transmit Output 16 RS232-2 RX RS232-2 Receive Input 17 0V Sensor 0 V 18 5V Sensor 5 V 19 AV7 Analogue Voltage Input 7 20 AV8 Analogue Voltage Input 8 21 AV9 Analogue Voltage Input 9 22 AV10 Analogue Voltage Input 10 23 AV11 Analogue Voltage Input 11 24 AV12 Analogue Voltage Input 12 25 AV13 Analogue Voltage Input 13

50 Appendices

Pin Name Function

26 AV14 Analogue Voltage Input 14 27 0V Sensor 0 V 28 5V Sensor 5 V 29 Reserved 30 Reserved 31 Reserved 32 Reserved 33 0V Sensor 0 V 34 AT1 Analogue Temp Input 1 35 AT2 Analogue Temp Input 2 36 AT3 Analogue Temp Input 3 37 AT4 Analogue Temp Input 4 38 AT5 Analogue Temp Input 5 39 AT6 Analogue Temp Input 6 40 0V Sensor 0 V 41 AT7 Analogue Temp Input 7 42 AT8 Analogue Temp Input 8 43 0V Sensor 0 V 44 5V Sensor 5 V 45 AV1 Analogue Voltage Input 1 46 AV2 Analogue Voltage Input 2 47 AV3 Analogue Voltage Input 3 48 AV4 Analogue Voltage Input 4 49 AV5 Analogue Voltage Input 5 50 AV6 Analogue Voltage Input 6 51 0V Sensor 0 V 52 DIG1 Digital Input 1

MoTeC Appendices 51

Pin Name Function

53 DIG2 Digital Input 2 54 DIG3 Digital Input 3 55 DIG4 Digital Input 4 56 0V Sensor 0 V 57 SW1 Switch Input 1 58 SW2 Switch Input 2 59 CAN4L CAN 4 Low 60 CAN4H CAN 4 High 61 0V Sensor 0 V 62 8V Sensor 8 V 63 SPD1 Speed Input 1 64 SPD2 Speed Input 2 65 SPD3 Speed Input 3 66 SPD4 Speed Input 4 67 E-TX+ Ethernet Transmit + 68

E-TX– Ethernet Transmit – 69 AV20 Analogue Voltage Input 20 70 RS232-1 TX RS232 Transmit Output 71 CAN3L CAN 3 Low 72 CAN3H CAN 3 High 73 CAN1L CAN 1 Low 74 CAN1H CAN 1 High 75 CAN2L CAN 2 Low / RS232 Ground Input 76 CAN2H CAN 2 High / RS232 Receive Input 77 E-RX+ Ethernet Receive + 78

E-RX– Ethernet Receive – 79 RS232-1 RX RS232 Receive Input

52 Appendices

Pin List by Function

Pin Name Function

Battery Power

7 BAT- Battery Negative 8 BAT+ Battery Positive

Analogue Voltage Inputs

45 AV1 Analogue Voltage Input 1 46 AV2 Analogue Voltage Input 2 47 AV3 Analogue Voltage Input 3 48 AV4 Analogue Voltage Input 4 49 AV5 Analogue Voltage Input 5 50 AV6 Analogue Voltage Input 6 19 AV7 Analogue Voltage Input 7 20 AV8 Analogue Voltage Input 8 21 AV9 Analogue Voltage Input 9 22 AV10 Analogue Voltage Input 10 23 AV11 Analogue Voltage Input 11 24 AV12 Analogue Voltage Input 12 25 AV13 Analogue Voltage Input 13 26 AV14 Analogue Voltage Input 14 1 AV15 Analogue Voltage Input 15 2 AV16 Analogue Voltage Input 16 3 AV17 Analogue Voltage Input 17 4 AV18 Analogue Voltage Input 18 5 AV19 Analogue Voltage Input 19 69 AV20 Analogue Voltage Input 20

MoTeC Appendices 53

Pin Name Function

Analogue Temp Inputs

34 AT1 Analogue Temp Input 1 35 AT2 Analogue Temp Input 2 36 AT3 Analogue Temp Input 3 37 AT4 Analogue Temp Input 4 38 AT5 Analogue Temp Input 5 39 AT6 Analogue Temp Input 6 41 AT7 Analogue Temp Input 7 42 AT8 Analogue Temp Input 8

Switch Inputs

57 SW1 Switch Input 1 58 SW2 Switch Input 2

Digital Inputs

52 DIG1 Digital Input 1 53 DIG2 Digital Input 2 54 DIG3 Digital Input 3 55 DIG4 Digital Input 4

Speed Inputs

63 SPD1 Speed Input 1 64 SPD2 Speed Input 2 65 SPD3 Speed Input 3 66 SPD4 Speed Input 4

Auxiliary Outputs

9 AUX1 Auxiliary Output 1

54 Appendices

Pin Name Function

10 AUX2 Auxiliary Output 2 11 AUX3 Auxiliary Output 3 12 AUX4 Auxiliary Output 4 13 AUX5 Auxiliary Output 5 14 AUX6 Auxiliary Output 6

8 V Sensor

62 8V Sensor 8 V

5 V Sensor

18 5V Sensor 5 V 28 5V Sensor 5 V 44 5V Sensor 5 V

0 V Sensor

6 0V Sensor 0 V 17 0V Sensor 0 V 27 0V Sensor 0 V 33 0V Sensor 0 V 40 0V Sensor 0 V 43 0V Sensor 0 V 51 0V Sensor 0 V 56 0V Sensor 0 V 61 0V Sensor 0 V

CAN Interface

73 CAN1L CAN 1 Low 74 CAN1H CAN 1 High 75 CAN2L CAN 2 Low / RS232 Ground Input

MoTeC Appendices 55

Pin Name Function

76 CAN2H CAN 2 High / RS232 Receive Input 71 CAN3L CAN 3 Low 72 CAN3H CAN 3 High 59 CAN4L CAN 4 Low 60 CAN4H CAN 4 High

Ethernet

68 E-TX- Ethernet Transmit - 67

E-TX+ Ethernet Transmit + 78 E-RX- Ethernet Receive - 77

E-RX+ Ethernet Receive +

RS232

70 RS232-1 TX RS232 Transmit Output 79 RS232-1 RX RS232 Receive Input 15 RS232-2 TX RS232-2 Transmit Output 16 RS232-2 RX RS232-2 Receive Input

Reserved

29 30 31 32

56 Appendices

Mounting Dimensions

C185

Note:

• All dimensions in [mm]

• Ensure product is not stressed when mounted

• Dimensions indicate actual product size, allow for clearance when

mounting

MoTeC Appendices 57

Wiring

Connector

C185 connector

79 pin Autosport connector

Mating connector

#68086

Wire Specification

Wire

Wire to suit C185 connector: 22# Tefzel, Mil Spec : M22759/16-22

M22759/16 Wire Ratings (for various wire gauges)

Insulation Material: Tefzel Conductor: Tin Plated Copper Voltage Rating: 600 V

Maximum Temperature: 150 °C

Wire Gauge [AWG]

Cross Sectional Area [mm2]

Max Current at 100 °C Ambient [A]

Resistance [ohm / m])

Resistance [ohm / 1000 ft]

22 0.38 5 0.045 14 20 0.61 6 0.028 8.5 18 0.96 9 0.018 5.5 16 1.2 12 0.014 4.3 14 1.9 18 0.009 2.7 12 3.0 24 0.006 1.8

Crimp Tool

Crimp Tool: M22520/2-01 Positioner for Crimp Tool: M22520/2-07 Crimp Contacts are type 22D (needed to set the crimp tool correctly)

Wire Stripping Tool

Recommended: Ideal Industries 45-2133 stripping tool with LB1195 wire stop

58 Appendices

PC Connection

Ethernet Wiring Schematic:

ADL3 / C185

Ethernet Connector pin

Pin Function Pin Function

Ethernet RX + 1 Ethernet TX + 78 Ethernet RX – 2 Ethernet TX – 67 Ethernet TX + 3 Ethernet RX + 68 Ethernet TX – 6 Ethernet RX –

Pin numbering

Plug Socket

Wire

CAT5 UTP Ethernet cable

Cable

An Ethernet RJ45 socket, connecting to a standard Ethernet cable, is provided on:

• #62207 C185 loom incorporating

• #61131 Ethernet cable, unterminated, 2 meter

• #61132 Ethernet to Autosport pins cable, 1.8 m

MoTeC Appendices 59

CAN Bus Wiring Requirements

• The CAN bus should consist of a twisted pair trunk with 100R (0.25 watt)

terminating resistors at each end. o If the CAN bus is less than 2 meter (7 ft) long, a single termination

resistor may be used.

• The preferred cable for the trunk is 100R data cable.

• The maximum length of the bus is 16 meter (50 ft)

• CAN devices (such as MoTeC Dash Loggers, ECUs etc) may be

connected to the trunk with up to 500 mm (20 in) of twisted wire.

CAN-LO

CAN-HI

100R

100

CAN-LO

CAN-HI

CAN

Device

500 mm max

<< CAN Bus >>

500mm max

10 0R Ter m inati ng Resistors at each end of the CAN Bus

CAN-LO

CAN-HI

CAN

Device

CAN-LO

CAN-HI

CAN

Device

These wires must be twisted

Minimum one twist per 50 mm (2 in)

60 Appendices

C185 to ECU wiring (RS232)

The following details the methods for connecting the C185 to the various MoTeC ECUs via RS232. In all cases this is done using the serial data stream generated by the Telemetry function of each ECU.

In the case of the M800, M880 and M4e the C185 may be directly wired to the ECU because these ECUs use RS232 interface levels. On the M48, M4 (pre M4e) and the M8, a Computer Interface Module (CIM) or a PCI cable is required to convert the signals to RS232.

M800 / M880

Note:

• The data to the C185 will be interrupted while a PC is connected (DOS

software only)

• The 9 pin connector is not used if using the Windows Calibration software.

• Data may be sent to the C185 via the CAN bus as an alternative to the

serial connection.

M4e

Note:

• Older M4 ECUs require a different connection method

• The data to the C185 will be interrupted while a PC is connected.

M48, M4 (pre M4e) and M8

The M48 & M8 and M4 (pre M4e) require the use of a CIM module or a PCI Cable to convert the logic level signals used by these ECUs into RS232 levels.

MoTeC Appendices 61

Using a CIM Module

Refer to the CIM module drawing for full wiring details. Note: The data to the C185 will be interrupted while a PC is connected.

62 Appendices

Update Rate Summary

Device Input Type Maximum Update

Rate (per second)

C185 Analogue Voltage Inputs 1000 C185 Analogue Temperature Inputs 1000 C185 Digital Inputs and Speed Inputs 100 C185 RS232 and CAN Communications 50 max * C185 CAN comms fast receive 1000 ACL RS232 Communications 200 * ACL General CAN communications 200 * VIM AV Fast Inputs 5000 VIM AV Differential Voltage Inputs 1000 VIM AV High Resolution Inputs 500 VIM AV Special Inputs 2000 VIM Speed Inputs 100 ADL2/SDL Analogue Voltage Inputs 1 to 4

(ADL2/SDL) and 11 to 14 (ADL2)

1000

ADL2/SDL Other Analogue Voltage Inputs 500 ADL2/SDL Analogue Temperature Inputs 500 ADL2/SDL Lambda Inputs 100 ADL2/SDL Digital & Speed Inputs 100 SDL Internal G Sensors 100 E888 Thermocouple Inputs

(First Device / Second Device)

100 / 50

E888/816 Analogue Voltage & Digital Inputs

(First Device / Second Device)

200 / 50

* RS232 & General CAN Communications update rate depends on how frequently the data is sent from the device. Typically the update rate from an M4, M48, M8 or M800 ECU is about 20 times per second using RS232 and about 50 times per second for the M800 using CAN.

MoTeC Appendices 63

Command line

Usage:

dash.exe -c[connection] -d -x -l -e -t -s [config file name]

[config file name] (Optional) Fully qualified path to the configuration file. (eg "c:\motec\dash\config\bathurst.d30") Note: the path must included the file extension (eg .d30)

Options :

Each of the following options can be given as "/[character]" or "-[character]". They are shown here as "-[character]".

-c[Connection Name] (Optional) Select a preconfigured connection by name as configured in the dash

connections dialog. (eg -c"Primary CAN Connection"). Note: There must not be a space between the c and the connection name.

-d (Optional) Causes the debug console to be displayed. Only available for debug builds.

-x (Optional) Causes the app to terminate when one the following tasks has been

performed.

64 Appendices

Tasks :

One or more of the following may be specified.

-l (Optional) Perform a “Get Logged Data” operation.

-e (Optional) Perform a “Get Engine Log” operation.

-t (Optional) Perform a “Get Tell-tale Values” operation.

-p (Optional) Perform a “Print Summary” operation. Note: The configuration file must be specified using a fully qualified path

including the file extension. (e.g. -p "c:\motec\dash\config\bathurst.d30") Note: There must be a space between -p and configuration file name.

-s (Optional) Perform a “Send Configuration” operation. Note: The configuration file must be specified using a fully qualified path

including the file extension. (e.g. -s "c:\motec\dash\config\bathurst.d30") Note: There must be a space between -s and configuration file name.

-u (Optional) Perform an “Upgrade Dash Version” operation.

MoTeC Appendices 65

CAN Bus Bandwidth Limit

The total available CAN bandwidth available on a single CAN bus is 1 Mbit/sec.

The bandwidth used by the total of all devices on a particular CAN bus must not exceed approximately 90% of this value (900000 bits/second)

If the total bandwidth required exceeds this specification then some devices should be connected to the second CAN bu s.

Note: C185 Dash Manager will warn if the bandwidth is likely to be exceeded.

VIM

Approximate Bandwidth = Total Measurement Rate (samples/sec) x 30 (bits per sample)

Note: The Measurement Rate for each input is equal to the logging rate for that input or 50 Hz, whichever is higher.

Example Calculation

4 channels at 2000 Hz 20 channels at 500 Hz 40 channels at 20 Hz (Occupies 50 Hz)

Calculation:

Total Measurement Rate = 4 x 2000 + 20 x 500 + 40 x 50 = 20000 (samples/sec)

Approximate Bandwidth = 20000 x 30 = 600000 (bits/sec)

E888/E816

Device on first CAN Address

Bandwidth = 145000 (bits/sec)

Device on second CAN Address

Bandwidth = 55000 (bits/sec)

Other Devices

BR2, SLM , PLM Negligible SDL, ADL2, MDD, M800 ECU TBD

66 Appendices

Comms Error Codes

The "Comms CAN x Diagnostic" and "Comms RS232 Diagnostic" channels seen can be used to diagnose communications problems.

Multiple errors are shown by error codes added together. For example: A RS232 error of 9 = parity + overrun.

The error values have the following definitions:

RS232 Errors

Errors generated by RS232 communications. 1 PARITY Parity bit incorrect. The comms parity setup is

wrong, or there is electrical interference causing errors in the data.

2 FRAMING Not seeing the stop bit. The baud rate or stop

bit setup is wrong or there is electrical interference causing errors in the data.

4 NOISE Glitch in the data. Electrical interference is

causing glitches in the signal. (C185 does not generate this error)

8 OVERRUN A byte was received before the previous byte

was read indicating that the processor was too busy to read the message.

512 NO DATA A valid message header was not found - either

there is a wiring fault or comms is setup incorrectly.

1024 CHECKSUM A valid message header was found, but the

checksum was wrong. If seen in combination with other errors there is electrical noise. If only checksum errors occur there may be a software incompatibility between the C185 and the other device.

2048 WRONG DATA Could not decode the protocol.

General CAN Errors

Errors generated by general CAN communications. 2 FRAMING Only generated when used with an

E888/E816 expander. Inconsistent message length.

MoTeC Appendices 67

8 OVERRUN Receive or transmit overrun error. In the

receive case a byte was received before the previous byte was read indicating that the processor is too busy to read the message. In the transmit case the transmit buffer is full which could happen if the CAN bus is too busy.

256 BAD CONFIG The device configuration is not valid (eg

overlapping CAN addresses)

512 NO DATA A valid message header was not found -

either there is a wiring fault or comms is setup incorrectly, (problem could be at either end). E.g.: transmit and receive CAN IDs do not match.

1024 CHECKSUM Only generated when used with an Async

Expander. See RS232 errors

2048 WRONG DATA Only generated when used with an Async

Expander or E888/E816 Expander. Async Expander: Could not decode the protocol. E888/E816: Compound ID incorrect.

4096 BUS WARNING More than 96 errors have occurred on the

CAN bus. Check wiring and termination resistors. The CAN bus may still be operational.

8192 BUS OFF More than 255 errors have occurred on the

CAN bus. CAN communications is suspended when this error occurs. Check wiring, termination resistors and the CAN baud rate. Also check that CAN HI and CAN LO are correct (not swapped).

16384 CAN TRANSMIT CAN bus transmit warning

"VIMCOM" Errors

Errors generated by "VIMCOM" devices (VIM, ADL2, SDL). Note: VIM COM devices are connected via CAN.

C185 Errors

These errors are generated by the C185 communications system.

2 FRAMING Incorrect number of samples received.

68 Appendices

256 BAD CONFIG Configuration mismatch between C185

and device. Resend the configuration.

512 NO DATA VIMCOM packets have not been foun d.

Either there is a wiring fault or C185

Connections is setup incorrectly. 2048 WRONG DATA VIMCOM packet has bad length. 4096 BUS WARNING More than 96 errors have occurred on

the CAN bus. Check wiring and

termination resistors. The CAN bus may

still be operational. 8192 BUS OFF More than 255 errors have occurred on

the CAN bus. CAN communications is

suspended when this error occurs.

Check wiring, termination resistors and

the CAN baud rate. Also check that CAN

HI and CAN LO are correct (not

swapped).

VIMCOM Device Errors.

These error codes are sent once by the VIMCOM device on resumi ng data transmission and therefore indicate why data was previously not being transmitted.

4097 STARTUP Device has restarted (normally due to

power up) Data is not sent until sync is

achieved. 4098 HALT Data not sent due to deliberate halt. For

example configuration or firmware being

sent. 4099 OVERRUN Data not sent due to transmit buffer

overrun (possibly due to CAN bus too

busy) 4100 SYNC TIMEOUT Data not sent due to C185 sync

message timeout (sync not received

from C185) 4101 CAN ERROR Data not sent due to error on CAN bus 4102 SYNC

EXCEEDED

Data not sent due to excessive sync

error (synchronisation too far out)

MoTeC Appendices 69

PC Connection - IP Address

Basic Direct Connection (Automatic IP Address)

The simplest way to connect the C185 to a PC is directly to an Ethernet port on the PC and using the default network settings (automatically obtain an IP address)

This method can take up to 60 seconds to connect on Windows XP. On Windows Vista it takes approximately 8 seconds. This delay will occur every time the Ethernet cable is connected to the C185 or the C185 is power cycled.

The advantage of this method is that the PC can be connected to a network when it is not connected to the C185 without having to change any settings on the PC (assuming the network is configured to obtain an IP address automatically)

When the C185 is connected to the PC, a network conne ction icon will appear in the Windows taskbar tray. To check that connection is in progress, place the cursor over this icon. It will show “Acquiring Network Address”. Once the connection is established the message will show "Limited or No Connectivity". This is normal when using this method and means tha t Windows has automatically assigned an IP Address to the PC.

To check if the PC is configured to obtain an IP address automatically:

1. Click Start | Settings | Control Panel

2. Double click on Network Connections

3. Double click on the connection that is to be used to connect to the C185, usually this is called Local Area Connection

4. Click Properties

5. Select Internet Protocol (TCP/IP) from the list

6. Click Properties

7. Ensure that Obtain an IP address automatically is selected

70 Appendices

Fast Direct Connection (Fixed IP Address)

If the Basic Direct Connection method takes too long to connect, a more advanced setup can be used to reduce connection times to around 3 seconds.

Notes:

• Please be aware that changing the PC's network settings can make connections to other devices on the network stop working.

• Only change the PC network settings if the PC does not need to be connected to a network or to a device such as a cable or ADSL modem via the same Ethernet port.

• If the PC has a second Ethernet port that is not used to connect to a network then this can be used without affecting the network.

• On some PCs an unused Ethernet port may be available if the PC always connects to the network via a wireless connection.

MoTeC Appendices 71

To configure the PC with a fixed IP address:

1. Click Start | Settings | Control Panel

2. Double click on Network Connections

3. Double click on the connection that is used to connect to the C185, usually Local Area Connection

4. Click Properties

5. Select Internet Protocol (TCP/IP) from the list

6. Click Properties

7. Select Use the following IP address

8. Enter the IP address and Subnet mask shown below.

Network Connection

The C185 can also be connected to a network rather than directly to a single PC. This allows any PC on the network to communicate with the C185.

The connection time to the C185 will be less than 3 seconds (if the C185 is already powered and running)

Note: The PC network settings should not be changed.

72 Appendices Network Switches and Cables

The C185 must be connected to the network via a network switch. All MoTeC's PC connection cables (see PC Connection) are Ethernet

crossover cables, that allow direct connection to a PC and are compatible with network switches that support auto cable sensing (sometimes called “AutoMDI/MDI-X” or “Universal Cable Recognition”)

If the network switch does not support crossover cables MoTeC recommends upgrading the network switch rather than having two types of cables, which may cause confusion.

MoTeC Appendices 73

Windows Keyboard Shortcuts

When using a laptop in and around a car, it is often not practical to use a mouse to navigate through the program.

Using the keyboard to select options is easier.

Main Men u

To access the main menu, press ALT + the key for the underlined letter in the menu, followed by the underlined letter of the item in the drop down menu. E.g. ALT + F, N for F

ile New.

Alternatively press and release ALT, select the desired menu item using the arrow keys, press ENTER to activate it.

Closing a Window

Press ENTER for OK or Close (only when the OK or Close button has a bold line around it)

Press ESC to Cancel or Close

Getting Help

• Press F1 to get help on the current window or item

• Press ALT + H if the screen has a Help button

• Select Help from the Main Menu to access the main help system.

74 Appendices Selecting an Item in a Window

To access the various items in a window, press ALT + the key for the underlined letter of the item of interest, e.g. to select the ‘F

lash Light’ item

press ALT + F Alternatively use the TAB key to move through the dialog box (use SHIFT +

TAB to move backwards). The selected control is usually indicated by a dotted line around it, or by highlighting the text or item selected within the control.

Using the Selected Item

The method of using the selected item (or control) depends on the type of control. The common controls are detailed below:

Command Button

Command buttons are generally used to show another screen or perform a particular function.

Press ALT + the key for the underlined letter (S

), or use the TAB key to

navigate to the command button. To select, press ENTER or SPACEBAR.

Check Box

A check box is used to tick on or off a particular option. Press ALT + the key for the underlined letter (F

), or use the TAB key to

navigate to the Check Box. To select, press SPACEBAR.

MoTeC Appendices 75

Group Box

The Group box is used to select an item from a group of options. Press ALT + the key for the underlined letter (F,

A or D), or use the TAB

key to navigate to the Group box. To select, use the arrow keys.

Text Box

A text box is used to enter a value or text. Press ALT + the key for the underlined letter (M

) or use the TAB key to navigate to the Text box, type in the new value or text. Use the BACKSPACE or DELETE to remove unwanted characters.

List Box

A list is used to select from a number of options. Press ALT + the key for the underlined letter (M

) or use the TAB key to navigate to the List Box. To select, use the arrow keys.

Drop-down List Box

A Drop-down list box is used to select from a number of items, but only the selected item is shown until a new item needs to be selected.

76 Appendices

Press ALT + the key for the underlined letter (L) or use the TAB key to navigate to the Drop down List Box. To select the desired item, use the arrow keys, and press ENTER to close the list.

Tabs

Tabs are used to select the different tab pages of a screen. To select the next tab, press CTRL + TAB. To select the previous tab,

press CTRL + SHIFT +TAB.

Tree Structure

A Tree Structure is used to select items from a hierarchical list The UP ARROW key moves the cursor up (selects the item above) The DOWN ARROW key moves the cursor down (selects the item below) The RIGHT ARROW key expands; expandable branches indicated by a

plus sign (+) The LEFT ARROW key collapses; collapsible branches indicated by a

minus sign (-)

MoTeC Appendices 77

Glossary

MoTeC Devices

ACL Advanced Central Logger ADL2 Advanced Dash Logger - second generation C185 Colour Display Loger BR2 Beacon Receiver BTX Beacon Transmitter CIM Computer Interface Module CLS Central Logging System DBW4 Drive By Wire expander E816 Input/Output Expander E888 Input/Output Expander i2 MoTeC data analysis software i2 Pro MoTeC data analysis software, professional version IEX Ignition EXpander LTC Lambda to CAN module LTCD Lambda to CAN Dual module M1 Latest ECU for modern engines M2R ECU dedicated to run 2 rotor engines M4 ECU for engines with up to 4 cylinders or up to 2 rotors M400 ECU for modern engines with up to 4 cylinders or up to 2 rotors M48 ECU for engines with up to 8 cylinders and 2 rotors M600 ECU for modern engines with up to 6 cylinders or up to 3 rotors M800 ECU for modern engines with up to 12 cylinders or up to 4

rotors M800 Plug-In ECU for direct replacement of a factory ECU M880 ECU for modern engines with up to 12 cylinders or up to 4

rotors MDC Mitsubishi Diff Controller MDD Mini Digital Display MLS ECU dedicated to run Chevrolet LS1 and Lexus/Toyota V8s PCI cable PC Interface cable PDM15 Power Distribution Module with 15 outputs

78 Appendices

PDM16 Power Distribution Module with 16 outputs PDM30 Power Distribution Module with 30 outputs PDM32 Power Distribution Module with 32 outputs PLM Professional Lambda Meter RTC Real Time Clock SDC Subaru Diff Controller SDL Sport Dash Logger SGA Strain Gauge Amplifier SLM Shift Light Module SUU Software Update Unit TCM Traction Control Module VIM Versatile Input Module

Other

Calibration The process of converting an electrical value into a physical

value e.g. Volts into kilometres per hour CAN Controller Area Network - communication protocol CDI Capacitive Discharge Ignition ECU Engine Control Unit GPS Global Positioning System MAF Mass Air Flow MAP Manifold Absolute Pressure PID Proportional, Integral and Derivative gain PWM Pulse Width Modulated. RPM Revolutions Per Minute RS232 Recommended Standard 232, communication protocol RX Receive TDC Top Dead Centre TX Transmit

MoTeC Notes 79

Motec Systems C185 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
