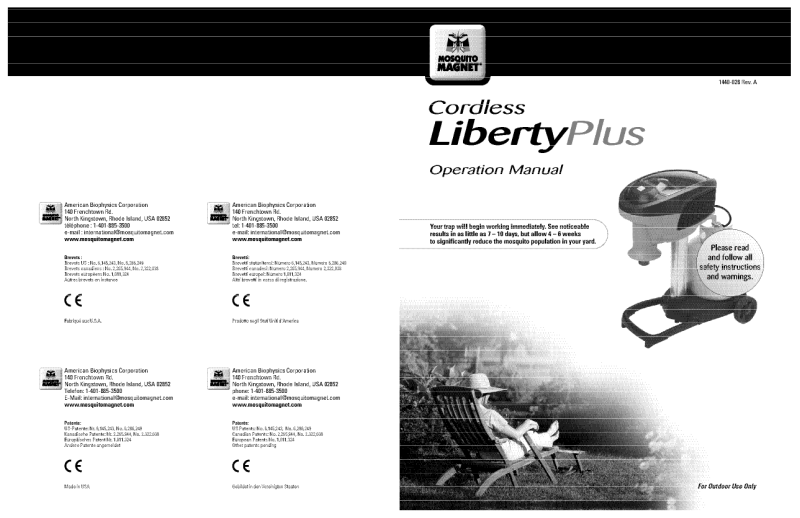

Mosquito Magnet LIBERTY PLUS User Manual

1

For accessories and additional info contact your local dealer/distributor.
Dealer contact info can be found at: www.mosquitomagnet.com/dealers

Model No.: Liberty Plus

Serial No.:

Type of Gas: P r o p a n e / B u t a n e

Manifold Pressure: 100 – 110 psi

Minimum Gas Supply Pressure: 28cm WC

Input Rating: 650 Btu/Hr.

Minimum Clearances: 5 1 c m - 6 1 c m

Contents

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Principal Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Additional Components . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8

Charging trap
Trap Placement
Propane Tank Installation
Tank Changing Ti p s

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Starting Instructions
Shut-Down Instructions
For Best Results

Quick Clear Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

LED Fault Codes

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

How the Mosquito Magnet®Works

Mosquitoes and other biting insects use the long-range
attractant carbon dioxide (CO2) to locate people. Once in close
p r o x i m i t y, mosquitoes use short-range attractants such as
scents emitted from the skin, to determine which person they
are going to bite. The Mosquito Magnet®mimics a human
by converting propane to CO2, with its patented catalytic
conversion technology, in combination with a short-range
attractant (patent pending).

Attracted by the CO2and short-range attractant, mosquitoes
and other biting insects are drawn to the Mosquito Magnet®.
When they reach the trap, the insects are vacuumed into
a net by our patented Counterflow Technology™, where they
dehydrate within 24 hours.

The Mosquito Magnet®is silent and odorless. When properly
placed in your yard, the trap begins working immediately.
Noticeable results can be achieved in 7 to 10 days. To greatly
reduce your biting insect population, allow 4 – 6 weeks.
Leave the Mosquito Magnet®out all season long, to control
the mosquito population in your yard.

Only biting insects are targeted including mosquitoes,
no-see-ums, biting flies and biting midges, not beneficial
insects such as butterflies, bees or moths.

Questions or Comments

Please contact your local dealer if you have any questions
or experience any problems with your Mosquito Magnet®.

American Biophysics Corporation
140 Frenchtown Rd.
North Kingstown, RI 02852
P: 1-401-884-3500
F: 1-401-471-6124

w w w.mosquitomagnet.com

Counterflow Te c h n o l o g y

T M

3

For accessories and additional info contact your local dealer/distributor.
Dealer contact info can be found at: www.mosquitomagnet.com/dealers

Safety Instructions

Please read and follow all safety
instructions and warnings.

For your safety if you smell gas:

1 . Shut off the gas to your Liberty Plus.
2 . Extinguish any open flame.
3 . If odor continues, immediately call

your gas supplier.

4 . Do not store or use gasoline or other

flammable vapors and liquids in the
vicinity of this or any other appliance.

5 . The Liberty Plus is for outdoor use

o n l y . If stored indoors detach and
leave propane cylinder outdoors
at all times.

Note:

Some or all of the following required safety
instructions for propane powered devices may apply
to your Liberty Plus.

Wa r n i n g :

Improper installation, adjustment,
alteration, service or maintenance can cause injury or
property damage. Read the installation, operating and
maintenance instructions thoroughly before installing
or servicing the Liberty Plus.

C a u t i o n :

The gas pressure regulator provided with this
appliance must be used. This regulator is set for an outlet
pressure of 28cm Water Column. The minimum inlet gas supply
pressure is 28cm WC from regulator.

•

The gas supply must be turned off at the LP-Gas supply cylinder
when this appliance is not in use.

•

The installation must conform with local codes or, in the absence
of local codes, with the National Fuel Gas Code, ANSI Z223.
1-1998 for US and with the CAN1-B149 for Canada.

•

To test for a gas leak, place soapy water around the regulator.
If bubbles appear, there is a gas leak.

•

The hose assembly must be replaced prior to the appliance being
put into operation if there is evidence of excessive abrasion or
w e a r, or if the hose is damaged. The replacement hose assembly
shall be that specified by the manufacturer.

•

The Liberty Plus is equipped with an internal hot surface ignition
device. Failure to follow starting procedure will result in the trap
not starting.

•

Installation and repair should be done by a qualified service person.
The heater should be inspected before use and at least annually by
a qualified service person. More frequent cleaning may be required
as necessary. It is imperative that the control compartment, burners,
and circulating air passageways of the heater be kept clean.

•

Adequate clearances of 50.6cm – 60.96cm around air openings
into the combustion chamber, clearances from combustible
material, provisions for accessibility and for combustion and
ventilating air supply. Keep the Liberty Plus area clear and free
from combustible materials, gasoline, and other flammable vapors
and liquids. The appliance is not to be used in locations where
flammable vapor or explosive dust is likely to exist.

•

Do not obstruct the flow of combustion and ventilation air.

•

Keep the ventilating openings of the cylinder enclosure
free and clear from debris.

•

Clean the Liberty Plus with a water damp cloth, if necessary.

•

A maximum of a 20 lb. LP-Gas cylinder shall be used without
a base extension.

Children and adults should be
alerted to the hazards of high surface
temperatures and should stay away
to avoid burns or clothing ignition.

Young children should be carefully
supervised when they are in the area
of the heater. Keep out of reach of
children.

Clothing or other flammable materials
should not be hung from the heater,
or placed on or near the heater.

5

For accessories and additional info contact your local dealer/distributor.
Dealer contact info can be found at: www.mosquitomagnet.com/dealers

4

American Biophysics

Principal Parts

Parts Included

Safety Instructions

•

The LP-Gas cylinder must be provided with a shut-off valve
terminating in an LP-Gas supply cylinder valve outlet specified for
Connection No. 510 in the Standard for Compressed Gas Cylinder
Valve Outlet and Inlet Connections, ANSI/CGA-V- 1 - 1 9 7 7 .

•

The LP-Gas cylinder supply system must be arranged for vapor
withdrawal and the cylinder must include a collar to protect the
cylinder valve.

•

The LP-Gas cylinder used shall be constructed and marked in
accordance with the specifications for LA-Gas cylinders of the
U.S. Department of Transportation (DOT).

•

The Liberty Plus shall be used outdoors only in a well ventilated
space and shall not be used in a building, garage,
or any other enclosed area.

•

The LP-Gas cylinder must be disconnected and removed from
the appliance, if the appliance is stored indoors.

•

LP-Gas cylinders must be stored outdoors in a well-ventilated
area out of reach of children.

•

Disconnected cylinders must have threaded valve plugs tightly
installed and must not be stored in a building, garage, or any
other enclosed area.

•

The pressure regulator and hose assembly supplied with this
appliance must be used for connection to the LP-Gas cylinder.
Replacement pressure regulators and hose assemblies must
be specified by the manufacturer.

•

Avoid improper use of extension cords. Keep connections away
from moisture and avoid damage to the cord.

•

If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person
in order to avoid hazard.

Please contact your local dealer/distributor if you have any
questions. A Mosquito Magnet®dealer locator can be found
at: w w w. m o s q u i t o m a g n e t . c o m / d e a l e r s

Self-Contained
Liberty Plus

Head Unit ( 1 )

Support Pole ( 1 )

Base Support ( 1 )

Regulator Hose ( 1 )

Charging Adapter Net

Plume Tu b e

Re-Chargeable BatteryQuick Clear Adapter

Trap Assembly:

7

For accessories and additional info contact your local dealer/distributor.
Dealer contact info can be found at: www.mosquitomagnet.com/dealers

Charging your MosquitoMagnet®Liberty Plus

1 .Remove cover panel from rear of Head Unit (panel snaps off).
2

. Insert and connect re-chargeable battery.

3

. Insert Charging Adapter into rear of Head Unit.

Allow to charge for 24 hours at the

beginning of each

sea

son. You will not need to charge again until next season.

Replacecover panel whencompleted (panel snaps into place)

.

N O T E

: Unit must be charged indoors, trap is not

weathe

rproof with cover panel removed.

Attractant Installation:

See Mosquito Magnet®attractant label for installation,
use, storage and disposalinst

ructions.

Trap Placement

1 . Determine thedirection of the prevailing wind.

Check local weather

patterns if you are unsure

2

. Stand in the center of thearea you are trying to protect

and loo

k toward the prevailing wind.

3. Proper placement of

the Liberty Plus will be 9m – 12m in
front of you, within 1.5m – 2m of ground cover (i.e., bushes,
flowerbeds, tree line, marshbed). Ensure that trap isnot
direc

tly againstany blockades such as buildings, fences, etc.

4

. It is recommendedthat the trap be placed in the shade.

5

. Do not place trap directly above a water source

(sprinklers, hose, etc.).

7

. Trap must be placed onlevel ground to avoid tipping

or

uneven propane distribution.

8

. For more information, refer to trap placement CD-ROM

included with your Liber

ty Plus.

Installation

6

American Biophysics

Assembly Instructions

Step 1

Step 2

Step 3

Net locks into front of compartment

Step 4

See Attractant Package for details.

H o r n

Remove Back Panel

Insert & Connect Battery

Plug Charger Into Battery Charging Powerhead

For o

ptimal trap placement

in your yard, refer to trap

placementCD

-ROM included with

your Liber

ty Plus.

Step 5

Charge Liberty Plus for 24 hours before use.
See pg. 7 for fur

ther details.

NOTE:

You will not need to charge it again until the

foll

owing season.

Net Installation:

Lift clear plastic lid and lock plasticholding bracket of net into
front of compar

tment. Close plastic lid whenfinished.

N o t e

: Fabric loops hook over plastic posts allowing net

to expand to it highest capa

city.

Place base upside down on a flat sur

face, unfold U-shaped

suppor

t leg untilit locks in place.

Insert the Plume Tube into hor

n and turn until Tube locks

into place.

Place Liberty

Plus power head onto pole. Press down firmly

with t

wo hands to secure.

Assembledtrap should have t

he front of power head

in t

he same direction as base U-shaped legs.

Turn base and leg assembly right-side-up and place support
pole into cavity on base.

9

For accessories and additional info contact your local dealer/distributor.
Dealer contact info can be found at: www.mosquitomagnet.com/dealers

Shut Down

Starting Instructions

It is recommended that you read the entire manual before
starting the Liberty Plus trap.

1 . Connect regulator to propane tank.

2 . Slowly open propane tank valve.

3 . Push ON/OFF switch to ON position.

LED light will turn solid orange indicating warm-up.
After 15 to 25 min. trap LED light will turn solid green
indicating the trap is running at full capacity.

Shut Down Instructions

Push ON/OFF switch to OFF position to shut down the Liberty
Plus. The LED light will go out and the fan will continue
running until trap is cool. Close the propane tank valve and
disconnect regulator.

Any open Mosquito Magnet®attractant should be removed
and discarded. See attractant label for disposal instructions.
The net should also be discarded prior to storing the
Liberty Plus.

S T O R A G E : Liberty Plus should be stored indoors in the
off-season. Cover unit with trap cover available at your local
dealer or with a tarp and secure tightly at the bottom to keep
out dust, spider webs and other debris.

N O T E : It is recommended that you use the Quick Clear valve
before seasonal storage to avoid build-up of contaminants
during off-season (see page 10).

Maintenance

• 21 Day Maintenance Cycle

- Refill propane. (propane lasts approximately 21 days with
24-hour operation) on a 20lb tank. Trap uses approximately
1lb of propane per day.

- Replace short-range attractant cartridge.
See Mosquito Magnet®attractant label for instructions.

- Empty or replace net.

• Utilize the Quick Clear valve at first tank change and every
second tank change thereafter.

• Periodically wipe down the outside of the Liberty Plus
with a clean, water damp cloth.

• Charge your Mosquito Magnet®Liberty Plus for 24 hours
at the beginning of each season (see page 7).

Maintenance

8

American Biophysics

ON/OFF Switch

Propane Tank Installation

1 . After trap is placed in its ideal location, place propane

tank onto the molded cradle.

2 . Making sure propane tank is fully closed. Attach propane

regulator hose to propane tank. Secure tightly by hand.

Do not use tools.

3 . Turn propane on s l o w l y. Take care not to turn too quickly

to avoid engagement of safety check valve regulator.

DO NOT MOVE TRAP WITH TANK AT TACHED!

TANK MUST BE DISCONNECTED FROM REGULAT O R
BEFORE TRAP IS RELOCATED TO AVOID DAMAGE TO
R E G U L ATOR AND/OR TRAP. BE ADVISED, DAMAGE
CAUSED FROM FAILURE TO COMPLY WITH THIS
INSTRUCTION IS NOT COVERED UNDER WA R R A N T Y.

Propane Tank Changing Tips

When attaching the regulator handle to a tank after a tank
change, be sure to fully tighten the regulator handle onto the
tank. No need to use tools, but do turn the handle as far as
possible by hand. When this is done, loosen the handle 1/4 turn,
then re-tighten the handle. Frequently this action will result in
additional turns beyond the 1/4 turn.

The purpose for this is to fully engage the regulator onto the
tank. If the regulator is not fully engaged, the flow of gas may
be restricted to the point where the trap will show a gas empty
code. If this occurs, press the off button, close the tank valve,
and remove the regulator from the tank. Re-attach the regulator
and try again.

Installation

Step 1 – Propane Tank Placement

Step 2 – Attach Regulator

Step 3 – S l o w l y Open Va l v e

For Best Results

• Your trap will begin capturing immediately, but allow
4 – 6 weeks to significantly reduce the mosquito population
in your yard.

• Never spray insecticide in or around trap.

• Trap can be left running in the rain.

• If using lime or fertilizer compounds, be sure
to shut down the Liberty Plus first to prevent dust or fine
mist from being drawn into trap and clogging net.

1 1

For accessories and additional info contact your local dealer/distributor.
Dealer contact info can be found at: www.mosquitomagnet.com/dealers

Troubleshooting

Quick Clear Va l v e

Important: Extinguish all smoking materials prior
to use of Quick Clear Valve. Do not stand directly
behind the Quick Clear cartridge during operation.

Quick Clear is recommended for regular maintenance
to remove built-up contaminants but is not required for
operation of your Liberty Plus.

Recommended for use at first tank change, and every
second tank change thereafter. Also recommended for use
before seasonal storage to avoid build up of c o n t a m i n a n t s
during the off-season.

The Quick Clear valve is a gold, threaded knob located on the
back of your trap. It should be used with the adapter included
with your Liberty Plus, and a threaded Quick Clear cartridge
available from your local Mosquito Magnet®d e a l e r.

1 . Shut down your Liberty Plus. Let fan run until it stops.

(About 35 mins)

2 . Close the propane tank valve by turning to the

“OFF” position.

3 . Remove the protective cap from Quick Clear valve

on your trap.

4 . Hand-screw the Quick Clear adapter on to Quick Clear

valve, until finger tight.

5 . Hand-screw the Quick Clear cartridge into the Quick Clear

adapter in a right direction, until hand tight while holding
the adapter in place.

I m p o r t a n t : Do not over- t i g h t e n .

6 . While holding the adapter in place s l o w l y unscrew

Quick Clear cartridge up to 1/4 turn only from the
Quick Clear adapter. The strong flow of compressed air
lasts approximately 3 minutes. Be sure to allow Quick Clear
cartridge to run out completely. (Hissing will stop when

cylinder is empty. Quick Clear cartridge will be cold
to the touch)

7 . Unscrew the Quick Clear cartridge to remove. Discard empty

Quick Clear cartridge after use, it is not reusable or refillable.

8 . Unscrew the Quick Clear adapter to remove.

Use caution when removing Quick Clear adapter and
cartridge, as some compressed air may come out at
this time.

Remember to keep the Quick Clear adapter for future use.

9 . Replace Quick Clear valve protective cap, and proceed

with normal start up of your Liberty Plus. If use of
Quick Clear valve feature does not resolve starting
trouble, contact your local dealer or one can be found at:

w w w. m o s q u i t o m a g n e t . c o m / d e a l e r s

Quick Clear Valve

1 0

American Biophysics

Step 4

Step 5

Step 6

Step 7

First hand-screw the Quick Clear adapter onto the valve.

While holding the adapter in place, screw the Quick Clear
cartridge into Quick Clear adapter.

To start cleaning process, while holding Quick Clear Adapter
in place, unscrew the Quick Clear cartridge 1/4 Turn Only.

Unscrew the Quick Clear cartridge first, then unscrew Quick
Clear adapter and discard the spent Quick Clear cartridge.

Remember to keep the Quick Clear adapter for future use.

Problem

Unit won’t start

LED flashing RED

Unit won’t stay running

Low or No Catch

LED Flashing alt R E D / G R E E N

LED Flashing alt R E D / O R A N G E

Possible Cause

1 . Propane tank may be empty.

2 . If propane tank is new and has been

newly filled it must be purged.

3 . There could be a loose connection.

4 . If tank has been opened too quickly.

5 . Fuel line may be blocked by propane

c o n t a m i n a n t s .

1 . ‘Possible Causes’ 1, 3 & 5 above

may apply.

2 . Regulator is not fully engaged.

If not getting bitten

1 . Insects may not be out yet.

If getting bitten

2 . Trap placement issue.

3 . Biting insect reproductive cycles have

not yet been broken.

4 . Counterflow may be disrupted.

High Temp

Battery Voltage Low

Solutions

1 . Weigh tank and check against “empty” weight

written on tank.

2 . Bring tank to filling location. Air may be in

fuel line. Ask for tank to be purged.

Hint: If you have another propane powered device
operating on a standard propane tank, try hooking
that tank up to the Liberty Plus to verify that the
issue is with your tank.

3 . Verify all connections. Make sure propane tank

valve is fully open.

4 . Turn “OFF” propane, disconnect regulator and

reconnect regulator.

5 . Use Quick Clear valve.

1 . Go through above steps 1, 3 & 5.

2 . See Tank Changing Tips on page 8.

1 . Verify temperature is consistently over 10°C.

2 . Follow steps in the “Trap Placement” section

of your owner’s manual or refer to your trap
Placement CD included with your Liberty Plus.

3 . Keep trap in constant operation 24 hours/day,

7 days per week for at least 4-6 weeks to reduce
the mosquito population.

4 . Air flow may be restricted. Contact your local

Mosquito Magnet®d e a l e r.

1 . Turn off trap and allow to cool for 1/2 hour.

Then restart. If code continues, Contact your local
Mosquito Magnet®d e a l e r.

1 . Make sure you have charged the battery for

24 hours before starting trap for the first time out
of the box, and the first time before each season.

2 . Check all battery connections, make sure they

are fully inserted.

3 . After several repeated unsuccessful attempts

to start your Mosquito Magnet®the battery may
need to be recharged.

1 2

American Biophysics

Limited Wa r r a n t y

This warranty, (1) year from the purchase of the unit, is extended
only to the original purchaser/user of products. American
Biophysics Corp. warrants its products to be free from defects
in materials and workmanship for the warranty period by the
original purchaser/user. For warranty service, please contact
your local dealer/distributor.

For local dealer/distributor contact information,
please refer to the dealer locator at:

h t t p : / / w w w. m o s q u i t o m a g n e t . c o m / d e a l e r s /

American Biophysics Corp., at its option, shall replace the unit,
replace the defective part(s) and return such unit by way of a
return process managed by your local dealer/distributor.
American Biophysics Corp.’s sole obligation and your exclusive
remedy under this warranty shall be limited to such replacement.

L I M I TATIONS AND EXCLUSIONS: The warranty shall not apply
to problems arising from normal wear, or failure to adhere to the
enclosed instructions. In addition, the foregoing warranty shall
not apply to serial numbered products if the serial number has
been removed or defaced; products subject to negligence,
accident, improper operation, maintenance or storage; products
damaged by circumstances beyond American Biophysics Corp.’s
control; or products modified (including, but not limited to
modifications through the use of unauthorized parts or
attachments) or repaired by anyone other than American
Biophysics Corp. or its designee.

Limited Warranty

THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION THE IMPLIED WARRANTIES OF
M E R C H A N TABILITY AND FITNESS FOR A PA R T I C U L A R
PURPOSE. IT SHALL NOT EXTEND BEYOND THE DURATION
OF THE EXPRESS WARRANTY PROVIDED HEREIN, AND THE
REMEDY FOR VIOLATIONS OF ANY WARRANTY SHALL BE
LIMITED TO REPAIR OR REPLACEMENT OF THE DEFECTIVE
PRODUCT PURSUANT TO THE TERMS CONTAINED HEREIN.
AMERICAN BIOPHYSICS CORP. SHALL NOT BE LIABLE FOR
ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES
W H AT S O E V E R .

This warranty gives you specific legal rights and you may also
have other legal rights which may vary based on location.
