Mosquito Magnet Commander Operation Manual
Advanced Mosquito Defense Systems
Leader in 360º Customer Support
Customer Care Hotline:1-800-953-5737
•
Online Assistance Available
•
Certified Service Locations
•
Find out more at www.mosquitomagnet.com
!
Commander
For Outdoor Use Only
1440-680
Welcome
Congratulations on your purchase of Mosquito Magnet®. Now you can begin to enjoy your outdoor living space again.
Mosquito Magnet is the #1 mosquito trap in North America. Backed by 18 years of research and independent
testing, Mosquito Magnet is scientifically proven to effectively reduce mosquitoes & other biting insects from your
yard.
Mosquito Magnet is easy to use. The enclosed CD-ROM provides key information for getting started. In this
manual, you’ll learn everything you need to know about how it works, optimal trap placement, maintenance,
storage and warranty information. The keys to success are trap placement, utilization of the correct attractant for
your area and routine maintenance. For optimal catch rate, you’ll need to change the propane tank and attractant
every 21 days and use the Quick Clear Cartridge every tank change.
Our Customer Care line is available to answer all your questions regarding your new purchase.
Please feel free to contact us…
Customer Care: 1-800-953-5737
Visit us online at www.mosquitomagnet.com for additional information regarding Mosquito Magnet, tips,
testimonials, and additional product offerings.
Woodstream®Corporation
69 North Locust Street
Lititz, PA 17543
1-800-953-5737
www.mosquitomagnet.com
Patents:
USA: Nos. 5,813,166; 6,145,243; 6,286,249; 6,817,140;
6,840,005; 6,848,466; 6,892,492; 7,074,830; 7,243,458;
7,281,351; 7,293,387; 7,536,824; 7,614,180; 7,752,803;
7,987,631 and 8,006,432
Other patents pending
Made in the USA
FOR YOUR SAFETY
If you smell gas:
1. Shut off the gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, immediately call your gas
supplier or your fire department.
FOR YOUR SAFETY
1. Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
2. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
1
Contents
S3snoitcurtsnI ytefa
Trap Assembly
Bug Bag Installation
S9-6pU-te
Charging Instructions
Trap Placement
Propane Tank Installation
Using the Correct Attractant

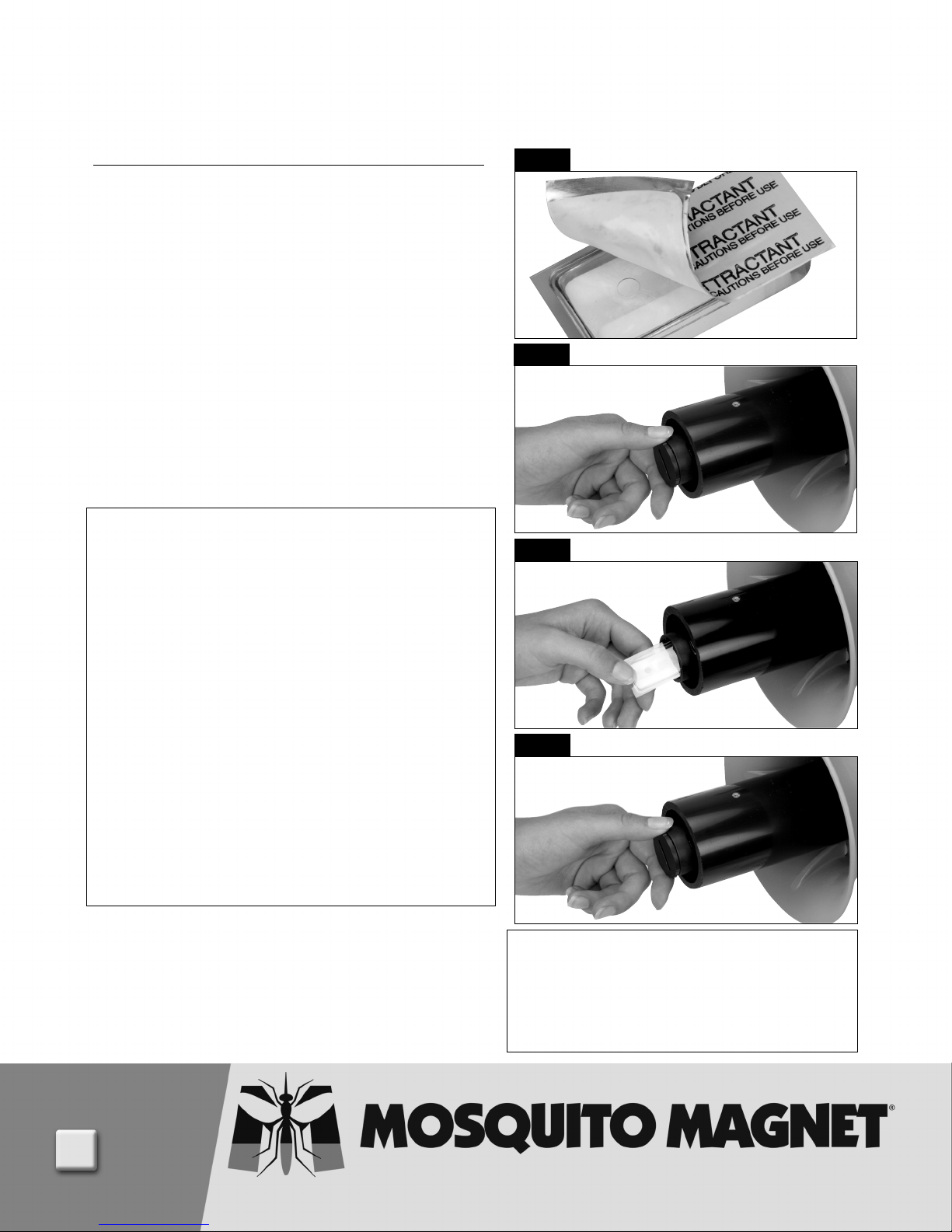

Octenol Attractant Installation
Starting Instructions
Shut Down Instructions
When Not In Use
End of Season Storage
For Optimal Results
Setting Fuel-Saving Modes
Fuel-Saving Modes
Cold Temperature Shutdown
Low Battery Warning
Child Safety Lock
Maintenance
Propane Tank Changing Tips
Maintenance Schedule
Quick Clear Valve 13
Troubleshooting 14
LED Fault Codes
Questions or Comments
Please contact Woodstream®Corporation if you
have any questions or experience any problems
with your Mosquito Magnet
1-800-953-5737
Woodstream
®
Corporation
69 North Locust Street, Lititz, PA 17543
www.mosquitomagnet.com
Model No.:
Serial No.:
Type of Gas: Propane
Manifold Pressure: 100 – 110 psi
Minimum Gas
Supply Pressure: 11.0 in. WC
Input Rating: 759 Btu/Hr.
Minimum Clearances: 20 – 24”
®
:
Commander
4straP lapicnirP
5snoitcurtsnI ylbmessA
01snoitcurtsnI
11ygolonhceT tramS
21ecnanetniaM

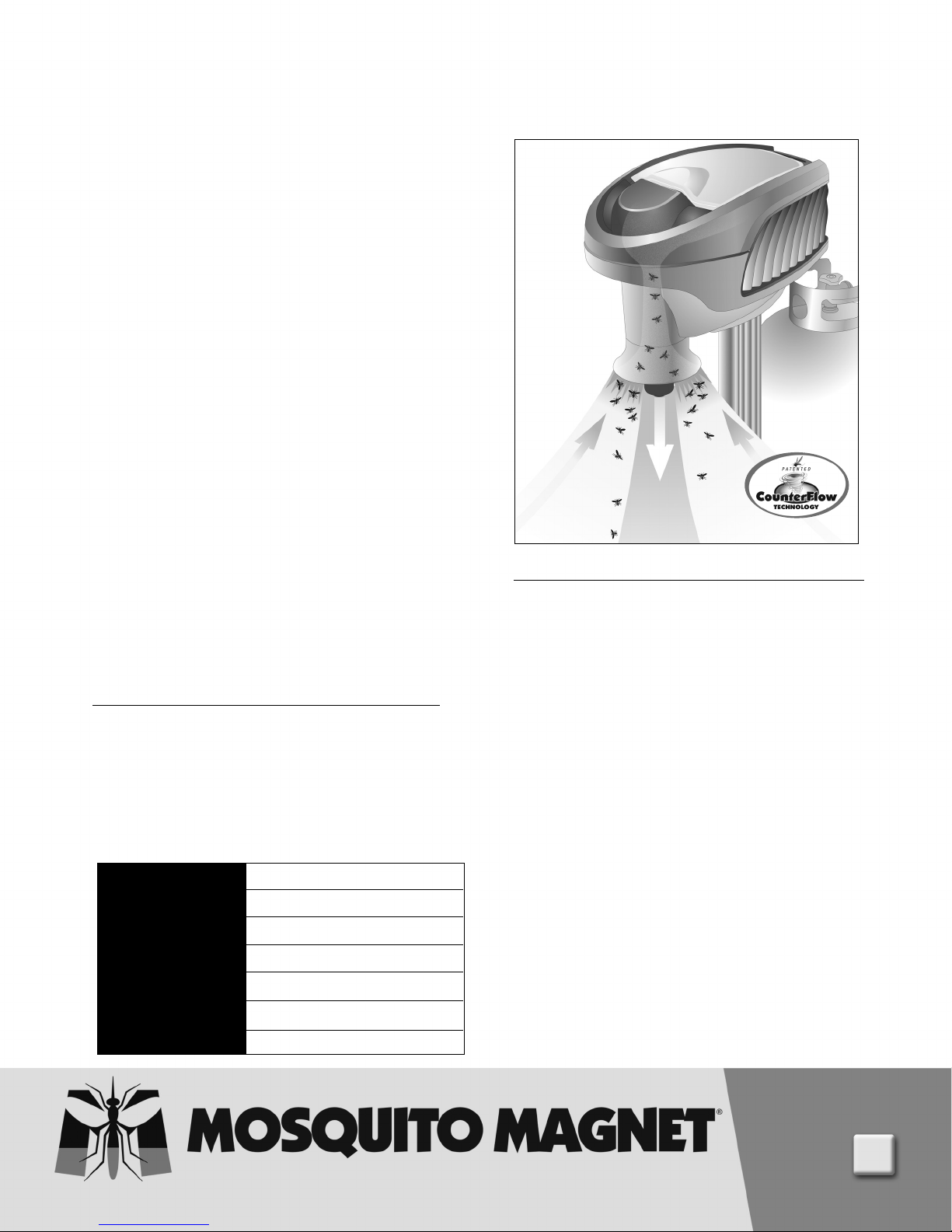

Patented Counterflow Technology
™
How the Mosquito Magnet®Works
Mosquitoes and other biting insects use the long-range
51ytnarraW
61noitartsigeR tcudorP
attractant carbon dioxide (CO
close proximity, mosquitoes use short-range attractants
such as scents emitted from the skin, to determine which
person they are going to bite. The Mosquito Magnet
mimics a human by converting propane to CO
patented catalytic conversion technology, in combination
with a short-range attractant.
Attracted by the CO2and short-range attractant,
mosquitoes and other biting insects are drawn to
the Mosquito Magnet. When they reach the trap,
the insects are vacuumed into a bug bag by our
patented Counterflow Technology™, where they
dehydrate and die within 24 hours.
The Mosquito Magnet is silent and odorless. When
properly placed in your yard, the trap begins working
immediately. Noticeable results can be achieved in 7 to
10 days. To greatly reduce your biting insect
population, allow 4 weeks. Leave the Mosquito
Magnet out all summer long, to control the mosquito
population in your yard.
Only biting insects are targeted including mosquitoes,
no-see-ums, black flies and midges. Beneficial insects
such as butterflies, bees or moths are not targeted.
) to locate people. Once in
2
, with its
2
2
Safety Instructions
Please read and follow all safety
instructions and warnings.
Children and adults should be alerted to the
hazards of high surface temperatures and should
stay away to avoid burns or clothing ignition.
Young children should be carefully supervised when they
are in the area of the heater. Keep out of reach of children.
Clothing or other flammable materials should not be
hung from the heater, or placed on or near the heater.
Note:
Some or all of the following required safety instructions for
propane powered devices may apply to your trap.Allow
trap to cool for 5 minutes before re-starting.
Warning: Improper installation, adjustment, alteration,
service or maintenance can cause injury or property damage.
Read the installation, operating and maintenance instructions
thoroughly before installing or servicing the trap.
Caution: The gas pressure regulator provided with this
appliance must be used. This regulator is set for an outlet pressure
of 11.0 in. Water Column. The minimum inlet gas supply pressure is
11.0 in. Water Column from regulator.
This unit is not intended to be installed in or on recreational vehicles and/or boats.
•
• The gas supply must be turned off at the LP-Gas supply cylinder when
this appliance is not in use.
The installation must conform with local codes or, in the absence of
•
local codes, with the National Fuel Gas Code, ANSI Z223. 1-1998 for US
and with the CAN1-B149 for Canada.
• To test for a gas leak, place soapy water around the connector,
regulator, and gas hose assembly. If bubbles appear, there is a gas leak.
• Inspect the hose before each use of the unit. If it is evident there is
excessive abrasion or wear, or the hose is cut, it must be replaced prior
to the unit being put into operation. The replacement hose shall be that
specified by the manufacturer.
• The trap is equipped with an internal spark. Failure to follow starting
procedure will result in the trap not starting.
• Installation and repair should be done by a qualified service person
(find service centers on www.mosquitomagnet.com). The heater should
be inspected before use and at least annually by a qualified service
person. More frequent cleaning may be
imperative that the control compartment, burners, and circulating air
passageways of the heater be kept clean.
required as necessary. It is
• Maintain adequate clearances of 20”–24” around air openings into
the combustion chamber, clearances from combustible material,
provisions for accessibility and for combustion and ventilating air
supply. Keep the trap area clear and free from combustible materials,
gasoline, and other flammable vapors and liquids. The appliance is
not to be used in locations where flammable vapor or explosive dust
is likely to exist.
•Do not obstruct the flow of combustion and ventilation air.
•Keep the ventilating openings of the cylinder enclosure free and clear from debris.
• Clean the trap with a water damp cloth, if necessary.
•A maximum of a 20 lb. LP-Gas cylinder shall be used.
• The LP-Gas cylinder must be provided with a shut-off valve terminating
in an LP-Gas supply cylinder valve outlet specified for Connection No.
510 in the Standard for Compressed Gas Cylinder Valve Outlet and Inlet
Connections, ANSI/CGA-V-1-1977.
•The LP-Gas cylinder supply system must be arranged for vapor withdrawal
and the cylinder must include a collar to protect the cylinder valve.
• The LP-Gas cylinder used shall be constructed and marked in accordance
with the specifications for LP-Gas cylinders of the U.S. Department of
Transportation (DOT) or The National Standard of Canada CAN/CSA-B339.
•The trap shall be used outdoors only in a well ventilated space and shall
not be used in a building, garage, or any other enclosed area.
• The LP-Gas cylinder must be disconnected and removed from the
appliance, if the appliance is stored indoors.
•LP-Gas cylinders must be stored outdoors in a well-ventilated area out
of reach of children.
•Disconnected cylinders must have threaded valve plugs tightly installed
and must not be stored in a building, garage, or any other enclosed area.
• The pressure regulator and hose assembly supplied with this appliance
must be used for connection to the LP-Gas cylinder. Replacement pressure
regulators and hose assemblies must be specified by the manufacturer.
•Avoid improper use of extension cords. Keep connections away from
moisture and
•If the supply cord is damaged, it must be replaced by the manufacturer or
its service agent or a similarly qualified person in order to avoid hazard.
avoid damage to the cord.
Please contact Customer Care
if you have any questions at:
1-800-953-5737
or visit www.mosquitomagnet.com
3
Self-Contained
Commander
Regulator Hose (1)

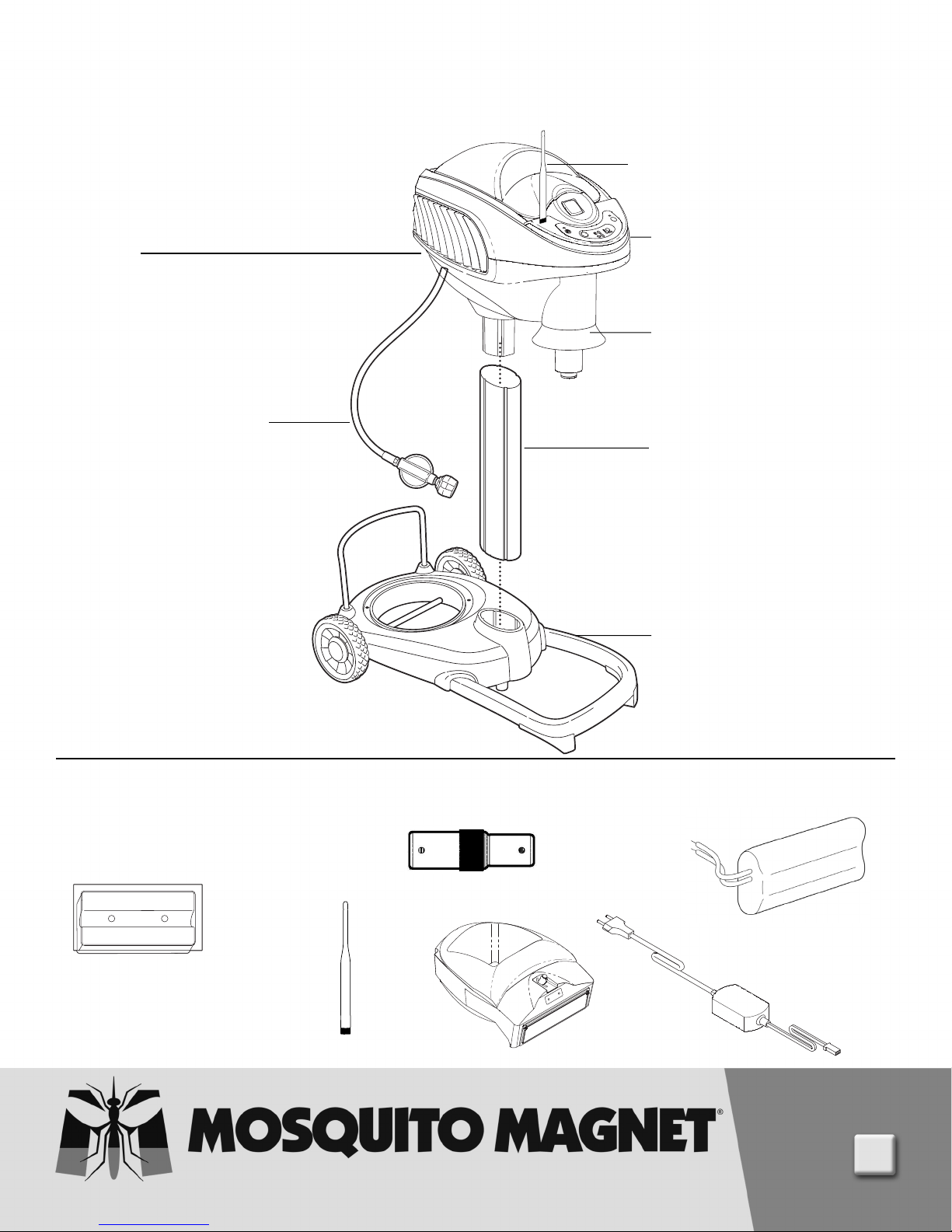

Principal Parts
Antenna (1)
ODE
M
N
O
I
ATTENT
DE
O
M
F
OF
OOL
C
WARM
RUN
Power Head (1)
Trumpet (1)
Support Pole (1)
Parts Included
Mosquito Magnet
Insect Attractant
EPA Reg. No. 72563-5 (Short-Range Attractant)
®
R-Octenol Biting
Antenna
Quick Clear Adapter
Bug Bag
Base Support (1)
Rechargeable Battery
Remote Battery Charger
4
Assembly Instructions
Trap Assembly:
Step 1
Place base upside down on a flat surface, unfold Ushaped support leg until it locks in place.
Step 2
Step 3
Place trap power head onto pole. Press down firmly
with two hands to secure.
Assembled trap should have the front of power head/
trumpet placed farthest from the wheels in the same
direction as base U-shaped legs.
Step 4
The battery is not fully charged at the factory; charge
the battery before the first use. Under proper usage,
one charge lasts all season. See page 6 for further
details.
Turn base and leg assembly right-side-up and place
support pole into cavity on base.
Bug Bag Installation:
To insert Bug Bag, first engage front/open section then gently
push the back end down into place.Step 4Step 4
1
2
Step 5
Screw antenna onto the face of trap and twist to the
right until tightly secured.
DE
MO
ION!
T
N
ATTE
MODE
OFF
M
COOL
R
WA
UN
R
5
Set-Up
Charging Instructions
1. Remove cover panel from rear of Power Head Unit
(panel snaps off). Press the battery latch & pull out of
the trap to disconnect. Remove the battery by pulling up
on the bottom and rotating the battery out of position.
2. The Battery Charger is not rated for Outdoor use. The
battery must be charged indoors.
3. Plug the Battery Charger into a suitable indoor outlet.
4. Connect the re-chargeable battery to the battery
charger.
5. The LED on the Battery Charger will indicate Red when
the battery is charging, when the battery is fully charged
the LED will indicate Green. The typical charge time is
less than two hours.
6. The battery charger is automatic, it will shut down to a
safe maintenance charge current when the battery is
fully charged. It will not over charge the battery. For
maximum life, do not leave the battery on the charger
for extended periods.
7. When the battery is fully charged, disconnect the
battery from the battery charger and return it in the
Mosquito Magnet
8. Insert and connect the re-chargeable battery.
9. Replace the cover panel on the rear of Power Head Unit.
®
Commander.
Remove Back Panel
Insert & Connect Battery
NOTE: Make sure cover panel is replaced; trap is not
weatherproof with cover panel removed.
Trap Placement
1. Determine the direction of the prevailing wind.
Check local weather patterns if you are unsure.
2. Stand in the center of the area you are trying to protect
and look toward the prevailing wind.
3. Proper placement of the trap will be 30 – 40 feet in front
of you, within 5-6 feet of ground cover (i.e. bushes,
flowerbeds, tree line, marshbed). Ensure that trap is not
directly against any blockades such as buildings, fences, etc.
4. It is recommended that the trap be placed in the shade.
5. Do not place trap directly above a water source
(sprinklers, hose, etc.).
6. Trap must be placed on level ground to avoid tipping
or uneven propane distribution.
7. For optimal trap placement in your yard, refer to the
instructional CD-ROM included with your trap; or, go to
www.mosquitomagnet.com to build your own yard
diagram for correct trap placement.
6
Set-Up

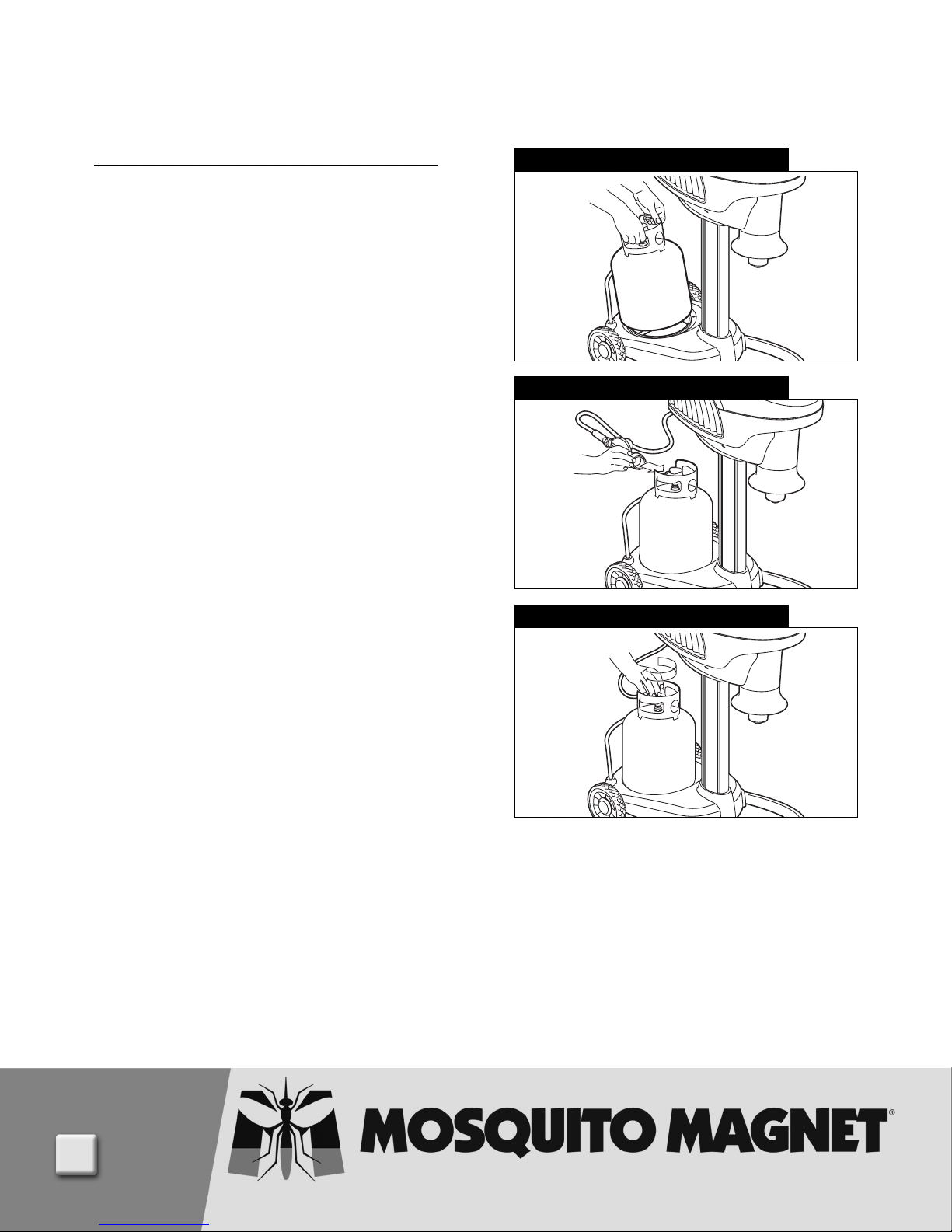

Propane Tank Installation
1. After trap is placed in its ideal location,
place propane tank onto the molded cradle.
2. Making sure propane tank is fully closed, attach
propane regulator hose to propane tank. Secure
tightly by hand. Do not use tools.
3. Turn propane on by slowly turning valve counterclockwise. Take care not to turn too quickly to avoid
engagement of safety valve.
DO NOT MOVE TRAP WITH TANK ATTACHED!
TANK MUST BE DISCONNECTED FROM REGULATOR
BEFORE TRAP IS RELOCATED TO AVOID DAMAGE
TO REGULATOR AND/OR TRAP. BE ADVISED,
DAMAGE CAUSED FROM FAILURE TO COMPLY
WITH THIS INSTRUCTION IS NOT COVERED
UNDER WARRANTY.
Step 1 – Propane Ta nk Placement
Step 2 – Attach Regulator
Step 3 – Slowly Open Valve
7
Set-Up
USING THE CORRECTATTRACTANT
OPTIMIZES THE CATCH RATE
OF YOUR TRAP.
Mosquito Magnet
•
If you live in the northern half of the U.S., or along any
coastal areas in the U.S., use a fresh Mosquito Magnet.
Octenol cartridge every time you change the propane tank.
Mosquito Magnet R-Octenol
•
Much like Octenol, it’s used to catch/attract biting insects.
• Active ingredients in R-Octenol lasts for 30 days - 40% longer
than regular Octenol.
• Increases your catch rate up to 10 times.
Ideal for trap owners with Mosquito Magnet® Executive
•
or Commander.
™
3
Lurex
• If you live in the southern half of the U.S., the Asian Tiger
mosquito may be the predominant species in your area.
3
• Lurex
• To find out if Lurex
• Use a fresh Lurex
is an attractant specially designed to capture hard to
catch and aggressive, day-biting species such as the Asian
Tiger mosquito.
www.mosquitomagnet.com.
tank.
®
Octenol
®
3
is right for you, go to
3
cartridge every time you change the propane
R
R-OCTENOL/OCTENOL
-
O
CTENOL/O
C
TENOL
8
Set-Up
R-Octenol Attractant Installation
Locate Mosquito Magnet®Octenol Biting Insect Attractant. Remove
1.
mosquito attractant packet from bag. Carefully peel back foil
cover.
Locate the octenol carrier compartment inside the plume tube.
2.
Turn cap counter-clockwise about 1/8 turn. Remove end cap.
Place the open packet of mosquito attractant into the carrier
3.
compartment.
Replace end cap on carrier compartment. Be sure to align cap’s
4.
“feet” with groves inside carrier compartment. Secure cap by turning
clockwise until it clicks (about 1/8 turn).
Precautionary Statements
Hazards to Humans and Domestic Animals.
Caution: Harmful if swallowed. Avoid contact of skin, eyes or mouth with the
evaporation holes. Wash hands before eating, drinking, chewing gum, using
tobacco or using bathroom facilities.
First Aid
If swallowed
• Call poison control center or doctor immediately for treatment advice.
• Have person sip a glass of water if able to swallow.
• Do not induce vomiting unless told to do so by the poison control center or doctor.
• Do not give anything by mouth to an unconscious person.
If on skin or clothing
• Take off contaminated clothing.
• Rinse skin immediately with plenty of water for 15-20 minutes.
• Call a poison control center or doctor for treatment advice.
If in eyes
• Hold eye open and rinse slowly and gently with water for 15-20 minutes.
• Remove contact lenses, if present, after the first 5 minutes, then continue rinsing
eye.
• Call a poison control center or doctor for treatment advice.
If inhaled
• Move person to fresh air.
• If person is not breathing, call 911 or an ambulance, then give artificial
respiration, preferably by mouth-to-mouth, if possible.
• Call a poison control center or doctor for treatment advice.
Have the product container or label with you when calling a poison control
center or doctor, or going for treatment.
Step 1
Step 2
Step 3
Environmental Hazards: Do not apply directly to water. Do not contaminate
water when disposing of equipment washwaters or rinsate.
Directions for Use
It is a violation of federal law to use this product in a manner inconsistent
with its labeling.
Replace cartridge every 21 days
the same; however, it will no longer be effective as the octenol will have been released.)
*
Based on release rate studies conducted at a constant ambient air temperature of 80˚ F for 21 days. Octenol
release from this product will be more rapid at higher ambient air temperature.
Storage & Disposal
Do not contaminate water, food or feed by storage or disposal.
Storage: Store unopened attractant cartridge in a cool, dry place. Discard
outer plastic bag in trash.
Disposal: Do not reuse attractant cartridge. Dispose of used attractant
cartridge in the trash.
*
(Note: After 21 days of use, cartridge appears
9
Step 4
Instructions
**READMANUAL BEFORESTARTING**
Charge your battery per instructions on page 6.
Under proper usage, battery will last all season.
Starting Instructions
It is recommended that you read the entire manual before
starting the Mosquito Magnet®trap.
1. To start the trap, press and hold the ON/OFF button for
three seconds until the orange LED illuminates.
2. RUNwill show on the display. WARM and the indicator
arrows will also flash on the display. The LED (indicator
above ON/OFF button)will be orange.
3. The fan will ramp from low speed to high speed after
approximately 3 minutes.
4. The display will flash WARM and the LED will be orange for
approximately 15-25 minutes while the trap is warming up.
5. After the trap reaches operating temperature, the LED will
be green and WARM will disappear from the display.
Shut Down Instructions
To turn off the trap, press the ON/OFF button. RUNwill show on
the display. COOL and the indicator arrows will flash on the
display. The LED will be green. After a two minute cool down,
the fan will stop, the LED will turn off and OFFwill show on the
display.
When Not In Use
If the unit is not in use, the gas must be turned off at the supply
cylinder. Storage of this unit indoors is permissible only if the
cylinder is disconnected and removed. Cylinders must be stored
outdoors, out of reach of children and must not be stored in a
building, garage or any other enclosed area.
End of Season Storage
Refer to the shut down instructions above prior to closing the
propane tank valve and disconnecting the regulator. Close the
propane tank valve and disconnect regulator. Also, disconnect
the battery but make sure not to remove battery from trap.
Any open Mosquito Magnet® attractant should be
removed and discarded. See attractant label for disposal
instructions. The bug bag should also be discarded prior
to storing the trap.
STORAGE: The trap should be stored indoors in a garage or
shed in the off-season. Remove antenna and cover trumpet to
prohibit insects from nesting. Cover unit with trap cover available
at www.mosquitomagnet.com or with a tarp and secure tightly at
the bottom to keep out dust, spider webs and other debris.
NOTE: It is recommended that you use the Quick Clear
adapter before seasonal storage to avoid build-up
of contaminants during off-season (see page 13).

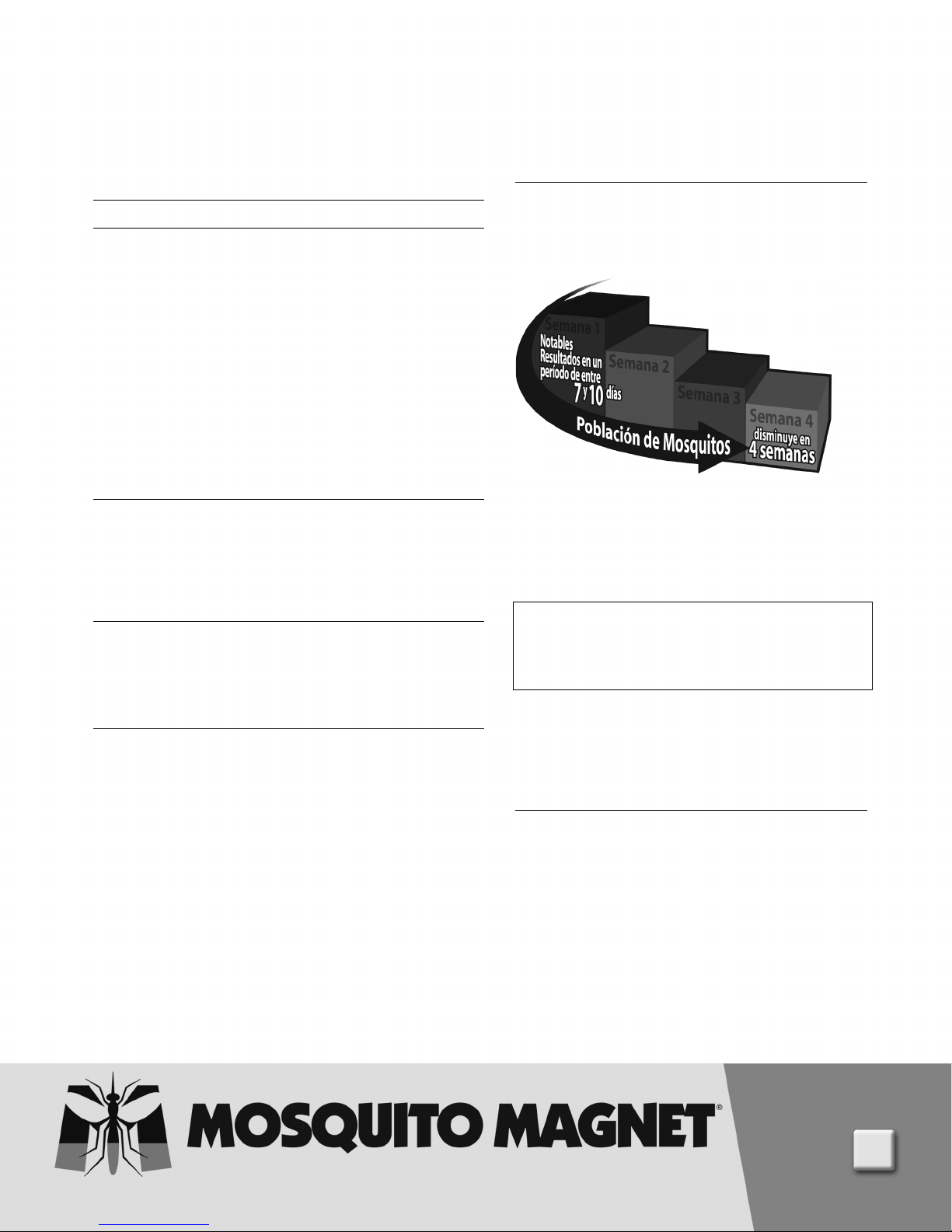

For Optimal Results Run 24 hours/day
• Your trap will begin capturing immediately with
significant reduction in the mosquito population in
7-10 days. Allow 4 weeks to significantly reduce the
mosquito population in your yard.
•Allow trap to cool for 5 minutes before re-start.
•Never spray insecticide in or around trap.
•Trap can be left running in the rain.
•If using lime or fertilizer compounds, be sure to shut
down the trap first to prevent dust or fine mist from
being drawn into trap and clogging bug bag.
Warning: Improper installation, adjustment, alteration, service
or maintenance can cause injury or property damage. Read
the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
Caution: The gas pressure regulator provided with this
appliance must be used. This regulator is set for an outlet
pressure 11.0 in. water column.
The gas supply must be turned off at the LP-Gas supply
cylinder when this appliance is not in use.
Leader in 360° Customer Support
• Customer Care Hotline: 1-800-953-5737
•Online Product Registration Available
•Visit www.mosquitomagnet.com for Troubleshooting
Tips/Trap Placement
•Certified Service Locations – Information Available at
www.mosquitomagnet.com
10
Loading...
