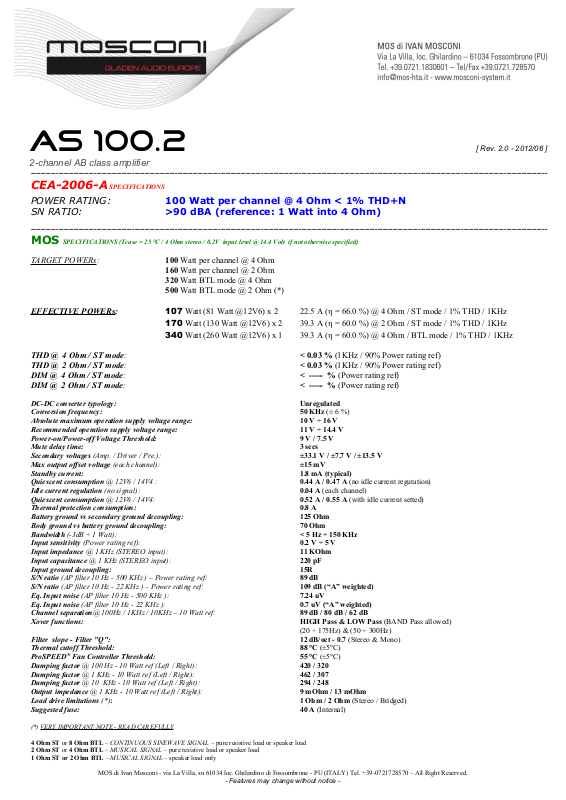

Mosconi AS 100.2 Specifications
AS 100.2 [ Rev. 2.0 - 2012/06 ]
2-channel AB class amplifier
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
CEA-2006-A SPECIFICATIONS
POWER RATING: 100 Watt per channel @ 4 Ohm < 1% THD+N
SN RATIO: >90 dBA (reference: 1 Watt into 4 Ohm)
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
MOS SPECIFICATIONS (Tcase = 25 °C / 4 Ohm stereo / 0.2V input level @ 14.4 Volt if not otherwise specified)
TARGET POWERs: 100 Watt per channel @ 4 Ohm
160 Watt per channel @ 2 Ohm
320 Watt BTL mode @ 4 Ohm
500 Watt BTL mode @ 2 Ohm (*)
EFFECTIVE POWERs: 107 Watt (81 Watt @12V6) x 2 22.5 A (η = 66.0 %) @ 4 Ohm / ST mode / 1% THD / 1KHz
170 Watt (130 Watt @12V6) x 2 39.3 A (η = 60.0 %) @ 2 Ohm / ST mode / 1% THD / 1KHz
340 Watt (260 Watt @12V6) x 1 39.3 A (η = 60.0 %) @ 4 Ohm / BTL mode / 1% THD / 1KHz
THD @ 4 Ohm / ST mode: < 0.03 % (1KHz / 90% Power rating ref)
THD @ 2 Ohm / ST mode: < 0.03 % (1KHz / 90% Power rating ref)
DIM @ 4 Ohm / ST mode: < ----- % (Power rating ref)
DIM @ 2 Ohm / ST mode: < ----- % (Power rating ref)
DC-DC converter typology: Unregulated
Conversion frequency: 50 KHz (± 6 %)
Absolute maximum operation supply voltage range: 10 V ÷ 16 V
Recommended operation supply voltage range: 11 V ÷ 14.4 V
Power-on/Power-off Voltage Threshold: 9 V / 7.5 V
Mute delay time: 3 secs
Secondary voltages (Amp. / Driver / Pre.): ±33.1 V / ±7.7 V / ±13.5 V
Max output offset voltage (each channel): ±15 mV
Standby current: 1.8 mA (typical)
Quiescent consumption @ 12V6 / 14V4 : 0.44 A / 0.47 A (no idle current regutation)
Idle current regulation (no signal): 0.04 A (each channel)
Quiescent consumption @ 12V6 / 14V4: 0.52 A / 0.55 A (with idle current setted)
Thermal protection consumption: 0.8 A
Battery ground vs secondary ground decoupling: 125 Ohm
Body ground vs battery ground decoupling: 70 Ohm
Bandwidth (-3dB ÷ 1 Watt): < 5 Hz ÷ 150 KHz
Input sensitivity (Power rating ref): 0.2 V ÷ 5 V
Input impedance @ 1 KHz (STEREO input): 11 KOhm
Input capacitance @ 1 KHz (STEREO input): 220 pF
Input ground decoupling: 15R
S/N ratio (AP filter 10 Hz - 500 KHz ) – Power rating ref: 89 dB
S/N ratio (AP filter 10 Hz - 22 KHz ) – Power rating ref: 109 dB (“A” weighted)
Eq. Input noise (AP filter 10 Hz - 500 KHz ): 7.24 uV
Eq. Input noise (AP filter 10 Hz - 22 KHz ): 0.7 uV (“A” weighted)
Channel separation@ 100Hz / 1KHz / 10KHz – 10 Watt ref: 89 dB / 80 dB / 62 dB
Xover functions: HIGH Pass & LOW Pass (BAND Pass allowed)
(20 ÷ 175Hz) & (50 ÷ 300Hz)
Filter slope - Filter "Q": 12 dB/oct - 0.7 (Stereo & Mono)
Thermal cutoff Threshold: 88 °C (±5°C)
ProSPEED® Fan Controller Threshold: 55 °C (±5°C)
Damping factor @ 100 Hz - 10 Watt ref (Left / Right): 420 / 320
Damping factor @ 1 KHz - 10 Watt ref (Left / Right): 462 / 307
Damping factor @ 10 KHz - 10 Watt ref (Left / Right): 294 / 248
Output impedance @ 1 KHz - 10 Watt ref (Left / Right): 9 mOhm / 13 mOhm
Load drive limitations (*): 1 Ohm / 2 Ohm (Stereo / Bridged)
Suggested fuse: 40 A (Internal)
(*) VERY IMPORTANT NOTE - READ CAREFULLY
4 Ohm ST or 8 Ohm BTL – CONTINUOUS SINEWAVE SIGNAL – pure resistive load or speaker load
2 Ohm ST or 4 Ohm BTL – MUSICAL SIGNAL – pure resistive load or speaker load
1 Ohm ST or 2 Ohm BTL – MUSICAL SIGNAL – speaker load only
MOS di Ivan Mosconi - via La Villa, sn 61034 loc. Ghilardino di Fossombrone - PU (ITALY) Tel. +39-0721728570 – All Right Reserved.
- Features may change without notice -
