Installation and Operating Instructions
Morsø 3600
For use in North America
Page 2
2
1.0 Installation of your Morsø stove Page no.
1.1 Unpaking the stove 4
1.2 Checking loose parts in the stove 4
1.3 The chimney / ue system 5
1.4 Flue connection 6
1.5 Connection to the existing chimney 6
1.6 Positioning the stove 8
2.0 Operation 11
2.1 Before you start ring 11
2.2 Lighting & loading intervals 12
3.0 Maintenance 15
3.1 Exterior maintenance 15
3.2 Internal maintenance 15
3.3 Cleaning the stove & the ue 17
3.4 Leaving the stove for extended periods 18
3.5 Parts diagram 19
3.6 Parts list 20
Contents
Congratulations on the purchase of your new
Morsø stove!
Morsø, which is the largest supplier for the Danish market, has manufactured stoves of the highest
quality since1853. By following the instructions overleaf, we are sure that you will enjoy the use and the
benets of your stove for many years to come.
Read this entire manual before you install and use your new room heater. If this room
heater is not properly installed, a house re may result. To reduce the risk of re, follow
the installation instructions. Failure to follow instructions may result in property damage, bodily injury, or even death.
Contact local building ocials about restrictions and installation inspectionrequirements
in your area.
Save these instructions
Page 3
3
Optional Accessories
A wide range of accessories (such as handling gloves, reside tools, glass cleaner and heatproof paint) are available for use with your Morsø stove. They help with day-to-day running
and maintenance. Contact your Morsø dealer for more information.
The Morsø 3600 meets the U.S. Environmental Protection Agency’s emission limits for wood
heaters sold on or after July 1, 1990
The Morsø 3600 are listed by OMNI-Test Laboratories, Inc. The test standards are ANSI/
UL-1482 for the United States and ULC S627 for Canada.
The stove is listed for burning wood only. Do not burn other fuels.
Under specic test conditions this heater has been shown to deliver heat at rates ranging
from 11,400 to 49,500 Btu´s.
Cast iron
Cast iron is a live material. There are no two ovens that are identical. This is partly due to the
tolerances of the casting process, partly because the ovens are a work of craftsmanship.
Minor unevennesses may also occur in the cast iron surface.
Page 4
4
Installation of woodburning stoves must be safe and legal.
If your Morsø stove is not installed correctly, it may cause a house re. To reduce the risk
of re, the installation instructions must be followed carefully. Contact the local building
ocials about restrictions and installation inspection in your area.
Before you start installing your stove, make sure that:
- The stove and chimney connection are placed far enough from combustible materials to
meet all clearance requirements.
- The oor protection must be adequate and must be made correctly according to ´the
requirements.
All neccessary approvals are needed from the local building ocials.
The data plate, which is located on the back of the stove, provides information regarding safety
testing information, name of certied testing laboratory, and installation requirements.
Installation requirements vary in dierent districts, and the local building ocials have the nal
authorization to approve your installation. You should discuss the installation with them before
beginning. Please ask your dealer for further information.
Do not connect to any air distribution duct or system.
Important: If the installation instructions are not followed carefully, it may cause dangerous situations like chimney - and house res. Follow the instructions carefully and
do not deviate from them as it may cause injuries to people or property.
1.1 Unpacking the stove
After removing the outer packaging, atten it and lay onto the oor close to the stove; this
can then act as protective work surface during the assembly process.
Next, remove the legs and bolts from inside the stove. Gently lay the stove onto its back. Using
the bolts supplied, now screw the legs into position on the underside of the base. The stove
should now be lifted and moved into the upright position, avoiding excess load on the back legs.
The stove is heavy and therefore it is strongly recommended that when lifting, it is undertaken by two people. Morsø 3610 weighs 199 kg. Morsø 3640 weighs 209 kg.
1.2 Checking loose parts in the stove
After unpacking, check that the re bricks are rmly in position and have not shifted in transit. Check also that the air control works freely.
Standard Accessories
Poker, ceramic ue connection gasket and ash pan tools are standard accessories, and can
usually be found in the ashpan or rebox area.
1.0 Installation of your Morsø stove
Page 5
5
1.3 The chimney / ue system
Note that the ue system must be independently secured and must not rely on the stove
for support.
The stove must not be connected to a chimney ue serving any other appliance.
(Several ues may run up a single chimney stack; use one ueway per appliance).
Use a residential type masonry or listed type HT factory-built chimney.
High Temperature (H.T.) Chimney Standard UL-103-1985 (2100º F.) for the USA, and High
Temperature (650ºC) Standard ULC S-629 for Canada.
The internal dimensions of the chimney connector and chimney must not be less than 6 inches diameter (or equivalent cross section), and should not be signicantly larger than this. Too
large a section will tend to allow the ue gases to cool excessively, causing sluggishness or
unpredictability in the stove’s performance.
We recommend the length of the chimney system should be at least 16 feet (not required)
above the stove in normal domestic situations, measured from the ue collar to the top of
the chimney.
Local conditions like for example - roof constructions, large trees nearby and high altitude,
may inuence the chimney draft and height. Therefore, contact the local professional chimney sweep or your Morsø dealer.

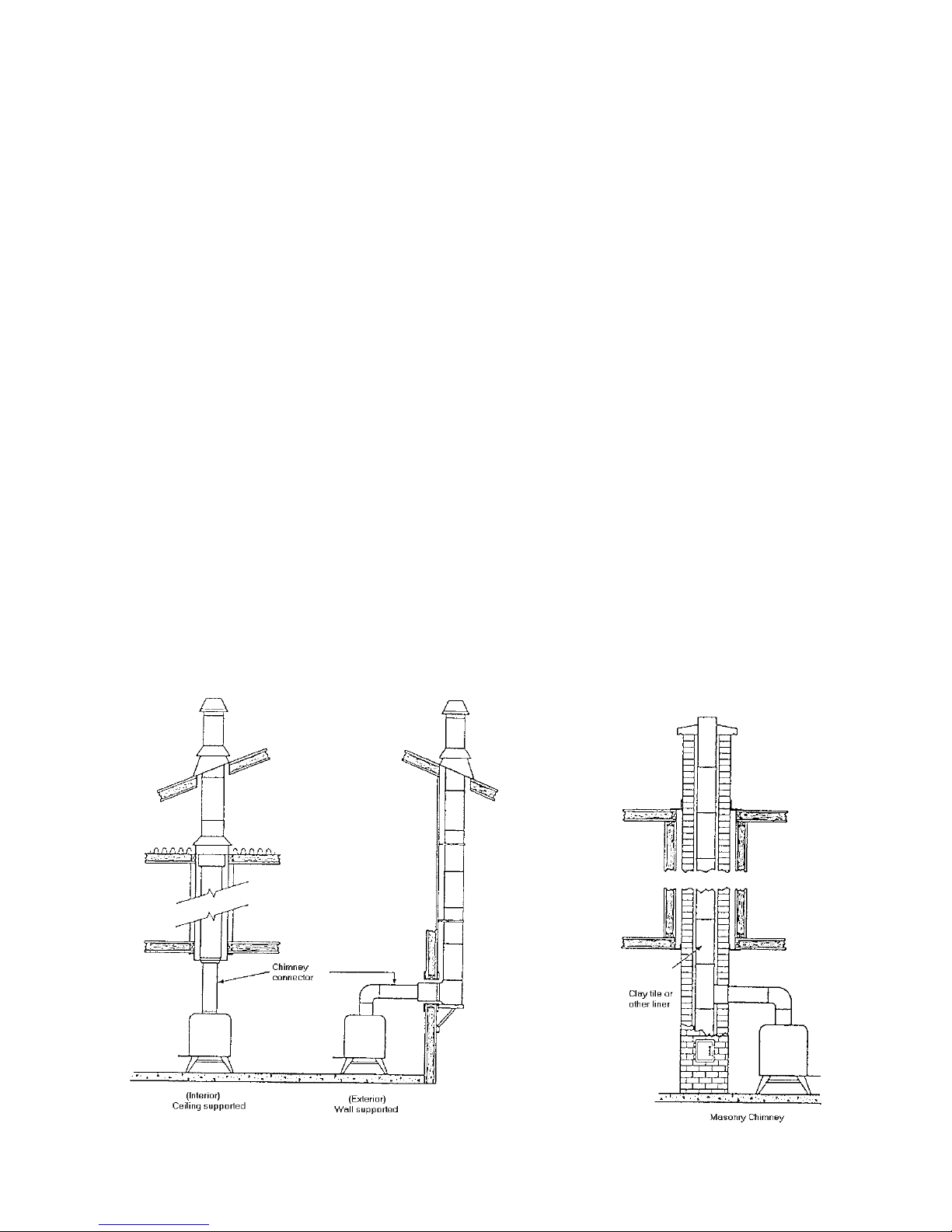

Typical factory-built or masonry chimney installations
Page 6
6
1.4 Flue Connection
The stove is supplied from the factory with a ue collar tted to the top plate and a round
blanking plate blocking o the rear ue exit (behind the rear shield plate).
Use a 24 MSG black or blue chimney connector or listed double wall chimney connector. Refer to local codes and the chimney manufacturer’s instructions for precautions required for

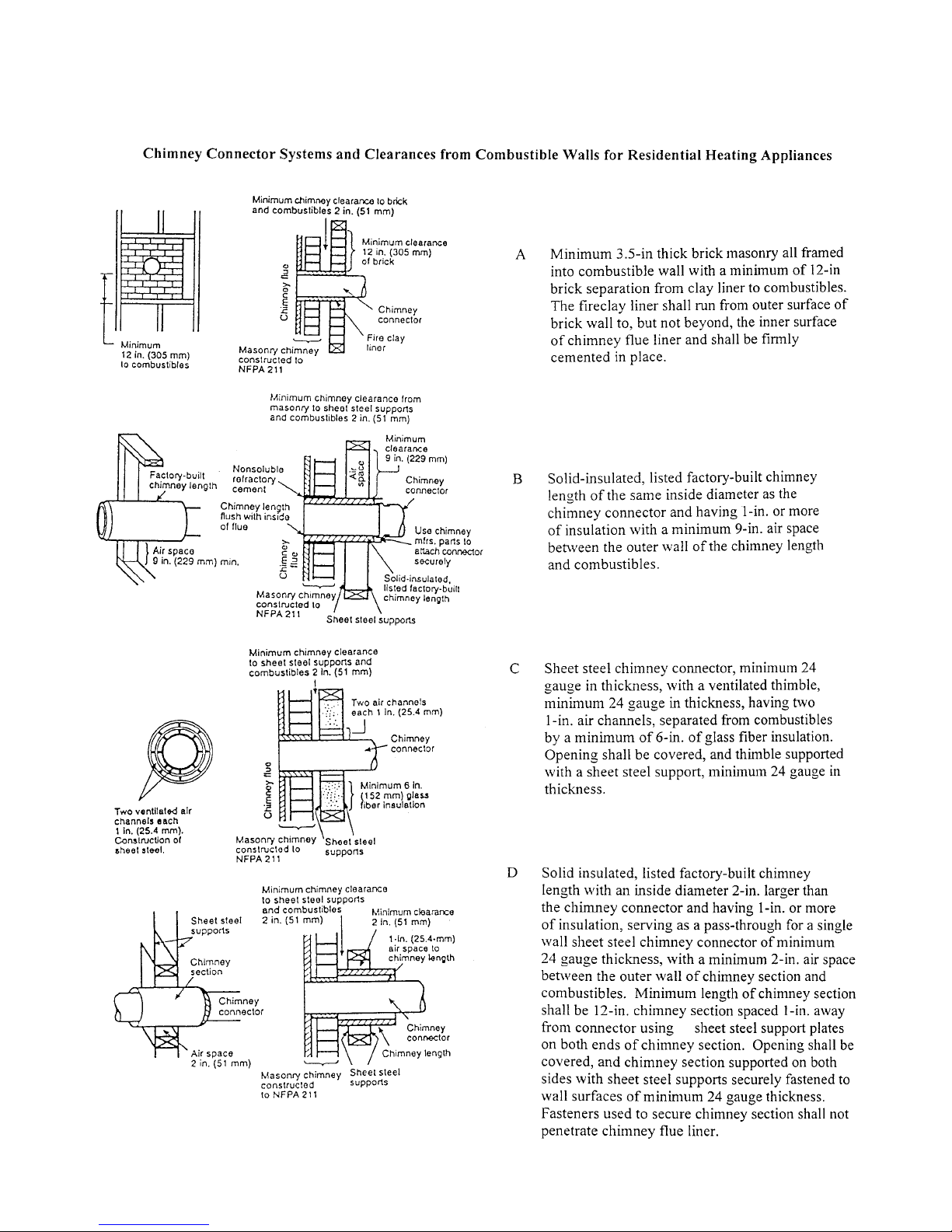

passing a chimney through a combustible wall or ceiling. Remember to secure the chimney
connector with a minimum of three screws to the product and to each adjoining section.
The collar can be tted to the rear outlet. Simply knock out the round panel on the rear heat
shield plate to reveal the cast iron plate. Untwist the blanking plate and the ue collar and
swap their positions. Re-secure by pushing down and tighten the enclosed screws.
Position the stove and connect to the ue system.
Wear gloves and protective eyewear when drilling, cutting or joining sections of chimney connector.
1.5 Connection to the existing chimney
A chimney connector is the double-wall or single-wall pipe that connects the stove to the chimney. The chimney itself is the masonry or prefabricated structure that encloses the ue. Chimney connectors are used only to connect the stove to the chimney.
Double-wall connectors must be tested and listed for use with solid-fuel burning appliances. Single-wall connectors should be made of 24 gauge or heavier gauge steel. Do not use
galvanized connector; it cannot withstand the high-temperatures that smoke and exhaust
gases can reach, and may release toxic fumes under high heat. The connector must be 6
inches (150mm) in diameter.
If possible, do not pass the chimney connector through a combustible wall or ceiling.
If passage through a combustible wall is unavoidable, refer to the sections on Wall PassThroughs. Do not pass the connector through an attic, a closet or similar concealed space
when installing the chimney connectors.
It is important to keep the ue gases moving smoothly in the right direction. Do not vent
into a large void at this location; rather form one continuous section all the way up. Use mild
bends (e.g. 45º vs. 90º) rather than sharp angles where a change of direction is required. All
parts of the venting must be accessible for cleaning purposes.
In horizontal runs of chimney, maintain a distance of 18 inches from the ceiling. Keep it as
short and direct as possible, with no more than two 90 degree turns. Slope horizontal runs
of connector upward 1/4 inch per foot (20 mm per metre) going from the stove toward the
chimney. The recommended maximum length of a horizontal run is 3 feet (1 metre), and the
total length should be no longer than 8 feet (2.5 metres).
Information on assembling and installing connectors is provided by the manufacturer’s instructions exactly as you assemble the connector and attach it to the stove and chimney.
Be sure the installed stove and chimney connector are correct distances from near by
combustible materials. See the clearance paragraph page 8.
Page 7
7
Page 8
8
1.6 Positioning the stove
Distance to walls and lintel
When the stove is positioned near combustible materials, observe all current local and national building regulations with regards to clearances. Whatever regulations apply to your
area, do not in any case install the stove within 8 inches of combustible materials around the
sides or 16 inches above the top of the stove (replace installations require greater clearances above the stove - see below in the clearance chart). These distances may need to be
increased if the materials are sensitive to heat. Note also that wall paper and other decorative materials may become detached with the eects of heat and care should be taken to
ensure that they do not fall towards the stove in such an event.
When the stove is positioned near non-combustible materials, a gap of 4 inches or more is
recommended for cleaning purposes and to ensure that heat circulates around the stove
and out into the room.
CLEARANCE REQUIREMENTS STANDARD RESIDENTIAL INSTALLATION
SINGLEWALL CONNECTOR
USA CANADA
A. Sidewall to unit
B. Backwall to unit
C. Cornerwall to unit
D. Sidewall to connector
E. Backwall to connector
F. Cornerwall to connector
G. Unit to ceiling
H. Floor to ceiling
18”
17”
13”
30”
21”
23”
-
-
460 mm
430 mm
330 mm
760 mm
535 mm
585 mm
-
-
CLEARANCE REQUIREMENTS STANDARD RESIDENTIAL INSTALLATION
DOUBLEWALL CONNECTOR
USA CANADA
A. Sidewall to unit
B. Backwall to unit
C. Cornerwall to unit
D. Sidewall to connector
E. Backwall to connector
F. Cornerwall to connector
G. Unit to ceiling
H. Floor to ceiling
18”
15”
13”
-
-
-
-
-
510 mm
380 mm
355 mm
-
-
-
-
-
Page 9
9
CLEARANCE REQUIREMENTS ALCOVE INSTALLATION
USA CANADA
W. Minimum alcove width
D. Maximum alcove depth
G. Alcove ceiling above stove top
65”
36”
54”
1650 mm
915 mm
1370 mm
FLOOR PROTECTION REQUIREMENTS NONCOMBUSTIBLE MATERIALS
BENEATH STOVE
USA CANADA
A. Extending distance, back
B. Extending distance, right side
C. Extending distance, left side
D. Extending distance, front
6”
6”
6”
16”
200 mm
200 mm
450 mm
450 mm
Floor protector must be non-combustible material, with an R-value of 0.8.
It must extend beneath heater and to the
front/sides/rear as indicated.
Page 10
10
Distance to furniture
The recommended minimum distance from stove to furniture is 30 inches. Note that some
furniture is more easily aected by heat and may need to be moved to a greater distance.
This is your responsibility.
In addition other combustible materials, away from the stove. In general, a distance of 30
inches must be maintained between the stove and moveable combustible item such as drying clothes, newspapers, rewood etc.
Note:
Acid Protection
If acid-washing the masonry around the stove, protect the stove surface with an acid-proof
cover.
Fresh Air Inlet
Unless there is deemed to be sucient ambient leakage of air into the room via doorways, windows
and the like, a dedicated fresh air inlet will be needed. This inlet should have 2 square inches (1250
square mm) of free air space. This is particularly important where the room is well sealed, or where
an extractor hood or ventilation system disturbs the natural air pressure. Such an inlet should not
be on a wall that is usually subject to negative pressure from normal wind pattern. Avoid placing the
inlet directly across the room from the stove, thus causing a cold air draft.
Page 11
11
2.0 Operation
2.1 Before you start ring
For use with solid wood fuel only. Do not overre, if heater or chimney connector glows
you are overring. Inspect and clean chimney frequently. Under certain conditions of use
creosote buildup may occur rapidly. Because of risk of smoke and ame spillage, operate
only with door fully closed.
Caution:
Hot while in operation. Keep children, clothing and furniture away. Contact may cause
skin burns.
Do not use chemicals or uids to start the re.
Do not burn garbage or ammable uids.
Do not use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter or uid or similar liquids to start or freshen up a re in this heater. Keep all such liquids away from the
heater while it is in use.
Choosing your fuel
All types of natural wood can be burned on your stove, but they must be well-seasoned and
dry. Once the wood is cut to length, it should be split down middle - to suit the dimensions
given below - to allow moisture to evaporate.Cut the wood to a length of max 22 inches
(56 cm) and approx. 3 to 3.5 inches (7-8 cm) in section. If you can weigh your wood, aim for
around 2 lbs. For correct combustion and heat output, wood fuel should contain no more
than 20% moisture; this can easily be checked by using the Morsø Moisture Meter (part #
62929900).
To naturally season wood fuel, stack and store it under cover in an airy location where fresh air
can move through each piece. Some soft woods may take as little as one good summer to season whereas harder woods such as oak, maple, and elm may require seasoning up to 18 months.
Avoid overly dry wood that is gray in color as under certain conditions it can cause performance
problems, such as back-pung and sluggishness. Well seasoned wood will be light to hold and
will show signs of cracking from the center-out in the ends. If your wood spits or sizzles when
burnt, and your stove’s door glass persistently mists up, your wood is not properly seasoned.
Never use drift wood (from the sea), whose salt content may cause corrosion, nor construction
wood that may have been impregnated with chemicals.
Starting the First Fire
The initial re should be small, so that the stove paint can cure and the main plates of the
stove can settle into position. Some fumes will be given o by the paint. Ventilate the room
during this phase.
The setting of the air control, lighting techniques and loading intervals will depend on chimney draft, the fuel used, the heat required and so on. Some basic techniques are outlined
below.
In principle
Your stove is tted with Primary and Secondary air inlets.
Primary Air is controlled using the lever situated under the ash lip of the stove. Moving the control lever into a downward position will open the air inlet and will allow a supply of preheated
air to enter the rebox via the ‘airwash’ system situated inside the stove and the above glass.
Page 12
12
Secondary Air is right to the rebox using specially designed bae at the back of the rebox.The secondary air is injected into the ue gases both above and in front of the re resulting in a cleaner, more ecient combustion process. The supply of secondary air is xed
open and is not adjustable.
For extra safety, your stove has been tted with a removable handle. When not in use the
handle can be stored using the lug by the right leg of the stove.
2.2 Lighting and loading intervals
When rst lighting the stove, a large volume of air is needed. When the stove is cold, you
should leave the door open an inch or two for the rst few minutes and open the primary air
supply completely. While the doors is open, do not leave the stove unattended.
To form a reasonable bed of ash on the oor of the stove, you should use 5-6 inches thickness (2-4 pound) of dry kindling at the initial lighting. Always maintain a 1-1.5 inch (2-3 cm)
layer of ash on the oor of the combustion chamber at all other times.

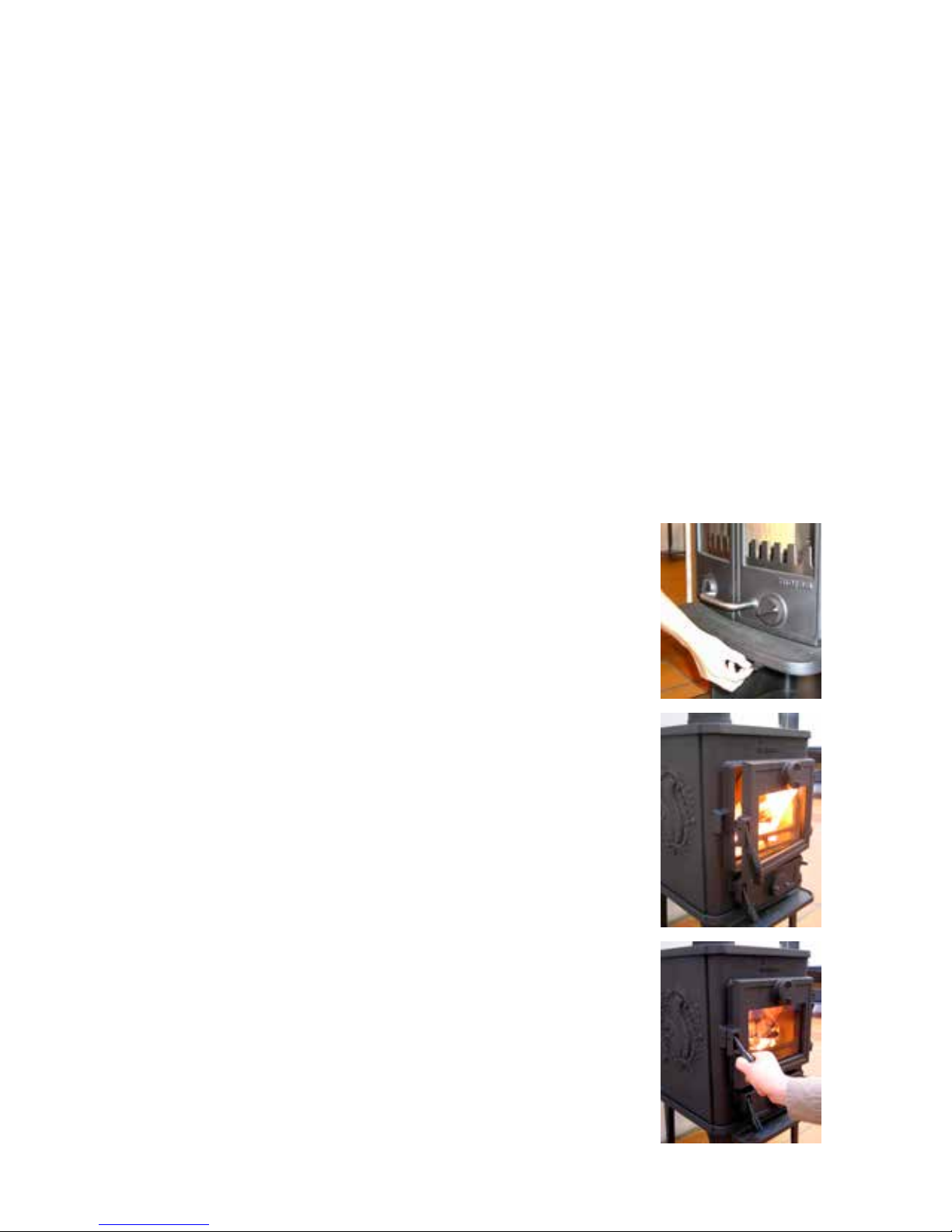

1. The air supply must be fully open. Maximum 4 turns.
2. Light the re. An ember bed will quickly be formed by
lighting with relighters, Morsø kindling bags or 7-10 pieces
of twisted paper under the dry kindling wood (see above).
3. After lighting, partially close the doors, leaving them
open an inch or two to allow in plenty of combustion air.
4. When the chimney is warmed through after 5-10 min-
utes, the doors should be closed. A suitable ember bed
will be formed after a further 15-20 minutes.
Page 13
13
Do not for any reason attempt to increase the ring of your heater by altering the air
control adjustment range outlined in these directions.
Warning: Fireplace stoves must never be left unattended with doors open.
If the doors are left partly open, gas and ame may be drawn out of the replace stove
opening, creating risks from both re and smoke. We recommend that you t a smoke
detector in the room where the stove is installed.
DO NOT OVERFIRE THIS HEATER. Overring may cause a house re, or can result in permanent damage to the stove. If any part of the stove glows, you are overring.

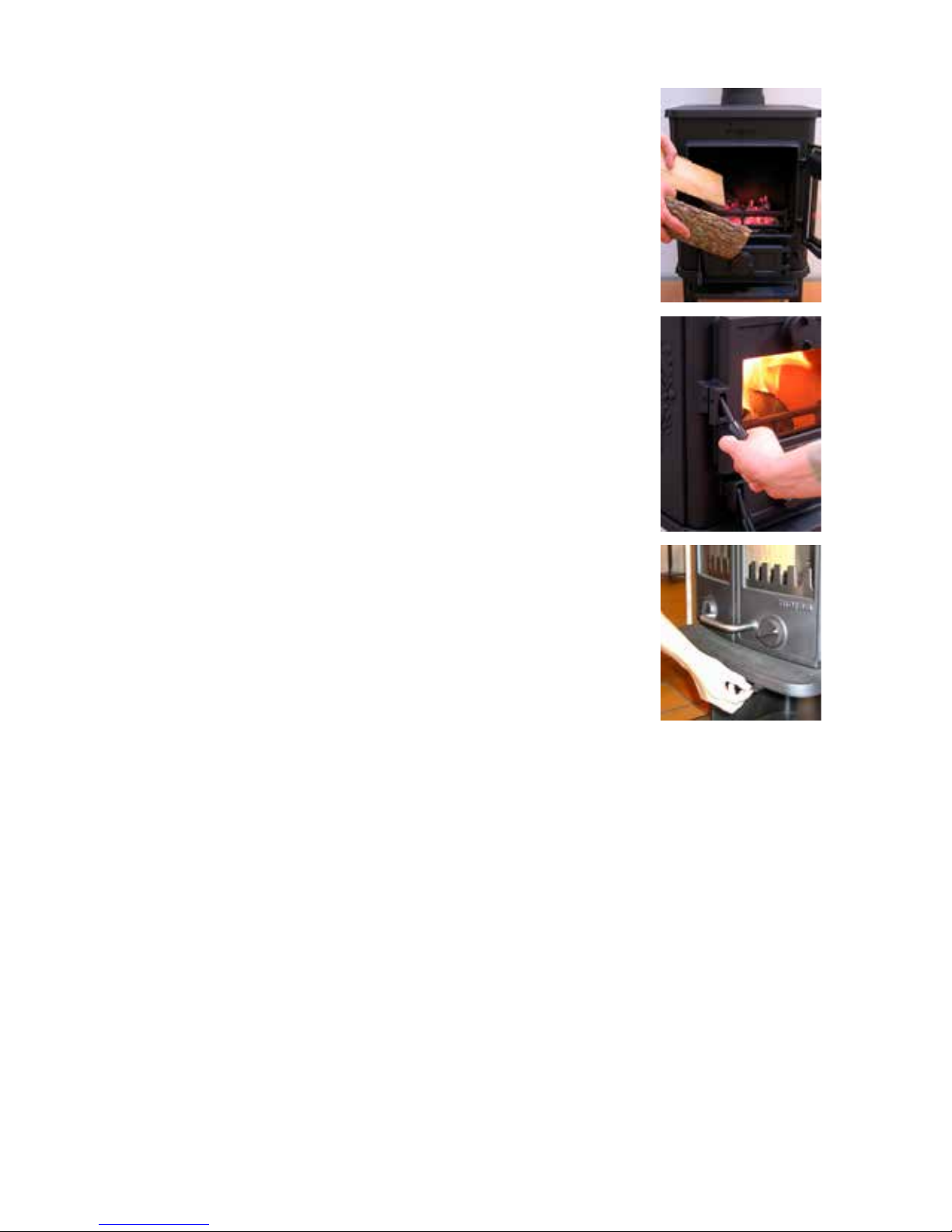

5. When ready to reload, use a poker to spread the ember
across the rebox oor, bringing plenty towards the front
of the stove.
6. Lay three pieces of wood (see dimensions above) onto the
embers. Leave half an inch (1 cm) or more between each piece.
When using 10 inches (25 cm) logs, place the ends of your logs
towards the opening, but not too close to the front.
7. Close the door. Leave the primary air supply fully open.
8. After a few minutes, and adjust the primary air supply
to suit your heating requirements.
9. Anticipate each refueling, remembering to add a modest
layer of wood while there are still plenty of live embers, Repeat steps 5-8.
Page 14
14
The maximum recommended weight of wood fuel per load is 2.5 kg/h/5.5Ibs (approx 3 split
logs).
Under normal ring, the average ue temperature in the stove pipe, measured 20 cm above
the stove, is approx. 300° C (550°F). The maximum ue temperature in the stove pipe must
not exceed 450° C (750°F). If the ue temperature exceeds 450°C (750°F), it is considered
as over ring and may cause premature wear and tear of the stove.
To help gauge the correct running temperature of your stove, we recommend you use the Morsø
Flue Gas Thermometer (part # 62901200). The Flue Gas Thermometer magnetically attaches onto
the stove pipe approx 20 cm (8”) above the stove’s top plate and measures the surface temperature
of the stove pipe. Please see your authorized Morsø Dealer for availability.
Draft conditions
If smoke or fumes come out of your stove when lightning up and reloading, or if the re simply
will not respond, a poor draft is almost certainly to blame. (In a very few cases, there may be
insucient fresh air getting into the room - see installation advice above). Take advice from
your stove supplier on how best to upgrade your ue system to improve draft.
Rules of woodburning
If you want less heat, put fewer logs on the stove and reduce the amount of air. It is still important to maintain a good layer of embers.
Less heat - less wood - less air
Greater heat - more wood - more air
Soot deposits will settle on the glass if the stove is run too slowly or if your wood is not well
seasoned.
Page 15
15
3.0 Maintenance
When perfoming maintenance on your stove, always protect yourself, using safety goggles and gloves.
3.1 Exterior Maintenance
The stove surface is painted with heat-resistant Senotherm paint. It is best kept clean by
vacuuming with a soft brush attachment or by wiping with a lint-free cloth.
Over a period of time, the painted surface may become slightly grey. A can of Morsø touch-up
spray paint should be available from your stove supplier. This can be applied - in accordance with
the instructions - in just a few minutes. When rst ring after touching up, the stove will give o
a slight smell as the paint cures. Make sure to ventilate the room well during this phase.
3.2 Internal maintenance
Glass
If the stove is generally run at the correct temperatures, there should be little or no dirt on
the glass. If dirt does settle during lighting, most will burn o as temperatures increase.For
heavier deposits that will not burn o, use Morsø glass cleaner, applied when the glass is
cold, in accordance with the instructions. Never use abrasive cleaners on the glass surface.
Reasons for dirty glass
- Fuel too wet
- Logs too large or not split
- Combustion temperatures too low
Replace broken glass immediately.
Do not operate your stove if the glass in the door is damaged.
If you need to replace the glass, it should be replaced with the high temperature ceramic
class supplied by Morsø, contact your Morsø dealer.
Installing the glass
Never install the glass when the stove is in function.
Ceramic glass replacement
Ceramic glass cannot be recycled
because it has a higher melting point
that ordinary glass. If ceramic glass
is mixed with ordinary glass, the raw
material is spoiled, and the reclaiming
process may be halted. Take care that
the ovenproof glass does not end up
among ordinary recycled waste. That
will be a great benet to the environment.
Note: Should be handed in to a recycling station as ceramic glass.
Page 16
16
1. When you open the door, you will nd two small M4 unbraco screws, one in each hinge.
Unscrew the two screws, lift the door o the hinges and place it face down on a sheet of
cardboard or other nonabrasive fabric.
2. Unscrew the 4 bolts that secure the glass. (In the event that a bolt sheers o when being
unscrewed, remove the remaining body of the bolt by drilling down its cnetre with 1/8
inch high speed steel drill bit. Smaller drill bits may be successful, but do not use a lager
bit. Make sure the bit stays away from the edges of the bolt - this may damage the thread
in the cast iron).
3. Remove the old ceramic gaskets and clean up the surface underneath with wire wool or
emery paper to remove loose particles.
4. Place the new gasket material in position around the perimeter of the window area, making sure to pinch them to the length in such a way that they make a continuous seal. Leave
no gaps.
5. Place the new glass in position on the strips and screw home the fresh bolts and tting
by hand.
6. Finally, give each of the bolts an extra half turn or so. The glass should held tight enough
by that cleaning will not dislodge it. Do not over-tighten the bolts as this may put excessive pressure on the glass, resulting in cracking - important!
To reduce the risk of breaking the glass, avoid striking the glass or slamming the door.
Internal service parts
The ame-path equipment - consisting of the ashpan, grate, rebricks, Cast iron re plates,
glass, bae and ue collar - are subject to the extremes of heat produced by the re. From
time to time, one or other of these parts may need replacing as a matter of routine maintenance.
NOTE: The ame-path equipment, the ceramic rope and the paint nish are not covered
by guarantee.
All of these service parts can be bought from your Morsø dealer, and we recommend that
damaged parts are replaced as soon as possible to avoid collateral damage.
Should the bae be distorted by an overre, the stove will still function, although its eciency may be compromised. Replace it as soon as possible. The radiation shield on the back of
the stove is rst removed by loosening the 4 screws. The rear casing is removed (four bolts).
Remove these and remove the 2 M8 bolts keeping the bae plate. withdraw the bae from
the rebox.
Before replacing the bae, scrape out the old re furnace and replace with new to make
an eective seal.
Reasons for fast internal wear and tear
Persistent heavy ring
Soot and ashes left to accumulate
Page 17
17
Gasket
The gasket around the perimeter of the doors may harden over a period of time. It should be
replaced if it becomes dicult to close the doors or if air starts to leak in around the perimeter of the doors, causing the re to become a little less controllable. A Morsø rope gasket kit
is available from your stove supplier.
3.3 Cleaning the Stove and the Flue
Check for soot above the bae plate and around the ue outlet every month or so to start
with. If the stove suddenly becomes sluggish, check for a soot fall around the ue collar or
in the ue/chimney. - at least once a year. Inspect every month.
Clean the ue/chimney - all the way from the stove to the ue terminal point above the house.
A good routine is to clean the ue after each heating season in any case, and inspect prior
to the season to ensure that bird’s nests or other blockages have not ocurred during the
o season.
Ash disposal
Empty the ashpans on a daily basis or as needed. Ash allowed to build up towards the underside of the grate will trap heat and could cause premature failure of the grate.
Empty the ashpan according to this procedure:
Open the front doors, and use a shovel or poker to stir excess ash through the ash slots in
the grate down into the ash pans. Remove the ash pans, making sure to keep it level.
Dispose the ash in a metal container with a tight tting lid.
The closed container of ashes should be placed on a noncombustible oor or on the ground,
well away from all combustible materials, pending nal disposal. If the ashes are disposed of
by burial in soil or otherwise locally disperded, they should be retained in the closed container
until all cinders have thoroughly cooled.
Return the ash pans to its original position in the stove, and close.
Caution:
Never empty a stove in operation.
Never use your household or shop vacuum cleaner to remove ash from the stove; always
remove and dispose of the ash properly.
Creosote - formation and need for removal
When wood is burned slowly, it produces tar and other organic vapors, which combine with
expelled moisture to form creosote. The creosote vapors condense in the relatively cool
chimney ue of a slow-burning re. As a result, creosote residue accumulates on the ue
lining. When ignited this creosote makes an extremely hot re. When burning wood, inspect
the chimney connector periodically to determine if a creosote buildup has occurred.
Chimney sweeping
Inspect the system regularly during the heating season as part of a regular maintenance schedule. To inspect the chimney, let the stove cool completely. Then, using a mirror, sight up through
the ue collar into the chimney ue. If you cannot inspect the ue system in this fashion, the
stove must be disconnected to provide better viewing access.
Clean the chimney using a brush the same size and shape as the ue liner. Run the brush up
and down the liner, causing any deposits to fall to the bottom of the chimney where they
can be removed through the clean-out door.
Page 18
18
Clean the chimney connector disconnecting the sections, taking them outside, and removing any deposits with a sti wire brush. Reinstall the connetor sections after cleaning, being
sure to secure the joints between individual sections with sheet metal screws.
If you cannot inspect or clean the chimney yourself, contact your local Morsø Dealer or a
professional chimney sweep.
If you do experience a chimney re, act promptly and:
1. Close the air control.
2. Get everyone out of the house.
3. Call the Fire Department.
Annual maintenance
Before the heating season, perform a thorough cleaning, inspection and repair:
Thoroughly clean the chimney and chimney connector.
Inspect the chimney for damage and deterioration. Replace weak sections of prefabricated
chimney. Have a mason make repairs to a masonry chimney.
Inspect the chimney connector and replace any damaged sections.
Check gasketing for wear or compression, and replace if necessary.
Check the glass for cracking; replace if needed.
Check door and handles for tightness. Adjust if needed.
3.4 Leaving the stove for extended periods
Important:
If the stove is to be left unused for any period of time, clean it out thoroughly and leave the
air control slightly open to allow airow. Make sure that the ue does not allow rainwater
to come anywhere near the stove; install a chimney cap, but do not block o the ue completely.
These measures should ensure there is a slight movement of air through the stove, and that
the body of the stove remains dry, right into the corners.
Any ash left within an unred stove can attract moisture like blotting paper. If moisture is allowed to settle within the stove, rust will form. Rust expands as it takes a grip. This can lead
to undue pressure on the stove joints, and this in turn may result in damage to the stove.
NOTE: It is best to thoroughly clean the stove after the heating season has concluded. Adding a dessicant, such as kitter litter, into the ash pan helps absorb moisture during the summer months. Be sure to remove this prior to the heating season.
Thank you for buying a Morsø stove.
We hope you have many years of carefree warmth in its company. Some initial experimentation with loading and running techniques will decide your normal routine. If you have any
problems after this short learning phase, please refer to your stove dealer. Should they be
unable to help for any reason, please contact us in writing at the address on the front of
this publication.
Page 19
19
3.5 Parts diagram for model Morsø 3600
17
50
70
29
47
39
33
75
43
9
3
46
61
55
61
40
37
75
101
61
41
55
61
46
53
78
78
53
53
78
53
78
41
54
67
67
5454
67
54
67
103
54
103
54
2
79
76
30
76
57
52
57
1
28
28
108
32
10
63
11
11
34
20
68
72
22
103
27
125
108
108
100
54
12
100
54
77
54
104
51
77
70
54
70
54
15
24
4
7
67
54
103
54
67
105
103
54
54
103
67
54
67
54
67
54
54
73
57
57
73
18
89
89
18
19
8
13
59
54
54
103
31
65
36
16
21
66
38
65
45
6
56
55
61
65
23
14
54
71
54
71
5
126
67
54
103
54
50
70
103
54
67
54
68
67
54
59
81
81
83
26
88
129
85
129
85
95
94
98
97
91
93
94
94
96
92
91
98
97
94
DIN
103
109
109
72
54
69
69
54
66
112
113
114
111
65
65
65
34
121
122
123
54
54
54
54
50
50
48
56
80
35
56
35
80
56
48
35
35
54
105
67
80
74
74
Option - Airadaptor 3610/3640
127
128
AUS
26126
42
42
117
117
118
119
124
120
120
118
118
118
120
120
120
120
119
120
124
120
120 120
Option - Shelves 3610/3640
54
54
116
115
54
116
115
54
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:10
Reservedelstegning
Morsø 3600
KDU
11.07.01
A2
Exploderet tegning
-
U:\udv\Tegninger\3600\3600 samling.SLDASM
3600-501 ae
-
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:
ad Beslag og skrue ændret til lus og skrue v. mellembund. RSV 26.05.2009
aa Flytte airadaptor til en option. RSV 21.04.2008
ab 3 stk. bolte udskiftet med buttonhead pos.127 RSV 10.06.2008
ac Tilføjet sidesten pos.128 RSV 10.06.2008
ae Vinkelbeslag i højre side udskiftet. RSV 12.04.2010
Page 20
20
3.6 Parts list for model Morsø 3600
Pos. No. Parts 3610 3640
1 Base plate 443601XX 443601XX
2 Front frame 443602XX 443602XX
3 Door right 443603XX 443603XX
4 Side plate 443604XX 443631XX
5 Side frame 443605XX 443605XX
6 Door side 443606XX 443630XX
7 Inside rear plate 443607XX 443607XX
8 Top plate 443608XX 443608XX
9 Door left 443609XX 443609XX
10 Intermediate frame 44361000 44361000
11 Grate 34361100 34361100
12 Outside back plate 443612XX 443612XX
13 Inside top plate 44361300 44361300
14 Fire plate for side door 34361400 34361400
15 Fire plate for side plate 44361500 44361500
16 Bae plate, cast iron 44361600 44361600
17 Leg 443617XX 443617XX
18 Front grate 44184900 44184900
19 Cover 442610XX 442610XX
20 Flue collar 443441XX 443441XX
21 Bae plate, stainless 71360161 71360161
22 Convection rear plate 71360200 71360200
23 Insulation side door 79074900 79074900
24 Insulation side plate 79075000 79075000
26 Angle brace f. sideframe (Lefthand sidedoor) 71360461 71360461
27 Airadaptor 71360600 71360600
28 Ash tray 71360700 71360700
29 Radiant shielding, bottom 71360800 71360800
30 Draught control 71360900 71360900
31 Bae plate, stainless, inside top 71361061 71361061
32 Plate for intermediate frame 71361161 71361161
33 Air inlet arm 713612XX 713612XX
34 Stone back 79360300 79360300
35 Screw 739405 739405
36 Insulation 79074800 79074800
37 Axis for handle 75362700 75362700
38 Axis for handle 75462700 75602700
39 Stainless handle for adjustment 75180400 75180400
40 Door handle, stainless steel 54186100 54186100
41 Ceramic glass 79360000 79360000
42 Fitting w. thread for ue collar 44256700 44256700
43 Assemble steel 71346500 71346500
44 Flat bar 545006 545006
45 Hinge pin 542056 542056
46 Hinge pin 545008 545008
47 Cotter pin 74202000 74202000
48 Screw 739408 739408
50 Distance tube 54313100 54313100
51 Distance tube 545007 545007
52 Pressure spring, stainless 79048600 79048600
Page 21
21
3.6 Parts list for model Morsø 3600
Pos. No. Parts 3610 3640
53 Glass tting 54146361 54146361
54 Washer 791891 791891
55 Washer 746006 746006
56 Pin 74701000 74701000
57 Washer 736108 736108
59 Screw 731670 731670
61 Washer 791824 791824
63 Screw 73961700 73961700
65 Screw 731612 731612
66 Screw 731616 731616
67 Screw 731620 731620
68 Screw 743625 743625
69 Screw 791835 791835
70 Screw 731635 731635
71 Screw 74163504 74163504
72 Distance tube 545003 545003
73 Screw 731870 731870
74 Screw 74160804 74160804
75 Screw 731608 731608
76 Nuts 735008 735008
77 Screw 731645 731645
78 Screw 73850800 73850800
79 Screw 731125 731125
81 Tightening tape 79074500 79074500
83 Hanging for handle 54185800 54185800
85 Fitting for Intermediate frame 541831 541831
88 Nut 73500601 73500601
89 Screw 73861300 73861300
100 Screw 731650 731650
101 Hinge pin 541082 541082
103 Screw 731625 731625
104 Screw 743616 743616
105 Washer 79189300 79189300
107 Washer 736106 736106
108 Screw 731610 731610
109 Washer 746206 746206
111 Konvection Side Plate right - 443621xx
112 Konvection Side Plate left - 443622xx
113 Distance tube - 54362500
114 Distance tube - 54362600
115 Fitting Plate for Shelve - 713622xx
116 Screw - 73861100
121 Front Grate 443624xx 443624xx
122 Fitting for Front Grate Door side 54362861 54362861
123 Screw 74340804 74340804
125 Screw 79183300 79183300
126 Screw 73861100 73861100
127 Screw 73861900 73861900
128 Stone side 79360400 79360400
129 Screw 73863100 73863100
Page 22
22
Page 23
23
Morsø Jernstøberi A/S - 19.11.2015 - 72360000
Guarantee
Product Registration
MORSØ 10 YEAR GUARANTEE CERTIFICATE
Behind every Morsø stove is more than years of dedicated stove design and manufacturing experience. Quality control has always been at the heart of the production process and detailed measures
have been put into place at all key stages of the build. Accordingly, provided that the stove has been
supplied by an authorised Morsø dealer, Morsø will oer a 10-Year Manufacturers Guarantee against
manufacturing defect to any of the main exterior body parts of its stoves.
Read more about ”Morsø 10 years guarantee/product registration card” and
REGISTER your new Morsø stove online:
http://international.morsoe.com/warranty-registration
Page 24
24
MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS
E-Mail: [email protected] · Website: www.morsoe.com
Morsø Jernstøberi A/S - 19.11.2015 - 72360000
IMPORTANT!
How to heat safely for the environment and yourself!
• Use only dry wood
Use only dry (max. 20% moisture content)
and untreated wood. The fuel must be split
and 8 - 12 cm thick.
• Light
Light with dry kindling (use 1 - 2 kg). Leave
the door ajar and stay close to the stove
during the lighting phase.
• Good layer of embers
Be certain to have a good layer of em-
bers before relling. The wood should
light within 2 minutes. If the logs do
not ignite it may, in an extreme case,
cause the flue gases to ignite which
may pose a risk to material damage or
personal injury.
• Refuelling
When refuelling use 2 - 3 pieces of wood
- no more than 2 - 2.5 kg.
• Ensure adequate air
I.e. clear and yellow ames.
• Never burn overnight
Loading...
