Page 1
MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS
E-Mail: [email protected] · Website: www.morsoe.com
Installation and Operating Instructions
Morsø 2110
For use in North America
Page 2
2
1.0 Installation of your Morsø stove Page no.
1.1 Unpaking the stove 4
1.2 Checking loose parts in the stove 4
1.3 The chimney / ue system 5
1.4 Flue connection 6
1.5 Connection to the existing chimney 6
1.6 Positioning the stove 8
2.0 Operation 11
2.1 Before you start ring 11
2.2 Lighting & loading intervals 12
3.0 Maintenance 15
3.1 Exterior maintenance 15
3.2 Internal maintenance 15
3.3 Cleaning the stove & the ue 17
3.4 Leaving the stove for extended periods 18

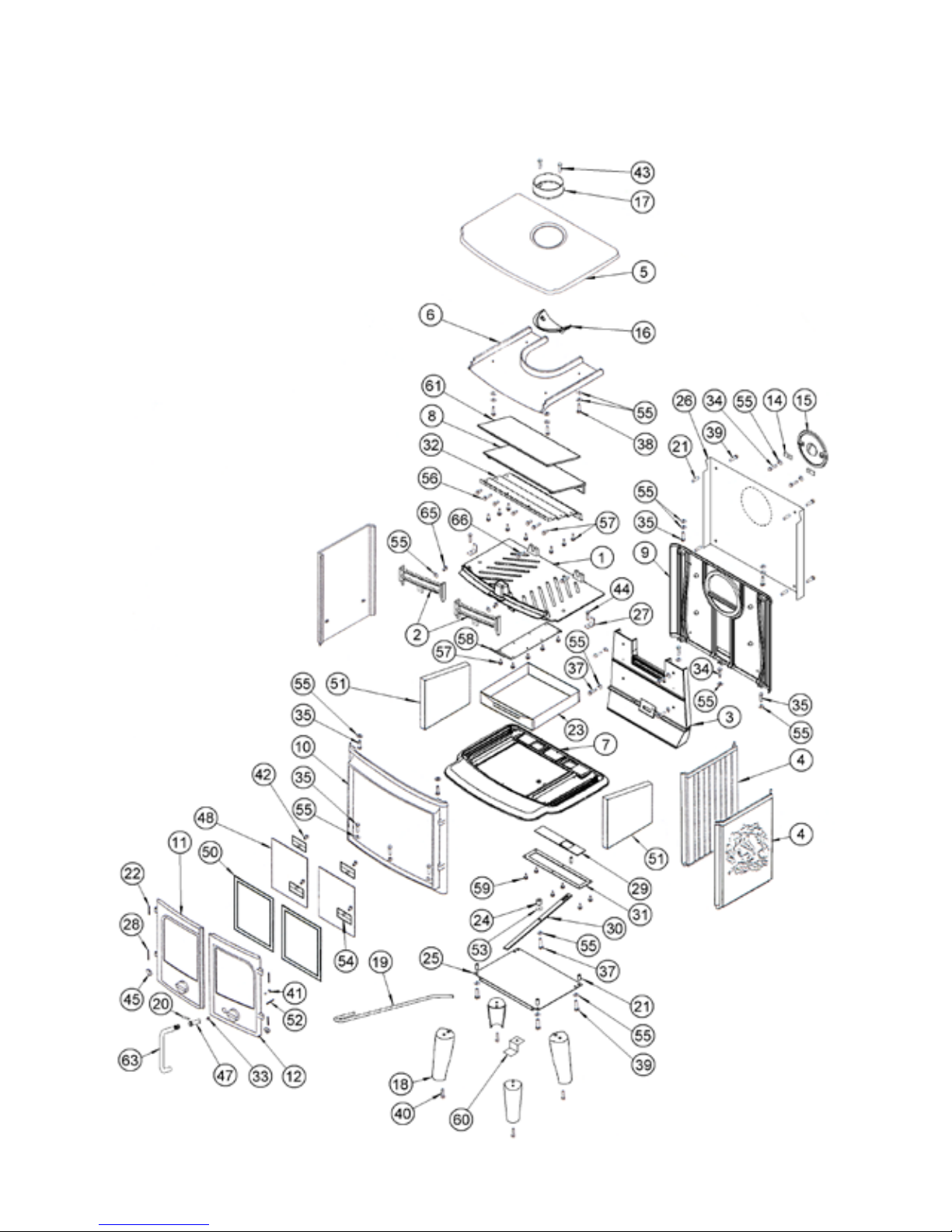

3.5 Parts diagram 19
3.6 Parts list 20
Contents
Congratulations on the purchase of your new
Morsø stove!
Morsø, which is the largest supplier for the Danish market, has manufactured stoves of the highest
quality since1853. By following the instructions overleaf, we are sure that you will enjoy the use and the
benets of your stove for many years to come.
Read this entire manual before you install and use your new room heater. If this room
heater is not properly installed, a house re may result. To reduce the risk of re, follow
the installation instructions. Failure to follow instructions may result in property damage, bodily injury, or even death.
Contact local building ocials about restrictions and installation inspectionrequirements
in your area.
Save these instructions
Page 3
3
Optional Accessories
A wide range of accessories (such as handling gloves, reside tools, glass cleaner and heatproof paint) are available for use with your Morsø stove. They help with day-to-day running
and maintenance. Contact your Morsø dealer for more information.
The Morsø 2110 meets the U.S. Environmental Protection Agency’s emission limits for wood
heaters sold on or after July 1, 1990
The Morsø 2110 are listed by OMNI-Test Laboratories, Inc. The test standards are ANSI/UL1482 for the United States and ULC S627 for Canada.
The stove is listed for burning wood only. Do not burn other fuels.
Under specic test conditions this heater has been shown to deliver heat at rates ranging
from 8,600 to 42,100 Btu´s.
Cast iron
Cast iron is a live material. There are no two ovens that are identical. This is partly due to the
tolerances of the casting process, partly because the ovens are a work of craftsmanship.
Minor unevennesses may also occur in the cast iron surface.
Page 4
4
Installation of woodburning stoves must be safe and legal.
If your Morsø stove is not installed correctly, it may cause a house re. To reduce the risk
of re, the installation instructions must be followed carefully. Contact the local building
ocials about restrictions and installation inspection in your area.
Before you start installing your stove, make sure that:
- The stove and chimney connection are placed far enough from combustible materials to
meet all clearance requirements.
- The oor protection must be adequate and must be made correctly according to ´the
requirements.
All neccessary approvals are needed from the local building ocials.
The data plate, which is located on the back of the stove, provides information regarding
safety testing information, name of certied testing laboratory, and installation requirements.
Installation requirements vary in dierent districts, and the local building ocials have
the nal authorization to approve your installation. You should discuss the installation
with them before beginning. Please ask your dealer for further information.
Do not connect to any air distribution duct or system.
Important: If the installation instructions are not followed carefully, it may cause dangerous situations like chimney - and house res. Follow the instructions carefully and
do not deviate from them as it may cause injuries to people or property.
1.1 Unpacking the stove
After removing the outer packaging place it gently on its back. The cardboard packaging can
be placed underneath to prevent marring. Remove the leg pack from the stove and bolt each
leg/panel securely to the underside of the base on the combustion chamber, using the bolts
provided (found inside the stove).
We recommend that two people perform the assembly and installation procedure.
The Morsø 2110 weighs 125 kg.).
1.2 Checking loose parts in the stove
After unpacking, check that the re bricks are rmly in position and have not shifted in transit. Check also that the air control works freely.
Standard Accessories
Poker, ceramic ue connection gasket and ash can tools are standard accessories, and can
usually be found in the ashpan or rebox area.
1.0 Installation of your Morsø stove
Page 5
5
1.3 The chimney / ue system
Note that the ue system must be independently secured and must not rely on the stove
for support.
The stove must not be connected to a chimney ue serving any other appliance.
(Several ues may run up a single chimney stack; use one ueway per appliance).
Use a residential type masonry or listed type HT factory-built chimney.
High Temperature (H.T.) Chimney Standard UL-103-1985 (2100º F.) for the USA, and High
Temperature (650ºC) Standard ULC S-629 for Canada.
The internal dimensions of the chimney connector and chimney must not be less than 6 inches diameter (or equivalent cross section), and should not be signicantly larger than this. Too
large a section will tend to allow the ue gases to cool excessively, causing sluggishness or
unpredictability in the stove’s performance.
We recommend the length of the chimney system should be at least 16 feet (not required)
above the stove in normal domestic situations, measured from the ue collar to the top of
the chimney.
Local conditions like for example - roof constructions, large trees nearby and high altitude,
may inuence the chimney draft and height. Therefore, contact the local professional chimney sweep or your Morsø dealer.

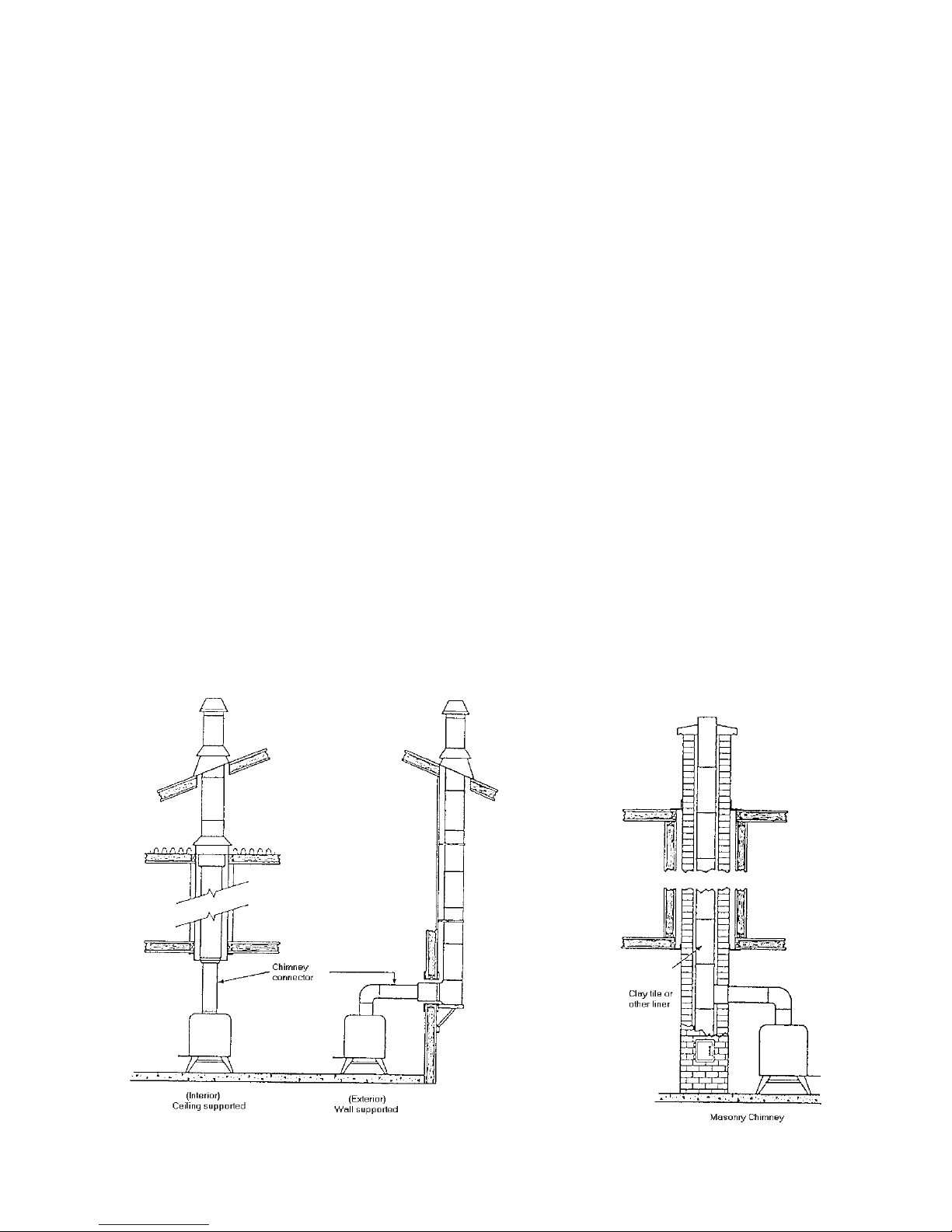

Typical factory-built or masonry chimney installations
Page 6
6
1.4 Flue Connection
The stove is supplied from the factory with a ue collar tted to the top plate and a round
blanking plate blocking o the rear ue exit (behind the rear shield plate).
Use a 24 MSG black or blue chimney connector or listed double wall chimney connector. Refer to local codes and the chimney manufacturer’s instructions for precautions required for
passing a chimney through a combustible wall or ceiling. Remember to secure the chimney
connector with a minimum of three screws to the product and to each adjoining section.
The collar can be tted to the rear outlet. Simply knock out the round panel on the rear heat
shield plate to reveal the cast iron plate. Untwist the blanking plate and the ue collar and swap
their positions. Re-secure by pushing down and tighten the enclosed screws. The draft reducer
is not needed when tted to the rear outlet.
Position the stove and connect to the ue system.
Wear gloves and protective eyewear when drilling, cutting or joining sections of chimney connector
1.5 Connection to the existing chimney
A chimney connector is the double-wall or single-wall pipe that connects the stove to the chimney. The chimney itself is the masonry or prefabricated structure that encloses the ue. Chimney connectors are used only to connect the stove to the chimney.
Double-wall connectors must be tested and listed for use with solid-fuel burning appliances. Single-wall connectors should be made of 24 gauge or heavier gauge steel. Do not use
galvanized connector; it cannot withstand the high-temperatures that smoke and exhaust
gases can reach, and may release toxic fumes under high heat. The connector must be 6
inches (150mm) in diameter.

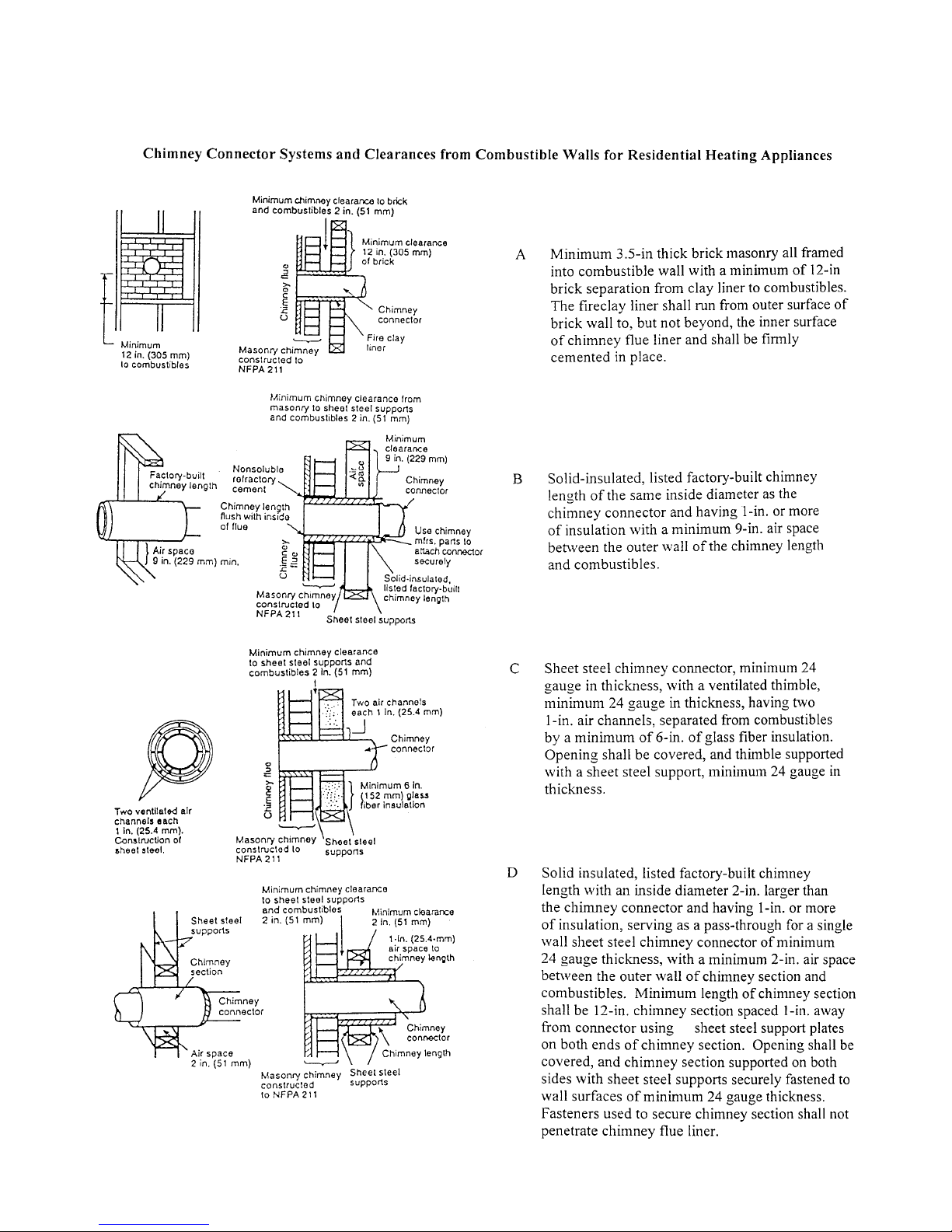

If possible, do not pass the chimney connector through a combustible wall or ceiling.
If passage through a combustible wall is unavoidable, refer to the sections on Wall PassThroughs. Do not pass the connector through an attic, a closet or similar concealed space
when installing the chimney connectors.
It is important to keep the ue gases moving smoothly in the right direction. Do not vent
into a large void at this location; rather form one continuous section all the way up. Use mild
bends (e.g. 45º vs. 90º) rather than sharp angles where a change of direction is required. All
parts of the venting must be accessible for cleaning purposes.
In horizontal runs of chimney, maintain a distance of 18 inches from the ceiling. Keep it as
short and direct as possible, with no more than two 90 degree turns. Slope horizontal runs
of connector upward 1/4 inch per foot (20 mm per metre) going from the stove toward the
chimney. The recommended maximum length of a horizontal run is 3 feet (1 metre), and the
total length should be no longer than 8 feet (2.5 metres).
Information on assembling and installing connectors is provided by the manufacturer’s instructions exactly as you assemble the connector and attach it to the stove and chimney.
Be sure the installed stove and chimney connector are correct distances from near by
combustible materials. See the clearance paragraph page 8.
Page 7
7
Page 8
8
1.6 Positioning the stove
Distance to walls and lintel
When the stove is positioned near combustible materials, observe all current local and national building regulations with regards to clearances. Whatever regulations apply to your
area, do not in any case install the stove within 8 inches of combustible materials around the
sides or 16 inches above the top of the stove (replace installations require greater clearances above the stove - see below in the clearance chart). These distances may need to be
increased if the materials are sensitive to heat. Note also that wall paper and other decorative materials may become detached with the eects of heat and care should be taken to
ensure that they do not fall towards the stove in such an event.
When the stove is positioned near non-combustible materials, a gap of 4 inches or more is
recommended for cleaning purposes and to ensure that heat circulates around the stove
and out into the room.
CLEARANCE REQUIREMENTS STANDARD RESIDENTIAL INSTALLATION
SINGLEWALL CONNECTOR
USA CANADA
A. Sidewall to unit
B. Backwall to unit
C. Cornerwall to unit
D. Sidewall to connector
E. Backwall to connector
F. Cornerwall to connector
G. Unit to ceiling
H. Floor to ceiling
22”
20”
16”
31”
22”
25”
-
-
560 mm
510 mm
405 mm
785 mm
560 mm
635 mm
-
-
CLEARANCE REQUIREMENTS STANDARD RESIDENTIAL INSTALLATION
DOUBLEWALL CONNECTOR
USA CANADA
A. Sidewall to unit
B. Backwall to unit
C. Cornerwall to unit
D. Sidewall to connector
E. Backwall to connector
F. Cornerwall to connector
G. Unit to ceiling
H. Floor to ceiling
20”
16”
14”
-
-
-
-
-
510 mm
405 mm
355 mm
-
-
-
-
-
Page 9
9
CLEARANCE REQUIREMENTS STANDARD RESIDENTIAL INSTALLATION
FIREPLACE HEARTH INSTALLATION
ALCOVE
USA CANADA
A. Sidewall to unit
B. Combustible mantel to unit
C. Top facing
D. Side facing
E. Hearth extending, front
F. Hearth extending, side
19”
31”
27”
18”
-
-
485 mm
790 mm
685 mm
460 mm
-
-
FLOOR PROTECTION REQUIREMENTS NONCOMBUSTIBLE MATERIALS
BENEATH STOVE
USA CANADA
A. Extending distance, back
B. Extending distance, right side
C. Extending distance, left side
D. Extending distance, front
6”
6”
16”
200 mm
200 mm
200 mm
450 mm
Floor protector must be non-combustible material, with an R-value of 1.0.
It must extend beneath heater and to the
front/sides/rear as indicated.
Page 10
10
Distance to furniture
The recommended minimum distance from stove to furniture is 30 inches. Note that some
furniture is more easily aected by heat and may need to be moved to a greater distance.
This is your responsibility.
In addition other combustible materials, away from the stove. In general, a distance of 30
inches must be maintained between the stove and moveable combustible item such as drying clothes, newspapers, rewood etc.
Note:
Acid Protection
If acid-washing the masonry around the stove, protect the stove surface with an acid-proof
cover.
Fresh Air Inlet
Unless there is deemed to be sucient ambient leakage of air into the room via doorways, windows
and the like, a dedicated fresh air inlet will be needed. This inlet should have 2 square inches (1250
square mm) of free air space. This is particularly important where the room is well sealed, or where
an extractor hood or ventilation system disturbs the natural air pressure. Such an inlet should not
be on a wall that is usually subject to negative pressure from normal wind pattern. Avoid placing the
inlet directly across the room from the stove, thus causing a cold air draft.
Page 11
11
2.0 Operation
2.1 Before you start ring
For use with solid wood fuel only. Do not overre, if heater or chimney connector glows
you are overring. Inspect and clean chimney frequently. Under certain conditions of use
creosote buildup may occur rapidly. Because of risk of smoke and ame spillage, operate
only with door fully closed.
Caution:
Hot while in operation. Keep children, clothing and furniture away. Contact may cause
skin burns.
Do not use chemicals or uids to start the re.
Do not burn garbage or ammable uids.
Do not use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter or uid or similar liquids to start or freshen up a re in this heater. Keep all such liquids away from the
heater while it is in use.
Choosing your fuel
All types of natural wood can be burned on your stove, but they must be well-seasoned and
dry. Once the wood is cut to length, it should be split down middle - to suit the dimensions
given below - to allow moisture to evaporate.
Cut the wood to a length of max 17 inches (43 cm) and approx. 3 to 3.5 inches (7-8 cm) in
section. If you can weigh your wood, aim for around 2 lbs. For correct combustion and heat
output, wood fuel should contain no more than 20% moisture; this can easily be checked by
using the Morsø Moisture Meter (part # 62929900).
To naturally season wood fuel, stack and store it under cover in an airy location where fresh air
can move through each piece. Some soft woods may take as little as one good summer to season whereas harder woods such as oak, maple, and elm may require seasoning up to 18 months.
Avoid overly dry wood that is gray in color as under certain conditions it can cause performance
problems, such as back-pung and sluggishness. Well seasoned wood will be light to hold and
will show signs of cracking from the center-out in the ends. If your wood spits or sizzles when
burnt, and your stove’s door glass persistently mists up, your wood is not properly seasoned.
Never use drift wood (from the sea), whose salt content may cause corrosion, nor construction
wood that may have been impregnated with chemicals.
Starting the First Fire
The initial re should be small, so that the stove paint can cure and the main plates of the
stove can settle into position. Some fumes will be given o by the paint. Ventilate the room
during this phase.
The setting of the air control, lighting techniques and loading intervals will depend on chimney draft, the fuel used, the heat required and so on. Some basic techniques are outlined
below.
Page 12
12
In principle
Your stove is tted with Primary and Secondary air inlets.
Primary Air is controlled using the lever situated under the ash lip of the stove. Moving the control lever into a downward position will open the air inlet and will allow a supply of preheated
air to enter the rebox via the ‘airwash’ system situated inside the stove and the above glass.
Secondary Air is right to the rebox using the specially designed bae at the back of the rebox. The
secondary air is injected into the ue gases both above and in front of the re resulting in a cleaner,
more ecient combustion process. The supply of secondary air is xed open and is not adjustable.
For extra safety, your stove has been tted with a removable handle. When not in use the
handle can be stored using the lug behind the right leg of the stove.
2.2 Lighting and loading intervals
When rst lighting the stove, a large volume of air is needed. When the stove is cold, you
should leave the door open an inch or two for the rst few minutes and open the primary
air supply completely. While the door is open, do not leave the stove unattended. To form
a reasonable bed of ash on the oor of the stove, you should use 5-6 inches thickness (2-4
pound) of dry kindling at the initial lighting. Always maintain a 1-1.5 inch (2-3 cm) layer of ash
on the oor of the combustion chamber at all other times.
1. The air supply must be fully open. Maximum 4 turns.
2. Light the re. An ember bed will quickly be formed by lighting with relighters, Morsø kindling bags or 7-10 pieces of twisted paper under the dry kindling wood (see above).
3. After lighting, partially close the doors, leaving them open
an inch or two to allow in plenty of combustion air.
4. When the chimney is warmed through after 5-10 minutes, the doors should be closed. A suitable ember bed
will be formed after a further 15-20 minutes.
Page 13
13
Do not for any reason attempt to increase the ring of your heater by altering the air control
adjustment range outlined in these directions.
Warning: Fireplace stoves must never be left unattended with doors open.
If the doors are left partly open, gas and ame may be drawn out of the replace stove opening, creating risks from both re and smoke. We recommend you to t a smoke detector in
the room where the stove is installed.
DO NOT OVERFIRE THIS HEATER. Overring may cause a house re, or can result in permanent damage to the stove. If any part of the stove glows, you are overring.
5. When ready to reload, use a poker to spread the ember
across the rebox oor, bringing plenty towards the front
of the stove.
6. Lay three pieces of wood (see dimensions above) onto the
embers. Leave half an inch (1 cm) or more between each piece.
When using 10 inches (25 cm) logs, place the ends of your logs
towards the opening, but not too close to the front.
7. Close the door. Leave the primary air supply fully open.
8. After a few minutes, and adjust the primary air supply
to suit your heating requirements.
9. Anticipate each refueling, remembering to add a modest
layer of wood while there are still plenty of live embers, Repeat steps 5-8.
Page 14
14
The maximum recommended weight of wood fuel per load is 2.5 kg/h/5.5Ibs (approx 3 split
logs).
Under normal ring, the average ue temperature in the stove pipe, measured 20 cm above
the stove, is approx. 300° C (550°F). The maximum ue temperature in the stove pipe must
not exceed 450° C (750°F). If the ue temperature exceeds 450°C (750°F), it is considered
as over ring and may cause premature wear and tear of the stove.
To help gauge the correct running temperature of your stove, we recommend you use the Morsø
Flue Gas Thermometer (part #62901200). The Flue Gas Thermometer magnetically attaches onto
the stove pipe approx 20 cm (8”) above the stove’s top plate and measures the surface temperature
of the stove pipe. Please see your authorized Morsø Dealer for availability.
Draft conditions
If smoke or fumes come out of your stove when lightning up and reloading, or if the re simply
will not respond, a poor draft is almost certainly to blame. (In a very few cases, there may be
insucient fresh air getting into the room - see installation advice above). Take advice from
your stove supplier on how best to upgrade your ue system to improve draft.
Rules of woodburning
If you want less heat, put fewer logs on the stove and reduce the amount of air. It is still important to maintain a good layer of embers.
Less heat - less wood - less air
Greater heat - more wood - more air
Soot deposits will settle on the glass if the stove is run too slowly or if your wood is not well
seasoned.
Page 15
15
3.0 Maintenance
When perfoming maintenance on your stove, always protect yourself, using safety goggles
and gloves.
3.1 Exterior Maintenance
The stove surface is painted with heat-resistant Senotherm paint. It is best kept clean by
vacuuming with a soft brush attachment or by wiping with a lint-free cloth.
Over a period of time, the painted surface may become slightly grey. A can of Morsø touch-up
spray paint should be available from your stove supplier. This can be applied - in accordance with
the instructions - in just a few minutes. When rst ring after touching up, the stove will give o
a slight smell as the paint cures. Make sure to ventilate the room well during this phase.
3.2 Internal maintenance
Glass
If the stove is generally run at the correct temperatures, there should be little or no dirt on
the glass. If dirt does settle during lighting, most will burn o as temperatures increase.For
heavier deposits that will not burn o, use Morsø glass cleaner, applied when the glass is
cold, in accordance with the instructions. Never use abrasive cleaners on the glass surface.
Reasons for dirty glass
- Fuel too wet
- Logs too large or not split
- Combustion temperatures too low
Replace broken glass immediately.
Do not operate your stove if the glass in the door is damaged.
If you need to replace the glass, it should be replaced with the high temperature ceramic
class supplied by Morsø, contact your Morsø dealer.
Installing the glass
Never install the glass when the stove is in function.
Ceramic glass replacement
Ceramic glass cannot be recycled because it has a
higher melting point that ordinary glass. If ceramic
glass is mixed with ordinary glass, the raw material is spoiled, and the reclaiming process may be
halted. Take care that the ovenproof glass does
not end up among ordinary recycled waste. That
will be a great benet to the environment.
Note: Should be handed in to a recycling station as ceramic glass.
Page 16
16
1. Lift the door o its hinges an place face-down on a sheet of cardboards or other nonabrasieve fabric.
2. Unscrew the six bolts that secure the glass. (In the event that a bolt sheers o when being unscrewed, remove the remaining body of the bolt by drilling down its cnetre with
1/8 inch high speed steel drill bit. Smaller drill bits may be successful, but do not use a
lager bit. Make sure the bit stays away from the edges of the bolt - this may damage the
thread in the cast iron).
3. Remove the old ceramic gaskets and clean up the surface underneath with wire wool or
emery paper to remove loose particles.
4. Place the new gasket material in position around the perimeter of the window area, making
sure to pinch them to the length in such a way that they make a continuous seal. Leave no gaps.
5. Place the new glass in position on the strips and screw home the fresh bolts and tting
by hand.
6. Finally, give each of the bolts an extra half turn or so. The glass should held tight enough
by that cleaning will not dislodge it. Do not over-tighten the bolts as this may put excessive pressure on the glass, resulting in cracking - important!
To reduce the risk of breaking the glass, avoid striking the glass or slamming the door.
Internal service parts
The ame-path equipment - consisting of the ashpan, grate, rebricks, glass, bae and ue
collar - are subject to the extremes of heat produced by the re. From time to time, one or
other of these parts may need replacing as a matter of routine maintenance.
NOTE: The ame-path equipment, the ceramic rope and the paint nish are not
covered by guarantee.
All of these service parts can be bought from your Morsø dealer, and we recommend that
damaged parts are replaced as soon as possible to avoid collateral damage.
Should the bae be distorted by an overre, the stove will still function, although its eciency
may be compromised. Replace it as soon as possible. The rear casing is removed (four bolts).
Remove these and withdraw the bae from the rebox (this may be easier if the rebricks are
rst removed).
Before replacing the bae, scrape out the old re furnace and replace with new to make
an eective seal.
Reasons for fast internal wear and tear
Persistent heavy ring
Soot and ashes left to accumulate
Page 17
17
Ceramic Gasket
The gasket around the perimeter of the doors may harden over a period of time. It should be
replaced if it becomes dicult to close the door or if air starts to leak in around the perimeter
of the doors, causing the re to become a little less controllable. A Morsø rope gasket kit is
available from your stove supplier.
3.3 Cleaning the Stove and the Flue
Check for soot above the bae plate and around the ue outlet every month or so to start
with. If the stove suddenly becomes sluggish, check for a soot fall around the ue collar or
in the ue/chimney. - at least once a year. Inspect every month.
Clean the ue/chimney - all the way from the stove to the ue terminal point above the house.
A good routine is to clean the ue after each heating season in any case, and inspect prior
to the season to ensure that bird’s nests or other blockages have not ocurred during the
o season.
Ash disposal
Empty the ashpan on a daily basis or as needed. Ash allowed to build up towards the underside of the grate will trap heat and could cause premature failure of the grate.
Empty the ashpan according to this procedure:
Open the front door, and use a shovel or poker to stir excess ash through the ash slots in
thegrate down into the ash pan. Remove the ash pan, making sure to keep it level.
Dispose the ash in a metal container with a tight tting lid.
The closed container of ashes should be placed on a noncombustible oor or on the ground,
well away from all combustible materials, pending nal disposal. If the ashes are disposed of
by burial in soil or otherwise locally disperded, they should be retained in the closed container
until all cinders have thoroughly cooled.
Return the ash pan to its original position in the stove, and close.
Caution:
Never empty a stove in operation.
Never use your household or shop vacuum cleaner to remove ash from the stove; always
remove and dispose of the ash properly.
Creosote - formation and need for removal
When wood is burned slowly, it produces tar and other organic vapors, which combine with
expelled moisture to form creosote. The creosote vapors condense in the relatively cool
chimney ue of a slow-burning re. As a result, creosote residue accumulates on the ue
lining. When ignited this creosote makes an extremely hot re. When burning wood, inspect
the chimney connector periodically to determine if a creosote buildup has occurred.
Chimney sweeping
Inspect the system regularly during the heating season as part of a regular maintenance schedule. To inspect the chimney, let the stove cool completely. Then, using a mirror, sight up through
the ue collar into the chimney ue. If you cannot inspect the ue system in this fashion, the
stove must be disconnected to provide better viewing access.
Clean the chimney using a brush the same size and shape as the ue liner. Run the brush up
and down the liner, causing any deposits to fall to the bottom of the chimney where they
can be removed through the clean-out door.
Page 18
18
Clean the chimney connector disconnecting the sections, taking them outside, and removing any deposits with a sti wire brush. Reinstall the connetor sections after cleaning, being
sure to secure the joints between individual sections with sheet metal screws.
If you cannot inspect or clean the chimney yourself, contact your local Morsø Dealer or a
professional chimney sweep.
If you do experience a chimney re, act promptly and:
1. Close the air control.
2. Get everyone out of the house.
3. Call the Fire Department.
Annual maintenance
Before the heating season, perform a thorough cleaning, inspection and repair:
Thoroughly clean the chimney and chimney connector.
Inspect the chimney for damage and deterioration. Replace weak sections of prefabricated
chimney. Have a mason make repairs to a masonry chimney.
Inspect the chimney connector and replace any damaged sections.
Check gasketing for wear or compression, and replace if necessary.
Check the glass for cracking; replace if needed.
Check door and handles for tightness. Adjust if needed.
3.4 Leaving the stove for extended periods
Important:
If the stove is to be left unused for any period of time, clean it out thoroughly and leave the
air control slightly open to allow airow. Make sure that the ue does not allow rainwater to
come anywhere near the stove; install a chimney cap, but do not block o the ue completely.
These measures should ensure there is a slight movement of air through the stove, and that
the body of the stove remains dry, right into the corners.
Any ash left within an unred stove can attract moisture like blotting paper. If moisture is allowed to settle within the stove, rust will form. Rust expands as it takes a grip. This can lead
to undue pressure on the stove joints, and this in turn may result in damage to the stove.
NOTE: It is best to thoroughly clean the stove after the heating season has concluded.
Adding a dessicant, such as kitter litter, into the ash pan helps absorb moisture during
the summer months. Be sure to remove this prior to the heating season.
Thank you for buying a Morsø stove.
We hope you have many years of carefree warmth in its company. Some initial experimentation with loading and running techniques will decide your normal routine. If you have any
problems after this short learning phase, please refer to your stove dealer. Should they be
unable to help for any reason, please contact us in writing at the address on the front of
this publication.
Page 19
19
3.5 Parts diagram for model Morsø 2110
Page 20
20
3.6 Parts list for model Morsø 2110
Pos. No. Parts
1 Intermediate frame 44184700
2 Front grate 44184921
3 Inside rear plate 44185000
4 Side plate 44140621
5 Top plate 44180521
6 Inside top plate 44181100
7 Base plate 44184221
8 Bae plate, cast iron 44184800
9 Rear plate, cast iron 44185121
10 Front frame 44182521
11 Door left 44185321
12 Door right 44185421
13 Screw 14 Fitting w. thread for cover 44256800
15 Cover 44261021
16 Draft reducer 44342400
17 Flue collar 44344121
18 Leg 44203221
19 Poker 541075
20 Hinge pin 541082
21 Distance tube 541440
22 Hinge pin 541808
23 Ash tray 54181500
24 Distance bush 54181700
25 Radiant shielding, bottom 541820
26 Convection rear plate 54182421
27 Intermediate frame tting 541831
28 Hinge pin 542056
29 Draught control 71180200
30 Draught control arm 71180300
31 Draught control frame 71180400
32 Bae plate, stainless 71181161
33 Black steel set screw 34 Black steel set screw 35 Black steel set screw 37 Black steel set screw 38 Black steel set screw 39 Black steel set screw 40 Black steel set screw 41 Black steel set screw 42 Screw 43 Screw 44 Screw 45 Brass washer 47 Axis for handle 752627
48 Ceramic glass 790721
50 Glass tape 79074500
51 Stone 79094300
52 Cotter pin 791870
53 Spring washer 79189700
Page 21
21
3.6 Parts list for model Morsø 2110
Pos. No. Parts
54 Glass tting 54181361
55 Air slider washer 56 Screw 57 Screw 58 Plate for intermediate frame 71181261
59 Screw 60 Hanging for handle 54185800
61 Insulation 79074700
63 Door handle 54186100
65 Black steel set screw 66 Screw -
Page 22
22
Page 23
23
Morsø Jernstøberi A/S - 09.11.2015 - 72180100
Guarantee
Product Registration
MORSØ 10 YEAR GUARANTEE CERTIFICATE
Behind ever y Morsø stove is more than years of dedicated stove design and manufacturing experience. Quality control has always been at the heart of the production process and detailed measures
have been put into place at all key stages of the build. Accordingly, provided that the stove has been
supplied by an authorised Morsø dealer, Morsø will oer a 10-Year Manufacturers Guarantee against
manufacturing defect to any of the main exterior body parts of its stoves.
Read more about ”Morsø 10 years guarantee/product registration card” and
REGISTER your new Morsø stove online:
http://international.morsoe.com/warranty-registration
Page 24
24
MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS
E-Mail: [email protected] · Website: www.morsoe.com
Morsø Jernstøberi A/S - 09.11.2015 - 72180100
IMPORTANT!
How to heat safely for the environment and yourself!
• Use only dry wood
Use only dry (max. 20% moisture content)
and untreated wood. The fuel must be split
and 8 - 12 cm thick.
• Light
Light with dry kindling (use 1 - 2 kg). Leave
the door ajar and stay close to the stove
during the lighting phase.
• Good layer of embers
Be certain to have a good layer of em-
bers before relling. The wood should
light within 2 minutes. If the logs do
not ignite it may, in an extreme case,
cause the flue gases to ignite which
may pose a risk to material damage or
personal injury.
• Refuelling
When refuelling use 2 - 3 pieces of wood
- no more than 2 - 2.5 kg.
• Ensure adequate air
I.e. clear and yellow ames.
• Never burn overnight
Loading...
