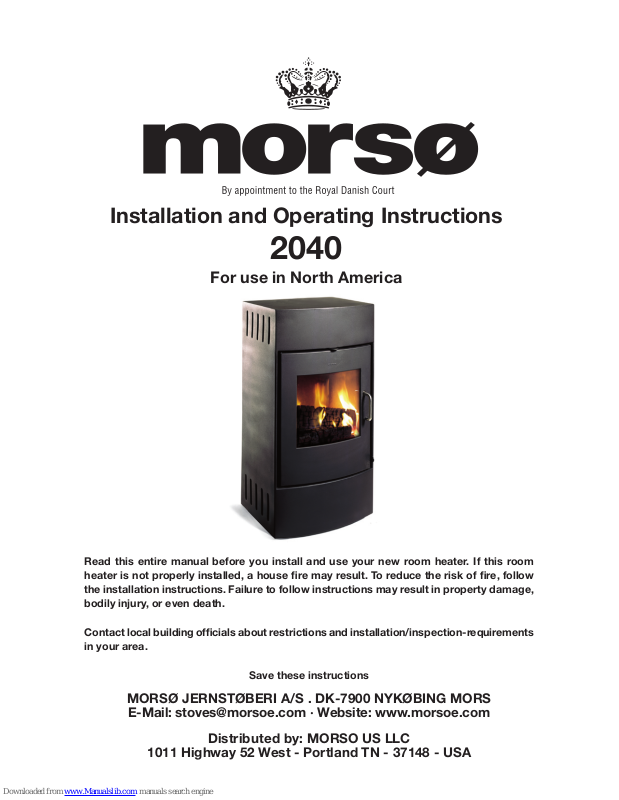

Morso 2040 Installation And Operating Instructions Manual

11

MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS

E-Mail: [email protected] · Website: www.morsoe.com

Distributed by: MORSO US LLC

1011 Highway 52 West - Portland TN - 37148 - USA

Installation and Operating Instructions

2040

For use in North America

Read this entire manual before you install and use your new room heater. If this room
heater is not properly installed, a house fire may result. To reduce the risk of fire, follow
the installation instructions. Failure to follow instructions may result in property damage,
bodily injury, or even death.

Contact local building officials about restrictions and installation/inspection-requirements
in your area.

Save these instructions

2

We congratulate you on your choice of a Morsø stove. Morsø has
been producing some of the world’s best stoves since 1853. If you
follow this installation- and operating instruction carefully, we can
assure you many years of warmth and pleasure.

Optional Accessories

A wide range of accessories (such as handling gloves, fireside tools, glass cleaner and heatproof
paint) are available for use with your Morsø stove. They help with day-to-day running and
maintenance. Contact your Morsø dealer for more information.

The Morsø 2040 meets the U.S. Environmental Protection Agency’s emission limits for wood
heaters sold on or after July 1, 1990

The Morsø 2040 have been tested by OMNI-Test Laboratories, Inc. The test standards are
ANSI/UL-1482 for the United States and ULC S627 for Canada.

The stove is listed for burning wood only. Do not burn other fuels.

Under specific test conditions this heater has been shown to deliver heat at rates ranging from

11,000 to 25,000 Btu´s.

32

CON TEN TS:

1.0 Installation of your Morsø stove 4

1.1 Checking loose parts in the stove 5

1.2 The chimney / flue system 6

1.3 Flue Connection 7

1.4 Connection to existing chimney 7

1.5 Positioning the stove 9

2.0 Operation 11

2.1 Before you start firing 11

2.2 Lighting and loading intervals 12

3.0 Maintenance 13

3.1 Exterior maintenance 13

3.2 Internal maintenance 13

3.3 Cleaning the stove and the flue 15

3.4 Leaving the stove for extended periods 17

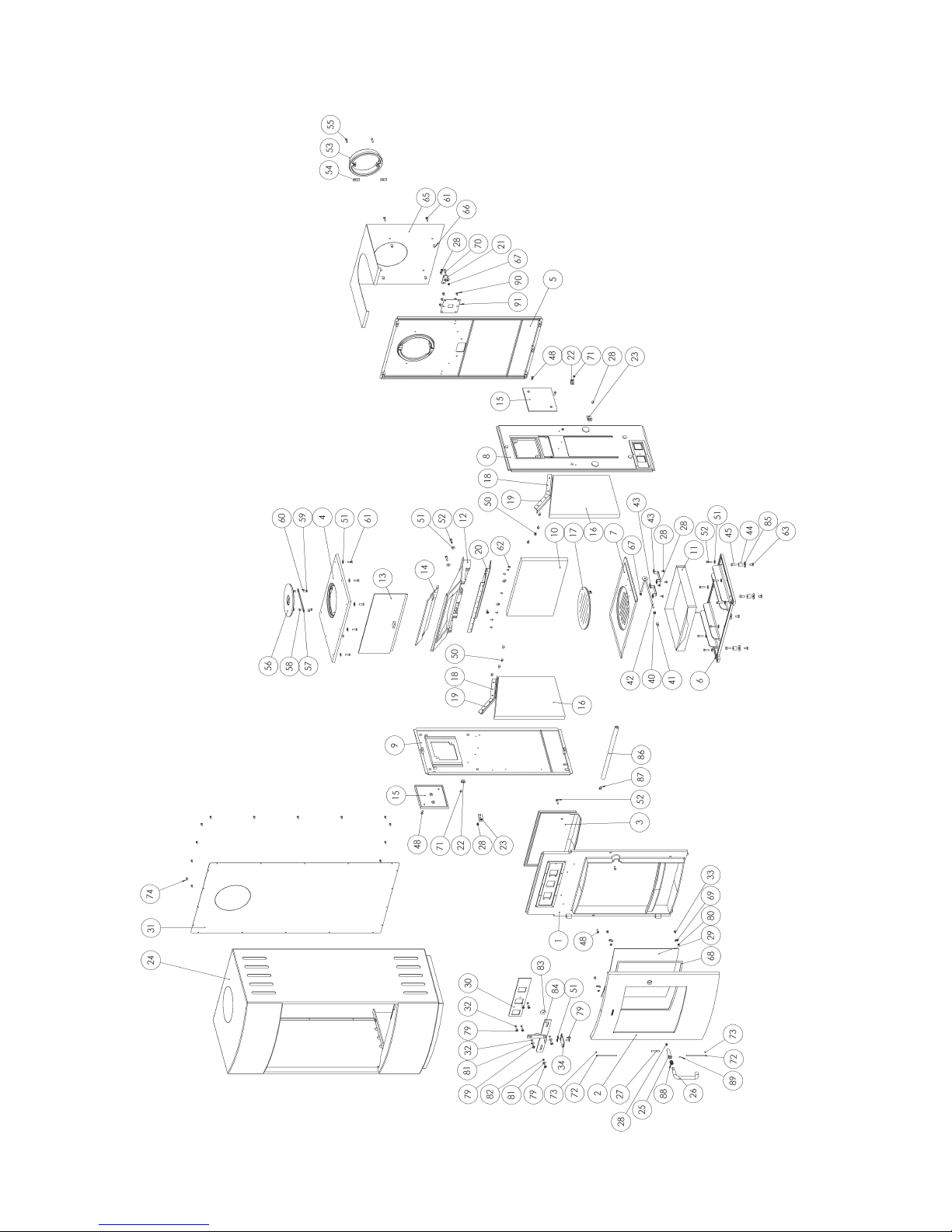

3.5 Parts diagram 18

3.6 Parts list 19

4

Installation requirements vary in different districts, and the local building officials have the final
authorization to approve your installation. You should discuss the installation with them before
beginning. Please ask your dealer for further information.

Do not connect to any air distribution duct or system.

Important: If the installation instructions are not followed carefully, it may cause
dangerous situations like chimney - and house fires. Follow the instructions
carefully and do not deviate from them as it may cause injuries to people or
property.

1.0 Installation of your Morsø stove

Installation of woodburning stoves must be safe and legal.

If your Morsø stove is not installed correctly, it may cause a house fire. To reduce
the risk of fire, the installation instructions must be followed carefully. Contact the
local building officials about restrictions and installation inspection in your area.

Before you start installing your stove, make sure that:

- The stove and chimney connection are placed far enough from combustible materials to meet
all clearance requirements.

- The floor protection must be adequate and must be made correctly according to ´the
requirements.
All neccessary approvals are needed from the local building officials.

The data plate, which is located on the back of the stove, provides information regarding safety
testing information, name of certified testing laboratory, and installation requirements.

54

1.1 Checking loose parts in the stove

After unpacking, check that the fire bricks are firmly in position and have not shifted in transit.
Check also that the air control works freely.

Before starting the initial fire, make sure that the baffle is placed correctly, as shown on the

images below.

Standard Accessories

A Morsø glove and ceramic flue connection gasket are standard accessories that usually can
be found in the ashpan or firebox area.

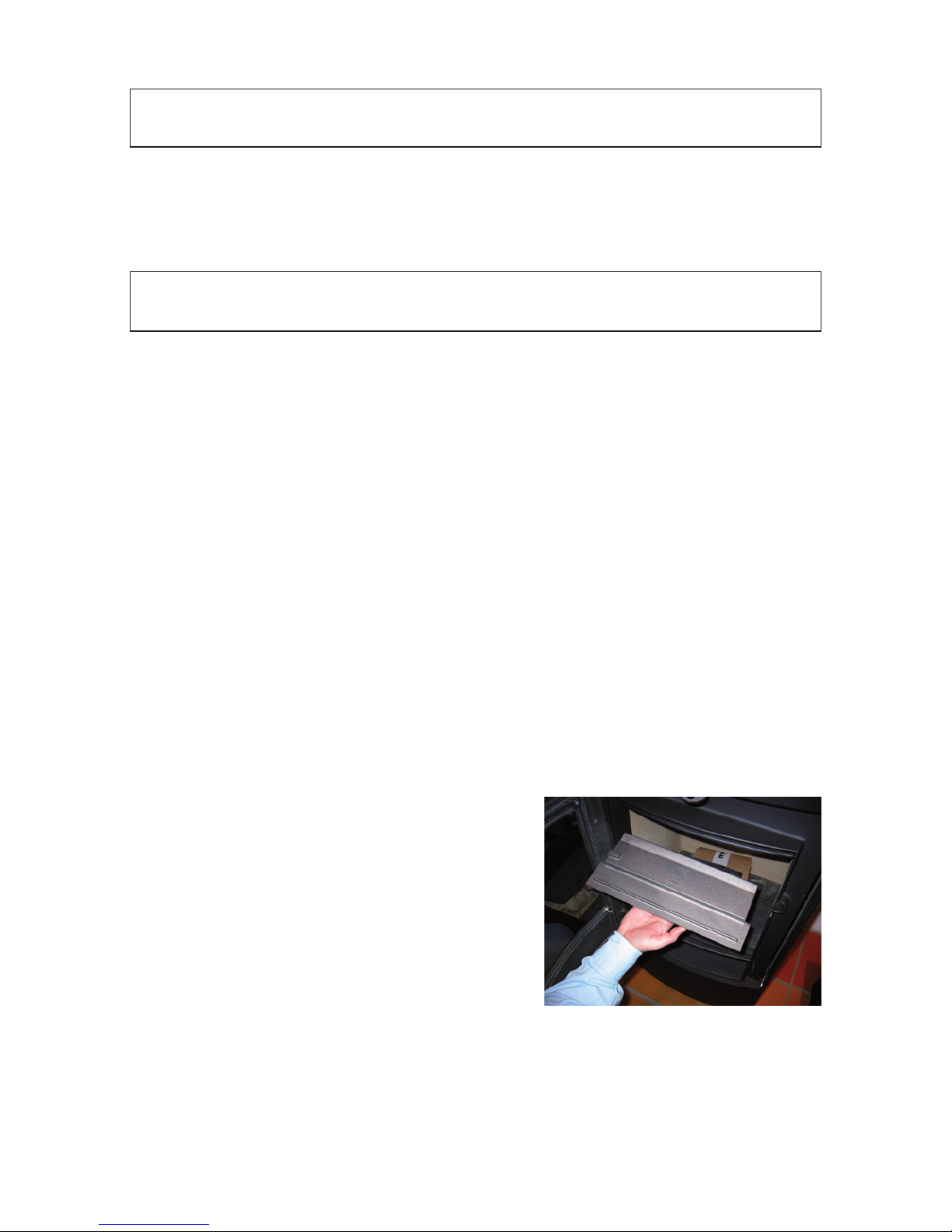

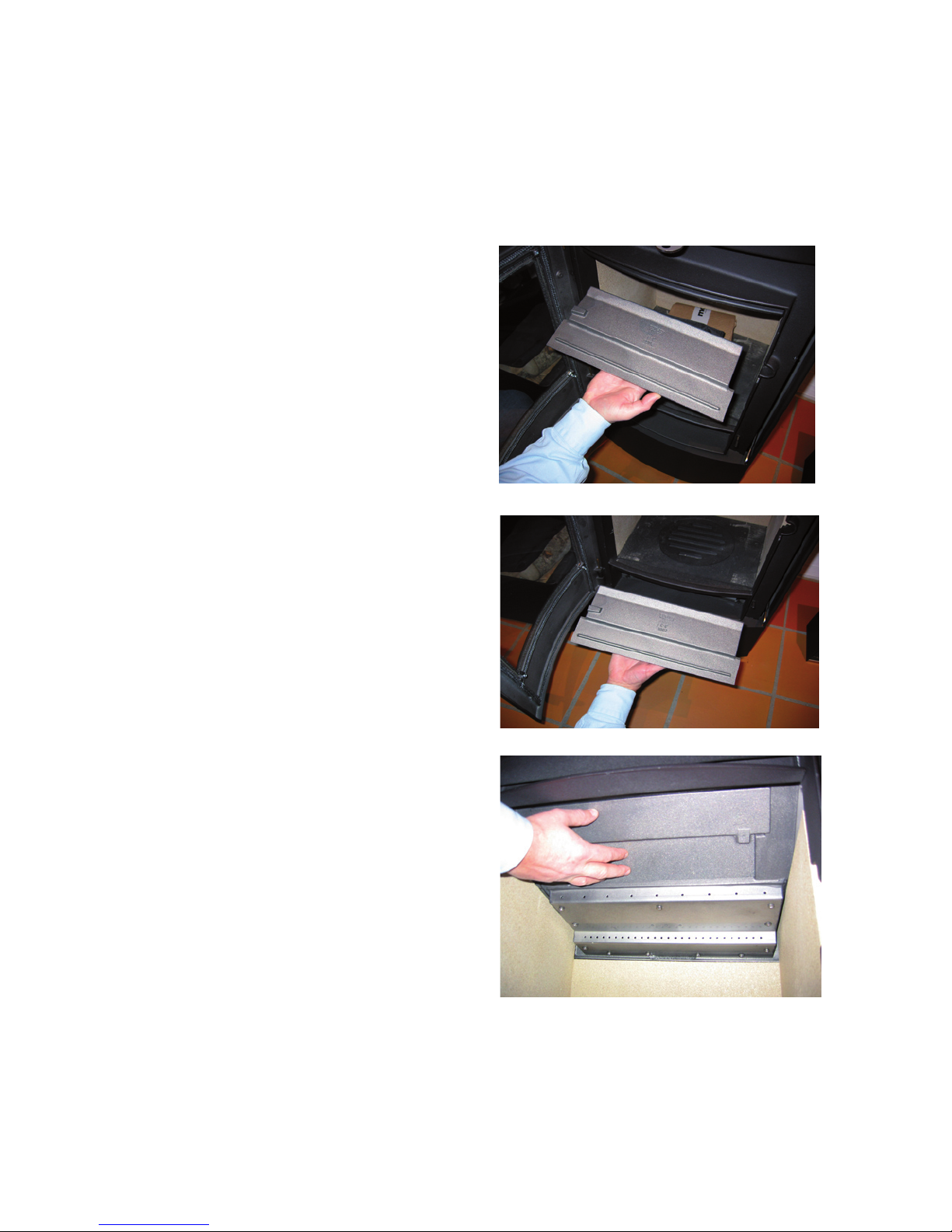

During transit, the cast access door is placed
inside the stove. The access door should be
carefully positioned into the cut-out of the main
cast baffle before lighting the fire.

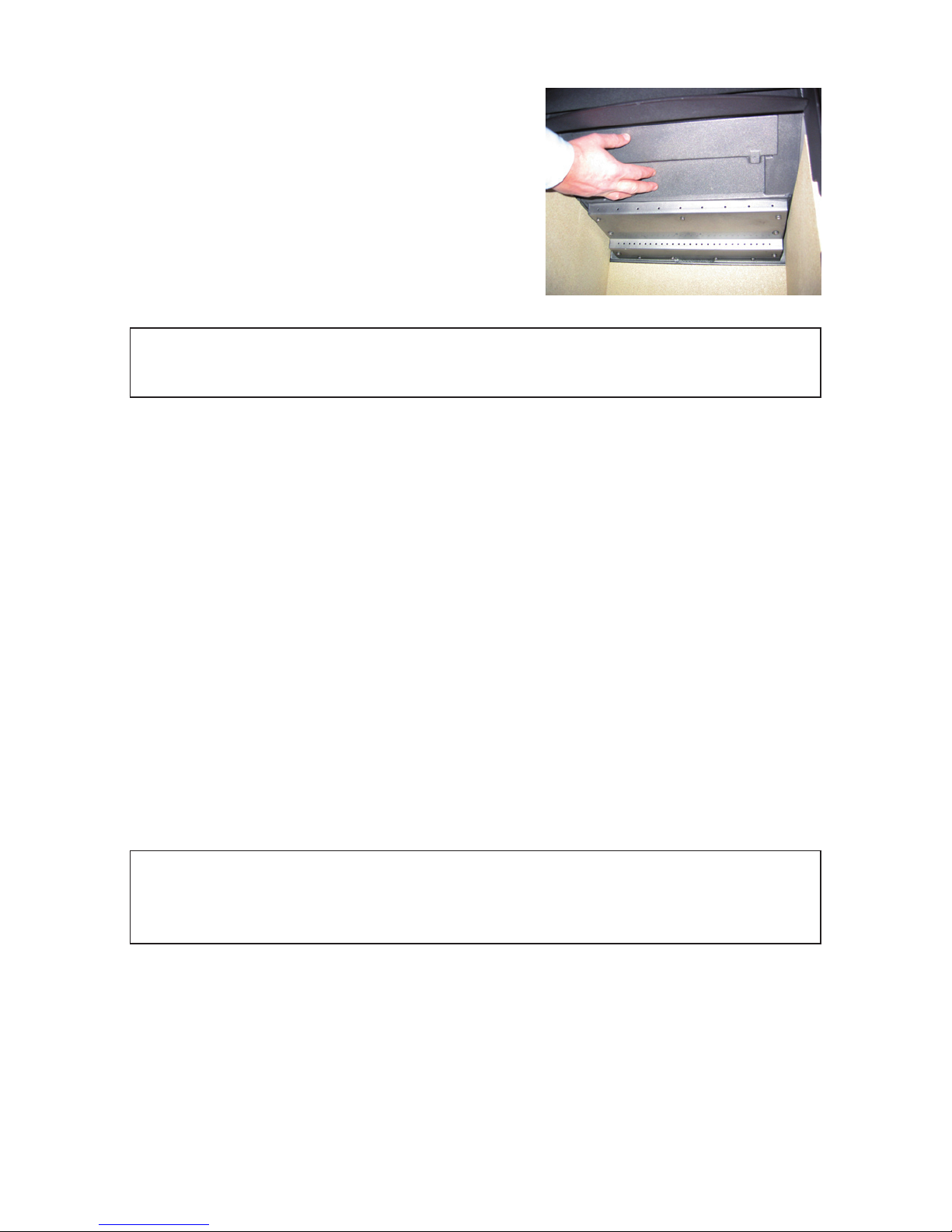

Lift up the access with one hand – see pictures
– and place it into the central position of the
baffle.

In order that it is placed properly, the access
door must be positioned exactly as shown in
the picture.

6

1.2 The chimney / flue system

Note that the flue system must be independently secured and must not rely on the stove for
support.

The stove must not be connected to a chimney flue serving any other appliance.
(Several flues may run up a single chimney stack; use one flueway per appliance).

Use a residential type masonry or listed type HT factory-built chimney.

High Temperature (H.T.) Chimney Standard UL-103-1985 (2100º F.) or a code-approved
masonry chimney with flue liner for the USA, and High Temperature (650ºC) Standard
ULC S-629 for Canada.

The internal dimensions of the chimney connector and chimney must not be less than 6 inches
diameter (or equivalent cross section), and should not be significantly larger than this. Too
large a section will tend to allow the flue gases to cool excessively, causing sluggishness or
unpredictability in the stove’s performance.

We recommend the length of the chimney system should be at least 16 feet (not required)
above the stove in normal domestic situations, measured from the flue collar to the top of the
chimney.
Local conditions like for example - roof constructions, large trees nearby and high altitude,
may influence the chimney draft and height. Therefore, contact the local professional chimney
sweep or your Morsø dealer.

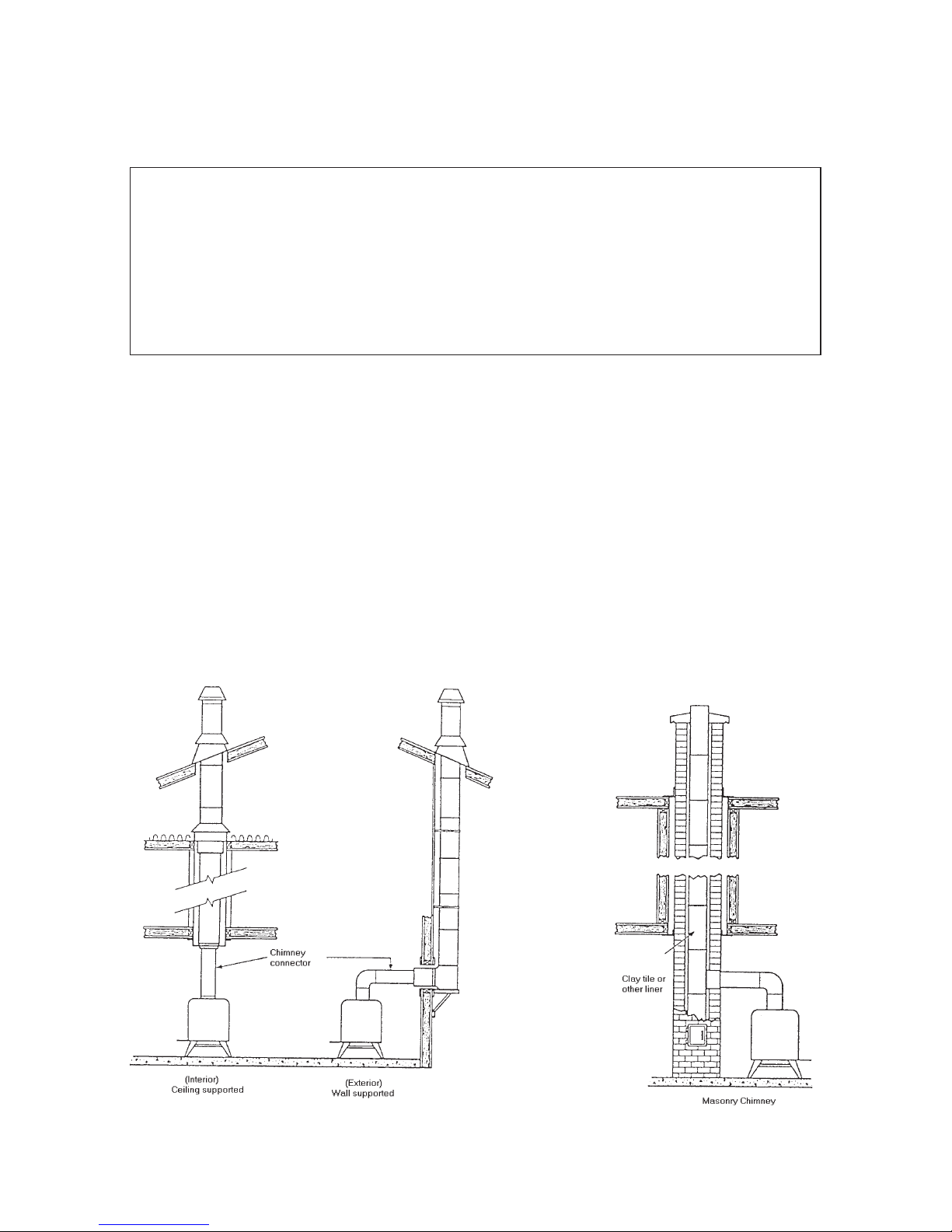

Typical Factory-Built or Masonry Chimney Installations

76

1.4 Connection to the existing chimney

A chimney connector is the double-wall or single-wall pipe that connects the stove to the chimney.
The chimney itself is the masonry or prefabricated structure that encloses the flue. Chim­ney connectors are used only to connect the stove to the chimney.

Double-wall connectors must be tested and listed for use with solid-fuel burning appliances.
Single-wall connectors should be made of 24 gauge or heavier gauge steel. Do not use
galvanized connector; it cannot withstand the high-temperatures that smoke and exhaust
gases can reach, and may release toxic fumes under high heat. The connector must be 6 inches
(150mm) in diameter.

If possible, do not pass the chimney connector through a combustible wall or ceiling.
If passage through a combustible wall is unavoidable, refer to the sections on Wall
Pass- Throughs. Do not pass the connector through an attic, a closet or similar
concealed space when installing the chimney connectors.

It is important to keep the flue gases moving smoothly in the right direction. Do not vent into a
large void at this location; rather form one continuous section all the way up. Use mild bends
(e.g. 45º vs. 90º) rather than sharp angles where a change of direction is required. All parts of
the venting must be accessible for cleaning purposes.
In horizontal runs of chimney, maintain a distance of 18 inches from the ceiling. Keep it as
short and direct as possible, with no more than two 90 degree turns. Slope horizontal runs of
connector upward 1/4 inch per foot (20 mm per metre) going from the stove toward the chimney.
The recommended maximum length of a horizontal run is 3 feet (1 metre), and the total length
should be no longer than 8 feet (2.5 metres).
Information on assembling and installing connectors is provided by the manufacturer’s
instructions exactly as you assemble the connector and attach it to the stove and chimney.

Be sure the installed stove and chimney connector are correct distances from near by
combustible materials. See the clearance paragraph page 8.

1.3 Flue Connection

The stove is supplied from the factory with a round blanking plate blocking off the top and rear
flue exit (behind the rear shield plate). A flue collar are placed in the firebox area.

Use a 24 MSG black or blue chimney connector or listed double wall chimney connector. Refer
to local codes and the chimney manufacturer’s instructions for precautions required for passing
a chimney through a combustible wall or ceiling. Remember to secure the chimney connector
with a minimum of three screws to the product and to each adjoining section.
The collar can be fitted to the rear outlet. Simply knock out the round panel on the rear heat
shield plate to reveal the cast iron plate. Untwist the blanking plate and the flue collar and swap
their positions. Re-secure by pushing down and tighten the enclosed screws.
Position the stove and connect to the flue system.

Wear gloves and protective eyewear when drilling, cutting or joining sections of
chimney connector

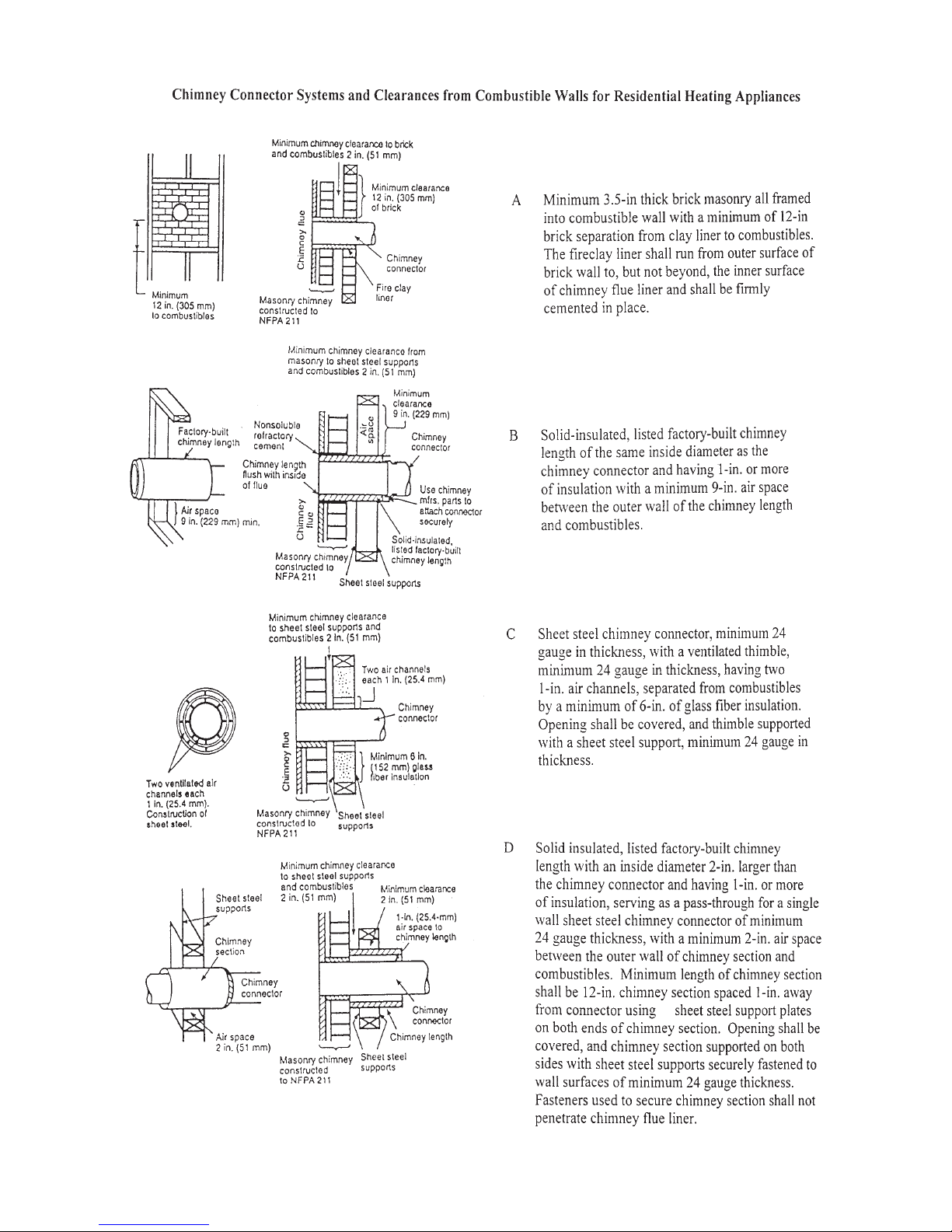

Where passage through a wall or partition of combustible construction is desired, the instal-

lation shall conform to CAN/CSA-B365.

8

98

1.5 Positioning the stove

Distance to walls and lintel

When the stove is positioned near combustible materials, observe all current local and national
building regulations with regards to clearances. Whatever regulations apply to your area, do
not in any case install the stove within 8 inches of combustible materials around the sides or
16 inches above the top of the stove (fireplace installations require greater clearances above
the stove - see below in the clearance chart). These distances may need to be increased if the
materials are sensitive to heat. Note also that wall paper and other decorative materials may
become detached with the effects of heat and care should be taken to ensure that they do not
fall towards the stove in such an event.
When the stove is positioned near non-combustible materials, a gap of 4 inches or more is
recommended for cleaning purposes and to ensure that heat circulates around the stove and
out into the room.

If using rear exit, the floor protection must extend beneath the chimney connector and 2-in
beyond each side.

10

Note:

Acid Protection

If acid-washing the masonry around the stove, protect the stove surface with an acid-proof
cover

Fresh Air Inlet

Unless there is deemed to be sufficient ambient leakage of air into the room via doorways,
windows and the like, a dedicated fresh air inlet will be needed. This inlet should have 2
square inches (1250 square mm) of free air space. This is particularly important where the
room is well sealed, or where an extractor hood or ventilation system disturbs the natural air
pressure. Such an inlet should not be on a wall that is usually subject to negative pressure
from normal wind pattern. Avoid placing the inlet directly across the room from the stove,
thus causing a cold air draft.

Distance to furniture

The recommended minimum distance from stove to furniture is 30 inches. Note that some
furniture is more easily affected by heat and may need to be moved to a greater distance. This
is your responsibility.

In addition other combustible materials, away from the stove. In general, a distance of 30 inches
must be maintained between the stove and moveable combustible item such as drying clothes,
newspapers, firewood etc.

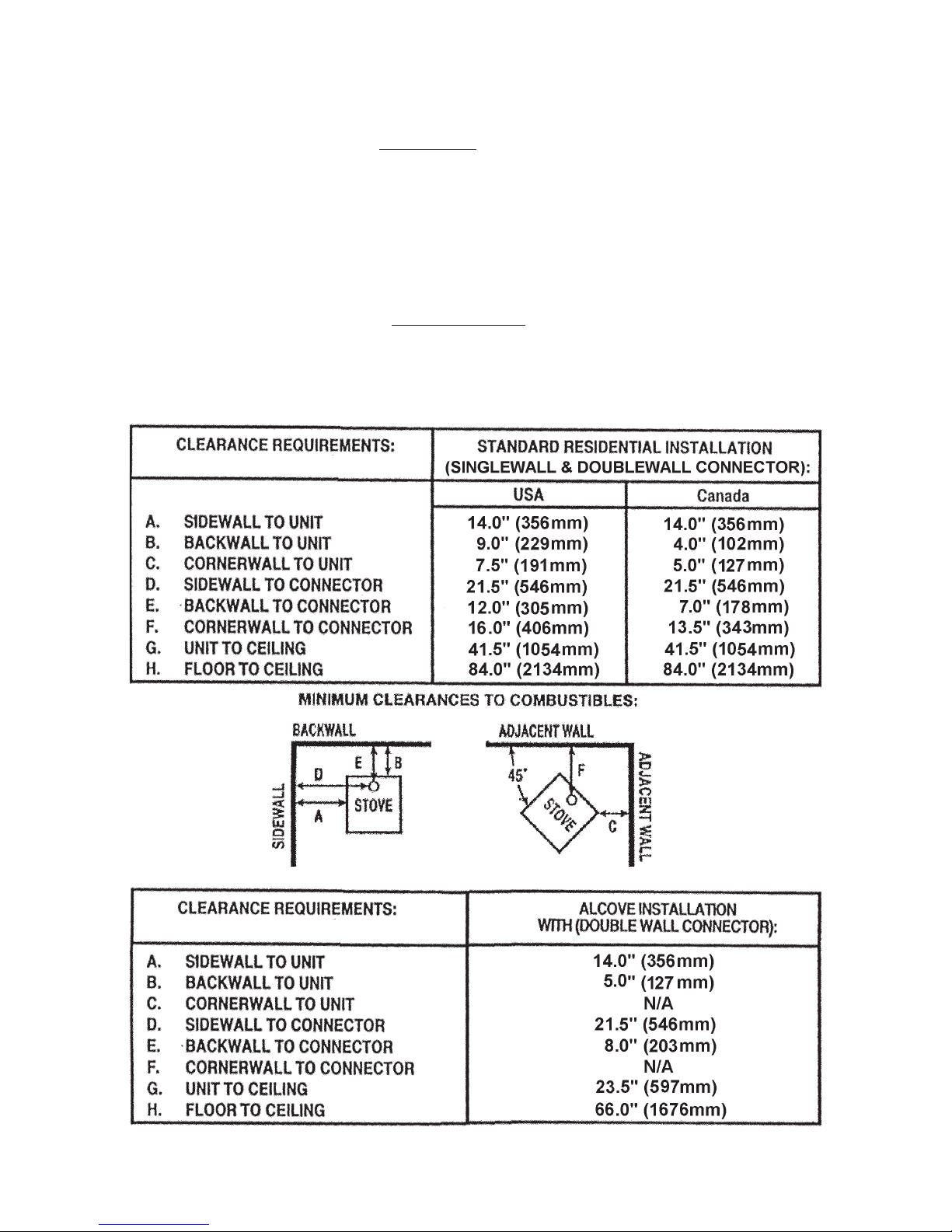

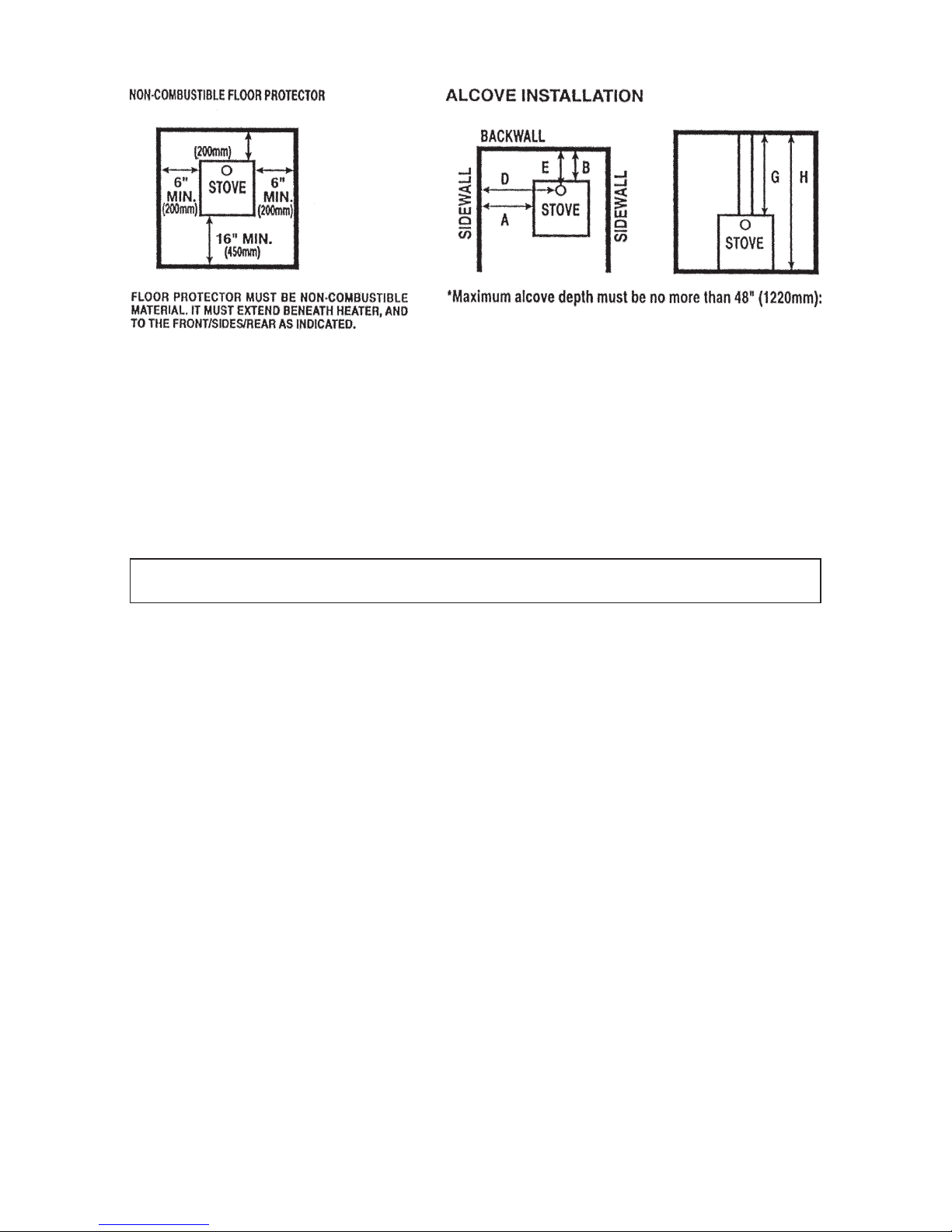

CLEARANCES IN ( ) IN MM FOR CANADA FOR
NON-COMBUSTIBLE FLOOR PROTECTOR

DO NOT INSTALL IN A MOBILE HOME

6“ MIN.

1110

2.0 Operation

2.1 Before you start firing
For Use with Solid Wood Fuel Only. Do Not Overfire, If Heater or Chimney Connector

Glows You Are Overfiring. Inspect and Clean Chimney Frequently. Under Certain

Conditions of use creosote buildup may occur rapidly. Because of risk of smoke and

flame spillage, operate only with door fully closed.
Caution:
Hot while in operation. Keep children, clothing and furniture away. Contact may cause
skin burns.
Do not use chemicals or fluids to start the fire.

Do not burn garbage or flammable fluids.

Do not use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter or fluid or

similar liquids to start or freshen up a fire in this heater. Keep all such liquids away from

the heater while it is in use.

Choosing your fuel

All types of natural wood can be burned on your stove, but they must be well-seasoned and dry.
Once the wood is cut to length, it should be split down middle - to suit the dimensions given
below - to allow moisture to evaporate.
Cut the wood to a length of max 15 inches (38 cm) and approx. 3 to 3.5 inches (7-8 cm) in
section. If you can weigh your wood, aim for around 2 Lbs. The maximum moisture content of
the wood should be around 20%.
Store the logs under cover in a location where fresh air can move through the stack. Some soft
woods may take as little as one good summer to season whereas harder woods such as oak,
maple, and elm may require seasoning up to 18 months. Avoid overly dry wood that is gray
in color as it can cause performance problems, such as backpuffing and sluggishness, under
certain conditions. Well seasoned wood will be remarkably light to hold and will probably have
radial cracking at the ends. If your wood spits or sizzles when burnt, and your stove’s door
glass persistently mists up, your wood is not properly seasoned. Never use drift wood (from
the sea), whose salt content may cause corrosion, nor construction wood that may have been
impregnated with chemicals.

Caution: Do not place fuel within the installation clearances for the stove or within the
space required for loading fuel and ash removal.

Starting the First Fire
The initial fire should be small, so that the stove paint can cure and the main plates of
the stove can settle into position. Some fumes will be given off by the paint. Ventilate the
room during this phase.
The setting of the air control, lighting techniques and loading intervals will depend on
chimney draft, the fuel used, the heat required and so on. Some basic techniques are
outlined below.

In principle

Your stove is fitted with Primary and Secondary air inlets.
Primary Air is controlled using the lever situated over the door. Moving the control lever to right
position will open the air inlet and will allow a supply of preheated air to enter the firebox via the
‘airwash’ system situated inside the stove and above the glass.

12

The secondary air is injected into the flue gases above the fire resulting in a cleaner, more efficient
combustion process. The supply of secondary air is fixed open and is not adjustable.
For extra safety, your stove has been fitted with a removable handle.

2.2 Lighting and loading intervals

When first lighting the stove, a large volume of air is needed. When the stove is cold, you should
leave the door open an inch or two for the first few minutes and open the primary air
supply completely. While the door is open, do not leave the stove unattended.

To form a reasonable bed of ash on the floor of the stove, you should use 2-4 pounds of dry
kindling at the initial lighting. If possible, maintain a 1-1.5 inch (2-3 cm) layer of ash on the floor
of the combustion chamber for added insulation.

Step-by-step procedure

1. The air supply must be fully open.

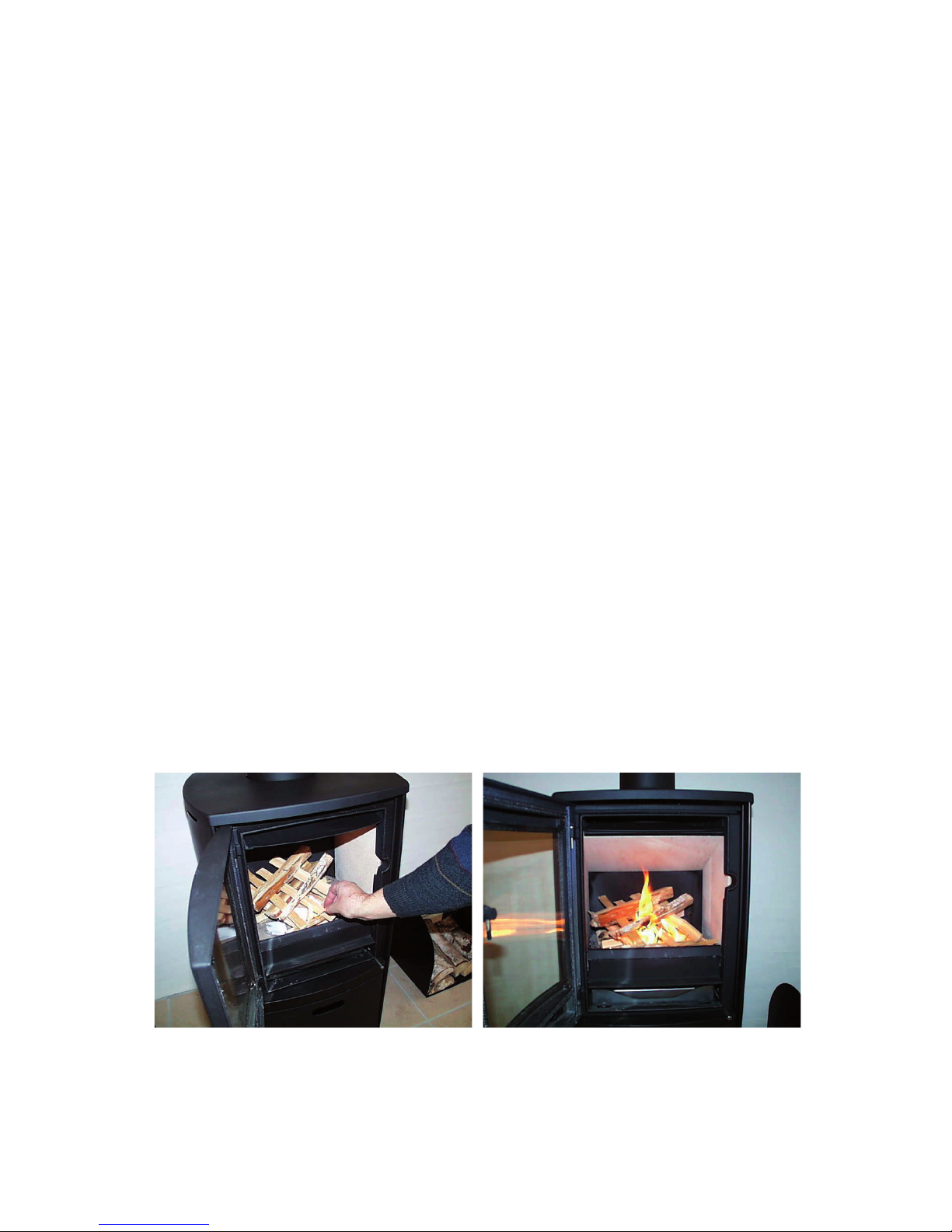

2. Light the fire. An ember bed will quickly be formed by lighting with firelighters, morsø kindling
bags or 7-10 pieces of twisted paper under the dry kindling wood (see below).

3. After lighting, partially close the door, leaving it open an inch or two to allow in plenty of
combustion air.

4. When the chimney is warm after about 5-10 minutes, the door should be closed. A suitable
layer of ember will be formed after a about 15-20 minutes.

5. When ready to reload, use a poker to spread the ember across the firebox floor, bringing
plenty towards the front of the stove.

6. Lay three pieces of wood onto the embers. Leave half an inch (1 cm) or more between each
piece. When using 10 inch (25 cm) logs, place the ends of your logs towards the opening,

but not too close to the front.

7. Close the door. Leave the primary air supply fully open.

8. After a few minutes, adjust the primary air supply to suit your heating requirements.

9. For refueling, add a layer of wood while there are still plenty of live embers, Repeat steps

5-8.

1312

Do not for any reason attempt to increase the firing of your heater by altering the air
control adjustment range outlined in these directions.

Warning: Fireplace stoves must never be left unattended with the door open.

If the door is left partly open, gas and flame may be drawn out of the fireplace stove

opening, creating risks from both fire and smoke. We recommend that you fit a smoke
detector in the room where the stove is installed.

DO NOT OVERFIRE THIS HEATER. Overfiring may cause a house fire, or can result in
permanent damage to the stove. If any part of the stove glows, you are overfiring.

Draft conditions

If smoke or fumes come out of your stove when lightning up and reloading, or if the fire simply
will not respond, a poor draft is almost certainly to blame. (In a very few cases, there may be
insufficient fresh air getting into the room - see installation advice above). Take advice from your
stove supplier on how best to upgrade your flue system to improve draft.

Rules of woodburning

If you want less heat, put fewer logs on the stove and reduce the amount of air. It is still important

to maintain a good layer of embers.

Less heat - less wood - less air
Greater heat - more wood - more air
Soot deposits will settle on the glass if the stove is run too slowly or if your wood is not well
seasoned.

3.0 MAINTENANCE

When perfoming maintenance on your stove, always protect yourself, using safety
goggles and gloves

3.1 Exterior Maintenance

The stove surface is painted with heat-resistant Senotherm paint. It is best kept clean by
vacuuming with a soft brush attachment or by wiping with a lint-free cloth.
Over a period of time, the painted surface may become slightly grey. A can of Morsø touch-up
spray paint should be available from your stove supplier. This can be applied - in accordance
with the instructions - in just a few minutes. When first firing after touching up, the stove will give
off a slight smell as the paint cures. Make sure to ventilate the room well during this phase.

3.2 Internal maintenance

Glass

If the stove is generally run at the correct temperatures, there should be little or no dirt on the
glass. If dirt does settle during lighting, most will burn off as temperatures increase.For heavier
deposits that will not burn off, use morsø glass cleaner, applied when the glass is cold, in
accordance with the instructions. Never use abrasive cleaners on the glass surface.

14

Reasons for dirty glass

· Fuel too wet

· Logs too large or not split

· Combustion temperatures too low

Replace broken glass immediately.
Do not operate your stove if the glass in the door is damaged.

If you need to replace the glass, it should be replaced with the high temperature ceramic class
supplied by Morsø, contact your Morsø dealer.

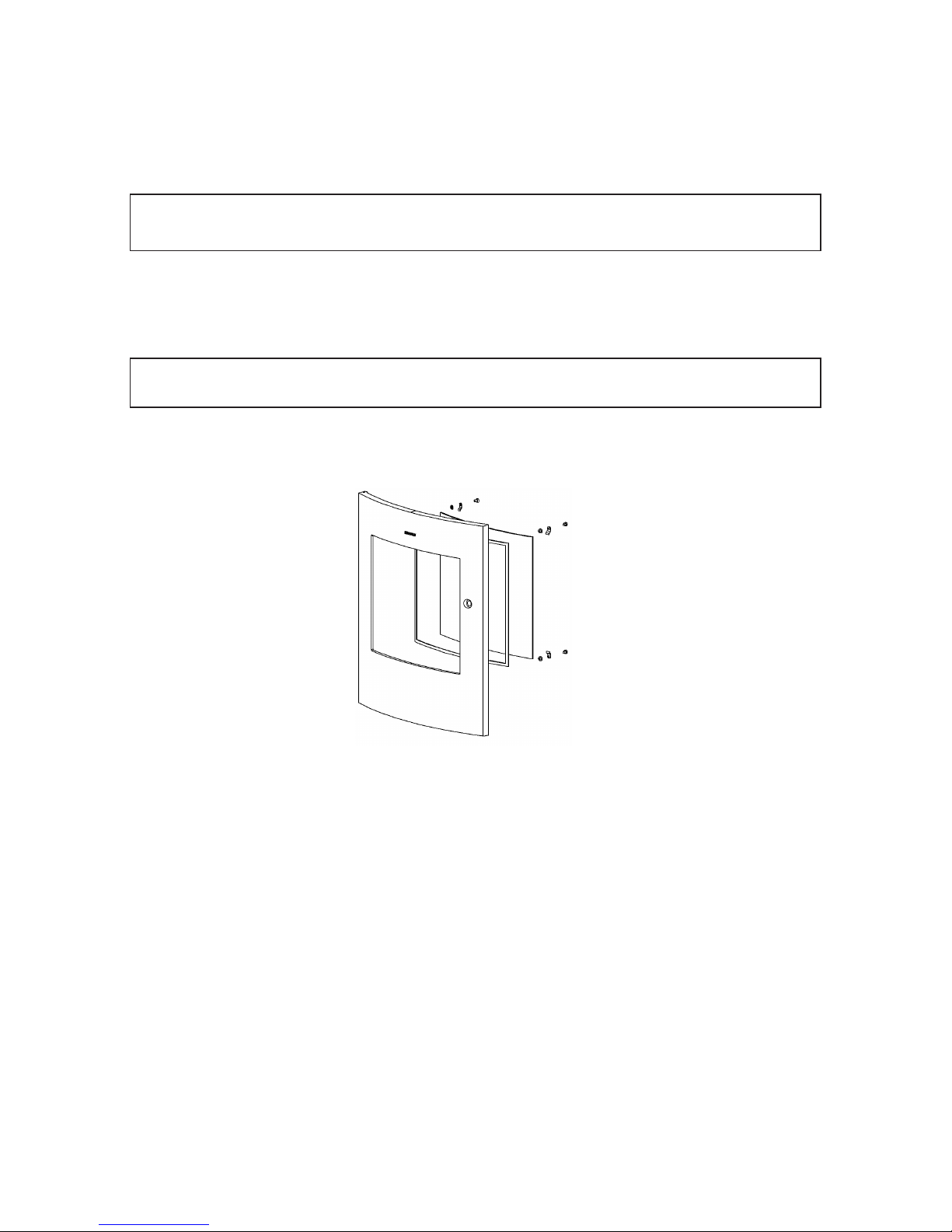

Installing the glass

Never install the glass when the stove is in function.

1. When you open the door, you will find two small M4 unbraco screws, one in each hinge.

Unscrew the two screws, lift the door off the hinges and place it face down on a sheet of
cardboard or other nonabrasive fabric.

2. Unscrew the 4 bolts that secure the glass. (In the event that a bolt sheers off when being

unscrewed, remove the remaining body of the bolt by drilling down its centre with 1/8 inch high
speed steel drill bit. Smaller drill bits may be successful, but do not use a lager bit. Make sure
the bit stays away from the edges of the bolt - this may damage the thread in the cast iron).

3. Remove the old ceramic gaskets and clean up the surface underneath with wire wool or

emery paper to remove loose particles.

4. Place the new gasket material in position around the perimeter of the window area, making

sure to pinch them to the length in such a way that they make a continuous seal. Leave no
gaps.

5. Place the new glass in position on the strips and screw home the fresh bolts and fitting

by hand.

6. Finally, give each of the bolts an extra half turn or so. The glass should held tight enough

by that cleaning will not dislodge it. Do not over-tighten the bolts as this may put excessive
pressure on the glass, resulting in cracking - important!

1514

NOTE: The flame-path equipment, the ceramic rope and the paint finish are not covered
by guarantee.

All of these service parts can be bought from your morsø dealer, and we recommend that
damaged parts are replaced as soon as possible to avoid collateral damage.
Should the baffle be distorted by an overfire, the stove will still function, although its efficiency
may be compromised. Replace it as soon as possible.

Reasons for fast internal wear and tear

Persistent heavy firing
Soot and ashes left to accumulate

Gasket

The gasket around the perimeter of the door may harden over a period of time. It should be
replaced if it becomes difficult to close the doors or if air starts to leak in around the perimeter
of the doors, causing the fire to become a little less controllable. A morsø rope gasket kit is
available from your stove supplier.

3.3 Cleaning the Stove and the Flue

Check for soot above the baffle plate and around the flue outlet every month or so to start with.
If the stove suddenly becomes sluggish, check for a soot fall around the flue collar or in the
flue/chimney.

To reduce the risk of breaking the glass, avoid striking the glass or slamming the
door.

Internal service parts

The flame-path equipment - consisting of the ashpan, grate, firebricks, Cast iron fire plates,
glass, baffle and flue collar - are subject to the extremes of heat produced by the fire. From time
to time, one or other of these parts may need replacing as a matter of routine maintenance.

When cleaning the stove or the chimney, the access
door can be easily removed by lifting it upwards with
one hand; it is held in position by its own weight.

16

Caution:
Never empty a stove in operation.
Never use your household or shop vacuum cleaner to remove ash from the stove;
always remove and dispose of the ash properly.

Creosote - formation and need for removal

When wood is burned slowly, it produces tar and other organic vapors, which combine with
expelled moisture to form creosote. The creosote vapors condense in the relatively cool chimney
flue of a slow-burning fire. As a result, creosote residue accumulates on the flue lining. When
ignited this creosote makes an extremely hot fire. When burning wood, the chimney and chimney

connector should be inspected at least once every two months during the heating season to
determine if a creosote buildup has occurred. If creosote has accumulated, it should be removed

to reduce the risk of a chimney fire.

Dispose the ash in a metal container with a tight fitting lid.

The closed container of ashes should be placed on a noncombustible floor or on the ground,
well away from all combustible materials, pending final disposal. If the ashes are disposed of
by burial in soil or otherwise locally disperded, they should be retained in the closed container
until all cinders have thoroughly cooled.

Return the ash pan to its original position in the stove, and close the door.

The chimney and chimney connector should be inspected at least once every two months
during the heating season to determine if a creosote buildup has occurred. If creosote

has accumulated, it should be removed to reduce the risk of a chimney fire.

Clean the flue/chimney - all the way from the stove to the flue terminal point above the house.

A good routine is to clean the flue after each heating season in any case, and inspect prior
to the season to ensure that bird’s nests or other blockages have not occurred during the off
season.

Ash disposal

Empty the ashpan on a daily basis or as needed. Ash allowed to build up towards the underside
of the grate will trap heat and could cause premature failure of the grate.

Empty the ashpan according to this procedure:

Open the front door, and use a shovel or poker to stir excess ash through the ash slots in the
grate down into the ash pan. Take out the ash pan, making sure to keep it level to avoid spilling
ash.

After cleaning above the baffle and the access door
has been done, the access door should be replaced
back into its position in the main baffle – see picture.

1716

3.4 Leaving the stove for extended periods

Important:

If the stove is to be left unused for any period of time, clean it out thoroughly and leave the air
control slightly open to allow airflow. Make sure that the flue does not allow rainwater to come
anywhere near the stove; install a chimney cap, but do not block off the flue completely.
These measures should ensure there is a slight movement of air through the stove, and that the
body of the stove remains dry, right into the corners.
Any ash left within an unfired stove can attract moisture like blotting paper. If moisture is allowed
to settle within the stove, rust will form. Rust expands as it takes a grip. This can lead to undue
pressure on the stove joints, and this in turn may result in damage to the stove.

NOTE: It is best to thoroughly clean the stove after the heating season has concluded.
Adding a dessicant, such as kitter litter, into the ash pan helps absorb moisture during
the summer months. Be sure to remove this prior to the heating season.

Thank you for buying a morsø stove.

We hope you have many years of carefree warmth in its company. Some initial experimentation
with loading and running techniques will decide your normal routine. If you have any problems
after this short learning phase, please refer to your stove dealer. Should they be unable to help
for any reason, please contact us in writing at the address on the front of this publication.

Chimney sweeping

Inspect the system regularly during the heating season as part of a regular maintenance schedule.
To inspect the chimney, let the stove cool completely. Then, using a mirror, sight up through the
flue collar into the chimney flue. If you cannot inspect the flue system in this fashion, the stove
must be disconnected to provide better viewing access.
Clean the chimney using a brush the same size and shape as the flue liner. Run the brush up
and down the liner, causing any deposits to fall to the bottom of the chimney where they can
be removed through the clean-out door.
Clean the chimney connector disconnecting the sections, taking them outside, and removing
any deposits with a stiff wire brush. Reinstall the connector sections after cleaning, being sure
to secure the joints between individual sections with sheet metal screws.
If you cannot inspect or clean the chimney yourself, contact your local Morsø Dealer or a
professional chimney sweep.

If you do experience a chimney fire, act promptly and:

Close the air control.
Get everyone out of the house.
Call the Fire Department.

Annual maintenance

Before the heating season, perform a thorough cleaning, inspection and repair:
Thoroughly clean the chimney and chimney connector.
Inspect the chimney for damage and deterioration. Replace weak sections of prefabricated
chimney. Have a mason make repairs to a masonry chimney.
Inspect the chimney connector and replace any damaged sections.
Check gasketing for wear or compression, and replace if necessary.
Check the glass for cracking; replace if needed.
Check door and handle for tightness. Adjust if needed.

18

3.5 Parts diagram for model Morsø 2040

1918

3.6 Parts list for model Morsø 2040

Pos.No. Parts

1 Front frame 442094xx
2 Fire Door 442084xx
3 Air conductor 34207300
4 Topplate 442086xx
5 Back Panel 44209500
6 Base 442093xx
7 Intermediate Grate Frame 44208500
8 Right Side Panel 442096xx
9 Left Side Panel 442088xx
10 Back Brick 79200300
11 Ash Can 54202100
12 Baffle 44206100
13 Vertical Baffle 34206200
14 Bypass Draught Controle 34206600
15 Access Door 34206500
16 Side Brick 79200200
17 Grate 34205900
18 Rear Angle Brace for baffle 71200561
19 Angle Brace for baffle 71200661
20 Stainless Steel Baffle 71201761
21 Rear Fittings 71201900
22 Side Fittings 54201100
23 Front Fittings 71202000
24 Convector Box 712074xx
25 Door Axis 75204000
26 Stainless Steel Handle 75262400
27 Hinge Pin 542056
28 Screw ­29 Door Glass 79200400
30 Secondary Air Controle 71208100
31 Rear Cover Plate 712075xx
32 Distance Tupe 54202500
33 Screw ­34 Handle for secondary air controle 71207761
35 Cover Plate for Primary Air ­36 Primary Air Controle ­37 Bar for Primary Air ­38 Screw ­40 Brass Bush 752621
41 Knob for Riddling Handle 752619
42 Riddling Handle 54201900
43 Fitting for Riddling Handle 54201800
44 Air Controle Bush 54202200
45 Screw ­48 Screw ­50 Screw -

20

Morsø Jernstøberi A/S 10.11.2006 72201600

51 Washer ­52 Screw 731625
53 Flue Collar 443441xx
54 Lug 44256700
55 Screw ­56 Cover 442610xx
57 Flat Bar 545006
58 Distane Tube 545007
59 Screw ­60 Screw ­61 Screw ­62 Screw ­63 Screw ­65 Rear Radiation Shield 71208300
66 Distanc tube 541441
67 Bush 735006
68 Tightning tape for Glass 79074500
69 Glass Clips 790743
70 Screw ­71 Screw ­72 Hinge Pin 54501800
73 Screw ­74 Screw ­76 Screw ­79 Bottonhead 73861300
80 Washer ­81 Washer ­82 Distance Tupe 54143700
83 Washer ­84 Secondary controle Arm 71208500
85 Washer ­86 Pipe Grate 542031xx
87 Screw ­88 Spring 79048800
89 Cotter Pin 74201900
90 Screw
91 Air Reduce plate 71208600

Complete Door 542040xx
Complete Convector Box 542074xx
Complete Handle 54186100
