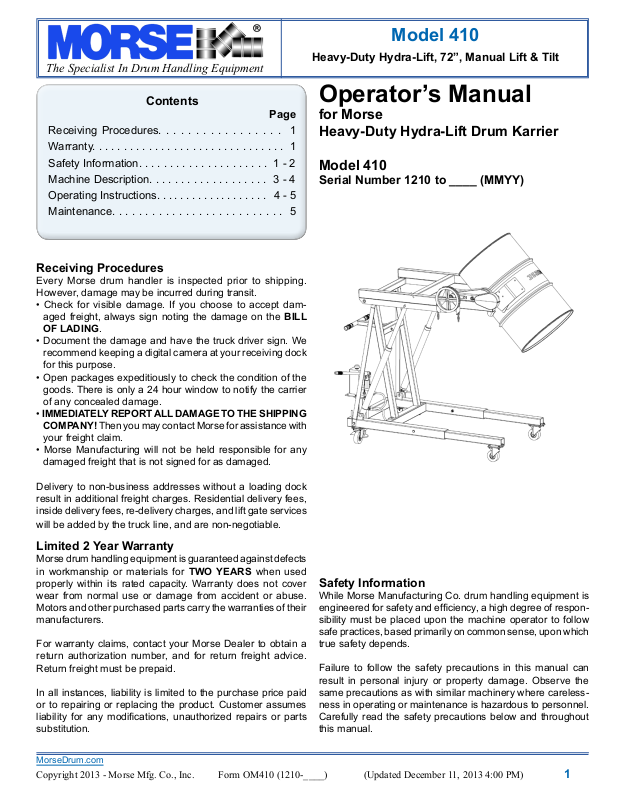

Page 1

The Specialist In Drum Handling Equipment

Model 410

Heavy-Duty Hydra-Lift, 72”, Manual Lift & Tilt

Contents

Page

Receiving Procedures. . . . . . . . . . . . . . . . . 1

Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Safety Information. . . . . . . . . . . . . . . . . . . . . 1 - 2

Machine Description. . . . . . . . . . . . . . . . . . . 3 - 4

Operating Instructions. . . . . . . . . . . . . . . . . . . 4 - 5

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . 5

Receiving Procedures

Every Morse drum handler is inspected prior to shipping.

However, damage may be incurred during transit.

• Check for visible damage. If you choose to accept damaged freight, always sign noting the damage on the BILL

OF LADING.

• Document the damage and have the truck driver sign. We recommend keeping a digital camera at your receiving dock

for this purpose.

• Open packages expeditiously to check the condition of the

goods. There is only a 24 hour window to notify the carrier of any concealed damage.

• IMMEDIATELY REPORT ALL DAMAGE TO THE SHIPPING COMPANY! Then you may contact Morse for assistance with

your freight claim.

• Morse Manufacturing will not be held responsible for any

damaged freight that is not signed for as damaged.

Operator’s Manual

for Morse Heavy-Duty Hydra-Lift Drum Karrier

Model 410

Serial Number 1210 to ____ (MMYY)

Delivery to non-business addresses without a loading dock result in additional freight charges. Residential delivery fees, inside delivery fees, re-delivery charges, and lift gate services

will be added by the truck line, and are non-negotiable.

Limited 2 Year Warranty

Morse drum handling equipment is guaranteed against defects in workmanship or materials for TWO YEARS when used properly within its rated capacity. Warranty does not cover wear from normal use or damage from accident or abuse. Motors and other purchased parts carry the warranties of their manufacturers.

For warranty claims, contact your Morse Dealer to obtain a return authorization number, and for return freight advice.

Return freight must be prepaid.

In all instances, liability is limited to the purchase price paid

or to repairing or replacing the product. Customer assumes

liability for any modications, unauthorized repairs or parts

substitution.

MorseDrum.com

Safety Information

While Morse Manufacturing Co. drum handling equipment is engineered for safety and efciency, a high degree of responsibility must be placed upon the machine operator to follow

safe practices, based primarily on common sense, upon which

true safety depends.

Failure to follow the safety precautions in this manual can result in personal injury or property damage. Observe the same precautions as with similar machinery where carelessness in operating or maintenance is hazardous to personnel. Carefully read the safety precautions below and throughout this manual.

Page 2

Model 410

Heavy-Duty Hydra-Lift, 72”, Manual Lift & Tilt

The Specialist In Drum Handling Equipment

Operator’s Manual for Morse Heavy-Duty Hydra-Lift Karrier Model 410 Serial Number 1210 to ____ (MMYY)

Safety Information (continued)

DANGER - Indicates a situation which, if not avoided, will result in

serious injury or death. This signal word is limited to the most extreme

situations.

WARNING - Indicates a situation which, if not avoided, could result in

serious injury or death.

CAUTION - Indicates a situation which, if not avoided, can result in

damage to the machine.

CAUTION – Do Not Transport with Drum Raised

ALWAYS LOWER THE DRUM HOLDER TO LOWEST POSITION BEFORE TRANSPORTING. The unit can become unstable when transporting with a raised load.

DANGER - Stay Clear of Power Lines

KEEP WELL CLEAR OF POWER LINES. Never approach a power line. Current in a high voltage line

may arc some distance from the wire to the steel framed, grounded machine.

WARNING

The Heavy-Duty Hydra-Lift Karrier is designed to handle one drum of the types listed at the top of page 3,

under 2. Machine Description. DO NOT attempt to handle any other type of drum or object. DO NOT

exceed the weight capacity of 1200 Lb.

WARNING - Level Floors Only

For operation only on clean, level oors of suitable bearing capacity. Do not use on sloped surfaces, ramps, irregular or debris strewn oors.

WARNING - Do Not Modify the Unit

Under no circumstances should any modications be made to the Morse machinery without factory authorization. Any modications may void the warranty. This machine was designed to perform a specic

job and alterations may result in injury to operator or machine.

WARNING - No Loose Fitting Clothing

Wear close-tting clothing and safety equipment appropriate to the job. Loose tting clothing may become

caught on the machinery and cause severe personal injury.

WARNING - Hydraulic Fluid Under Pressure Can Be Hazardous

Escaping hydraulic uid under pressure can penetrate the skin, causing serious injury. Avoid the hazard

by relieving pressure before disconnecting hydraulic lines. Keep hands and body away from pinholes

and nozzles, which eject uid under high pressure. Use a piece of cardboard to search for leaks. If an accident occurs, see a doctor immediately and inform them of the nature of the accident.

CAUTION - Wear Safety Shoes

Wear safety shoes with non-slip soles and hard toe protection.

MorseDrum.com

Page 3

Model 410

Heavy-Duty Hydra-Lift, 72”, Manual Lift & Tilt

The Specialist In Drum Handling Equipment

Operator’s Manual for Morse Heavy-Duty Hydra-Lift Karrier Model 410 Serial Number 1210 to ____ (MMYY)

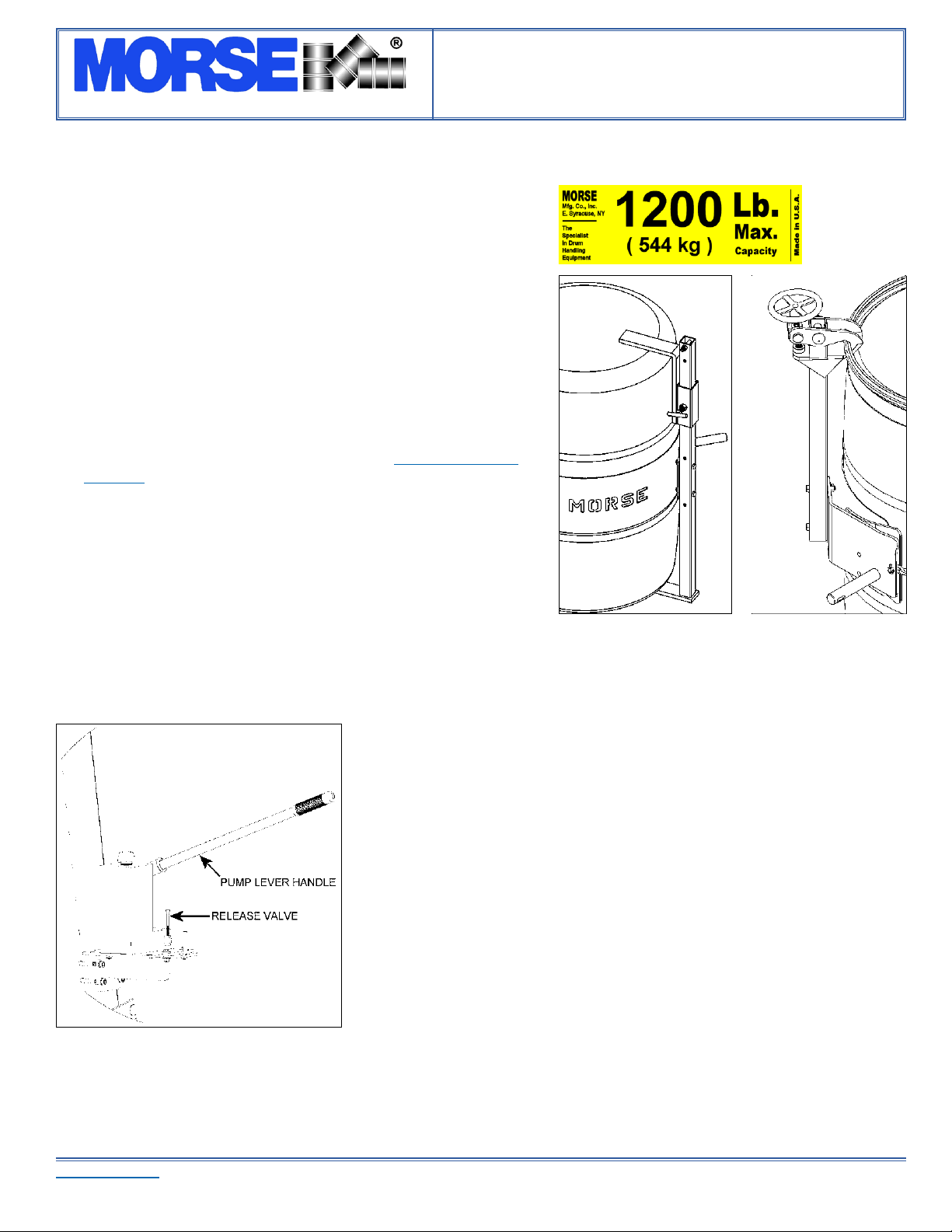

Machine Description

The Model 410 Heavy-Duty Hydra-Lift Karrier will pour a drum up to 72” high, measured from the oor to the lowest point of a horizontal drum. It is designed to lift, transport, and dispense a 55-gallon steel or ber drum 22” to 23.5” in diameter.

The maximum full-drum capacity is 1200 Lb. The capacity is derated to 600 Lb. for a half-full drum. The half-full rating is based on the

tilt mechanism’s capacity for handling an unbalanced bottom-heavy drum.

Options

A smaller diameter drum can be handled with the correct size • 55/30 Series Diameter Adaptor installed (see Diameter Adaptor

literature).

The adjustable Bracket Assembly (Part # 4556-P) is • required to handle a plastic drum without a top rim (see gure 2.1). The Bracket Assembly is also recommended when handling a ber drum. You can also use the Bracket Assembly when handling

a rimmed drum.

To handle a 55-gallon plastic drum with suitable top rim, you • must install either the Bracket Assembly or the Top Rim Clamp (Part # 4560-P) (see gure 2.2). You can use the Top Rim Clamp to handle a 55-gallon plastic, steel or ber drum with

suitable top rim.

Plastic drum being lifted with

part number 4556-P Bracket

Assembly installed.

Figure 2.1

Figure 2.2

Plastic drum being lifted

with part number 4560-P

Top Rim Clamp Assembly installed.

Controls

The Morse Heavy-Duty Hydra-Lift Karrier is manually propelled and steered.

There are two functions for the operator to control (Figure 2.3)

1. LIFT and Lower Function

To raise the drum

Insert pump lever handle into pump socket.• With the release valve closed, begin to pump the lever handle. The •

drum will lift.

To lower the drum

Open the release valve slowly, a part of a turn. Allow the drum to •

descend at a controlled rate. The valve may be reclosed to hold the drum at any height.

2. TILT Function to control the degree of rotation of the drum.

Pull down on one side of chain, rotating drum to angle required for •

Figure 2.3

MorseDrum.com

pouring.

The drum handler is equipped with the MORStop Tilt-Brake, there is • no need to hold tension on both sides of the chain loop. Braking is immediate and self-actuating, without additional steps by the operator.

Page 4

Model 410

Heavy-Duty Hydra-Lift, 72”, Manual Lift & Tilt

The Specialist In Drum Handling Equipment

Operator’s Manual for Morse Heavy-Duty Hydra-Lift Karrier Model 410 Serial Number 1210 to ____ (MMYY)

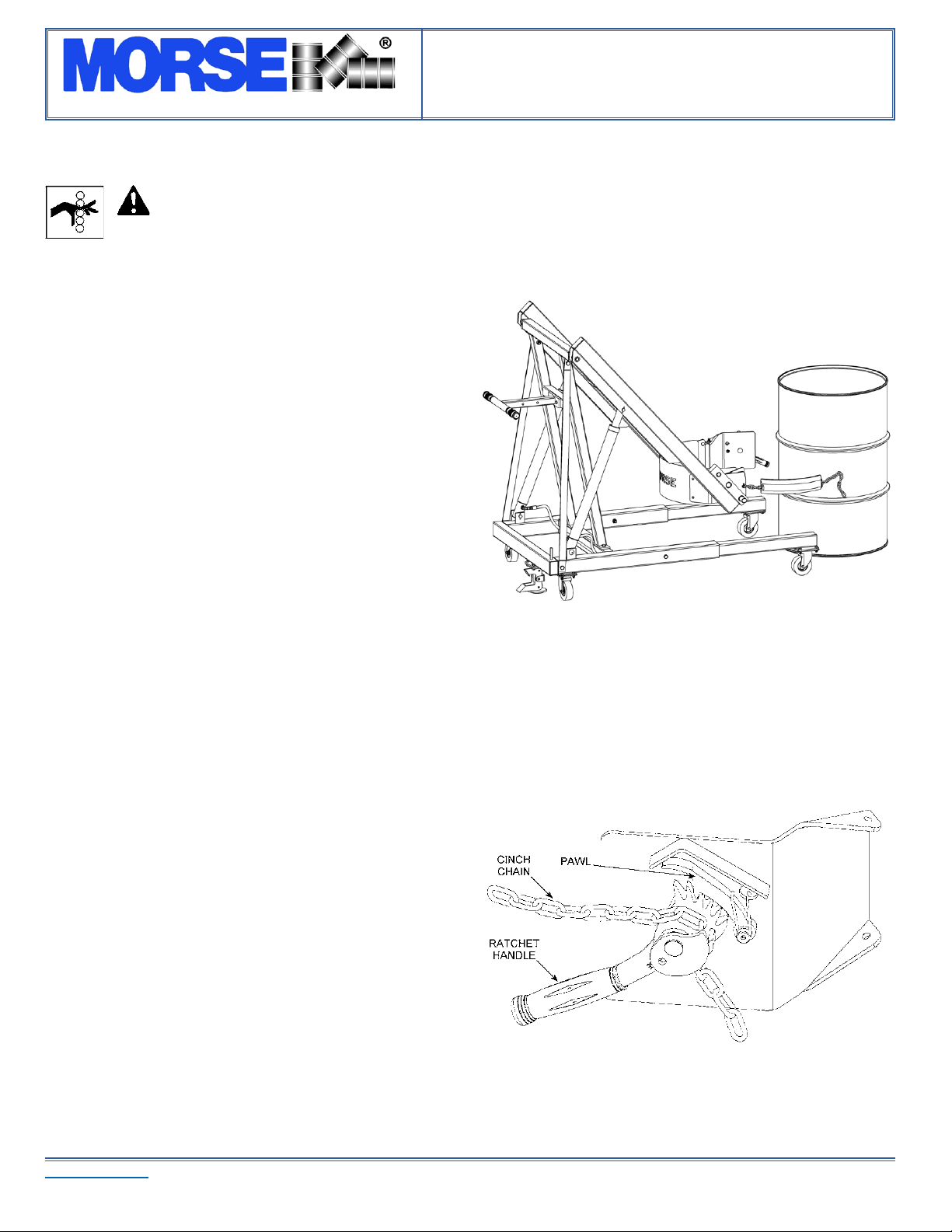

WARNING - Watch Out for Pinch Points

Stay clear of moving parts. Operator should remain behind the push handle during the lift operation.

Floor Lock

The step-down oor lock is located behind the base (gure

3.1). To activate, step down on the oor lock until it locks in the down position. When the oor lock is activated it prevents

unwanted free wheeling of the unit. Floor conditions determine

the effectiveness of the oor lock. The operator should verify

its holding action before depending on it to hold.

MORcinch Drum Holder Assembly

The drum holder assembly (or “saddle assembly”) is the component on the Heavy-Duty Hydra-Lift Karrier that is intended to hold the drum. The MORcinch drum holder assembly is designed to secure a standard ribbed 55-gallon steel drum around it’s middle using a cinch chain and ratchet tightening system. The MORcinch drum holder accepts accessories for

handling a plastic drum, a ber drum, or smaller diameter drums (see Options on pg. 3).

Operating Instructions

1.) Push the Heavy-Duty Hydra-Lift Karrier to the drum.

2.) Using the “LIFT” control as described in “Machine Description - Controls” (page 3) , position the drum holder

assembly with the back band at the middle of the drum. (Figure 3.1). With the ratchet plate swung open and the cinch chain hanging from the chain hook, push the unit until the back band rests rmly against the drum. Some

adjustment to the tilt angle of the saddle may be necessary

to ensure band ts ush on the drum.

3.) Attaching the drum:

Drape the chain across the front of the drum and engage a

link into the slot in the ratchet (Figure 3.2). Turn the ratchet clockwise to tighten chain. If ratchet turns until the pawl is beyond the last ratchet tooth, turn the ratchet back and slide the next link into the ratchet slot and try tightening again.

The chain must be held tightly against the drum with the pawl engaged securely in the ratchet teeth.

4.) Operate the lift function to lift drum clear of oor. Roll to

dispensing location. NOTE: Do not allow the drum to

impact on oor, pouring station, etc. or a spill or damage

could occur.

Figure 3.1

Figure 3.2

MorseDrum.com

Page 5

Model 410

Heavy-Duty Hydra-Lift, 72”, Manual Lift & Tilt

The Specialist In Drum Handling Equipment

Operator’s Manual for Morse Heavy-Duty Hydra-Lift Karrier Model 410 Serial Number 1210 to ____ (MMYY)

CAUTION – Do Not Transport with Drum Raised

ALWAYS LOWER THE DRUM HOLDER TO LOWEST POSITION BEFORE TRANSPORTING. The unit can become unstable when transporting with a raised load.

5.) Lift drum to desired pouring height. Operate the tilt control as described in “Machine Description - Controls” (page 3)

to adjust the drum attitude. This is especially important when lifting an open drum. The oor lock should be engaged while

dispensing / draining.

6.) When dispensing is complete, tilt drum back to upright position. Disengage the oor lock and lower the drum to transporting height; about 6” off the oor.

WARNING - Stay Clear of Raised Drum

NEVER allow anyone to be below any part of a raised drum handler or drum. Remain behind the push handle while handling a drum.

WARNING – Do NOT Disengage the Cinch Chain When Drum is off the Ground

When the drum is in the upright position, lower the drum to the oor before releasing the cinch

chain.

7.) Push the unit to the drum storage area and lower to the oor in an upright position. Release the cinch chain from the ratchet by applying pressure to the ratchet handle in a clockwise direction with one hand and opening the pawl to free the ratchet with the other hand. Remove the cinch chain link from the ratchet.

Maintenance

Periodic inspection for the general condition of structural and mechanical components is imperative for safe and efcient

operation.

Periodically inspect all moving parts, framework, and contact areas for signs of wear, fatigue, or loosening. Tighten, adjust,

or replace parts as necessary to prevent failure and maintain proper function.

Inspect the hydraulic system for oil drips, hose damage, or other signs of wear. Inspect the level and condition of the hydraulic uid. Replace any parts that show signs of wear.

Grease wheel bearings periodically. Oil or grease all moving parts including: the clevis pins and the surfaces of the boom which

contact the inside of the mast cap, the gears and sprockets in the tilt drive, and the ratchet and pawl.

Worn or damaged parts must be properly replaced with the correct, genuine Morse parts.

Hydraulic pump is shipped lled with Noco Premium plus automatic transmission uid d/m. Material safety data sheet (msds) is available online. Change oil yearly, sooner depending on dirty conditions or outdoor use. Replace oil with Mobil

dte 24 or equivalent for indoor use (Mobil dte 13 for outdoor use).
