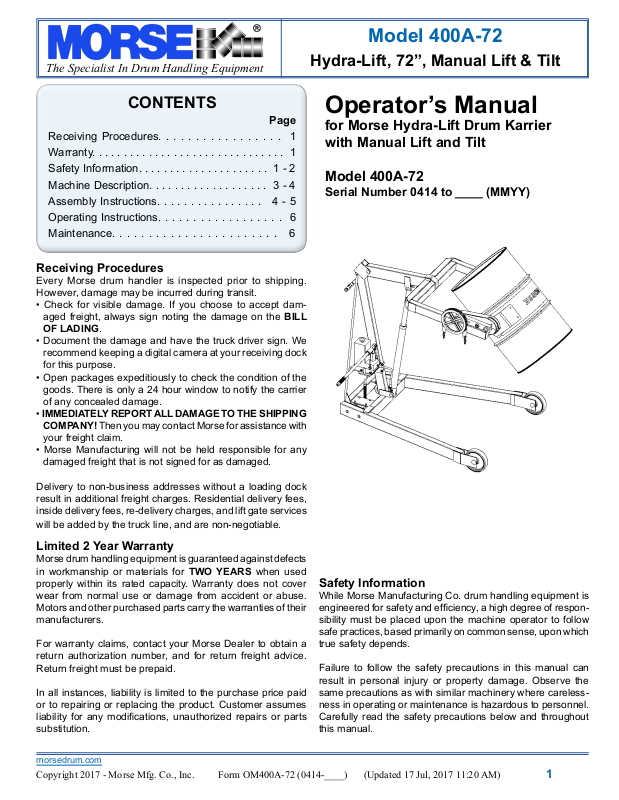

Morse 400A72 User Manual

Model 400A-72

The Specialist In Drum Handling Equipment

CONTENTS

Page

Receiving Procedures. . . . . . . . . . . . . . . . . 1

Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Safety Information. . . . . . . . . . . . . . . . . . . . . 1 - 2

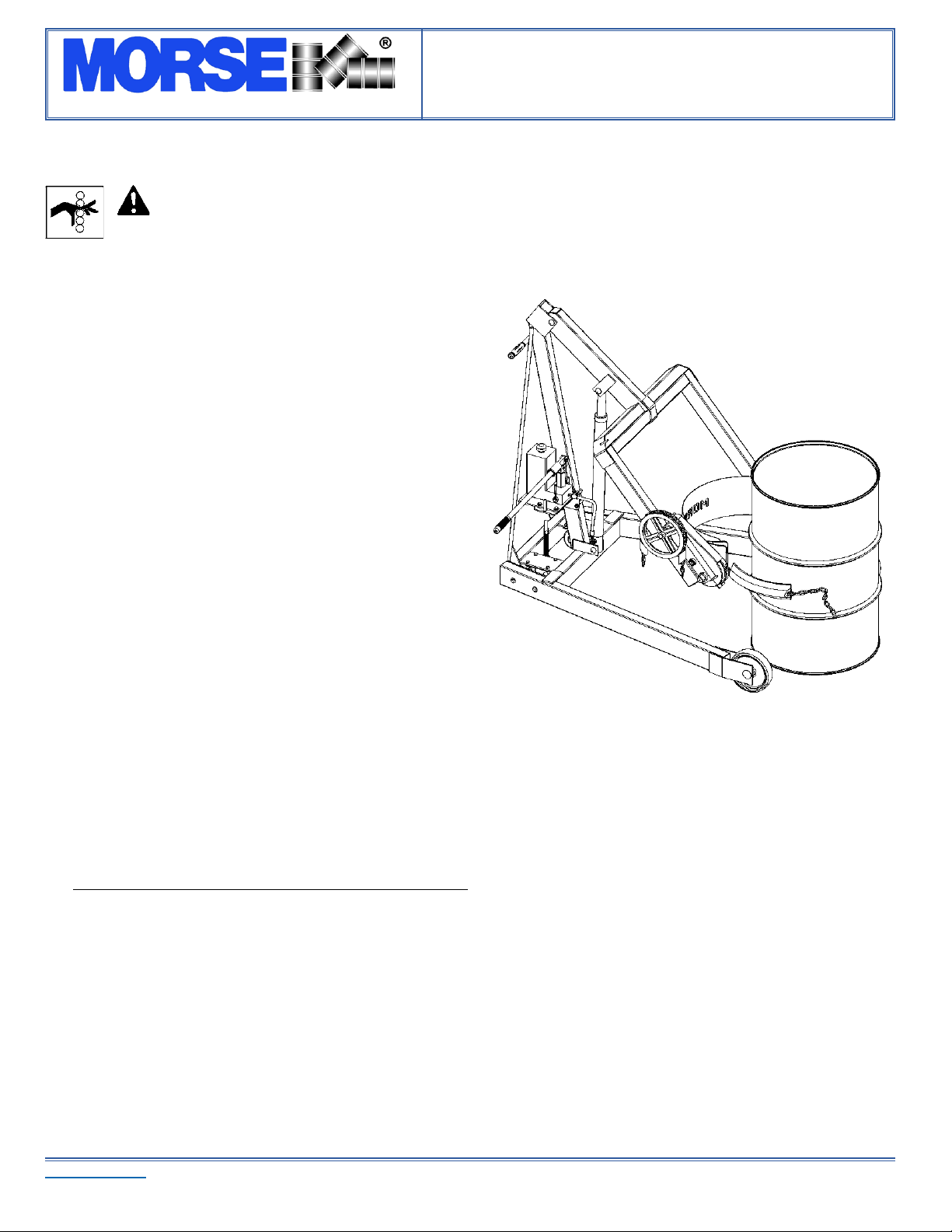

Machine Description. . . . . . . . . . . . . . . . . . . 3 - 4

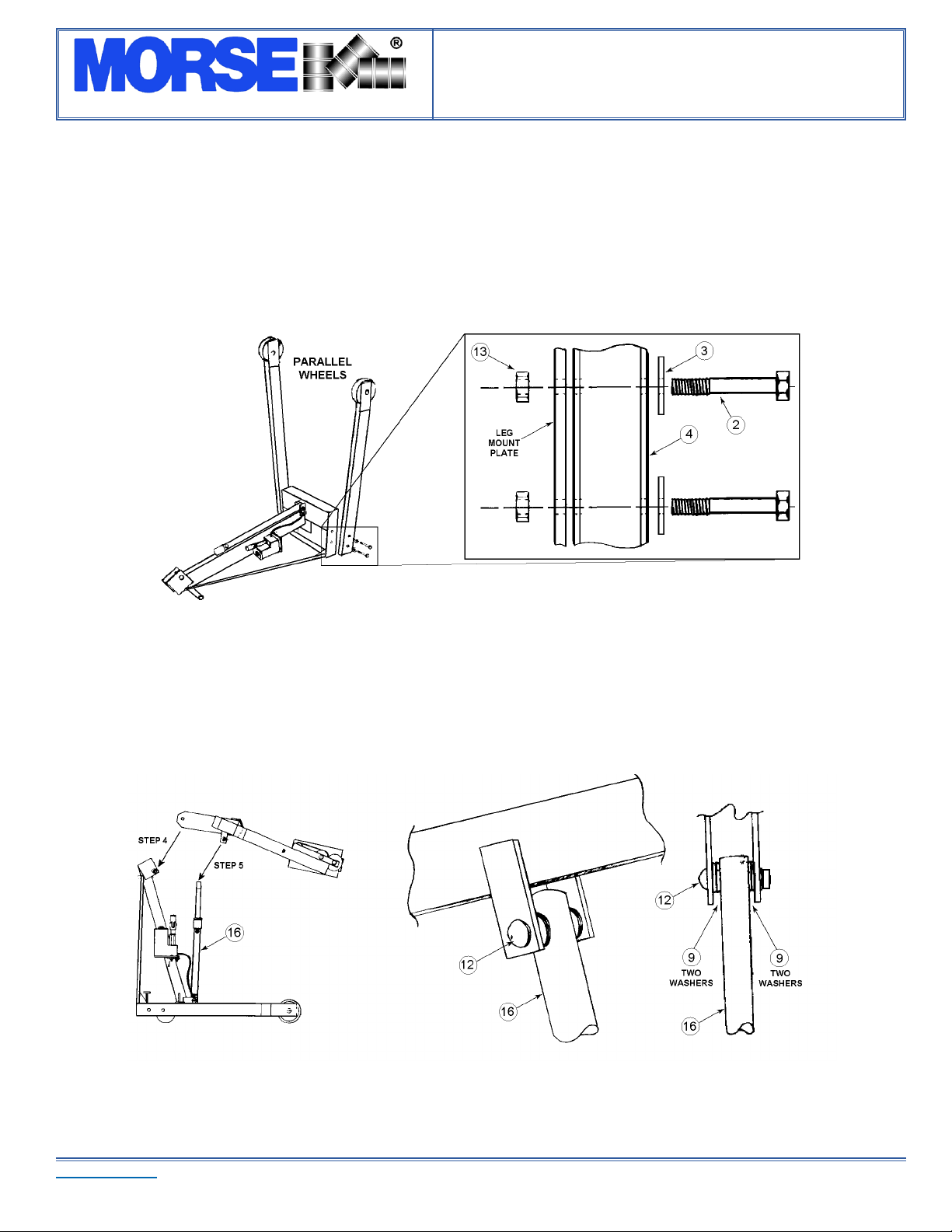

Assembly Instructions. . . . . . . . . . . . . . . . 4 - 5

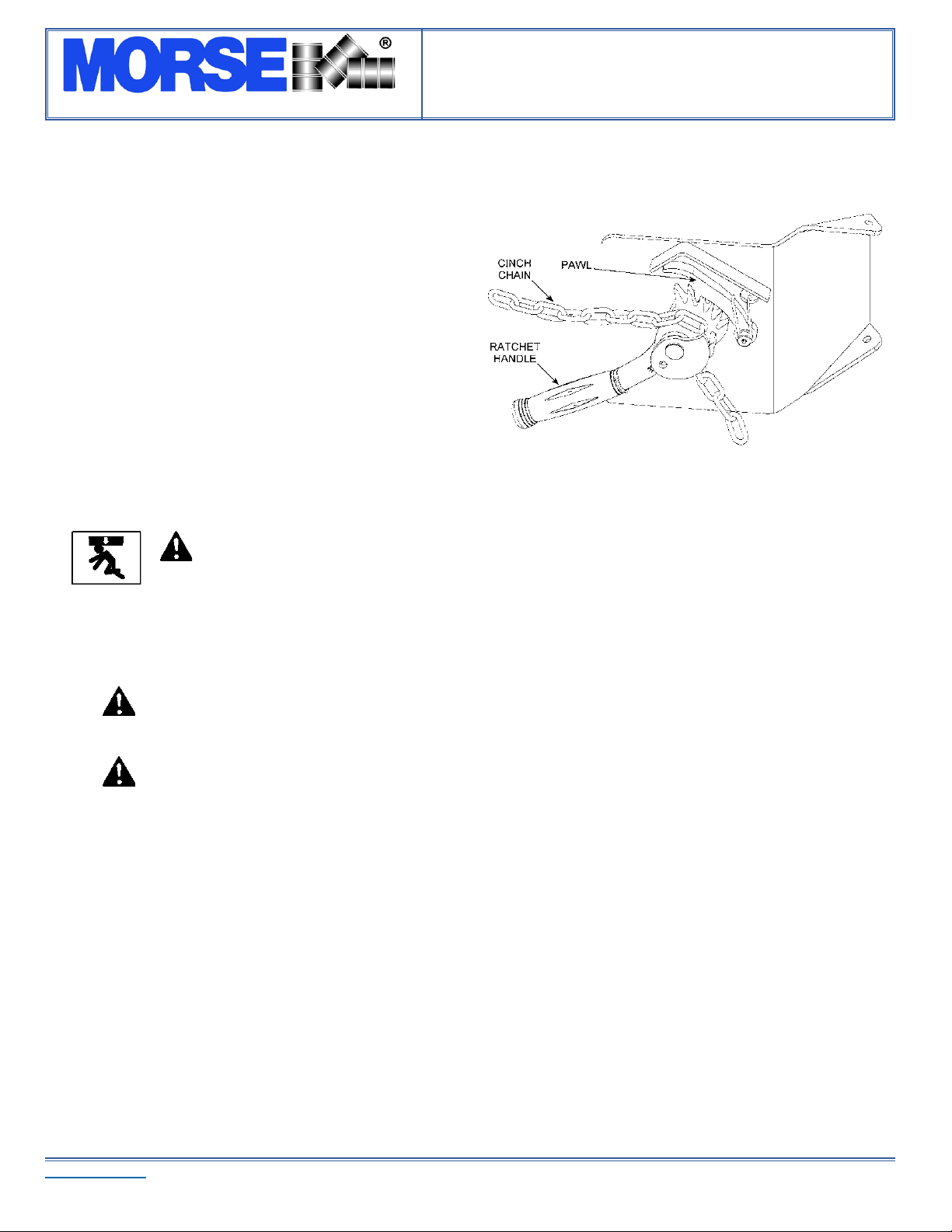

Operating Instructions. . . . . . . . . . . . . . . . . . 6

Maintenance. . . . . . . . . . . . . . . . . . . . . . . 6

Receiving Procedures

Every Morse drum handler is inspected prior to shipping.

However, damage may be incurred during transit.

• Check for visible damage. If you choose to accept damaged freight, always sign noting the damage on the BILL

OF LADING.

• Document the damage and have the truck driver sign. We recommend keeping a digital camera at your receiving dock

for this purpose.

• Open packages expeditiously to check the condition of the

goods. There is only a 24 hour window to notify the carrier of any concealed damage.

• IMMEDIATELY REPORT ALL DAMAGE TO THE SHIPPING COMPANY! Then you may contact Morse for assistance with

your freight claim.

• Morse Manufacturing will not be held responsible for any

damaged freight that is not signed for as damaged.

Hydra-Lift, 72”, Manual Lift & Tilt

Operator’s Manual

for Morse Hydra-Lift Drum Karrier with Manual Lift and Tilt

Model 400A-72

Serial Number 0414 to ____ (MMYY)

Delivery to non-business addresses without a loading dock result in additional freight charges. Residential delivery fees, inside delivery fees, re-delivery charges, and lift gate services

will be added by the truck line, and are non-negotiable.

Limited 2 Year Warranty

Morse drum handling equipment is guaranteed against defects in workmanship or materials for TWO YEARS when used properly within its rated capacity. Warranty does not cover wear from normal use or damage from accident or abuse. Motors and other purchased parts carry the warranties of their manufacturers.

For warranty claims, contact your Morse Dealer to obtain a return authorization number, and for return freight advice.

Return freight must be prepaid.

In all instances, liability is limited to the purchase price paid

or to repairing or replacing the product. Customer assumes

liability for any modications, unauthorized repairs or parts

substitution.

morsedrum.com

Safety Information

While Morse Manufacturing Co. drum handling equipment is engineered for safety and efciency, a high degree of responsibility must be placed upon the machine operator to follow

safe practices, based primarily on common sense, upon which

true safety depends.

Failure to follow the safety precautions in this manual can result in personal injury or property damage. Observe the same precautions as with similar machinery where carelessness in operating or maintenance is hazardous to personnel. Carefully read the safety precautions below and throughout this manual.

Model 400A-72

The Specialist In Drum Handling Equipment

Hydra-Lift, 72”, Manual Lift & Tilt

Operator’s Manual for Morse Hydra-Lift Karrier with Manual Lift and Tilt Model 400A-72 Serial Number 0414 to ____ (MMYY)

Safety Information (continued)

DANGER - Indicates a situation which, if not avoided, will result in

serious injury or death. This signal word is limited to the most extreme

situations.

WARNING - Indicates a situation which, if not avoided, could result in

serious injury or death.

CAUTION - Indicates a situation which, if not avoided, can result in

damage to the machine.

CAUTION – Do Not Transport with Drum Raised

ALWAYS LOWER THE DRUM HOLDER TO LOWEST POSITION BEFORE TRANSPORTING. The unit can become unstable when transporting with a raised load.

DANGER - Stay Clear of Power Lines

KEEP WELL CLEAR OF POWER LINES. Never approach a power line. Current in a high voltage line

may arc some distance from the wire to the steel framed, grounded machine.

WARNING

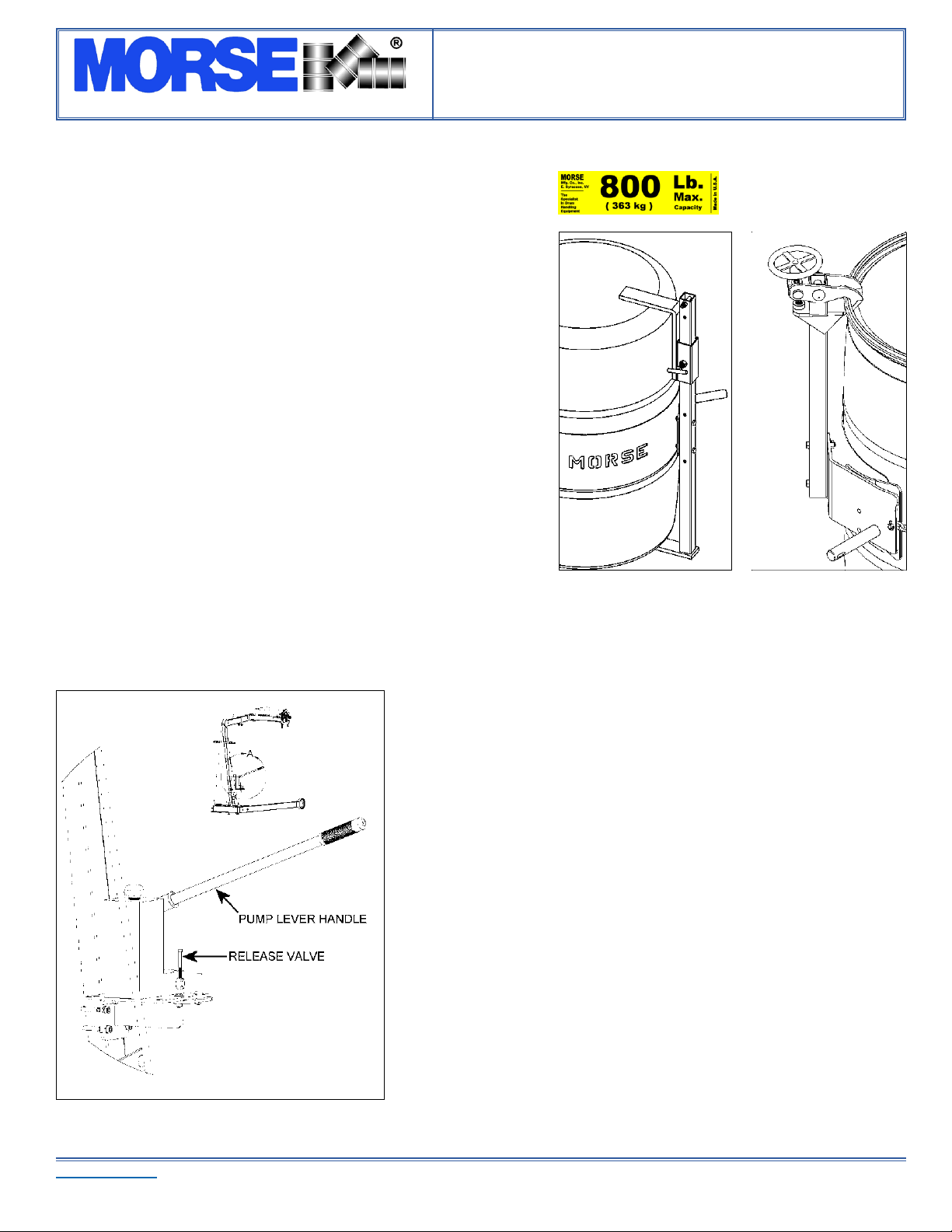

The Hydra-Lift Karrier is designed to handle one drum of the types listed at the top of page 3, under 2. Machine Description. DO NOT attempt to handle any other type of drum or object. DO NOT exceed

the weight capacity of 800 Lb.

WARNING - Level Floors Only

For operation only on clean, level oors of suitable bearing capacity. Do not use on sloped surfaces, ramps, irregular or debris strewn oors.

WARNING - Do Not Modify the Unit

Under no circumstances should any modications be made to the Morse machinery without factory authorization. Any modications may void the warranty. This machine was designed to perform a specic

job and alterations may result in injury to operator or machine.

WARNING - No Loose Fitting Clothing

Wear close-tting clothing and safety equipment appropriate to the job. Loose tting clothing may become

caught on the machinery and cause severe personal injury.

WARNING - Hydraulic Fluid Under Pressure Can Be Hazardous

Escaping hydraulic uid under pressure can penetrate the skin, causing serious injury. Avoid the hazard

by relieving pressure before disconnecting hydraulic lines. Keep hands and body away from pinholes

and nozzles, which eject uid under high pressure. Use a piece of cardboard to search for leaks. If an accident occurs, see a doctor immediately and inform them of the nature of the accident.

CAUTION - Wear Safety Shoes

Wear safety shoes with non-slip soles and hard toe protection.

morsedrum.com
