Morrison S201, S151 Operator's Manual

POWER SPRAYER

Model: S201/S151

Operator’s Manual

BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC

375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5 T 3A7, 905-364-4200 FAX [phone]

25 INDUSTRIAL DRIVE, KEYPORT, NEW JERSEY, USA, 07735, 732-566-5400 FAX [phone]

Doc. # OI – M09205

Orig. Rel. – 07/2008

Curr. Rev. – 03

Rev. Date – 05/2011

No part of this work may be reproduced or transmitted in any

Bartell Morrison Inc.

Bartell Morrison Inc.

Bartell Morrison Inc.Bartell Morrison Inc.

375 Annagem Blvd.
Mississauga, Ontario, Canada

L5T 3A7

Toll Free (N.A.): [phone]
Phone: [phone]
Facsimile: [phone]

ORIGINAL LANGUAGE OPERATING INSTRUCTIONS FOR

MORRISON POWER SPRAYERS © 2008 BY

BARTELL MORRISON INC.

ALL RIGHTS RESERVED.

form or by any means, electronic or mechanical, including
photocopying and recording, or by any information storage or

retrieval system w ithout the prior written permission of Bartell
Morrison Inc. unless such copying is permitted by federal

copyright law s.
Address inquiries or reference permissions care of:
Bartell Morrison Inc., 375 Annagem Blvd., Mississauga,

Ontario, Canada, L5T 3A7

Rev ision Rev . Date Details Approved

0 07-15-2008 Initial document release A.L.
1 08-17-2009 Relocation D.M.
2 12-21-2010 Layout R.L.
3 05-06-2011 Update to add S151 Sprayer A.L.

BARTELL MORR ISON INC. BARTELL MORRISON (USA) LLC

375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]

25 INDUSTRIAL DRIVE, KEYPORT, NEW JERSEY, USA, 07735, 732-566-5400 FAX [phone]

Created: 07/04

Revised: 05/11

Table of Contents

1.0 Introduction …………………………………..…………... Page 4-6

1.1 Morrison Power Sprayer…...…………………… Page 4

1.2 Options………………………….………………… Page 4

1.3 Dimensions ………………………...……...……… Page 5

1.4 Sprayer Main Components……………………… Page 6

2.0 Safety Instructions…………………...…………………... Page 7-9

2.1 Read Operating Ins truction……………………… Page 7

2.2 Product Safety Hazard and Alert Sys tem ……… Page 7

2.3 Fueling Warning…………………………..……… Page 8

2.4 Safety Rules ………………………….…………… Page 8

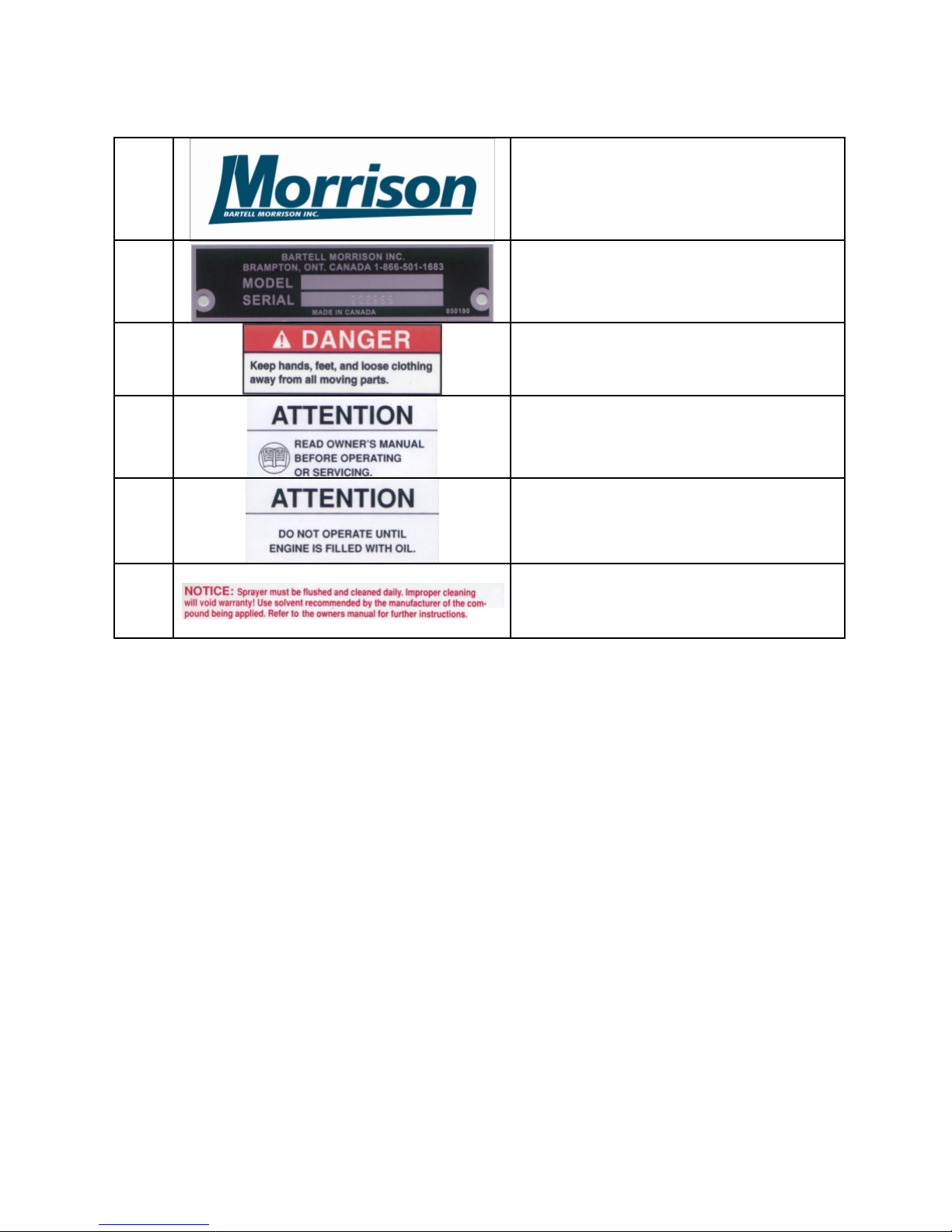

3.0 Safety and Operational Labels…………………………. Page 10

4.0 Sprayer Assembly………………………………………... Page 12

5.0 Sprayer Operating Instructions…………………………. Page 13-15

6.0 Pump Pressure Adjustment…………………………….. Page 15

7.0 Operating Tips and Reminders …………………………. Page 15

8.0 Maintenance……………………………………………… Page 16

8.1 Sprayer……………………………………………. Page 16

8.2 Engine…………………………………………….. Page 16
Declaration of Conform ity………………………………………. Page 17
Notes……………………………………………………………… Page 19

Important Information:

Date of Purchase:

Dealer:

Model Number:

Serial Number:

BARTELL MORR ISON INC. BARTELL MORRISON (USA) LLC

375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]

25 INDUSTRIAL DRIVE, KEYPORT, NEW JERSEY, USA, 07735, 732-566-5400 FAX [phone]

Created: 07/04

Revised: 05/11

1.0 INTRODUCTION

TO THE OPERATOR:
DO NOT OPERATE THE BARTELL MORRISON POWER SPRAYER UNLESS

YOU HAVE READ AND STUDIED THIS MANUAL CAREFULLY.

REMEMBER THAT YOU ARE THE KEY TO SAFETY. GOOD SAFETY
PRACTICES NOT ONLY PROTECT YOU, BUT ALSO THOSE WORKING
AROUND YOU. MAKE THIS MANUAL A WORKING PART OF YOUR SAFETY

PROGRAM.

For safe operation of the power sprayer, you mus t be a qualified and authorized
operator. To be qualified, you must understand these written instructions, have
training, including actual operation of the power s prayer and know the safety rules

and regulations for your particular job site.

An operator should never use drugs, alcohol or any other substance which can
change his/ her alertness or coordination.

This m anual is com plied from information available and current at time of approval for
printing. Bartell Morrison Inc. reserves the right to improve its products without giving
prior notice or incurring any obligation

1.1 MORRISON POWER SPRAYER

The Morrison Power Sprayer is ideal for spraying all types of curing compound on
bridge decks, highways, floor slabs, drainage channels, etc, after finis hing work is

completed. Easily handles form oils, pigmented curing compounds, bond
breakers, soaps and detergents, pest control liquids, and m ost liquid type
material.

It is powered by a dependable Honda engine and comes with 25’ (7.6m) of 3/8”
(0.95cm) hose with an adjustable s pray nozzle.

1.2 OPTIONS

Hose Lengths: 50’ (15.2m), 75’ (22.7m), 100’ (30.5m)
Fan Spray Nozzle
Hand Cart
Tow Cart

BARTELL MORR ISON INC. BARTELL MORRISON (USA) LLC

375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]

25 INDUSTRIAL DRIVE, KEYPORT, NEW JERSEY, USA, 07735, 732-566-5400 FAX [phone]

Created: 07/04

Revised: 05/11

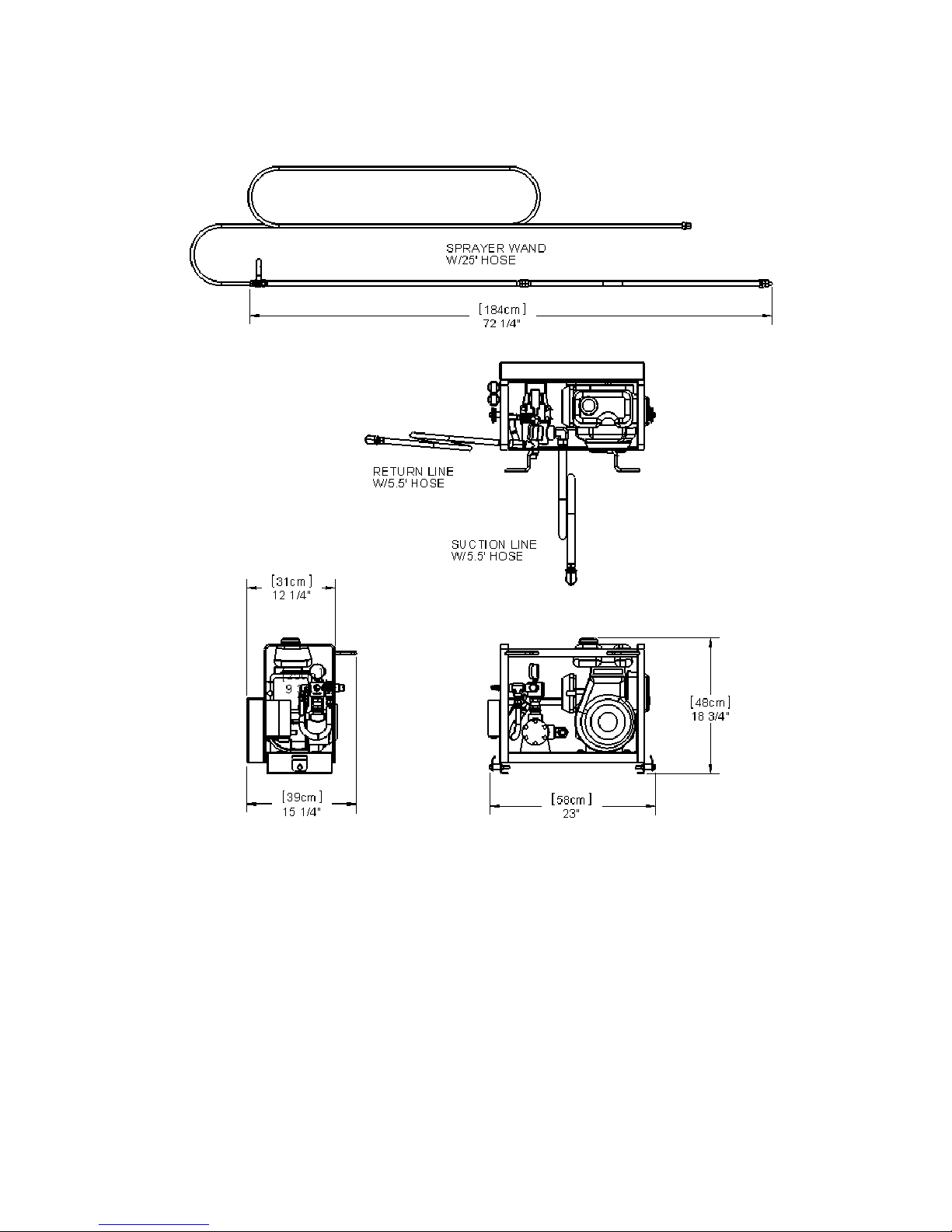

1.3 Dimensions

BARTELL MORR ISON INC. BARTELL MORRISON (USA) LLC

375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]

25 INDUSTRIAL DRIVE, KEYPORT, NEW JERSEY, USA, 07735, 732-566-5400 FAX [phone]

Fig. 1

Created: 07/04

Revised: 05/11

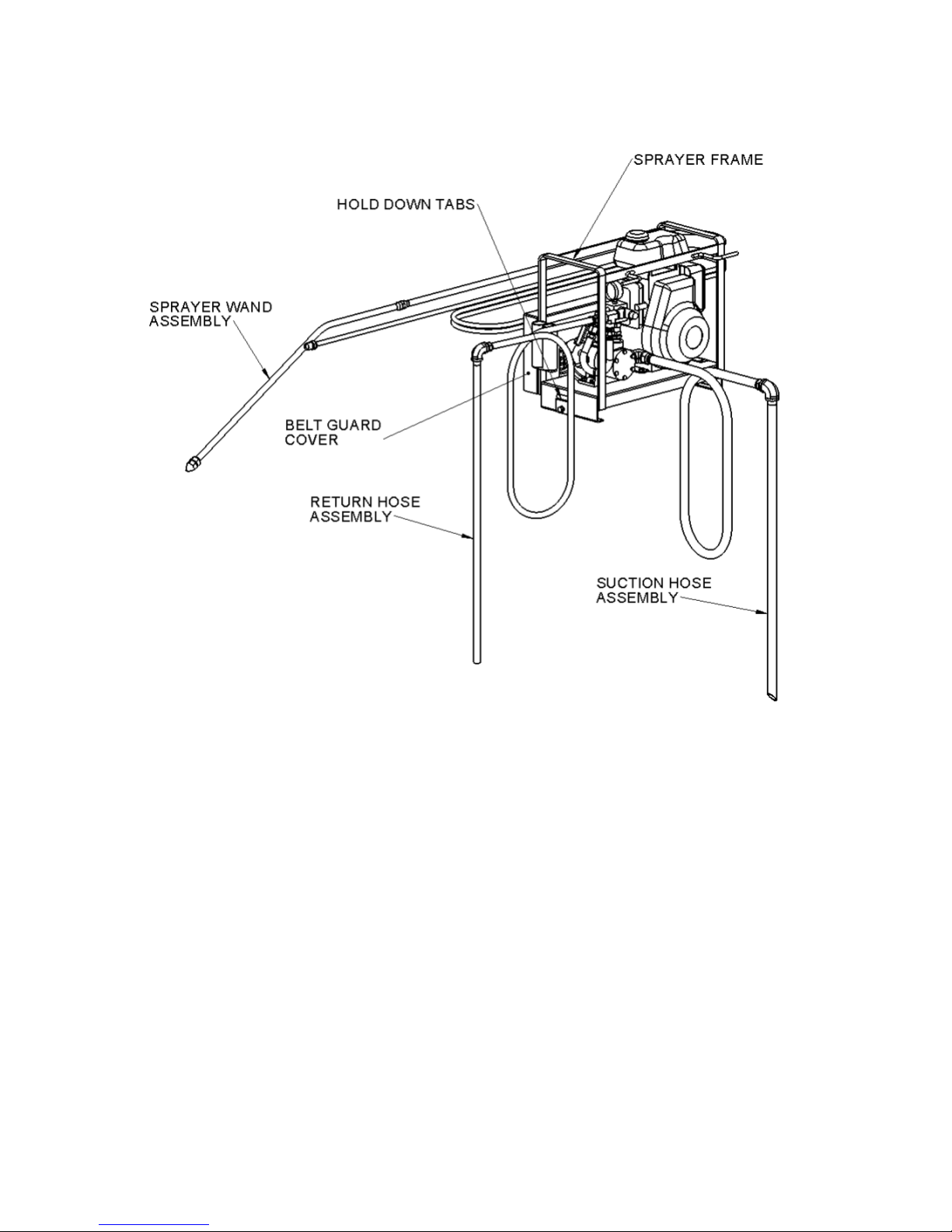

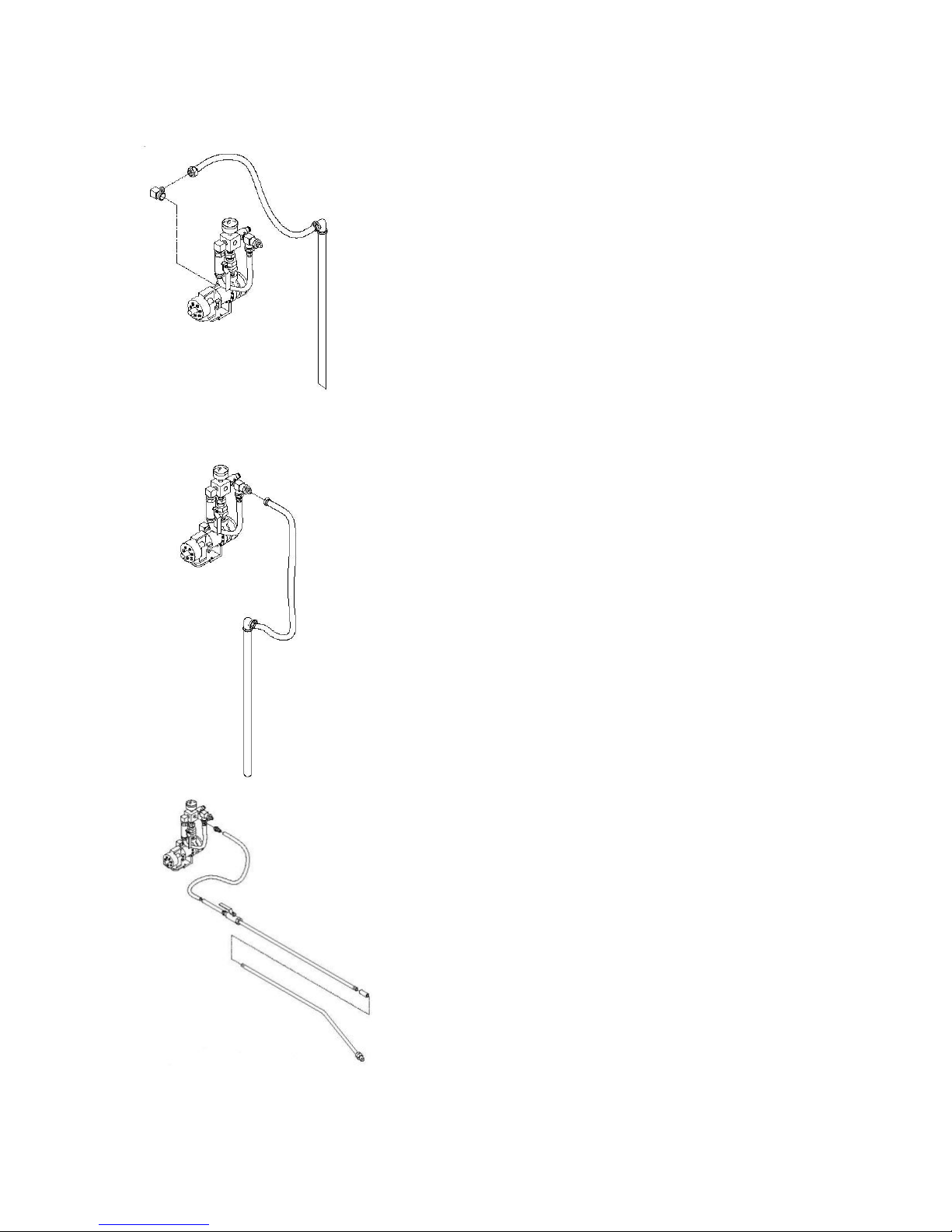

1.4 Sprayer Main Components

Fig. 2

BARTELL MORR ISON INC. BARTELL MORRISON (USA) LLC

375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]

25 INDUSTRIAL DRIVE, KEYPORT, NEW JERSEY, USA, 07735, 732-566-5400 FAX [phone]

Created: 07/04

Revised: 05/11

2.0 SAFETY INSTRUCTIONS

2.1 READ OPERATING INSTRUCTIONS

Read and understand this entire manual before atte mpting to operate or
service the equipment described herein. Failure to follow these operating
instructions could result in serious injury or death. Store this manual w ith

the machine and ensure it is apparent and availab le to any users.

CALIFORNIA PROPOSITION 65 WARNING

CALIFORNIA PROPOSITION 65 WARNING

CALIFORNIA PROPOSITION 65 WARNINGCALIFORNIA PROPOSITION 65 WARNING
Engine e xhaust, some of its constituents, and certain vehicle
components, contain or emit chemicals known to the State of
Ca lifornia to cause cancer and birt h defects or other reproductive
harm.

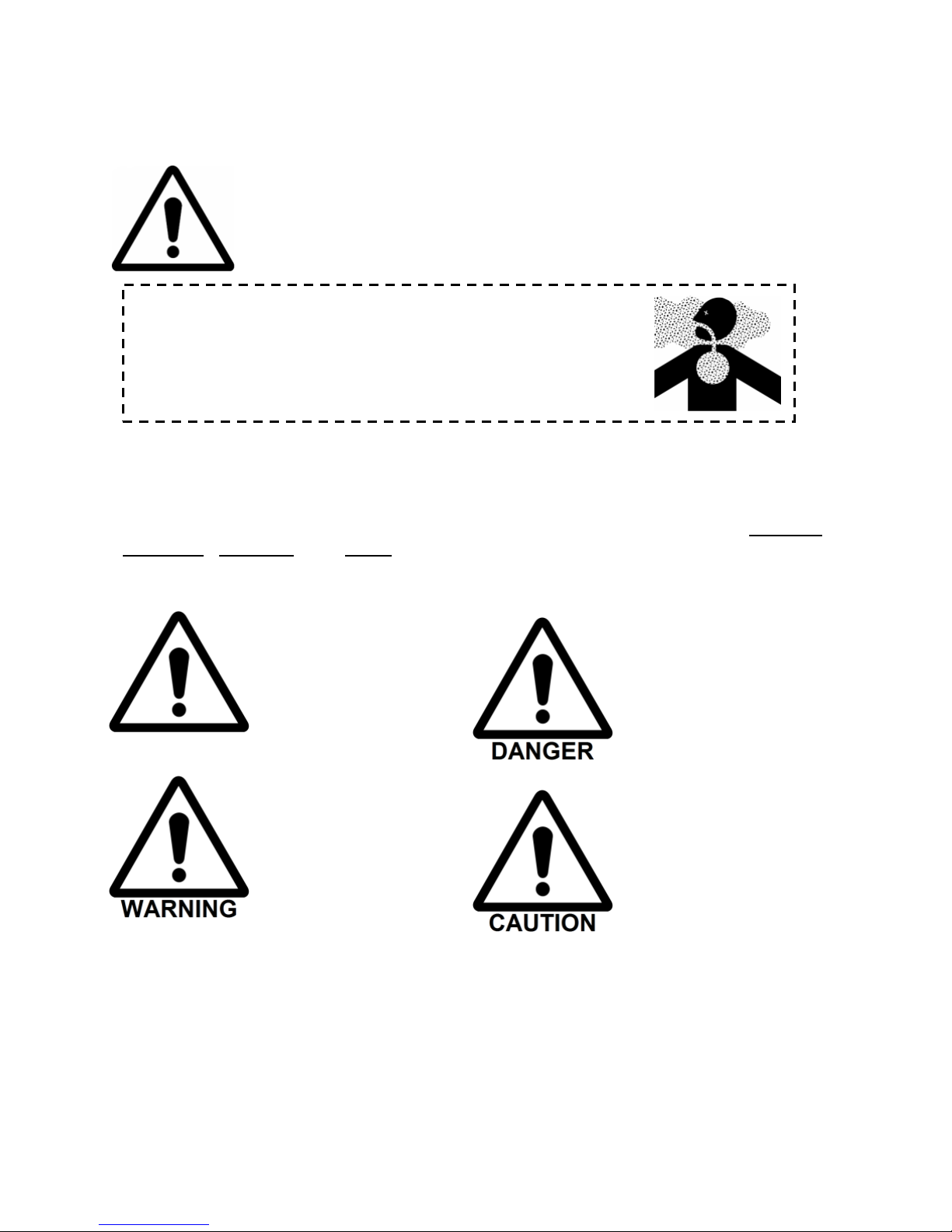

2.2 PRODUCT SAFETY AND HAZARD ALERT SYSTEM :

This Operating Manual presents Product Safety and Hazard Alert Information in accordance
with American National Standards Institute and International Organization for Standardization

recommendations as laid out in ANS I Z535 and ISO 3864. The callouts of DA NGER,
WARNING, CAUTION, and NOTE must be follow ed to reduce or avoid the potential for
personal injury, equip ment damage, or service-related equipment failures.

Safety Hazard Alert:

Safety Hazard Alert:

Safety Hazard Alert:Safety Hazard Alert:

Alerts the reader to
personal injury hazards

and other important,
potentia lly life-saving

information.

DANGER:

DANGER:

DANGER:DANGER:

Beware of a hazardous
situation that WILL result in

serious personal inju ry or
untime ly death.

WARNING:

WARNING:

WARNING:WARNING:

Beware of a hazardous
situation that COULD

result in se rious personal
inju ry or even death.

CAUTI ON:

CAUTI ON:

CAUTI ON:CAUTI ON:

Beware of a hazardous
situation t hat could result in

minor personal injury or
equipment damage.

BARTELL MORR ISON INC. BARTELL MORRISON (USA) LLC

375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]

25 INDUSTRIAL DRIVE, KEYPORT, NEW JERSEY, USA, 07735, 732-566-5400 FAX [phone]

Created: 07/04

Revised: 05/11

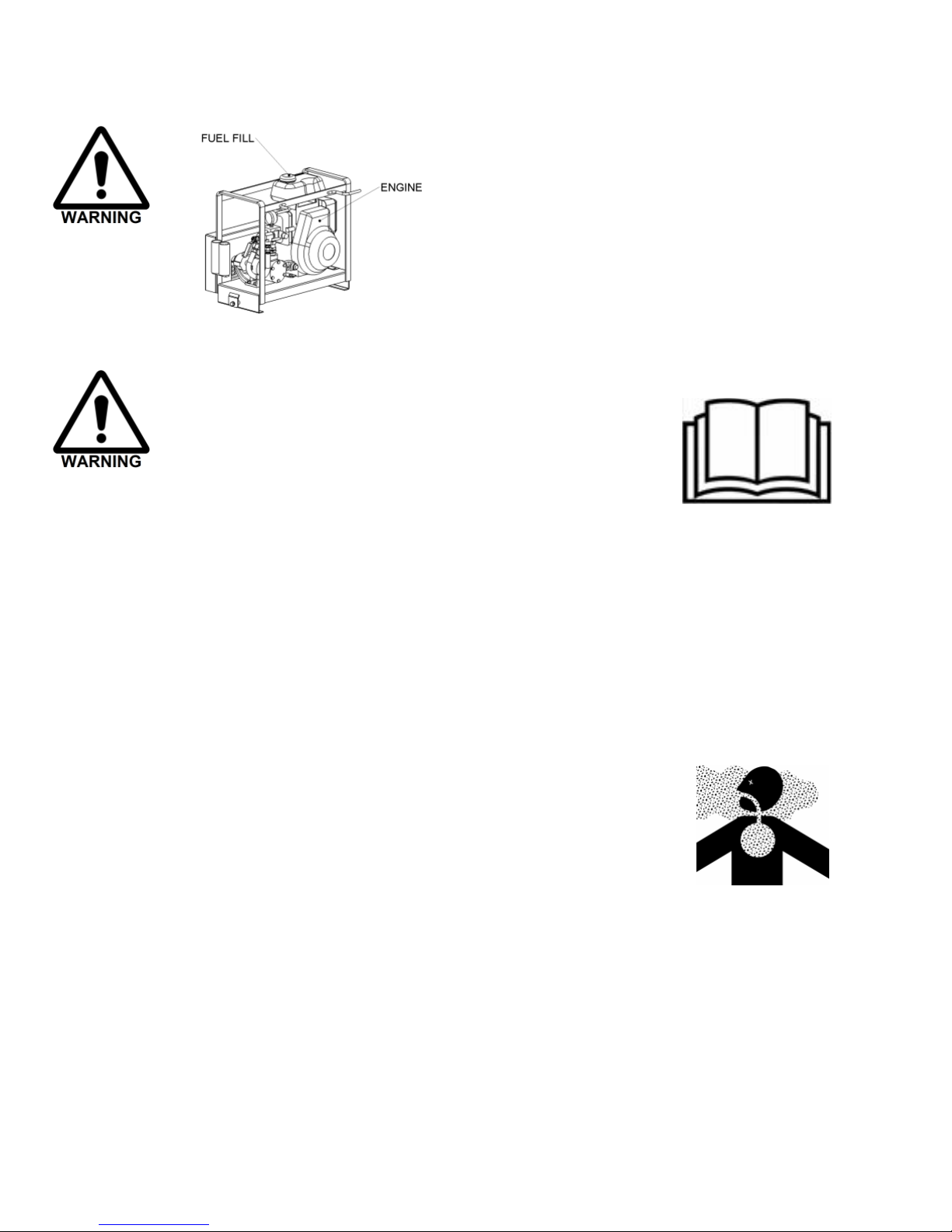

2.3 FUELING WARNING

ALWAYS handle fuel with care. It is highly
flammable.

DO NOT refuel while smoking or when near
open flame or sparks.

ALWAYS stop engine before refueling. Fill

Fig. 3

fuel tank outdoors .

2.4 SAFETY RULES

• The instructions provided in this manual are done so to
ensure the operator’s safety as well as that of other

workers , the equipment, and the job site. Failure to abide
by these guidelines can lead to serious personal injury and
even death. The operator and any service personnel
should read and understand the entire m anual before

working with or servicing the power sprayer.

• The operator’s manual should be kept at all tim es in a place that is accessible
to any persons working with the machine. Replacement manuals can be
purchased from the equipment manufacturer or from your local dealer.

• Only use parts and attachments supplied or approved by your Bartell Morris on
equipment dealer. The consequences of modifying the design of this
equipment can include personal injury, equipment failure, and voiding your
warranty. If you are unsure about a repair or an apparent malfunction, contact

your Bartell Morrison dealer or the technical support line at the bottom of each
page of this manual.

• NEVER use the power s prayer in an enclosed space with
poor air flow, such as a bas ement or sm all room. The

gasoline engine produces , among other things , toxic carbon
monoxide gas. Without proper ventilation, this gas will build
up and cause health effects such as organ damage and
death to anyone in the vicinity.

• The operator should always be lucid and aware of his/her surroundings.
NEVER operate the power s prayer while under the influence of drugs, alcohol,

fatigue, sickness , hangover, extreme depression, anti-depressants, or
emotional distraction.

• ALWAYS wear appropriate pers onal protective equipment while operating the
Power Sprayer. This includes (but is not limited to) safety glasses, hearing

protection, protective footwear, and heavy or padded gloves . Other safety gear
may be job-site appropriate.

BARTELL MORR ISON INC. BARTELL MORRISON (USA) LLC

375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]

25 INDUSTRIAL DRIVE, KEYPORT, NEW JERSEY, USA, 07735, 732-566-5400 FAX [phone]

Created: 07/04

Revised: 05/11

• NEVER leave the power sprayer unattended while running.

• Children and small animals should NEVER be present in the work area during

operation of the power sprayer.

• ALWAYS check your power sprayer for loos e or missing nuts
and bolts before starting. Tighten any loose fas teners and replace

missing or broken parts.

• Perform all routine maintenance as described within this manual. Failure to do
so will void your warranty and will eventually result in premature equipment
failure.

• NEVER perform maintenance on a running piece of equipment. Shut down the
engine and allow it to cool before servicing the power sprayer, including
mechanical work or lubrication.

• ALWAYS replace missing, damaged or unclear safety
labels to ensure operator awareness and safety.

• NEVER operate the power sprayer with missing or
damaged safety guards. Replace immediately with

appropriate Morrison parts.

• NEVER put hands , feet, or other appendages inside the
belt guard while the engine is running, even at idle or
with protective clothing, as serious injury may result.

• NEVER wear loos e fitting clothing or jewelry around rotating equipment such
as the power sprayer as it m ay becom e entangled in the machinery, resulting
in serious injury.

• ALWAYS refuel the power sprayer in a well-ventilated area,
away from ignition sources s uch as sparks, flames , and lit

cigarettes . Sm oking while fuelling the equipm ent m ay result in
explosion.

• Ensure the engine has cooled sufficiently before refueling to
avoid igniting gasoline fumes.

• NEVER operate the power sprayer in explosive environments
such as paint fumes, m ethane, natural gas, fine particulate,

aeros ol propellant, or solvent fumes.

• NEVER sm oke near the power sprayer as stray gas oline fumes
may ignite. Operating the power sprayer around an open flame
may also result in explosion.

• ALWAYS shut down the engine and allow it to cool off before lifting or
transporting the power sprayer.

• ALWAYS tie down the power sprayer when being transported in a truck or on
a flatbed. Empty the fuel tank if transporting it over long distances.

BARTELL MORR ISON INC. BARTELL MORRISON (USA) LLC

375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]

25 INDUSTRIAL DRIVE, KEYPORT, NEW JERSEY, USA, 07735, 732-566-5400 FAX [phone]

Created: 07/04

Revised: 05/11

3.0 SAFETY AND OPERATIONAL LABELS

2 6 3 1 4 6

BARTELL MORR ISON INC. BARTELL MORRISON (USA) LLC

375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]

25 INDUSTRIAL DRIVE, KEYPORT, NEW JERSEY, USA, 07735, 732-566-5400 FAX [phone]

Created: 07/04

Revised: 05/11

1111

2222

3333

4444

5555

6666

Product Brand Label

Model and Serial Number plate

DANGER: Keep hands, feet, and

loose clothing away from all moving

parts.

ATTENTION: Read and understand

owner’s manual before operating or

servicing this equipm ent.

ATTENTION: Do not operate this

equipment until the engine is checked

and filled with oil.

NOTICE: Sprayer must be flushed

and cleaned daily. Refer to page 16

for instructions.

BARTELL MORR ISON INC. BARTELL MORRISON (USA) LLC

375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]

25 INDUSTRIAL DRIVE, KEYPORT, NEW JERSEY, USA, 07735, 732-566-5400 FAX [phone]

Created: 07/04

Revised: 05/11

4.0 SPRAYER ASSEMBLY

Fig. 4

- Suction Hose

Fig. 5

- Return

Fig. 6

-

Spray Hose &

Connection

Hose Connection

Your new Power Sprayer will arrive with everything you
need in one shipping carton. Be sure to examine the
content to be certain that the following items were
included:

Return Hose: ½” hose/pipe
Suction Hose: ¾” hose/pipe
Sprayer Wand Assembly: 25 ft. of 3/8” hos e and (2)

3/8” pipes with a coupler

1. Remove the sprayer from the carton and place it on
the curing drum you will be using. The sprayer
should be mounted so that the openings on the drum
are accessible on either side of the sprayer. Tighten

the hold down tabs on the sprayer to the drum.

2. Attach the suction hose/pipe to the sprayer using the
fitting mounted directly to the pump. (See Fig. 4)

3. Attach the fitting end of the return hose/pipe to the
sprayer using the ½” connection on the spray block
assembly. (See Fig. 5)

4. Join the two s ection of the sprayer wand together
using the pipe coupling provided. (See Fig. 6)

5. Attach the spray hose to the last fitting on the
sprayer block assembly. (See Fig. 6)

You are now ready to begin operation of the sprayer.

Wand Connection

BARTELL MORR ISON INC. BARTELL MORRISON (USA) LLC

375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]

25 INDUSTRIAL DRIVE, KEYPORT, NEW JERSEY, USA, 07735, 732-566-5400 FAX [phone]

Created: 07/04

Revised: 05/11

5.0 SPRAYER OPERATING INSTRUCTIONS

Before starting engine, refer to the engine owner’s m anual, follow the engine
manufacturer’s instructions for proper s tarting procedures, and follow the steps
below.

CAUTION: If the material you are working with has solids in it, these will s ettle to

the bottom of the drum. You mus t agitate it thoroughly before
attempting to spray the material. If you do not do this, the sprayer will
becom e clogged and possibly damage the pump.

1. Insert the s uction hose into the drum using the larger of the two access holes. We
recommend using a support under the hos e so that it will not reach the bottom of
the drum where sediment can clog the suction hose.

2. Insert the return hos e into the drum us ing the smaller of the two openings.

3. The sprayer has a bypass valve that allows the engine to be started without
pressure building in the pump. Rotate the bypass valve handle to the downward
position before starting the engine. This valve allows you to stir the curing m aterial
by circulating it directly through the pump.

4. Read the engine m anufacturer’s ins tructions carefully before starting the engine.
CHECK OIL!!

5. Check the end of the suction hose to be certain it is immersed in the liquid but not
in the sediment in the bottom of the drum.

6. With the bypass valve in the on, downward pos ition, start the engine and allow it
to run for 2-10 minutes. This aids in the m ixing of the spray com pound and

assures greater pump efficiency and life. (See Fig. 6)

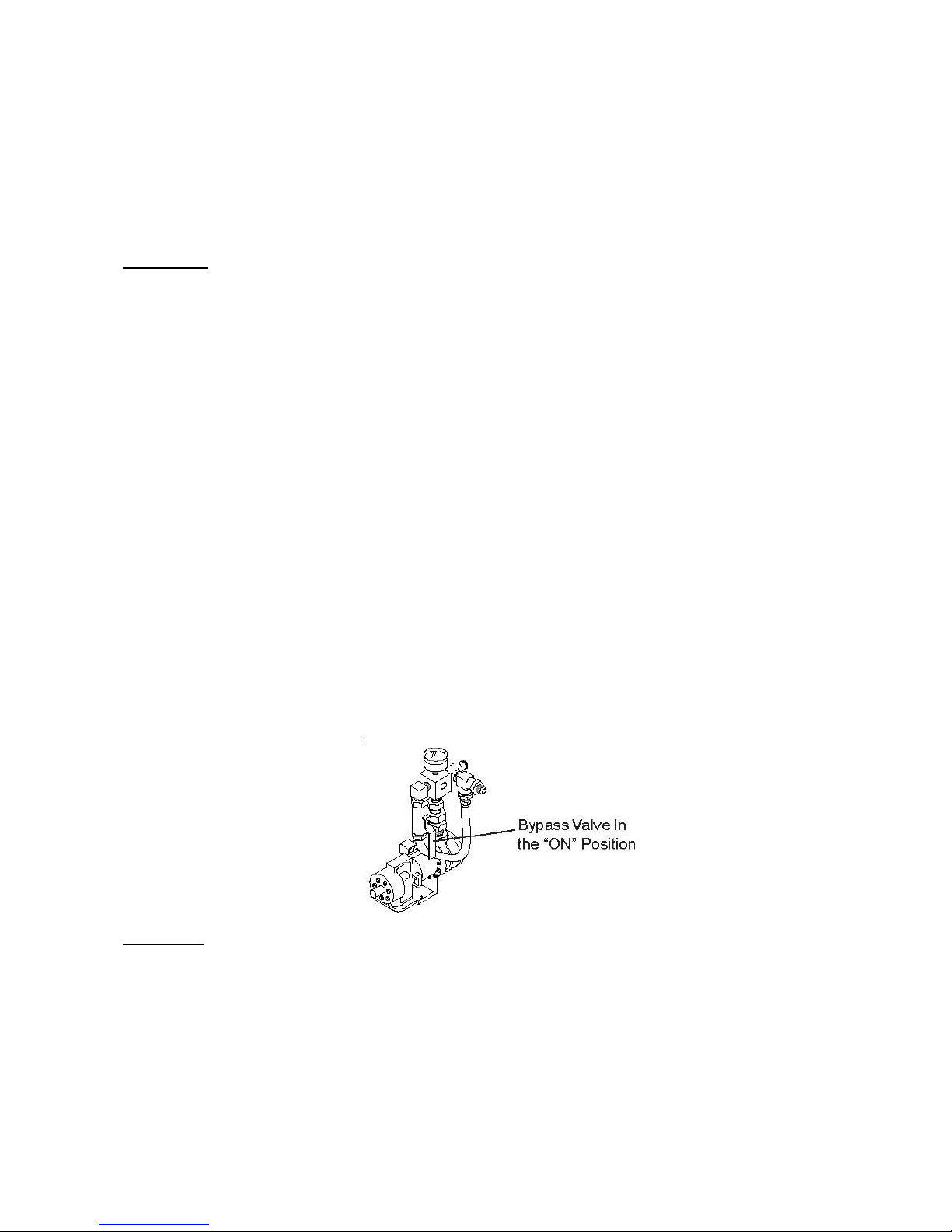

Fig. 6

NOTICE: Some compounds have a tendency to foam when air is introduced.
This foaming can cause erratic pump performance. Please do not insert spray

nozzle into the drum in n attempt to stir the material! This will only cause more
foam in the compound.

7. Be certain the spray wand is off before turning the bypass valve to the off position
to pressurize the system .

BARTELL MORR ISON INC. BARTELL MORRISON (USA) LLC

375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]

25 INDUSTRIAL DRIVE, KEYPORT, NEW JERSEY, USA, 07735, 732-566-5400 FAX [phone]

Created: 07/04

Revised: 05/11

8. Turn the bypass valve to the off position. You are now ready to spray.

9. Adjustm ents to the spray pattern can be made with the nozzle at the end of the
spray wand. Turn the nozzle counterclockwise to narrow the spray pattern, and

clockwise to broaden the spray pattern.

Fig. 7

10. The sprayer has an adjustable pressure relief valve (See Fig. 8) on the block
assembly. You may need to var y the pressure according to the viscosity of the
material you are using. Thinner liquids tend to need m ore pressure to assure a

good coverage pattern.

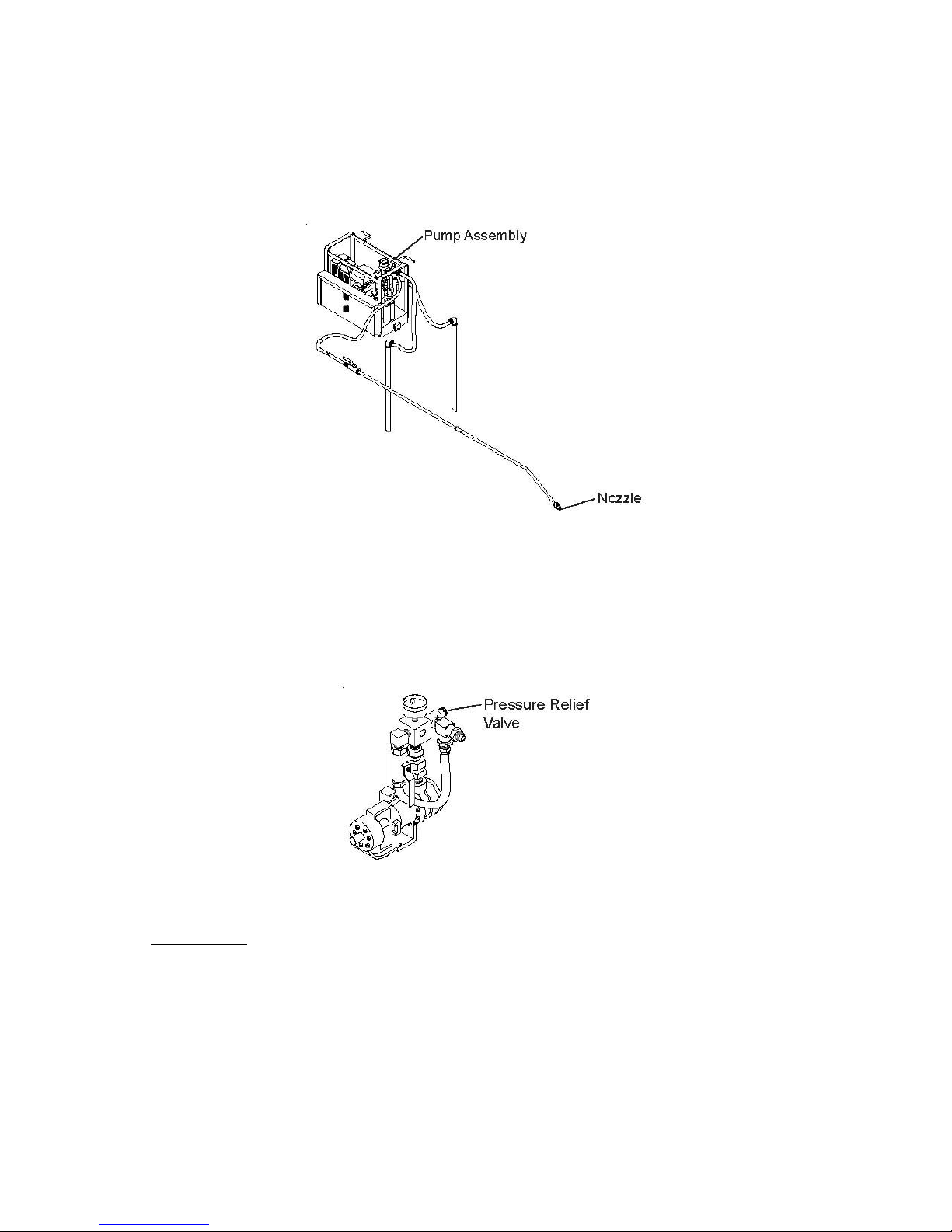

Fig. 8

CAUTION: NEVER EXCEED 150 PSI

11. While not spraying, turn the bypass valve on to remove unnecessary pressure
from the pump. Turning off the engine when not spraying will prolong the life of

the pump.

12. The return hos e may be used to check for any sediment remaining lodged at the
bottom of the drum. If none is detected, the suction hose can be lowered

BARTELL MORR ISON INC. BARTELL MORRISON (USA) LLC

375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]

25 INDUSTRIAL DRIVE, KEYPORT, NEW JERSEY, USA, 07735, 732-566-5400 FAX [phone]

Created: 07/04

Revised: 05/11

completely into the drum. If sediment remains after several minutes of s praying, it
may be necessary to remove the sprayer and stir the material m anually.

6.0 PUMP PRESSURE ADJUSTMENT

Pleas e refer to the instruction manual for the pump.

7.0 OPERATING TIPS AND REMINDERS

1. Always start the engine with the bypass valve in the on position to
reduce s ystem pressure.

2. Always stir the compound before attem pting to operate the s prayer.

3. When not spraying, turn the bypass valve to the on position, or stop
the engine. This will add several hours of life to your sprayer.

4. Follow manufacturer’s directions and safety procedures in the use of
materials used to clean the sprayer.

5. Periodically clean the spray nozzle, as materials tend to clog, causing
poor spray performance.

6. Clean the sprayer after every use.

7. Flush after cleaning completely so that no solvents remain in the
sys tem.

8. Use care to avoid crim ping or damaging hoses . Do not allow
accumulations of com pounds to build up on hoses.

9. NEVER directly spray nozzle in the direction of eyes or face.

BARTELL MORR ISON INC. BARTELL MORRISON (USA) LLC

375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]

25 INDUSTRIAL DRIVE, KEYPORT, NEW JERSEY, USA, 07735, 732-566-5400 FAX [phone]

Created: 07/04

Revised: 05/11

8.0 MAINTENANCE

It is essential that the sprayer be cleaned on a daily basis . Parts will not be warranted
that fail due to improper cleaning. Use the following steps as a guide to proper
cleaning and maintenance.

8.1 Sprayer

1. Place the s uction hose into a container that has been filled with a s olvent
recommended by the compound manufacturer to clean spraying equipment
after use.

2. Place the return hos e in an em pty container the s ame size, or larger than the
one with the cleaning agent.

3. Turn the bypass valve to the on position and start the engine. Allow the
cleaning agent to run through the pump for 2-3 minutes.

4. Turn the bypass valve to the off position and spray wand to the on position.
Allow the want to spray into the em pty container for about 20 seconds. This
procedure may need to be repeated several times to insure that the pump and

spray wand are clean.

5. Check the procedures for cleaning provided by the solvent manufacturer.
Some cleaning solvents require that they be flus hed out with water after they
are used. If this is the case, we recommend that a small amount of form oil or
dies el fuel be used AFTER using water. This will prevent the internal

components of the pump from seizing, due to the formation of rus t on the
metal gears .

6. Disconnect all the hos es and allow all the liquid to drain from the lines.

7. As you begin your next spraying operation, spray a small amount of com pound
through the lines and into an empty container. This will clear any remaining

water or solvent before it is mixed with the regular spraying compound.

8.2 Engine

Refer to engine owner’s manual for specific information regarding m aintenance.

Check the oil level in your engine prior to start up and then every 10 hours of
operation. Maintain the proper levels at all times.

Drain oil after every 50 hours or operation and refill with grade of oil as
recommended in the engine owner’s manual.

Above 40 Deg. F (13 Deg. C)- S. A. E. 30

Below 40 Deg. F (13 Deg. C)- S. A. E. 20

Cold Weather Note:

In climates where temperatures are below 35 Deg. F, hard starting may occur. In
these cases the oil should be switched to a thinner 15 weight hydraulic fluid.

BARTELL MORR ISON INC. BARTELL MORRISON (USA) LLC

375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]

25 INDUSTRIAL DRIVE, KEYPORT, NEW JERSEY, USA, 07735, 732-566-5400 FAX [phone]

Created: 07/04

Revised: 05/11

Declaration of Conformity / Certificat de conformité / Gelijkvormigheids certificaat

Declaración de Conformidad/Declaração de Conformidade/Dichiarazione Di Conformita

We: Bartell Morrison Inc.
375 Annagem Blvd.
Mississauga, Ontario, Canada

L5T 3A7
Tel: [phone] Fax: [phone]

Declare under our sole responsibility that the product to w hich this declaration relates is in
conformity w ith the follow ing standard(s) or other normative documents.
Déclarons sous notre responsabilité que le produit cette déclaration est conforme aux

normes suivantes ou d’autres documents habit uels.
Verklaren onder onze verantw oordelijkheid dat het product naar w elke de verklaring verw ijst
conform de volgende standaards of anders gebruikelijke documenten is.

Declaramos bajo nuestra única responsabilidad que el producto en lo que esta declaración
concierne, es conforme con la siguiente normativa u otros documentos.
Declara sob sua responsabilidade que o produto a quem esta declaração interessar, está

em comformidade com os seguintes docu mentos legais ou normas directivas.
Dichiariamo sotto la ns. unica responsibilita che il prodotto al quale questa dichiarazione si
riferisce, è fabbricato in conformità ai seguenti standard e documenti di normative.

EN 349:1993

EN 418:1993

EN 12100-1:2003

EN 12100-2:2003

EN ISO 4872:1978

EN ISO 5349-

1:2001

EN ISO 5349-

2:2001

Follow ing the provisions of Directive(s):
Suivant les directive(s) déterminées:
Volgens de vastgestelde richtlijnen:

Siguiendo las directiva(s):
No sequimento das clausulas da Directiva(s):

Seguendo quanto indicato dalla Direttiva(s):

98/37/EC Machinery Directive

2000/14/EC No ise Directive
2001/95/EC General Product Safety Directive

2002/95/EC Reduction of Hazardous Waste Directive

Safety of Machinery - Minimum gaps to avoid crushing of parts of the
human body.

Safety of Machinery - Emergency stop equipment, functional aspects

- Principles f or design
Safety of Machinery - Basic Concepts, general principles for design -

Part 1: Basic Terminology, met hodology
Safety of Machinery - Basic Concepts, general principles for design ­Part 2: Technical Principles

Acoustics - Measurement of Airborne noise emitted by construction
equipment intended f or outdoor use - Method for determining
compliance w ith noise limits.

Mechanical vibration. Measurement and evaluation of human
exposure to hand-transmitted vibration. General requirements
Mechanical vibration. Measurement and assessment of human

exposure to hand-transmitted vibration. Practical guidance for
measurement at the w orkplace.

BARTELL MORR ISON INC. BARTELL MORRISON (USA) LLC

375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]

25 INDUSTRIAL DRIVE, KEYPORT, NEW JERSEY, USA, 07735, 732-566-5400 FAX [phone]

Created: 07/04

Revised: 05/11

Technical Characteristics:

The Techn ical Construction file is maintained at:

Bartell M orrison Inc.

Title of Auth orized Person:

11.05

-

2012

Mr. Steve Adam

Caractéristiques techniques:
Technisc h gegevens:

Características Técnicas:
Caracteristicas

Qualit

às di tecnico

Model
Modéle

Type
Modelo
Modelo
Modello

Lbs

MORRISON POWER SPRAYER 95

Técnicas

:

:

MachineSerial Numb er
Numéro de Série machine

Serienummer machine
Máquina número de série
Numero de serie da maquina
Numero di seria la macc hina

Noise Level
Puissanc e acous tiq ue
Geluidniveau
Nivel Sonoro

Nivel del Ruido
Potenza Acustica

Lwa

(dB)

98 99 1.5

Les f iches techniques de construction sont gardées à:
Het technische constructie document wordt bewaard te:

El archiv o t éc nico de construcción se mantiene en:
O arquiv o técnico de construção é mantido no (a):

L’originale dos sier tecnico di construzione è conservato presso:

The au th orized represen tati ve is:

Le représ entant autorisé est:
Gemac htigd v ertegenwoordiger is:
La repres entación autorizada es:

O repres entante autorizado é:
Il rappresentate autorizzato:

Signatu re of Auth orized Person :

Signature de la personne autorisée:
Handtekening v an gem ac htigd persoon:

Firma de la persona autorizada:
Assinatura de pessoa autorizada:
Firma della persona autorizzata:

Typed name of Auth oriz ed Person:

Nom dactlyographié de la personne autorisée:
Getypte naam v an gem ac htigd persoon:

Nombre de la persona autorizada:
Nome datilograf ado da pes soa autorizada:

Nome della persona autorizzata:

Pressure level
Pression acoustique
Geluidsdru kni veau
Nivel Acustico

Pressão Acústica
Pressione Acustica

Lpa

(Db)

Engine Serial Numb er
Numéro de Série moteur

Serienummer motor
Motor número de série
Numero de serie do motor
Numero di seria la motore

Vibration level
Nivea u de vibr ation
Vibratieniveau
Nivel de Vi bracion

Nivel de Vi bração
Livello di Vibrazione

a

hv

(m/s2)

375 Annagem Blvd.
Mississauga, Ontario, Canada

L5T 3A7
Telephone: [phone]

Facsimile: 905-364-4201

International Sales Manager
c.o. Bartell Morrison Europe

Nijverheidsstraat 11
1840 Londerzeel

Belgium
Telephone: [phone]

Facsimile: [phone]

Richard Stanley

Weight
Masse

Gewic ht
Masa
Massa
Massa

(kg)

(43)

Titre de la personne autorisée:
Functie v an gem ac htigd persoon:

Cargo de la persona autorizada:
Titulo da pessoa autorizada:

Posizione della persona autorizzata:

Date and place of issue:

Date et place d’émission:
Datum en plaats v an af gif te:

Fecha y lugar de emision:
Data e lugar de emissão:

Data e luogo di emissione:

375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]

BARTELL MORR ISON INC. BARTELL MORRISON (USA) LLC

25 INDUSTRIAL DRIVE, KEYPORT, NEW JERSEY, USA, 07735, 732-566-5400 FAX [phone]

V.P. of Operations

Mississauga, Ontario, Canada

Created: 07/04

Revised: 05/11

NOTES

NOTES

NOTESNOTES

BARTELL MORR ISON INC. BARTELL MORRISON (USA) LLC

375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX [phone]

25 INDUSTRIAL DRIVE, KEYPORT, NEW JERSEY, USA, 07735, 732-566-5400 FAX [phone]

Created: 07/04

Revised: 05/11
