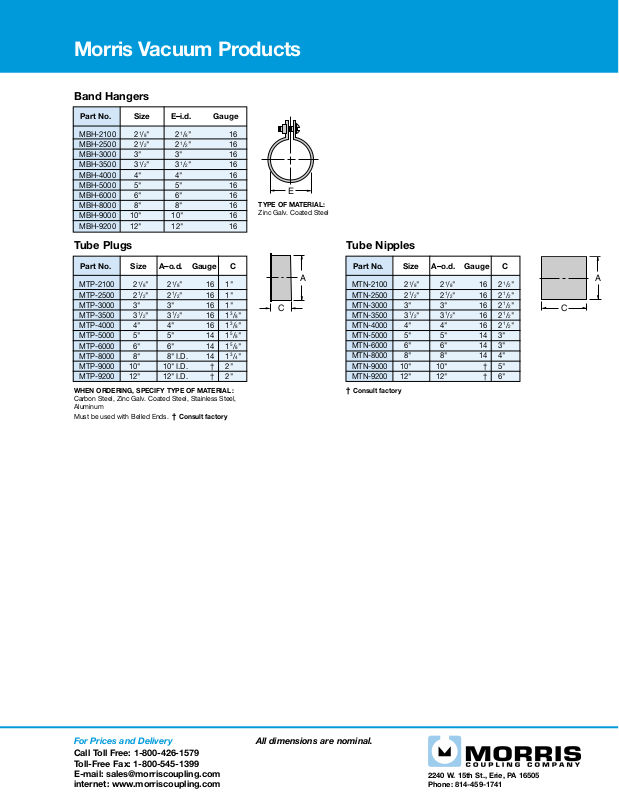

Morris Vacuum Products

Band Hangers

Part No. Size E–i.d. Gauge

MBH-2100 21/8"2
MBH-2500 21/2"2
MBH-3000 3" 3" 16
MBH-3500 31/2"3
MBH-4000 4" 4" 16
MBH-5000 5" 5" 16
MBH-6000 6" 6" 16
MBH-8000 8" 8" 16
MBH-9000 10" 10" 16

MBH-9200 12" 12" 16

1

/8"16

1

/2"16

1

/2"16

TYPE OF MATERIAL:

Zinc Galv. Coated Steel

E

Tube Plugs

Part No. Size A–o.d. Gauge C

MTP-2100 21/8"21/8"161"
MTP-2500 21/2"21/2"161"
MTP-3000 3" 3" 16 1"
MTP-3500 31/2"31/2"161
MTP-4000 4" 4" 16 13/8"
MTP-5000 5" 5" 14 15/8"
MTP-6000 6" 6" 14 15/8"
MTP-8000 8" 8" I.D. 14 13/4"
MTP-9000 10" 10" I.D. † 2"
MTP-9200 12" 12" I.D. † 2"

WHEN ORDERING, SPECIFY TYPE OF MATERIAL:

Carbon Steel, Zinc Galv. Coated Steel, Stainless Steel,
Aluminum

Must be used with Belled Ends.

† Consult factory

3

/8"

Tube Nipples

Part No. Size A–o.d. Gauge C

A

C

MTN-2100 21/8"21/8"162
MTN-2500 21/2"21/2"162
MTN-3000 3" 3" 16 21/2"
MTN-3500 31/2"31/2"162
MTN-4000 4" 4" 16 21/2"
MTN-5000 5" 5" 14 3"
MTN-6000 6" 6" 14 3"
MTN-8000 8" 8" 14 4"

MTN-9000 10" 10" † 5"
MTN-9200 12" 12" † 6"

† Consult factory

1

/2"

1

/2"

1

/2"

C

A

For Prices and Delivery

Call Toll Free: 1-800-426-1579
Toll-Free Fax: [phone]
E-mail: [e-mail]
internet: www.morriscoupling.com

All dimensions are nominal.

2240 W. 15th St., Erie, PA 16505
Phone: [phone]
