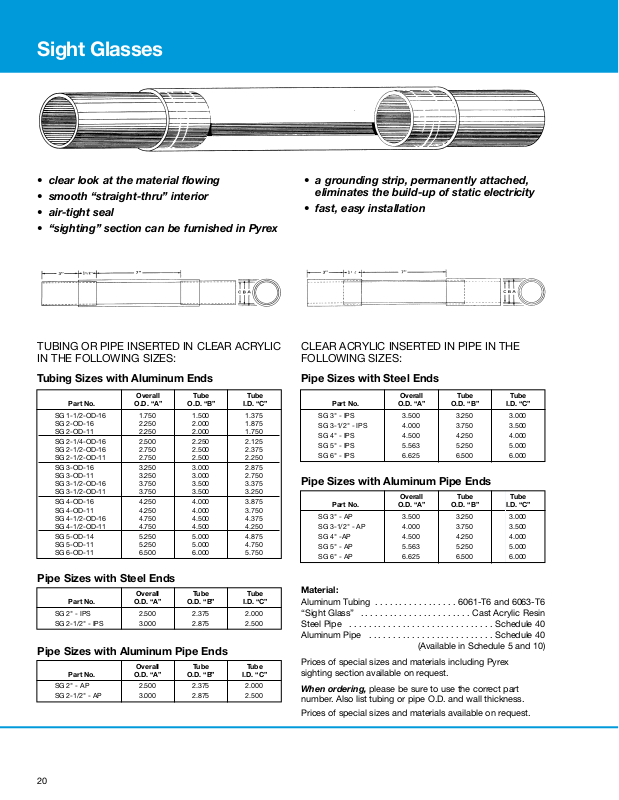

Sight Glasses

20

• clear look at the material flowing

• smooth “straight-thru” interior

• air-tight seal

• “sighting” section can be furnished in Pyrex

• a grounding strip, permanently attached,
eliminates the build-up of static electricity

• fast, easy installation

TUBING OR PIPE INSERTED IN CLEAR ACRYLIC
IN THE FOLLOWING SIZES:

Tubing Sizes with Aluminum Ends

CLEAR ACRYLIC INSERTED IN PIPE IN THE
FOLLOWING SIZES:

Pipe Sizes with Steel Ends

Pipe Sizes with Aluminum Pipe Ends

Pipe Sizes with Steel Ends

Pipe Sizes with Aluminum Pipe Ends

Material:

Aluminum Tubing . . . . . . . . . . . . . . . . . 6061-T6 and 6063-T6

“Sight Glass” . . . . . . . . . . . . . . . . . . . . . . . Cast Acrylic Resin

Steel Pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Schedule 40

Aluminum Pipe . . . . . . . . . . . . . . . . . . . . . . . . . . Schedule 40

(Available in Schedule 5 and 10)

Prices of special sizes and materials including Pyrex
sighting section available on request.

When ordering, please be sure to use the correct part
number. Also list tubing or pipe O.D. and wall thickness.

Prices of special sizes and materials available on request.

Overall Tube Tube

Part No. O.D. “A” O.D. “B” I.D. “C”

SG 1-1/2-OD-16 1.750 1.500 1.375
SG 2-OD-16 2.250 2.000 1.875
SG 2-OD-11 2.250 2.000 1.750

SG 2-1/4-OD-16 2.500 2.250 2.125
SG 2-1/2-OD-16 2.750 2.500 2.375
SG 2-1/2-OD-11 2.750 2.500 2.250

SG 3-OD-16 3.250 3.000 2.875
SG 3-OD-11 3.250 3.000 2.750
SG 3-1/2-OD-16 3.750 3.500 3.375
SG 3-1/2-OD-11 3.750 3.500 3.250

SG 4-OD-16 4.250 4.000 3.875
SG 4-OD-11 4.250 4.000 3.750
SG 4-1/2-OD-16 4.750 4.500 4.375
SG 4-1/2-OD-11 4.750 4.500 4.250

SG 5-OD-14 5.250 5.000 4.875
SG 5-OD-11 5.250 5.000 4.750
SG 6-OD-11 6.500 6.000 5.750

Overall Tube Tube

Part No. O.D. “A” O.D. “B” I.D. “C”

SG 3" - IPS 3.500 3.250 3.000
SG 3-1/2" - IPS 4.000 3.750 3.500
SG 4" - IPS 4.500 4.250 4.000
SG 5" - IPS 5.563 5.250 5.000
SG 6" - IPS 6.625 6.500 6.000

Overall Tube Tube

Part No. O.D. “A” O.D. “B” I.D. “C”

SG 3" - AP 3.500 3.250 3.000
SG 3-1/2" - AP 4.000 3.750 3.500
SG 4" -AP 4.500 4.250 4.000
SG 5" - AP 5.563 5.250 5.000
SG 6" - AP 6.625 6.500 6.000

Overall Tube Tube

Part No. O.D. “A” O.D. “B” I.D. “C”

SG 2" - IPS 2.500 2.375 2.000
SG 2-1/2" - IPS 3.000 2.875 2.500

Overall Tube Tube

Part No. O.D. “A” O.D. “B” I.D. “C”

SG 2" - AP 2.500 2.375 2.000
SG 2-1/2" - AP 3.000 2.875 2.500
