Page 1
OPERATOR’S MANUAL
C2 Contour
Air Drill
S50150-02
Page 2
Page 3
Table of Contents
Section 1:
Safety ............................................................................................................................1-1
Signal Words ................................................................................................................. 1- 2
General Operation ......................................................................................................... 1- 3
Tractor Operation ...........................................................................................................1- 3
Chemicals...................................................................................................................... 1- 4
Transporting ...................................................................................................................1- 5

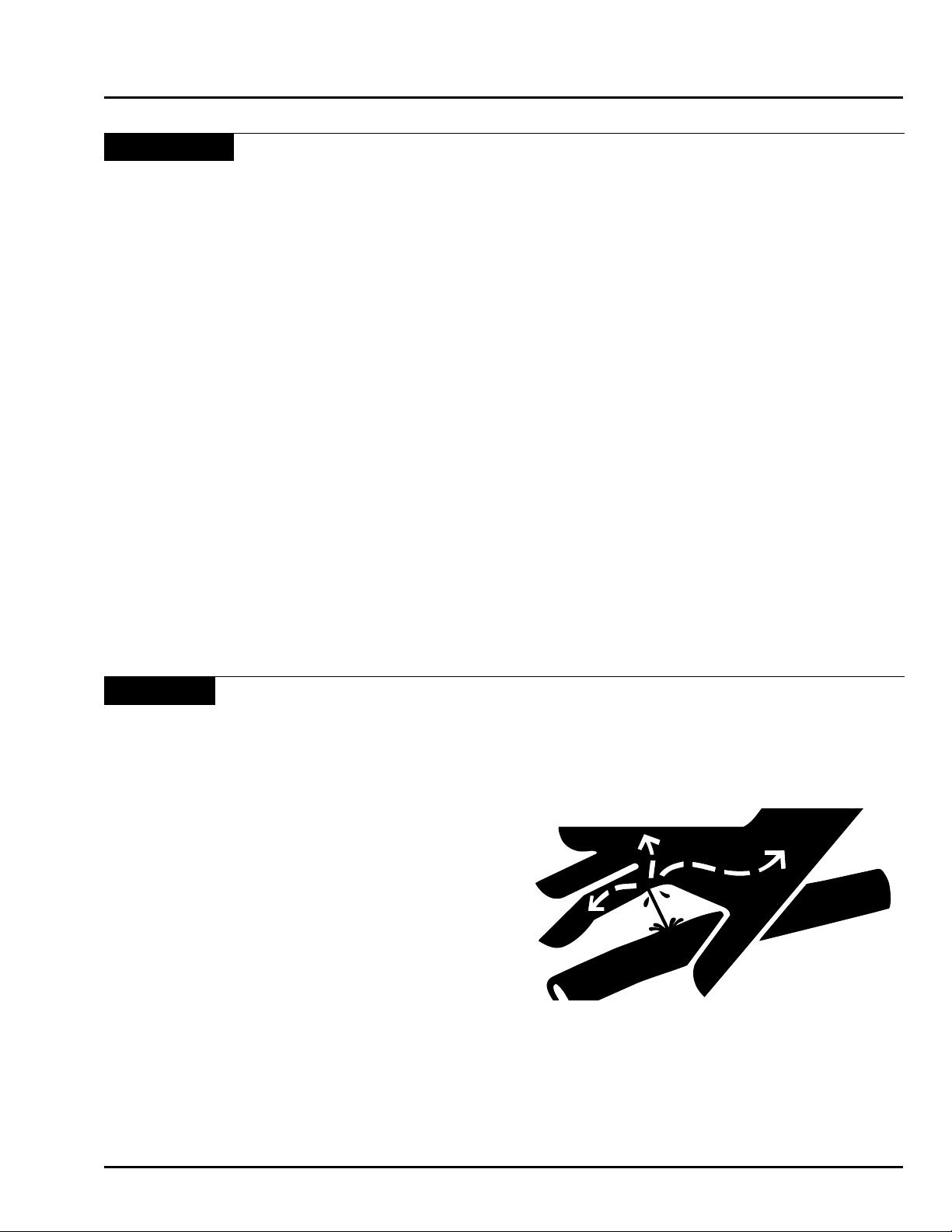

Hydraulics ...................................................................................................................... 1- 5
Maintenance .................................................................................................................. 1- 6
Storage .......................................................................................................................... 1- 6
Safety Signs ..................................................................................................................1- 7
Locations .................................................................................................................... 1-9

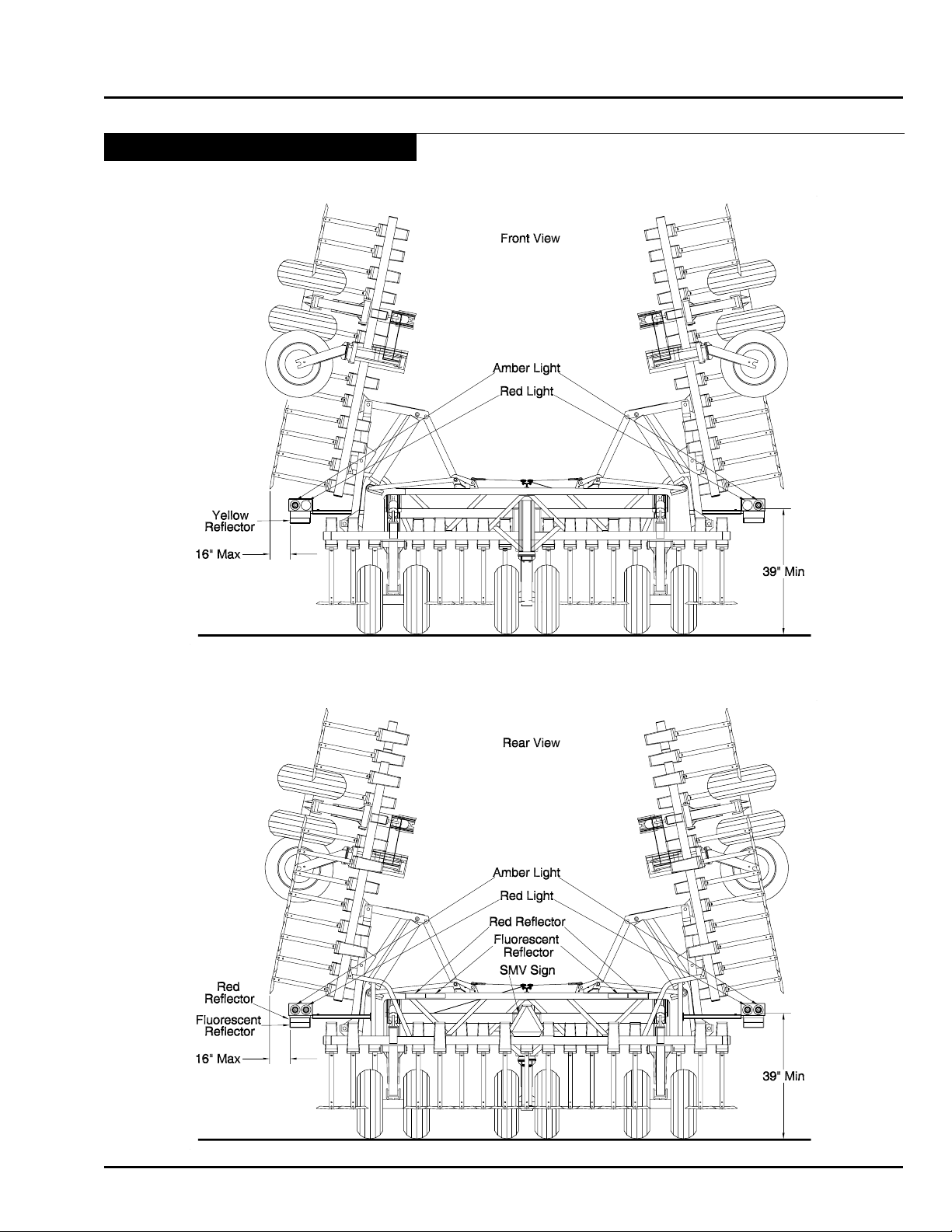

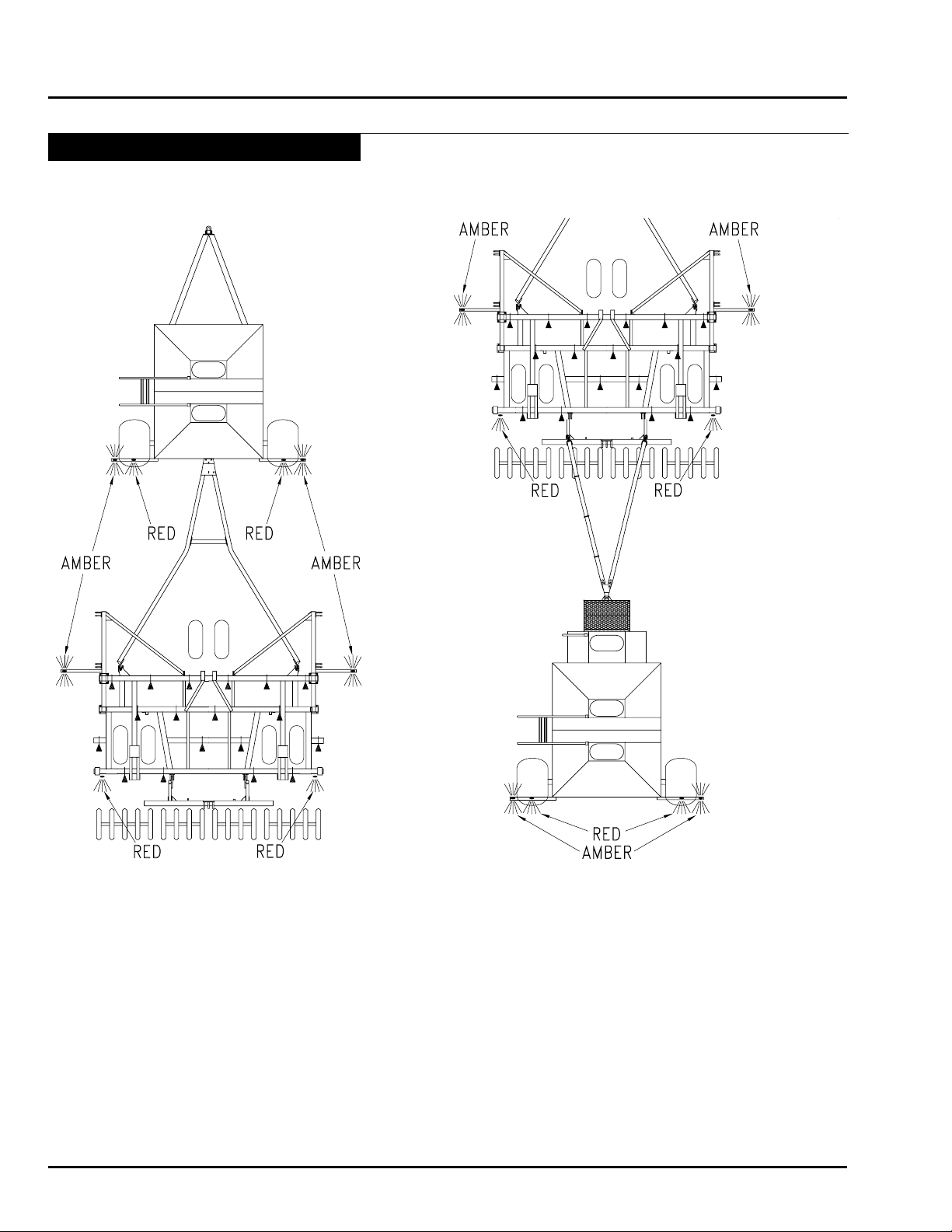

Lighting and Marking ................................................................................................... 1- 14
Section 2:
Specifications ..............................................................................................................2-1
Specifications and Options.........................................................................................2-2

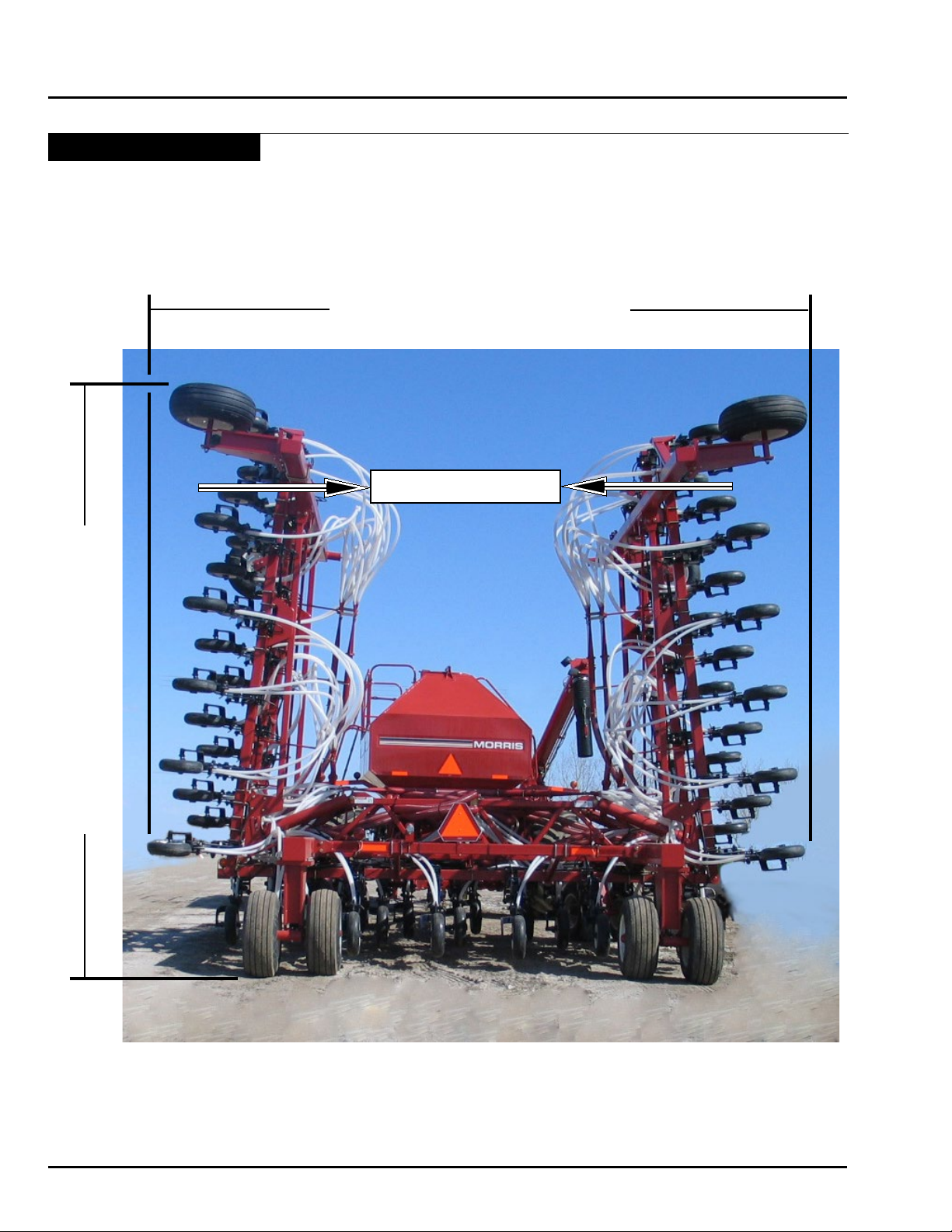

Transport Dimensions ....................................................................................................2-4
Section 3:
Checklist ......................................................................................................................3-1
Manuals .........................................................................................................................3-2
Parts Manual .............................................................................................................3-2
Assembly Manual .......................................................................................................3-2
Checklist ........................................................................................................................3-3
Section 4:
Introduction .................................................................................................................4-1
Introduction ....................................................................................................................4-2
Section 5:
Operation .....................................................................................................................5-1
Application .....................................................................................................................5-2
Tractor ............................................................................................................................5-2
Hitching ........................................................................................................................5-3

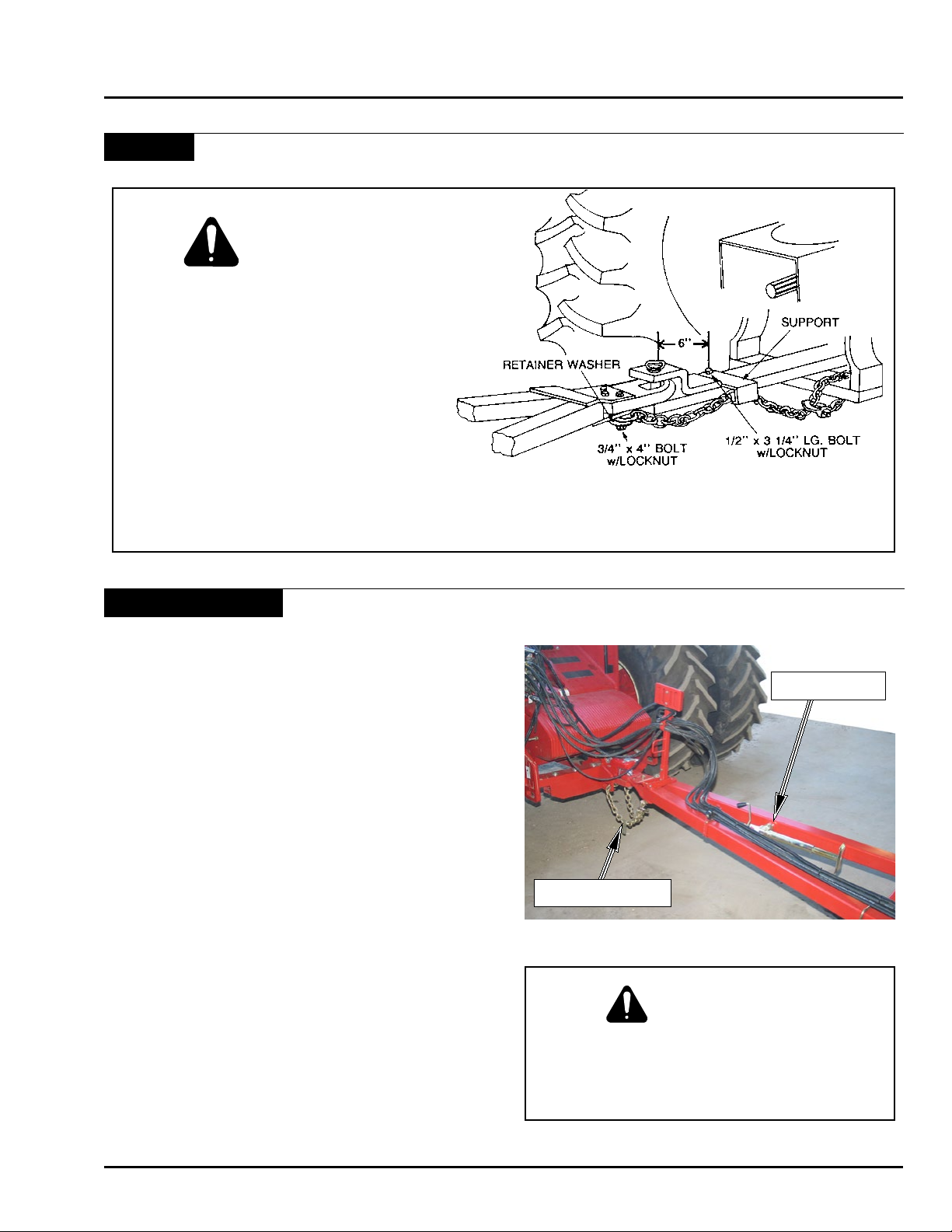

Hitching to Tractor .........................................................................................................5-3
Unhitching from Tractor .................................................................................................5-5
Transport ........................................................................................................................5-5
Speed .....................................................................................................................5-5
Lights ......................................................................................................................5-5
Transport to Field Position ..........................................................................................5-6
Field to Transport Position ...........................................................................................5-7
Opener Operation ..........................................................................................................5-8

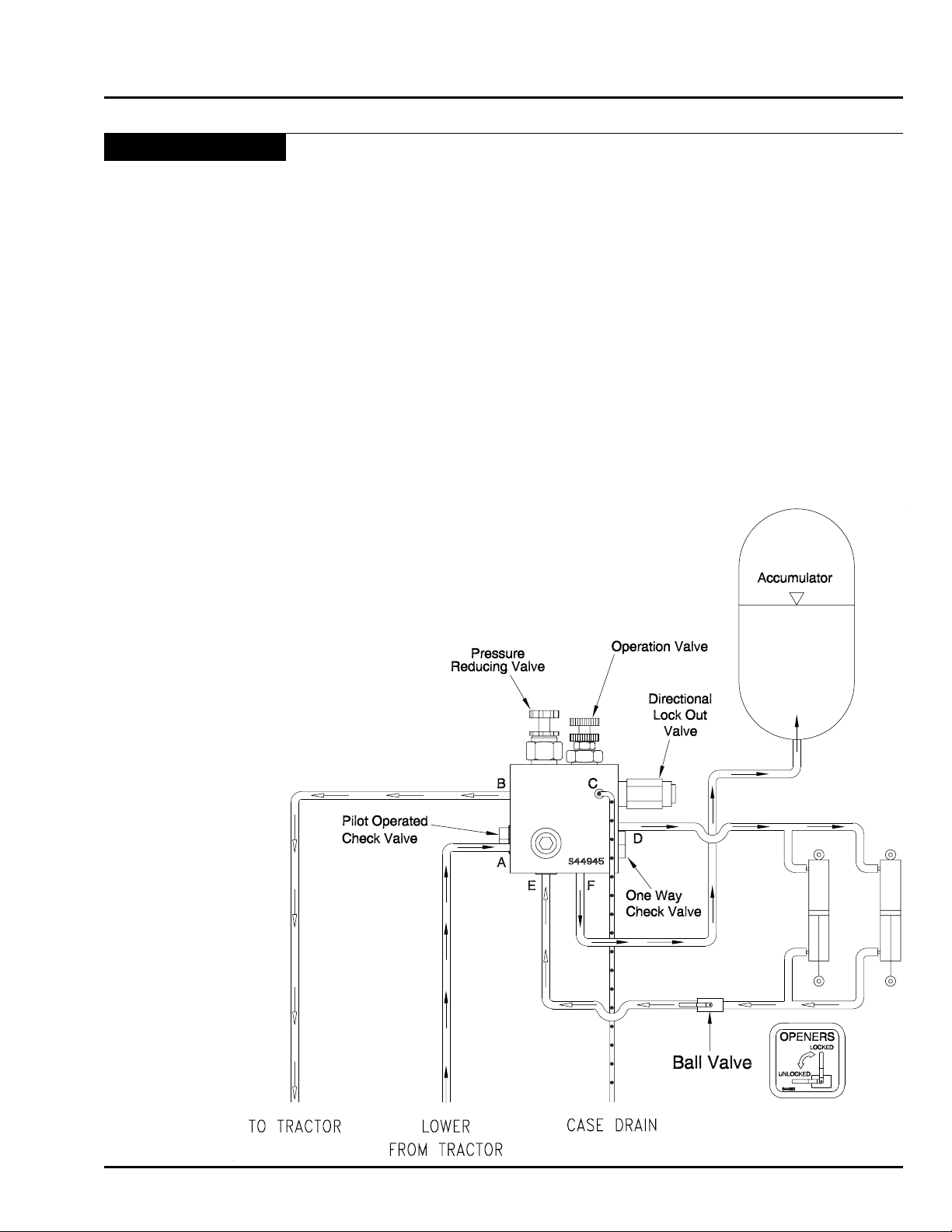

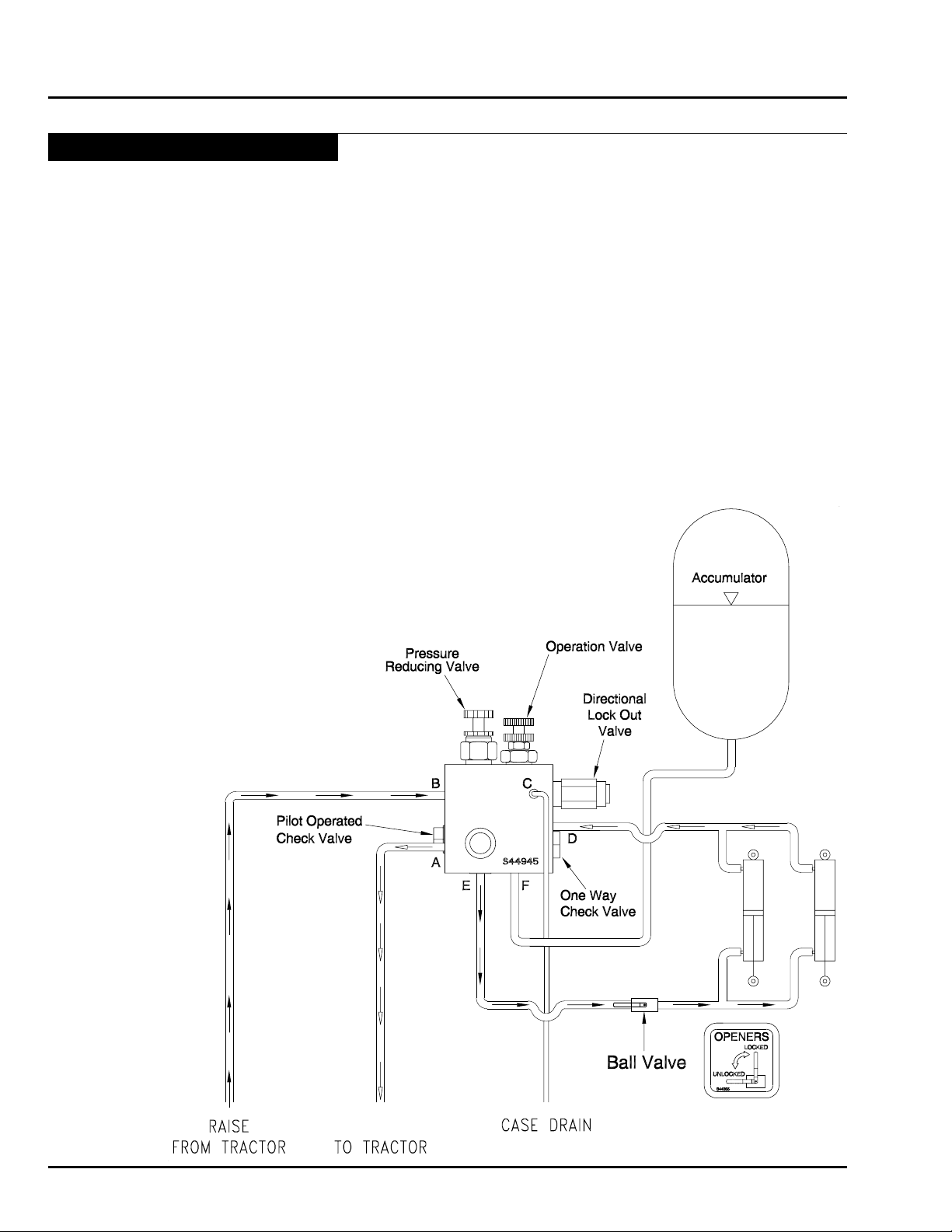

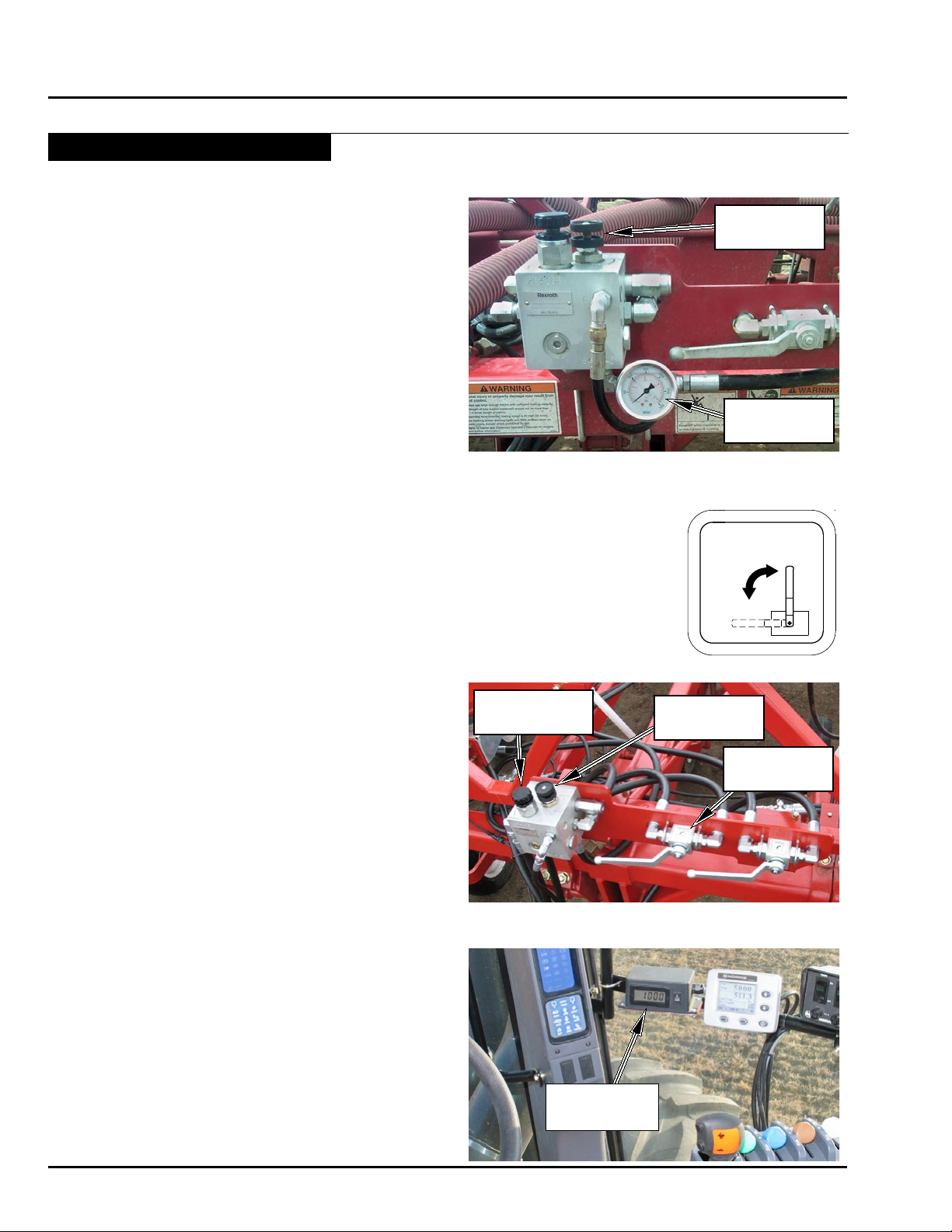

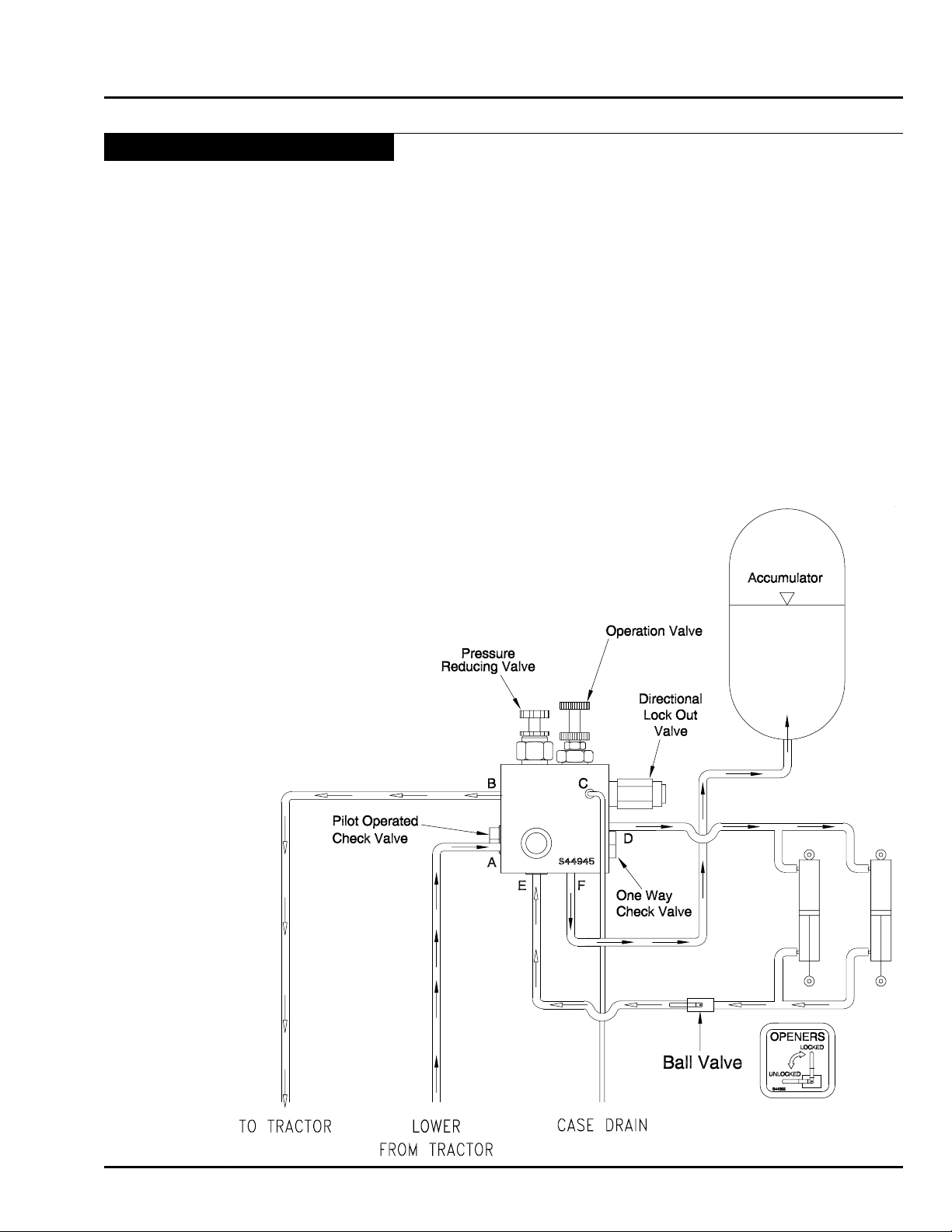

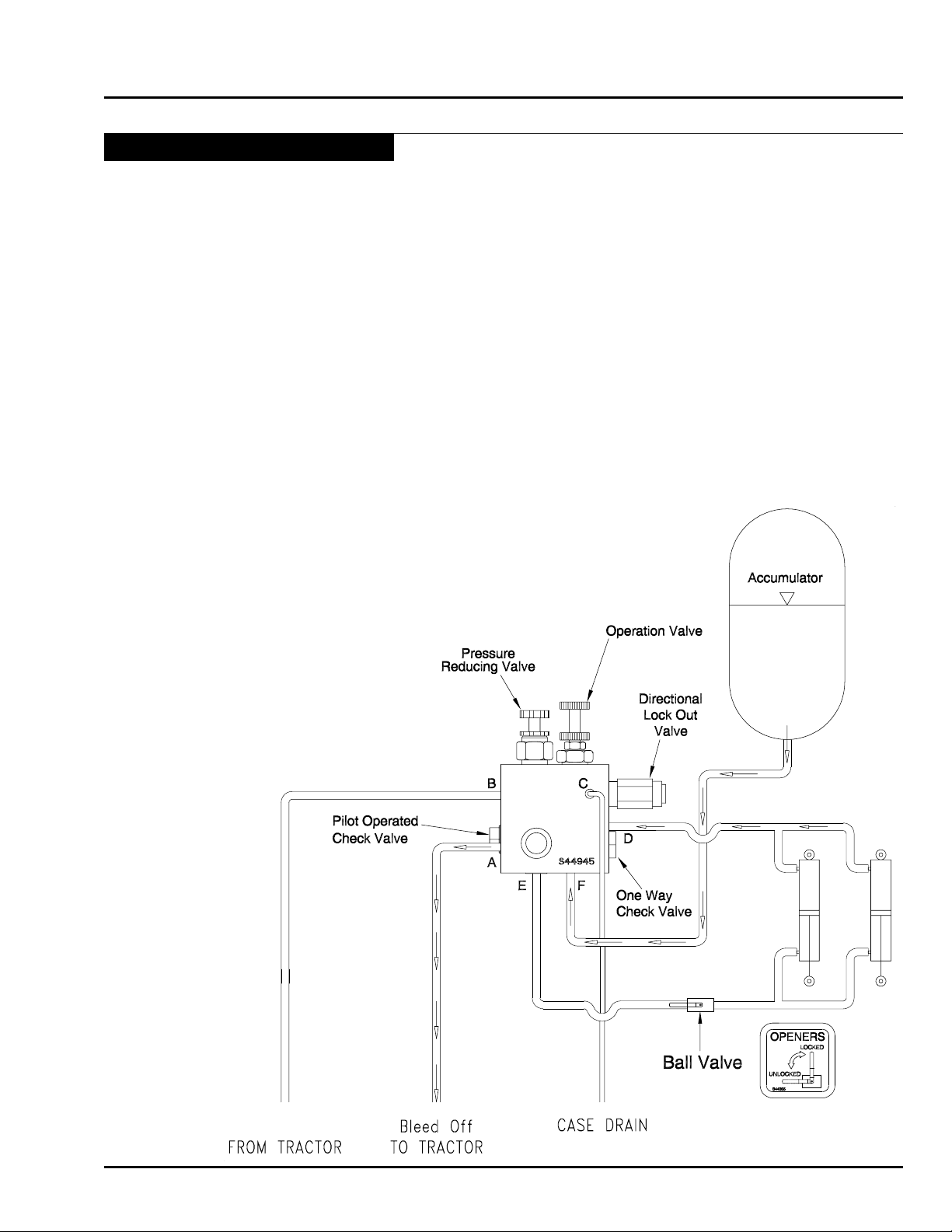

Accumulator System Operation and Pre-Charge Information .....................................5-8
Setting Maximum System Pressure (Trip Out Force) ..................................................5-9
Relieve System Pressure .........................................................................................5-10
Normal Operation .....................................................................................................5-10
Pressure Adjustment (On the go) ............................................................................. 5-11
Depth Adjustment ........................................................................................................5-12

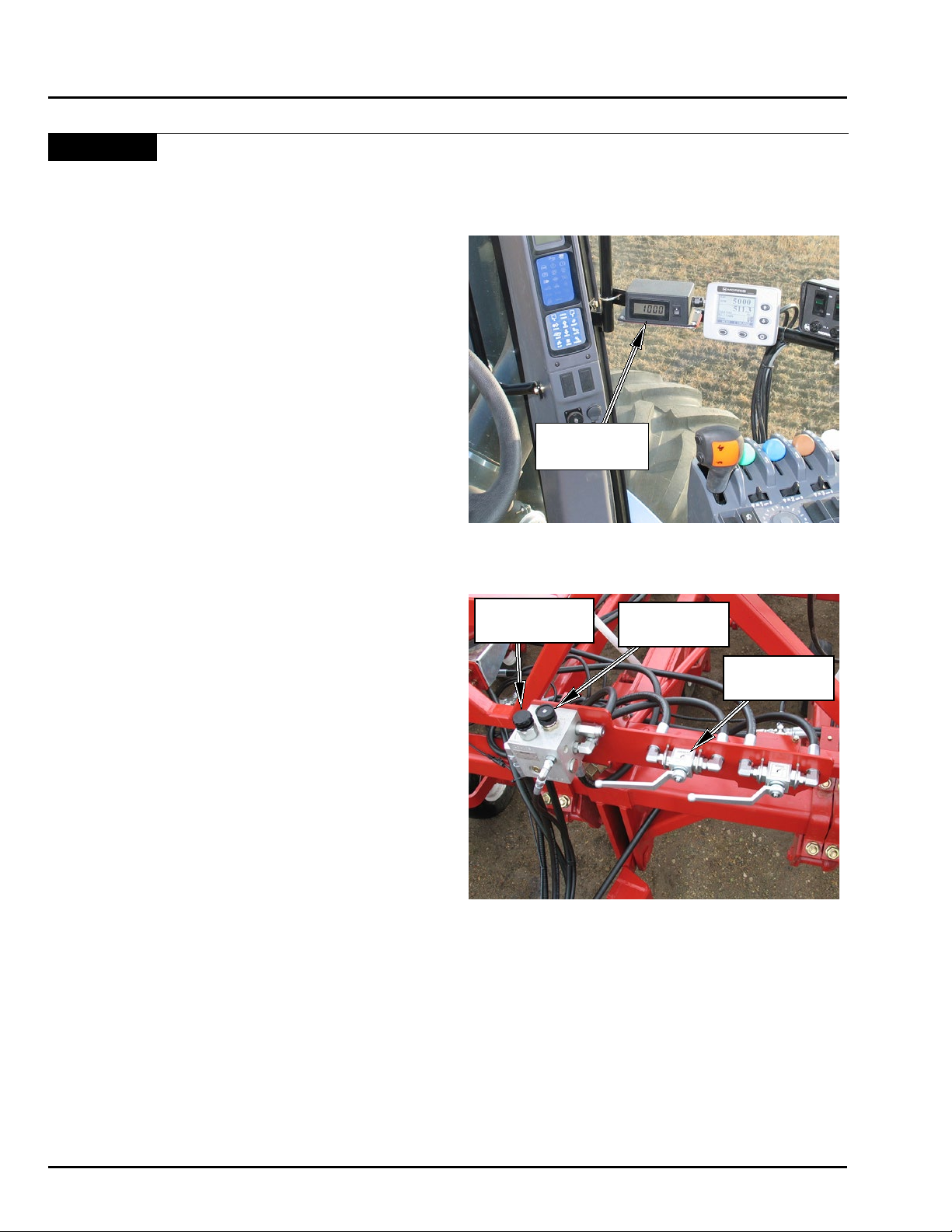

Work Switch .................................................................................................................5-14
General Guidelines ......................................................................................................5-15
Quick Tips ....................................................................................................................5-16
Shank Trip Force .......................................................................................................5-16
Packing Force ...........................................................................................................5-16
Hydraulic System .....................................................................................................5-16
Lifting and Lowering the Openers ............................................................................5-16
Setting the Seed Depth ............................................................................................5-17
C2 Contour Air Drill August 2014 i
Page 4
Table of Contents
Seeding Conditions ..................................................................................................5-17
Straw Management ..................................................................................................5-17
Air Drill Frame ..........................................................................................................5-18
Trouble Shooting Guide ............................................................................................5-18
Wing Lift Hydraulics .....................................................................................................5-19
Opener Hydraulics ......................................................................................................5-21
Section 6:
Maintenance .................................................................................................................6-1
General ..........................................................................................................................6-2
Safety ............................................................................................................................6-2
Tighten Bolts .................................................................................................................6-3
Tires ..............................................................................................................................6-3
Lubrication ....................................................................................................................6-4
Opener Maintenance .....................................................................................................6-5
Bushing Replacement ................................................................................................6-5
Cylinder Replacement ................................................................................................6-5

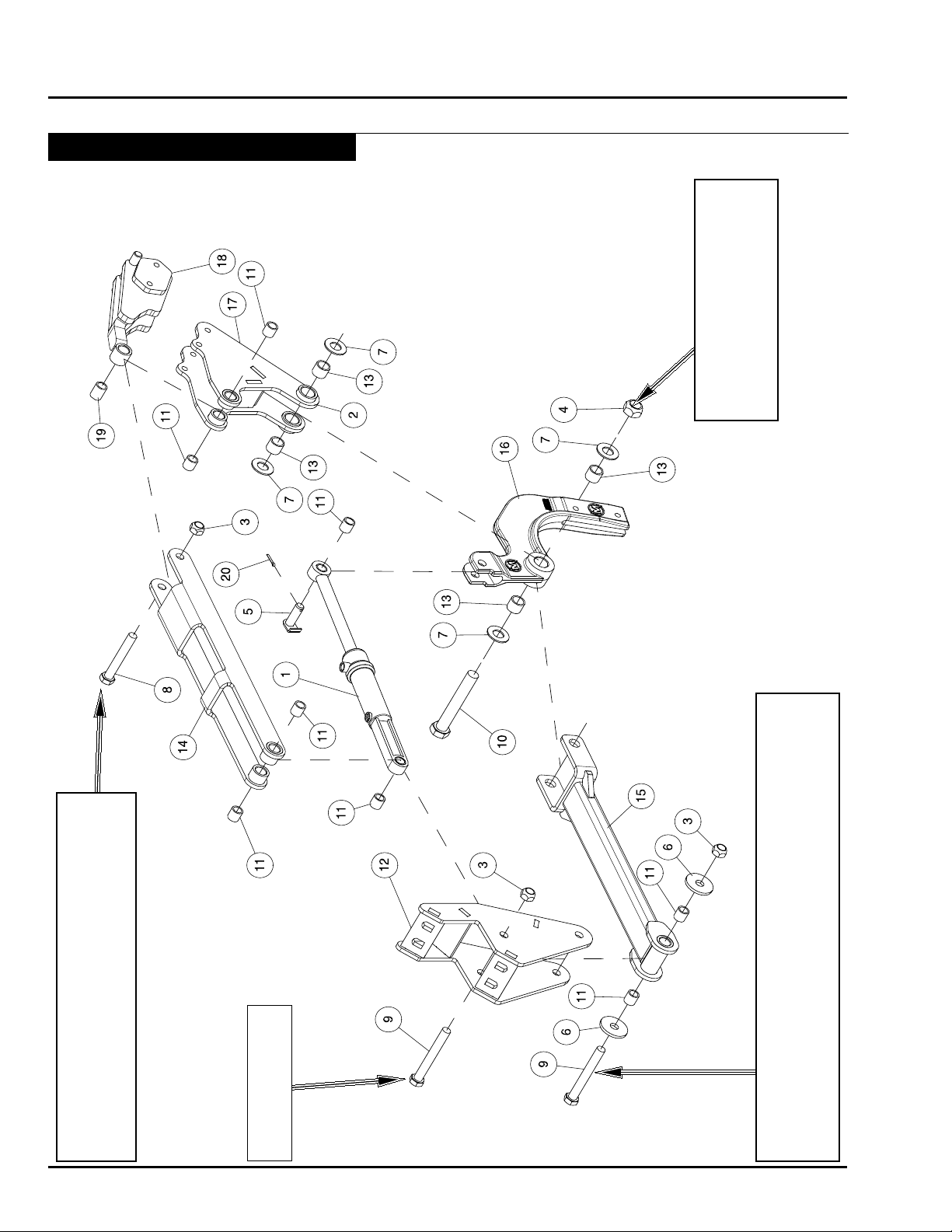

Opener Body Assembly..............................................................................................6-6
Opener Assembly .......................................................................................................6-8
Shank Replacement .................................................................................................6-16
Bleeding Hydraulic System.......................................................................................6-17
Hydraulic System Trouble Shooting ..........................................................................6-18
Hydraulics ....................................................................................................................6-19

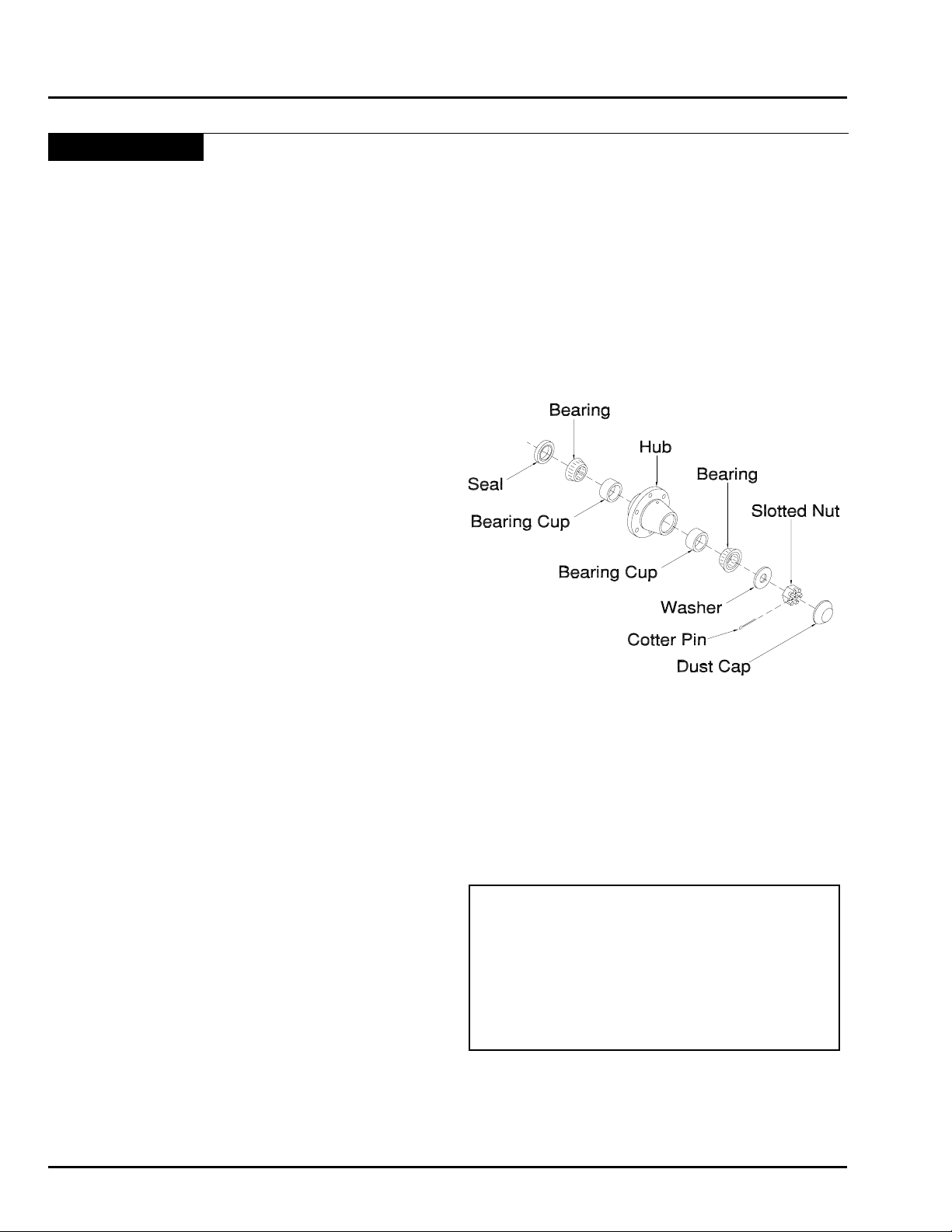

Wheel Bearings ...........................................................................................................6-20
Implement Hub .........................................................................................................6-20

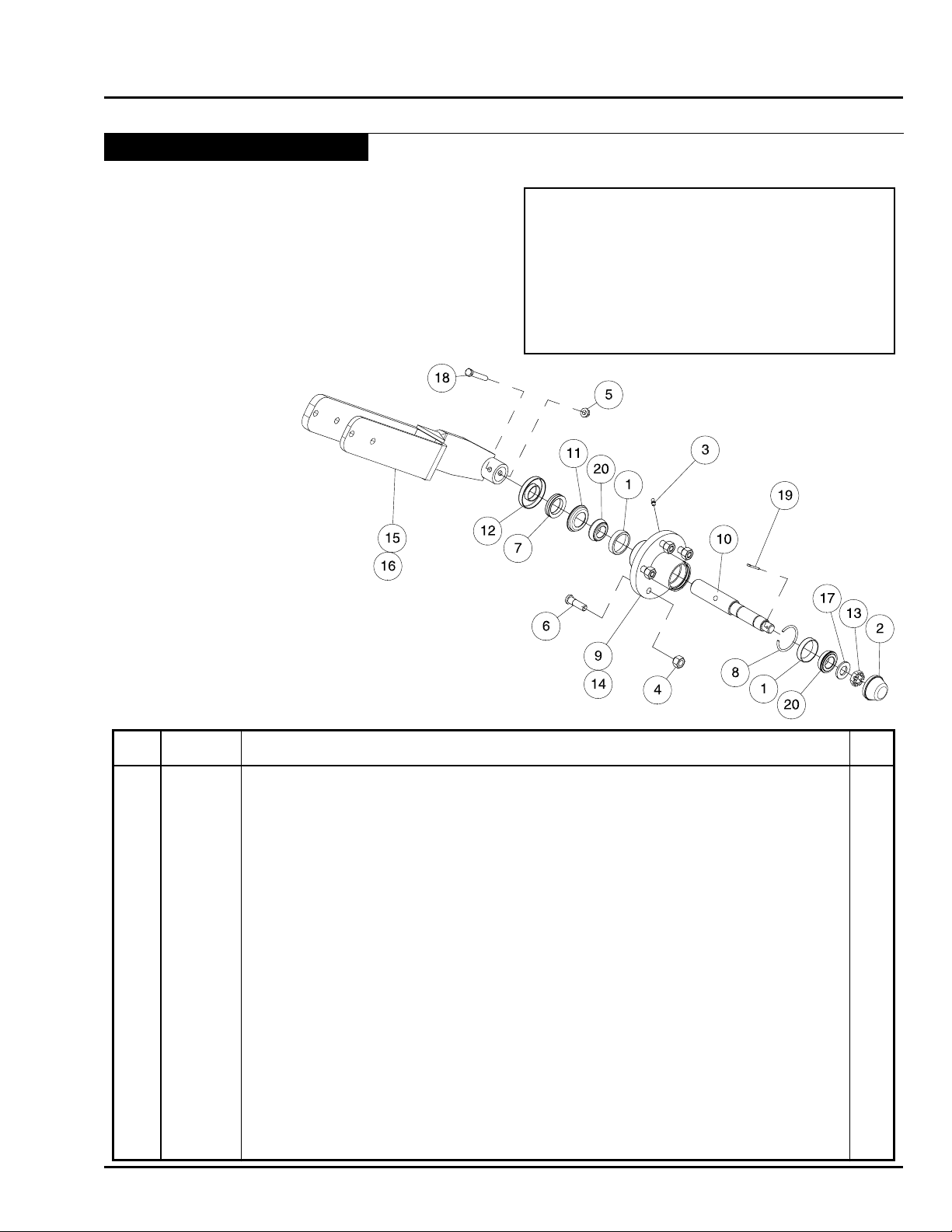

Contour Opener Hub ................................................................................................6-21
Wing Section Tie Rods ................................................................................................6-22

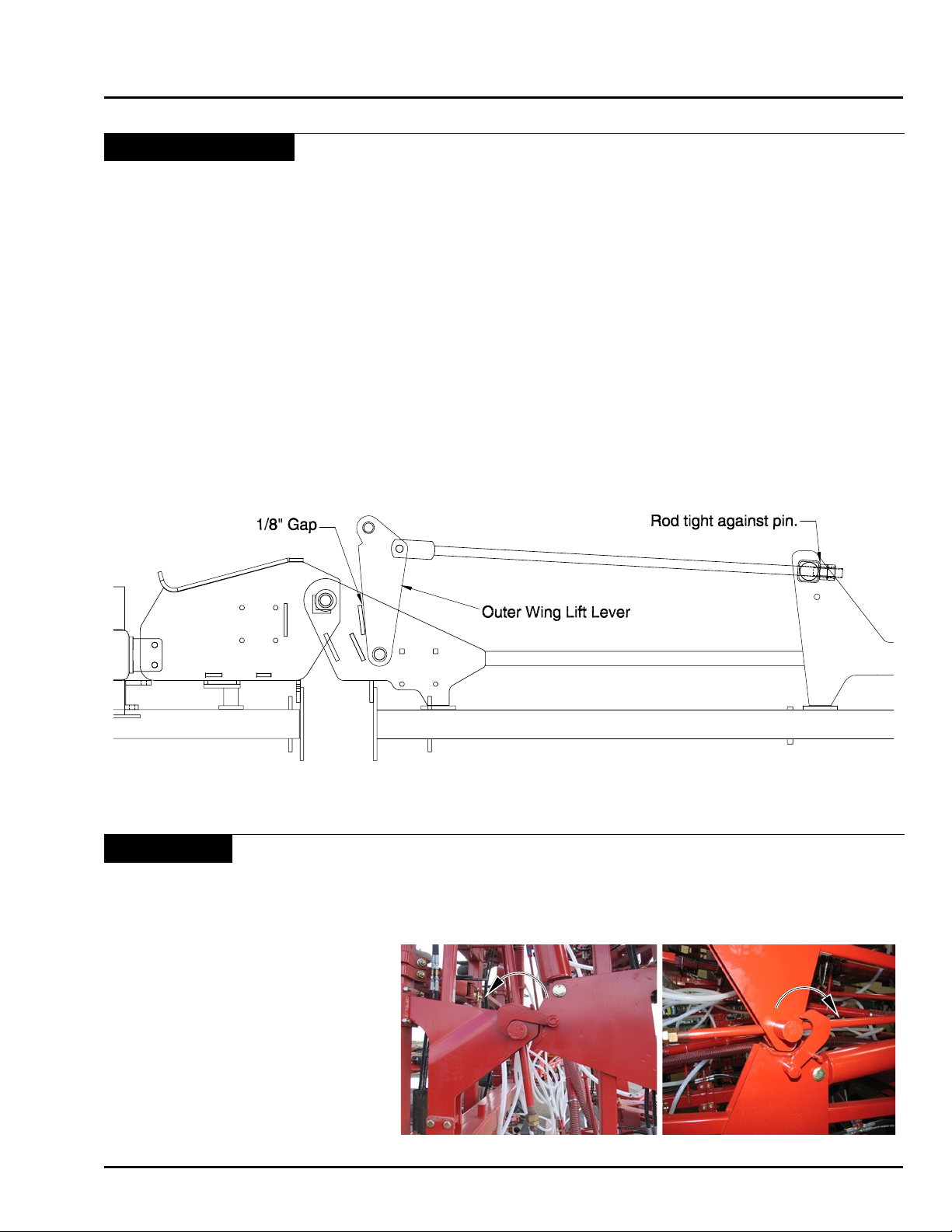

Outer Wing Lift Rod .....................................................................................................6-23
Gravity Lock ................................................................................................................6-23
Section 7:
Storage ......................................................................................................................... 7- 1
Preparing for Storage .................................................................................................... 7- 2
Wing Lift Cylinder Shaft Protection ............................................................................... 7- 3
Removing From Storage ................................................................................................ 7- 3
Section 8:
Troubleshooting...........................................................................................................8-1
Machine not operating straight. .....................................................................................8-2
Lack of penetration. .......................................................................................................8-2
Openers wearing unevenly ............................................................................................8-2
Wing lifting too slowly. ....................................................................................................8-2
Wings not lowering. .......................................................................................................8-2
One wing will lift, other will not. .....................................................................................8-2
Oil accumulation. ...........................................................................................................8-2
Accumulator system pressure drop excessive. ..............................................................8-3
Openers won’t lift or lower. .............................................................................................8-3
Openers can not be fully pressurized. ...........................................................................8-3
Shanks hang back and trip out during normal operation. ..............................................8-3
Seed rows covered in loose soil after seeding. ..............................................................8-3
Packer wheels bounce and chatter excessively in field. ................................................8-3
Openers drop quickly after transport lock valve is closed. .............................................8-3
Opener pressure drops quickly during normal operation. ..............................................8-4
Excessive seed depth and soil throw. ............................................................................8-4
Openers not fully lifting to transport position. .................................................................8-4
ii August 2014 C2 Contour Air Drill
Page 5
Section 1: Safety
Safety
Section 1:
Safety 1-1
Section Contents
Signal Words ..................................................................................................................... 1- 2
General Operation ............................................................................................................ 1-3
Tractor Operation ..............................................................................................................1-3
Chemicals .........................................................................................................................1- 4
Transporting ...................................................................................................................... 1- 5
Hydraulics .........................................................................................................................1- 5
Maintenance ..................................................................................................................... 1-6
Storage ............................................................................................................................. 1- 6

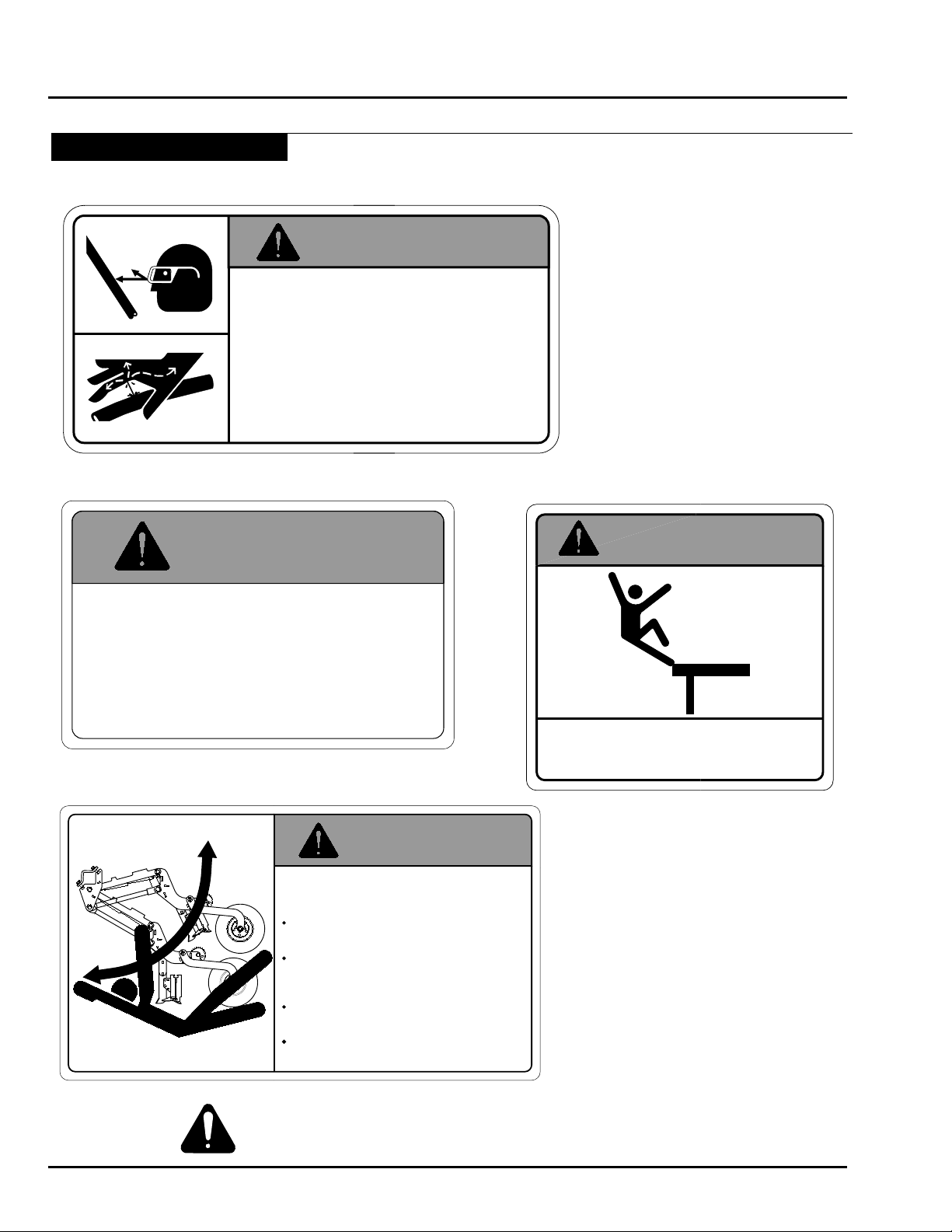

Safety Signs .....................................................................................................................1-7

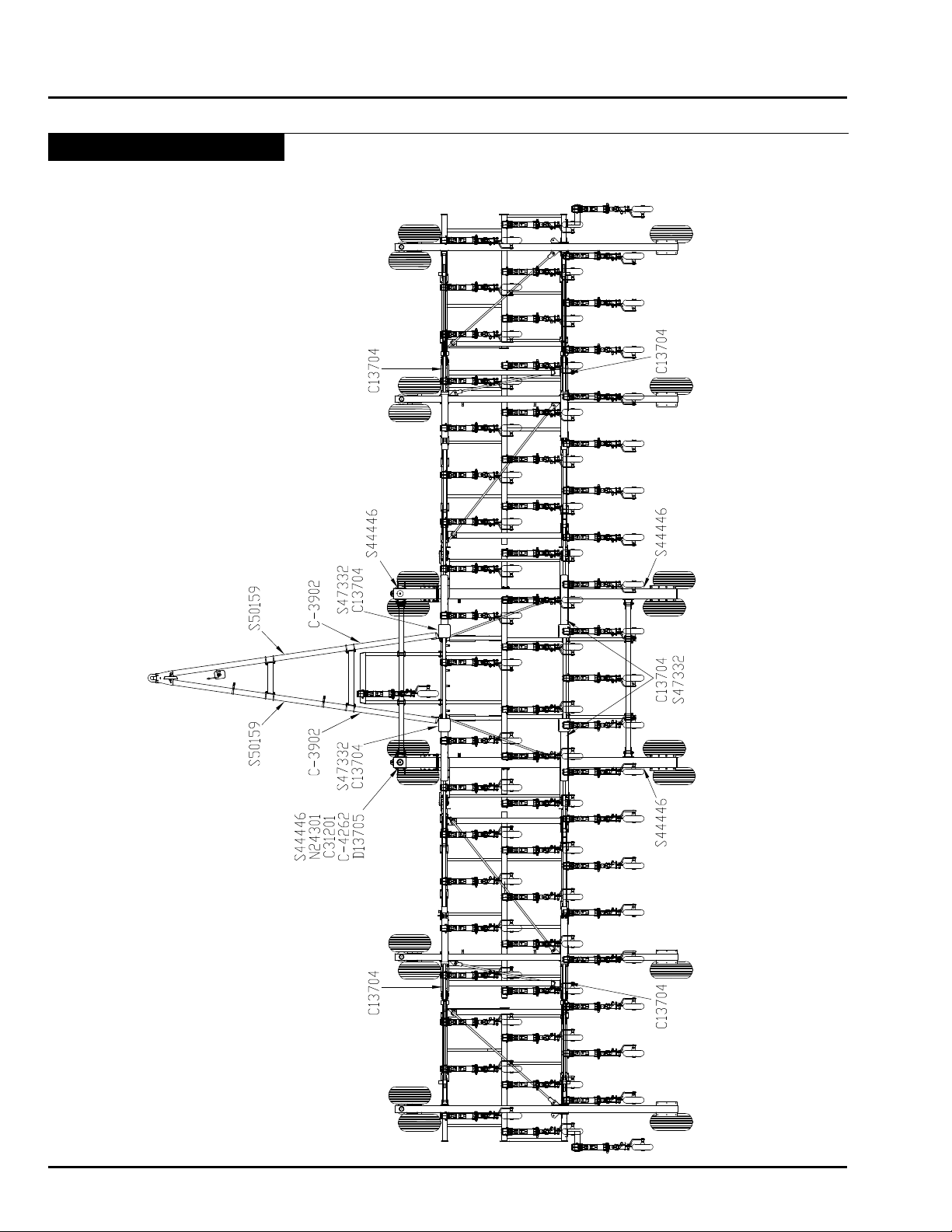

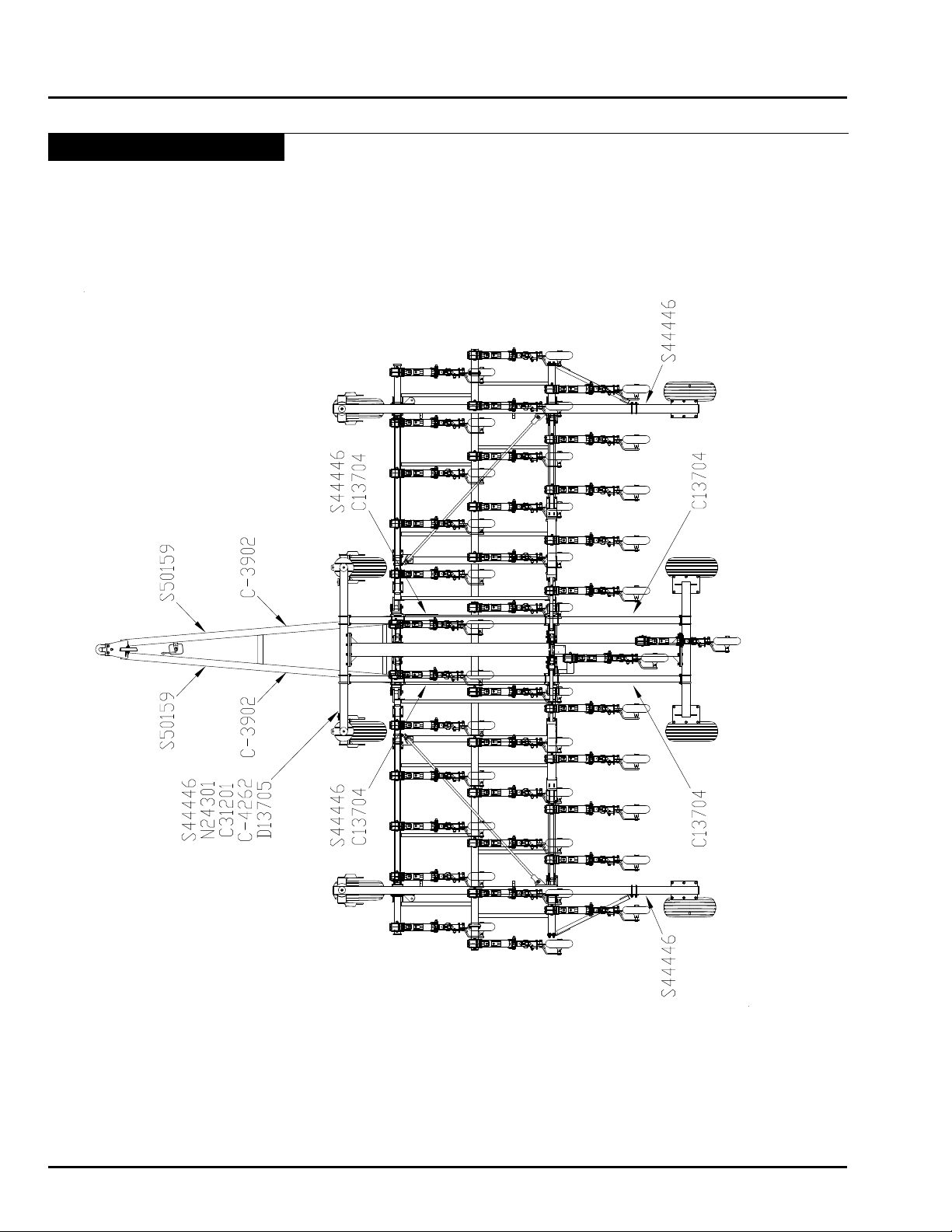

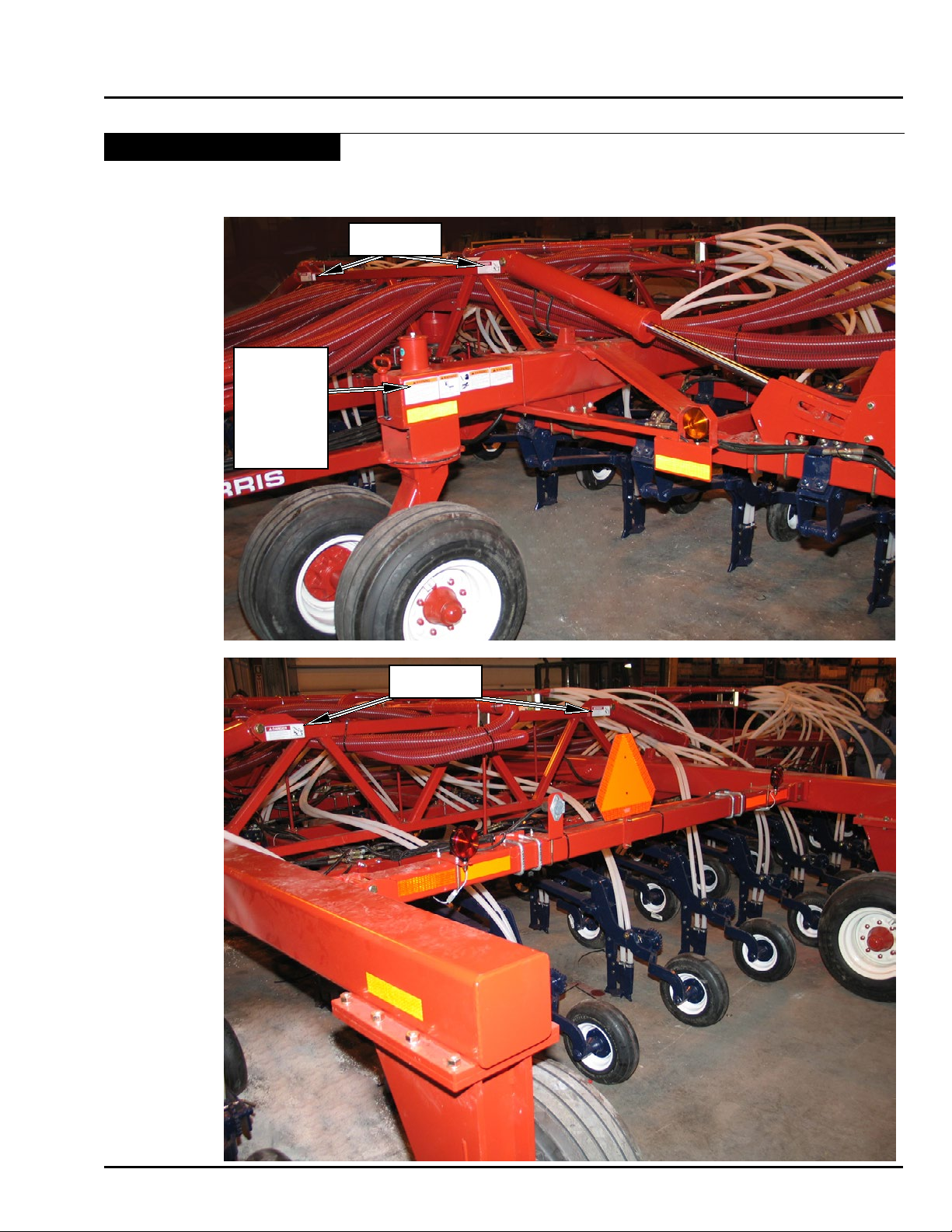

Locations .................................................................................................................... 1-9
Lighting and Marking ...................................................................................................... 1-14
C2 Contour Air Drill August 2014 1-1
Page 6
Safety
Watch for this symbol. It identifies potential hazards
SAFETY-ALERT
SYMBOL
Familiarize yourself with the location of all decals. Read them
carefully to understand the safe operation of your machine.
Signal Words
The words DANGER, WARNING or CAUTION are used
with the safety alert symbol. Learn to recognize the
safety alerts, and follow the recommended precautions
and safe practices.
to health or personal safety. It means:
ATTENTION - BE ALERT.
Your Safety is involved.
Three words are used in conjunction with the safety-alert symbol:
DANGER
WARNING
CAUTION
Replace any DANGER, WARNING, CAUTION or
instructional decal that is not readable or is missing. The
location and part number of these decals is identied
later in this section of the manual.
The words Important and Note are not related
to personal safety but are used to give additional
information and tips for operating or servicing this
equipment.
IMPORTANT: Identifies special instructions or
procedures which, if not strictly
observed could result in damage to, or
destruction of the machine, process or
its surroundings.
Indicates an imminently hazardous situation that, if not
avoided, will result in DEATH OR SERIOUS INJURY.
Indicates a potentially hazardous situation that, if not
avoided, could result in DEATH OR SERIOUS INJURY.
Indicates a potentially hazardous situation that, if not
avoided, may result in MINOR OR MODERATE INJURY.
NOTE: Indicates points of particular interest for more
efcient and convenient repair or operation.
1-2 August 2014 C2 Contour Air Drill
Page 7
General Operation

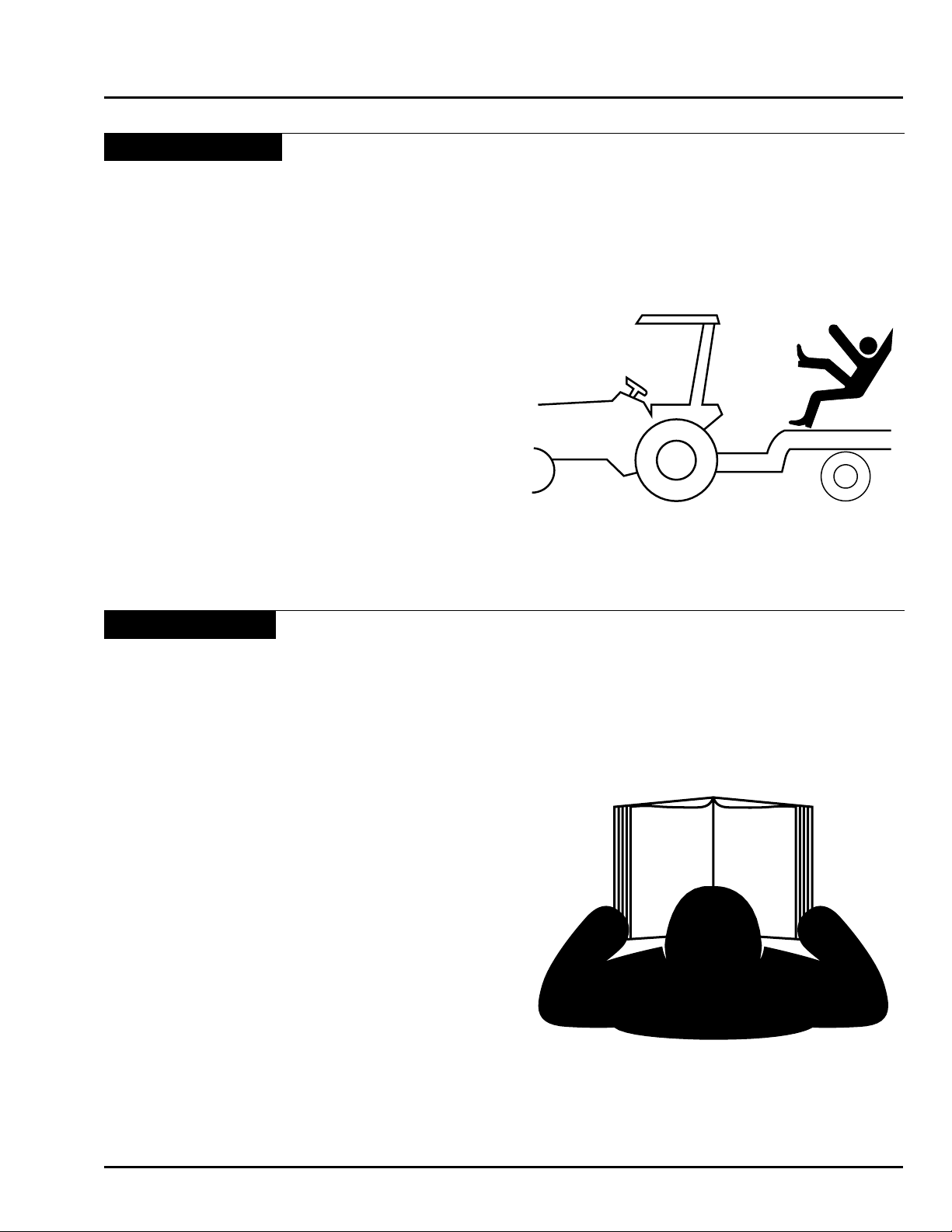

• DO NOT RIDE!! Do not allow riders on the implement
when in motion.
• Do not allow extra riders in the tractor unless an
instructor seat and seat belt are available.
• Check behind when backing up.
• Reduce speed when working in hilly terrain.
• Never allow anyone within the immediate area when
operating machinery.
• Stand clear when raising or lowering wings.
• Keep all shields in place, replace them if removed
for service work.
Safety
Tractor Operation
• Be aware of the correct tractor operating procedures,
when working with implements.
• Review tractor operator’s manual.
• Secure hitch pin with a retainer and lock drawbar in
centre position.
C2 Contour Air Drill August 2014 1-3
Page 8
Safety

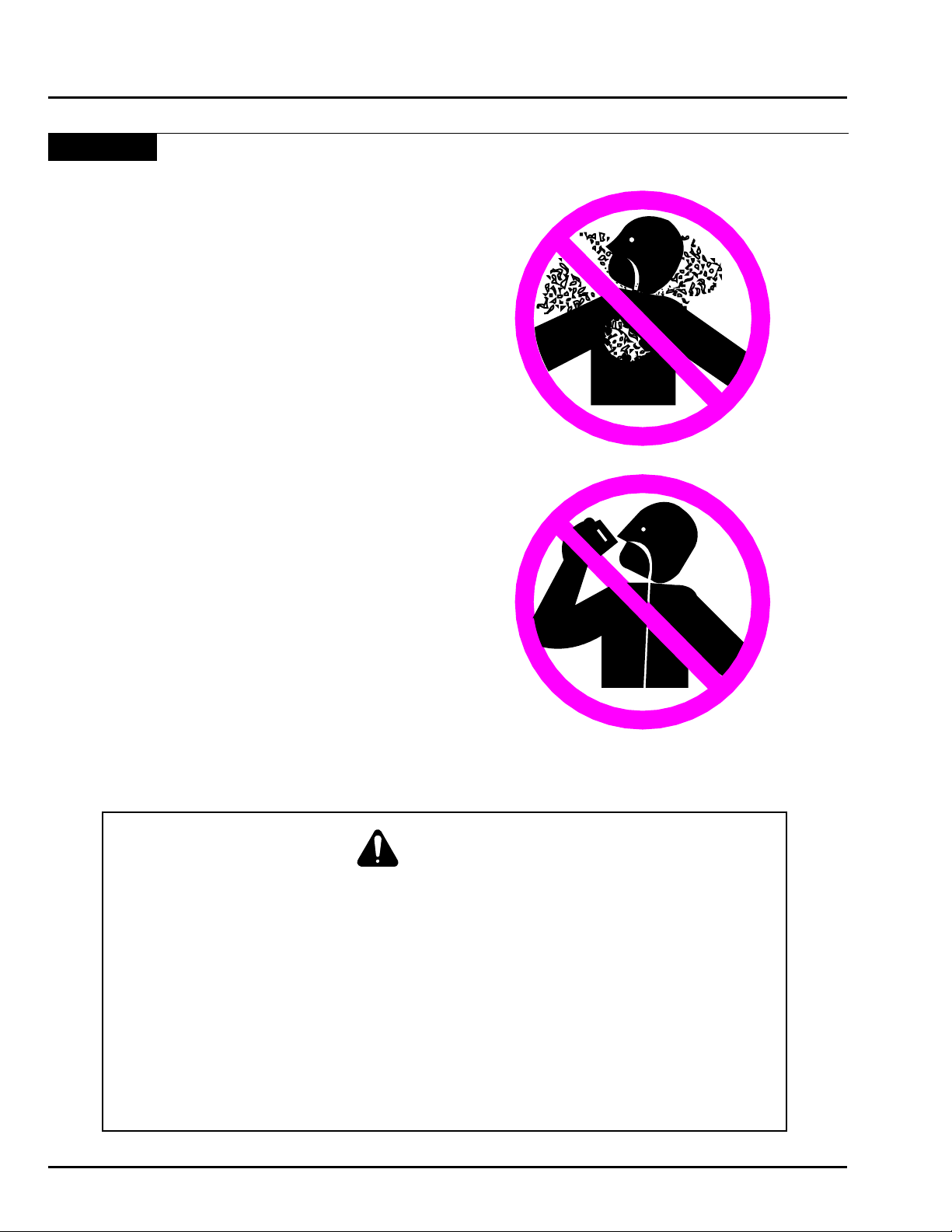

Chemicals
•
Use extreme care
making adjustments.
• Always read granular chemical or treated seed
manufacturer’s warning labels carefully and
remember them.
• Wear close tting clothing and appropriate personal
protective equipment for the job as specied by the
chemical and/or seed manufacturer.
•
Always wear
apparatus and gloves when handling with granular
chemical or treated seed.
• Do not feed any treated seed to livestock. Treated
seed is poisonous and may cause harm to persons
or livestock.
• Wash exposed skin immediately - do not leave
chemicals on your skin.
• Properly store chemicals in original containers with
labels intact per the manufacturer’s instructions.
• Always follow the manufacturer’s operating
instructions and warning labels when operating an
ammonia tank with the equipment.
• Do Not enter Air Cart tank unless
another person is present and the
tractor engine has been shut off.
when cleaning, filling or
safety goggles, breathing
Danger
Failure to comply may result in death or serious injury.
Read Operator’s Manual and decals on Ammonia tank before operating Air Cart.
Become familiar with all warnings, instructions, and controls.
Always wear gloves and goggles when transferring or handling ammonia.
Always stay clear of hose and valve openings.
Always be sure pressure is relieved before disconnecting hoses or parts.
Always secure connecting parts and safety chains before towing ammonia trailer.
Always have ample water available in case of exposure to ammonia liquid or gases.
1-4 August 2014 C2 Contour Air Drill
Page 9
Transporting
• Be aware of the height, length and width of
implement. Make turns carefully and be aware of
obstacles and overhead electrical lines.
• Always travel at a safe speed. Do Not Exceed 20
mph (32 kph).
• Use an agricultural tractor that is large enough with
sufcient braking capacity so that the weight of the
loaded equipment towed does not exceed 1.5 times
the weight of the tractor.
• Use ashing amber warning lights, turn signals and
SMV emblems when on public roads.
• Do not transport in poor visibility.
• The slow moving vehicle (SMV) emblem and
reectors must be secured and be visible on the
machine for transport.
• Avoid soft surfaces, the additional wing weight on
the centre wheels could cause the machine to sink.
• Ensure safety chain is attached correctly to the
towing vehicle and the hitch of the implement.
• Check that wings are rmly seated on transport wing
stops, and wing lift valve and opener valve are in
locked postion.
• Be familiar with and adhere to local laws.
Hydraulics
• Do not search for high pressure hydraulic leaks
without hand and face protection. A tiny, almost
invisible leak can penetrate skin, thereby requiring
immediate medical attention.
• Use cardboard or wood to detect leaks - never your
hands.
• Double check that all is clear before operating
hydraulics.
• Never remove hydraulic hoses or ends with machine
elevated. Relieve hydraulic pressure before
disconnecting hydraulic hoses or ends.
• Maintain proper hydraulic uid levels.
• Keep all connectors clean for positive connections.
• Ensure all ttings and hoses are in good condition.
• Do not stand under wings.
Safety
C2 Contour Air Drill August 2014 1-5
Page 10
Safety
Maintenance
• Shut tractor engine off before making any
adjustments or lubricating the machine.
• Block machine securely to prevent any movement
during servicing.
• Wear close tting clothing and appropriate personal
protective equipment for the job.
• Always wear safety goggles, breathing apparatus
and gloves when working on seeder lled with granular
chemical or treated seed per the manufacture’s
instructions.
• Do not modify the machine.

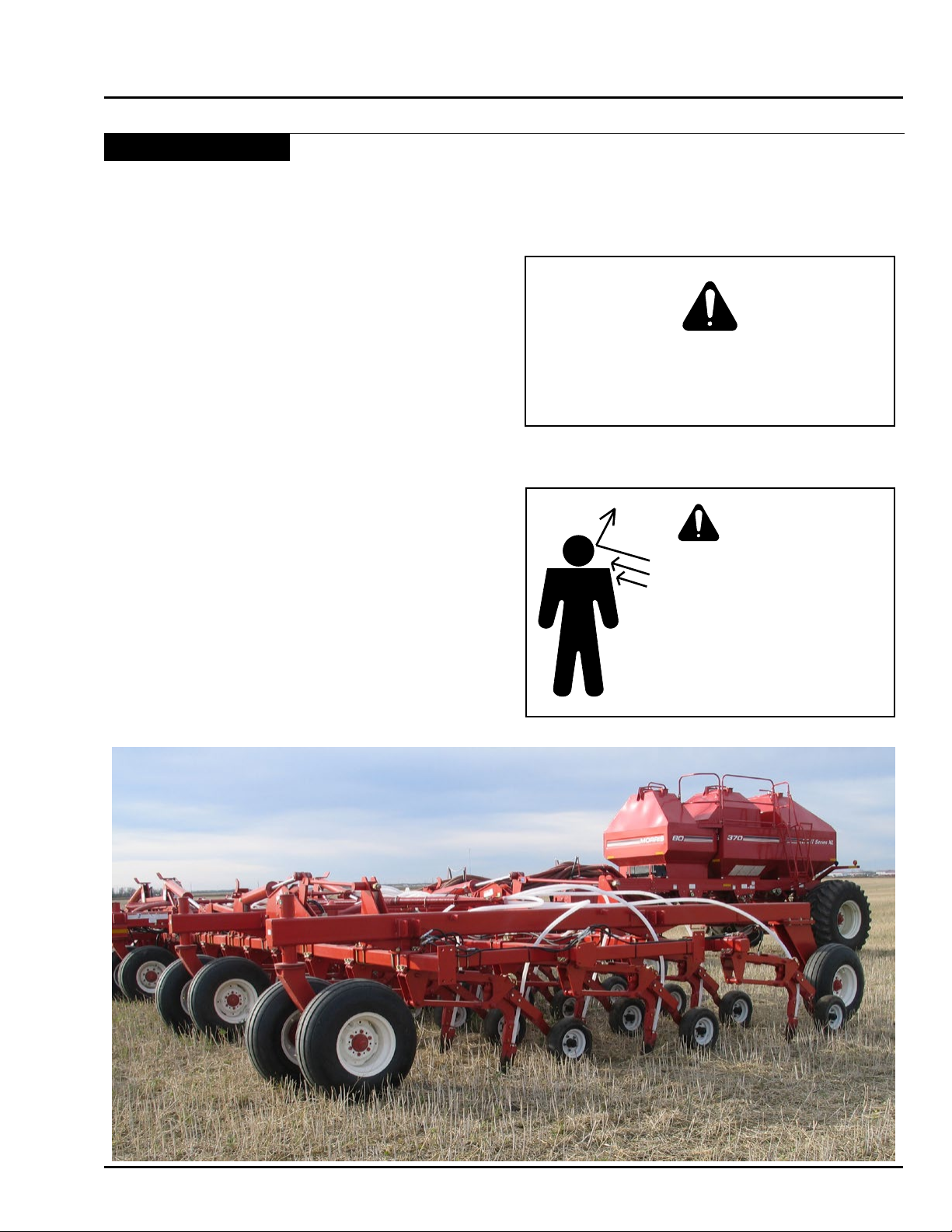

Caution
Care should be taken when
working near the Air Cart
while the fan is running.
Product blowing out of
the system could cause
personal injury.
Storage
• Store implement away from areas of main activity.
• Level implement and block up securely to relieve
pressure on jack.
• Do not allow children to play on or around stored
implement.
Caution
Keep service area
clean and dry. Wet
or oily floors are
slippery. Wet spots
can be dangerous
when working with
electrical equipment.
1-6 August 2014 C2 Contour Air Drill
Page 11
Safety Signs
DANGER
ENSURE CYLINDER IS COMPLETELY FILLED WITH
HYDRAULIC FLUID TO AVOID UNEXPECTED MOVEMENT.
WINGS MAY FALL RAPIDLY CAUSING BODILY INJURY.
ALWAYS STAY CLEAR OF FOLDING WINGS WHEN BEING
RAISED, LOWERED, OR IN ELEVATED STATE.
WINGS ARE IN ELEVATED POSITION.
ALWAYS INSTALL ALL LOCKUP DEVICES PROVIDED WHEN
C13704
Personal injury or property damage may result from
and further information.
Weight of fully loaded implement should not be more than
Refer to tractor and implement Operator’s Manuals for weights
Maximum recommended towing speed is 20 mph (32 km/h).
Always use large enough tractor with sufficient braking capacity.
Use flashing amber warning lights and SMV emblem when on
public roads, except where prohibited by law.
1.5 times weight of tractor.
N24301
WARNING
loss of control.
To prevent serious injury or death:
Stay away from beneath the wheels
Keep others away.
when in the raised position.
causing bodily injury.
Front wheel castor may rotate rapidly
OVERHEAD HAZARD
S47332
WARNING
Safety
C2 Contour Air Drill August 2014 1-7
Familiarize yourself with the location of all decals. Read them
carefully to understand the safe operation of your machine.
Page 12
Safety
To prevent serious injury or death:
· Relieve pressure on hydraulic system before
· Wear proper hand and eye protection when
· Keep all components in good repair.
C-4262
HIGH-PRESSURE FLUID HAZARD
servicing or disconnecting hoses.
searching for leaks. Use wood or cardboard
instead of hands.
WARNING
Keep off while machine is moving
or mechanism is running.
D13705
WARNING
CRUSHING HAZARD
S44446

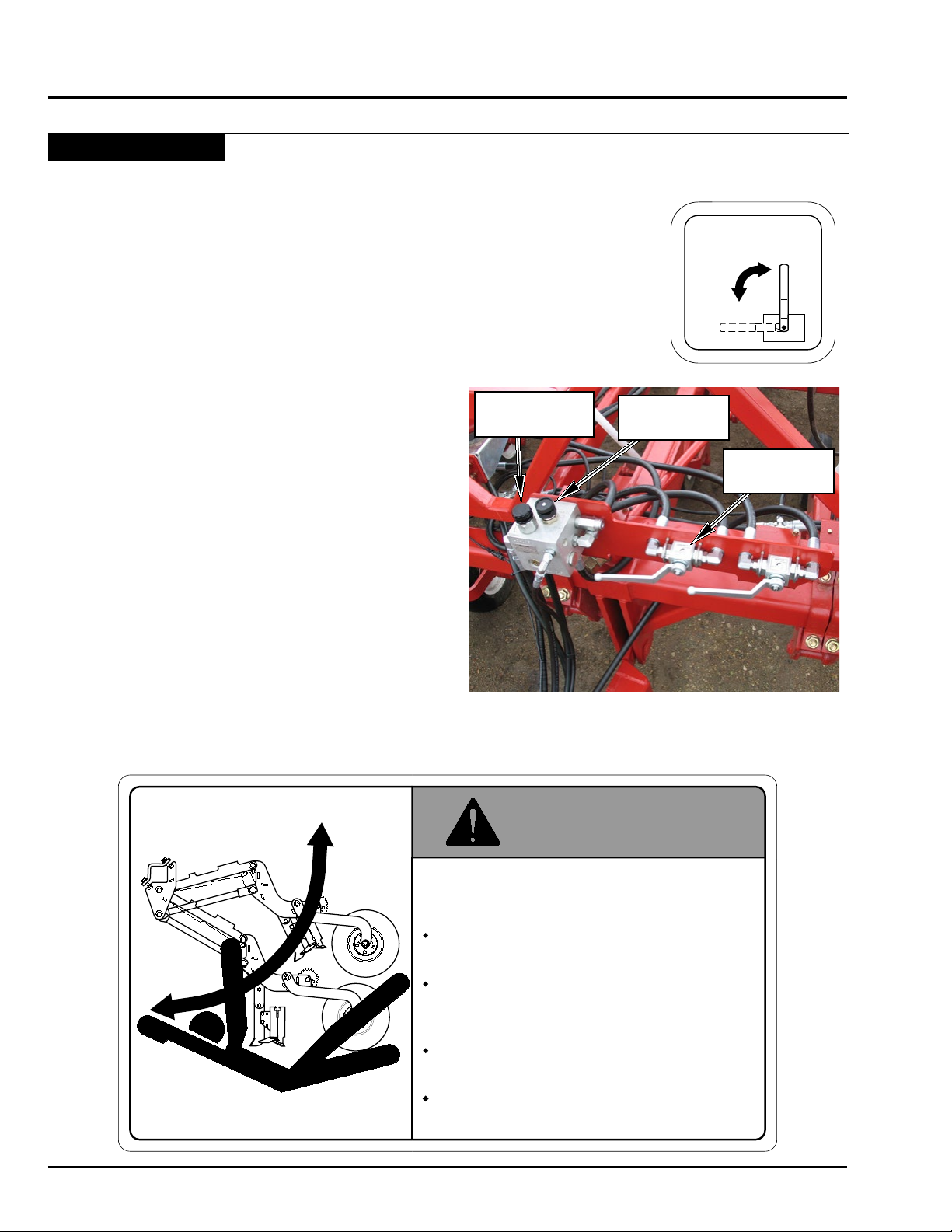

Before servicing hydraulics - Place
STAND CLEAR - openers move rapidly
To prevent serious injury or death:
under hydraulic pressure.
WARNING
"System" valve in service position and
relieve pressure from hydraulic system.
Shut tractor off and remove key before
servicing or adjusting depth.
Place "Openers" valve in locked position
before adjusting depth or transporting.
Safety Signs - Continued
WARNING
This implement may exceed maximum
road regulations. Before you transport
this implement contact a local agency
regarding road regulations concerning
maximum allowable implement
dimensions.
C31201
1-8 August 2014 C2 Contour Air Drill
Familiarize yourself with the location of all decals. Read them
carefully to understand the safe operation of your machine.
Page 13
Safety Signs - Continued
Locations
Front
C-4262
C31201
D13705
N24301
S44446
Safety
C13704
Rear
C13704
C2 Contour Air Drill August 2014 1-9
Page 14
Safety
Safety Signs - Continued

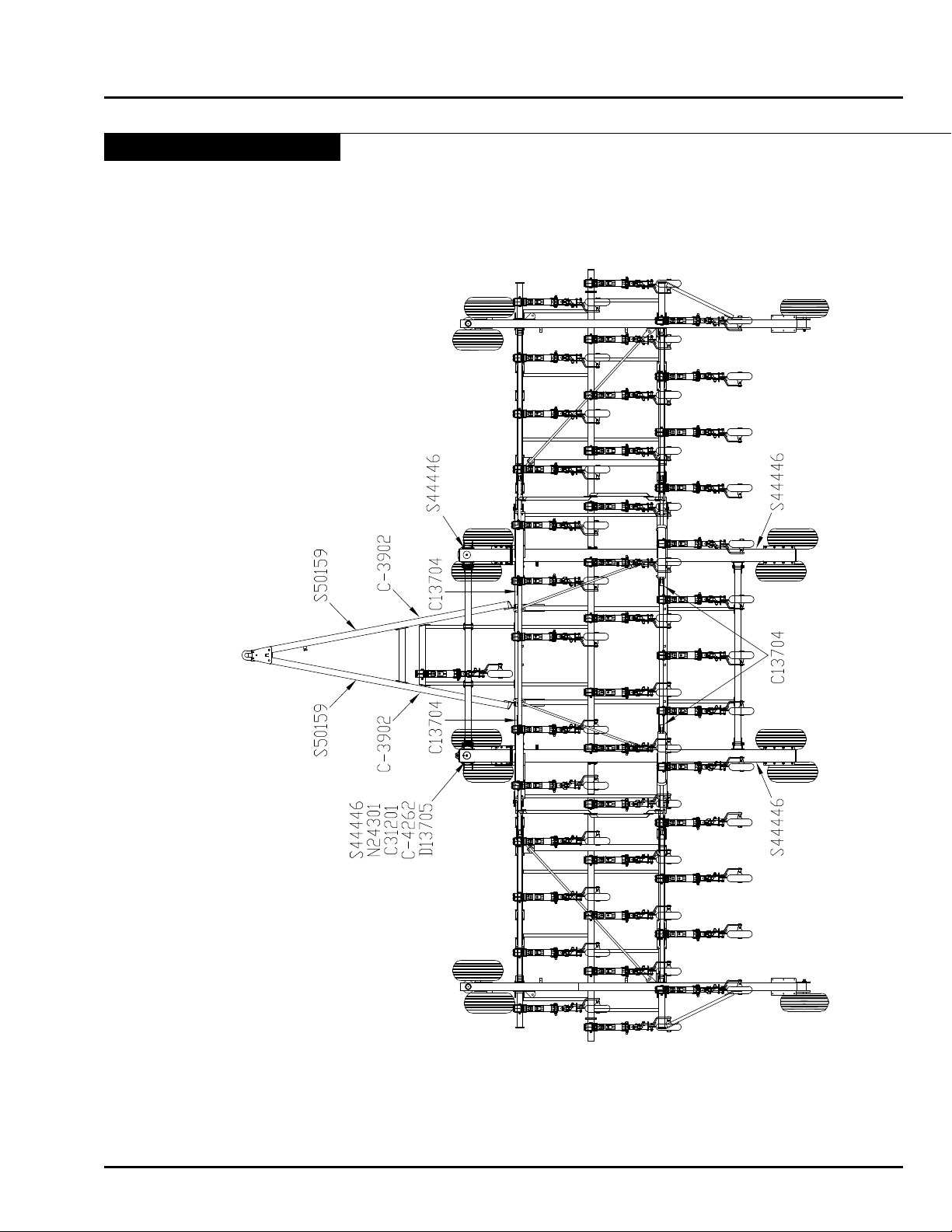

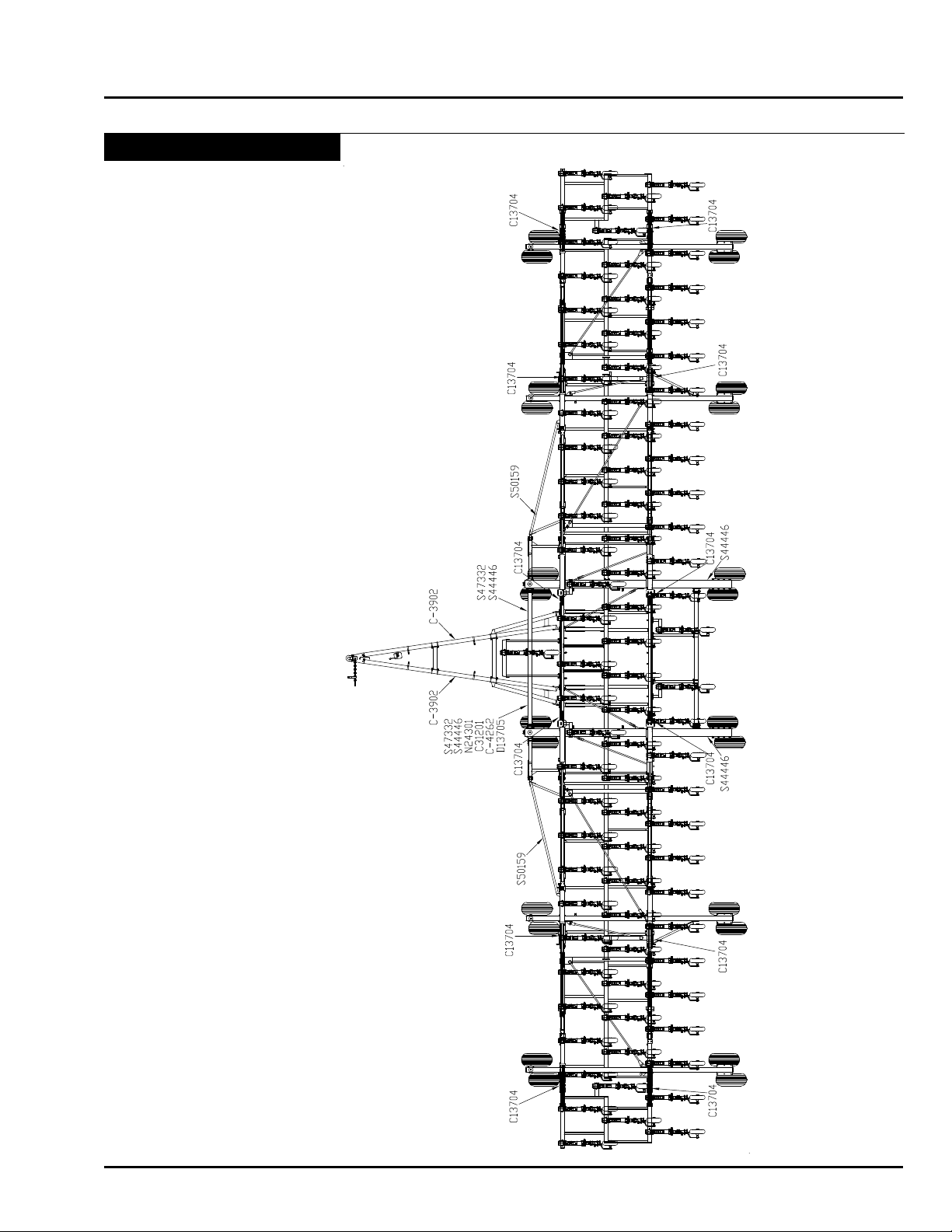

Decal Locations - 25 and 31 Models
1-10 August 2014 C2 Contour Air Drill
Page 15
Safety Signs - Continued
Decal Locations - 41 and 51 Models
Safety
C2 Contour Air Drill August 2014 1-11
Page 16
Safety
Safety Signs - Continued
Decal Locations - 61 and 71 Models
1-12 August 2014 C2 Contour Air Drill
Page 17
Safety Signs - Continued
Decal Locations - 80, 86 and 90 Models
Safety
C2 Contour Air Drill August 2014 1-13
Page 18
Safety

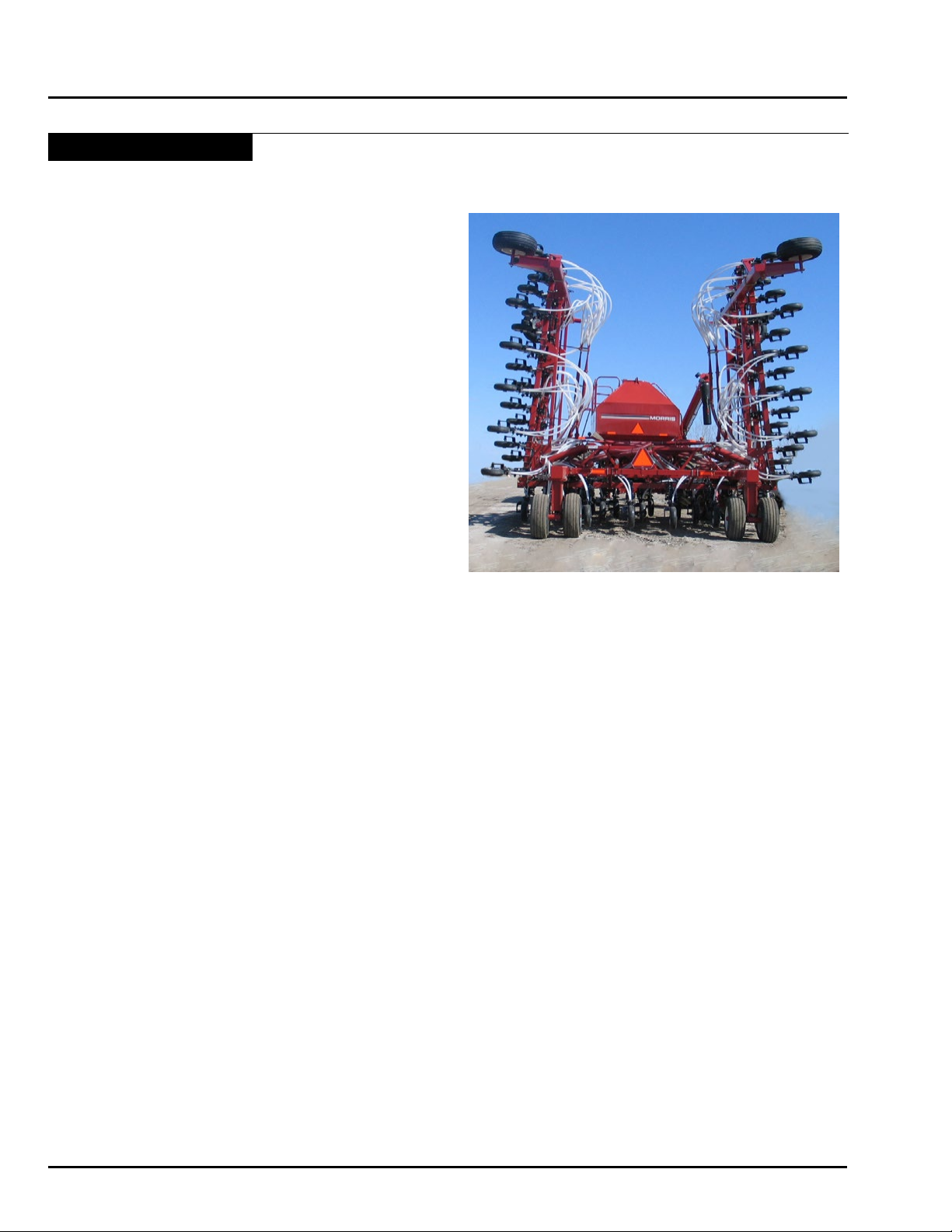

Lighting and Marking
MORRIS recommends the use of correct lighting and
marking to meet the ASAE standard for roadway travel.
Be familiar with and adhere to local laws.
Amber warning and red tail lights secured on the machine
promote correct transportation of this implement.
Note: Always replace missing or damaged lights
and/or connectors.
Amber warning and red tail lights must be mounted to
the rear of the implement and be visible from front and
rear. The lights must be within 16 inches (41 cm) of
the extremities of the machine and at least 24 inches
(60 cm) but not over 10 feet (3 m) above ground level.
Note: Always replace missing or damage front,
side, rear reectors and SMV emblem.
1-14 August 2014 C2 Contour Air Drill
Page 19
Lighting and Marking - Continued
Safety
C2 Contour Air Drill August 2014 1-15
Page 20
Safety
Lighting and Marking - Continued
1-16 August 2014 C2 Contour Air Drill
Page 21
Section 2: Specifications
Specifications
Section 2:
Specifications 2-1
Section Contents
Specifications and Options ...............................................................................................2-2
Transport Dimensions .......................................................................................................2-4
C2 Contour Air Drill August 2014 2-1
Page 22
Specications
C2 CONTOUR AIR DRILL
Specifications and Options
Base Size
Weight - 10” Spacing
Working Width - 10” (25.4 cm)
Number of
Shanks
Frame Width - Main
Transport
Position
Tires - Main Frame Wheels (4)12.5Lx15 FI
Opener - Trip Out Force Increases proportionally with Packing Force to a maximum of 600 lbs (272 kg)
25.4 cm Spacing
- 12” Spacing
30.5 cm Spacing
- 12” (30.5 cm)
- 10” (25.4 cm)
- 12” (30.5 cm)
- Wing Inner
- Width
- Height
- Length
- Wing Frame
Front Castor Wheels
- Wing Frame
Rear Wheels
- Optional
Main Frame Wheels
- Packing Force Adjustable from 70 lbs to 170 lbs (31.7 kg - 77.1 kg)
- Packer Wheel
25’ (7.62 m) 31’ (9.45 m) 41’ (12.5 m) 51’ (15.54 m)
14,738 lb
6,685 kg
13,933 lb
6,320 kg
25’ (7.62m)
25’ (7.62m)
30
25
5’ (1.524m)
10’ (3.048m)
9’ 10” (3m)
13’ 6” (4.12m)
31’ 6” (9.6m)
Load Range F
Single Castor
(2) 12.5SLx15
12 Ply Rating
(1 per wing)
(2) 12.5SLx15
12 Ply Rating
NA NA NA NA
15’ 11”(4.85m)
(4)12.5Lx15 FI
Load Range F
(2) 12.5SLx15
(2) 12.5SLx15
4.50” x 16” Semi Pneumatic Otico tire
4.80” x 16” Semi Pneumatic or Pneumatic
3 Frame Models
16,025 lb
7,269 kg
15,155 lb
6,874 kg
30’ (9.14m)
31’ (9.45m)
36
31
5’ (1.524m)
13’ (3.962m)
9’ 10” (3m)
31’ 6” (9.6m)
Single Castor
12 Ply Rating
(1 per wing)
12 Ply Rating
20,928 lb
9,470 kg
19,572 lb
8,856 kg
41.67’ (12.7m)
41’ (12.5m)
50
41
16’ (4.88m)
12’ (3.66m)
20’ 6” (6.25m)
15’ 2” (4.62m)
31’ 6” (9.6m)
(8) 11Lx15 FI
Load Range F
Dual Castor
(4) 11SLx15
12 Ply Rating
(1 per wing)
(2) 11SLx15
12 Ply Rating
24,622 lb
11,168 kg
23,137 lb
10,495 kg
50’ (15.24m)
51’ (15.54m)
60
51
16’ (4.88m)
17.5’ (5.334m)
20’ 6” (6.25m)
15’ 2” (4.62m)
31’ 6” (9.6m)
(8) 11Lx15 FI
Load Range F
Dual Castor
(4) 11SLx15
12 Ply Rating
(1 per wing)
(2) 11SLx15
12 Ply Rating
5.50” x 16” Semi Pneumatic Otico tire
5.50” x 16” Semi-Pneumatic
4.00” x 16” “V” Crown
Opener to Ground Clearance 12” (30.5 cm)
Frame to Ground Clearance 32” (81 cm)
Frame Depth 94” (238.8 cm) center to center
Rank to Rank Spacing 47” (119.4 cm) center to center
Number of Ranks 3 Rows
Shank to Shank Spacing 30” (76.2 cm) on 10” (25.4 cm) Spacing
Weight Kit Optional
Safety Lights Standard
Hitch Clevis Standard - Catagory 4
Safety Chain Standard
Specifications are estimates and subject to change.
36” (91.4 cm) on 12” (30.5 cm) Spacing
Optional - Catagory 5
2-2 August 2014 C2 Contour Air Drill
Page 23
C2 CONTOUR AIR DRILL
Specifications and Options
Specications
Base Size
Weight - 10” Spacing
Working
Width
Number of
Shanks
Frame Width - Main
Transport
Position
Tires - Main Frame Wheels (8) 12.5L x15 FI
Opener - Trip Out Force Increases proportionally with Packing Force to a maximum of 600 lbs (272 kg)
25.4 cm Spacing
- 12” Spacing
30.5 cm Spacing
- 10” (25.4 cm)
- 12” (30.5 cm)
- 10” (25.4 cm)
- 12” (30.5 cm)
- Wing Inner
- Wing Outer
- Width
- Height
- Length
- Wing Frame
Front Castor Wheels
- Wing Frame
Rear Wheels
- Optional
Main Frame Wheels
- Packing Force Adjustable from 70 lbs to 170 lbs (31.7 kg - 77.1 kg)
- Packer Wheel
61’ (18.59 m) 71’ (21.64 m) 80’ (24.38 m) 86’ (26.21 m) 90’ (27.43 m)
31,392 lb
14,239 kg
29,358 lb
13,317 kg
60’ (18.29m)
61’ (18.59m)
72
61
16’ (4.88m)
12’ (3.66m)
10’ (3.05m)
20’ 6” (6.25m)
15’ 2” (4.62m)
34’ 10”(10.62m)
Load Range F
Dual Castor
(8) 12.5SLx15
12 Ply Rating
(1 per wing)
(4) 12.5SLx15
12 Ply Rating
(8) 16.5x16.1 FI
Load Range E
35,441 lb
16,109kg
33,264 lb
15,120 kg
70’ (21.34m)
71’ (21.64m)
84
71
16’ (4.88m)
15’ (4.57m)
12’ (3.66m)
20’ 6” (6.25m)
17’ 10” (5.44m)
34’ 10”(10.62m)
(8) 12.5Lx15 FI
Load Range F
Dual Castor
(8) 12.5SLx15
12 Ply Rating
(1 per wing)
(4) 12.5SLx15
12 Ply Rating
(8) 16.5x16.1 FI
Load Range E
4.50” x 16” Semi Pneumatic Otico tire
4.80” x 16” Semi Pneumatic or Pneumatic
5 Frame Models
NA
NA
38,140 lb
17,300 kg
NA
80’ (24.38m)
NA
80
21’ ( 6.40m)
15’ (4.57m)
14.45 (4.4m)
25’ (7.62m)
17’ 10” (5.44m)
34’ 10”(10.62m)
(8) 16.5x16.1 FI
Load Range E
Dual Castor
(8) 12.5SLx15
12 Ply Rating
(2 per wing)
(8) 12.5SLx15
12 Ply Rating
NA NA NA
NA
NA
41,000 lb
18,600 kg
NA
86’ (26.21 m)
NA
86
21’ ( 6.40m)
15’ (4.57m)
17.75’ (5.41m)
25’ (7.62m)
17’ 10” (5.44m)
34’ 10”(10.62m)
(8) 16.5x16.1 FI
Load Range E
Dual Castor
(8) 12.5SLx15
12 Ply Rating
(2 per wing)
(8) 12.5SLx15
12 Ply Rating
43,000 lb
19,505 kg
90’ (27.43 m)
21’ ( 6.40m)
15’ (4.57m)
18.92’ (5.77m)
25’ (7.62m)
17’ 10” (5.44m)
34’ 10”(10.62m)
(8) 16.5x16.1 FI
Load Range E
Dual Castor
(8) 12.5SLx15
12 Ply Rating
(2 per wing)
(8) 12.5SLx15
12 Ply Rating
5.50” x 16” Semi Pneumatic Otico tire
5.50” x 16” Semi-Pneumatic
4.00” x 16” “V” Crown
Opener to Ground Clearance 12” (30.5 cm)
Frame to Ground Clearance 32” (81 cm)
Frame Depth 94” (238.8 cm) center to center
Rank to Rank Spacing 47” (119.4 cm) center to center
Number of Ranks 3 Rows
Shank to Shank Spacing 30” (76.2 cm) on 10” (25.4 cm) Spacing
Weight Kit Optional
Safety Lights Standard
Hitch Clevis Standard - Catagory 4
Safety Chain Standard
Specifications are estimates and subject to change.
36” (91.4 cm) on 12” (30.5 cm) Spacing
Optional - Catagory 5
NA
NA
NA
NA
90
C2 Contour Air Drill August 2014 2-3
Page 24
Specications
Transport Dimensions
WIDTH WITH PACKERS RETRACTED
(See Specications)
OPENERS RETRACTED
(See Specications)
HEIGHT WITH OPENERS RETRACTED
2-4 August 2014 C2 Contour Air Drill
Page 25
Section 3: Checklist
Checklist
Section 3:
Checklist 3-1
Section Contents
Manuals ............................................................................................................................3-2
Parts Manual .............................................................................................................3-2
Assembly Manual .......................................................................................................3-2
Checklist ...........................................................................................................................3-3
C2 Contour Air Drill August 2014 3-1
Page 26
Checklist
SAFETY-ALERT
SYMBOL
Watch for this symbol. It identies
potential hazards to health or personal
safety. It points out safety precautions.
It means:
ATTENTION - BE ALERT.
Your safety is involved.
Manuals
Note: Pre-Delivery Inspection Form must be
completed and submitted to Morris Industries
within 30 days of delivery date.
Parts Manual
Assembly Manual
Order Part Number S50152
Order Part Number S50151 (For 41 ft to 90 ft)
Order Part Number S50153 (For 25 ft and 31 ft)
Warranty Void if Not Registered
3-2 August 2014 C2 Contour Air Drill
Page 27
Checklist
Checklist
General
Please read the Operator’s Manual carefully
and become a “SAFE” operator.
Adopt a good lubrication and maintenance
program.
Check if assembled correctly.
Check hose connections.
Lubrication - Grease
Opener Wheel Hubs
Wheel Hubs
Castor Pivots
Tire Pressure
See tire chart in Maintenance, Section 6.
Transport
Tighten wheel bolts.
Check hose connections.
Accumulator pressure is at 0.
Ball valves are in locked position.
OWNER REFERENCE
Model:
Serial No:
Dealer:
Town: State:
Phone:
OWNER/OPERATOR
Date:
C2 Contour Air Drill August 2014 3-3
TAKE SAFETY SERIOUSLY.
DO NOT TAKE
NEEDLESS CHANCES!!
Page 28
Checklist
Notes
3-4 August 2014 C2 Contour Air Drill
Page 29
Section 4: Introduction
Introduction
Section 4:
Introduction 4-1
Section Contents
Introduction .......................................................................................................................4-2
C2 Contour Air Drill August 2014 4-1
Page 30
Introduction

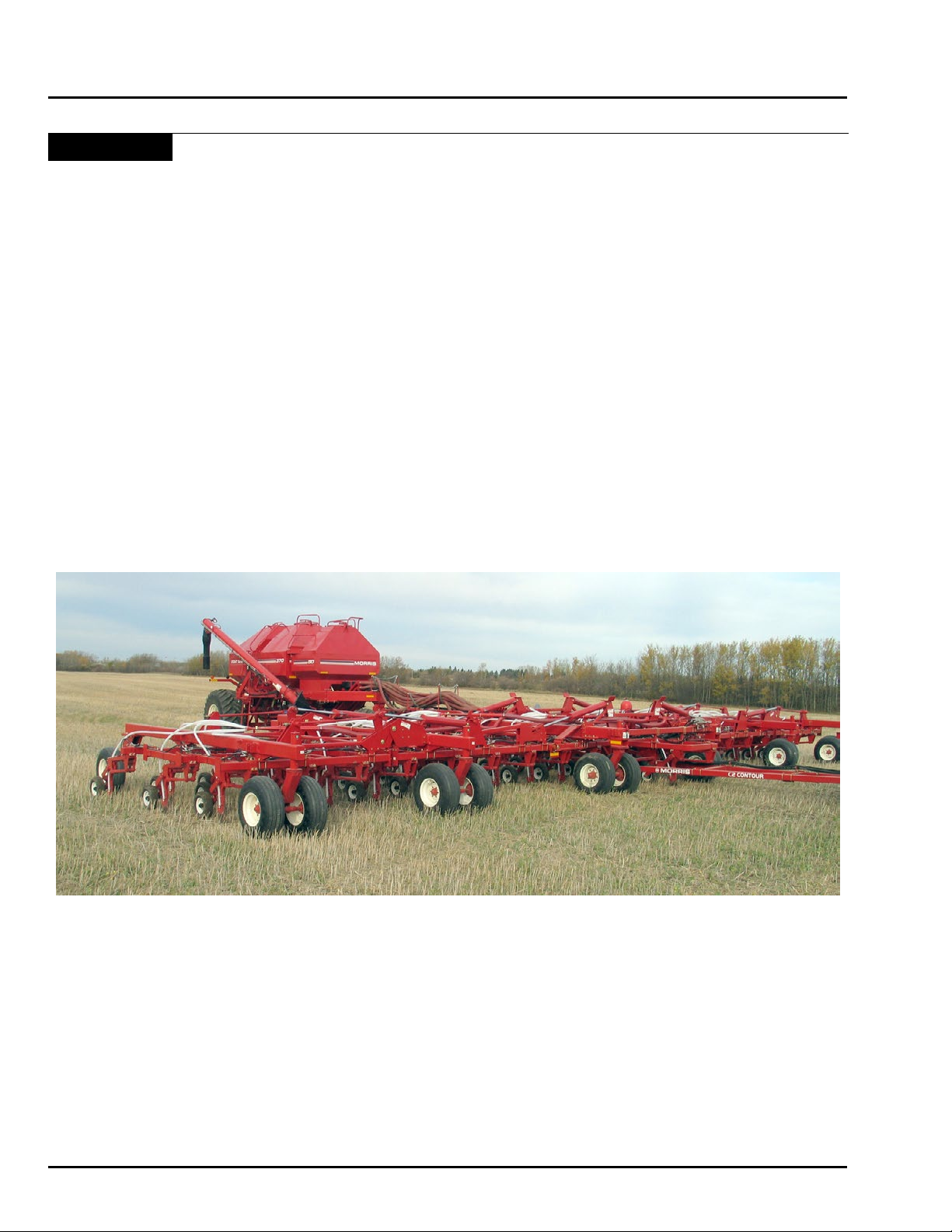

Introduction
This Operator’s Manual has been carefully prepared
to provide the necessary information regarding the
operation and adjustments, so that you may obtain
maximum service and satisfaction from your new
MORRIS CONTOUR DRILL oating hitch cultivator.
To protect your investment, study your manual before
starting or operating in the eld. Learn how to operate
and service your CONTOUR DRILL floating hitch
cultivator correctly, failure to do so could result in
personal injury or equipment damage.
If you should find that you require information not
covered in this manual, contact your local MORRIS
Dealer. The Dealer will be glad to answer any questions
that may arise regarding the operation of your MORRIS
CONTOUR DRILL oating hitch cultivator.
MORRIS Dealers are kept informed on the best methods
of servicing and are equipped to provide prompt efcient
service if needed.
Occasionally, your CONTOUR DRILL oating hitch
cultivator may require replacement parts. Your
Dealer will be able to supply you with the necessary
replacement parts required. If the Dealer does not have
the necessary part, the MORRIS Factory will supply the
Dealer with it promptly.
Your MORRIS CONTOUR DRILL oating hitch cultivator
is designed to give satisfaction even under difcult
conditions. A small amount of time and effort spent in
protecting it against rust, wear and replacing worn parts
will increase the life and trade-in value.
Keep this book handy for ready reference at all times. It is the policy of Morris Industries Ltd. to improve its
products whenever it is possible to do so. The Company reserves the right to make changes or add improvements
at any time without incurring any obligation to make such changes on machines sold previously.
4-2 August 2014 C2 Contour Air Drill
Page 31
Section 5: Operation
Operation
Section 5:
Operation 5-1
Section Contents
Application ........................................................................................................................5-2
Tractor ...............................................................................................................................5-2
Hitching ............................................................................................................................5-3
Hitching to Tractor .............................................................................................................5-3
Unhitching from Tractor ....................................................................................................5-5
Transport ...........................................................................................................................5-5
Speed .....................................................................................................................5-5
Lights ......................................................................................................................5-5
Transport to Field Position ..........................................................................................5-6
Field to Transport Position ...........................................................................................5-7
Opener Operation .............................................................................................................5-8
Accumulator System Operation and Pre-Charge Information .....................................5-8
Setting Maximum System Pressure (Trip Out Force) ..................................................5-9
Relieve System Pressure .........................................................................................5-10
Normal Operation .....................................................................................................5-10
Pressure Adjustment (On the go) ............................................................................. 5-11
Depth Adjustment ...........................................................................................................5-12
Work Switch ....................................................................................................................5-14
General Guidelines .........................................................................................................5-15
Quick Tips .......................................................................................................................5-16
Shank Trip Force .......................................................................................................5-16
Packing Force ...........................................................................................................5-16
Hydraulic System .....................................................................................................5-16
Lifting and Lowering the Openers ............................................................................5-16
Setting the Seed Depth ............................................................................................5-17
Seeding Conditions ..................................................................................................5-17
Straw Management ..................................................................................................5-17
Air Drill Frame ..........................................................................................................5-18
Trouble Shooting Guide ............................................................................................5-18
Wing Lift Hydraulics ........................................................................................................5-19
Opener Hydraulics .........................................................................................................5-21
C2 Contour Air Drill August 2014 5-1
Page 32
Operation
CAUTION
BE ALERT
Application
The Morris CONTOUR DRILL utilizes independent
parallel link openers. Each opener moves independently
of the frame and each other to follow every contour of the
land closely. The unique design of the opener allows
the Morris CONTOUR DRILL to be used in a variety
of seeding applications from conventional to zero till
applications.
SAFETY FIRST
REFER TO SECTION 1 AND REVIEW ALL
SAFETY RECOMMENDATIONS.
Tractor
Tires
• Proper ballast and tire pressure are required when
pulling heavy implements.
• Consult your tractor operator’s manual and follow all
recommended procedures.
Hydraulics
• Wipe all hydraulic ttings and couplers with a clean
cloth to avoid contaminating the system.
• Check that hydraulic reservoir is lled to the proper
level.
Drawbar
• Centre and pin in a xed position for easier hitching
and greater stability.
Warning
Do not permit smoking, sparks or an open
flame where combustible fuels are being used.
Keep the work area well ventilated.
Warning
Do not search for high pressure hydraulic
leaks without hand and face protection. A tiny,
almost invisible leak can penetrate skin, that
requires immediate medical attention.
5-2 August 2014 C2 Contour Air Drill
Page 33
Hitching
Caution
A safety chain will help control towed
machines should it accidentally separate
from the drawbar while transporting. A
runaway machine could cause severe injury
or death. Use a safety chain with a strength
rating equal to or greater than the gross
weight of the towed machines.
Operation
Attach safety chain to the tractor drawbar
support or other specified anchor location
with the appropriate parts.
Hitching to Tractor
• Ensure swinging drawbar is locked in the centre
position.
• Ensure hitch pin is in good condition.
• Level clevis with tractor drawbar using hitch jack.
• Back tractor into position and attach hitch clevis to
drawbar, using an adequate hitch pin.
• Lock hitch pin in place with a hairpin or other proper
locking device.
• After tractor to implement connection is made, relieve
pressure off the hitch jack.
• Place hitch jack in raised position.
• Route Safety Chain through chain support and
drawbar support.
• Lock safety hook onto chain.
Note: Provide only enough slack in chain to permit
turning.

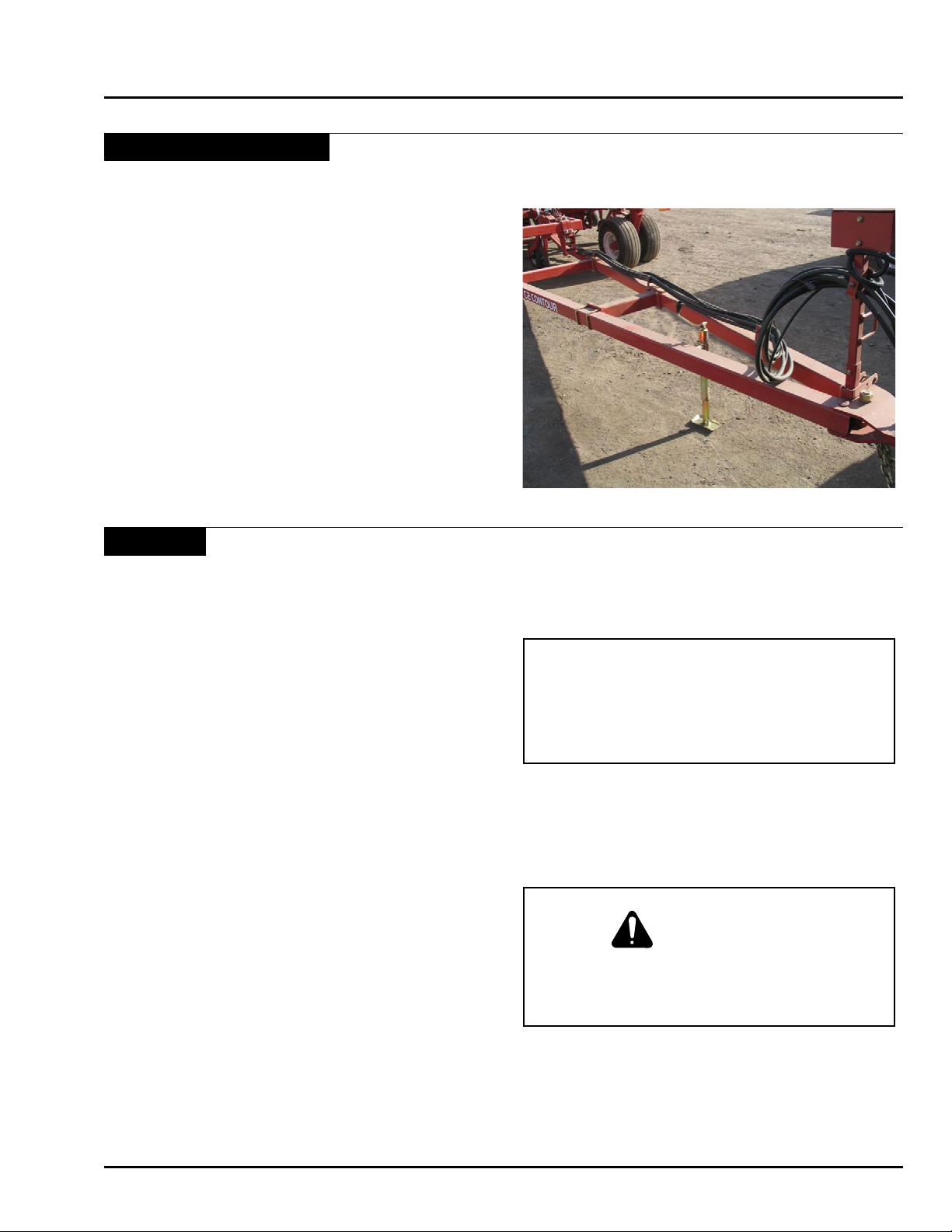

HITCH JACK
SAFETY CHAIN
Hitch Jack Raised
Caution
Dirt in the hydraulic system could damage
O-rings, causing leakage, pressure loss and
total system failure.
C2 Contour Air Drill August 2014 5-3
Page 34
Operation
Hitching to Tractor - Continued
• Ensure hydraulic hose quick couplers are dirt free.
• Inspect all ttings and hoses for leaks and kinks.
Repair as necessary
• Connect the hydraulic hoses to the tractor quick
couplers.
Note: For proper venting of the pressure reducing
valve, the 1/4” diameter hose marked “Case
Drain” must be run directly into the hydraulic
tank. Also, the Air Cart motor “Case Drain”
hose must be connected to this line at the
quick coupler provided. If the hose is run
through the filler cap then ensure the cap is
VENTED. A quick coupler can still be used
between the tractor and the seeding tool.

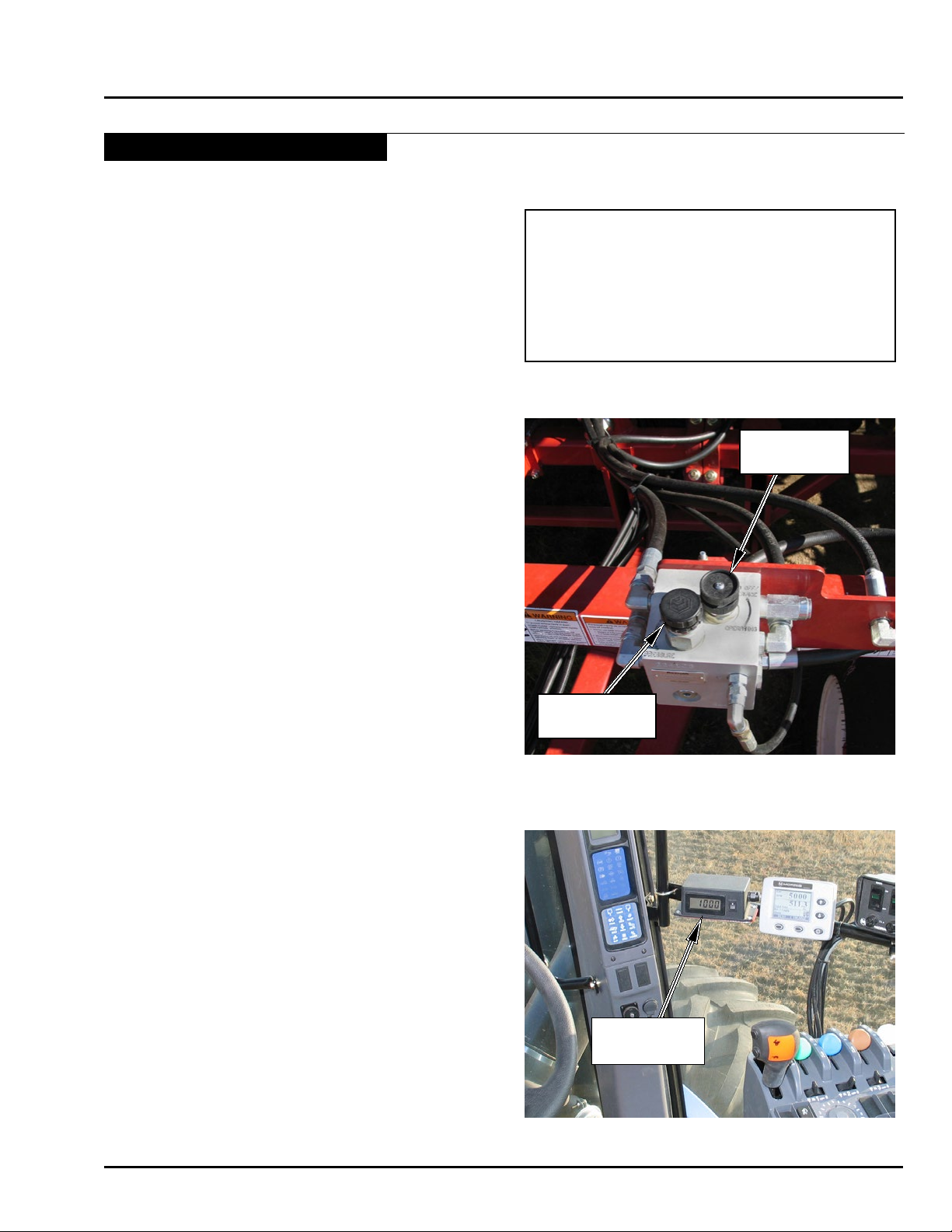

• Mount digital pressure gauge in tractor cab with the
LCD visible and with in easy reach to operate.
• Route the digital pressure gauge harness away from
moving parts and sharp protrusions. Connect the
red wires to the positive (+) terminal of the battery.
Connect the black wires to the negative (-) terminal
of the battery.
CASE DRAIN
Hydraulic Coupling on Tractor
QUICK COUPLER
Cart Motor Case Drain
PRESSURE
GAUGE
5-4 August 2014 C2 Contour Air Drill
Page 35
Unhitching from Tractor
• Pin hitch jack in storage position.
• Lower hitch jack taking the weight off the hitch clevis.
• Ensure all transport locks are properly secured.
• Place “System” ball valve into service position
and relieve accumulator pressure from the opener
system before uncoupling hydraulic hoses.
• Relieve pressure in the wing lift hydraulic hoses by
positioning tractor hydraulic lever in “oat” position
or turn tractor engine off and cycle lever back and
forth several times.
• Disconnect the hydraulic hoses.
• Remove the safety chain.
• Remove the drawbar pin.
• Slowly move tractor away from cultivator.
Operation
Hitch Jack Lowered
Transport
Observe all applicable safety precautions under
transport heading in Safety, Section 1.
• Refer to Specifications, Section 2, for weight,
transport height, and width.
• Transport with tractor only!
• Ensure safety chain is attached correctly to the
towing vehicle and the hitch of the implement.
• Inspect tires for any serious cuts or abrasions. If
such has occurred, tire should be replaced.
• Raise and lower wings on level ground.
• Never raise or lower wings when moving.
Speed
• Always travel at a safe speed. Do Not Exceed 20
mph (32 kph).
• The weight of the implement being towed must not
exceed 1.5 times the weight of towing vehicle.
Lights
• Ensure proper reectors are in place, refer to Safety,
Section 1.
• Use ashing amber warning lights, turn signals and
SMV emblems when on public roads.
• Be familiar with, and adhere to, local laws.
MORRIS INDUSTRIES LTD. WILL NOT BE
RESPONSIBLE FOR ANY DAMAGES OR
OPERATOR INJURY RESULTING FROM NONUSE OR IMPROPER USE OF TRANSPORT
LOCKS.
Caution
Raise and lower wings on level ground. Never
raise or lower wings when moving.
C2 Contour Air Drill August 2014 5-5
Page 36
Operation
Transport - Continued

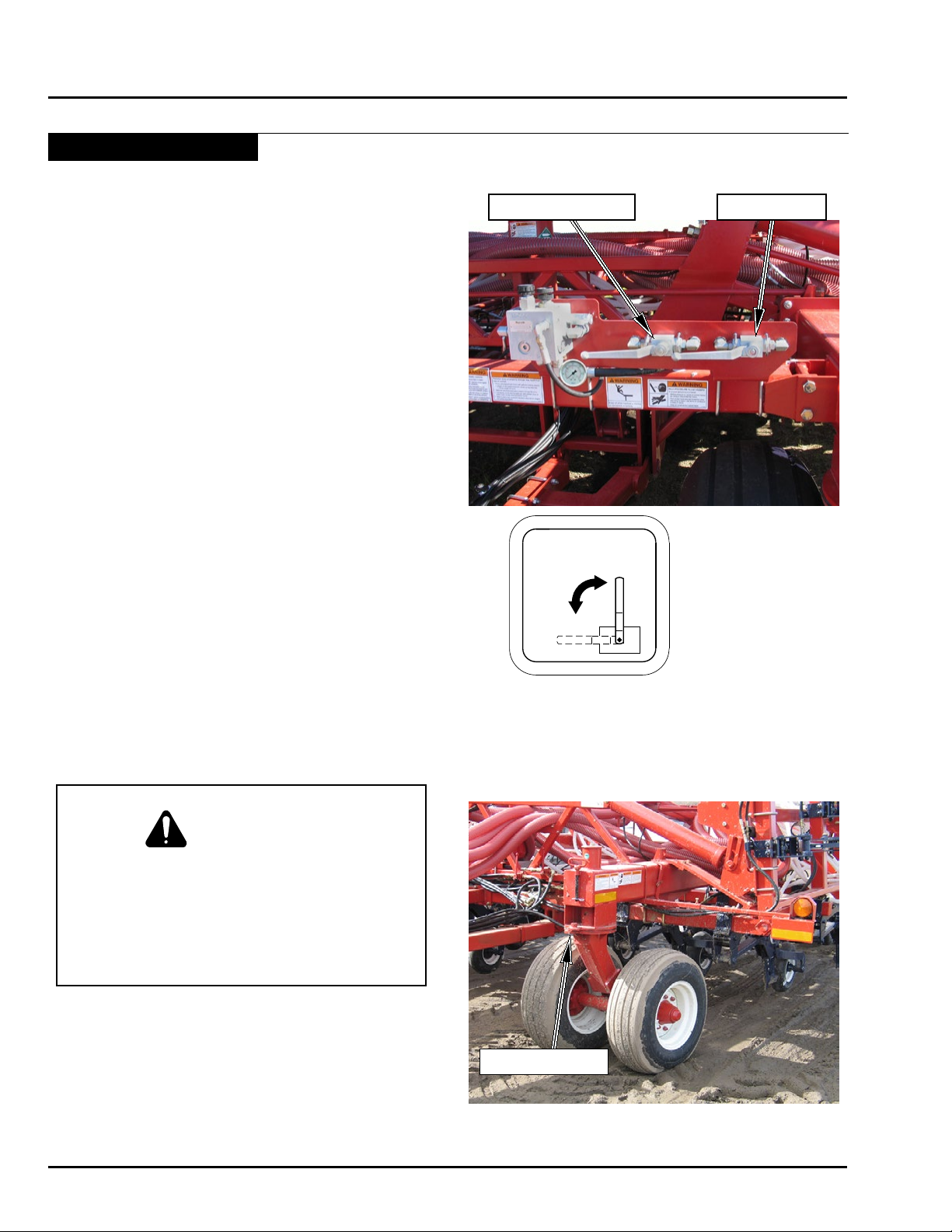

Transport to Field Position
• Position machine on level ground.
• Stop tractor, and engage park brake.
• As a precaution, check surrounding area to be sure
it is safe to lower wings.

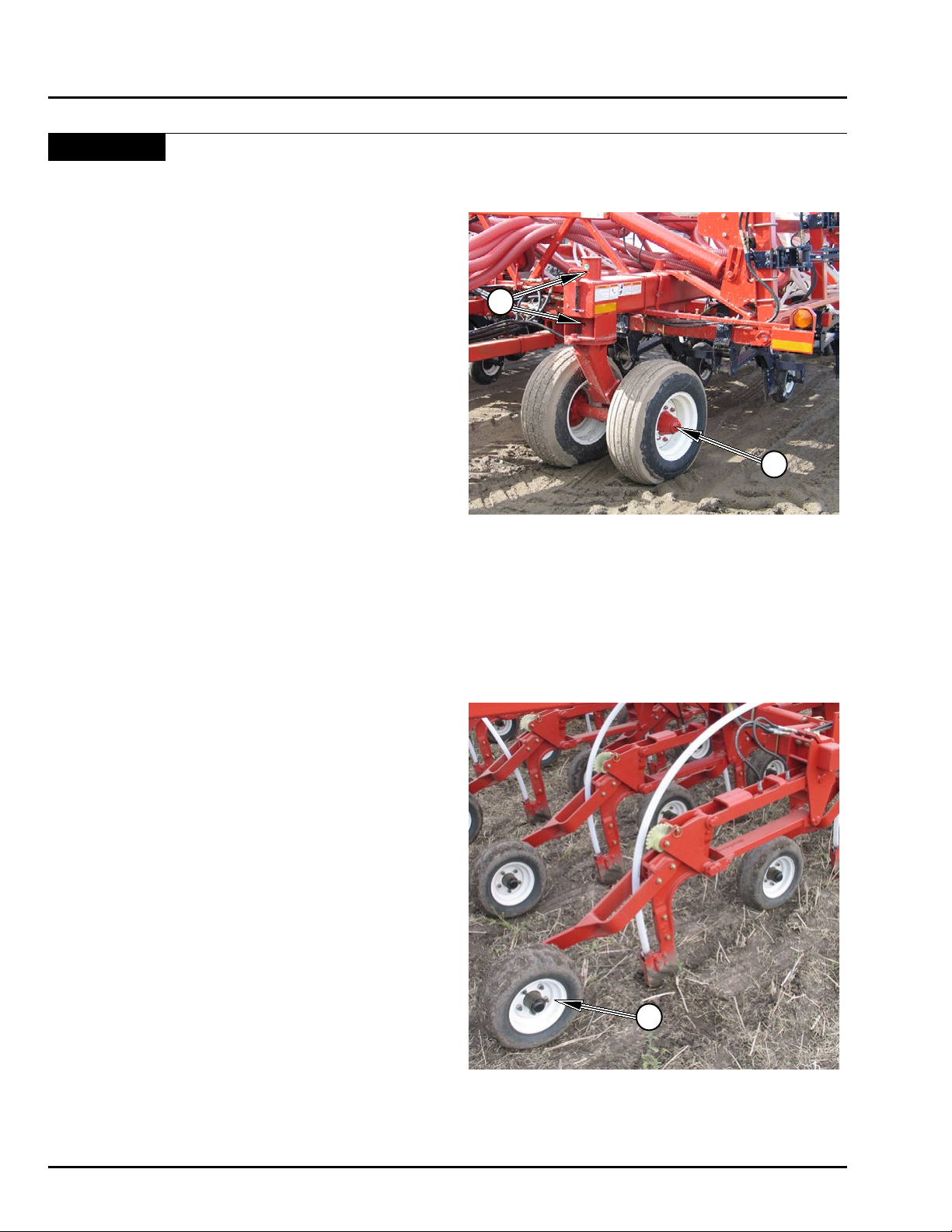

• Remove castor lock pin from main frame gauge
wheels.
• Unlock the wing valve and opener valve. Do not walk
under raised wings.
• Operate opener hydraulics, to ensure all openers are
retracted.
• Operate wing lift hydraulics until wings are lowered
and the cylinder shafts are completely extended to
allow wings to oat when working in uneven land.
Never raise or lower wings when moving.
Note: When raising or lowering wings, do so in one
continuous motion until fully up or down. Do
not stop ow part way allowing wings to fold
on their own. This may disrupt the sequence
of operation.

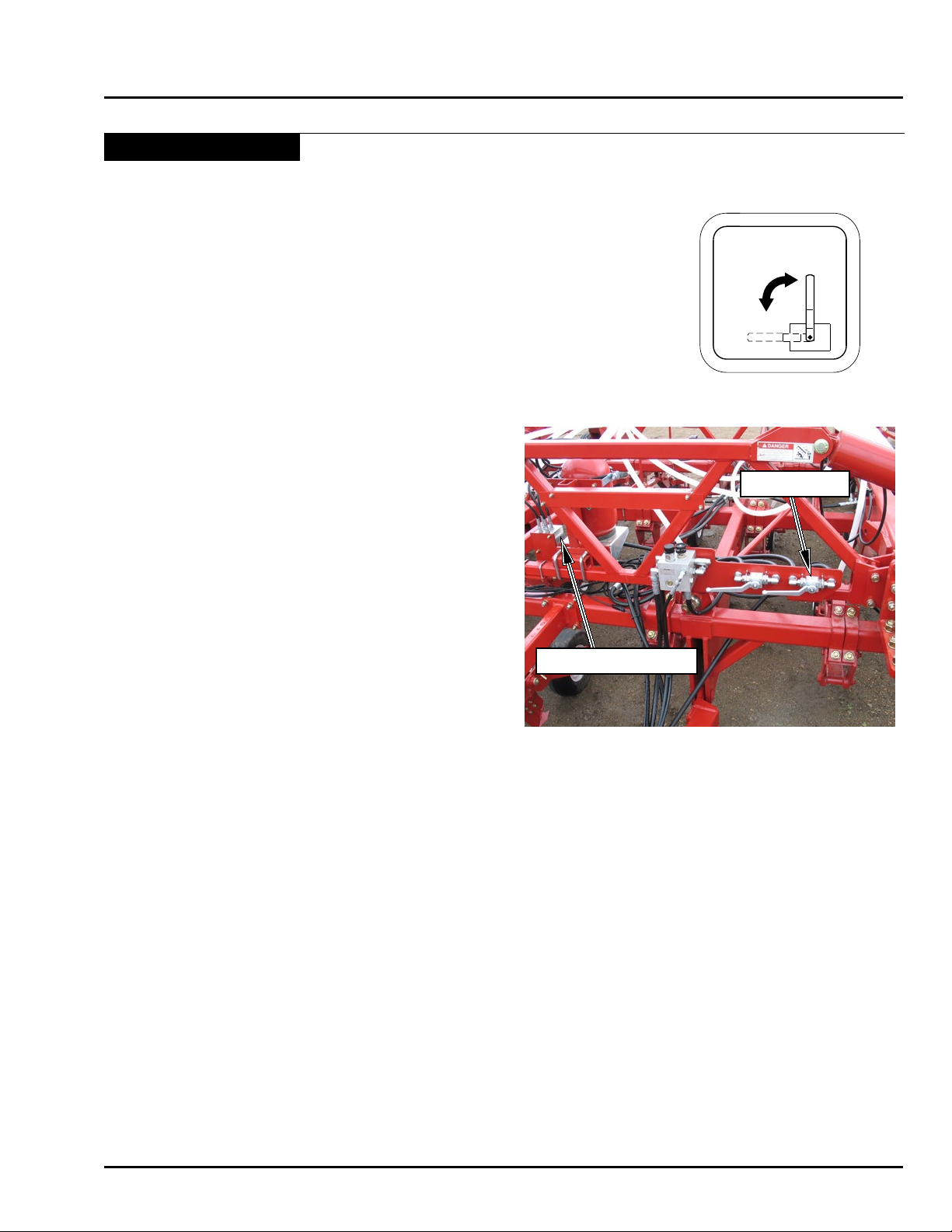

OPENERS VALVE
WINGS
LOCKED
UNLOCKED
WING VALVE
Danger
Always stay clear of wings being raised,
lowered or in elevated position. Ensure
cylinders are completely filled with hydraulic
fluid - wings may fall rapidly causing injury
or death.
S34428
DECAL - S34428
CASTOR LOCK
5-6 August 2014 C2 Contour Air Drill
Page 37
Transport - Continued
Operation

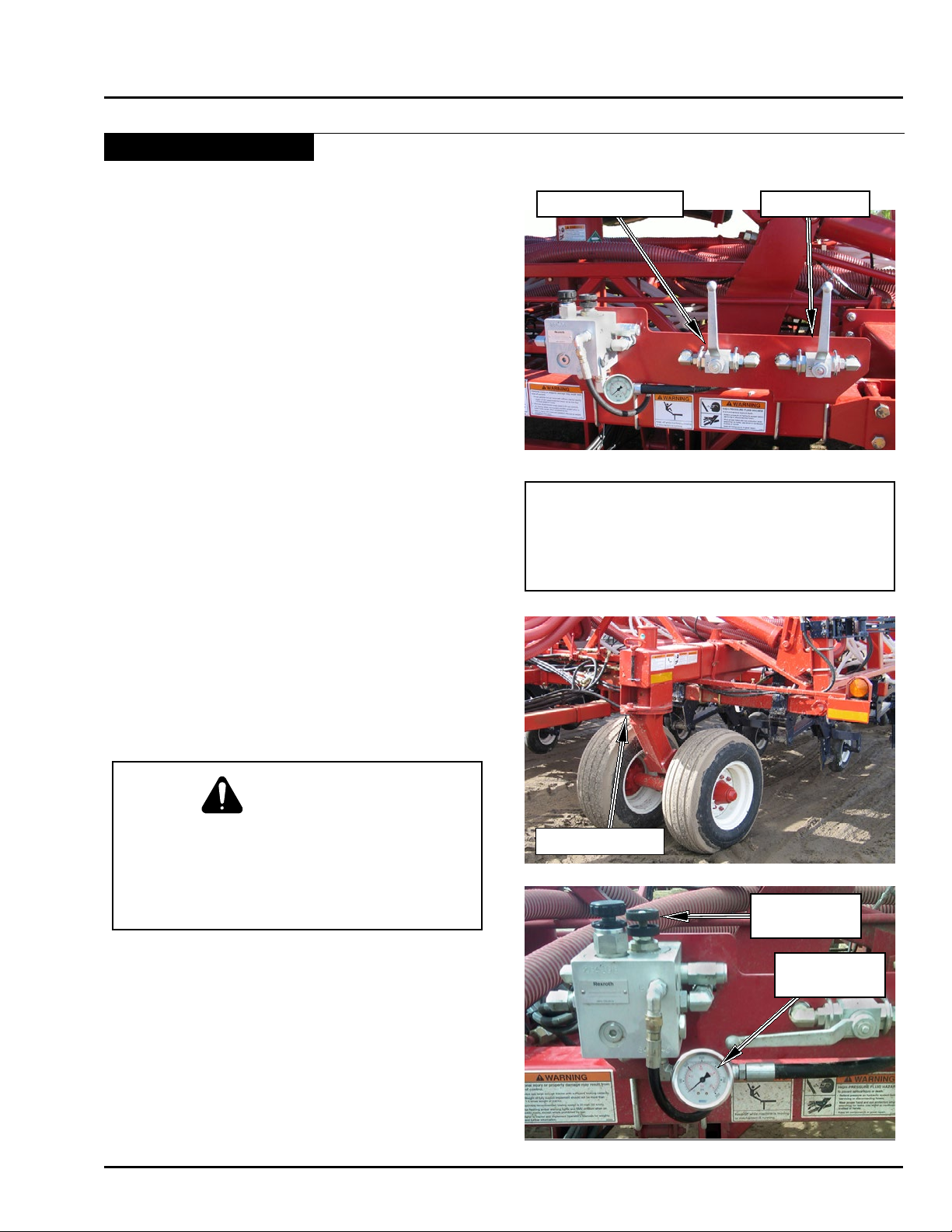

Field to Transport Position
• Position machine on level ground.
• Stop tractor, and engage park brake.
• Ensure wing lift cylinders are fully extended.
Note: The wing lift cylinders must be fully extended
to ensure proper operation of the flow
control valve (FCV) manifold.
• Operate the opener hydraulics, to raise the openers
fully.
• Operate the wing lift hydraulics, to raise the wings
fully into transport position. Never raise or lower
wings when moving.
Note: When raising or lowering wings, do so in one
continuous motion until fully up or down. Do
not stop ow part way allowing wings to fold
on their own. This may disrupt the sequence
of operation.
• Secure the main frame gauge wheel castors lock
pins. It is important to pin the castor wheels
to prevent excessive shimming of wheels at
transport speeds.
• Lock wing lift valve and opener valve. Do not walk
under raised wings.
• Ensure safety chain is properly installed, see
“Hitching to Tractor” of the Operation Section.
OPENERS VALVE WING VALVE
Important
Castor wheel lock pins must be removed for
90 degree turns.
Danger
Always stay clear of wings being raised,
lowered or in elevated position. Ensure
cylinders are completely filled with hydraulic
fluid - wings may fall rapidly causing injury
or death.
For long distance transport or storage bleed all pressure
from Opener hydraulic system:
• Operate the opener hydraulics, to raise the openers
fully.
• Screw “Operating” valve out to open position.
• Put tractor remote in “oat” position.
• Let openers drop and pressure go to 0 psi (or near
0 psi) on gauge.
• Lift openers to transport position and lock
“Openers” valve.
C2 Contour Air Drill August 2014 5-7
CASTOR LOCK
OPERATING
VALVE
ZERO
PRESSURE
Pressure Gauge
Page 38
Operation

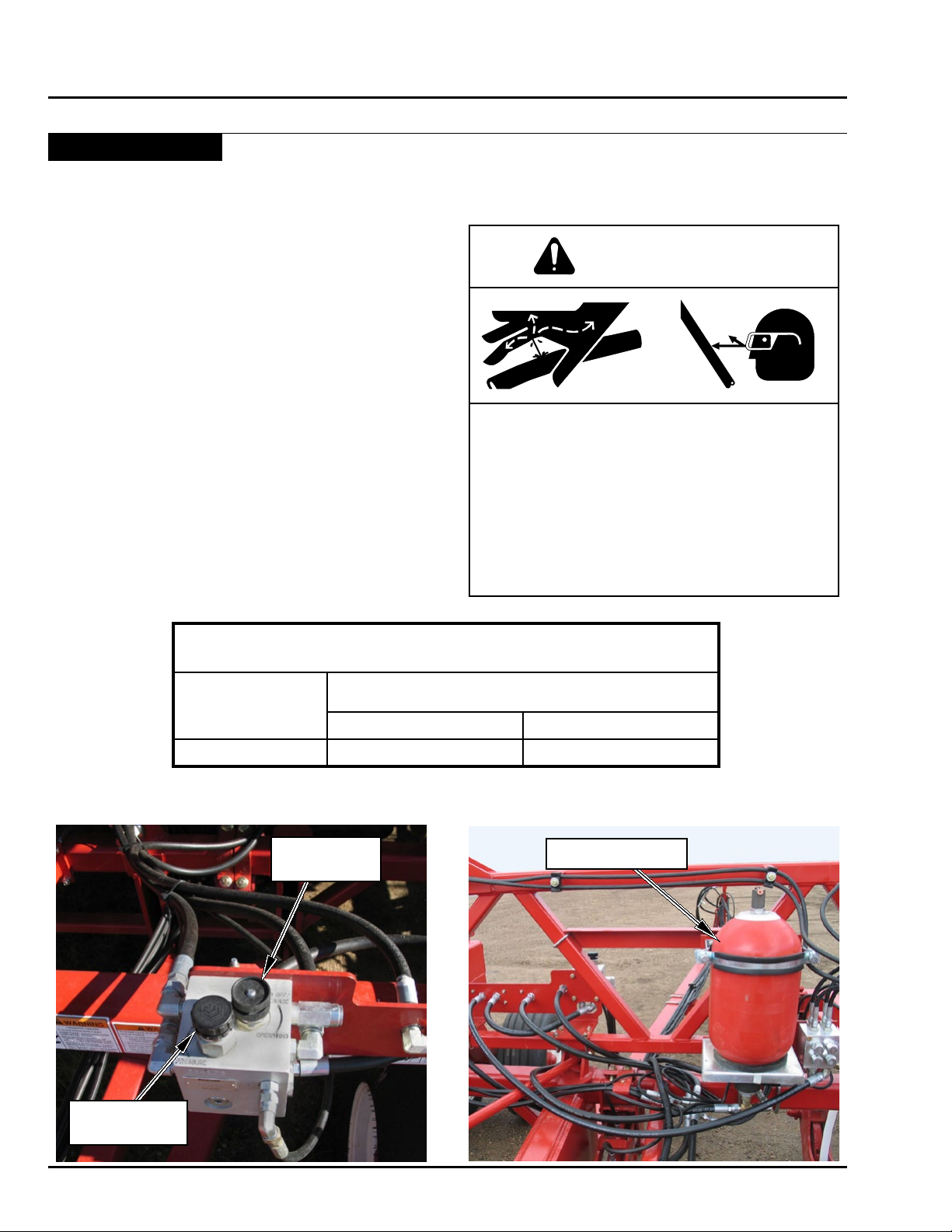

Opener Operation

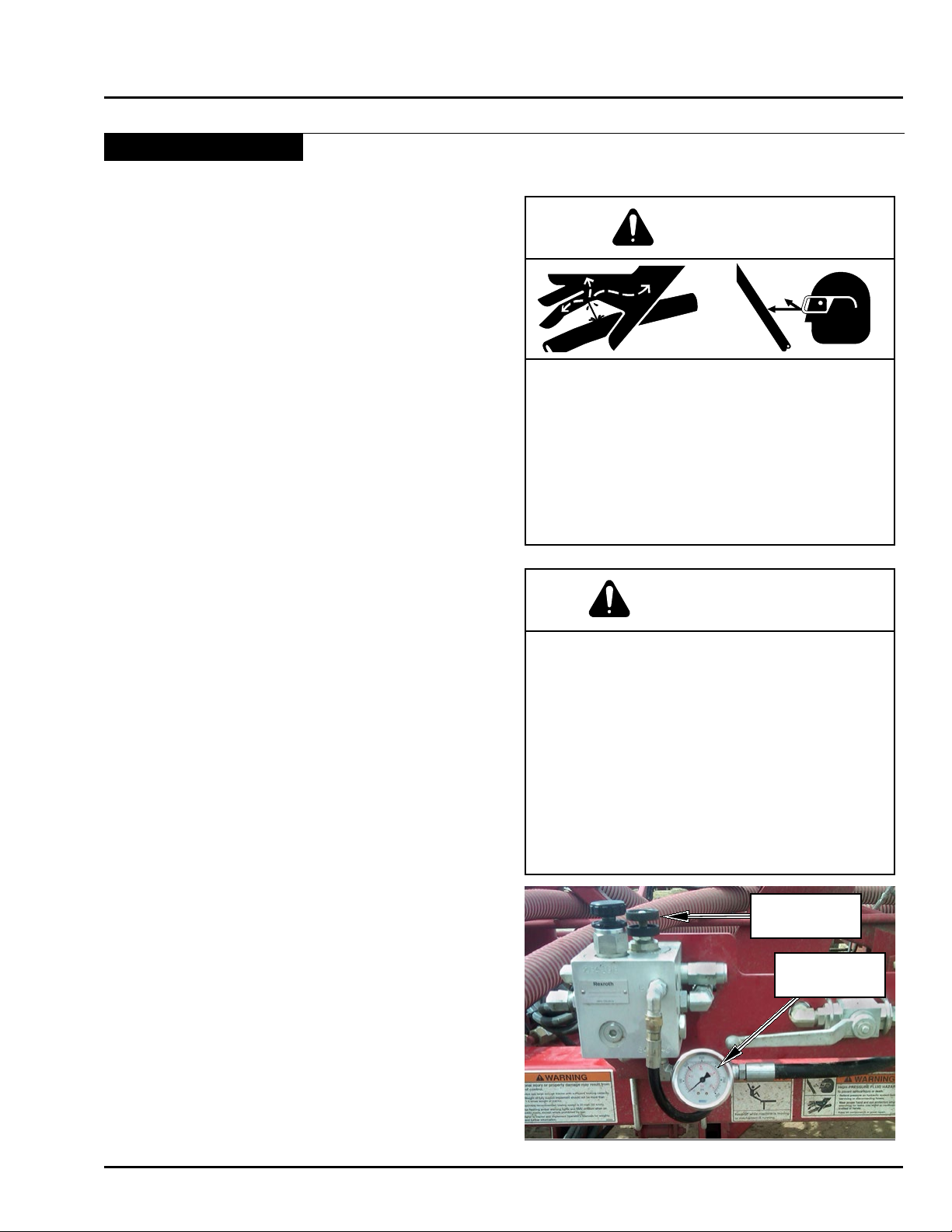

Accumulator System Operation and Pre-Charge Information
• Always turn “Operating” valve out to bleed off/service
position and relieve hydraulic pressure from the
system before performing maintenance or repairs.
Note: Accumulator can store pressure even when
disconnected from tractor.
• The gas bladder in the hydraulic accumulator should
be pre-charged with dry nitrogen gas before being
mounted on the unit.
• Different accumulator pre-charge pressures will allow
for different ranges of trip out force, as shown in the
chart.
• Pre-charge pressure should be set for the most
common working conditions.
• Lower pre-charge pressures with higher operating
pressures will give longer lifting and lowering times.
HIGH-PRESSURE FLUID HAZARD
To prevent serious injury or death:
• Relieve pressure on hydraulic system before
servicing or disconnecting hoses.
• Wear proper hand and eye protection when
searching for leaks. Use wood or cardboard
instead of hands.
• Keep all components in good repair.
Warning
Accumulator Operating Range
Nitrogen
Pre-charge
Pressure
350 psi (2413 kPa) 450 psi (3102 kPa) 1200 psi (8274 kPa)
* Maximum system hydraulic pressure is 1200 psi or 4 times the pre-charge
pressure, whichever is the lower number.
OPERATING
VALVE
Minimum Maximum
Display Pressure
ACCUMULATOR

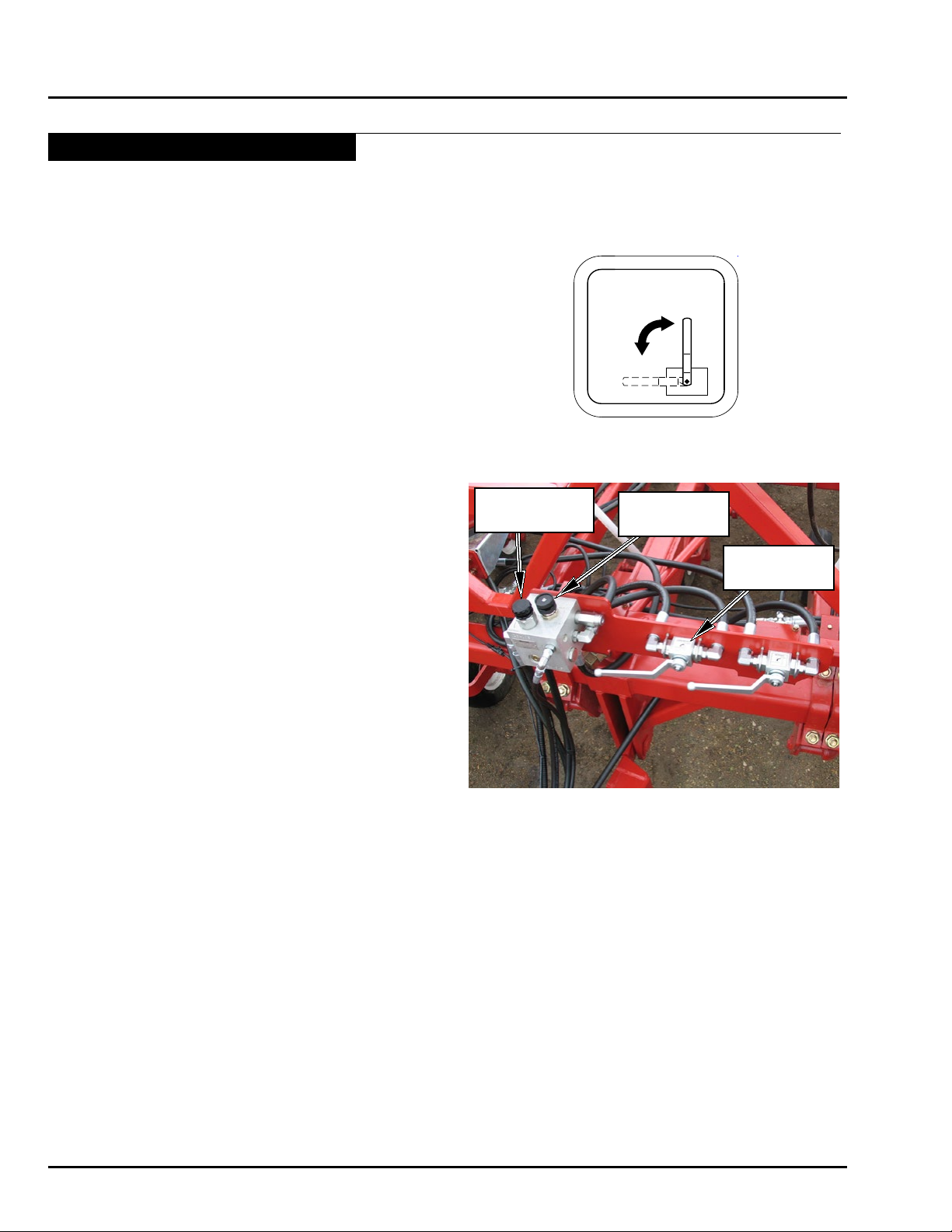

PRESSURE
ADJUSTMENT
5-8 August 2014 C2 Contour Air Drill
Page 39

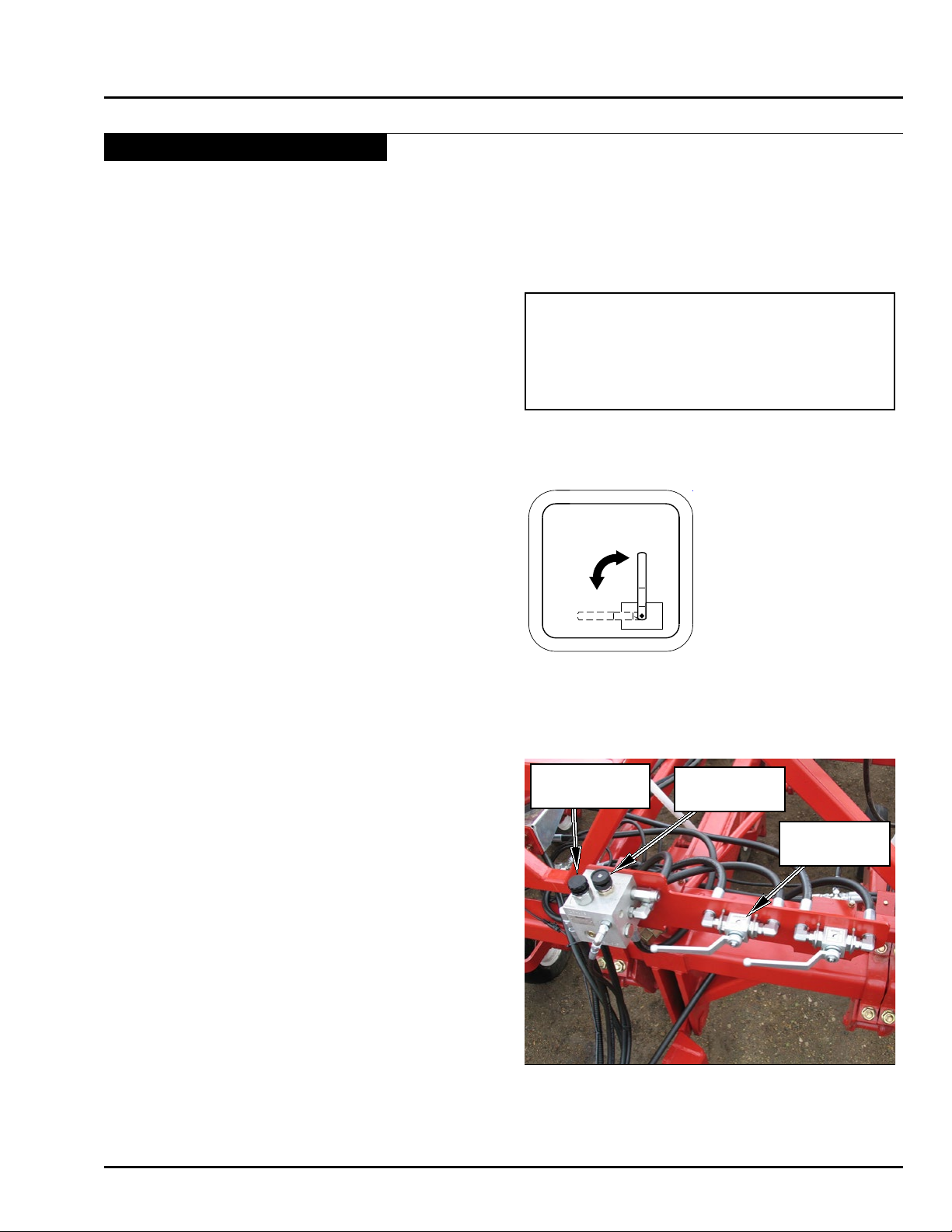

Opener Operation - Continued
S44355
UNLOCKED
OPENERS
LOCKED

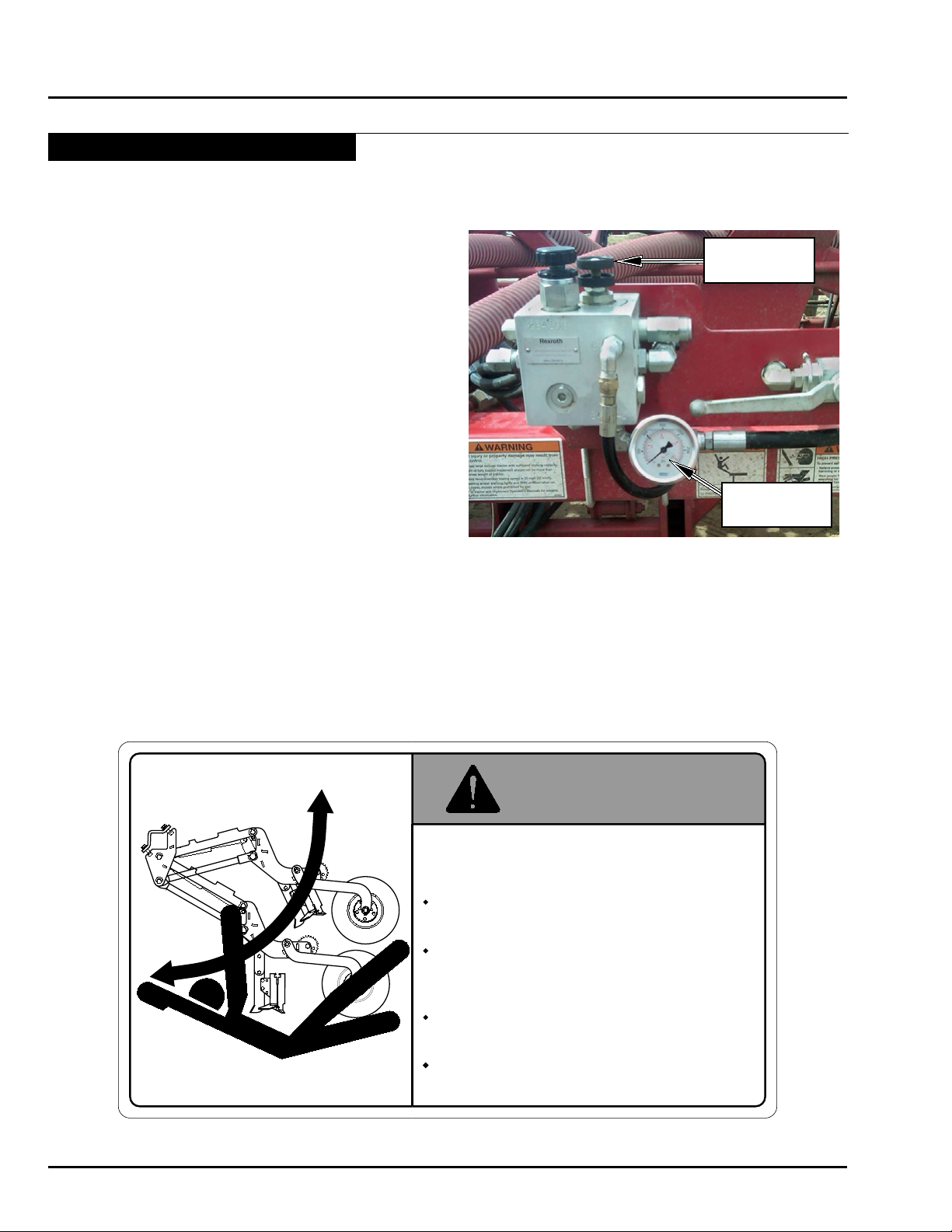

Setting Maximum System Pressure (Trip Out Force)
• To determine the approximate trip out force in pounds
on each shank, divide the system hydraulic pressure
in the circuit by 1.5.
For example: A system hydraulic pressure of 750 psi
(5171 kPa) would be approximately 500 lbs (227 Kg)
trip force at each shank.
Note: Due to the variation of friction effects, this
trip force is approximate.
• Maximum hydraulic operating pressure can be set
by dialing the reducing valve in to increase allowable
pressure, and dialing it out to decrease allowable
pressure. This adjustment is done in order to set
a maximum working pressure; pressure can be
decreased below the set point and increased back
up to the set point on the go from the tractor.
1. Ensure the “Operating” valve is set to operating
position and the “Openers” ball valve is set to
unlocked position to allow ow.
2. Begin by dialing the adjustment all the way out on
the “Pressure” valve.
3. Dial the “Pressure” valve setting in 1 full turn.
4. Operate the tractor remote to pressurize the
accumulator circuit. Once the pressure has
stopped climbing check the system pressure on
the gauge.
Do not exceed 4 times the nitrogen pre-charge
pressure or 1200 psi, whichever is the lower
number.
DECAL - S44355
Operation
Important
Note: Set “Pressure” valve pressure 100 - 150
Note : Operate system at the lowest system pressure
C2 Contour Air Drill August 2014 5-9
psi above the desired working pressure
in order to allow for pressure drop from
accumulator cooling and valve hysteresis.
System pressure will level off and hold after
approximately 1 minute.
5. If the pressure in the system is high enough
to achieve the desired trip out force, setting is
complete. If the pressure is too low, relieve the
circuit pressure using the tractor remote and
repeat steps 3 and 4 until the desired pressure is
achieved.
6. If the system pressure is too high, relieve the circuit
pressure using the tractor remote, and then dial
the “Pressure” valve adjustment out incrementally.
Repeat step 4 until the desired system pressure
has been reached.
that will keep shanks locked vertical during
seeding and provide adequate packing
pressure. Excessive hydraulic pressure may
disturb rocks and damage carbides.
PRESSURE
ADJUSTMENT
OPERATING
VALVE
OPENERS
BALL VALVE
Valve Locations
Page 40
Operation
S44355
UNLOCKED
OPENERS
LOCKED
Opener Operation - Continued
Relieve System Pressure
To bleed all pressure from Opener hydraulic system:
• Open “Operating” valve to service/bleed-off
position.
• Lift openers to transport position.
• Put tractor remote in “oat” position.
• Let openers drop and pressure go to 0 psi (or near
0 psi) on gauge.
• Lift openers to transport position and lock
“Openers” valve.
Normal Operation
• Set operating pressure as described under “Setting
Maximum System Pressure”.
• Ensure the “Operating” valve is turned in to operating
position and the “Openers” ball valve is set to
unlocked position to allow oil ow.
• With the Contour Air Drill moving forward, lower
openers into the ground. Hold tractor hydraulic
lever until the maximum preset operating pressure is
reached (see “Setting Maximum System Pressure”).
This ensures that all of the openers are fully charged
and engaged.
• When turning at head land, the openers do not need
to be completely cycled from working to fully lifted
position. The openers can be lifted just to the point
that they do not contact the ground. This will reduce
the time required to fully recharge the hydraulic
accumulator to the preset operating pressure.
• Avoid sharp turns with drill in ground. Turns sharp
enough to cause the inside openers of the air drill
to reverse direction may cause openers to plug.
PRESSURE
ADJUSTMENT
OPERATING
VALVE
PRESSURE
GAUGE
DECAL - S44355
OPERATING
VALVE
OPENERS
BALL VALVE
Valve Locations
Note: Under “Normal Operation” the valve block
will maintain the set system pressure in the
accumulator when openers are raised.
5-10 August 2014 C2 Contour Air Drill
PRESSURE
GAUGE
Page 41
Opener Operation - Continued
Pressure Adjustment (On the go)
Pressure can be changed on the go to adjust for variable
eld conditions by using the tractor remote.
In order to lower the accumulator pressure on the go,
the “Operating” valve must be turned out to the bleedoff/service position.
Note: Operating pressure may drop more than
the 100 psi (689 kPa) described under
“Setting Maximum System Pressure” when
the “Operating” valve is set to the bleedoff/service position. This is dependant on
tractor valve leakage.
• Screw “Operating” valve out to open position for “on
the go” pressure adjustment.
Operate the openers as usual:
• With the Contour Air Drill moving forward, lower
openers into the ground. Hold tractor hydraulic
lever until the maximum preset operating pressure is
reached (see “Setting Maximum System Pressure”).
This ensures that all of the openers are fully charged
and engaged.
Operation
Important
The “Operating” valve must be set to the
“Bleed Off / Service” Position in order to lower
accumulator pressure with openers in operating
position.
OPERATING
VALVE
To reduce operating pressure on the go:
• Place tractor hydraulic lever into “Float Position” until
pressure drops to desired operating point.
• Release hydraulic lever once desired pressure is
reached.
Note: If pressure drops too rapidly when tractor
remote is put into oat, the “Operating” valve
can be turned in a few turns to reduce bleedoff speed.
To increase operating pressure:
• Operate tractor hydraulic lever to increase pressure
to desired operating point.
PRESSURE
ADJUSTMENT
PRESSURE
GAUGE
C2 Contour Air Drill August 2014 5-11
Page 42
Operation
S44355
UNLOCKED
OPENERS
LOCKED
CRUSHING HAZARD
S44446
Before servicing hydraulics - Place
STAND CLEAR - openers move rapidly
To prevent serious injury or death:
under hydraulic pressure.
WARNING
"System" valve in service position and
relieve pressure from hydraulic system.
Shut tractor off and remove key before
servicing or adjusting depth.
Place "Openers" valve in locked position
before adjusting depth or transporting.
Depth Adjustment
To adjust seed depth:
• Lift openers to raised position (allow pressure gauge
to reach zero).
• Shut tractor off and remove key.
• Ensure tractor park brake is engaged before
proceeding.
• Place “Openers” ball valve into locked position to
prevent accidental oil ow to openers.
PRESSURE
ADJUSTMENT
OPERATING
VALVE
OPENERS
BALL VALVE
Valve Locations
5-12 August 2014 C2 Contour Air Drill
Page 43

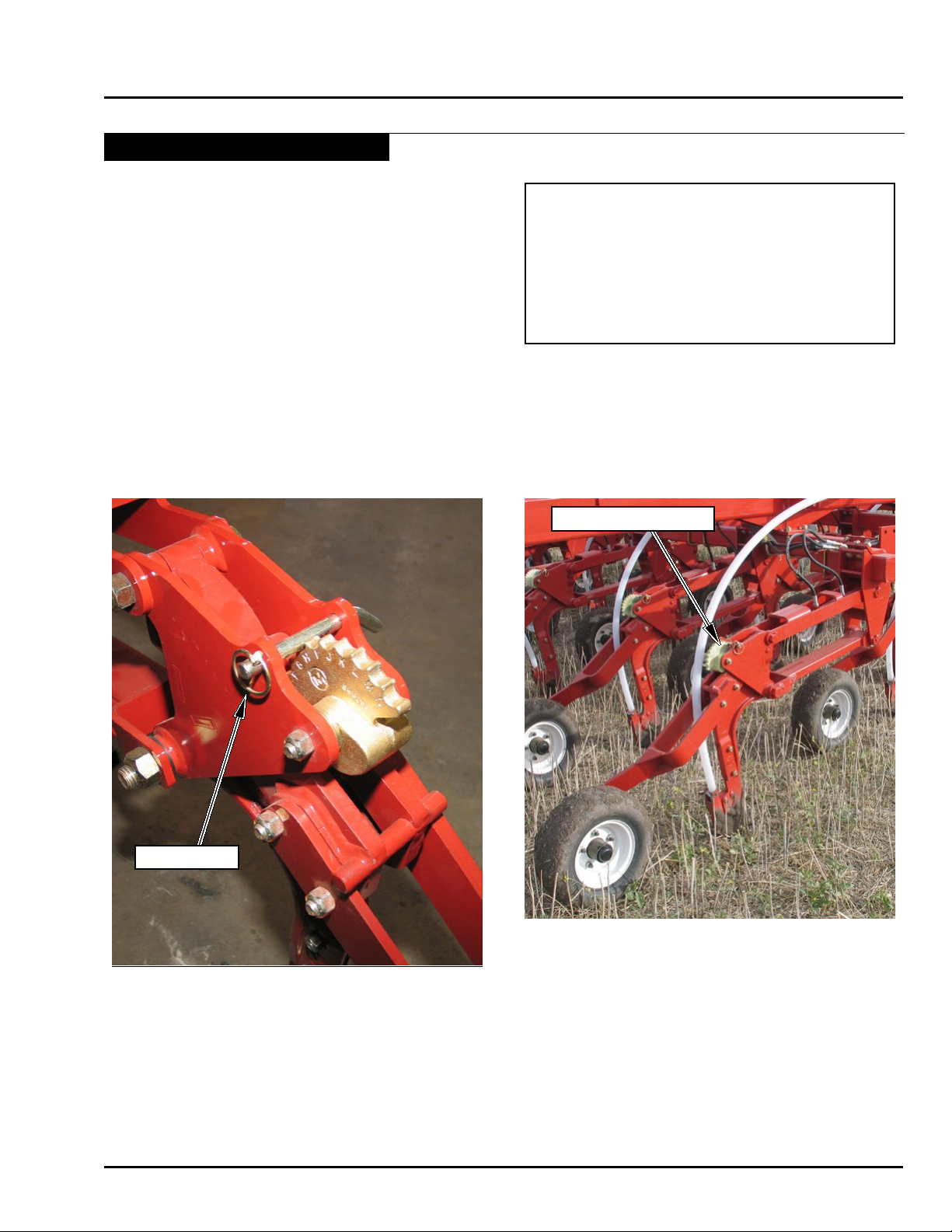

Depth Adjustment - Continued
• Remove lynch pin from 1/2” diameter depth pin.
• Remove depth pin.
• Rotate depth cam to desired lettered setting (“A” is
the shallowest postition). Each increment changes
the depth a 1/4” (6.4 mm).
• Reinstall 1/2” pin and lynch pin noting letter position
before adjusting other openers.
Note: For ease of adjustment, adjust a few openers
across the drill to conrm desired seeding
depth before adjusting the remaining
openers.
• Move the “Openers” ball valve to the unlocked
position before using drill.
Operation
Important
Pneumatic Tires Only.
Keep opener tires air pressure at the listed
specifications to achieve and maintain proper
seed depth.
ADJUSTMENT CAM
LYNCH PIN
Adjustment Cam
C2 Contour Air Drill August 2014 5-13
Page 44
Operation

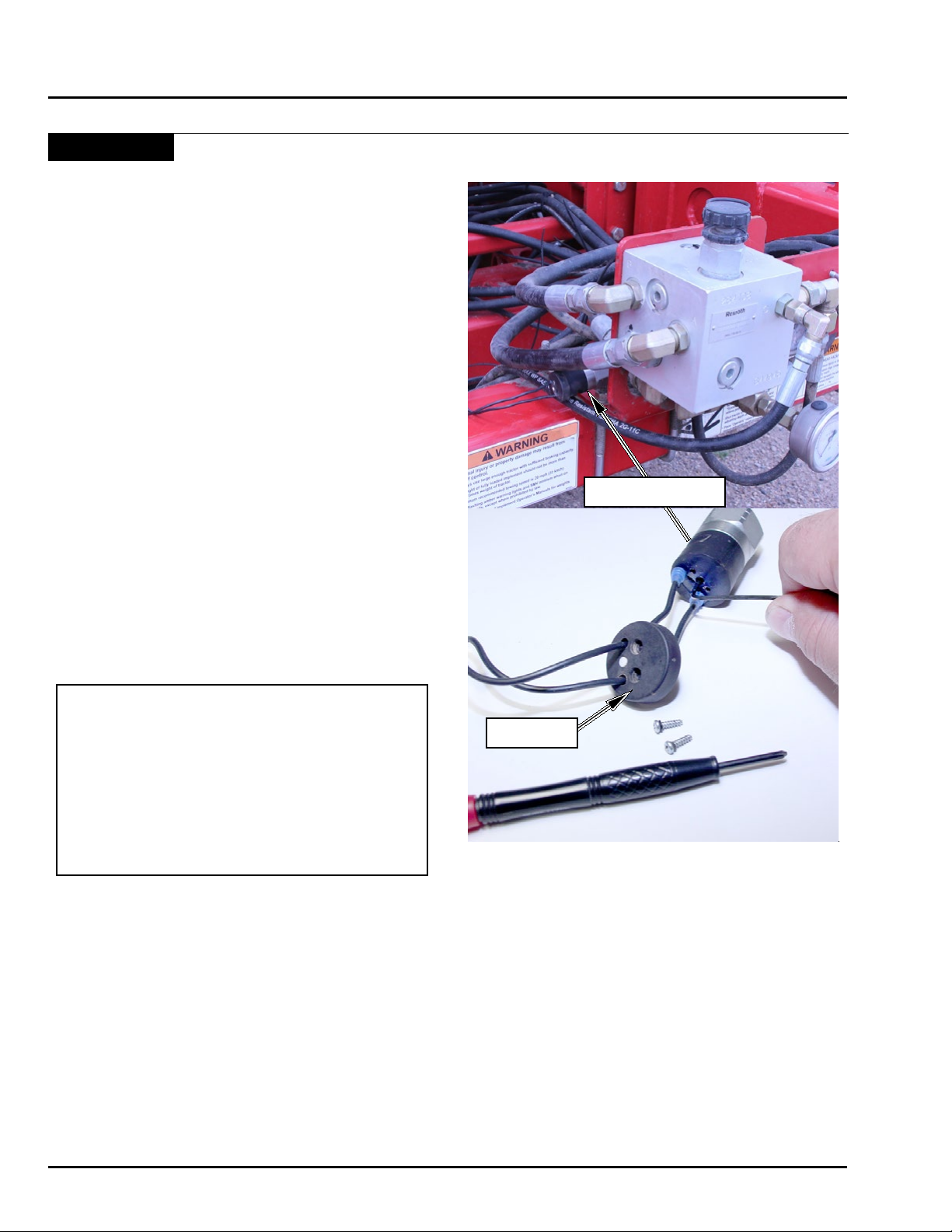

Work Switch
(Optional equipment)
The pressure work switch activates the Air Cart Metering
system by the hydraulic pressure on the opener lift side.
When the openers are raised the switch opens at a
pre-set pressure turning off the Air Cart metering and
when lowered the switch closes at the pre-set pressure
to turn on the metering.
The pre-set Factory set point meets most operators’
preference. If the turn ON and OFF time needs to be
adjusted follow the procedure below:
• Remove cover from back of switch.
• Insert a 3/32” allen wrench into the adjustment screw
opening. Turn the screw clockwise to increase the
set point or counter clockwise to decrease.
- Increasing set point will cause the metering system
to turn ON quicker. This will also cause the
metering system to turn OFF later.
- Decreasing set point will cause the metering
system to turn ON later. This will also cause the
metering system to turn OFF quicker.
WORK SWITCH
Important
COVER
Ensure metering clutch is turned OFF when
moving unit to prevent damage to metering
wheels in the event pressure switch is in ON
position.
Adjustment Screw
5-14 August 2014 C2 Contour Air Drill
Page 45
General Guidelines
The results obtained from the Morris Contour Drill are
directly related to the depth uniformity of the unit. Worn
points, uneven tire pressures, and bent shanks must be
avoided to obtain optimum eld results.
• Operating depth should be uniform at all opener
locations, when spot checking the implement in the
eld.
• Check openers running in tractor or air cart tracks
and adjust depth accordingly.
• Repair or replace bent shanks. Bent shanks cause
openers to work at uneven depths and can cause
unnecessary ridging. See Maintenance Section.
• Keep tire pressure at the listed specications to
maintain proper level. See Maintenance Section.
• Have Air Drill moving forward before lowering into
ground to avoid plugging openers.
• Avoid sharp turns. Turns sharp enough to cause
the inside openers of the air drill to reverse direction
are not recommended. This may cause the seed
openers to plug.
Operation
TAKE SAFETY SERIOUSLY.
Do Not Take Needless Chances!
Caution
Care should be taken when
working near the air cart
while the fan is running.
Product blowing out of
the system could cause
personal injury.
C2 Contour Air Drill August 2014 5-15
Page 46
Operation
Quick Tips
Note: Read the Operator’s Manual for detailed
operating and adjustment instructions.
Shank Trip Force
Shank trip force (lbs) is calculated by dividing the display
pressure by 1.5 (ex. 750 psi display pressure = 500 lbs
shank trip force). Shank trip out pressure is generally
set at the minimum pressure that keeps the shanks
solid in the vertical position and prevents them from
repeatedly “tripping out”, while still providing adequate
packing. Maximum recommended shank trip out
pressure is 1200 psi.
Packing Force
Packing force is proportional to shank trip out force
and is roughly 1/3 of the shank trip force (ex. 500 lbs
shank trip force would give approximately 167 lbs of
packing force).
Hydraulic System
The Contour Air Drill uses a passive hydraulic system
(no constant ow is needed from the tractor during
seeding). Maximum operating pressure is set using
the reducing valve on the frame (see “Setting Maximum
System Pressure”). Pressure can be changed on the
go to adjust for variable eld conditions by using the
tractor remote (see “Pressure Adjustment”). If full range
adjustment of pressure is desired, the reducing valve
can be set at its maximum pressure and the operator
can then adjust pressure manually by watching the
pressure display and opener shanks.
Note: It is normal for the pressure to drop 100 to
150 psi from the initial set point while the
accumulator cools (the reducing valve can be
set higher to account for this initial pressure
drop). If the pressure continues to drop
quickly, check the machine for a cylinder,
fitting, or hydraulic line leak.
PRESSURE
GAUGE
PRESSURE
ADJUSTMENT
OPERATING
VALVE
OPENERS
BALL VALVE
Valve Locations
Lifting and Lowering the Openers
The openers do not need to be completely cycled from
working to fully lifted position while turning. Openers
can be lifted just to the point that they do not contact
the ground while turning, in order to save time by not
having to fully recharge the hydraulic accumulator with
uid each cycle (the display pressure won’t drop all the
way to zero). When transporting the drill, lift the openers
and ensure that the display pressure goes down to zero.
5-16 August 2014 C2 Contour Air Drill
Page 47

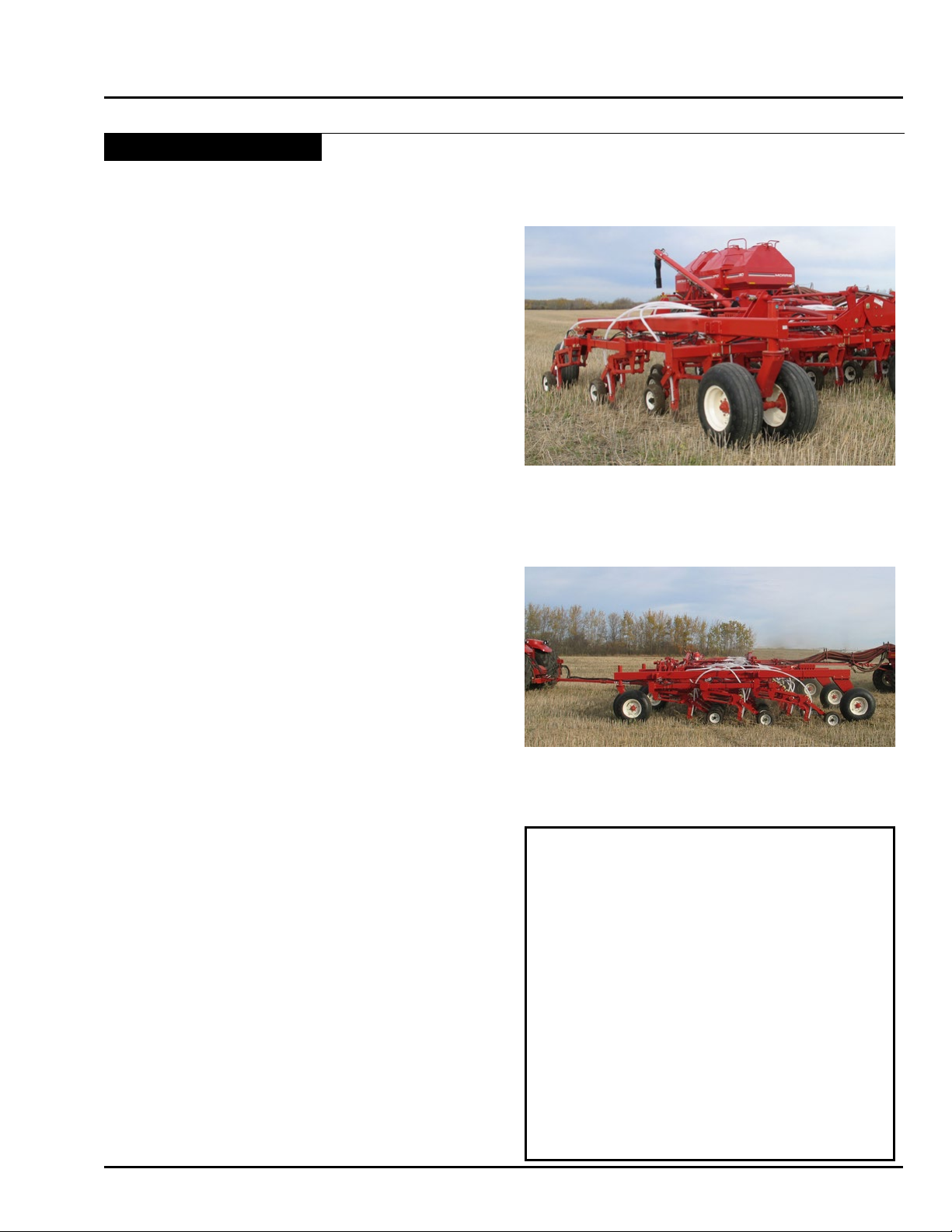

Quick Tips - Continued
Setting the Seed Depth
Seed depth is measured from the packed soil surface to
the seed. Set the seed depth on the drill by setting a few
openers across the drill to different depths and seeding
a test patch. Always seed the test patch at the same
ground speed and opener pressure that you intend to
maintain during regular seeding conditions. Then check
the seed depth of these openers, pick the depth setting
that you prefer, and set all openers to the desired letter
setting on the depth adjustment cam. The openers
perform best while seeding from 1/2” (13mm) to 1-1/2”
(38 mm) seed depth, but each customer is responsible
for choosing their own depth setting according to their
preferences and experience. Each adjustment notch
on the adjustment cam is 1/4” (6.4 mm) adjustment.
Shallow depth settings can be consistently maintained
with the Contour Air Drill system.
Note: Be sure to check tractor and/or air cart tracks
to see if the added soil compaction has
affected the seed depth; the independent
openers can be adjusted separately to
compensate for wheel tracks.
Operation
Seeding Conditions
The Contour Air Drill is meant to be used as a minimum
to no-till seeding system and care should be taken
when attempting to seed into loose or pre-worked soil
conditions. Shallow seeding depth, reducing operating
speed and operating pressure may help reduce soil
throw and ridging in soft conditions.
Note: Soil throw onto adjacent seed rows also
occurs on conventional air drills with gang
style packers, but is less visible because the
gang packers pack all rows simultaneously
at the back of the drill.
Straw Management
Successful seeding starts at harvest. The height of the
straw should not exceed the row spacing of the seeding
unit. The combine should chop the straw and spread the
straw and chaff evenly across the entire swath width. A
heavy harrow may also be required to spread and break
down the straw after the eld has been harvested. If
the straw height does exceed the row spacing a mower
should be used to shorten the straw length.
IMPORTANT
The Paired Row Opener with the NH3 adapter
is intended to allow the operator the flexibility to
switch between granular fertilizer and NH3 without
having to change openers. The opener is not
intended to apply granular fertilizer and NH3 in
the same operation. Excessive gassing off of the
NH3 will occur in such an operation. Producers
are still able to place starter fertilizer with the seed.
Morris Industries shall have no obligation or
liability of any kind on account of the end-user
incorrectly using this opener.
C2 Contour Air Drill August 2014 5-17
Page 48
Operation
Quick Tips - Continued
Air Drill Frame
The Contour Air Drill frame is a simple slab frame
system, designed to let the parallel link openers do
the work of depth control and leveling during seeding.
No leveling of the frame is required. During normal
operation of the drill there will be very little weight on the
rear tires of the frame. The rear tires may even leave
the ground while traveling through sharp gullies; this is
normal, and it will not affect the seed depth control of
the openers. If the tires are lifted in the air consistently,
optional weight kits can be applied to the depth beams
near the rear axles.
Weight Kit
Normal Frame Angle
Trouble Shooting Guide
*Note: The “Operating” valve must be turned out to
the bleed-off/service position and remove
all pressure from hydraulic systems before
attempting any service work on hydraulic
components.
Hydraulic system must be bled after it has been
serviced (if any portion of the system has been opened
to atmosphere). See “Bleeding Hydraulic System” in
Maintenance Section.
5-18 August 2014 C2 Contour Air Drill
ACCUMULATOR
Page 49
Wing Lift Hydraulics
The wing lift hydraulic system is controlled by a
parallel hydraulic system. A pressure compensated
Flow Control Valve is used to control the ow of oil to
the cylinders allowing both wings to fold and unfold
simultaneously. A hydraulic circuit Shut Off valve is used
to lock the hydraulic circuit and prevent any leak back,
this ensures the wings remain in transport.
Operation
WINGS
LOCKED
The Flow Control Valve is located on the main frame
and there are no adjustments associated with the valve.
The Shut Off valve is located on the front wing lift truss
for easy access.
To unfold the Air Drill, the oil ows to the Flow Control
Valve, from there to the butt end of all the wing lift
cylinders extending the shafts and lowering the wings.
All cylinders must be fully extended to ensure correct
operation of the machine.
Placing the unit into transport is the reverse of unfolding
the unit. Oil is fed to the shaft end of the cylinders
retracting the cylinders and lifting the wings into
transport position.
Note: When raising or lowering wings, do so in one
continuous motion until fully up or down. Do
not stop ow part way allowing wings to fold
on their own. This may disrupt the sequence
of operation.
UNLOCKED
S34428
DECAL - S34428
WING VALVE
Flow Control Valve
C2 Contour Air Drill August 2014 5-19
Page 50
Operation
Wing Lift Hydraulics - Continued
Three Frame Models
Five Frame Models
5-20 August 2014 C2 Contour Air Drill
Page 51
Operation
Opener Hydraulics
The Contour openers can be operated using two methods as described in the operators manual as Normal Operation
and Pressure Adjustment (On the go).
The following is the oil ow for both operating types and can be used for problem diagnosis.
Normal Operation
The opener ball valve is in the unlocked position. This ball valve is open. The operation valve is screwed in fully to
the operating position. This needle valve is closed.
To lower the openers, oil ows through the hose to port “A” of valve block. The oil is allowed to ow simultaneously
through ports “D” and “F”. Port “F” charges up the accumulator to operating pressure set by the pressure valve. Port
“D” charges the butt end of the opener cylinders causing the openers to lower.
Once the operating pressure is reached the oil will stop owing.
From port “A” of valve block, oil ows through the pressure reducing valve, to the pilot operated check valve unseating
the check valve and out of Port “D” to the butt end of the opener cylinders causing the openers to lower. Simultaneously,
oil ows from the check valve through the directional lock out valve and out of Port “F” to the accumulator.
When all of the opener cylinders are extended to working position, the hydraulic pressure
continues to build in the accumulator, hydraulic lines, cylinders and at the reducing valve.
When the pressure has risen to what the reducing valve has been set to the reducing
valve closes, preventing a further increase in pressure.
When the hydraulic ow to the pilot operated check valve is stopped, the check valve
seats, holding the pressure in the opener circuit.
The oil returning from the gland side of the
cylinders ows to the opener ball valve into
port “E” of the valve block and out of port “B”
back to the tractor.
C2 Contour Air Drill August 2014 5-21
Page 52
Operation
Opener Hydraulics - Continued
Normal Operation - Continued
To raise the openers, oil ows from the tractor hose to port “B” of the valve block and out of port “E” to the opener
valve and on to the gland side of the cylinders. Oil is also felt on the line that operates the pilot operated check valve.
This causes the check valve to open and allow return oil back to the tractor.
Oil from the butt side of the cylinders travels to port “D” and through the opened pilot operated check valve to the
pressure relief valve. Oil can not go through the relief valve in this direction and is directed to the one way check
valve. The oil then travels through the one way check valve to port “A” of the valve block.
The oil ows through the port “A” of the valve block and back to the tractor.
Oil is also felt on the line that operates the directional lock out valve. This causes the directional lock out valve to
close preventing the oil in the accumulator from returning back to the tractor. The directional lock out valve maintains
the pressure in the accumulator in this position.
5-22 August 2014 C2 Contour Air Drill
Page 53
Operation
Opener Hydraulics - Continued
Pressure Adjustment (On the Go)
The opener ball valve is in the unlocked position. This ball valve is open. The operation valve is screwed out fully
to the service/bleed-off position. This needle valve is open.
To lower the openers, oil ows through the hose to port “A” of valve block. The oil is allowed to ow simultaneously
through ports “D” and “F”. Port “F” charges up the accumulator to operating pressure set by the pressure valve. Port
“D” charges the butt end of the opener cylinders causing the openers to lower.
Once the operating pressure is reached the oil will stop owing.
From port “A” of valve block, oil ows through the pressure reducing valve, to the pilot operated check valve unseating
the check valve and out of Port “D” to the butt end of the opener cylinders causing the openers to lower. Simultaneously,
oil ows from the check valve through the directional lock out valve and out of Port “F” to the accumulator.
When all of the opener cylinders are extended to working position, the hydraulic pressure continues to build in the
accumulator, hydraulic lines, cylinders and at the reducing valve. When the pressure has risen to what the reducing
valve has been set to the reducing valve closes, preventing a further increase in pressure.
When the hydraulic ow to the pilot operated check valve is stopped, the check valve seats,
holding the pressure in the opener circuit.
The oil returning from the gland side of the cylinders ows to the opener ball valve into
port “E” of the valve block and out of port “B” back to the tractor.
Note: If the tractor valve has leakage the system pressure will continue to drop
during operation.
C2 Contour Air Drill August 2014 5-23
Page 54
Operation
Opener Hydraulics - Continued
Pressure Adjustment (On the Go) - Continued
To raise the openers, oil ows from the tractor hose to port “B” of the valve block and out of port “E” to the opener
valve and on to the gland side of the cylinders. Oil is also felt on the line that operates the pilot operated check valve.
This causes the check valve to open and allow return oil back to the tractor.
Oil from the butt side of the cylinders travels to port “D” and through the opened pilot operated check valve to the
pressure reducing valve. Oil can not go through the reducing valve in this direction and is directed to the one way
check valve. The oil then travels through the one way check valve to port “A” of the valve block.
The oil ows through the port “A” of the valve block and back to the tractor.
Oil is also felt on the line that operates the directional lock out valve. This causes the directional lock out valve to
close preventing the oil in the accumulator from returning back to the tractor. The directional lock out valve maintains
the pressure in the accumulator in this position.
5-24 August 2014 C2 Contour Air Drill
Page 55
Operation
Opener Hydraulics - Continued
Pressure Adjustment (On the Go) - Continued
Pressure adjustment on the go, requires input from the operator to function.
The operator will have selected the operation valve to be in the bleed off/service position.
The adjustable reducing valve (Pressure Valve) will be set to provide correct trip and packing pressure.
With the Contour Air Drill moving forward, lower openers into the ground. Hold tractor hydraulic lever until the maximum
preset operating pressure is reached. This ensures that all of the openers are fully charged and engaged. To reduce
operating pressure on the go:
• Place tractor hydraulic lever into “Float Position” until pressure drops to desired operating point.
• Release hydraulic lever once desired pressure is reached.
Note: If pressure drops too rapidly when tractor remote is put into oat, the “Operating” valve can be turned
in a few turns to reduce bleed-off speed.
To increase operating pressure:
• Operate tractor hydraulic lever to increase pressure.
With the tractor lever in the oat position the pilot operated check valve does not receive
any pilot pressure to open it and the directional lock out valve does not receive any
pilot pressure to close it.
The oil ows from the accumulator and the butt end of the opener cylinders through
the operation valve and the one way check valve back
to the tractor. When the tractor hydraulic lever
is released the oil is again trapped and the
pressure will be reduced. If the pressure
reduction is too great the operator will have
to pressure the system up to the desired
pressure.
C2 Contour Air Drill August 2014 5-25
Page 56
Operation
Notes
5-26 August 2014 C2 Contour Air Drill
Page 57
Section 6: Maintenance
Maintenance
Section 6:
Maintenance 6-1
Section Contents
General .............................................................................................................................6-2
Safety ...............................................................................................................................6-2
Tighten Bolts .....................................................................................................................6-3
Tires ..................................................................................................................................6-3
Lubrication ........................................................................................................................6-4
Opener Maintenance ........................................................................................................6-5
Bushing Replacement ................................................................................................6-5
Cylinder Replacement ................................................................................................6-5
Opener Body Assembly..............................................................................................6-6
Opener Assembly .......................................................................................................6-8
Shank Replacement .................................................................................................6-18
Bleeding Hydraulic System.......................................................................................6-19
Hydraulic System Trouble Shooting ..........................................................................6-20
Hydraulics .......................................................................................................................6-21
Wheel Bearings ..............................................................................................................6-22
Implement Hub .........................................................................................................6-22
Contour Opener Hub ................................................................................................6-23
Wing Section Tie Rods....................................................................................................6-24
Outer Wing Lift Rod ........................................................................................................6-25
Gravity Lock ....................................................................................................................6-25
C2 Contour Air Drill August 2014 6-1
Page 58
Maintenance
CAUTION
BE ALERT
General
This section deals with two goals, maximum life and
dependable operation. Adopt a regular maintenance
and lubrication program. Care and sufcient lubrication
is the best insurance against delays.
SAFETY FIRST
REFER TO SECTION 1 AND REVIEW ALL
SAFETY RECOMMENDATIONS.
Safety
• Always shut off the tractor and remove key before
dismounting.
• Guard against hydraulic high pressure leaks with
hand and face protection.
• Never work under the implement unless it is in the
down position or transport lock pins are in place
and secured with hair pins. Do not depend on the
hydraulic system to support the frame.
• Always wear safety goggles, breathing apparatus
and gloves when working on seeder filled with
chemical. Follow manufactures recommended safety
procedures when working with chemicals or treated
seeds.
• Do not feed left over treated seed to livestock, treated
seed is poisonous and may cause harm to persons
or livestock.
Warning
Securely support any machine elements that
must be raised for service work.
Caution
Keep service area clean
and dry. Wet or oily
floors are slippery.
6-2 August 2014 C2 Contour Air Drill
Page 59
Tighten Bolts
• Before operating the machine.
• After the rst two hours of operation.
• Check tightness periodically thereafter.
• Use Bolt Torque Chart for correct values on various
bolts.
• Note dashes on hex heads to determine correct
grade.
Note: DO NOT use the values in the Bolt Torque
Chart if a different torque value or tightening
procedure is given for a specific application.
• Fasteners should be replaced with the same or higher
grade. If higher grade is used, only tighten to the
strength of the original.
Maintenance
Bolt Torque Chart
Grade 5
Bolt Marking
Bolt
Size
Nm lb. ft. lb. ft. Nm
11 8 1/4 12 16
23 17 5/16 24 33
41 30 3/8 45 61
68 50 7/16 70 95
102 75 1/2 105 142
149 110 9/16 155 210
203 150 5/8 210 285
366 270 3/4 375 508
536 395 7/8 610 827
800 590 1 910 1234
1150 850 1-1/8 1350 1850
1650 1200 1-1/4 1950 2600
2150 1550 1-3/8 2550 3400
2850 2100 1-1/2 3350 4550
Grade 8
Bolt Marking
Tires
• Inspect tires and wheels daily for tread wear, side
wall abrasions, damaged rims or missing lug bolts
and nuts. Replace if necessary.
• Tighten wheel bolts - refer to Bolt Torque Chart.
• Check tire pressure daily, when tires are cold.
• Correct tire pressure is important.
• Do not inate tire above the recommended pressure.
Caution
Tire replacement should be done by trained
personnel using the proper equipment.
Tire Specications
SIZE LOAD RANGE PRESSURE
4.80-8 NHS 4 ply rating 12 P.S.I.
11L x 15SL 12 ply rating 52 P.S.I.
11L x 15FI F 90 P.S.I.
12.5L x 15SL 12 ply rating 52 P.S.I.
12.5L x 15FI F 90 P.S.I.
16.5L x 16.1FI E 60 P.S.I.
Wheel Bolt Torque
SIZE Torque
1/2 75 lb. ft. (102 Nm)
9/16 110 lb. ft. (149 Nm)
5/8 150 lb. ft. (203 Nm)
C2 Contour Air Drill August 2014 6-3
Page 60
Maintenance
Lubrication
Greasing pivot points prevents wear and helps restrict
dirt from entering. However, once dirt does enter a
bearing, it combines with the lubricant and becomes
an abrasive grinding paste, more destructive than grit
alone.
• Apply new lubricant frequently during operation to
ush out old contaminated lubricant.
• Use a good grade of lithium based grease.
• Use a good grade of machine oil.
• Clean grease ttings and lubricator gun before
applying lubricant.
Refer to the photos for grease tting locations.
1. Wheel Hubs
• Grease every 500 hours or seasonally, whichever
occurs rst.
2. Gauge Wheel Castor Pivot
• Grease every 100 hours.
2
1
3. Packer Wheel Hubs
• Grease every 5,000 acres (2,000 hectares) or
seasonally, whichever occurs rst.
3
6-4 August 2014 C2 Contour Air Drill
Page 61
Opener Maintenance
Bushing Replacement
In the event the pivot pin bushings need replacing, use
the following procedure.
• Turn “Operating” valve out to bleed off/service position
and relieve all pressure from the accumulator circuit
using the tractor remote.
• Shut tractor engine off and ensure park brake is
engaged before proceeding.
• Place “Openers” ball valve into locked position to
prevent accidental oil ow to openers.
• Once the pressure is off of the accumulator circuit,
opener can be disassembled as illustrated in diagram
on the following page.
Reverse the above procedure to reassemble trip.
Note: Bleed air from hydraulic circuit before using
unit. Refer to “Bleeding Hydraulic System”
for details.
Maintenance
Warning
HIGH-PRESSURE FLUID HAZARD
To prevent serious injury or death:
• Relieve pressure on hydraulic system before
servicing or disconnecting hoses.
• Wear proper hand and eye protection when
searching for leaks. Use wood or cardboard
instead of hands.
• Keep all components in good repair.
Cylinder Replacement
In the event the opener cylinder needs repair or
replacing, use the following procedure.
• Turn “Operating” valve out to bleed off/service position
and relieve all pressure from the accumulator circuit
by placing the tractor remote in “oat” position.
• Shut tractor engine off and ensure park brake is
engaged before proceeding.
• Place “Openers” ball valve into locked position to
prevent accidental oil ow to openers.
• Once the pressure is off of the accumulator circuit,
disconnect hydraulic hoses from opener cylinder.
• Refer to diagram on following page to remove the
pins from the opener cylinder.
• Remove the cylinder. Repair or replace cylinder as
necessary.
Reverse the above procedure to reassemble trip.
Note: Bleed air from hydraulic circuit before using
unit. Refer to “Bleeding Hydraulic System”
for details.
Warning
CRUSHING HAZARD
To prevent serious injury or death:
• Stand clear - openers move rapidly under
hydraulic pressure.
• Place valve in service position.
• Relieve pressure on hydraulic system before
servicing.
• Lower openers to ground before adjusting
depth.
• Shut tractor off and remove key.
OPERATING
VALVE
ZERO
PRESSURE
Pressure Gauge
C2 Contour Air Drill August 2014 6-5
Page 62
Maintenance
Opener Maintenance - Continued
Opener Body Assembly
Torque until there is no visible
gap between lower link clevis
Torque to
Torque until there is no visible gap between upper
link clevis and seed frame. Upper link will prevent
opener movement if over tightened.
6-6 August 2014 C2 Contour Air Drill
50 lbs-ft. (68 Nm)
Torque to 50 lbs-ft. (68 Nm) Lower link should still rotate freely.
Re-torque after initial 50 hours and periodically thereafter.
Page 63
Maintenance
Opener Maintenance - Continued
Opener Body Assembly
Item Part No. Description Qty
1 C48880 Hydraulic Cylinder - 1-3/4 Bore x 4 Stroke ........................................................................ 1
2 S48860 Base Assembly ................................................................................................................. 1
3 D-5273 Locknut - 3/4 Unitorque .................................................................................................... 3
4 D-5274 Locknut - 1” Unitorque ..................................................................................................... 1
5 S42673 Lipped Pin ........................................................................................................................ 1
6 S42674 Washer - 2-1/2 OD x 25/32 ID x 1/4 ................................................................................. 2
7 S42675 Washer - 1-1/32 ID x 2 OD x 1/8 ....................................................................................... 4
8 S42949 Hex Bolt - 3/4 x 5-1/8 Lg ................................................................................................... 1
9 S42951 Hex Bolt - 3/4 x 6 Lg ......................................................................................................... 2
10 S42952 Hex Bolt -1 x 6-5/8 Lg ....................................................................................................... 1
11 S44397 Cylinder Bushing - 3/4 ID x 1 OD .................................................................................... 6
12 S45450 Mounting Bracket ............................................................................................................. 1
13 S47527 Polygon Fiber Bushing - 1ID x 1-1/4 OD x 1Lg ................................................................. 4
14 S48852 Top Link ............................................................................................................................ 1
15 S48853 Lower Link ........................................................................................................................ 1
16 S49250 Cast Shankholder ............................................................................................................. 1
17 S49290 Opener Body .................................................................................................................... 1
18 S49295 Packer Arm Pivot Bracket ................................................................................................. 1
19 S49514 Packer Pivot Bushing - 3/4 ID x 1 OD x 1-5/16Lg ............................................................. 1
20 W-530 Cotter Pin - 5/32 x 1 Lg..................................................................................................... 1
Note: Openers should drop to the ground under their own weight, when the tractor
remote is placed into float position relieving oil pressure.
If it requires pressure to push an opener down to the ground during this
procedure, one or more of the pivot bolts are over tightened.
Check and adjust pivot bolts as required.
Important
Turn “Operating” valve out to “Bleed Off/
Service” position and remove all pressure
from hydraulic systems before attempting any
service work on hydraulic components.
Hydraulic system must be bled after it has
been serviced (if any portion of the system
has been opened to atmosphere)
C2 Contour Air Drill August 2014 6-7
Page 64
Maintenance
Opener Maintenance - Continued
Opener Assembly
to 170 ft. lbs.
(5)
Important
Re-torque locknuts (5) after
Torque Locknuts
6-8 August 2014 C2 Contour Air Drill
initial 50 hours and periodically thereafter.
Page 65
Maintenance
Opener Maintenance - Continued

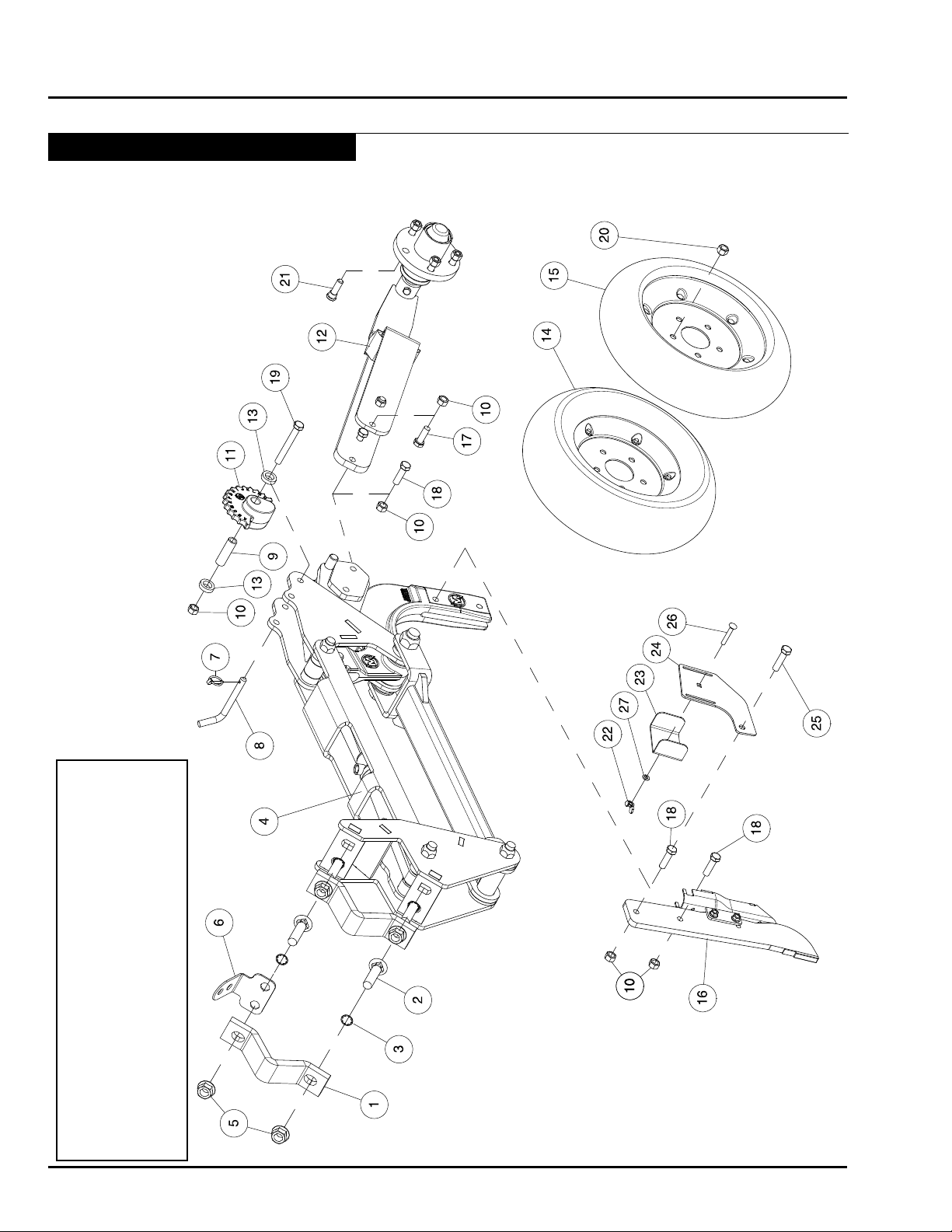

Opener Assembly
Item Part No. Description Qty
1 C26506 Clamp Strap ...................................................................................................................... 2
2 C33957 Carriage Bolt - 3/4 x 3 Lg .................................................................................................. 4
3 C33958 Retaining Ring .................................................................................................................. 4
4 S48860 Base Assembly - See Next Page ...................................................................................... 1
5 D12942 Serrated Flange Lock Nut - 3/4 ........................................................................................ 4
6 S47976 Hose Holder ...................................................................................................................... 1
7 S42294 Lynch Pin - 3/16 Dia x 1/14 Lg .......................................................................................... 1
8 S42659 Depth Pin - 1/2 Dia x 3 1/2 UL .......................................................................................... 1
9 S44402 Bushing - 0.510 ID x 0.750 OD x 2 9/16 Lg....................................................................... 1
10 S47110 Center Lock Hex Nut - 1/2 ................................................................................................ 7
11 S49260 Depth Adjustment Cam ..................................................................................................... 1
12 S49500 Packer Arm Assembly ....................................................................................................... 1
13 S49516 Spacer Washer - 25/32 ID x 1 1/4 OD x 5/16 thick ............................................................ 2
14 S49520 Otico Tire - 5 1/2 ............................................................................................................... 1
15 S49521 Otico Tire - 4 1/2 ................................................................................................................ 1
16 S49538 Single Shoot Knife ............................................................................................................ 1
17 W-486 Hex Bolt - 1/2 x 1 1/2 Lg.................................................................................................... 2
18 W-487 Hex Bolt - 1/2 x 1 3/4 Lg.................................................................................................... 4
19 W-495 Hex Bolt - 1/2 x 4 Lg.......................................................................................................... 1
20 S50246 Tapered Wheel Nut - 1/2-20 UNF ...................................................................................... 5
21 S50247 Press-In Wheel Stud - 1/2-20 UNF x 1 3/4 Lg .................................................................. 5
22 N31016 Wing Nut - 5/16 ................................................................................................................. 1
23 S51330 Hose Holder Clamp ........................................................................................................... 1
24 S51463 Hose Holder ...................................................................................................................... 1
25 S51464 Hex Bolt - 1/2 x 2 Lg Gr. 8 ................................................................................................. 1
26 S51466 Carriage Bolt - 5/16 x 2 Lg ................................................................................................ 1
27 W-522 Lockwasher - 5/16 ............................................................................................................. 1
S46595 Optional Secondary Hose Holder Kit - (Includes Items 22 - 27)
Important
Turn “Operating” valve out to “Bleed Off/Service” position and remove all pressure from
hydraulic systems before attempting any service work on hydraulic components.
Hydraulic system must be bled after it has been serviced (if any portion of the system has
been opened to atmosphere)
C2 Contour Air Drill August 2014 6-9
Page 66
Maintenance
Opener Maintenance - Continued
Opener Assembly - Continued

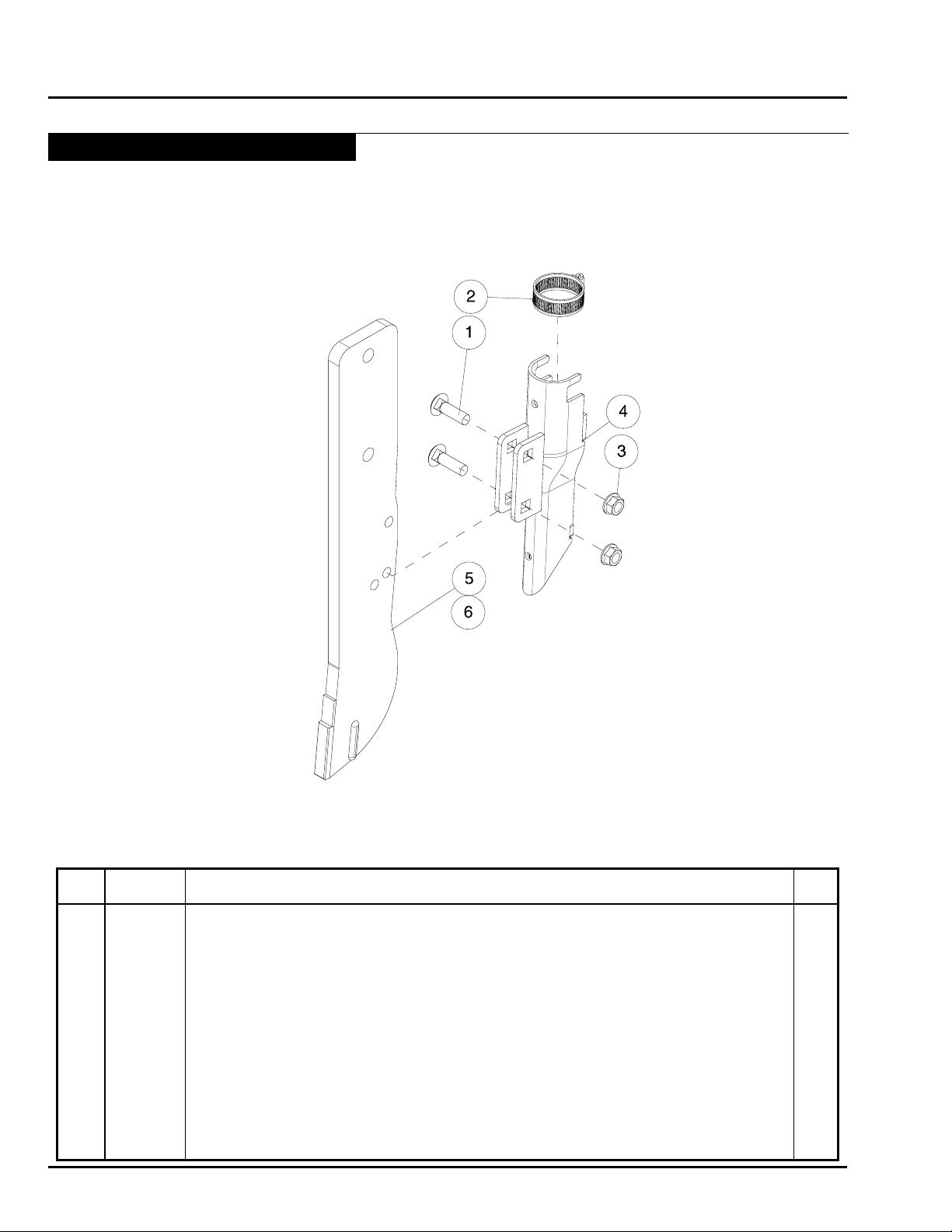

Single Shoot Boot
Item Part No. Description Qty
1 D-5260 Carriage Bolt - 3/8 x 1-1/2 Lg ............................................................................................ 2
2 N11470 Hose Clamp ..................................................................................................................... 1
3 S27987 Center Lock Flange Lock Nut - 3/8 ................................................................................... 2
4 S42865 Single Shoot Boot ............................................................................................................. 1
5 S45464 Wear Shank W/Carbide ..................................................................................................... 1
6 S49538 Single Shoot Knife Kit (Contains Items 1, 3, 4 and 5) ....................................................... 1
6-10 August 2014 C2 Contour Air Drill
Page 67
Opener Maintenance - Continued
Opener Assembly - Continued

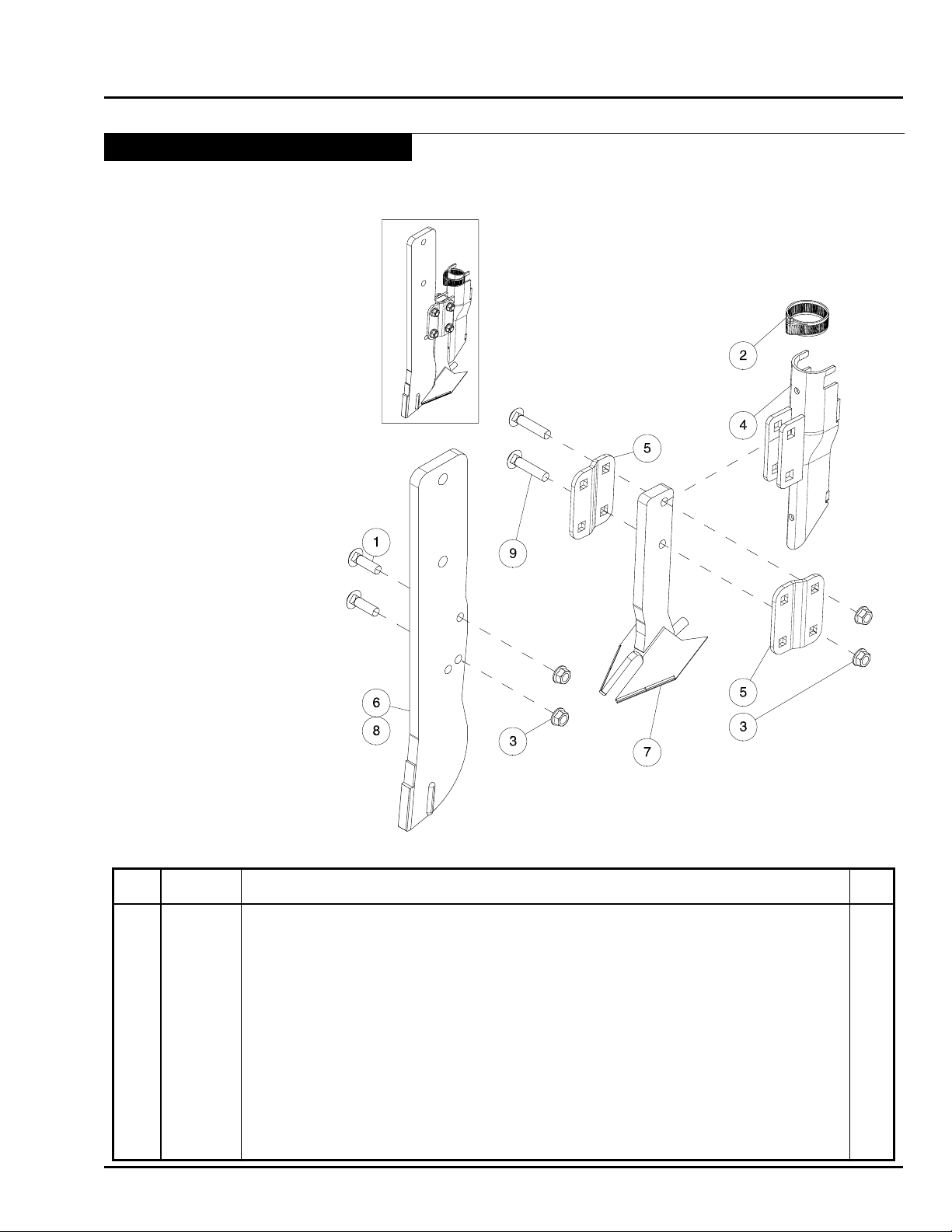

Single Shoot Boot - 3” Spread
Maintenance
Item Part No. Description Qty
1 D-5260 Carriage Bolt - 3/8 x 1-1/2 Lg ............................................................................................ 2
2 N11470 Hose Clamp ...................................................................................................................... 1
3 S27987 Center Lock Flange Lock Nut - 3/8 .................................................................................. 4
4 S42865 Single Shoot Boot ............................................................................................................. 1
5 S45269 Mounting Plate .................................................................................................................. 2
6 S45464 Wear Shank W/Carbide ..................................................................................................... 1
7 S47337 3” Wear Shovel ................................................................................................................. 1
8 S49540 Single Shoot 3” Spreader Kit (Includes Items 1, 3, 4, 5, 6, 7 and 9) ................................. 1
9 S31980 Carriage Bolt - 3/8 x 1-3/4 Lg ............................................................................................ 2
C2 Contour Air Drill August 2014 6-11
Page 68
Maintenance
Opener Maintenance - Continued
Opener Assembly - Continued

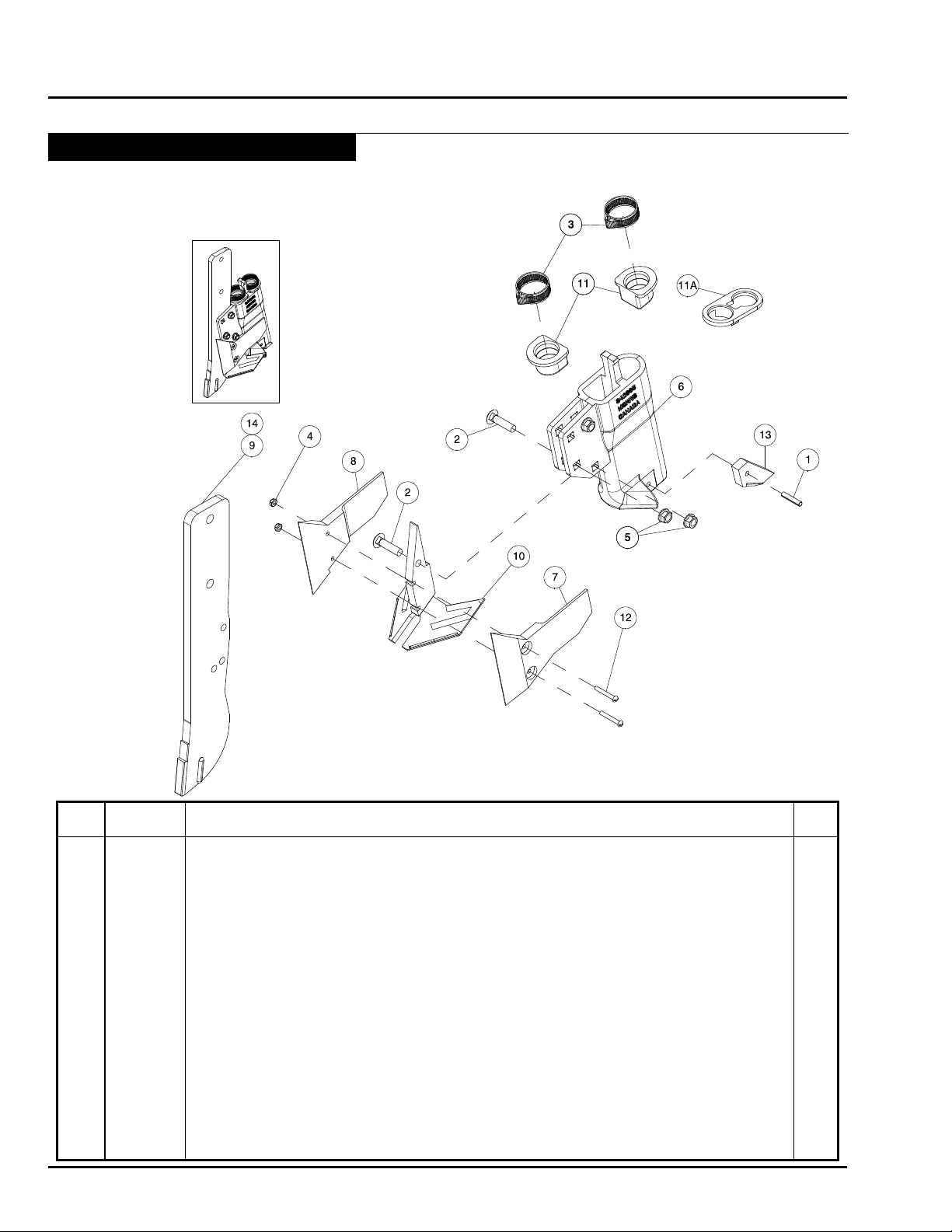

Double Shoot Boot Shown
Item Part No. Description Qty
1 D-5243 Roll Pin .............................................................................................................................. 1
2 D-5261 Carriage Bolt - 3/8 x 1-1/2 Lg ............................................................................................ 3
3 N11470 Hose Clamp ...................................................................................................................... 2
4 N37787 Nylon Insert Locknut - #10-24 ........................................................................................... 2
5 S27987 Center Lock Flange Lock Nut - 3/8 ................................................................................... 3
6 S42965 Cast Double Shoot Boot ................................................................................................... 1
7 S45312 Mud Guard Option Left ...................................................................................................... 1
8 S45313 Mud Guard Option Right ................................................................................................... 1
9 S45464 Wear Shank W/Carbide ..................................................................................................... 1
10 S45470 Paired Row Shovel ............................................................................................................ 1
11 S47076 Secondary Hose Grommet - Option - 15/16 ID Hose ........................................................ 2
11A S50245 Secondary Hose Grommet - Option - 1.125 ID Hose
12 S47128 Machine Screw - #10-24 x 1 3/8........................................................................................ 2
13 S47980 Carbide Wear Tail ............................................................................................................... 1
14 S49539 Paired Row Shovel Kit (Includes Items 1, 2, 5, 6, 9, 10, and 13) ....................................... 1
S46181 Kit - Mud Guards (Includes Items 4, 7, 8, and 12)
6-12 August 2014 C2 Contour Air Drill
Page 69
Opener Maintenance - Continued
Opener Assembly - Continued
IP Paired Row Kit
Maintenance
Item Part No. Description Qty
1 S27987 Lock Nut - 3/8 Flange W/Center Lock .............................................................................. 2
2 S55455 Paired Row Shank ............................................................................................................. 1
3 S56459 Wear Guard ....................................................................................................................... 1
4 S56485 IP (Injected Polymer) Paired Row Seed Boot .................................................................... 1
5 W-477 Hex Bolt - 3/8 x 1 1/2 Lg.................................................................................................... 2
6 S47076 Secondary Hose Grommet - Option - 15/16 ID Hose ........................................................ 2
7 Liquid Tube - 1/4 OD - See Liquid Kit Supplier for Tube ..................................................... 1
8 Injector Tube - 1/8 OD - See NH3 Kit Supplier for Tube ..................................................... 1
9 S48814 Compression Fitting - 1/8 x 1/8 ......................................................................................... 1
S56550 IP Paired Row Boot Kit (Contains Items 1, 2, 3, 4 & 5) ..................................................... 1
C2 Contour Air Drill August 2014 6-13
Page 70
Maintenance
Opener Maintenance - Continued
Opener Assembly - Continued

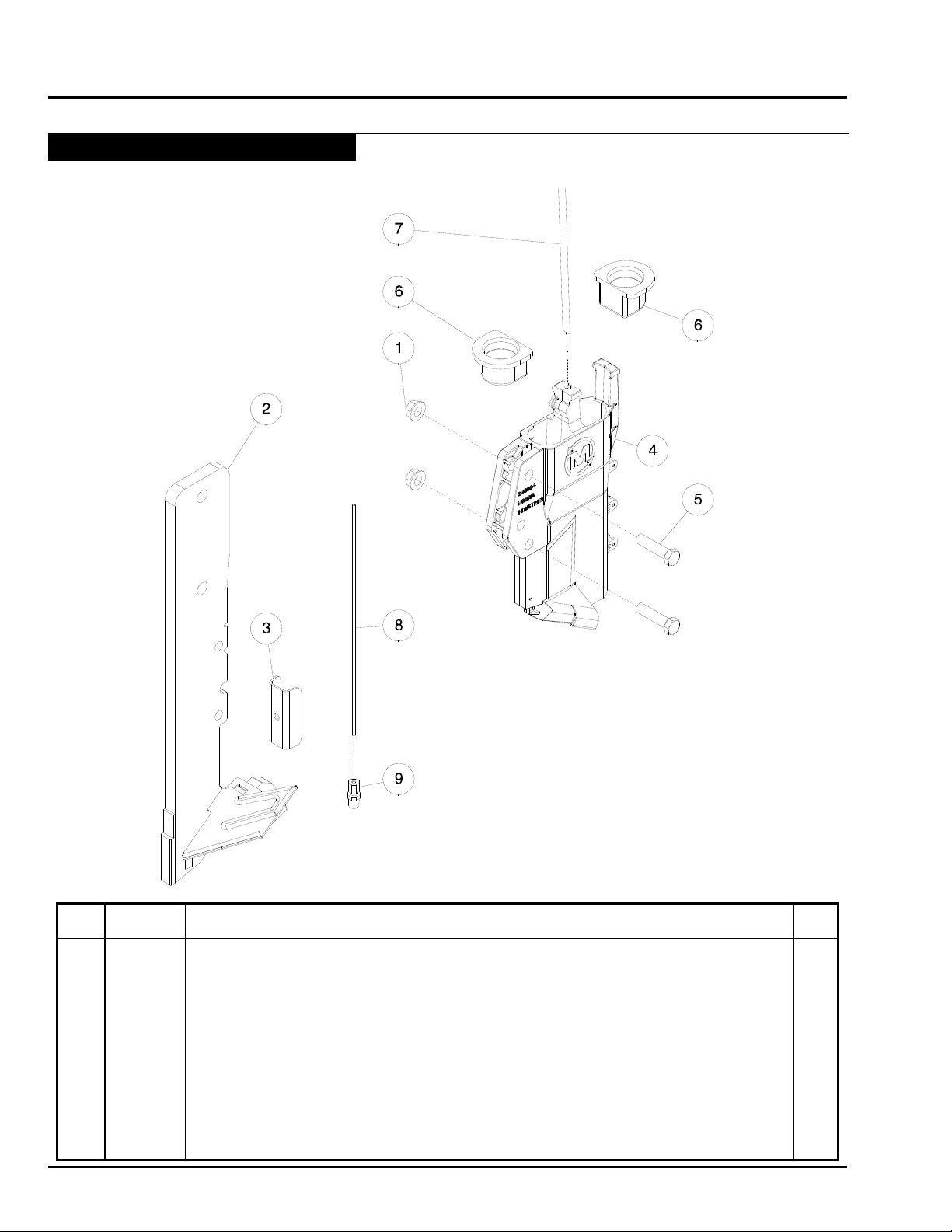

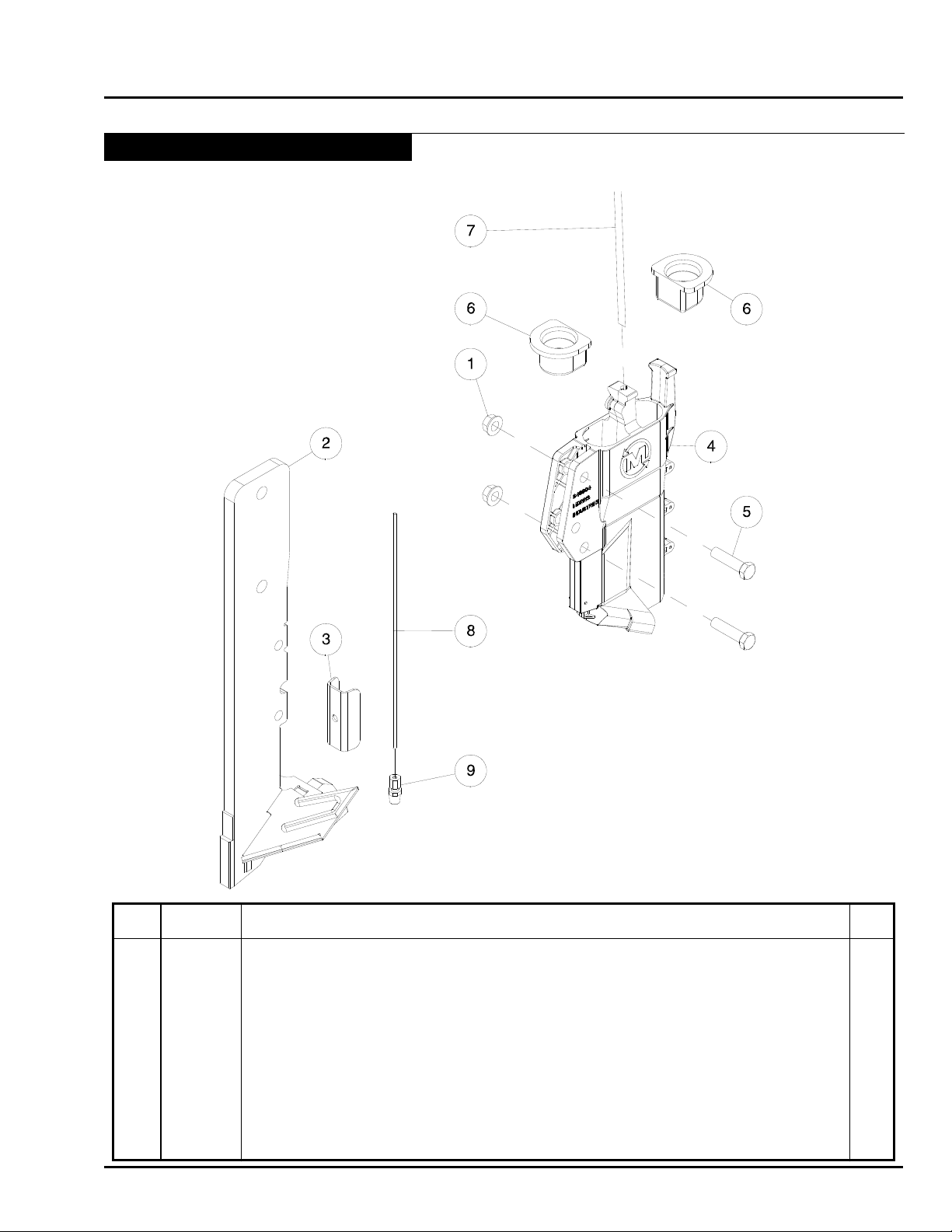

IP Left Side Band Kit
Mount the side band openers with the deector and
seed tube facing the center of the Contour Air Drill.
Item Part No. Description Qty
1 S27987 Lock Nut - 3/8 Flange W/Center Lock .............................................................................. 2
2 S55460 Sideband Shank - Left....................................................................................................... 1
3 S56459 Wear Guard ....................................................................................................................... 1
4 S56482 IP (Injected Polymer) Left Sideband Seed Boot ................................................................ 1
5 W-477 Hex Bolt - 3/8 x 1 1/2 Lg.................................................................................................... 2
6 S47076 Secondary Hose Grommet - Option - 15/16 ID Hose ........................................................ 2
7 Liquid Tube - 1/4 OD - See Liquid Kit Supplier for Tube ..................................................... 1
8 Injector Tube - 1/8 OD - See NH3 Kit Supplier for Tube ..................................................... 1
9 S48814 Compression Fitting - 1/8 x 1/8 ......................................................................................... 1
S56551 IP Left Sideband Boot Kit (Contains Items 1, 2, 3, 4 & 5) ................................................. 1
6-14 August 2014 C2 Contour Air Drill
Page 71
Opener Maintenance - Continued
Opener Assembly - Continued

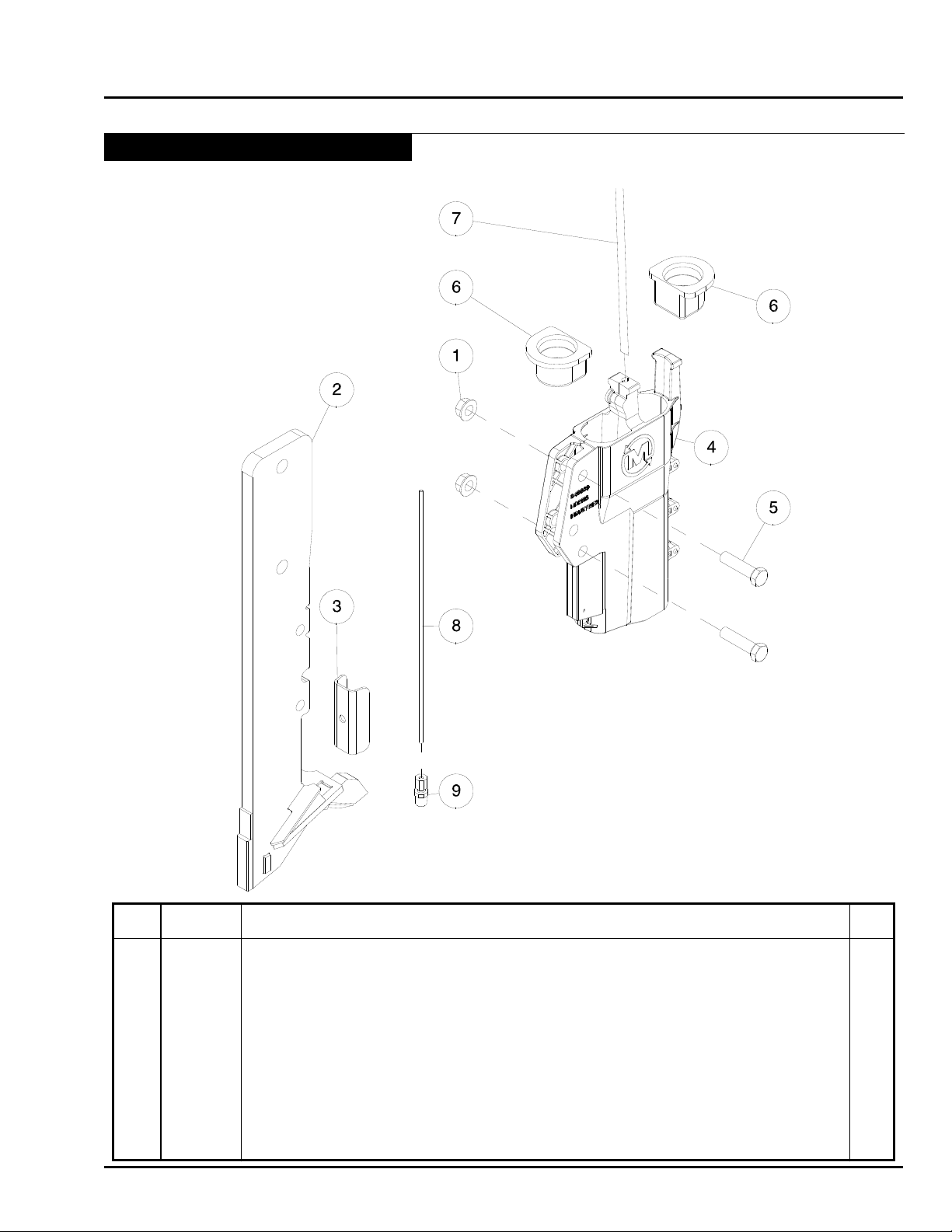

IP Right Side Band Kit
Maintenance
Mount the side band openers with the deector and
seed tube facing the center of the Contour Air Drill.
Item Part No. Description Qty
1 S27987 Lock Nut - 3/8 Flange W/Center Lock .............................................................................. 2
2 S55465 Sideband Shank - Left....................................................................................................... 1
3 S56459 Wear Guard ....................................................................................................................... 1
4 S56483 IP (Injected Polymer) Right Sideband Seed Boot ............................................................. 1
5 W-477 Hex Bolt - 3/8 x 1 1/2 Lg.................................................................................................... 2
6 S47076 Secondary Hose Grommet - Option - 15/16 ID Hose ........................................................ 2
7 Liquid Tube - 1/4 OD - See Liquid Kit Supplier for Tube ..................................................... 1
8 Injector Tube - 1/8 OD - See NH3 Kit Supplier for Tube ..................................................... 1
9 S48814 Compression Fitting - 1/8 x 1/8 ......................................................................................... 1
S56552 IP Right Sideband Boot Kit (Contains Items 1, 2, 3, 4 & 5) ............................................... 1
C2 Contour Air Drill August 2014 6-15
Page 72
Maintenance
Opener Maintenance - Continued
Opener Assembly - Continued

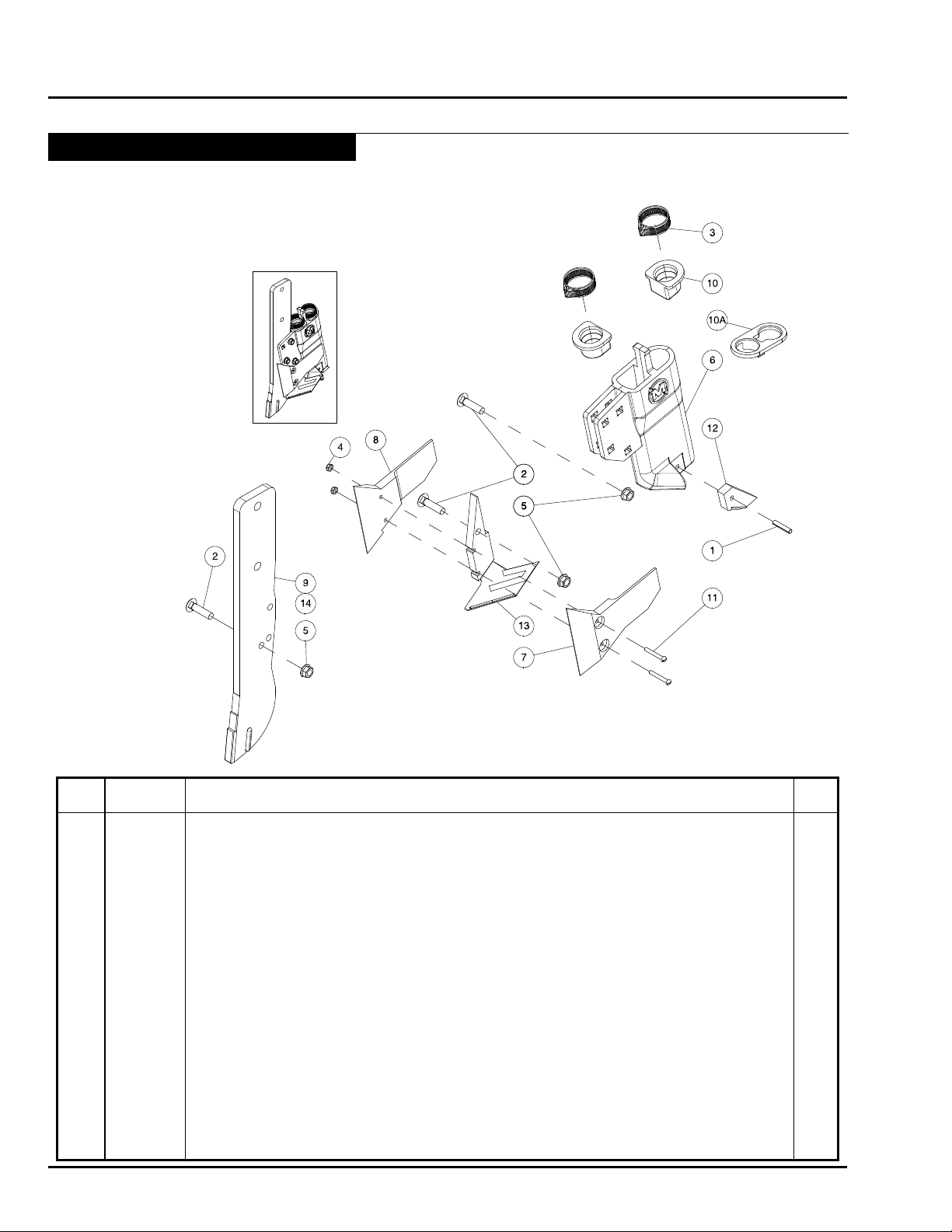

Side Band Boot - Left Shown
Mount the side band openers with the deector and
seed tube facing the center of the Contour Air Drill.
Item Part No. Description Qty
1 D-5243 Roll Pin .............................................................................................................................. 1
2 D-5261 Carriage Bolt - 3/8 x 1-1/2 Lg ............................................................................................ 3
3 N11470 Hose Clamp ...................................................................................................................... 2
4 N37787 Nylon Insert Locknut - #10-24 ........................................................................................... 2
5 S27987 Center Lock Flange Lock Nut - 3/8 ................................................................................... 3
6 S44977 Cast Double Shoot Boot - Side Band - Left ....................................................................... 1
6A S51469 Cast Double Shoot Boot - Side Band - Left - Carbide
7 S45312 Mud Guard Option Left ...................................................................................................... 1
8 S45313 Mud Guard Option Right ................................................................................................... 1
9 S45464 Wear Shank W/Carbide ..................................................................................................... 1
10 S47076 Secondary Hose Grommet - Option - 15/16 ID Hose ........................................................ 2
10A S50245 Secondary Hose Grommet - Option - 1.125 ID Hose
11 S47128 Machine Screw - #10-24 x 1-3/8 ........................................................................................ 2
12 S47980 Carbide Wear Tail ............................................................................................................... 1
13 S49536 Side Band Shovel.............................................................................................................. 1
14 S49541 Side Band Left Kit (Includes Items 1, 2, 5, 6, 9, 12, and 13) ............................................. 1
S55275 Side Band Left Kit (Includes Items 1, 2, 5, 6A, 9, 12, and 13)
S46181 Kit - Mud Guards (Includes Items 4, 7, 8, and 11)
6-16 August 2014 C2 Contour Air Drill
Page 73
Opener Maintenance - Continued
Opener Assembly - Continued
Side Band Boot - Right Shown
Maintenance
Mount the side band openers with the deector and
seed tube facing the center of the Contour Air Drill.
Item Part No. Description Qty
1 D-5243 Roll Pin - 1/4 x 1 1/4 Lg ..................................................................................................... 1
2 D-5261 Carriage Bolt - 3/8 x 1-1/2 Lg ............................................................................................ 3
3 N11470 Hose Clamp ...................................................................................................................... 2
4 N37787 Nylon Insert Locknut - #10-24 ........................................................................................... 2
5 S27987 Center Lock Flange Lock Nut - 3/8 ................................................................................... 3
6 S44976 Cast Double Shoot Boot - Side Band - Right .................................................................... 1
6A S51470 Cast Double Shoot Boot - Side Band - Right - Carbide
7 S45312 Mud Guard Option Left ...................................................................................................... 1
8 S45313 Mud Guard Option Right ................................................................................................... 1
9 S45464 Wear Shank W/Carbide ..................................................................................................... 1
10 S47076 Secondary Hose Grommet - Option - 15/16 ID Hose ........................................................ 2
10A S50245 Secondary Hose Grommet - Option- 1.125 ID Hose
11 S47128 Machine Screw - #10-24 x 1-3/8 ........................................................................................ 2
12 S47980 Carbide Wear Tail ............................................................................................................... 1
13 S49537 Side Band Shovel - Right .................................................................................................. 1
14 S49542 Side Band Right Kit(Includes Items 1, 2, 5, 6, 9, 12, and 13) ............................................ 1
S55274 Side Band Right Kit(Includes Items 1, 2, 5, 6A, 9, 12, and 13) ......................................... 1
S46181 Kit - Mud Guards (Includes Items 4, 7, 8, and 11)
C2 Contour Air Drill August 2014 6-17
Page 74
Maintenance
CRUSHING HAZARD
S44446
Before servicing hydraulics - Place
STAND CLEAR - openers move rapidly
To prevent serious injury or death:
under hydraulic pressure.
WARNING
"System" valve in service position and
relieve pressure from hydraulic system.
Shut tractor off and remove key before
servicing or adjusting depth.
Place "Openers" valve in locked position
before adjusting depth or transporting.
Opener Maintenance - Continued
Shank Replacement
In the event a shank needs replacing, use the following
procedure.
• Turn “Operating” valve out to bleed off/service position
and relieve all pressure from the accumulator circuit
by placing the tractor remote in “oat” position.
• Shut tractor engine off and ensure park brake is
engaged before proceeding.
• Place “Openers” ball valve into locked position to
prevent accidental oil ow to openers.
• Once the pressure is off of the accumulator circuit,
remove retaining bolts from shank holder. See
diagram on previous page.
• Remove shank from shank holder.
• Remove opener from shank.
• Reverse above procedure to reassemble.
OPERATING
VALVE
ZERO
PRESSURE
Pressure Gauge
6-18 August 2014 C2 Contour Air Drill
Page 75
Opener Maintenance - Continued

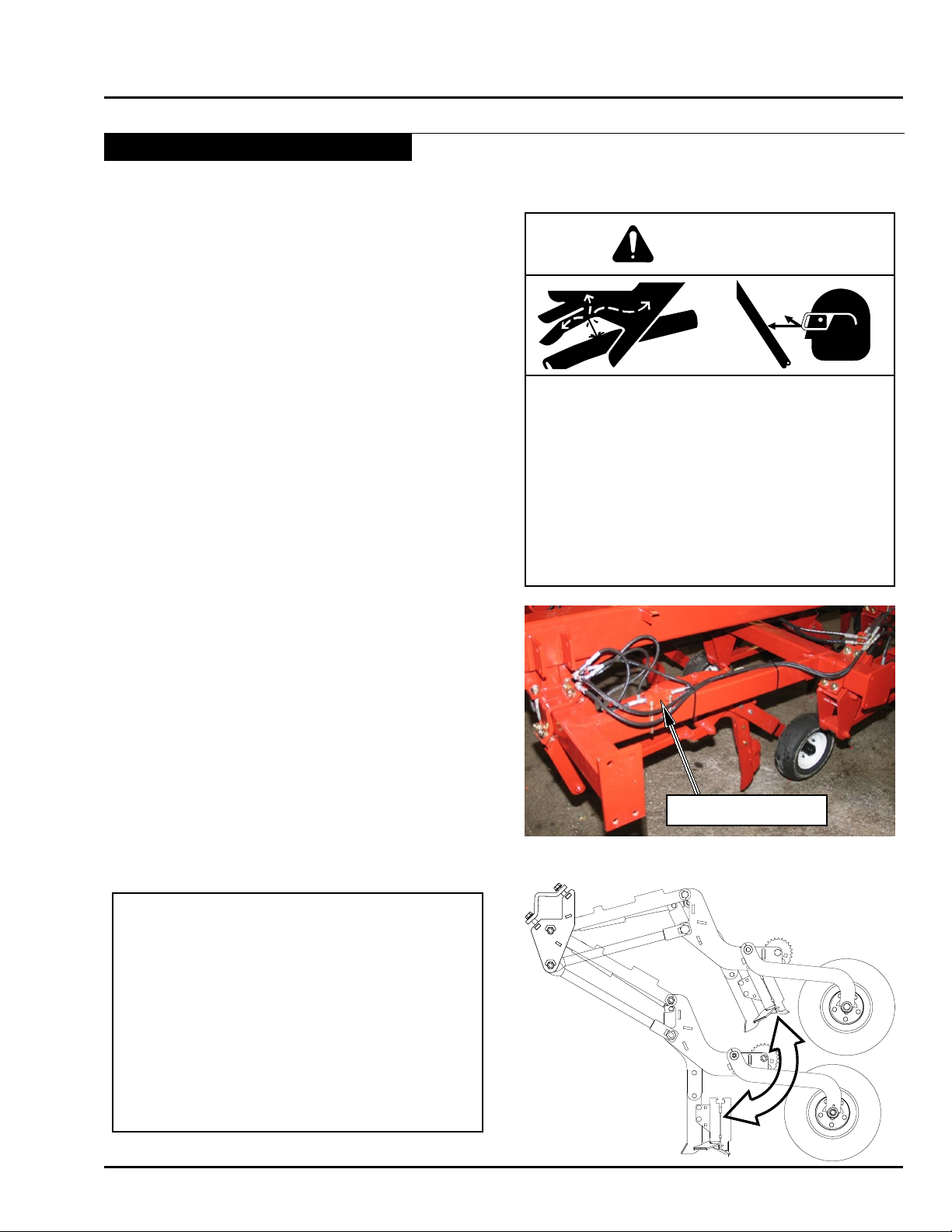

Bleeding Hydraulic System
If hydraulic system has been serviced air will need to
be bleed out of system as follows:
To bleed hydraulic system of air:
• Lift openers up and lock tractor remote in lift
position.
• With tractor hydraulics operating, open bleed-off
ball valves on end of drill wings.
• Allow oil to cycle for a few minutes then change
direction of tractor remote to lower openers and
cycle for a few more minutes.
• Close bleed-off ball valves and lift openers up.
• Repeat above procedure for a second time.
• Close bleed-off ball valves and lift openers up.
• Lock “Openers” valve and check to see that
openers stay rmly in position.
• If openers are spongy repeat procedure until air is
gone.
Maintenance
Warning
HIGH-PRESSURE FLUID HAZARD
To prevent serious injury or death:
• Relieve pressure on hydraulic system before
servicing or disconnecting hoses.
• Wear proper hand and eye protection when
searching for leaks. Use wood or cardboard
instead of hands.
• Keep all components in good repair.
BLEED-OFF VALVE
Important
Turn “Operating” valve out to “Bleed Off/
Service” position and remove all pressure
from hydraulic systems before attempting any
service work on hydraulic components.
Hydraulic system must be bled after it has
been serviced (if any portion of the system
has been opened to atmosphere)
C2 Contour Air Drill August 2014 6-19
Page 76
Maintenance
S44355
UNLOCKED
OPENERS
LOCKED
Opener Maintenance - Continued
Hydraulic System Trouble Shooting
If pressure can not be maintained in the hydraulic
system, or openers drop rapidly from transport position,
a leaky hydraulic cylinder (bypassing oil across the
piston seal) may be present. To locate a hydraulic leak
in the Contour Air Drill hydraulic system, the following
procedure can be used:
1. Remove pressure from the hydraulic system.
2. Check the drill frame and hoses to make sure that
the leak is not external (leaking oil out of the circuit).
3. Lift the contour openers into their raised position.
4. Lock the hydraulic ball valve marked “OPENERS”.
5. Watch the openers carefully across the drill and
locate the rst opener(s) to visibly drop down from
the raised position (NOTE: This is the general area
of the leaking cylinder, but the rst opener to drop
is not always the leaking cyinder.).
6. Unlock the “OPENERS” hydraulic ball valve and
lift the openers to the raised position and lock the
hydraulic remote in the raised position to apply ow
to the circuit for about ve minutes.
7. Let the hydraulic remote go back to neutral, shut off
the tractor, and then go and check the temperature
of the opener cylinders by feeling the cylinder
barrels. Start at the group of cylinders that were
located in step 5) and then work from the outer
openers in to center until a “hot” cylinder is located.
8. Under normal conditions the cylinders should
remain cool (ambient temperature or slightly above);
the opener with a “hot” cylinder barrel has the leaky
seal and should be serviced or replaced.
PRESSURE
ADJUSTMENT
DECAL - S44355
OPERATING
VALVE
OPENERS
BALL VALVE
Valve Locations
NOTE: All hydraulic cylinders have a natural
leakage rate. The openers on the contour
drill will drop over a long period of time
during storage; this is normal. Only check
for leaky cylinders if accumulator system
pressure drops rapidly during operation
or openers drop rapidly from transport in a
short period of time.
6-20 August 2014 C2 Contour Air Drill
Page 77
Hydraulics
Refer to Section 1 regarding hydraulic safety. In addition:
• Inspect hydraulic system for leaks, damaged hoses
and loose ttings.
• Damaged hoses and hydraulic tubing can only
be repaired by replacement. DO NOT ATTEMPT
REPAIRS WITH TAPE OR CEMENTS. High
pressure will burst such repairs and cause system
failure and possible injury.
• Always place “Operating” valve into service position
and relieve hydraulic pressure from the system
before performing maintenance or repairs.
Note: Accumulator can store pressure even when
disconnected from tractor.
• Leaking cylinders - install a new seal kit.
• Fittings - use liquid Teon on all NPT hydraulic joints.
Do not use liquid Teon or Teon tape on JIC or
ORB ends.
• Hydraulic Hose Connections - when connecting the
hoses to the cylinders, tubing, etc. always use one
wrench to keep the hose from twisting and another
wrench to tighten the union. Excessive twisting will
shorten hose life.
• Keep ttings and couplers clean.
• Check the Tractor Manual for proper lter replacement
schedule.
Refer to the Trouble Shooting Section.
Maintenance
Contact your nearest Dealer for genuine repair parts.
Dealers carry ample stocks and are backed by the
manufacture and regional associations.
Caution
Dirt in the hydraulic system could damage
O-rings, causing leakage, pressure loss and
total system failure.
Note: Extreme care must be taken to maintain
a clean hydraulic system. Use only new
hydraulic fluid when filling reservoir.
Warning
HIGH-PRESSURE FLUID HAZARD
To prevent serious injury or death:
• Relieve pressure on hydraulic system before servicing or
disconnecting hoses.
• Wear proper hand and eye protection when searching for
leaks. Use wood or cardboard instead of hands.
• Keep all components in good repair.
C2 Contour Air Drill August 2014 6-21
Page 78
Maintenance
Wheel Bearings
Implement Hub
• Position implement in eld position.
• Shut tractor off, remove key, and engage park brake.
• Block wheel on tractor.
• Raise the implement wheel enough to clear the
surface.
• Securely block implement frame.
• Remove wheel from hub.
• Remove the dust cap, cotter pin, and the slotted nut
and washer.
• Be careful when pulling the hub off as not to drop
the outer bearing.
• Clean spindle and bearing components with solvent.
• Inspect for wear on bearings, spindle and cups,
replace parts as required.
• Do not reuse old seals. Use only new seals when
assembling.
• Pack inner hub with bearing grease.
• Be sure bearing and cup are dry and clean.
• Work grease into the bearing rollers, until each part
of the bearing is completely full of grease.
• Install inner bearing and cup rst, then press new
seals in place.
• Place hub on spindle.
• Install outer bearing, washer and slotted nut.
• Tighten nut while turning the wheel until a slight drag
is felt.
• Back nut off one slot and install a cotter pin. Bend
cotter pin up around nut.
• Pack grease inside the dust cap and tap into position.
Important
Check wheel bearings for play every
5,000 acres (2,000 hectares)
or yearly, which ever occurs first.
Tighten as required.
6-22 August 2014 C2 Contour Air Drill
Page 79
Wheel Bearings - Continued
Contour Opener Hub
• Position implement in eld position.
• Move “System” ball valve to service position and
relieve all pressure from the accumulator circuit
using the tractor remote.
• Shut tractor engine off and remove key. Engage park
brake before proceeding.
• Place “Openers” ball valve into locked
position to prevent accidental oil ow to
openers.
• Follow procedure
for hub removal and
bearing replacement
outlined under “Implement
Hub”.
Maintenance
Important
Check wheel bearings for play every
5,000 acres (2,000 hectares)
or yearly, which ever occurs first.
Tighten as required.
Item Part No. Description Qty
1 N14009 Bearing Cup ...................................................................................................................... 2
2 N14011 Dust Cap .......................................................................................................................... 1
3 S-752 Grease Zerk - 1/4 ............................................................................................................. 1
4 S50246 Tapered Wheel Nut - 1/2-20 UNF ..................................................................................... 5
5 S27987 Center Lock Flange Lock Nut - 3/8 ................................................................................... 1
6 S50247 Press-In Wheel Stud - 1/2-20 UNF ................................................................................... 5
7 S48842 V-Seal - 1-1/4 Shaft .......................................................................................................... 1
8 S48843 Dust Cap Retaining Wire .................................................................................................. 1
9 S48844 Hub Casting - 1000 Lb - 5 Bolt ......................................................................................... 1
10 S48846 Spindle - 1-1/4 Dia ............................................................................................................ 1
11 S48847 Seal Counterface .............................................................................................................. 1
12 S48848 Seal Retainer .................................................................................................................... 1
13 S48849 Slotted Jam Nut - 3/4 ........................................................................................................ 1
14 S48850 Packer Hub Assy .............................................................................................................. 1
15 S49299 Packer Arm ....................................................................................................................... 1
16 S49500 Packer Arm Sub-Assy ....................................................................................................... 1
17 W-476 Flat Washer - 3/4 .............................................................................................................. 1
18 W-479 Hex Bolt - 3/8 x 2 1/4 Lg ................................................................................................... 1
19 W-529 Cotter Pin - 1/8 x 1 Lg....................................................................................................... 1
20 W-4187 Bearing Cone ................................................................................................................... 2
C2 Contour Air Drill August 2014 6-23
Page 80
Maintenance

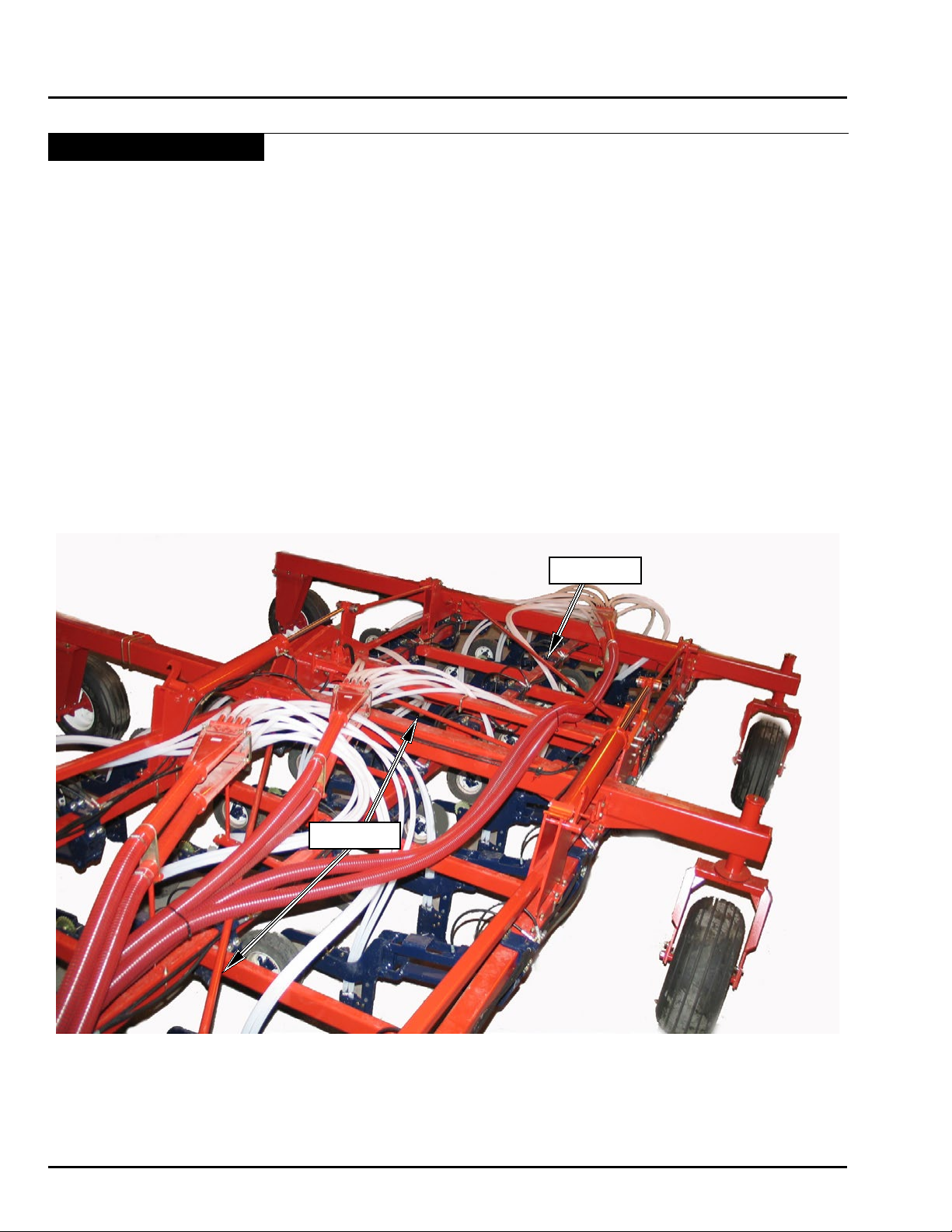

Wing Section Tie Rods
The tie rods are an integral part of the frame structure.
The wing tie rods must be torque to 175 ft lbs. (237 Nm).
Check periodically as indicated below:
1. On delivery before eld operation.
2. After rst 1 hour of use.
3. After rst 50 hours of use.
4. Check seasonally to ensure the tie rods on the wings
are tight.
Note: Damage to frame components could result if
tie rod tension is not maintained.
TIE ROD
TIE ROD
71 Foot Unit Shown
6-24 August 2014 C2 Contour Air Drill
Page 81
Outer Wing Lift Rod
Check seasonally to ensure the wing lift rods on the
outer wings are adjusted correctly.
Adjust the Outer Wing Lift Rod as follows:
• With the cylinder disconnected pull the outer wing
lift lever against the gusset in the lift arm.
• Adjust rod length until there is an 1/8” (3 mm)
clearance between the outer wing lift lever and
gusset.
Note: Do not exceed 1/8” (3 mm) clearance.
Damage to frame components may result.
• Tighten jam nut to secure in place.
After initial wing-up the clearance will decrease, but do
not re-adjust clearance.
Maintenance
Gravity Lock
Ensure gravity locks move freely in both directions.
Note: Damage to wing lift components will result if
gravity locks malfunction.
Winged DownWinged Up
C2 Contour Air Drill August 2014 6-25
Page 82
Maintenance
Notes
6-26 August 2014 C2 Contour Air Drill
Page 83
Section 7: Storage
Storage
Section 7:
Storage 7-1
Section Contents
Preparing for Storage ........................................................................................................ 7- 2
Wing Lift Cylinder Shaft Protection ................................................................................... 7- 3
Removing From Storage ................................................................................................... 7- 3
C2 Contour Air Drill August 2014 7-1
Page 84
Storage
Preparing for Storage
• To insure longer life and satisfactory operation,
store the implement in a shed.
• If building storage is impossible, store away from
areas of main activity on rm, dry ground.
• Clean machine thoroughly.
• Inspect all parts for wear or damage.
• Avoid delays - if parts are required, order at the end
of the season.
• Lubricate grease ttings. (Refer to Maintenance
Section).
• Tighten all bolts to proper specications (Refer to
Maintenance Section).
• For a safer storage, lower the implement into eld
position and release the hydraulic pressure.
• If implement must be stored in a raised position,
ensure that wings are properly secured with lock
pins.
• Level implement using hitch jack and block up.
• Relieve pressure from hydraulic system.
• Cover tires with canvas to protect them from the
elements when stored outside.
• Coat exposed wing lift cylinder shafts (Refer to Wing
Lift Cylinder Shaft Protection).
• Paint any surfaces that have become worn.
Warning
Do not allow children to play
on or around the machine.
MORRIS PAINT
Part Number Description
W-4647 Red MORRIS Spray Can
N31087 White MORRIS Spray Can
Z-10 Red MORRIS Paint/Litre Can
7-2 August 2014 C2 Contour Air Drill
Page 85
Wing Lift Cylinder Shaft Protection
The steps summarized below should be followed when
protecting chrome plated shafting on equipment:
• Position the equipment as it will be stored, and
identify all the exposed portions of the chrome plated
shafts.
• Clean dirt and dust from the exposed portions of the
shafting using a dry cloth or a cloth which has been
dampened with an appropriate solvent.
• Prepare a mixture of 60% oil-based rust inhibitor and
40% Kerosene. Apply a thin coating of this mixture to
the exposed surfaces of the chrome plated shafting.
No. 1 fuel oil may be substituted for Kerosene. A
cloth dipped in the mixture can be used to apply the
coating.
• Inspect the shaft surfaces after six months and apply
additional corrosion preventative mixture.
• If the equipment is to be moved and then stored
again for an extended period of time, the steps above
should be repeated for all shafts that were stroked
during the move.
• Before retracting the cylinders the protective
coating should be removed, to prevent ne sand
and dirt that has accumulated in the coating, from
damaging the shaft seal. Under no circumstances
should sandpaper or other abrasive be used
to clean the surfaces. Plastic or copper wool in
combination with an appropriate solvent will remove
most of the dirt.
Storage
Caution
Dirt in the hydraulic system could damage
O-rings, causing leakage, pressure loss and
total system failure.
Removing From Storage
• Review Operator’s Manual.
• Check tire pressure (Refer to Tire Pressure List)
• Clean machine thoroughly. Remove coating from
exposed cylinder shafts (Refer to Wing Lift Cylinder
Shaft Protection).
• Lubricate grease fittings. (Refer to Lubricating
Section).
• Tighten all bolts to proper specications (Refer to
Bolt Torque Chart).
C2 Contour Air Drill August 2014 7-3
Page 86
Storage
Notes
7-4 August 2014 C2 Contour Air Drill
Page 87
Section 8: Troubleshooting
Troubleshooting
Section 8:
Troubleshooting 8-1
Section Contents
Machine not operating straight. .................................................................................... 8-2
Lack of penetration. ...................................................................................................... 8-2
Openers wearing unevenly ........................................................................................... 8-2
Wing lifting too slowly. ................................................................................................... 8-2
Wings not lowering. ...................................................................................................... 8-2
One wing will lift, other will not. .................................................................................... 8-2
Oil accumulation. .......................................................................................................... 8-2
Accumulator system pressure drop excessive. ............................................................. 8-3
Openers won’t lift or lower. ............................................................................................ 8-3
Openers can not be fully pressurized. .......................................................................... 8-3
Shanks hang back and trip out during normal operation. ............................................. 8-3
Seed rows covered in loose soil after seeding. ............................................................. 8-3
Packer wheels bounce and chatter excessively in field. ............................................... 8-3
Openers drop quickly after transport lock valve is closed. ............................................ 8-3
Opener pressure drops quickly during normal operation. ............................................. 8-4
Excessive seed depth and soil throw. ........................................................................... 8-4
Openers not fully lifting to transport position. ................................................................ 8-4
C2 Contour Air Drill August 2014 8-1
Page 88
Troubleshooting
Problem
Machine not operating straight.
Lack of penetration.
Openers wearing unevenly
Wing lifting too slowly.
Cause
Uneven opener depth.
Openers worn.
System pressure too low.
Tire tracks.
Front row always wears more
than the others.
Tractor hydraulic pressure.
Hydraulic breakaways.
Hose restriction.
Correction
Refer to Operation Section on depth adjustment.
Check tire pressure.
Replacement necessary.
Refer to Operation Section on setting maximum
system pressure.
Replace worn openers.
Repair pump. Pressure relief valve needs resetting.
Foreign material or sticking.
Check compatibility.
Cylinder linkage binding.
Wings not lowering.
One wing will lift, other will not.
Oil accumulation.
Transport valve in locked position.
Assembly.
Restriction in line.
Internal cylinder leak.
Damaged seal.
Loose fittings.
Scored cylinder shaft will damage
shaft seal.
Normal.
Place opener valve into unlocked position.
Hoses reversed at cylinder.
Clean.
Repair cylinder.
Replace seals.
Tighten hose and pipe connections.
Replace.
Slight seepage from seal is normal.
8-2 August 2014 C2 Contour Air Drill
Page 89
Troubleshooting
Problem Cause
Accumulator system pressure drop excessive.
Openers won’t lift or lower.
Openers can not be fully pressurized.
Valve in Bleed-Off position.
Leaking opener cylinder.
Openers valve in locked position.
Hydraulic line, fitting or cylinder
leak.
Low oil level.
Hydraulics clogged.
Pivot bolts too tight.
Hydraulic line, fitting or cylinder
leak.
Pressure reducing valve dirty or
stuck.
Correction
Place valve into operating position.
Repair or replace cylinder.
Place openers valve in unlocked position.
Locate leaking line, fitting or cylinder and repair
or replace.
Fill tractor reservoir.
Replace filter.
Refer to Maintenance Section on Opener Body
Assembly for adjusting procedure.
Locate leaking line, fitting or cylinder and repair
or replace .
Put openers in float and adjust the reducing valve
fully in and out to loosen stuck spool.
Shanks hang back and trip out during normal operation.
Seed rows covered in loose soil after seeding.
Packer wheels bounce and chatter excessively in field.
Openers drop quickly after transport lock valve is closed.
System pressure too low for seed
depth and soil conditions.
Air in hydraulic lines.
Ground speed too fast.
Back of drill frame is lifting.
Packing pressure too low.
Depth setting too deep.
Hydraulic line, fitting or cylinder
leak.
Adjust reducing valve to higher pressure until
shanks no longer hang back.
Bleed hydraulic system.
Reduce speed and check field finish.
Add factory weight kit to rear depth beams.
Adjust reducing valve to higher pressure until
packer arms have desired pressure.
Reduce opener seeding depth.
Locate leaking line, fitting or cylinder and repair
or replace.
C2 Contour Air Drill August 2014 8-3
Page 90
Troubleshooting
Problem
Opener pressure drops
quickly during normal
operation.
(more than 150psi after
charging system).
Excessive seed depth and soil throw.
Openers not fully lifting to transport position.
Cause
Hydraulic line, fitting or cylinder
leak.
Damaged or stuck pilot operated
check valve.
Soft field conditions.
Ground speed too fast.
Hydraulic pressure too high.
Air in hydraulic lines.
Parallel link pivot bolts too tight.
Correction
Locate leaking line, fitting or cylinder and repair
or replace.
Replace valve.
Reduce pressure and seed depth settings.
Reduce speed and re-check depth.
Reduce pressure and re-check depth.
Bleed hydraulic system.
Loosen pivot bolts in small increments until all
openers will drop quickly from raised position under
their own weight (put tractor remote in float to allow
openers to drop).
8-4 August 2014 C2 Contour Air Drill
Page 91
Page 92
www.morris-industries.com
Corporate Head Office 2131 Airport Drive
and Training Centre: Saskatoon, Saskatchewan
S7L 7E1 Canada
Phone: 306-933-8585
Fax: 306-933-8626
It is the policy of Morris Industries Ltd. to improve its products whenever it is possible to
do so. Morris Industries reserves the right to make changes or add improvements at any
time without incurring any obligation to make such changes on machines sold previously.
Printed in Canada
August 2014
Loading...
