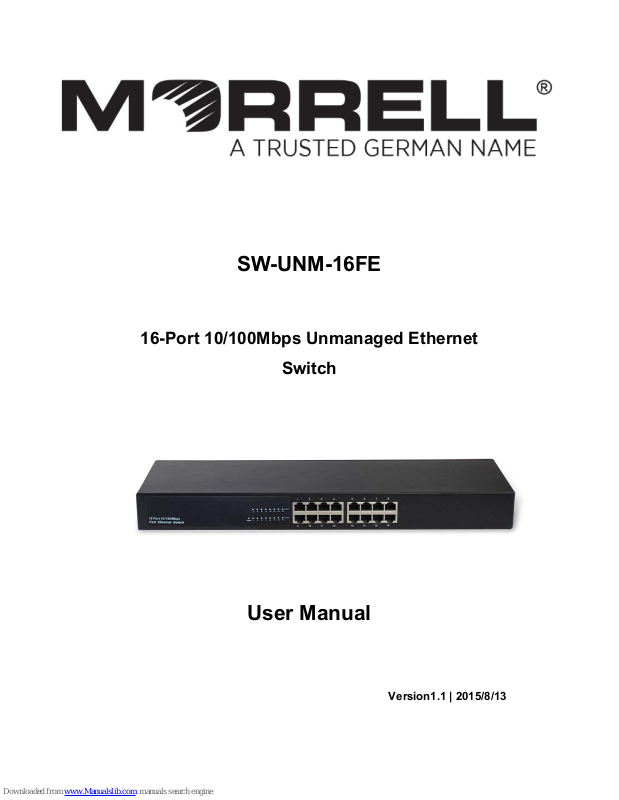

Morrell SW-UNM-16FE User Manual

SW-UNM-16FE

16-Port 10/100Mbps Unmanaged Ethernet

Switch

User Manual

Version1.1 | 2015/8/13

Table of Contents

Chapter 1 Product Introduction .................................................................................................... 3

1.1 Product Overview ............................................................................................................... 3

1.2 Features ............................................................................................................................... 3

1.3 Package Contents ................................................................................................................ 3

Chapter 2 External Component Description ................................................................................ 4

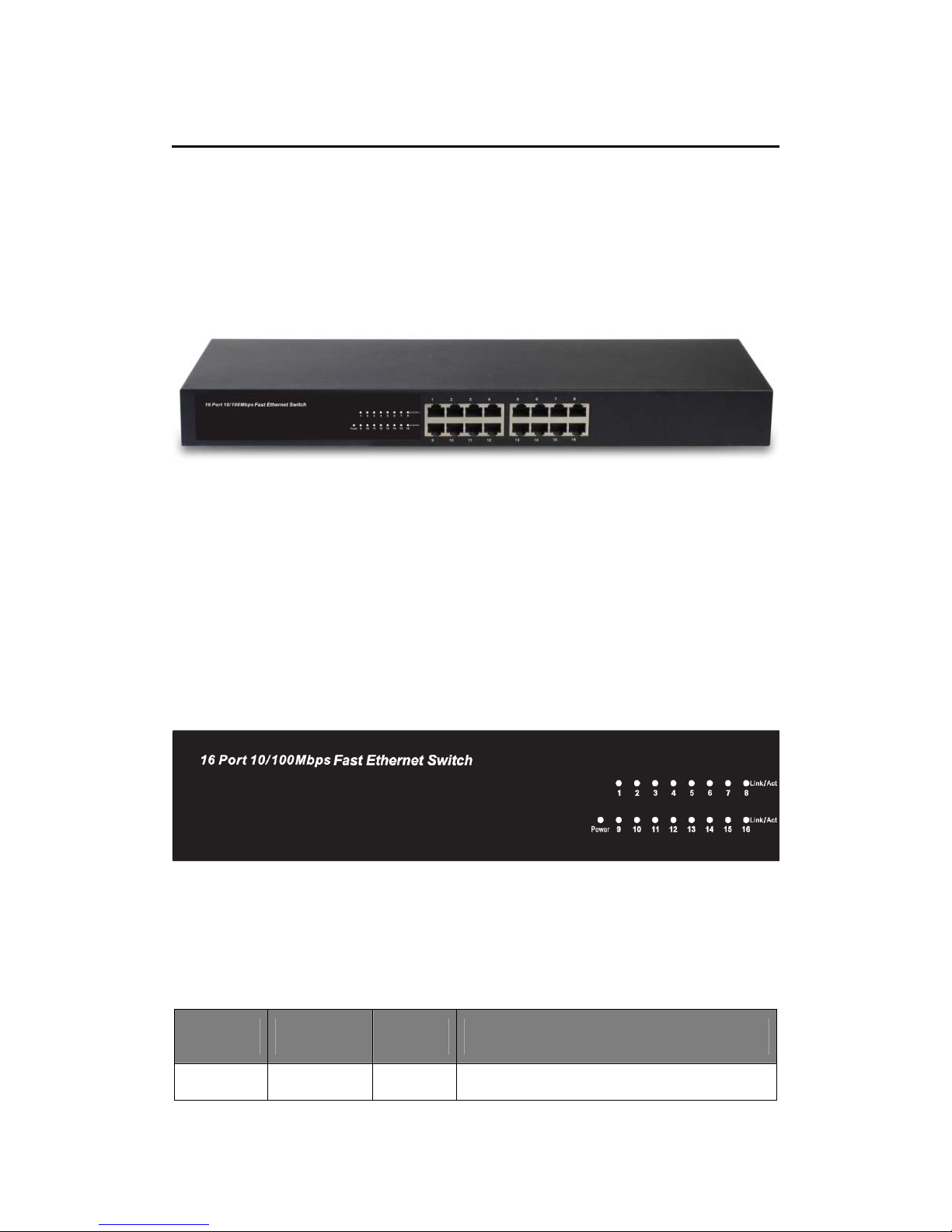

2.1 Front Panel .......................................................................................................................... 4

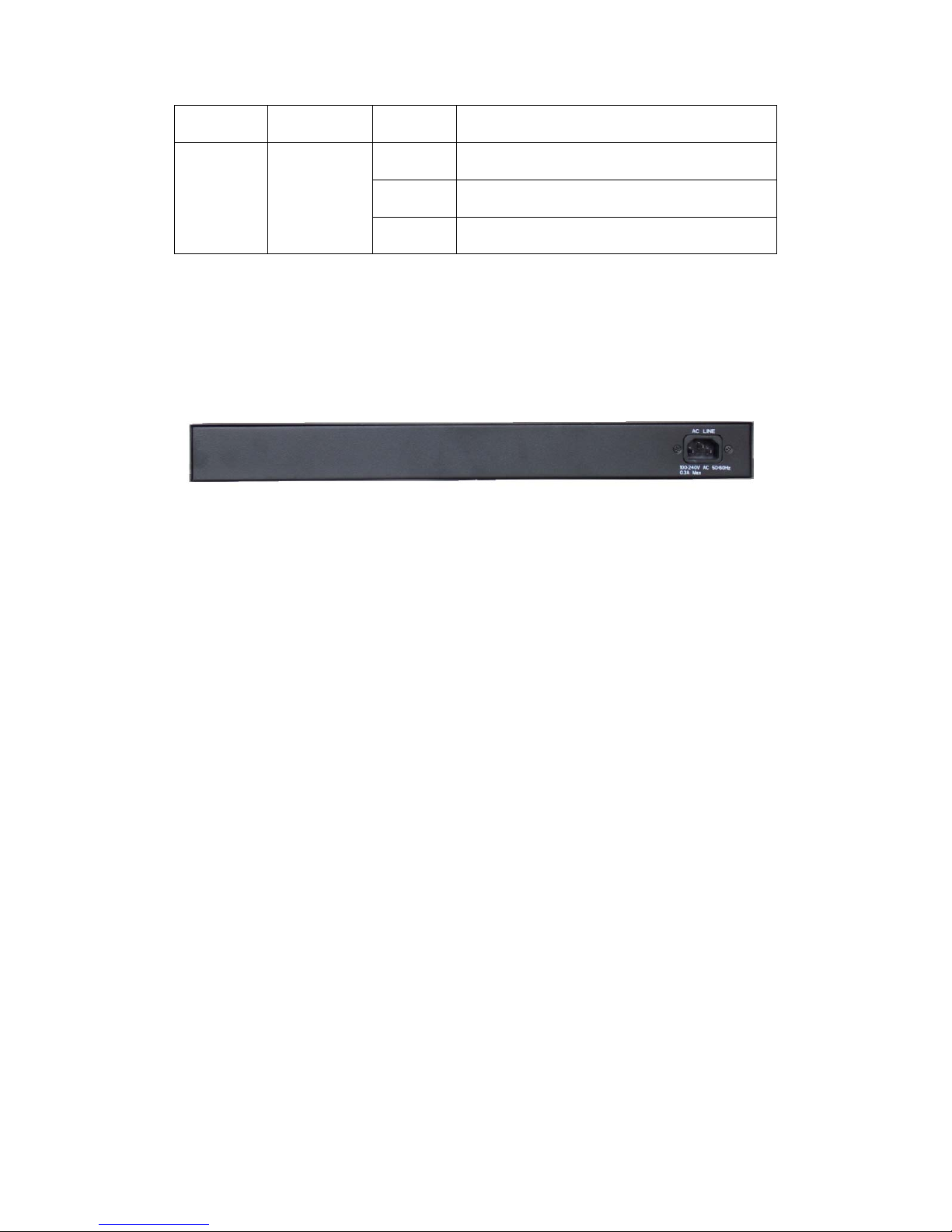

2.2 Rear Panel ........................................................................................................................... 5

Chapter 3 Installing and Connecting the Switch .......................................................................... 7

3.1 Installation ........................................................................................................................... 7

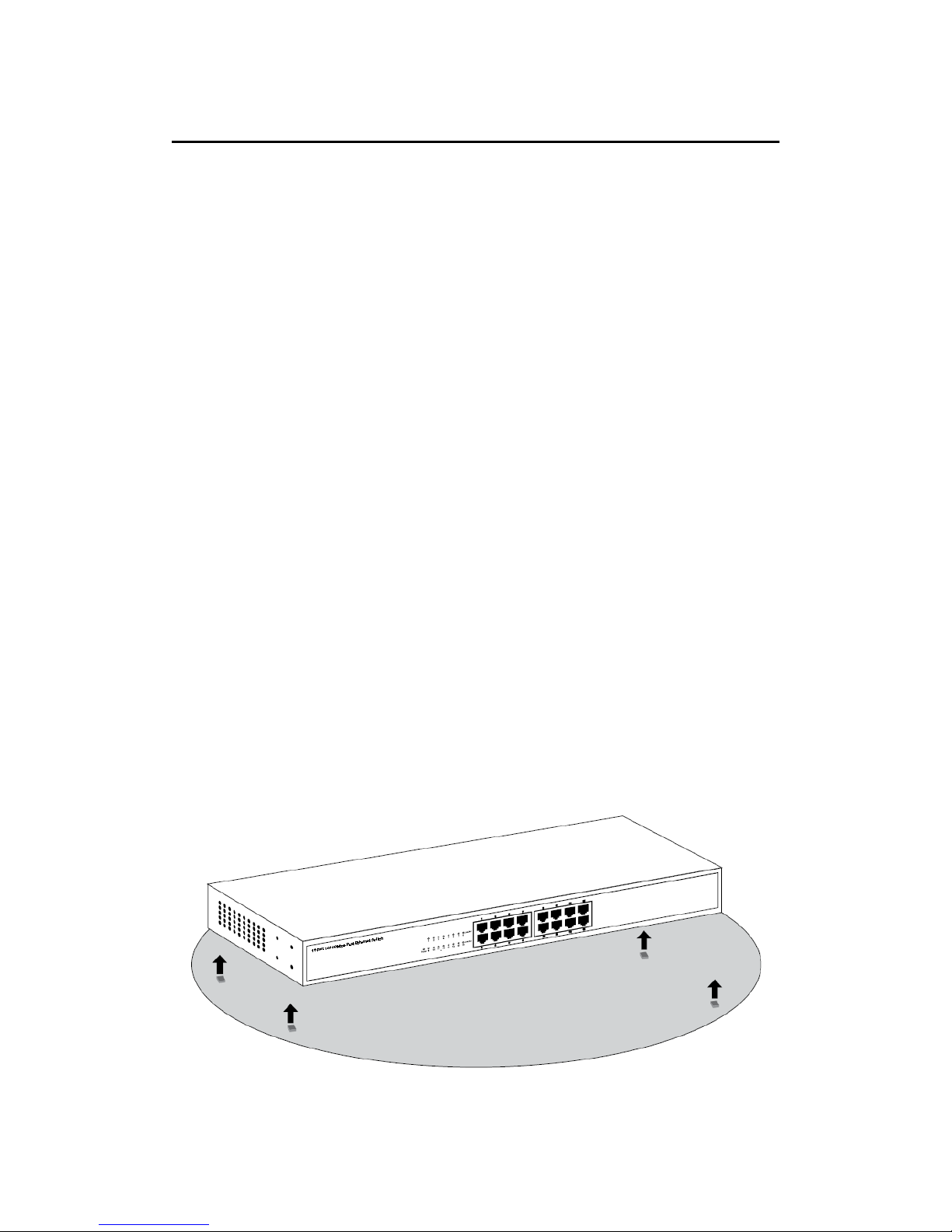

3.1.1 Desktop Installation ................................................................................................. 7

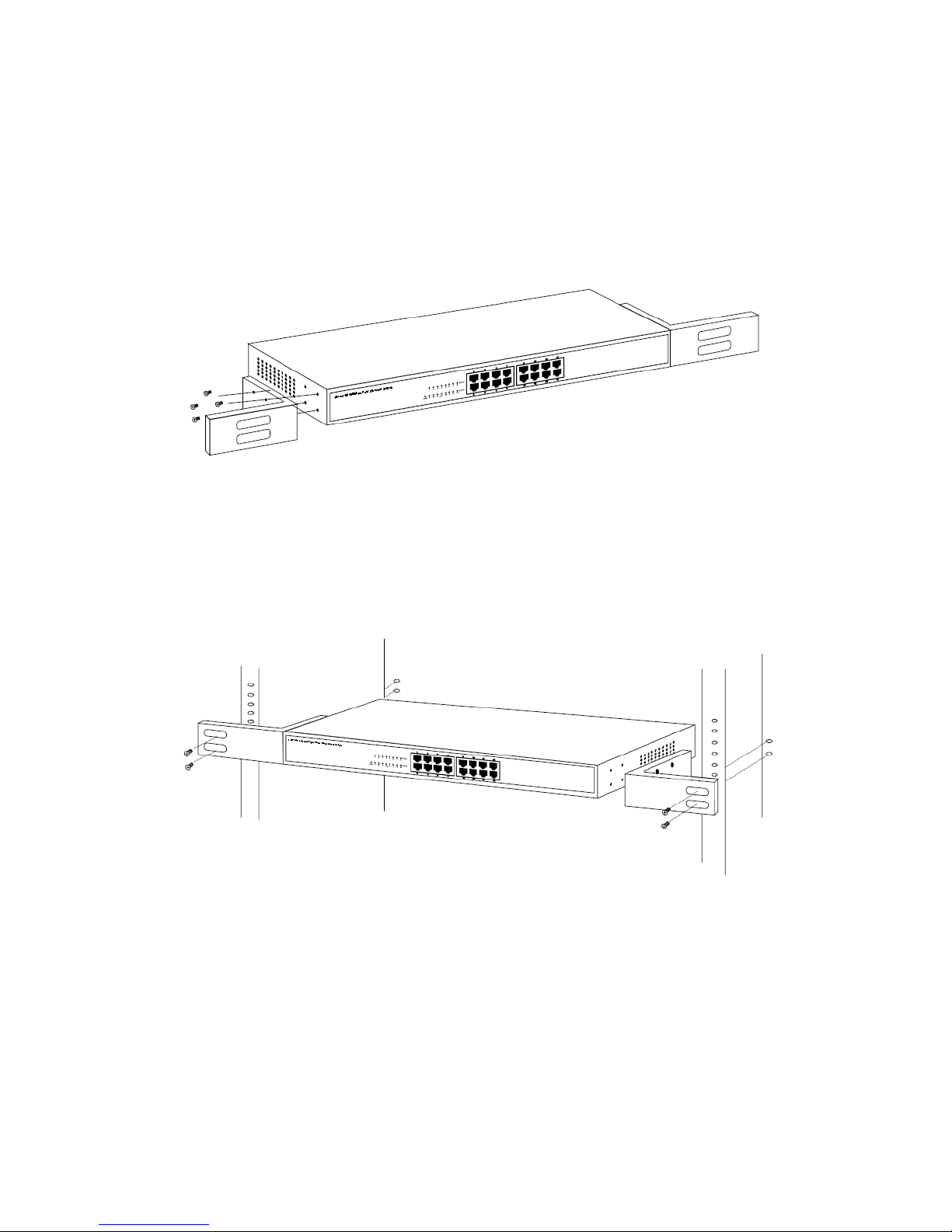

3.1.2 Rack-mountable Installation in 19-inch Cabinet ...................................................... 8

3.1.3 Power on the Switch ................................................................................................. 8

3.2 Connect Computer (NIC) to the Switch .............................................................................. 9

1

2

Chapter 1 Product Introduction

Congratulations on your purchasing of the 16 port 10/100Mbps Fast Ethernet Switch.

Before you install and use this product, please read this manual carefully for full exploiting

the functions of this product.

1.1 Product Overview

The 10/100Mbps switch is the perfect way of integrating 10Mbps Ethernet and 100Mbps

Fast Ethernet devices. All sixteen ports are auto speed negotiating, and have automatic

MDI/MDI-X crossover detection, so you don't have to worry about the cable type. Each port

independently negotiates for best speed and half- or full-duplex mode. To increase the

functionality of your network, you can also add other Ethernet-enabled devices such as a

print server, Network-Attached Storage (NAS), and Internet camera.

1.2 Features

Sixteen 10/100BASE-T Ethernet Ports

Support Auto-Negotiation for 10/100Mbps and duplex mode

Support Auto-MDI/MDIX for each port

Support Full/Half duplex transfer mode for 10/100Mbps

Support Store-and-Forward switching method

Complies with IEEE 802.3,IEEE 802.3u

Support Wire-speed and non-blocking performance

3.2 Gbps Switching Capacity

Support Broadcast and multicast storm control

Supports MAC address auto-learning and auto-aging

4K MAC address table

1.3 Package Contents



One 16 port 10/100Mbps Unmanaged Ethernet Switch



A set of installation components



One AC power cord



One User Manual

3
