IMPORTANT: To prevent limescale problems which would not be covered by the
guarantee, use only deionised / demineralised / distilled water (available from most
large supermarkets), or softened water from a Morphy Richards water softener bottle
VC720520MUK Rev1.qxp_Instruction Booklet 07/04/2016 11:41 Page 1
2
Health and Safety
•
WARNING: Disconnect from the mains supply
before carrying out any routine maintenance.
•
This appliance can be used by persons with
reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, if they have
been given supervision or instruction concerning
the use of the appliance in a safe way and
understand the hazards involved.
•
Children shall not play with the appliance.
•
Keep the appliance out of reach of children when it
is energized or cooling down.
•
The appliance is not to be used if it has been
dropped, if there are visible signs of damage or if it
is leaking.
•
The appliance must not be left unattended while
connected to the supply mains.
•
If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent, or similarly
qualified person to avoid a hazard.
Personal safety
• WARNING: Never direct steam at
electrical components or fittings.
If in doubt about the suitability of
steam for cleaning an appliance,
contact the appliance
manufacturer for advice prior to
cleaning.
• WARNING: Never touch the plug
or cable with wet hands.
• WARNING: Nozzles and tools will
be hot after use. Allow to cool
before attempting to remove.
• WARNING: Misuse of the
appliance could cause injury.
• WARNING: Do not
discharge the
steam towards
people or
animals.
Danger of
scalding.
• WARNING: Do not use the
appliance without the filler cap in
place.
• WARNING: In the event of a
blockage, steam will be released
from the steam relief vent.
•
To protect against fire, electric
shock and personal injury, do not
immerse cord, plug or cleaner in
water or other liquid.
• The plug should be removed from
the wall socket after use, before
cleaning, filling or changing the
accessories, or carrying out user
maintenance.
• Repairs to electrical appliances
are only to be undertaken by
trained personnel.
• Unprofessional repairs can be
dangerous for users.
• Do not use or keep this product
outside.
The use of any electrical appliance requires the following common sense safety rules.
Please read these instructions carefully before using the product.
STEAM
VC720520MUK Rev1.qxp_Instruction Booklet 07/04/2016 11:41 Page 2
3
Health and safety ..............................................................................
Electrical requirements .....................................................................
Product overview / Features ............................................................
Operating the appliance ...................................................................
Dual functionality ..............................................................................
Dual water tanks ...............................................................................
Upright steam cleaner ..........................................................
Upright steam cleaning: assembly ...................................................
Filling the water tank in upright mode .............................................
Using in upright steam cleaning mode ............................................
Handheld steam cleaner .......................................................
Using the handheld steam cleaner ..................................................
List of attachments for use on the handheld steam cleaner ..........
Two handheld steam cleaner positions ...........................................
Refitting the handheld steam cleaner ..............................................
Steam relief vent ...............................................................................
After use ............................................................................................
Storage ..............................................................................................
Maintenance ......................................................................................
Contact us .........................................................................................
Notes .................................................................................................
Guarantee ..........................................................................................
Contents
2
3
4
5
5
5
6, 7 & 8
6
6
7 & 8
9, 10 & 11
9
10
11
11
12
12
12
13
13
13, 14 & 15
16
Mains cable
• WARNING: A damaged or
s
evered mains cable fitted with a
plug should never be connected
to the mains supply. It must be
d
estroyed, as a damaged cable
becomes hazardous if connected
t
o a power socket.
•
Do not allow the mains lead to
b
ecome strained.
Product safety
• D
o not store the appliance near
hot surfaces eg. ovens or heating
a
ppliances.
• Never modify the steam cleaner in
any way.
• N
ever operate the steam cleaner
without water in the tank. Always
t
op-up with water during extended
periods of use.
•
Do not use any chemical
detergents, perfumes, alcohol or
descaler etc in water.
•
U
se only genuine Morphy
Richards spare parts and
a
ccessories.
• This steam cleaner is intended for
d
omestic use only. Misuse or use
for commercial or any other
purpose will render the guarantee
i
nvalid.
Electrical requirements
• Check that the voltage on the
r
ating plate of your appliance
corresponds with your house
electricity supply which must be
A
.C. (Alternating Current).
• WARNING: This appliance must
b
e earthed.
•
Should the fuse in the mains plug
require changing, a 13 amp
BS1362 fuse must be fitted.
VC720520MUK Rev1.qxp_Instruction Booklet 07/04/2016 11:41 Page 3
4
Features
(1) Back saver handle release
button
(2) Steam trigger
(3) Handle
(4) Upper cord storage hook
(rotatable)
(5) Steam triggers
(on underside of the handle of
the handheld steam cleaner)
(6) Handle removal catch
(7) Handheld release button
(8) Temperature indicator light and
handheld steam lock/unlock
button
(9) Upright water tank release
button
(10) Handheld handle
(11) Upright water tank with filler
cap
(12) Power cord
(13) Handheld water tank
(14) Water tube with brass ball
weight attached
(inside product)
(15) Handheld handle rotate button
(16) On/Off power switch
(17) Lower cord storage hook
(fixed)
(18) Variable steam control
(19) Handheld steam cleaner
(20) Steam relief vent
(on the handheld - see page 12)
(21) Main body
(22) Floorhead release button
(23) Floorhead
(24) Carpet glider
(25) Microfibre floor cloth
(26) Accessory adaptor
(27) Jet nozzle
(28) Scraper attachment
(29) Round nylon brush
(30) Crevice brush
(31) Upholstery nozzle
(32) Elasticated upholstery nozzle
cloth
Product overview
1
3
4
16
12
12
21
25
26
24
29
27
30
28
18
23
22
6
10
15
11
14
17
31
32
8
2
19
20
13
9
7
5
VC720520MUK Rev1.qxp_Instruction Booklet 07/04/2016 11:41 Page 4
5

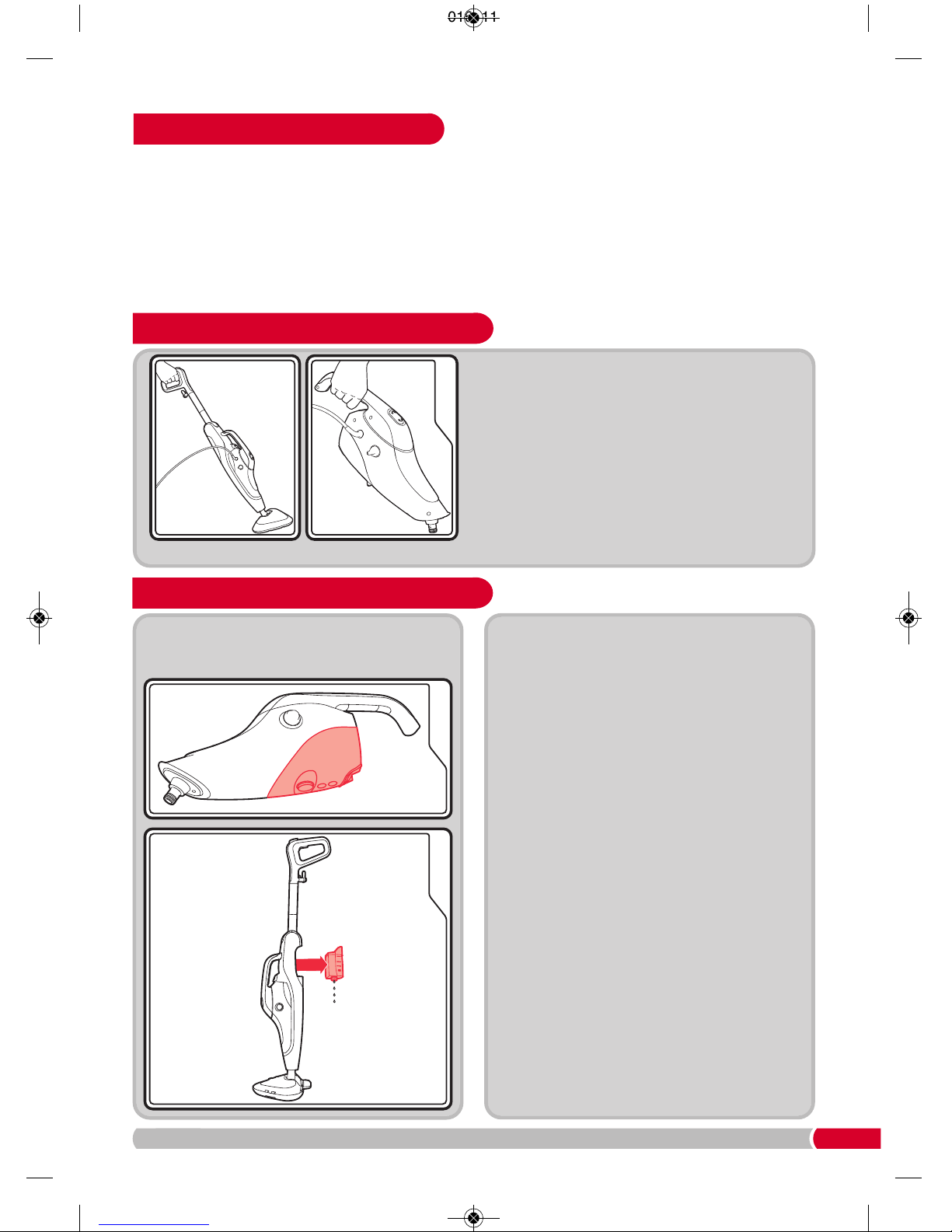

Dual functionality
Your steam cleaner can easily be configured into
two different cleaning modes:
• Upright for cleaning floors and freshening
carpets.
• Handheld steam cleaner (19) for cleaning vertical
or hard to reach surfaces.
Attachments (26-31) can be used on the
handheld steam cleaner.
I
MPORTANT: Please remember that the steam cleaner operates by emitting steam at an increased
temperature of 115
o
C. Always test on an inconspicuous area first. Never use it on objects or surfaces
which cannot resist this temperature, on surfaces with coatings or polishes, or on delicate materials
s
uch as dralon, plastic, natural fur or antique items etc.
If in doubt, check carefully on a part of the material where minor marks will not matter.
IMPORTANT: Do not use disinfectant, detergents, cleaning solutions, scented oils or scented water,
b
leach or vinegar in your steam product. They will cause damage to your product and invalidate
y
our guarantee. We recommend you only use deionised or distilled water, or Morphy Richards
water softener bottles to fill your steam cleaner.
Operating the appliance
Upright steam cleaning Handheld steam cleaning
Dual water tanks
There are two water tanks which can be filled,
one in the handheld unit and one in the main
unit, depending on the cleaning mode required.
The brass ball weight (14)
The brass ball weight inside the handheld water
tank
(13) is attached to the end of the suction
hose. The ball is weighted and designed to
freely move around the water tank of the
handheld steam cleaner
(19). The ball must
remain in the water so steam can be generated
whenever the steam trigger is pressed
regardless of the orientation of the handheld
steam cleaner. If the ball does get stuck outside
the water level, gently shake the product until it
comes free.
Rinsing the water tanks
Regularly rinse both water tanks to release any
deposits that have collected on the bottom of
the tanks. Only use deionised, demineralised or
distilled water (available from most large
supermarkets) and fit the filler cap to allow
vigorous rinsing.
