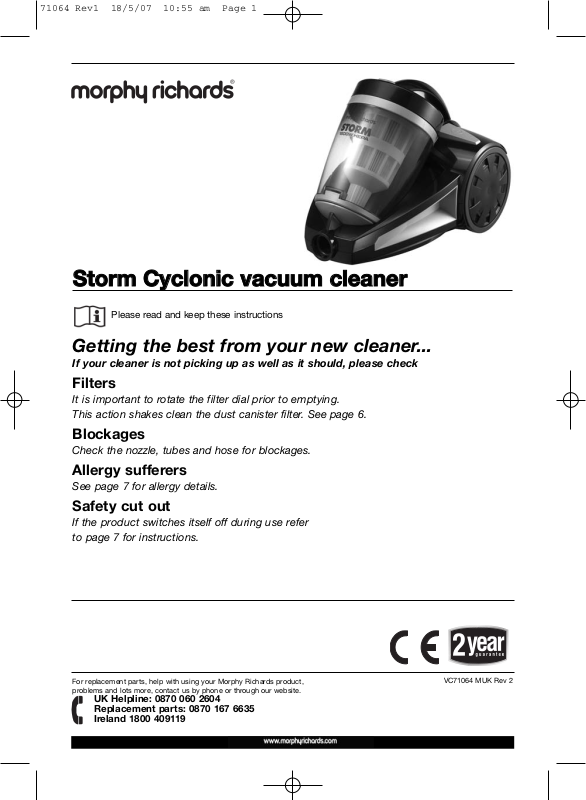

SSttoorrmm CCyycclloonniicc vvaaccuuuumm cclleeaanneerr
Please read and keep these instructions
Getting the best from your new cleaner...
If your cleaner is not picking up as well as it should, please check
Filters
It is important to rotate the filter dial prior to emptying.
This action shakes clean the dust canister filter. See page 6.
Blockages
Check the nozzle, tubes and hose for blockages.
Allergy sufferers
See page 7 for allergy details.
Safety cut out
If the product switches itself off during use refer
to page 7 for instructions.
VC71064 MUK Rev 2
For replacement parts, help with using your Morphy Richards product,
pr
oblems and lots mor
e, contact us b
y phone or through our website.
UK Helpline: 0870 060 2604
Replacement parts: 0870 167 6635
Ireland 1800 409119
71064 Rev1 18/5/07 10:55 am Page 1
2
2
IMPORTANT
SAFETY
INSTRUCTIONS
The use of any electrical
appliance requires the following
c
ommon sense safety rules.
Primarily there is danger of
injury or death and secondly
t
he danger of damage to the
a
ppliance. These are indicated
i
n the text by the following two
conventions:
WARNING: Danger to the
person!
IMPORTANT: Damage to the
appliance! In addition we offer
the following safety advice.
Location
• Do not use or keep this
product outside in the rain.
• Do not store the appliance near
hot surfaces eg ovens or
heating appliances.
Mains lead
• Do not allow the mains lead to
become strained or run this
appliance over it.
• If the electrical cable becomes
damaged the cable assembly
must be replaced. Do not
attempt this task yourself,
contact the helpline number
that is found at the bottom of
the page.
Personal safety
• The plug must be removed
from the wall socket before
c
leaning or maintaining the
a
ppliance.
• Never modify the cleaner in any
w
ay.
• Never use in the presence of
explosive liquids or vapours.
•
Never pick up inflammable or
p
oisonous liquids such as
petrol, copier toner or other
v
olatile substances. Never pick
up acids, asbestos or asbestos
dust.
• Repairs to electrical appliances
are only to be undertaken by
trained personnel.
Unprofessional repairs can be
dangerous for users.
• Use only genuine Morphy
Richards spare parts and
accessories.
• The appliance must never be
left running when
unsupervised.
• This vacuum cleaner is
intended for domestic use only.
Misuse or use for commercial
or any other purpose will
render the guarantee invalid.
• This appliance is not intended
for use by persons (including
children) with reduced physical,
sensory or mental capabilities,
or lack of experience and
knowledge, unless they have
been given supervision or
instruction concerning use of
the appliance by a person
responsible for their safety.
Product safety
• Never use the appliance
without the f
ilters being
installed.
• Never use the appliance to
vacuum hot ashes, broken
glass, sharp objects or liquids.
Children
• Children do not understand the
dangers associated with
o
perating electrical appliances.
N
ever allow children to use this
appliance.
•
Children should be supervised
t
o ensure that they do not play
with the appliance.
ELECTRICAL
REQUIREMENTS
C
heck that the voltage on the
rating plate of your appliance
corresponds with your house
electricity supply which must
be A.C. (Alternating Current).
If the socket outlets in your
home are not suitable for the
plug supplied with this
appliance the plug should be
removed and the appropriate
one fitted.
If you cut off the plug and let
go of the cable it will rewind
into the machine therefore you
must pull out a length of cable
and secure it before cutting the
plug off and re-fitting a new
one.
WARNING: The plug
removed from the mains
lead, if severed, must be
destroyed as a plug with a
bared flexible cord is
hazardous if engaged into a
live socket outlet.
Should the fuse in the 13 amp
plug require changing, a 13
amp BS1362 fuse must be
fitted.
UUKK HHeellpplliinnee 00887700 006600 22660044 RReeppllaacceemmeenntt PPaarrttss 00887700 116677 66663355 IIrreellaanndd HHeellpplliinnee 11880000 44009911119
9
71064 Rev1 18/5/07 10:55 am Page 2
FEATURES
⁄ Hose inlet
¤ Dust canister
‹ Dust canister release
button
› C
arrying handle
fi On/off po
wer switch
fl Variable power switch
‡ Parking slot
· T
ool storage dra
w
er
‚ Plug recess
„ Cable rewind switch
‰ Exhaust filter grille
 Exhaust filter
Ê Dust canister lid
Á Pleated, washable dust
canister filter
Ë Mesh f
ilter cover
È Standar
d hose
Í Hose handle with airflow
regulator
Î Extension tubes
Ï Combination floor nozzle
Ì Har
d f
loor nozzle (certain
models only)
Ó Large turbo nozzle (certain
models only)
Ô Small turbo nozzle (certain
models only)
Upholstery nozzle
Ò Clip on brush (attached to
)
Ú Cr
evice tool
Note:
,Ò,Ú are stored
in the tool storage drawer
·.
Û
Filter cleaning br
ush
Ù Dust canister lid release
3
3
⁄
¤
‹
›
fi
fl
‡
‚
Ê
‰
¤
„
Â
Ë
È
·
Í
Î
Ï
Ì
Ô
Ó
Á
Ò
Ú
Û
Ù
A
71064 Rev1 18/5/07 10:55 am Page 3
4
4
UUKK HHeellpplliinnee 00887700 006600 22660044 RReeppllaacceemmeenntt PPaarrttss 00887700 116677 66663355IIrreellaanndd HHeellpplliinnee 11880000 44009911119
9
Operating the
appliance
Quick start
1 Assemble as shown on page 3.
2 Pull out the mains cable to it’s
full length and plug into the
mains supply.
3 Switch on by pressing the on/off
switch fi.
TOOLS AND
ACCESSORIES
1 Fit the hose to the cleaner by
inserting the hose end into the
hose inlet ⁄. When removing,
squeeze the clips either side
and pull.
2 Attach the extension tubes Î.
The hose handle features an
airflow regulator which allows
suction to be reduced as
required.
3 Attach the floor nozzle to the
extension tubes Î.
Combination floor
nozzle
The combination floor nozzle
can be adjusted to suit different
floor surfaces. Retract the
brushes for use on carpet. The
brushes should be down for use
on hardfloors or damage may
occur.
Hand tools
The crevice tool Ú (for awkward
places, behind radiators etc)
and the upholstery nozzle
with clip on br
ush
Ò (f
or
curtains and upholstery) are
stor
ed in the tool drawer
·.
The crevice tool is used for hard
surfaces, pelmet, delicate
objects etc
B.
Using the large turbo
nozzle
(certain models only)
Attach the large turbo nozzle Ó
to the extension tubes Î.
This nozzle is ideal for carpet
and especially effective at
removing pet hair.
Using the small turbo
nozzle
(certain models only)
Attach the turbo nozzle to the
hose handle
Í only for use on
upholstery and stairs.
WARNING: The turbo nozzle
should not be used with the
extension tubes. Attach to the
hose handle only.
Cleaning the turbo
nozzles
The turbo nozzles should be
regularly cleaned and any hairs
or fibres wrapped around the
brush bar removed to maintain
optimum performance. To aid
cleaning, the small turbo nozzle
can be opened up by pushing
the button on the nozzle
forwards. A cover on the bottom
of the large turbo nozzle allows
access to the turbine fan.
Hardfloor nozzle
(certain models only)
Attach the hardfloor nozzle to
the extension tubes. This nozzle
is ideal for use on wood,
laminate, tile and vinyl flooring.
B
Ú
Ò
71064 Rev1 18/5/07 10:55 am Page 4
5
5
Quick guide to
accessories:
CONTROLS
Power
1 Assemble the nozzle, extension
tube and hose as shown.
(Shown on page 3)
2 Pull out the mains cable to it’s
full length and plug into the
mains supply.
3 Switch on by pressing the on/off
power switch fi.
Variable power
A Variable power switch fl
varies the suction power as
r
eq
uired. For example,
maximum suction can be used
for cleaning carpets, hard floors
etc. and reduced suction for
cleaning upholstery and
curtains.
Suction can also be controlled
using the airflow regulator on
the hose handle. Closed for
maximum suction, open for
reduced suction.
Automatic cable
rewind
After use, unplug and press the
cable rewind switch to retract
the cable.
WARNING: When using the
cable rewind, always hold
the plug as the cable will
rewind quickly.
Combination
floor nozzle
Large turbo
nozzle
(certain models
only)
Small turbo
nozzle
(certain models
only)
Hard floor
nozzle
(certain models
only)
Crevice tool
Upholstery
nozzle with
c
lip on-brush
Carpet
3
With brushes
retracted
3
Rugs
3
With brushes
retracted
3
Wood/
laminate
3
With brushes
down
3
Tile
3
With brushes
down
3
Vinyl
3
Upholstery
3 3 3 3
Stairs
3 3
Small spaces
3
71064 Rev1 18/5/07 10:55 am Page 5
6
6
UUKK HHeellpplliinnee 00887700 006600 22660044 RReeppllaacceemmeenntt PPaarrttss 00887700 116677 66663355IIrreellaanndd HHeellpplliinnee 11880000 44009911119
9
76
DUST CANISTER
Emptying
To obtain the best results from
your cleaner empty the dust
canister regularly, otherwise the
airflow and cleaning power will
be reduced.
1 Everytime the dust canister is
emptied, turn the yellow dial (a
minimum of 5 revolutions) prior
to pressing the dust canister
release button (this will agitate
the fine dust between the filter
pleats and restore the air flow)
2 Remove the dust canister from
the product by pressing the
dust canister release button ‹
Lift up the lid and remove the
canister from the product,
pulling the dust canister away
from the product. C
3 Holding the dust canister over a
dustbin press the dust release
button as shown D, the bottom
of the dust container will drop
down to release the dirt.
4 Close the bottom of the dust
canister by pressing the base
upwards until it clicks into
place.
5 Refit the dust canister back into
the product. Make certain the
dust canister feet are located in
place.
6 Close the lid securely.
ALLERGY
SUFFERERS
If the allergy sufferer is
emptying the product it is
recommended that the
container is placed into a plastic
bag to empty
.
1 Place the container inside the
plastic bag, releasing the
container with one hand whilst
holding the top of the bag
closed with the other, leave the
dust to settle for a few seconds
bef
or
e car
efully r
emo
ving the
empty canister. The plastic bag
can then be sealed and
disposed of
.
FILTERS
Cleaning canister
filter
1 Access the filter assembly by
removing the lid. Press the lid
release button down then rotate
the lid. E.
2 Use the filter cleaning brush to
remove any fluff from the
outside of the mesh filter.
3 Rotate mesh filter anti-
clockwise to disassemble.
4 Shake the pleated filter to
remove any dust.
5 Both the mesh and pleated
filters may be washed (in cool
water only) but must be
thoroughly air dried before
refitting.
IMPORTANT: Do not use
detergents to clean the filter.
• To re-assemble, locate the
pleated filter into the lid then
secure into place with the mesh
filter by rotating the mesh filter
clockwise.
• Fit the lid with filter assembly
onto the canister then rotate
clockwise until it locks into
place.
Exhaust filter
The exhaust filter  is located
at the rear of the cleaner. Press
the catch and pull the exhaust
grille
‰ away F. Pull the
bottom of the filter outwards so
the top of the filter unhooks
from the filter recess.
Foam filters may be washed (in
cool w
ater), thoroughly air-dried
and re-fitted. The pleated filters
used on the Aller
gy models
cannot be washed and should
be replaced every 6 months or
sooner depending on use.
OPEN
D
E
C
F
71064 Rev1 18/5/07 10:55 am Page 6
7
7
7
IMPORTANT: To re-fit the filters,
first hook the top of the filter
into the filter recess then push
the bottom of the filter into
location G.
Note: If the filter is not correctly
hooked in the exhaust filter
grille will not close.
After fitting the filter, re-fit the
exhaust filter grille by hooking
the bottom of the grille in first
and then pushing the top close
until it clicks fully closed.
IMPORTANT: All filters should
be checked regularly for signs
of damage, preferably after
each cleaning task. The filters
must be replaced immediately if
they become damaged.
• Always disconnect the cleaner
from the mains when checking
filters.
• Always make sure all filters are
fitted before use. Failure to do
so may result in damage to your
product.
Storage position
When finished you can store the
tubes and accessories by
locating the tube storage clip
into the parking slot on the side
of the cleaner as shown H.
Safety cut-out
If the cleaner overheats a motor
protection thermostat will
automatically switch the motor off.
If this happens, switch the cleaner
off, unplug from the power supply
and leave the cleaner to cool for at
least 30 minutes. Check the
airways for blockages, empty dust
canister and clean the f
ilters before
restarting.
Cleaning and
maintenance
Unplug from the mains before
cleaning. The vacuum cleaner,
especially the dust
compartment and all
accessories can be cleaned
using a damp cloth or a nonabrasive cleaner and wiped dry.
Purchasing
replacement filters
Use only original Morphy
Richards filters. These can be
purchased from Morphy
Richards on Replacement parts
line.
HELPLINE
If you have any difficulty with
your appliance, do not hesitate
to call us.
We are more likely to be able to
help than the store from where
you bought it.
Please have the following
information ready to enable our
staff to deal with your query
quickly.
• Name of the product.
• Model number as shown on the
underside of the appliance.
• Serial number as shown on
underside of the appliance.
UK Helpline 0870 0602604
Replacement Parts 0870 1676635
Ireland Helpline 1800 409119
H
G
71064 Rev1 18/5/07 10:55 am Page 7
8
8
YOUR TWO YEAR
GUARANTEE
It is important to retain the
r
etailers receipt as proof of
p
urchase
. S
taple your receipt
to this back cover for future
reference.
P
lease quote the following
information if the product
develops a fault. These
n
umbers can be found on the
b
ase of the product.
Model no.
Serial no.
All Morphy Richards products
are individually tested before
leaving the factory. In the
unlikely event of any appliance
proving to be faulty within 28
days of purchase it should be
returned to the place of
purchase for it to be replaced.
If the fault develops after 28
days and within 24 months of
original purchase, you should
contact the Helpline number
quoting Model number and
Serial number on the product,
or write to Morphy Richards at
the address shown.
You may be asked to return a
copy of proof of purchase.
Subject to the exclusions set
out below (see Exclusions) the
faulty appliance will then be
repaired or replaced and
dispatched usually within 7
working days of receipt.
If you suspect a fault, follow
the simple checks detailed
below before retrying the
a
ppliance or calling the
helpline.
•
Check the filters for blockages.
• Check the tools / tubes for
blockages.
•
Check the plug is firmly in the
socket is working by trying
another appliance.
•
Check the fuse in the plug.
If for any reason this item is
r
eplaced during the 2 year
guarantee period, the
guarantee on the new item will
be calculated from original
purchase date. Therefore it is
vital to retain your original till
receipt or invoice to indicate
the date of initial purchase.
To qualify for the 2 year
guarantee the appliance must
have been used according to
the instructions supplied.
Exclusions
Morphy Richards shall not be
liable to replace or repair the
goods under the terms of the
guarantee where:
1 The fault has been caused or is
attributable to accidental use,
misuse, negligent use or used
contrary to the manufacturers
recommendations or where the
fault has been caused by
power surges or damage
caused in transit.
2 The appliance has been used
on a voltage supply other than
that stamped on the products.
3 R
epairs have been attempted
by persons other than our
service staff (or authorised
d
ealer).
4 Where the appliance has been
used for hire purposes or non
d
omestic use.
5 Morphy Richards are not liable
to carry out any type of
s
ervicing work, under the
g
uarantee.
6 The guarantee excludes
c
onsumables such as some
filters.
• This guarantee does not confer
any rights other than those
expressly set out above and
does not cover any claims for
consequential loss or damage.
This guarantee is offered as an
additional benefit and does not
affect your statutory rights as a
consumer.
• This guarantee is valid in the
UK and Ireland only.
Morphy Richards products are intended for household use only.
Morph
y Ric
har
ds has a polic
y of continuous impr
o
v
ement in product quality and
design. The company, therefore reserves the right to change the specification of its
models at any time.
The After Sales Division
Morphy Richards Ltd
Mexborough, South Yorkshire,
England, S64 8AJ
Helpline (office hours)
UK 0870 060 2604
Republic of Ireland 1800 409119
FFoorr ddeettaaiillss ooff ootthheerr pprroodduuccttss iinn tthhee MMoorrpphhyy RRiicchhaarrddss rraannggee pplleeaassee sseeee oouurr wweebbssiittee .. .. ..
For electrical products sold within the
European Community. At the end of the
electrical products useful life it should
not be disposed of with household
waste.
Please recycle where facilities e
xist.
Check with your Local Authority or
retailer for recycling advice in your
country.
V
C71064 MUK Rev 2 05/07
71064 Rev1 18/5/07 10:55 am Page 8
Loading...
