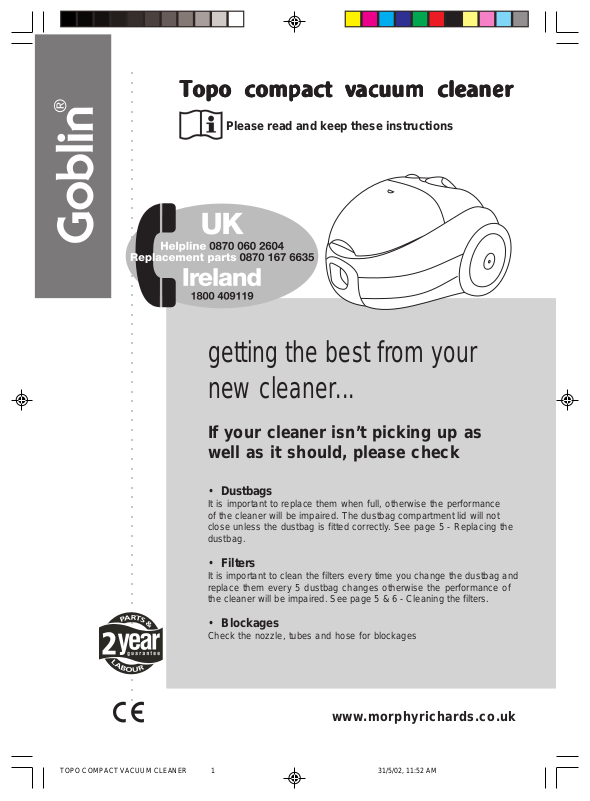

Topo compact vacuum cleanerTopo compact vacuum cleaner
Topo compact vacuum cleaner
Topo compact vacuum cleanerTopo compact vacuum cleaner
Please read and keep these instructions
getting the best from your
new cleaner...
TOPO COMPACT VACUUM CLEANER 31/5/02, 11:52 AM1
If your cleaner isn’t picking up as
well as it should, please check
• Dustbags
It is important to replace them when full, otherwise the performance
of the cleaner will be impaired. The dustbag compartment lid will not
close unless the dustbag is fitted correctly. See page 5 - Replacing the
dustbag.
• Filters
It is important to clean the filters every time you change the dustbag and
replace them every 5 dustbag changes otherwise the performance of
the cleaner will be impaired. See page 5 & 6 - Cleaning the filters.
• Blockages
Check the nozzle, tubes and hose for blockages
www.morphyrichards.co.uk
Page 2
Important safety
instructions
○○○○○○○○○○○○○○○○○○○○○
The use of any electrical appliance
requires the following common sense
safety rules.
Primarily there is danger of injury or
death and secondly the danger of
damage to the appliance. These are
indicated in the text by the following two
conventions:
WARNING: Danger to the person!
IMPORTANT: Damage to the
appliance! In addition we offer the
following safety advice.
LocationLocation
Location
LocationLocation
○○○○○○○○○○○○○○○○○○○○○
• Do not use or keep this product
outside when it is raining.
• Do not store the appliance near hot
ovens or heating appliances.
Mains leadMains lead
Mains lead
Mains leadMains lead
○○○○○○○○○○○○○○○○○○○○○
• Do not allow the mains lead to
become strained or run this appliance
over it.
• If the electrical cable becomes
damaged the complete cable
assembly must be replaced. Do not
attempt this task yourself, contact
Goblin using the helpline number on
the front of this leaflet.
ChildrenChildren
Children
ChildrenChildren
○○○○○○○○○○○○○○○○○○○○○
• Children do not understand the
dangers associated with operating
electrical appliances. Never allow
children to use this appliance.
Other safety considerationsOther safety considerations
Other safety considerations
Other safety considerationsOther safety considerations
○○○○○○○○○○○○○○○○○○○○○
• Never use the appliance without the
filters or bag installed.
• Never use the appliance to vacuum
hot ashes, broken glass, sharp
objects or liquids.
• Never use in the presence of explosive
liquids or vapours.
• Never pick up inflammable or
poisonous liquids such as petrol,
copier toner, or other volatile
substances. Never pick up acids,
asbestos or asbestos dust.
• Always disconnect the appliance from
the mains supply after use or prior to
cleaning or replacing dust bags.
• The appliance should never be left
running unsupervised.
• Never modify the cleaner in any way.
• Repairs to electrical appliances are
only to be undertaken by trained
personnel. Unprofessional repairs
can be dangerous for users.
• Use only genuine Goblin spare parts
and accessories.
Electrical requirements
○○○○○○○○○○○○○○○○○○○○○
Check that the voltage on the rating plate of
your appliance corresponds with your house
electricity supply which must be A.C. (Alternating current).
For appliances with fitted plug.
If the socket outlets in your home are not
suitable for the plug supplied with this
appliance the plug should be removed and the
appropriate one fitted.
If you cut off the plug and let go of the
cable it will rewind into the machine. Therefore
you must pull out a length of cable and secure
it before cutting off the plug and refitting a
new one.
WARNING : The plug removed from the
mains lead, if severed, must be destroyed as a plug with bared flexible
cord is hazardous if engaged into a live
socket outlet.
Should the fuse in the 13 amp plug require
changing a 13 amp BS1362 fuse must be
fitted.
TOPO COMPACT VACUUM CLEANER 31/5/02, 11:52 AM2
2
Page 3
Features
○○○○○○○○○○○○○○○○○○○○○
Accessories you should have:
○○○○○○○○○○○○○○○○○○
Hose handle with airflow control
Extension tubes
Brush attachment
Crevice tool
Combination floor nozzle
Hose
Hose inlet
Carrying handle
TOPO COMPACT VACUUM CLEANER 31/5/02, 11:52 AM3
Dust bag compartment lid release
Dust bag compartment lid
On/Off variable power switch
Cable rewind switch
Dust bag condition indicator
Exhaust filter cover
On board tube storage
3
Page 4
Quick start
○○○○○○○○○○○○○○○○○○○○○
1 Assemble the nozzle, tubes and hose
as shown
.
2 Pull out the cable to it’s full length and
plug in to the mains supply.
3 Switch on by pressing the on/off
variable power switch.
Accessories
○○○○○○○○○○○○○○○○○○○○○
1 Fit the hose to the cleaner by inserting
the hose end into the hose inlet.
release button
Tools storageTools storage
Tools storage
Tools storageTools storage
○○○○○○○○○○○
The crevice tool,
brush can be stored
on the tubes for
added convenience.
Product storageProduct storage
Product storage
Product storageProduct storage
○○○○○○○○○○○
When finished, you
can store the
vacuum cleaner as
shown by inserting
the hook on the floor
nozzle into the slot
on the cleaner body.
Controls
○○○○○○○○○○○
PowerPower
Power
PowerPower
○○○○○○○○○○○○○○○○○○○○○
2 To remove press the release button
down on the hose and pull out.
3 Attach the extension tubes to the
handle end of the hose. The hose
handle features an airflow control
which can be adjusted as required.
4 Attach the combination floor nozzle to
the extension tubes. The floor nozzle
has two levers for the two positions.
• Brush up for carpets, rugs etc.
• Brush down for hard floors, tiles
etc.
5 The other accessories include:
• Crevice tool
for awkward
places, behind radiators etc.
• Brush attachment
for pelmets,
delicate objects etc which
attaches to the crevice tool.
To alternate between the brush a nd
crevice tool push the button down and
slide.
To switch the cleaner on press the on/
off variable power switch inwards. To
switch off press the on/off
switch again.
The suction power can
be adjusted using this
switch. Turn the switch to
Max
Min
the desired level.
Suction may also be varied with the
fingertip control on the handle.
Closed: full suction
Open: reduced suction
Automatic cable rewindAutomatic cable rewind
Automatic cable rewind
Automatic cable rewindAutomatic cable rewind
○○○○○○○○○○○○○○○○○○○○○
After use, unplug and press the cable
rewind button to retract the cable.
WARNING: When using the cable
rewind, always hold the plug as the
cable will rewind quickly .
TOPO COMPACT VACUUM CLEANER 31/5/02, 11:52 AM4
4
Page 5
Replacing the dustbag
○○○○○○○○○○○○○○○○○○○○○
To obtain the best results from your
cleaner be sure to check and change the
dustbag regularly, otherwise the airflow
and cleaning power of your cleaner will
be reduced and you may damage your
cleaner.
Dustbag condition indicatorDustbag condition indicator
Dustbag condition indicator
Dustbag condition indicatorDustbag condition indicator
○○○○○○○○○○○○○○○○○○○○○
If the suction power decreases or if the
dustbag condition indicator shows
fully red then the bag must be emptied
immediately and/or the motor protection
filter cleaned, even if the bag does not
appear full. This will also occur if the
nozzle, tubes or hose have become
blocked.
• The dustbag indicator may
occasionally show red during
use - this is quite normal.
4 The arrow on the
collar of the dust
bag must point
downwards when
fitting.
Note: The dustbag compartment lid
will not close unless the dustbag is fitted
correctly.
IMPORTANT
• All filters should be checked
regularly for signs of damage,
preferably after each cleaning task.
The filters must be replaced
immediately if they become
damaged.
• Always disconnect the cleaner from
the mains when checking filters or
replacing dust bag.
• Always make sure the dust bag, grill
andfilters are fitted before use.
Failure to do so may result in damage
to your product.
1 Lift the dust compartment lid
.
2 Pull the dustbag retaining clip forward
to release. Carefully lift the dustbag
clear of the cleaner and dispose of the
dustbag.
3 To fit the new dustbag first locate the
bottom end of the dustbag collar into
the guide slot at the bottom of the
dustbag compartment then pull the
collar forward until it locates into the
securing clip.
Motor filter
○○○○○○○○○○○○○○○○○○○○○
The motor filter must be cleaned
everytime the bag is changed to remove
the fine dust particles collected. This can
be done by shaking it.
However, after approximately 5
dustbag changes, the filter should be
replaced.
The motor filter is
found in the dustbag
compartment. With the
dustbag removed
remove the filter
grill, press the
centre tab and
pull out. Pull out
the filter, shake to
clean and
replace.
The grill must be replaced after the
filter has been cleaned.
5
TOPO COMPACT VACUUM CLEANER 31/5/02, 11:52 AM5
Page 6
Exhaust filter
○○○○○○○○○○○○○○○○○○○○○
The exhaust-filter must be cleaned
everytime the bag is changed to remove
the fine dust particles collected. This can
be done by shaking it.
However, after approximately 5
dustbag changes, the filter should be
replaced.
The exhaust filter is located behind the
exhaust filter cover . To remove, unclip
the cover and remove the filter and clean
or replace.
Care and maintenance
○○○○○○○○○○○○○○○○○○○○○
Your cleaner is manufactured to
withstand normal day-to-day use, but an
occasional wipe over will help maintain
its good looks. Abrasive cleaners should
not be used.
Purchasing new
filters and dustbags
○○○○○○○○○○○○○○○○○○○○○
Only use original Goblin bags and
filters. Replacements can be purchased
from Goblin Service Agents for details
(see separate leaflet) or by calling our
Helpline number.
Helpline
○○○○○○○○○○○○○○○○○○○○○
If you have any difficulty with your
appliance, do not hesitate to call us.
We’re more likely to be able to help than
the store from where you bought it.
Please have the following information
ready to enable our staff to deal with your
query quickly .
• Name of the product
• Model number as shown on the
underside of the appliance.
TOPO COMPACT VACUUM CLEANER 31/5/02, 11:52 AM6
6
Page 7
Your two yearYour two year
Your two year
Your two yearYour two year
guaranteeguarantee
guarantee
guaranteeguarantee
○○○○○○○○○○○○○○○○○○○○○○
• It is important to retain the retailers receipt as
proof of purchase. Staple your receipt to this back
cover for future reference.
Please quote the following information if the
product develops a fault. These numbers can be
found on the base of the product.
Model No. Serial No.
All Goblin products are individually tested
before leaving the factory. In the unlikely event of
any appliance proving to be faulty within 28 days
of purchase it should be returned to the place of
purchase for it to be replaced.
If the fault develops after 28 days and within
24 months of original purchase, you should
contact the Helpline number quoting Model
number and Serial number on the product, or
write to Goblin at the address shown. You will be
asked to return the product (in secure, adequate
packaging) to the address below along with a
copy of proof of purchase. Subject to the
exclusions set out below (1-5) the faulty
appliance will then be repaired or replaced and
dispatched usually within 7 working days of
receipt.
If you suspect a fault, follow the simple checks
detailed below before returning the appliance or
calling the helpline.
• Check the dust bag and filters for blockages.
• Check the hose and tubes for blockages.
• Check the plug is firmly in the socket and the
supply is switched on.
• Make sure the socket is working by trying
another appliance.
• Check the fuse in the plug.
If for any reason this item is replaced during
the 2 year guarantee period, the guarantee on
the new item will be calculated from original
purchase date. Therefore it is vital to retain your
original till receipt or invoice to indicate the date
of initial purchase.
To qualify for the 2 year guarantee the
appliance must have been used according to the
manufacturers instructions. For example bags and
filters should be changed or cleaned regularly.
EXCLUSIONS
Goblin shall not be liable to replace
or repair the goods under the terms of the
Guarantee where:
1 The fault has been caused or is attributable
to accidental use, misuse, negligent use or
used contrary to the manufacturers
recommendations or where the fault has
been caused by power surges or damage
caused in transit.
2 The appliance has been used on a voltage
supply other than that stamped on the
products.
3 Repairs have been attempted by persons
other than our service staff (or authorised
dealer).
4 Where the appliance has been used for hire
purposes or non-domestic use.
5 The guarantee excludes consumables such
as bags and filters.
This guarantee does not confer any rights
other than those expressly set out above and does
not cover any claims for consequential loss or
damage. This guarantee is offered as an
additional benefit and does not affect your
statutory rights as a consumer.
• This guarantee is valid in the UK and Ireland
only.
Goblin products are intended for
household use only.
Goblin has a policy of continuous
improvement in product quality and
design.
The Company, therefore, reserves
the right to change the
specification of its models at any
time.
TOPO COMPACT VACUUM CLEANER 31/5/02, 11:52 AM7
The After Sales Division,
Goblin, Mexborough,
South Y orkshire, England, S64 8AJ
Helpline (office hours)
UK 0870 060 2604
Republic of Ireland 1800 4091 19
VC73155M Rev 3
Loading...
