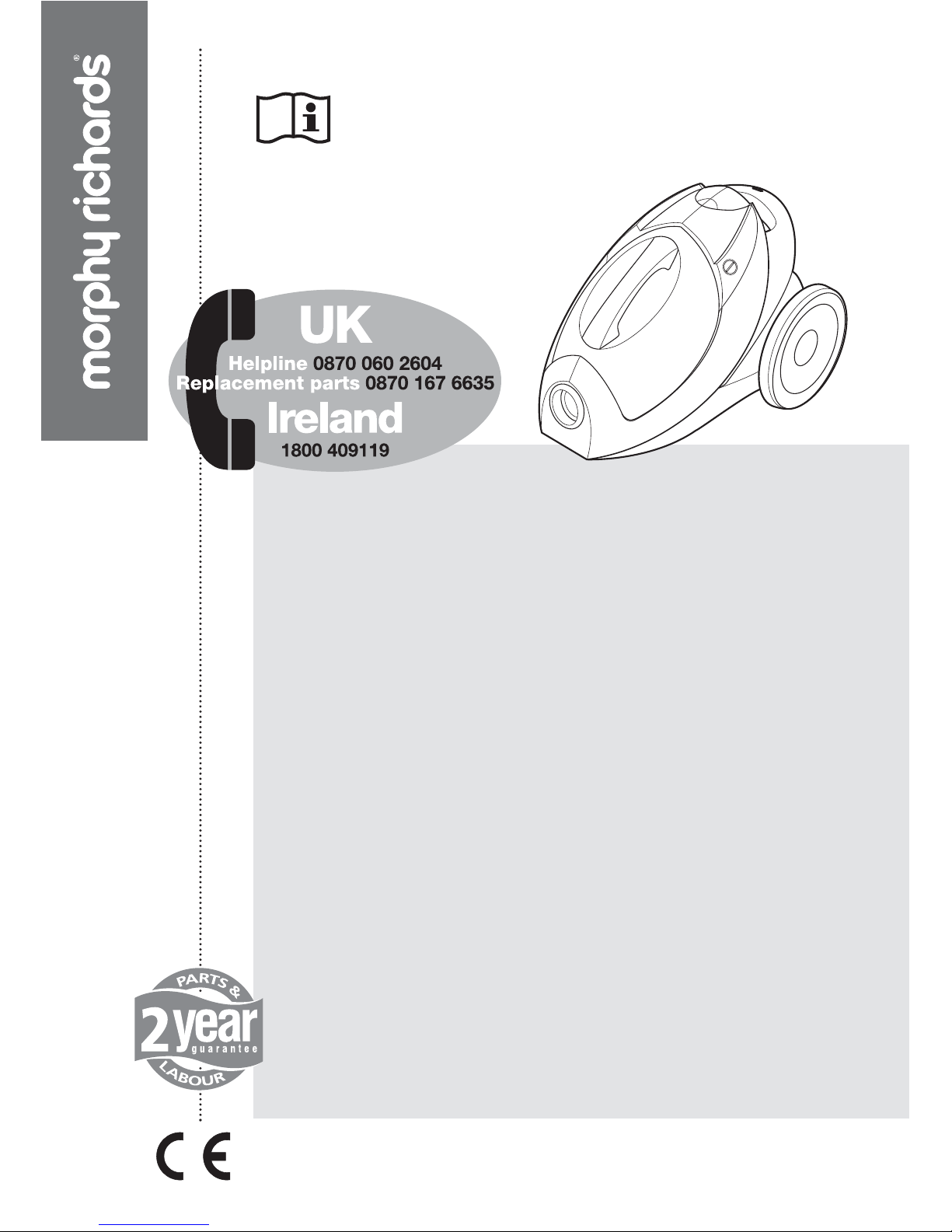

Orb vacuum cleaner
Please read and keep these instructions
getting the best from
your new cleaner...
If your cleaner isn’t picking up as
well as it should, please check
• Filter
It is important to clean it everytime you empty the dust
container, otherwise the performance of the cleaner will be
impaired. See page 5 - Cleaning the filter. A spare filter is
provided
• Blockages
Check the nozzle, tubes and hose for blockages
Important safety
instructions
The use of any electrical appliance requires
the following of common sense safety rules.
Primarily there is danger of personal injury
and secondly danger of damage to the
appliance and property. These are indicated in
the instructions text by the following two
conventions:
WARNING: Danger of personal injury
IMPORTANT: Damage to the appliance
In addition we offer the following essential
safety advice.
Location
• Do not use or keep this product outside
when it is raining.
• Do not store the appliance near hot ovens
or heating appliances.
Mains lead
• Do not allow the mains lead to become
strained or run this appliance over it.
• If the electrical cable becomes damaged
the complete cable assembly must be
replaced. Do not attempt this task yourself,
contact Morphy Richards using the helpline
number.
Children
•Children do not understand the dangers
associated with operating electrical
appliances. Never allow children to use this
appliance.
Other safety considerations
• Never use in the presence of explosive
liquids or vapours.
• Never pick up inflammable or poisonous
liquids such as petrol, copier toner, or other
volatile substances. Never pick up acids,
asbestos or asbestos dust.
• Always disconnect the appliance from the
mains supply after use or prior to cleaning
or replacing dust bags.
• The appliance should never be left running
unsupervised.
• Repairs to electrical appliances are only to
be undertaken by trained personnel.
Unprofessional repairs can be dangerous
for users.
• Use only genuine Morphy Richards spare
parts and accessories
Product safety
• Never use the appliance without the filters
installed.
• Never use the appliance to vacuum hot
ashes, broken glass, sharp objects or
liquids.
• Never modify the cleaner in any way.
Electrical
requirements
Check that the voltage on the rating plate
of your appliance corresponds with your house
electricity supply which must be A.C.
(Alternating Current).
If the socket outlets in your home are not
suitable for the plug supplied with this
appliance, the plug should be removed and the
appropriate one fitted.
If you cut off the plug and let go of the
cable it will rewind into the machine. Therefore
you must pull out a length of cable and secure
it before cutting off the plug and refitting a new
one.
WARNING: The plug removed from the
mains lead, if severed, must be destroyed
as a plug with bared flexible cord is
hazardous if engaged into a live socket
outlet.
Should the fuse in the 13 amp plug require
replacement, a BS1362 13 amp fuse must be
fitted.
‹
⁄ Hose inlet
¤ Dust collection container
‹ Dust container release lever
› Cable rewind pedal
fi On/off power foot pedal
fl Carrying handle
‡ Variable power control
· Exhaust filter
‚ Tube storage clip
„ Washable filter
‰ Motor protection filter
Accessories you should have:
 Wheeled floor nozzle
Ê Telescopic tube (length adjustable)
Á Crevice tool with flip-action
furniture brush
Ë Upholstery nozzle
È Hose with handle/airflow control
Â
A
È
‚
Á
Ë
›⁄ ¤ fi fl ‡·
Ê
Á
Ë
Quick start
1 Assemble the nozzle, telescopic tubes and
hose as shown
A.
2 Pull out the mains cable to it’s full length
and plug in to the mains supply.
3 Switch on by pressing the foot pedal
fi.
Accessories
1 Fit the hose to the cleaner by inserting the
hose end into the hose inlet
⁄. When
removing, squeeze the clips either side and
pull.
2 Attach the telescopic tubes to the handle
end of the hose. Extend to the required
length by pressing down the slider release
Ê and pulling out the tube B.
The hose handle features a regulator
È
which allows the suction to be reduced as
required.
3 Attach the combination floor nozzle
 to
the tubes.
The crevice tool (for awkward places,
behind radiators etc.) and the upholstery brush
(for curtains and upholstery) are stored on the
tubes. The crevice tool has a flip-action brush
attachment for hard surfaces, pelmets, delicate
objects etc C.
Controls
Power
The on/off control is operated by the foot
pedal
fi.
Variable power control
A rotating dial ‡ varies the suction power
as required. For example, maximum suction
can be used for cleaning carpets, hard floors
etc. and reduced suction for cleaning
upholstery and curtains.
Suction can also be controlled using the
airflow control on the handle
È. Closed for
maximum suction, open for reduced suction.
Automatic cable rewind
After use, unplug and press the cable
rewind button › to retract the cable.
WARNING: When using the cable
rewind, always hold the plug as the cable
will rewind quickly.
B C
Á
Ê
Dust disposal
To obtain the best results from your cleaner
empty the dust container regularly, otherwise
the airflow and cleaning power will be reduced.
1 With the hose removed, lift out the dust
container using the handle D.
2 Holding the dust container over a dustbin,
pull out the filter
„ to empty out the dust E.
3 Replace the filter and replace the dust
container.
IMPORTANT: Do not operate your cleaner
without the dust container fitted.
Cleaning the filter
Everytime the dust container is emptied, the
filter should be cleaned. Lift the tab at the
bottom of the filter to remove the cover F. Use
the brush attached to the rear of the filter to
brush the fine dust from between the the filter
folds. Refit the front cover and re-install the
filter into the cleaner.
The filter should also be washed regularly in
warm water, but do not use detergent. Allow to
dry naturally and ensure it is totally dry before
replacing it. A spare filter is provided.
D
E
„
F
Cleaning the motor
protection filter
The micro-filters must be cleaned everytime
the dust container is emptied to remove the
fine dust particles collected. This can be done
by shaking them.
The motor protection filter ‰ is in the dust
container compartment. With the dust
container removed, lift out the filter holder,
remove the filter and shake to clean
G.
The exhaust filter · is located at the back
the cleaner. To remove, press down the catch
and pull the cover away to remove the holder
H. Remove the filter from the holder and
shake to clean. The filter can be washed in
warm water but do not use detergent. Allow to
dry naturally and ensure it is totally dry before
replacing it.
IMPORTANT: Do not operate without micro
filters fitted.
Storage position
When finished, you can store accessories
by locating the tube storage clip into the slot
on the underside of the cleaner as shown
I.
I
G
H
‰
·
Care and
maintenance
Your cleaner is manufactured to withstand
normal day-to-day use, but an occasional wipe
over with a damp cloth will help maintain its
good looks. Abrasive cleaners should not be
used.
Purchasing
replacement parts
Use original Morphy Richards spares &
consumables. These can be purchased by
telephoning the Morphy Richards replacement
parts line.
Helpline
If you have any difficulty with your
appliance, do not hesitate to call us. We’re
more likely able to help than the store from
where you bought the product.
Please have the following information ready
to enable our staff to deal with your query
quickly:
• Name of the product;
• Model number as shown on the underside
of the appliance;
•Serial number.
Your two-year
guarantee
• It is important to retain the retailers receipt
as proof of purchase. Staple your receipt to
this back cover for future reference.
Please quote the following information if the
product develops a fault. These numbers can
be found on the base of the product.
Model no. Serial no.
All Morphy richards products are
individually tested before leaving the factory. In
the unlikely event of any appliance proving to
be faulty within 28 days of purchase it should
be returned to the place of purchase for it to
be replaced.
If the fault develops after 28 days and
within 24 months of original purchase, you
should contact the helpline number quoting
model number and serial number on the
product, or write to Morphy Richards at the
address shown. You will be asked to return the
product (in secure, adequate packaging) along
with a copy of proof of purchase. Subject to
the exclusions set out below (1-5), the faulty
appliance will then be repaired or replaced and
dispatched usually within seven working days
of receipt.
If you suspect a fault, follow the simple
checks detailed below before returning the
appliance or calling the helpline.
• Check the dust container and filters for
blockages.
• Check the hose and tubes for blockages.
• Check the plug is firmly in the socket and
the supply is switched on.
•Make sure the socket is working by trying
another appliance.If for any reason this item
is replaced during the two-year guarantee
period, the guarantee on the new item will
be calculated from original purchase date.
Therefore it is vital to retain your original
receipt or invoice to indicate the date of
initial purchase.
To qualify for the two-year guarantee the
appliance must have been used according to
the manufacturers instructions. For example
filters must be cleaned and replaced regularly.
Morphy richards shall not be liable to replace
or repair the goods under the terms of the
Guarantee where:
The After Sales Division,
Morphy Richards Ltd, Mexborough,
South Yorkshire, England, S64 8AJ
Helpline (office hours)
UK (local rate) 0870 060 2604
Republic of Ireland 1800 409119
Morphy Richards products are
intended for household use only
Morphy Richards has a policy of
continuous improvement in product
quality and design. The Company,
therefore, reserves the right to change
the specification of its models at any
time.
For additional information on Morphy Richards products www.morphyrichards.co.uk
1 The fault has been caused or is attributable to
accidental use, mis-use, negligent use or used
contrary to the manufacturers
recommendations or where the fault has been
caused by power surges or damage caused in
transit.
2 The appliance has been used on a voltage
supply other than that marked on the products.
3 Repairs have been attempted by persons other
than our service staff (or authorised dealer).
4 Where the appliance has been used for hire
purposes or non-domestic use.
5 The guarantee excludes consumables such as
filters and the filter cover.
This guarantee does not confer any rights
other than those expressly set out above and
does not cover any claims for consequential
loss or damage. This guarantee is offered as an
additional benefit and does not affect your
statutory rights as a consumer.
• This guarantee is valid in the UK and Ireland
only.
Loading...
