Morphy Richards IB73091 Instructions Manual

Pets compact upright

Please read and keep these instructions

getting the best from your new cleaner...

If your cleaner isn’t picking up as well as it should, please check

• Hepa filter

It is important to clean it everytime you empty the pod, otherwise the performance of the cleaner will be impaired. The pod filters and pod are fully washable but must be fully dry before re-fitting (see page 5).

• Blockages

Check the nozzle, tube and hose for blockages. The panel on the bottom of the floor nozzle may be removed for access to the floor nozzle air-path.

• Rotating brush

If the rotating brush is stalled, the brush motor stops automatically. Switch off and unplug the cleaner before removing any article trapped in the brush. The brush motor protection will only reset after the power has been disconnected.

www.morphyrichards.com

73091 Rev 3 15/6/05 9:18 AM Page 1

Important safety instructions

The use of any electrical appliance requires

the following of common sense safety rules.

Primarily there is danger of personal injury and secondly danger of damage to the appliance and property. These are indicated in the text by the following two conventions:

WARNING: Danger of personal injury

IMPORTANT: Damage to the appliance

In addition we offer the following essential safety advice.

Location

• Do not use or keep this product outside

when it is raining.

• Do not store the appliance near hot ovens

or heating appliances.

Mains lead

• Do not allow the mains lead to become

strained or run this appliance over it.

• If the electrical cable becomes damaged

the complete cable assembly must be

replaced. Do not attempt this task yourself,

contact Morphy Richards using the

helpline number.

Children

• Children do not understand the dangers

associated with operating electrical

appliances. Never allow children to use this

appliance.

Other safety considerations

• Never use the appliance without the filters

installed.

• Never use the appliance to vacuum hot

ashes, broken glass, sharp objects or

liquids.

• Never use in the presence of explosive

liquids or vapours.

• Never pick up inflammable or poisonous

liquids such as petrol, copier toner, or

other volatile substances. Never pick up

acids, asbestos or asbestos dust.

• Always disconnect the appliance from the mains supply after use or prior to cleaning or emptying.

• The appliance should never be left running unsupervised.

• Never modify the cleaner in any way.

• Repairs to electrical appliances are only to be undertaken by trained personnel. Unprofessional repairs can be dangerous for users.

• Use only genuine Morphy Richards spare parts and accessories

Electrical requirements

Check that the voltage on the rating plate

of your appliance corresponds with your house electricity supply which must be A.C. (Alternating Current).

If the socket outlets in your home are not

suitable for the plug supplied with this appliance, the plug should be removed and the appropriate one fitted.

WARNING: The plug removed from the

mains lead, if severed, must be destroyed as a plug with bared flexible cord is hazardous if engaged into a live socket outlet.

Should the fuse in the 13 amp plug require

replacement, a BS1362 13 amp fuse must be fitted.

Description

Your Pod vacuum cleaner is a versatile

machine that can be used as an upright cleaner or as a handheld.

73091 Rev 3 15/6/05 9:18 AM Page 2

⁄

‡

›

‚

ﬁ

ﬂ

Features

⁄ Telescopic handle release button ¤ On/off switch ‹ Telescopic tube extension button › Telescopic handle ﬁ Handle locking release pin (not shown) ﬂ Carrying handle ‡ Pod release button

· Dust collection pod ‚ Wheels „ Mesh filter (inside) ‰ Dust filter (inside) Â Brush storage location

Ê Flexible hose Á Hose end location Ë Hose end È Exhaust filter cover Í Cable storage hanger Î Cable storage quick release lever Ï Floor nozzle release button Ì Body

Accessories you should have:

Ó Telescopic handle tube Ô Motorised floor head  Plastic extension tube Ò Crevice tool (stored inside ) Ú Brush attachment



‹

‰

„



73091 Rev 3 15/6/05 9:18 AM Page 3

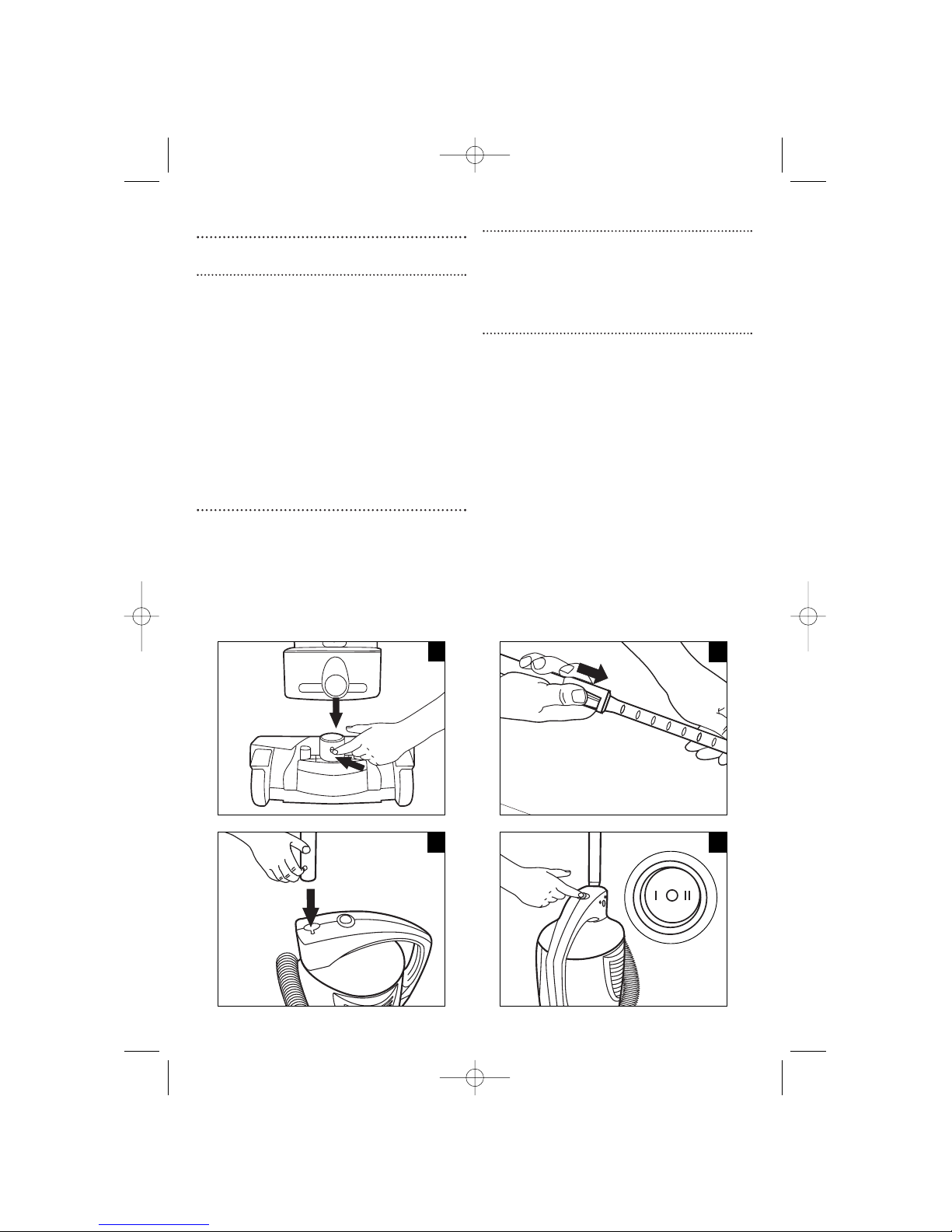

Assembly

To use as an upright

1 Rotate the cable storage quick release lever

Î and slide the cable from storage.

2 Fit the floor nozzle by pressing in the locking

pin and insert the nozzle into the hole at the base of the body

D. Push down fully.

3 Locate the telescopic handle into the body

by pushing in the locking pin and lowering the handle in until the locking pin locates in the locking hole

4 Adjust the telescopic handle by sliding the

button

‹ down and pulling out or pushing

in the lower half

Using

Plug into a mains socket and switch on. G

Using on hardfloors (no brush action)

1 On hardfloors where no brush action is

required turn the switch to position I. The suction motor will operate but not the brush motor.

Using on carpets (with brush action)

1 For use on carpets turn the switch to

position II. This will turn on the suction motor and allow the brush motor to operate

Note: the brush will only revolve when the main body is angled into the use position. When the main body is upright the brush motor is automatically switched off.

‹

73091 Rev 3 15/6/05 9:18 AM Page 4

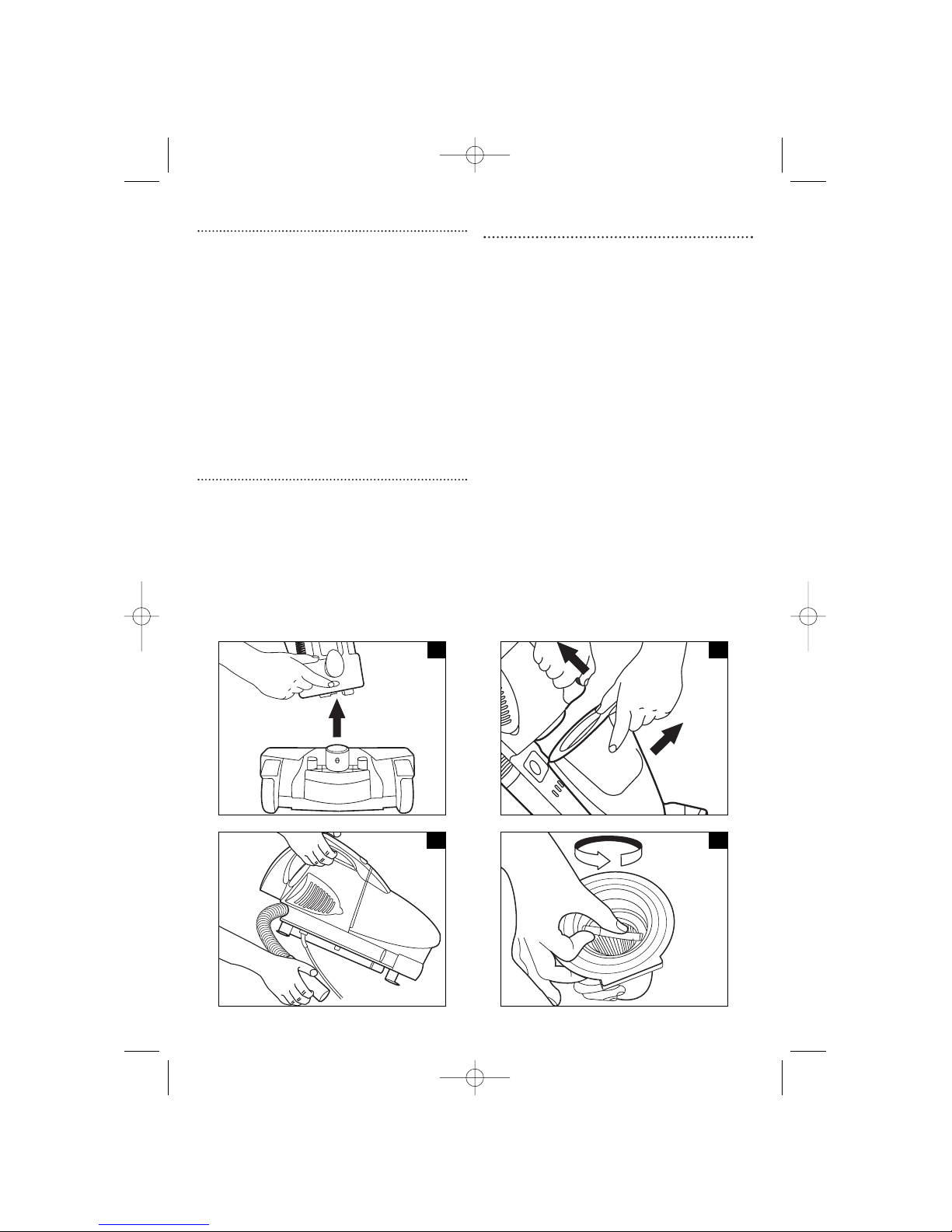

To use as a handheld

1 Remove the telescopic handle. To remove,

press in the release button

⁄ and lift the

handle out.

2 Remove the floor nozzle by pressing in the

release button

Ï and pulling the floor

nozzle away from the body

3 Slide the hose end

Ë from the hose end

location

Á. I

4 Fit the extension tube  to the hose end

Ë.

5 Fit the crevice tool Ò to the extension tube. 6 If required fit the brush

Ú to the end of the

crevice tool

7 Press the switch to position I .

Attachments

Uses for the brush attachment include stairs, upholstery, mattresses, curtains and hard surfaces like door mouldings and skirting boards. The crevice tool is particularly useful for cobwebs and in narrow gaps in the car around the handbrake and seat.

Dust disposal

Ensure the Pod is switched off and disconnected from the mains supply. 1 Slide the pod release button up and pull the

dust pod away from the cleaner.

Note: When the floor nozzle is fitted the cleaner must be tilted slightly backwards to remove the dust pod. 2 Raise up the folded filter handle in the top of

the filter assembly. 3 Use the handle to rotate the filter for a few

turns. This agitates the filter loosening the

dust.

73091 Rev 3 15/6/05 9:18 AM Page 5

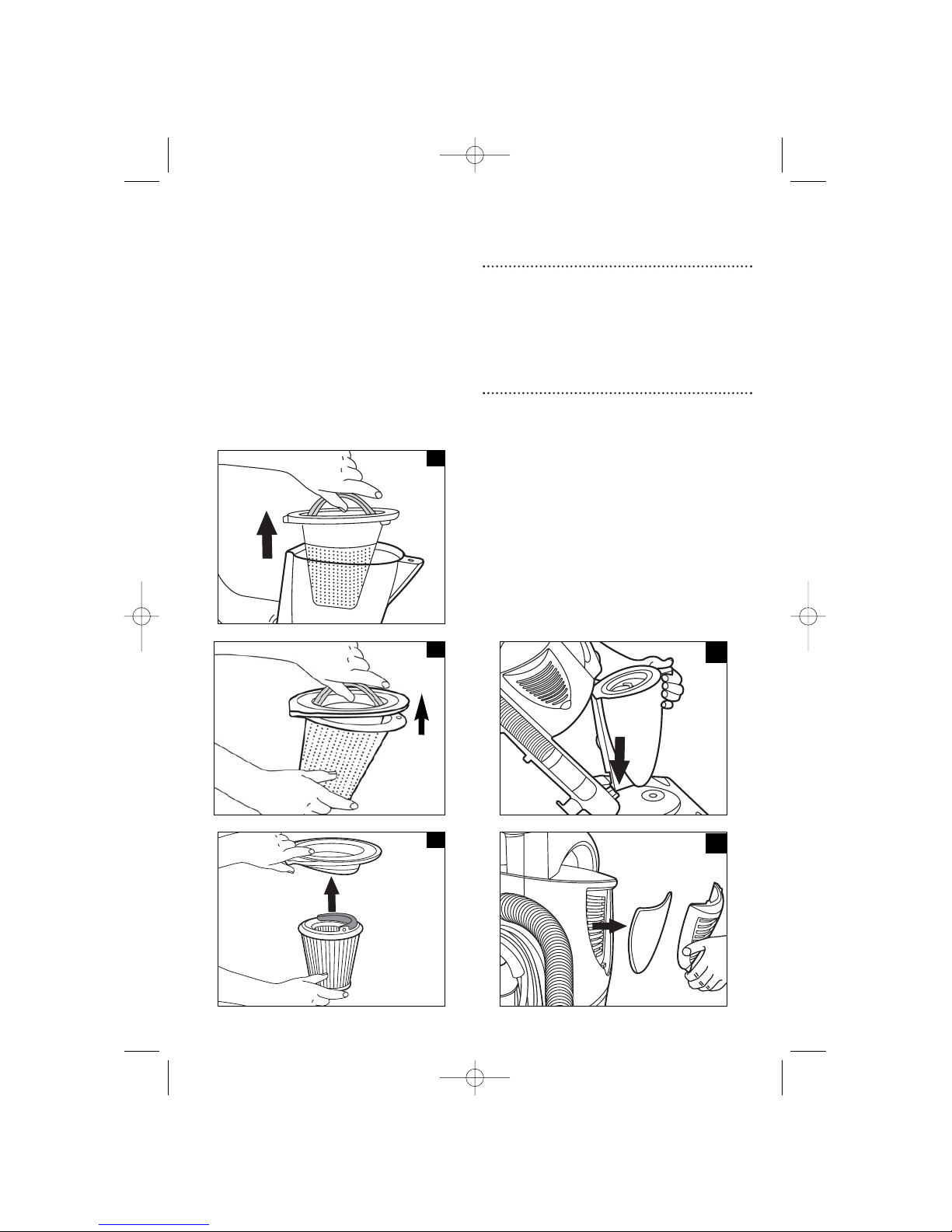

4 Using the handle, pull the filter assembly

from the top of the dust pod.

5 Empty the dust pod and put safely to one

side.

6 Remove outer filter, using lever action as

opposed to straight pull, empty out any dust.

7 Refit outer filter by pushing gently onto three

lugs.

8 Re-fit filter assembly into dust pod. Locate

rear of the filter assembly first.

Note: All parts of the dust pod and dust pod filter assembly are washable. Use warm water. Do not use detergent.

IMPORTANT: All parts must be fully dry before re-fitting.

Replacing dust container

1 Insert the hook at the bottom rear of the

dust pod into the tray on the body.

2 Push the dust pod towards the cleaner body

until it clicks into place.

Exhaust filter

After approximately 5 emptyings of the dust container the exhaust filter should be cleaned. 1 Unclip the exhaust filter cover

È by lifting

the bottom tab.

2 Remove foam filter. 3 Shake the filter vigorously to remove any

build up of dust. 4 Refit exhaust filter cover by inserting top two

pegs then clip in the bottom tab.

Depending on usage, the exhaust filter should be replaced approximately every 6 months.

73091 Rev 3 15/6/05 9:18 AM Page 6

Cleaning the machine

Use the brush attachment on the hose and use the Pod to vacuum itself. To keep the underside of the cleaning head clean, vacuum it at regular intervals using the crevice tool.

Or, disconnect the Pod from the mains supply and remove dust by using a soft damp cloth and wipe dry. Do not use scourers or abrasive cleaners.

Floor nozzle access

If a blockage occurs in the floor nozzle airpath, the panel on the bottom of the floor nozzle may be removed. 1 First disconnect the cleaner from the mains

supply and remove the floor nozzle. Turn the

floor nozzle upside down. 2 Using a coin or similar turn the lock screw to

the unlock position. 3 Remove the panel and clear the blockage.

Ensure the panel is re-fitted and locked

before re-use.

Brush motor protection

Purchasing replacement filters

The lifetime of the dust filter is dependant largely upon usage of the cleaner. Should the dust filter become damaged or if there is a noticeable drop in performance even after washing, it should be changed immediately. Use only Morphy Richards replacement filters which can be purchased from specialist retailers or by calling the number on the front page of this leaflet.

Helpline

If you have any difficulty with your appliance, do not hesitate to call us. We’re more likely able to help than the store from where you bought it.

Please have the following information ready to enable our staff to deal with your query quickly:

• Name of the product;

• Model number as shown on the underside

of the appliance;

• Serial number.

73091 Rev 3 15/6/05 9:18 AM Page 7

VC73091M UK Rev3 0605

Your two-year guarantee

• It is important to retain the retailers receipt as proof of purchase. Staple your

receipt to this back cover for future reference. Please quote the following information if the

product develops a fault. These numbers can be found on the base of the product.

Model no. Serial no.

All Morphy Richards products are

individually tested before leaving the factory. In the unlikely event of any appliance proving to be faulty within 28 days of purchase it should be returned to the place of purchase for it to be replaced.

If the fault develops after 28 days and within

24 months of original purchase, you should contact the helpline quoting model number and serial number. Repair or replacement of the product is subject to the exclusions set out below (1-6).

If you suspect a fault, follow the simple

checks detailed below before returning the appliance or calling the helpline.

• Check the filters for blockages.

• Check the hose and tubes for blockages.

• Check the plug is firmly in the socket and the supply is switched on.

•Make sure the socket is working by trying another appliance. If for any reason this item is replaced during

the two-year guarantee period, the guarantee

on the new item will be calculated from original purchase date. Therefore it is vital to retain your original receipt or invoice to indicate the date of initial purchase.

To qualify for the two-year guarantee the appliance must have been used according to the manufacturers instructions.

Morphy Richards shall not be liable to replace or repair the goods under the terms of the Guarantee where: 1 The fault has been caused or is attributable to

accidental use, mis-use, negligent use or used

contrary to the manufacturers

recommendations or where the fault has been

caused by power surges or damage caused in

transit. 2 The appliance has been used on a voltage

supply other than that stamped on the

products. 3 Repairs have been attempted by persons other

than our service staff (or authorised dealer). 4 Where the appliance has been used for hire

purposes or non-domestic use. 5 The guarantee excludes consumables such as

the filters. 6 Morphy Richards are not liable to carry out any

type of servicing work, under the guarantee.

This guarantee does not confer any rights other than those expressly set out above and does not cover any claims for consequential loss or damage. This guarantee is offered as an additional beneﬁt and does not affect your statutory rights as a consumer.

• This guarantee is valid in the UK and Ireland

only.

The After Sales Division, Registered address, Morphy Richards Ltd, Mexborough, South Yorkshire, England, S64 8AJ

Helpline (office hours) UK 0870 060 2604 Republic of Ireland 1800 409119

Morphy Richards products are intended

for household use only

Morphy Richards has a policy of

continuous improvement in product

quality and design. The Company,

therefore, reserves the right to change

the specification of its models at any

time.

For additional information on Morphy Richards products www.morphyrichards.com
