2 x 15W micro system
Compact disk player
MW/FM/RDS digital tuner
Programmable alarm clock
Instructions
Conventions used in text
BUTTON Small capitals for the name of a button
Function/Mode Function or mode names in italics
Model 29105
Components
Repeat/Memory up
Repeat/Memory down
Standby
Function
Remote sensor
CD skip/search &
tuning backward
Stop/Band
Phones jack
PTY SEL/Intro
PTY/Random
LCD display
Memory/CLK.ADJ
Volume buttons
CD skip/search &
tuning forward
X-Bass button
CD play/pause
Power switch
AUX out jacks
Speaker tabs
FM aerial
Mute
Numeric buttons
Stereo/MONO
Volume buttons
CD stop
EQ
X-Bass
Skip/Search &
tuning buttons
Standby
Function
Band
Intro/PTY Sel
Random/PTY
Repeat/Memory up
Sleep/Alarm
Repeat/Memory down
CD play/pause
Memory/CLK.ADJ
Repeat/Memory down
2
Connect the speakers to main unit
1 Ensure the mains power is disconnected.
2 Connect the speaker wires between the main unit and the speakers.
Match the speaker wire to the appropriate terminal on the components:
(+) to (+) (colour), and (-) to (-) (black). (If the wires are reversed, the
sound will be distorted and will lack some tones.)
3 Hold down the terminal tab to insert each wire. Release the tab to lock
the wire into the terminal. Make sure the bare wire is fully inserted and
that the insulation reaches right up to the tab leaving no bare wire
visible.
•To avoid short-circuiting the speakers, make sure the the stripped end
of each speaker wire does not touch another terminal or another wire.
Connect to the wall socket
Plug the unit to a live wall outlet.
Aerial connection
Connect FM radio aerial plug to socket on back panel.
Backlight illumination in standby mode
Press any key (except ON/STANDBY) on the control panel or the remote
control (when unit in standby mode) and the backlight for the display
illuminates and stays for a 10-seconds for you to check the information on
the display.
Digital clock and timer settings
How to set correct time (in standby mode)
1Press and hold CLK.ADJ for more than 2 seconds.
2Press
3Press
4 The time set will remain until you switch off the unit by the power
SKIP/SEARCH to adjust the hours, press CLK.ADJ again to set the
minutes.
CLK.ADJ to confirm.
switch.
Alarm clock/timer function
How to preset the timer function (during operation)
With the unit working, press and hold CLK.ADJ to toggle between the
following modes:
Timer on Timer on hour Timer on minute Timer on mode
(power on with CD playback or tuned in radio station) Timer on
volume Timer off Timer off hour Timer off minute.
Adjust the timer on/off hour and minute by means of
Choose timer on mode between CD/tuner by means of SKIP/SEARCH
buttons.
Then turn to stand-by. To turn off alarm hold down sleep/alarm on remote
control.
SKIP/SEARCH buttons.
Sleep function
1Press SLEEP/ALARM on the remote control during CD playback or radio
broadcasting.
2 Then press
sequence: 90 80 70 60 50 40 30 20 10
off.
When the sleep function is activated, the player goes to standby mode the
moment playback or broadcasting reaches the preset sleep time.
SLEEP/ALARM to change display and sleep time in a
3
CD playback function
1 Press FUNCTION to select CD playback mode.
2 Insert a disc onto the CD tray.
3 The display shows the total number and play time of tracks, when in
pause mode the display will flash.
4 Press PLAY/PAUSE to begin CD playback; press again to pause playback.
Various play modes of CD playback
Stop button
STOP button to stop playing the disc during CD playback.
Press
Skip/search buttons
SKIP/SEARCH buttons to advance by one track or jump back to the
Press
previous track during CD playback.
Press and hold these buttons for 2 seconds during CD playback to go fast
forward or backward within the disc.
Repeat button
Press
REPEAT to select between repeat one and repeat all modes in CD
stop or play mode; once for repeat one mode, twice for repeat all and
three times to exit.
Random button
Press
RANDOM to enter random play mode in CD stop or CD play mode;
press again to exit this mode.
Intro button
Plays the first 10 seconds of each track. Press
mode in CD stop or CD play mode; press again to exit this mode. In
random playback, press this button to enter random intro mode.
Remain button
Press
REMAIN to display the remaining playing time of the disc; press this
button again to cancel.
Program button
To program tracks:
1Press
2Press
MEMORY in CD stop mode;
SKIP/SERCH or numeric buttons to select location to share the first
track
3Press
MEMORY again the display will advance to the next track, repeat
above steps to store.
4 After programming is finished, press
4
INTRO to enter intro play
PLAY/PAUSE to enter program
playback. A total of 32 tracks can be programmed.
Digital tuner with RDS operation
•Press FUNCTION to enter tuner mode.
•Press
•Press
•Press and hold
BAND to select between MW and FM.
TUNING SKIP/SEACH to manually tune the frequency.
TUNING SKIP/UP/DOWN for 2 seconds to automatically tune
the radio frequency. When the tuning goes to one station available,
broadcasting starts immediately.
To store the current radio station frequency:
1Press
2Press
MEMORY.
MEM UP/DOWN buttons or press the numeric buttons on the remote
control to select a memory position.
3Press
4To recall the preset station frequency, press the
MEMORY again to store the frequency.
MEM UP/DOWN buttons
or the numeric buttons.
A total of 50 station frequencies can be stored in memory, 30 for FM, 20
for MW. The memory will be erased if the unit is unplugged.
RDS operation of digital tuner
When the radio stops at a radio station which supports RDS, the LCD
shows the radio name, program type and radio text step-by-step.
You can also select the displayed text by pressing the
display toggles as follows: Station name Program type Radio
text Frequency Station name.
If you want to enjoy a particular type of program, press
button continuously, the LCD shows as follows: News Affairs
Intro Sport Educate Drama Culture Science
Varied Pop M Rock M Easy M Light M Classic
Other M Weather Finance Children Social Religion
Phone in Travel Leisure Jazz Country Nation M
Oldies Folk M Document Rest Alarm back to News.
SKIP/SEARCH buttons to select the particular program after
Use the
programming is done.
PTY button. The
PTY SEL. Press this
Other functions
EQ button (remote control only)
Press
EQ to toggle the EQ effect of the system; the EQ effect will change
between Flat Rock Classic Pop Jazz.
X-Bass button
Press this button to turn on or off the bass boost function. It will turn off
all EQ settings.
Vol+/- buttons
Press these buttons to increase or decrease the volume level. The volume
level can be changed from 0 - 30.
Mute button (remote control only)
Press this button to turn mute on or off. In mute on mode, the sound is
cut off.
Technical specification
AC power supply : 230V ~50HZ
AC power consumption : 70W
Remote control unit : 1 x CR2025
Speakers : 4” woofer, 1.75” tweeter
Amplifier max power : 2 x 15W
Radio : FM 87.5MHz - 108MHz
: MW 522KHz - 1620MHz
The CD micro system is for indoor use only.
WARNING : This unit uses a laser beam. To prevent an accident
occuring the unit should only be opened by a qualified engineer. If the
door interlocks become defective the laser may cause invisible radiation.
Avoid exposure to the beam.
5
Compact disc
Always use compact discs bearing the mark as shown.
Handling discs
When removing the disc from its storage case and loading it:
• Do not touch the reflective recorded surface.
• Do not stick paper or write anything on the surface.
• Do not bend the disc.
Storage
• Store the disc in its case.
• Do not expose discs to direct sunlight or high temperatures, high
humidity or dusty places.

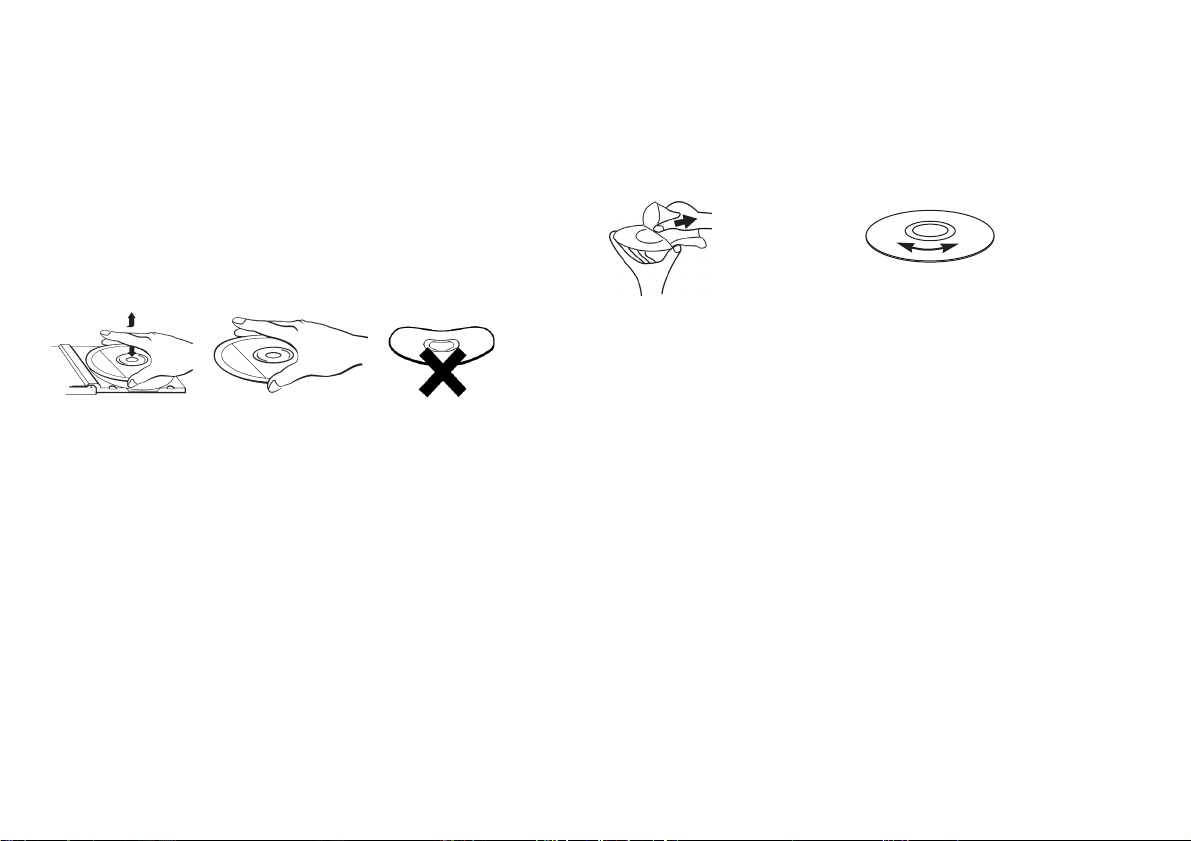

Cleaning a disc
If there is a scratch, dirt or finger prints on the CD, it may cause tracking
errors. Before playing, clean the CD with a clean cloth. Wipe the CD from
the centre outwards. After playing, store the disc in its CD case.
• Never use benzene, thinners, record cleaner fluid or anti static spray.
• Be sure to close the CD door so the lens is not contaminated by dust.
Do not touch the lens.
From the centre to
the edge
CORRECT
INCORRECT
6
Warning labels
WARNING : to reduce the risk of an electric shock, do not
expose this appliance to rain or moisture.
ATTENTION: To reduce the risk of an electric
shock, do not remove the cover. There are no
user serviceable parts inside the unit. Refer any
servicing to qualified personnel.
The lightning flash with arrowhead symbol within the
triangle is a warning sign alerting the user of
‘dangerous voltage’ inside the unit.
The exclamation point within the triangle is a warning
sign alerting the user of important instructions
accompanying the product.
To prevent fire or shock hazard do not expose this
apparatus to dripping or splashing.
Ventilation warning
The normal ventilation of the product shall not be impeded for intended
use.
Maintenance
Do not expose your cd micro system to extreme of temperatures. The
product should be kept in a warm environment free from dust and damp.
For external cleaning use only a soft, clean, damp cloth. Use of detergents
may damage the finish.
Guarantee
Morphy Richards products are manufactured to internationally accepted
quality standards. In addition to your statutory rights, Morphy Richards
guarantee your product to be free from manufacturing and component
defects for a period of TWO YEARS from date of purchase.
If your product proves to be defective within 28 days of purchase, your
Morphy Richards dealer from whom the product was purchased will be
pleased to replace it free of charge.
Should your product develop a defect within the guarantee period but
after the replacement period, please return the product to the following
address, together with the proof of purchase, brief details of the
symptoms and your own name and address.
After Sales Division
Morphy Richards Limited
Mexborough
South Yorkshire
S64 8AJ
Your post office will provide a certificate of posting. The product will be
repaired and returned to you promptly.
7
Helpline
(8.30-5.00 Mon-Thur/ 8.30-4.00 Fri)
UK 0870 060 2614
Republic of Ireland 1800 409119
Replacement parts
0870 167 6645
Morphy Richards Ltd., Mexborough, South Yorkshire, S64 8AJ
www.morphyrichards.com
Morphy Richards products are intended for household use only.
Morphy Richards has a policy of continuous improvement in
product quality and design. The company, therefore reserves the
right to change the specification of its models at any time.
29105MUK Rev 1 3/05
