Morphy Richards IB29100 User Manual

Flat panel micro system

with cd player and built in subwoofer

29100 OPERATING INSTRUCTIONS

Illustration

2

Display illustration

1 Play / Pause
2 Stop / Band (MW / FM) button
3 CD Repeat / Memory button
4 Tuning / Skip / Search Up button
5 Tuning / Skip / Search Down button
6 Remote sensor
7 Power On / Standby button
8 Variable bass amplifier knob
9 Aux button
10 Tuner button
11 Cd button
12 Program / Clock Set button
13 Timer / Sleep button
14 LCD Display Window
15 Digital Volume Up button
16 Digital Volume Down button

Remote control

1 On / Standby button
2 Play / Pause button
3 CD / Radio button
4 Intro button
5 Program / Clock set button
6 Volume Up button
7 Tuning / Skip / Search button
8 CD remain button
9 Stop / Band (MW / FM) button
10 Random button

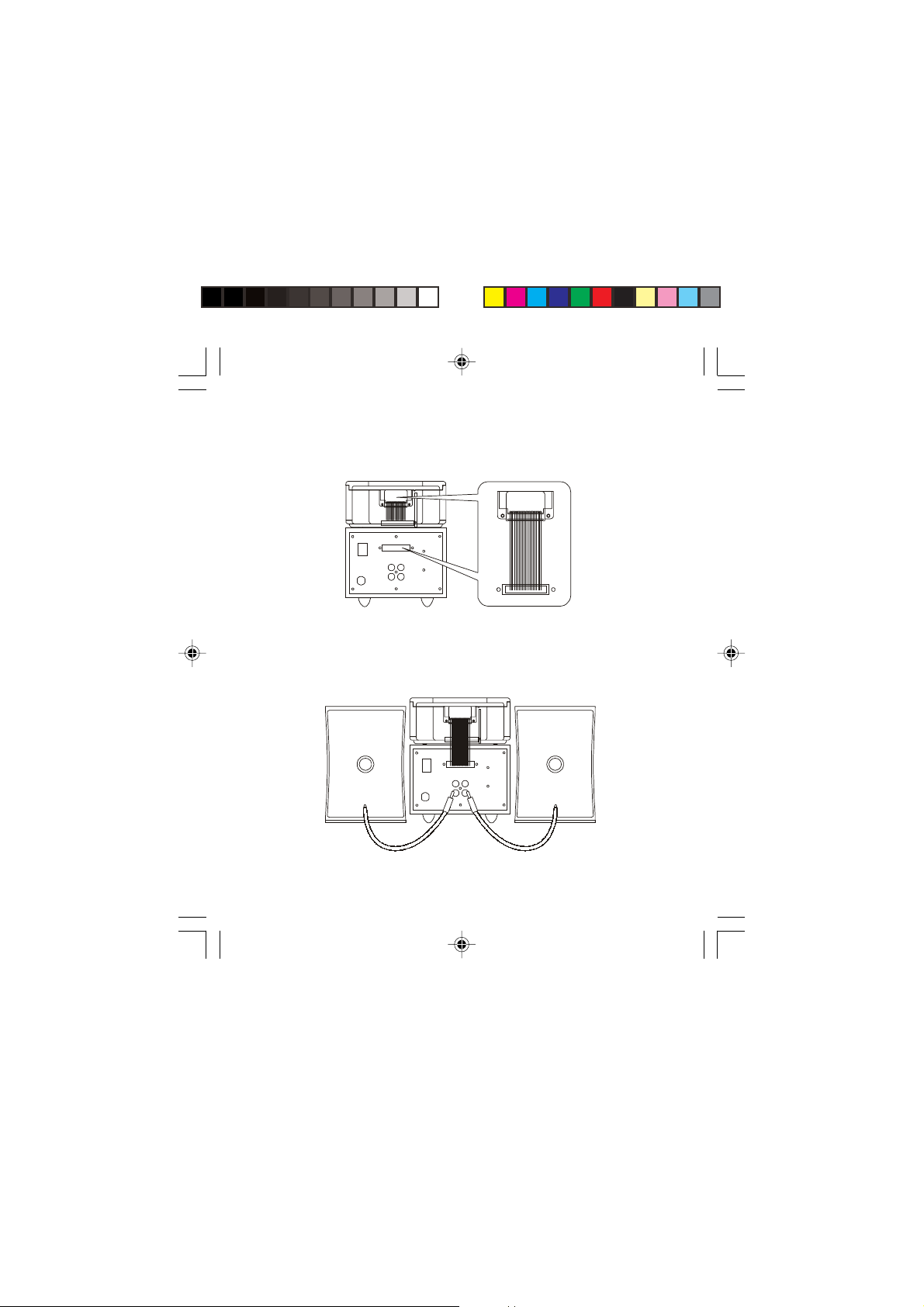

17 Connector Cable
18 Connector Socket
19 Main Switch
20 Left Aux terminals
21 Right Aux terminals
22 AC Input
23 FM Antenna
24 Left speaker terminals
25 Right speaker terminals
26 Mono / Stereo switch
27 CD Door
28 Back Up Battery Compartment
29 Reset Function Key
30 Power On / Standby LED indicator

11 Memory button
12 Mute button
13 Tuning / Skip / Search Up button
14 Volume Down button

3

CD display window

A Track number indicator
B Band indicator
C Track / time indicator
D Stereo indicator

4

Electrical requirements

Check the voltage on the rating plate of your CD microsystem corresponds with
your house electricity supply which must be A.C. (alternating current).
If the socket outlets in your home are not suitable for the plug supplied with
this appliance the plug should be removed and the appropriate one fitted.

IMPORTANT : THE PLUG IF SEVERED FROM THE MAINS LEAD MUST BE
DESTROYED AS A PLUG WITH A BARED FLEXIBLE CORD IS
HAZARDOUS IF ENGAGED INTO A LIVE SOCKET OUTLET.

Should the fuse in the 13 amp plug require changing a 3 amp BS1362 fuse
must be fitted.

Putting batteries into the remote control

Press down the compartment cover, and slide the cover off to open the compartment.
Place the two batteries (UM4), (AAA), (R6) batteries (not supplied) in the remote control
according to the polarity markings (" + " and " -- ") inside the compartment and on the
batteries.
Place the cover over the compartment, press down lightly, and push it upwards until it
snaps on.

** BATTERIES NOT INCLUDED **

If the unit is not to be used for a prolonged period, remove the batteries to
avoid battery leakage.
In the interests of environmental safety : dispose of batteries safely.
