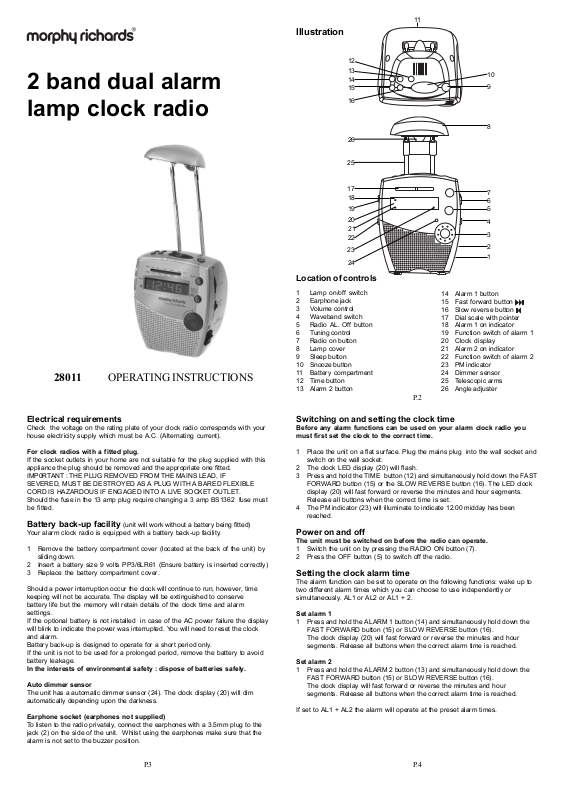

Morphy Richards IB28011 User Manual

2 band dual alarm lamp clock radio

Illustration

13 14 15

28011 OPERATING INSTRUCTIONS

Electrical requirements

Check the voltage on the rating plate of your clock radio corresponds with your house electricity supply which must be A.C. (Alternating current).

For clock radios with a fitted plug.

If the socket outlets in your home are not suitable for the plug supplied with this appliance the plug should be removed and the appropriate one fitted. IMP0RTANT : THE PLUG REMOVED FROM THE MAINS LEAD, IF SEVERED, MUST BE DESTROYED AS A PLUG WITH A BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED INTO A LIVE SOCKET OUTLET. Should the fuse in the 13 amp plug require changing a 3 amp BS1362 fuse must be fitted.

Battery back-up facility (unit will work without a battery being fitted)

Your alarm clock radio is equipped with a battery back-up facility.

1 Remove the battery compartment cover (located at the back of the unit) by

sliding down. 2 Insert a battery size 9 volts PP3/6LR61 (Ensure battery is inserted correctly) 3 Replace the battery compartment cover.

Should a power interruption occur the clock will continue to run, however, time keeping will not be accurate. The display will be extinguished to conserve battery life but the memory will retain details of the clock time and alarm settings. If the optional battery is not installed in case of the AC power failure the display will blink to indicate the power was interrupted. You will need to reset the clock and alarm. Battery back-up is designed to operate for a short period only. If the unit is not to be used for a prolonged period, remove the battery to avoid battery leakage.

In the interests of environmental safety : dispose of batteries safely.

Auto dimmer sensor

The unit has a automatic dimmer sensor (24). The clock display (20) will dim automatically depending upon the darkness.

Earphone socket (earphones not supplied)

To listen to the radio privately, connect the earphones with a 3.5mm plug to the jack (2) on the side of the unit. Whilst using the earphones make sure that the alarm is not set to the buzzer position.

17 18

7 6 5

Location of controls

1 Lamp on/off switch 2 Earphone jack 3 Volume control 4 Waveband switch 5 Radio AL. Off button 6 Tuning control 7 Radio on button 8 Lamp cover 9 Sleep button 10 Snooze button 11 Battery compartment 12 Time button 13 Alarm 2 button

14 Alarm 1 button 15 Fast forward button 16 Slow reverse button 17 Dial scale with pointer 18 Alarm 1 on indicator 19 Function switch of alarm 1 20 Clock display 21 Alarm 2 on indicator 22 Function switch of alarm 2 23 PM indicator 24 Dimmer sensor 25 Telescopic arms 26 Angle adjuster

P. 2

Switching on and setting the clock time

Before any alarm functions can be used on your alarm clock radio you must first set the clock to the correct time.

1 Place the unit on a flat surface. Plug the mains plug into the wall socket and

switch on the wall socket. 2 The clock LED display (20) will flash. 3 Press and hold the TIME button (12) and simultaneously hold down the FAST

FORWARD button (15) or the SLOW REVERSE button (16). The LED clock

display (20) will fast forward or reverse the minutes and hour segments.

Release all buttons when the correct time is set. 4 The PM indicator (23) will illuminate to indicate 12.00 midday has been

reached.

Power on and off

The unit must be switched on before the radio can operate.

1 Switch the unit on by pressing the RADIO ON button (7). 2 Press the OFF button (5) to switch off the radio.

Setting the clock alarm time

The alarm function can be set to operate on the following functions: wake up to two different alarm times which you can choose to use independently or simultaneously. AL1 or AL2 or AL1 + 2.

Set alarm 1

1 Press and hold the ALARM 1 button (14) and simultaneously hold down the

FAST FORWARD button (15) or SLOW REVERSE button (16).

The clock display (20) will fast forward or reverse the minutes and hour

segments. Release all buttons when the correct alarm time is reached.

Set alarm 2

1 Press and hold the ALARM 2 button (13) and simultaneously hold down the

FAST FORWARD button (15) or SLOW REVERSE button (16).

The clock display will fast forward or reverse the minutes and hour

segments. Release all buttons when the correct alarm time is reached.

If set to AL1 + AL2 the alarm will operate at the preset alarm times.

P. 3 P. 4

Setting the alarm to wake to buzzer

1 Slide the alarm function switch (19 or 22) to select your wake up mode:

-To BUZZER position for alarm buzzer sound.

2 Once the alarm switch has been activated the ALARM indicator AL1 (18)

and/or AL2 (21) will illuminate.

Listening to the radio

1 Press the RADIO ON button (7) 2 Slide the waveband switch (4) to either the FM or MW position. 3 Turn the tuning control (6) and tune to the desired station. 4 Adjust the volume control (3) to the desired level. 5 Press the OFF button (5) to turn off the radio.

To obtain the maximum reception fully extend the wire FM aerial which is located at the rear of the unit and alter the direction of the wire for best results.

The aerial for the MW waveband is located inside the unit. To obtain, the maximum MW reception rotate your clock radio.

Setting the alarm to wake to radio

1 Set the radio as described ‘listening to the radio’ above.

2 Slide the alarm selector switch (19 or 22 ) to the radio position. 3 Once the Alarm switch has been activated the ALARM indicator AL1 (18)

and/or AL2 indicator (21) will illuminate.

4 To stop listening to the radio press the OFF button (5).

Ensure the radio station will be transmitting at the preset alarm time.

Cancelling the alarm (either set to radio or buzzer)

The alarm is programmed to run for 59 minutes.

1 Press the SNOOZE button (10) to stop the alarm temporarily, the alarm will

sound again in 7 minutes.

2 To cancel the alarm press the OFF button (5). (The alarm will automatically

activate 24 hours later).

3 If the alarms are no longer required slide the alarm function switch (19 or 22)

to the OFF position. (The alarm indicator(s) will switch off).

Snooze function

You can press the SNOOZE button (10) after the alarm has sounded which allows 7 minutes of snooze time. After 7 minutes the alarm will sound again.

1 When the alarm or buzzer sounds press the SNOOZE button (10).

(The snooze default is set for 7 minutes and then resumes).

The snooze function will cease to operate after 59 minutes.

Sleep function

The sleep function sets the unit to play the radio whilst you go to sleep and will switch off after a set time. 1 Slide the waveband switch (4) to FM or MW. 2 To use the sleep facility press the SLEEP button (9), (The sleep default is set

for 59 minutes after which time the unit will automatically switch off). 3 The sleep time can be varied between 59 minutes to 1 minute. 4 To set your own sleep time, press the SLEEP button (9) together with the

FAST FORWARD button (15) or the SLOW REVERSE button (16) will adjust

the minute segments. 5 Release the buttons when the required sleep time is reached. 6 If you want to turn off the music before the end of the programme press the

OFF button (5).

When the sleep time has expired the radio will switch off.

Built in Halogen reading lamp

1 The lamp can be adjusted up and down by using the telescopic arms (25). The

angle can be altered by using the angle adjuster (26). 2 The lamp can be switched on and off by the on/off switch (1).

Bulb replacement

1 Ensure that you unplug the unit from the mains outlet before changing the bulb. 2 Undo but do not remove the two screws that secure the glass protective shield

using a phillips screw driver. 3 Remove the shield and pull the bulb out. 4 Replace with a 12Volt 10watt halogen capsule G4 cap. 5 Replace the shield, place the metal clamps over the shield and retighten the

screws (do not overtighten).

Shield

P. 5 P. 6

Maintenance

Do not expose your clock radio to extremes of temperature. The product should be kept in a warm environment free from dust and damp. For external cleaning use only a soft, clean, damp cloth. Use of detergents may damage the finish.

Technical specification

AC Power supply : 230v 50Hz Battery back-up : 9V DC type 6LR61/PP3 (not included) Radio : FM 88Mhz - 108Mhz

Bulb : 12 volts 10 watts maximum

Ventilation warning

The normal ventilation of the product shall not be impeded for intended use.

: MW 530Khz - 1600Khz

Warning labels

WARNING: to reduce the risk of electric shock, do not expose this appliance to rain or moisture.

ATTENTION: To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside the unit. Refer any servicing to qualified personnel.

The lightning flash with arrowhead symbol within the triangle is a warning sign alerting the user of ‘dangerous voltage’ inside the unit.

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

To prevent fire or shock hazard do not expose this apparatus to dripping or splashing.

0.1 m

Minimum distance from lighted objects Ground glass size 23/8 x 11/2 x1/8 inch (61 x 38 x 3mm) Replace any cracked protective shield

Clamps

Bulb

Guarantee

Morphy Richards products are manufactured to internationally accepted quality standards. In addition to your statutory rights, Morphy Richards guarantee your product to be free from manufacturing and component defects for a period of TWO YEARS from date of purchase.

If your product proves to be defective within 28 days of purchase, your Morphy Richards dealer from whom the product was purchased will be pleased to replace it free of charge.

Should your product develop a defect within the guarantee period but after the replacement period, please return the product to the following address, together with the proof of purchase, brief details of the symptoms and your own name and address.

Morphy Richards Limited

Talbot Road Mexborough

South Yorkshire

S64 8AJ

Your post office will provide a certificate of posting. The product will be repaired and returned to you promptly.

If you need any further advice, please call our Helpline on : 0870 060 2614 (Mon-Fri)

Morphy Richards Website : www.morphyrichards.co.uk

Warning:

1 If the external cable or cord of this lamp clock radio is damaged, it shall be

exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.

2 For indoor use only.

P. 7

446/8001/90 Rev 2

Morphy Richards Ltd, Talbot Road, Mexborough, S64 8AJ

Morphy Richards products are intended for household use only.

Morphy Richards has a policy of continuous improvement in product quality and design.

The company, therefore reserves the right to change the specification of its models at any time.
