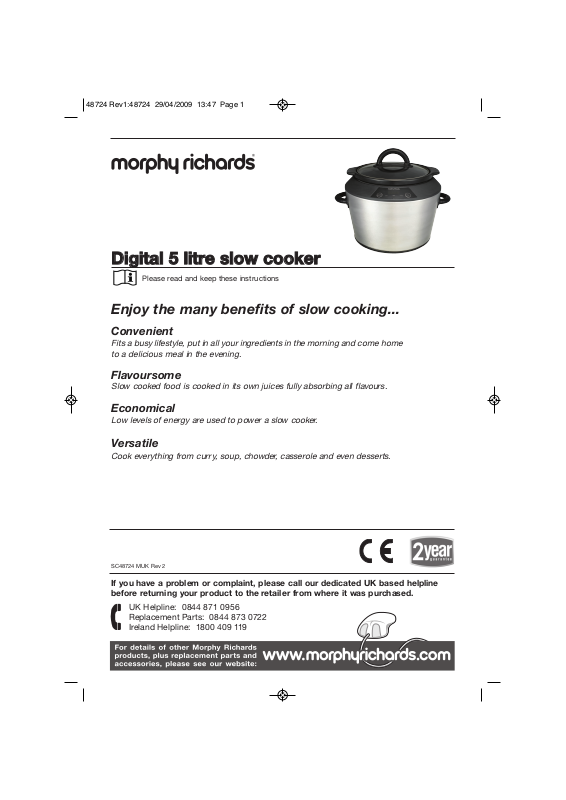

Morphy richards DIGITAL 5 LITRE SLOW COOKER user Manual
Digital 5 litre slow cooker
Please read and keep these instructions
Enjoy the many benefits of slow cooking...
Convenient
Fits a busy lifestyle, put in all your ingredients in the morning and come home
to a delicious meal in the evening.
Flavoursome
Slow cooked food is cooked in its own juices fully absorbing all flavours.
Economical
Low levels of energy are used to power a slow cooker.
Versatile
Cook everything from curry, soup, chowder, casserole and even desserts.
SC48724 MUK Rev 2
If you have a problem or complaint, please call our dedicated UK based helpline
before returning your product to the retailer from where it was purchased.
UK Helpline: 0844 871 0956
Replacement Parts: 0844 873 0722
Ireland Helpline: 1800 409 119
48724 Rev1:48724 29/04/2009 13:47 Page 1
2
UK Helpline 0844 871 0956 Replacement Parts 0844 873 0722 Ireland Helpline 1800 409 119
48724 Rev1:48724 29/04/2009 13:47 Page 2
3
For details of other Morphy Richards products, please see our website:
Please also refer to the main section of this
instruction booklet, which contains important safety
information and more detail on how to use the slow
cooker.
Easy set-up guide
Before using for the first time, wash the
lid and the ceramic pot. Assemble the
slow cooker by putting ceramic pot
into the base.
1
Select
Time
warm
high
low
Place ingredients and stock/sauce into
the ceramic pot and place the lid on.
Do not fill to brim, allow 2.5cm (1 inch)
underneath the rim of the ceramic pot
for simmering. We advise you to
brown meat in a separate pan prior to
slow cooking. With liquids always use
hot stock, gravy or sauce to aid the
cooking process.
2
Select
Time
warm
high
low
Plug in the appliance, four small
dashes will appear on the display. This
indicates the product is in standby
mode.
3
LOW HIGH WARM
Select the heat setting by pressing the
Select button. Press once for the Low
setting or twice for the High setting. A
default time of 7 hours will appear for
the Low setting and 3 hours for the
High setting. A red indicator light will
appear and the display will flash.
4
LOW
HIGH W
SELECT
48724 Rev1:48724 29/04/2009 13:47 Page 3
4
UK Helpline 0844 871 0956 Replacement Parts 0844 873 0722 Ireland Helpline 1800 409 119
The cook time can be adjusted by
pressing the Time button whilst the
display is flashing or even once it has
stopped.
Cooking will start automatically once
the display has stopped flashing.
5
HIGH W
ARM
TIME
To adjust the default times, press the
Time button which increases in 30
minute intervals within a time range:
Low range 7 – 10 hours
High range 3 – 8 hours
6
TIME
Once cooking has started, the display
will begin to count down, indicating
the amount of time remaining.
7
LOW HIGH WARM
TIMELECT
When cooking has finished, the
display will show zero hours and
minutes and will automatically switch
into the Keep Warm function. A green
indicator light will appear and the
display will count up in minutes to a
maximum of 2 hours.
8
HIGH WARM
TIME
To serve food, unplug the slow cooker
and remove the lid. We recommend
food is served directly from the slow
cooker. If you remove the ceramic pot
use oven gloves and please take great
care as the pot will be heavy.
9
48724 Rev1:48724 29/04/2009 13:47 Page 4
5
IMPORTANT
SAFETY
INSTRUCTIONS
The use of any electrical
appliance requires the
following common sense
safety rules.
Primarily there is danger of
injury or death and secondly
the danger of damage to the
appliance. These are indicated
in the text by the following two
conventions:
WARNING: Danger to the
person!
IMPORTANT: Damage to the
appliance!
In addition, we offer the
following safety advice.
Location
• This appliance is intended to
be used in household and
similar applications such as:
farm houses;
by clients in hotels, motels
and other residential type
environments;
bed and breakfast type
environments.
It is not suitable for use in
staff kitchen areas in shops,
offices and other working
environments.
• Always locate your appliance
away from the edge of the
worktop.
• Keep your appliance away
from any hot burners and
heated ovens.
• Ensure that the appliance is
used on a firm, flat, heat
resistant surface.
• Ensure that sufficient space is
left above and around all sides
of your appliance to allow air
to circulate.
• Do not use the appliance
outdoors or near water.
• IMPORTANT: Do not use too
close to curtains, draperies,
walls, cupboards and other
flammable materials.
• WARNING: Do not use
underneath cupboards.
Personal safety
• WARNING: Do not touch the
top of the appliance or
other hot parts during or
after use, use handles or
knobs.
• To protect against the risk of
electrical shock do not put
the base in water or in any
other liquid.
• Do not touch hot surfaces.
Use oven gloves or a cloth
when lifting out the ceramic
pot.
• Extreme caution must be
used when moving an
appliance containing hot
food, water, or other hot
liquids.
• This appliance is not intended
for use by persons (including
children) with reduced
physical, sensory or mental
capabilities, or lack of
experience and knowledge,
unless they have been given
supervision or instruction
concerning use of the
appliance by a person
responsible for their safety.
Mains lead
• The mains lead should reach
from the socket to the
appliance without straining the
connections.
• Do not let the mains lead hang
over the edge of the worktop
where a child could reach it.
• Do not let the lead run across
an open space e.g. between a
low socket and table.
• Do not let the lead run across
a cooker or hot area which
might damage the cable.
• Never leave the appliance
connected to the socket
outlet when not in use.
• If the supply cord is
damaged, it must be replaced
by the manufacturer, its
service agent or similarly
qualified persons in order to
avoid a hazard.
Children
• Children should be supervised
to ensure that they do not play
with the appliance.
• Teach children to be aware of
dangers in the kitchen, warn
them of the dangers of
reaching up to areas where
they cannot see properly or
should not be reaching.
• Children are vulnerable in the
kitchen, particularly when
unsupervised and if
appliances are being used or
cooking is being carried out.
• Never allow a child to operate
this appliance.
Other safety
considerations
• Do not switch on the slow
cooker if the ceramic pot is
empty.
• Allow the lid and ceramic pot
to cool completely before
immersing in water.
• Never cook directly in the
base unit. Use the ceramic
pot.
• Do not use the ceramic pot or
lid if cracked or chipped.
• Do not switch on the
appliance when it is upside
down or laid on it’s side.
• The lid and ceramic pot are
fragile. Handle them with
care.
For details of other Morphy Richards products, please see our website:
48724 Rev1:48724 29/04/2009 13:47 Page 5
6
UK Helpline 0844 871 0956 Replacement Parts 0844 873 0722 Ireland Helpline 1800 409 119
• Do not operate with a
damaged cord or plug or after
the appliance malfunctions or
has been damaged in any
manner. Contact Morphy
Richards for advice.
• Do not attempt repairs - the
appliance contains no
user-serviceable parts. Call
our helpline for advice.
• The use of attachments or
tools not recommended by
Morphy Richards may cause
fire, electric shock or injury.
• Do not place on or near a hot
gas or electric burner or in a
heated oven.
• Only use for intended
purpose.
• Unplug from the socket when
not in use, before putting on
or taking off attachments,
and before cleaning.
• Do not move the appliance
whilst hot.
ELECTRICAL
REQUIREMENTS
Check that the voltage on the
rating plate of your appliance
corresponds with your house
electricity supply which must
be A.C. (Alternating current).
If the socket outlets in your
home are not suitable for the
plug supplied with this
appliance, the plug should be
removed and the appropriate
one fitted.
WARNING: The plug
removed from the mains
lead, if severed, must be
destroyed, as a plug with a
bared flexible cord is
hazardous if engaged into a
live socket outlet.
Should the fuse in the 13 amp
plug require changing, a 3
amp BS1362 fuse must be
fitted.
WARNING: This appliance
must be earthed.
Features
⁄ Lid
¤ Ceramic pot
‹ Base
› Digital display
fi Select programme button
fl Low setting indicator light
‡ High setting indicator light
· Keep Warm indicator light
‚ Time adjust button
⁄
¤
‹
›
fifl
‡
·‚
48724 Rev1:48724 29/04/2009 13:47 Page 6
Select
Time
high
low
warm
SELECT
LOW HIGH WARM
TIME
