Important safety instructions
•
This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience or knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall
not be made by children without supervision.
•
Keep the steam generator and its cord out of reach
of children less than 8 years of age at all times.
•
The steam generator must not be left unattended
while it is connected to the supply mains.
•
The steam generator must be used and rested on
a stable surface.
•
When placing the iron on the steam generator base
or on its heel, ensure that the surface on which the
heel or base is placed is stable.
•
The steam generator is not to be used if it has been
dropped, if there are visible signs of damage or it
is leaking.
•
The filling aperture may be opened during use, due
to the design of the system.
• CAUTION - HOT: Burns can occur from
touching hot parts, hot water or steam,
or the iron rest plate.
• WARNING: To avoid electric shock, do not
immerse appliance in water / liquid.
• Check that the voltage on the rating plate of your
appliance corresponds with your house electricity supply
which must be A.C. (Alternating current).
• Do not operate with a damaged steam/supply cord or
cable pivot, it must be replaced by the manufacturer, its
service agent or similarly qualified person in order to
avoid a hazard.
• Do not let the mains lead come into contact with the hot
soleplate of the iron.
• Should the fuse in the mains plug require changing, a 13
amp BS1362 fuse must be fitted.
•
WARNING: This appliance must be earthed.
2
RN332000MUK Rev1.qxp_IB 11/09/2014 10:46 Page 2
3
Health and safety .............................................................................
Electrical requirements ....................................................................
Steam generator overview / Features .............................................
Control panel overview ....................................................................
Temperature guide ...........................................................................
Location ............................................................................................
Before use .........................................................................................
Using the steam generator for steam ironing .................................
Steam boost button (certain models only) ......................................
Filling .................................................................................................
Features ............................................................................................
Maintenance .....................................................................................
Emptying and storing .......................................................................
Contact us ........................................................................................
Guarantee .........................................................................................
Contents
2
2
4
5
6
6
6
7 & 8
8
9
9
10
11
11
12
RN332000MUK Rev1.qxp_IB 11/09/2014 10:46 Page 3
4
(1) Steam boost button
(certain models only)
(2) Iron handle
(3) Cable pivot
(4) Steam trigger
(5) Temperature dial
(6) Soleplate
(7) Temperature indicator light
(8) Iron heel
(9) Filling cap
(10) Dirty water chamber
(11) Dirty water emptying holes
(12) Water tank handle
(13) Water tank release button
(14) Clean water chamber
(15) Detachable water tank
(16) Iron-to-base locking hook
(17) Iron-to-base locking button
(18) Iron release button
(19) Iron rest plate
(20) Iron rear docking hook
(21) Control panel (see below)
(22) Base unit
(23) Cord storage groove
(24) Cord clamp
Steam generator overview
4
5
6
1
15
23
24
2
3
12
13
21
22
7
8
14
16
17
18
2019
109 11
10 11
9
RN332000MUK Rev1.qxp_IB 11/09/2014 10:46 Page 4
5
Control panel (21) overview
Descaling indicator light (25)
When the system performs auto clean (see page
10), the descaling indicator light (25) will illuminate.
On/Off button (31) and
Power indicator light
(26)
Connect to a mains outlet and press the On/Off
Button (31). The power indicator light (26) will
illuminate and the low steam level indicator light
(27) will flash. To turn off, press and hold the
On/Off button (31) for 3 seconds.
Steam level buttons (32/33)
Press the relevant button to either increase (32) or
decrease (33) the steam level. The steam level
selected will be displayed by illumination of the
relevant steam level indicator light: low (27),
medium (28) or high (29). See step 5 of ‘Using the
Steam Generator for steam ironing’ on page 8.
Low water level indicator light (30)
If the water level is too low, the low water level
indicator light (30) will illuminate. See ‘Filling’ on
page 9.
RN332000MUK Rev1.qxp_IB 11/09/2014 10:46 Page 5
6
Locate the steam generator horizontally on the
iron rest plate of your ironing board (if large
enough) or on a heat resistant stand at the same
height as your ironing board or below it. Always
ensure the steam generator is on a firm surface
when ironing.
WARNING: Do not use the product on a
surface which could be damaged by heat or
steam such as a worktop or a polished wood
surface.
If in doubt, contact Morphy Richards.
Remove any protective cover from the soleplate
(6) and the base unit, if any.
Unwind and straighten the power (35) and steam
supply cords (34).
Textiles and clothes carry ironing instructions. If
not, follow the temperature guide above, but test
the temperature by ironing the hem of the
garment or other discreet area first.
It is advised to begin with ‘cool’ fabrics (see
above) and work up to higher settings. An iron
heats up quicker than it cools down so you’ll save
time and electricity.
If you turn the temperature dial down from a hot
setting to a cooler setting, wait until the
temperature indicator light (7) goes out (indicating
the correct temperature has been reached) before
you continue ironing.
You can carry the appliance by the iron handle (2)
once the iron is locked to the base unit (22) (see
‘Storing the steam iron’ on page 11).
Location
Before use
Heat setting markings on the temperature dial of all Morphy Richards irons match those of the International
Textile Care Labelling Code
Temperature guide
Symbol
(120°C Max) Cool (160°C Max) Warm (210°C Max) Hot MAX setting
Control dial
positions
Do not iron
• •• •••
Fabric Nylon, Acetates,
synthetic fabrics
Wool, Polyester
mixtures
Cotton, Linen
Rayon, Rayon
mixtures
Ironing Iron on wrong side,
if moisture
required, use
damp cloth
(not Acetate)
Fabrics requiring
this setting usually
require steam
pressing.
Steaming
Without steam
Steam level setting
(see step 5 of
‘Using the Steam
Generator for
steam ironing’ on
page 8)
No steam
(see ‘Dry ironing’
on page 9)
Low Medium / High High
RN332000MUK Rev1.qxp_IB 11/09/2014 10:46 Page 6
7
Using the Steam Generator for steam ironing
Turn the temperature dial (5) to suit the garment
(see ‘Temperature guide’ on page 6). The
temperature indicator light (7) illuminates until
the temperature is reached. Begin ironing when
the temperature indicator light goes out. If you
turn the temperature dial down, wait until the
temperature indicator light illuminates and then
goes off again.
Plug the appliance into a mains outlet, you will
hear a beep. Press the On/Off button (31), it will
beep again and the power indicator light (26)
will illuminate and the low steam level indicator
light (27) will flash.
2
When steam ironing, remove the detachable
water tank (15), lift the filling cap (9), and fill with
water to the max fill line. Replace the water tank.
IMPORTANT: Never fill the dirty water
chamber
(10)
.
1
3
Unlock the iron from its storage position on top
of the base unit (22) by pressing and holding the
iron release button (18) (marked with a padlock
icon) - this enables you to rotate the tip of the
soleplate (6) (in a clockwise direction) out from
under the iron-to-base locking hook (16) and lift
the iron heel (8) away from the rear docking
hook (20).
WARNING: To avoid burning yourself if the
soleplate is still hot, never press down on the
iron-to-base locking button
(17)
to unlock the
iron.
During use, the iron may be rested on the iron
rest plate (19) with the soleplate tip on top of the
iron-to-base locking hook (16) and the heel
slotted on to the rear docking hook.
4
18
RN332000MUK Rev1.qxp_IB 11/09/2014 10:46 Page 7
8
Steam boost button (certain models only)
The steam boost function is ideal for relaxing the
fibres of tougher fabrics (like jeans and linen) and
getting rid of those stubborn, hard to reach creases.
To produce a quick, powerful shot of steam during
ironing, simply press and release the steam boost
button (1).
NOTE: After using the steam boost function, your
steam generator iron will require up to 5 seconds to
reheat before it can produce a second boost of
steam. If you require a high level of constant steam,
choose the appropriate steam level and use the
steam trigger (4) as instructed above.
Do not combine the two steam functions. Using the two buttons together will interrupt the flow of
steam and may result in the constant steam cutting out completely. For optimum steam output, use
each steam function separately and as detailed above.
1
Using the Steam Generator for steam ironing (continued)
4
5
Press the relevant button to either increase (32)
or decrease (33) the steam level. The selected
steam level will be displayed by illumination of
the relevant steam level indicator light. The
steam level indicator light will stop flashing and
illuminate constantly when the selected steam
level is reached.

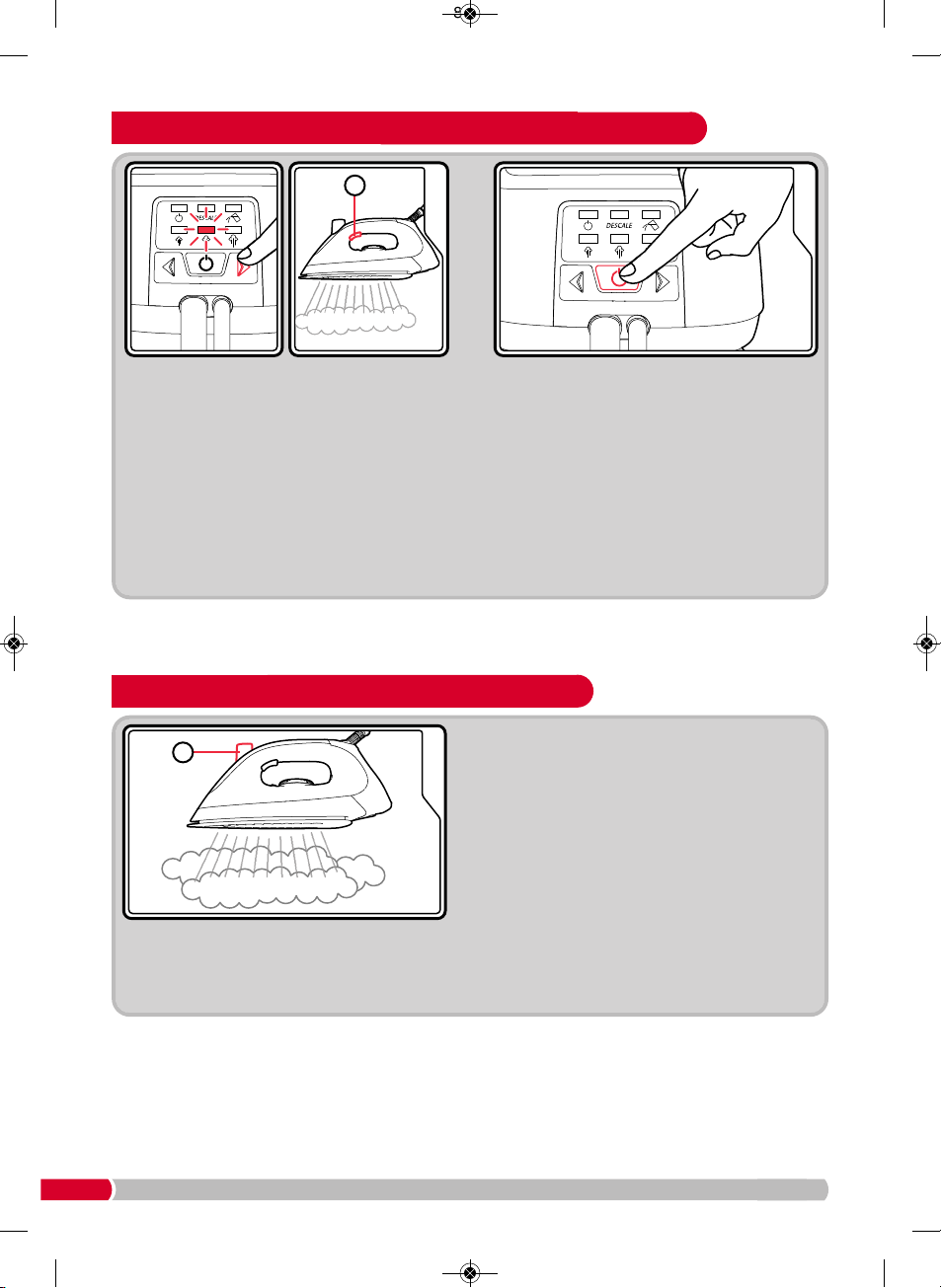

For a strong, continuous flow of steam during
ironing, press and hold the steam trigger (4) to
deliver steam through the soleplate.
WARNING: The steam supply cord
(34)
will
get hot during use.
When you have finished ironing, turn off the
appliance by pressing and holding the On/Off
power button (31) for three seconds. A beep will
be heard and the power indicator light (26) and
steam level indicator (27/28/29) will be
extinguished.
Disconnect the plug from the mains outlet.
6
RN332000MUK Rev1.qxp_IB 11/09/2014 10:46 Page 8
9
IN HARD WATER AREAS, WE RECOMMEND
A MIX OF 50% TAP WATER AND 50%
DISTILLED OR DEMINERALISED WATER.
Never use battery topping up fluid or water
containing any substances like starch, sugar,
fragrant additives or defrosted water from a
refrigerator.
Re-filling during use
If the water level is too low, the low water level

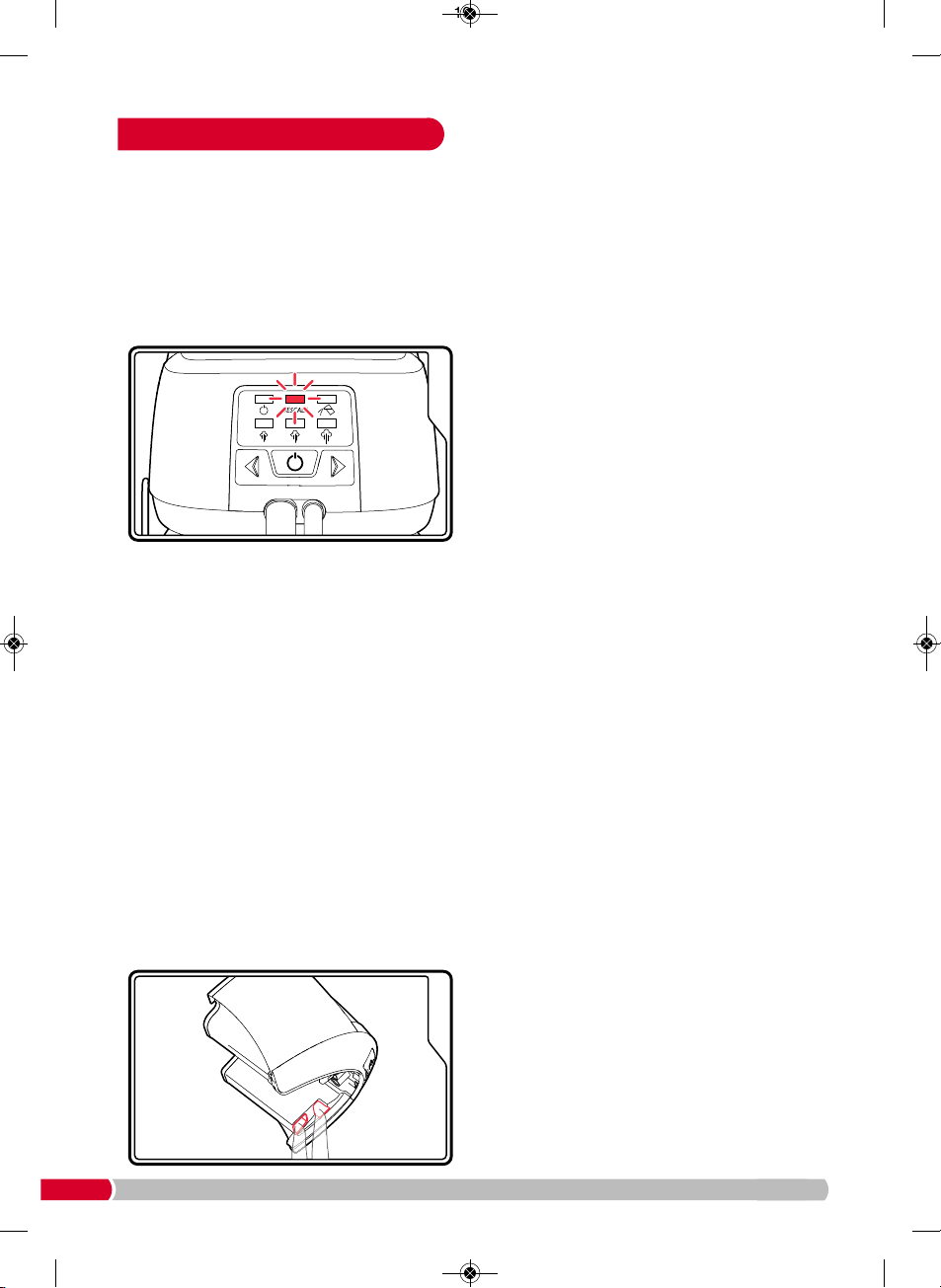

indicator light (30) will illuminate, a beep will be
heard, and the unit will not produce steam. If this
happens, disconnect the water tank and refill
with water.
Dry ironing
To use your steam generator as a dry iron only,
follow steps 2, 3 and 4 of ‘Using the Steam
Generator for steam ironing’ on page 7. You do
not need to put water in the tank or select a
steam level. Press
either the steam boost button
(1)
(certain models only) or the steam trigger
(4)
at least once every 10 minutes, or the product
will automatically turn off.
Auto shut-off (certain models only)
If
either the steam boost button
(1)
(certain
models only) or the steam trigger
(4) goes
unused for 10 minutes, the product will
automatically turn off for safety and to save
energy, and a beep will be heard.
To restart, press the On/Off button (31) (see step
2 of ‘Using the Steam Generator for steam
ironing’ on page 7) and wait for the temperature
to rise again.
Steam function
During steaming, small amounts of water may be
ejected from the soleplate. This is normal and
can be avoided by using the steam for short
amou
nts of time and only when the iron is at the
correct temperature (the temperature indicator
light (7) on the iron goes out when ready).
Sudden jolts of the boiler unit can also cause
water droplets on the soleplate; therefore, do not
move the base unit during ironing.
We recommend for first time ironing that you
iron over an old towel.
NOTE: The product may occasionally produce a
pumping sound during steam ironing. This is
normal and is caused by water being pumped
through the steam generator.
Vertical steam
Vertical steam is useful for removing creases
from hanging clothes, curtains, upholstery, etc.
Hold the iron between 1cm and 2cm away from
the item and press either the steam boost button
(1)
(certain models only) or the steam trigger
(4)
.
WARNING: Do not use the vertical steam
feature on clothes that are being worn.
Features
Filling
4 1
RN332000MUK Rev1.qxp_IB 11/09/2014 10:46 Page 9
10
Auto clean function
Each time approximately 5L of water has been
used in the steam generator, it will need to run an
auto clean cycle. When the product is fully cooled
down and first switched on, it will draw water
from the water tank (15) to flush the boiler,
emptying dirty water and limescale into the dirty
water chamber (10). For this short time, the
descaling indicator light (25) will flash and you will
be unable to use the product to iron.
If there is not sufficient water to operate this
function, the product will alert you with the low
water level indicator light (30) and the process will
be paused until the tank is refilled and replaced.
WARNING: During the auto clean process, the
water ejected from the machine is very hot, so
do not remove the water tank until the auto
clean process is finished.
The auto clean process will take approximately 3
minutes, after which the steam generator will be
ready for normal operation again. The flashing
descaling indicator light (25) will extinguish and
the low steam level indicator light (27) will flash,
indicating that the steam generator is readying
itself for the low steam level setting.
After ironing, switch off the steam generator at
the On/Off power button (31) and unplug from the
mains outlet. If the auto clean function has
activated and completed, wait for the steam
generator to cool down completely. Remove the
detachable water tank and tip the dirty water
from the dirty water emptying holes (11).
IMPORTANT: Ensure the dirty water is emptied
after each auto clean cycle to prevent overflow.
WARNING: Dirty water in the dirty water
chamber
(10)
will be hot after the auto clean
process, so take care when pouring it out.
To clean a coated soleplate
Do not use scouring powder or solution as this
could cause damage to the coating.
If any man made fibres fuse to the soleplate (6),
set the iron at the MAX position and pass it over a
clean piece of cotton to draw the deposit off the
surface.
To clean the exterior
Allow the unit to cool and wipe over with a damp
cloth and mild detergent, then wipe dry.
Maintenance
RN332000MUK Rev1.qxp_IB 11/09/2014 10:46 Page 10
11
Allow the appliance to cool.
Remove the detachable water tank (15) by
squeezing the water tank release button (13). Lift
the filler cap (9), and empty the water tank. Once
the water tank is empty, re-attach it to the base
unit (22).
To store, pull the cord clamp (24) outwards. Wrap
the power cord (35) and iron steam supply cord (34)
around the base unit in the cord storage groove
(23). Secure the cord in place with the cord clamp.
Avoid kinking of cables, particularly where they
meet
the base unit.
IMPORTANT: Do not pull too tightly on the iron
steam supply cord or on the cable pivot (3)
when wrapping the power cord (35) and steam
supply cord around the base unit (22). Damage
to cables caused by wrapping too tightly will
not be covered by the guarantee.
Storing the steam iron
Lock the iron into the storage position on top of
the steam generator main body by pushing the
soleplate down on the iron-to-base locking
button (17) whilst pushing the iron heel (8) onto
the rear docking hook (20). The iron should now
be at a slight diagonal on the iron rest plate. Pivot
the tip of the soleplate (6) under the iron-to-base
locking hook (16) until the spring-loaded iron-tobase locking button (17) springs up, securing the
iron in place.
Helpline
If you are having a problem with your appliance,
please call our Helpline, as we are more likely to
be able to help than the store you purchased the
item from. Please have the product name, model
number and serial number to hand when you call
to help us deal with your enquiry quicker.
UK Helpline: 0344 871 0944
IRE Helpline: 1800 409 119
Spares: 0344 873 0710
Talk To Us
If you have any questions or comments, or want
some great tips to help you get the most out of
your products, join us online:
Blog: www.morphyrichards.co.uk/blog
Facebook: www.facebook.com/morphyrichardsuk
Twitter: @loveyourmorphy
Website: www.morphyrichards.com
Contact us
Emptying and storing
RN332000MUK Rev1.qxp_IB 11/09/2014 10:46 Page 11
RN332000MUK Rev1 09/14
Your standard 1 year guarantee is extended for an
additional 12 months when you register the product within
28 days of purchase with Morphy Richards. If you do not
register the product with Morphy Richards within 28 days,
your product is guaranteed for 1 year. To validate your 2
year guarantee register with us online at
www.morphyrichards.co.uk
Or call our customer registration line
UK 0344 871 0242
IRE 1800 409 119
N.B. Each qualifying product needs to be registered with
Morphy Richards individually.
Please note that the 2 year guarantee is only available in
the UK and Ireland. Please refer to the 1 year guarantee
for more information.
It is important to retain the retailer’s receipt as proof of
purchase. Staple your receipt to this back cover for future
reference.
Please quote the followin g information if the product
develops a fault. These numbers can be found on the base
of the product.
Model no.
Serial no.
All Morphy Richards products are individually tested before
leaving the factory. In the unlikely event of any appliance
proving to be faulty within 28 days of purchase, it should
be returned to the place of purchase for it to be replaced.
If the fault develops after 28 days and within 12 months of
original purchase, you should contact the Helpline number
quoting Model number and Serial number on the product,
or write to Morphy Richards at the address shown.
You may be asked to return a copy of proof of purchase.
Subject to the exclusions set out below (see Exclusions),
the faulty appliance will then be repaired or replaced as
appropriate and dispatched usually within 7 working days
of receipt.
If, for any reason, this item is replaced or repaired during
the 1 year guarantee period, the guarantee on the new
item will be calculat ed from original purchase date.
Therefore it is vital to retain your original till receipt or
invoice to indicate the date of initial purchase.
To qualify for the 1 year guarantee, the appliance must
have been used according to the instructions supplied.
For example, water should be emptied after each use.
Morphy Richards shall not be liable to replace or repair the
goods under the terms of the guarantee where:
1 The fault has been caused or is attributable to accidental
use, misuse, negligent use or used contrary to the
manufacturer’s recommendations or where the fault has
been caused by power surges or damage caused in transit.
2 The fault is caused by limescale build-up.
3 The cables are damaged due to wrapping too tightly or
excessive kinking.
4 The appliance has been used on a voltage supply other
than that stamped on the products.
5 Repairs have been attempted by persons other than our
service staff (or authorised dealer).
6 The appliance has been used for hire purposes or non
domestic use.
7 The appliance is second hand.
8 Morphy Richards reserves the right not to carry out any
type of servicing under the guarantee at its discretion.
• This guarantee does not confer any rights other than those
expressly set out above and does not cover any claims for
consequential loss or damage. This guarantee is offered
as an additional benefit and does not affect your statutory
rights as a consumer. Morph y Richards products a re
intended for household use only. See usage limitations
within the location safety instructions.
Morphy Richards has a policy of continuous improvement
in product quality and design. The company, therefore
reserve s the right to change the specification of
its models at any time.
For elec trical products sold with in the
Europea n Co mmunit y. At the end of the
electrical products useful life, it should not be
disposed of with household waste.
Please recycle where facilities exist. Check
with your Local Aut hority or retailer for
recycling advice in your country
Exclusions
Registering your 2 year
guarantee
Your 1 year guarantee
Disclaimer
The After Sales Division
Morphy Richards Ltd
Mexborough,
South Yorkshire,
England, S64 8AJ
IF YOU ARE HAVING A PROBLEM
WITH ONE OF OUR PRODUCTS,
CALL OUR HELPLINE:
UK: 0344 871 0944
EIRE: 1800 409 119
SPARES: 0344 873 0710
RN332000MUK Rev1.qxp_IB 11/09/2014 10:46 Page 12
Loading...
