Please read and keep these instructions
Getting the best from your
new microwave oven...
25CG
Microwave oven
www.morphyrichards.co.uk
www.morphyrichardsindia.com
Richards service center.
Please read these instructions carefully
before installing and operating the oven
Before you call for service
Precautions to avoid
If the oven fails to operate:
possible exposure to
1. Check to ensure that the oven is plugged
excessive microwave
in securely. If it is not, remove the plug from
the outlet, wait 10 seconds, and plug it in
energy
again securely.
1. Do not attempt to operate this oven with
2. Check for a blown circuit fuse or a tripped
the door open since open door operation
main circuit breaker. If these seem to be
can result in harmful exposure to
operating properly, test the outlet with
microwave energy. It is important not to
another appliance.
defeat or tamper with the safety interlocks.
3. Check to ensure that the control panel is
2. Do not place any object between the oven
programmed correctly and the timer is set.
front face and the door or allow soil or
Check to ensure that the door is securely
cleaner residue to accumulate on sealing
closed engaging the door safety lock
surfaces.
system. Otherwise, the microwave energy
3. Do not operate the oven if it is damaged. It
will not flow into the oven.
is particularly important that the oven door
4. Check to ensure that the door is securely
is closed properly and that there is no
closed engaging the door safety lock
damage to the
system. Otherwise, the microwave energy
l Door (bent),
will not flow into the oven.
l Hinges and latches (broken or loosened),
IF NONE OF THE ABOVE RECTIFY THE
SITUATION, THEN CONTACT MORPHY
l Door seals and sealing surfaces.
RICHARDS SERVICE CENTER. DO NOT TRY
TO ADJUST OR REPAIR THE OVEN
4 The oven should not be adjusted or
YOURSELF.
repaired by anyone except Morphy
2
Operation Frequency : 2450MHz
Outside Dimensions : 281mm(H)×483mm(W)×415mm(D)
Oven Cavity Dimensions : 220mm(H)×340mm(W)×344mm(D)
Oven Capacity : 25Litres
Cooking Uniformity : Turntable System
Net Weight : Approx. 14.5 kg
Specifications
short circuit, grounding reduces risk of electric
Installation
shock by providing an escape wire for the
electric current. It is recommended that a
1. Make sure that all the packing materials
separate circuit serving only the oven be
are removed from the inside of the door.
provided. Using a high voltage is dangerous
2. WARNING: Check the oven for any
and may result in a fire or other accident
damage, such as misaligned or bent door,
causing oven damage.
damaged door seals and sealing surface,
WARNING: Improper use of the grounding
broken or loose door hinges and latches
plug can result in a risk of electric shock.
and dents inside the cavity or on the door. If
there is any damage, do not operate the
NOTE:
oven and contact Morphy Richards
service center.
1. If you have any questions about the
grounding or electrical instructions,
3. This microwave oven must be placed on a
consult Morphy Richards service center.
flat, stable surface to hold its weight and
the heaviest food likely to be cooked in the
2. Neither the manufacturer nor the dealer
oven.
can accept any liability for damage to the
oven or personal injury resulting from
4. Do not place the oven where heat,
failure to observe the electrical connection
moisture, or high humidity are generated,
procedures.
or near combustible materials.
The wires in this cable main are colored in
5. For correct operation, the oven must have
accordance with the following code:
sufficient airflow. Allow 20cm of space
Green and Yellow = EARTH
above the oven, 10cm at back and 5cm at
Blue = NEUTRAL
both sides. Do not cover or block any
openings on the appliance. Do not remove
Brown = LIVE
feet.
Radio interference
6. Do not operate the oven without glass tray,
roller support, and shaft in their proper
Operation of the microwave oven can cause
positions.
interference to your radio, TV, or similar
equipment.
7. Make sure that the power supply cord is
undamaged and does not run under the
When there is interference, it may be reduced
oven or over any hot or sharp surface.
or eliminated by taking the following
measures:
8. The socket must be readily accessible so
that it can be easily unplugged in an
1. Clean door and sealing surface of the
emergency.
oven.
9. Do not use the oven outdoors.
2. Reorient the receiving antenna of radio or
television.
Grounding instructions
3. Relocate the microwave oven with respect
This appliance must be grounded. This oven
to the receiver.
is equipped with a cord having a grounding
4. Move the microwave oven away from the
wire with a grounding plug. It must be plugged
receiver.
into a wall receptacle that is properly installed
and grounded. In the event of an electrical
5. Plug the microwave oven into a different
3
outlet so that microwave oven and receiver C. If smoke is observed, switch off or
are on different branch circuits. unplug the appliance and keep the door
closed in order to stifle any flames.
Important safety instructions
D. Do not use the cavity for storage
purposes. Do not leave paper products,
When using electrical appliance basic safety
cooking utensils or food in the cavity when
precautions should be followed, including the
not in use.
following:
8. WARNING: Liquid or other food must not
WARNING: To reduce the risk of burns,
be heated in sealed containers since they
electric shock, fire, injury to persons or
are liable to explode.
exposure to excessive microwave energy:
9. Microwave heating of beverage can result
1. Read all instructions before using the
in delayed eruptive boiling, therefore care
appliance.
has to be taken when handling the
2. Use this appliance only for its intended use
container.
as described in this manual. Do not use
10. Do not fry food in the oven. Hot oil can
corrosive chemicals or vapors in this
damage oven parts and utensils and even
appliance. This type of oven is specifically
result in skin burns.
designed to heat, cook or dry food. It is not
designed for industrial or laboratory use.
11. Eggs in their shell and whole hard-boiled
eggs should not be heated in microwave
3. Do not operate the oven when empty.
ovens since they may explode even after
4. Do not operate this appliance if it has a
microwave heating has ended.
damaged cord or plug, if it is not working
12. Pierce foods with heavy skins such as
properly or if it has been damaged or
potatoes, whole squashes, apples and
dropped. If the supply cord is damaged,
chestnuts before cooking.
contact Morphy Richards service center.
13. The contents of feeding bottles and baby
5. WARNING: When the appliance is
jars should be stirred or shaken and the
operated in the combination mode,
temperature should be checked before
children should only use the oven under
serving in order to avoid burns.
adult supervision due to the temperatures
generated.
14. Cooking utensils may become hot
because of heat transferred from the
6. WARNING: Only allow children to use the
heated food. Potholders may be needed
oven without supervision when adequate
to handle the utensil.
instructions have been given so that the
child is able to use the oven in a safe way
15. Utensils should be checked to ensure that
and understands the hazards of improper
they are suitable for use in microwave
use.
oven.
7. To reduce the risk of fire in the oven
16. WARNING: It is hazardous for anyone
cavity:
other than a trained person to carry out any
service or repair operation which involves
A. When heating food in plastic or paper
the removal of any cover which gives
container, keep an eye on the oven due to
protection against exposure to microwave
the possibility of ignition.
energy.
B. Remove wire twist-ties from paper or
17. This appliance is not intended for use by
plastic bags before placing bag in oven.
persons (including children) with reduced
4
Cookware Microwave Grill Convection Combination*
Heat - Resistant Glass Yes Yes Yes Yes
Non Heat - Resistant Glass No No No No
Heat - Resistant Ceramics Yes Yes Yes Yes
Microwave - Safe Plastic Dish Yes No No No
Kitchen Paper Yes No No No
Metal Tray No Yes Yes No
Metal Rack No Yes Yes No
Aluminum Foil & Foil Container No Yes Yes No
physical, sensory or mental capabilities, or bottom and from the center of the dish to
lack of experience and knowledge, unless the outside.
they have been given supervision or
instruction concerning use of the
Utensils guide
appliance by a person responsible for their
safety.
1. The ideal material for a microwave utensil
is transparent to microwave, it allows
18. Children should be supervised to ensure
energy to pass through the container and
that they do not play with the appliance.
heat the food.
2. Microwave can not penetrate metal, so
Microwave cooking principles
metal utensils or dishes with metallic trim
1. Arrange food carefully. Place thickest
should not be used.
areas towards outside of dish.
3. Do not use recycled paper products when
2. Watch cooking time. Cook for the shortest
microwave cooking, as they may contain
amount of time indicated and add more as
small metal fragments which may cause
needed. Food severely overcooked can
sparks and/or fires.
smoke or ignite.
4. Round/oval dishes rather than
3. Cover foods while cooking. Covers
square/oblong ones are recommend, as
prevent spattering and help foods to cook
food in corners tends to overcook.
evenly.
5. Narrow strips of aluminum foil may be
4. Turn foods over once during microwaving
used to prevent overcooking of exposed
to speed cooking of such foods as chicken
areas. But be careful don’t use too much
and hamburgers. Large items like roasts
and keep a distance of 1 inch (2.54cm)
must be turned over at least once.
between foil and cavity.
5. Rearrange foods such as meatballs
halfway through cooking both from top to
The list below is a general guide to help you
select the correct utensils.
5
Combination: applicable for both "microwave+grill", and "microwave+convection" cooking.
6
Know your MICROWAVE:
Door Safety Lock System Oven Air Vent
Oven Window Glass Tray
Shaft Grill Heater
Turntable Support Baking plate
Control Panel
1
2
3
4
5
6
7
8
9
Parts and features:
2
8 7
6
5
1
43
9

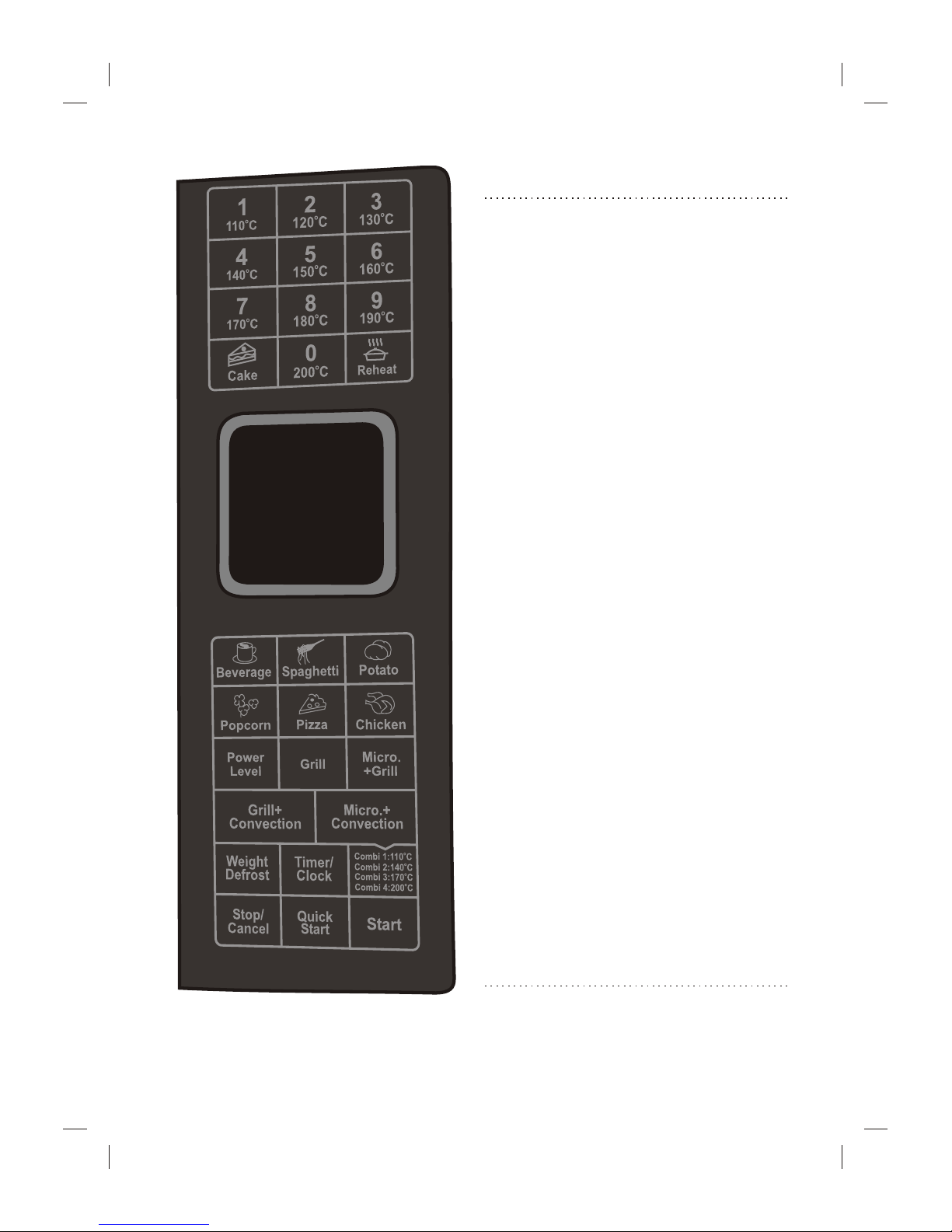

Control panel
DISPLAY WINDOW
Used to indicate clock, cooking time, etc.
NUMBER PADS
Used to enter clock, cooking time,
temperature, etc.
POWER LEVEL
Press to select microwave power level.
GRILL
Press to set a grill-cooking program.
Press to program grill+convection cooking.
MICRO + GRILL
Press to select one of two combination
cooking settings.
MICRO + CONVECTION
Press to select one of four combination
cooking settings.
WEIGHT DEFROST
Touch to defrost food by weight.
TIMER/CLOCK
Use to set the clock and the oven timer.
QUICK COOK BUTTONS:
CAKE, REHEAT, BEVERAGE,
SPAGHETTI.POTATO, POPCORN, PIZZA,
CHICKEN.
START
Press to start cooking program.
QUICK START
Touch to start the oven quickly at full power.
STOP/CANCEL
Touch to stop cooking program or clear all
previous settings before cooking starts.
How to set the oven controls
SETTING THE CLOCK
When the oven is first plugged in, you can set
GRILL+ CONVECTION
7
8
the clock time. To set the clock time later, The times to set power.
display shows Hr24, to set in twenty four hour
2. Press number pads to enter cooking time
cycle, press it again, it can be set in 12 hour
until the correct cooking time (5:00) is
cycle.
displayed.
1. Press and hold down TIMER/CLOCK for
3. Press START pad.
3 sec. (The display shows Hr24, to set in
twenty four hour cycle, press it again, it
NOTE:
can be set in 12 hour cycle.)
1. If you want to temporarily stop a cooking
2. Use the number pads to enter the correct
session, press the STOP/CANCEL once
time.
and then you can restart the cooking
again by pressing START; or press the
3. Press TIMER/CLOCK to confirm.
STOP/CANCEL twice to cancel the
MICROWAVE COOKING cooking program altogether.
Microwave cooking allows you to customize 2. After total time elapsed, the system will
cooking power and time. First, you select a sound beeps with END in display. And the
power level by pressing the POWER LEVEL beeps will continue to sound every two
pad a number of times (see the table below). minutes automatically until the door is
Then you set the cooking time using the opened or any pad is touched.
numeric pads, before pressing the START
GRILL
pad.
Grill cooking is particularly useful for thin slices
Press POWER pad to select cooking power
of meat, chops, kebabs and pieces of
Press Power Description chicken. It is also suitable for hot sandwiches
and au gratin dishes.
Once 100% High
Suppose you want to program grill cooking for
twice 90%
12 minutes.
3 times 80%
1. If needed, press the STOP/CANCEL pad
once to reset the system.
4 times 70% Medium High
2. Press GRILL button.
5 times 60%
3. Use the number pads to enter cooking
6 times 50% Medium
time.
7 times 40%
4. Press START button.
8 times 30% Med. Low
CONVECTION
9 times 20%
During convection cooking, hot air is
10 times 10% Low
circulated throughout the oven cavity to brown
and make crisp foods quickly and evenly. This
11 times 0%
oven can be programmed for ten different
Suppose you want to cook for 5 minute at 60% cooking temperatures. The maximum cooking
power level. time is 9 hours, 99 minutes.
1. Press POWER LEVEL pad a number of To Cook with Convection
To cook with convection, press CONVECTION an proper combination setting, then, at the
pad once and then press the number pads to screen prompt, enter the desired cooking
enter the desired convection temperature. time. After you have pushed the start button,
the system begins to count down.
0000
0--200 C, 1--110 C, 2--120 C, 3--130 C, 4--
0000
COMBINATION 1
140 C, 5--150 C, 6--160 C, 7--170 C, 8--
00
180 C, 9--190 C
30% time for microwave cooking, 70% for grill
0
cooking. Use for fish or au gratin.
Suppose you want to cook at 180 C for 40
minutes.
Suppose you want to set combination 1
cooking for 25 minutes.
1. Press CONVECTION pad.
1. Press MICRO+GRILL button once.
2. Press number pad 8.
2. Use the number pads to enter 25:00.
3. Press number pads to enter cooking time.
3. Press START button
4. Press START pad.
COMBINATION 2
NOTE: After total time elapsed, the system will
sound beeps with END in display. And the
55% time for microwave cooking, 45% for grill
beeps will continue to sound every two
cooking. Use for pudding, omelets, baked
minutes automatically until the door is opened
potatoes and poultry.
or any pad is touched.
Suppose you want to set combination 2
To Preheat and Cook with Convection
cooking for 12 minutes.
Your oven can be programmed to combine
1. Press MICRO+GRILL button twice.
preheating and convection cooking
operations. Suppose you want to preheat to
2. Use the number pads to enter 12:00.
0
170 C and then cook 35 minutes.
3. Press START button.
1. Press CONVECTION pad.
MICROWAVE +CONVECTION
2. Press number pad 7 to indicate
This oven has four pre-programmed settings
convection temperature.
that make it easy to cook with both convection
3. Press START button. “PREH” will flicker in
heat and microwave automatically.
the display until it reaches the designated
Press MICRO+CONVECTION button and
temperature.
then use the number pads 1-4 to program
4. Open the door and place container of
convection temperature:
food at the center of the turntable.
0
Touch number(1~4) Temperature ( C)
5. Use the number pads to enter cooking
COMB1 1 110
time.
COMB2 2 140
6. Press START button
COMB3 3 170
MICROWAVE+GRILL
COMB4 4 200
This feature allows you to combine grill and
microwave cooking on two different settings.
Suppose you want to bake food for 24 minutes
First, press this button once or twice to choose
on COMB3.
9
1. Press MICRO+CONVECTION button. 2. Use the number pads to enter cooking
time.
2. Use the number pads to enter convection
temperature. 3. Press CONVECTION pad once.
3. Use the number pads to enter cooking 4. Use the number pads to enter convection
time as desired. temperature.
4. Press START button to start. 5. Use the number pads to enter convection
cooking time.
NOTE: The maximum cooking time is 9 hours,
99 minutes. After total time elapsed, the 6. Press START button.
system will sound beeps with END in display.
AUTO COOK
And the beeps will continue to sound every
two minutes automatically until the door is
For food or the following cooking mode, it is
opened or any pad is touched. You can check
not necessary to program the duration and the
the convection temperature while cooking is in
cooking power. It is sufficient to indicate the
progress by pressing the
type of food that you wish to cook as well as
MICRO+CONVECTION button.
the weight of this food.
WEIGHT DEFROST
1. Press the individual icon pads once or
repeatedly to select the weight of food to
The oven can be used to defrost meat, poultry,
be cooked.
and seafood.
2. Press START.
Suppose you want to defrost frozen meat.
Auto Cook Code/Menu
1. Press WEIGHT DEFROST once or
repeatedly to select weight
PRESS FOOD ICONS
(100g~1800g).
1. Cake (475g)
2. Press START.
2. Reheat (g)
NOTE: During defrosting program, the
3. Beverage (each 200ml)
system will pause and sound beeps to remind
user to turn food over, and then press START
4. Spaghetti (g)
to resume the defrosting.
5. Potato (each 230g)
MULTI-STAGE COOKING
6. Popcorn (99g)
Your oven can be programmed for up to 3
automatic cooking sequences. 7. Pizza (g)
Suppose you want to set the following cooking 8. Chicken (g)
program.
NOTES:
Microwave cooking
1. The user is required to set weight for the
system to determine the time needed to
do the job, without entering cooking time
Convection cooking
by the user who might first at a loss as to
how much time is needed for the cooking.
1. Press POWER LEVEL button to set power
level.
2. For food 8 (chicken), beeps can be heard
10
in during cooking to remind user to turn will auto-start immediately. After time has
food over for uniform cooking. gone beeps sound and END appears in
display.
3. Voltage fluctuation may cause food not
done well, in such case, adjust the TO STOP THE OVEN WHILE THE OVEN IS
cooking time manually. OPERATING
4. For Spaghetti add boiling water before 1. Press STOP/CANCEL button.
cooking.
You can restart the oven by pressing
OTHER CONVENIENT FEATURES START pad.
MINUTE TIMER Touch STOP/CANCEL to erase all
instructions.
To use the timer feature, as when you need to
be reminded of the cooking or some other 2. Open the door.
things,
You can restart the oven by closing the door
1. Press TIMER/CLOCK and pressing START pad.
2. Use the number pads to enter the time to NOTE: Oven stops operating when door is
be counted down. opened.
3. Press START. AUTOMATIC PROTECTION MECHANISM
NOTE: When the countdown ends, the Anytime in the operation of the oven, when the
system buzzer will beep. oven cavity temperature reaches a
phenomenon of 300°C, the oven
Time countdown can be seen in display for 5
automatically enters into self protection mode.
seconds before clock or cooking time is
The display shows E 01, with one beeping
returned to exhibit.
every 1.5 sec until the said phenomenon
disappears, and STOP/CANCEL is pressed to
CHILD PROOF LOCK
make the oven back to normal.
The child proof lock prevents unsupervised
If the sensor is short circuited, the system
operation by little children.
enters protection mode with display of E03
To set the child proof lock: Press
which, when cleared, press STOP/CANCEL to
STOP/CANCEL button for 3 seconds, then a
back into normal.
beep will sound and the indicator light will
COOLING FEATURE
come on. In the lock state, all buttons are
disabled.
The electronical controlling system of the
microwave oven has the feature of cooling. As
To cancel the child proof lock: Press
for any cooking mode which cooking time
STOP/CANCEL button for 3 seconds, then a
above 2 minutes, after finishing cooking, the
beep will sound and the indicator light will
oven fan will work about 3 minutes
come off.
automatically to cool the oven for prolonging
QUICK START
the life of the oven.
Use this feature to program the oven to
Cleaning and care
microwave food at 100% power conveniently.
Press QUICK START button in quick
1. Turn off the oven and remove the power
succession to set the cooking time. The oven
plug from the wall socket before cleaning.
11
2. Keep the inside of the oven clean. When noise. Simply wipe the bottom surface of
food splatters or spilled liquids adhere to the oven with mild detergent. The roller
oven walls, wipe with a damp cloth. Mild ring may be washed in mild sudsy water
detergent may be used if the oven gets or dishwasher. When removing the roller
very dirty. Avoid the use of spray and other ring from cavity floor for cleaning, be sure
harsh cleaners as they may stain, streak to replace in the proper position.
or dull the door surface.
9. Remove odors from your oven by
3. The outside surfaces should be cleaned combining a cup of water with the juice
with a damp cloth. To prevent damage to and skin of one lemon in a deep
the operating parts inside the oven, water microwaveable bowl, microwave for 5
should not be allowed to seep into the minutes. Wipe thoroughly and dry with a
ventilation openings. soft cloth.
4. Wipe the door and window on both sides, 10. The oven should be cleaned regularly and
the door seals and adjacent parts any food deposits removed. Failure to
fr equen tly w ith a damp clot h to maintain the oven in a clean condition
removeany spills or spatters. Do not use could lead to deterioration of the surface
abrasive cleaner. that could adversely affect the life of the
appliance and possibly result in a
5. Do not allow the control panel to become
hazardous situation.
wet. Clean with a soft, damp cloth. When
cleaning the control panel, leave oven 11. Please do not dispose this appliance into
door open to prevent oven from the domestic rubbish bin, it should be
accidentally turning on. disposed to the particular disposal center
provided by the municipalities.
6. If steam accumulates inside or around the
outside of the oven door, wipe with a soft
cloth. This may occur when the
microwave oven is operated under high
Power Consumption : 230V~50Hz
humidity condition and it is normal.
1400W (Microwave)
7. It is occasionally necessary to remove the
1950W (Convection)
glass tray for cleaning. Wash the tray in
1000W (Grill)
warm sudsy water or in a dishwasher.
Rated Microwave Power Output : 900W
8. The roller ring and oven floor should be
cleaned regularly to avoid excessive
Technical Data
12
13
Morphy Richards products are intended
for household use only
Morphy Richards has a policy of
continuous improvement in product quality
and design. The Company, therefore,
reserves the right to change the
specification of its models at any time.
Products & parts are indicative only, the
actual product may differ.
Morphy Richards Ltd, Mexborough,
South Yorkshire, England, S64 8AJ
Loading...
