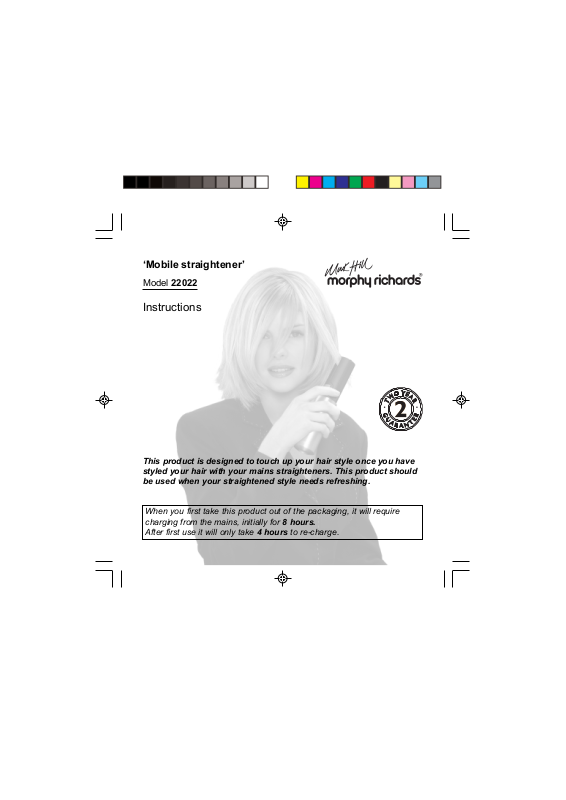

‘Mobile straightener’
Model 22022
Instructions
This product is designed to touch up your hair style once you have
styled your hair with your mains straighteners. This product should
be used when your straightened style needs refreshing.
When you first take this product out of the packaging, it will require
charging from the mains, initially for 8 hours.
After first use it will only take 4 hours to re-charge.
Thank you for buying your new Morphy Richards, Mark Hill mobile straightener. Please read
these instructions carefully before use and keep in a safe place for future reference.
Note: Your product is supplied with batteries fitted and it will need fully charging before
use. Follow the instructions, ‘Charging by mains power’.
1 The product can be used whilst plugged into the mains.
2 Recharge the product for 4 hours and then unplug it.
Warning: Do not leave the product switched ‘on’ and plugged into the mains
charging unit for extended periods or whilst unattended, as this will cause damage.
Key Features
On/off switch
Power on
indicator light
OPEN CLOSED
Straightener plates
Twist & lock
mechanism
Recharging point
This top plate is not
heated up directly
Hold closed over
hair to use
Push up to open
Includes
• Anodised styling plates to care for your hair and create longer lasting style
• Mains charger
• Car charger
2
Mains charger
Car charger
About your mobile
straightener
Your mobile straightener has been
designed to touch up your style on the
move, throughout the day.
It can be charged from the mains power
or from your car cigarette lighter socket.
This product can be used whilst
plugged into the mains adaptor, however
heat up times will vary if the batteries
are flat to start with.
This unit achieves a maximum of 30
minutes use when fully charged and the
battery needs to be fully charged to achieve
this. The charging time is 4 hours.
DO NOT TRY TO USE IT WHILST
BEING CHARGED IN THE CAR, THIS
WILL DAMAGE THE PRODUCT.
2 Switch on by sliding
the on/off switch to
the on position I. The
power on light will
illuminate.
3
3 Slide the barrel
length back into the outer
casing. The plates need
to be closed whilst they
warm up. This will take
approximately 5 minutes.
/4 of its
Car charger
Using your mobile
straightener
1 Push the centre section of the
straightener upwards to open.
4 Slide the barrel upwards
and fully out of the casing
and twist to lock . Your
mobile straightener is
ready to use.
3
How to retouch your hair style
Your Mobile Straightener is designed to retouch your style on the move.
1 To retouch your hairstyle, switch on the
Mobile straightener and allow it to heat up
(as described previously).
2 Take a small section of hair, and clamp
inside the plates. You can clamp it over or
under the strand of hair as you prefer and to
suit your style.
3 Using your fingers hold the outer plate
closed over your hair as in the illustration
and slowly slide the straightener down the
length of the strand.
Repeat as necessary to revitalise your style.
4
Charging by mains power
In car charging
1 When you first take this product out of
the packaging, it will require charging
from the mains, initially for 8 hours.
(Charging for longer periods will not
provide any more power and should
be avoided).
2 Plug the adaptor into the straightener,
whilst switched off and in a closed
position, plug the transformer into the
mains socket and switch the socket on.
3 When the batteries are charged the unit
can be used whilst plugged into the
mains to extend the times of usage, if so
required.
4 Heat up times will vary if the batteries
are flat to start with.
5 After first use it will only take 4 hours
to re-charge. This should provide
approximately 30 minutes of continuous
use.
6 A new batterys full performance is
achieved only after two or three
complete charge and discharge cycles.
The car adaptor can be used to charge
the mobile straightener in your car. Do not
use the adaptor for any other purpose.
1 Ensure the mobile straightener is
switched off.
2 Plug the adaptor into the straightener,
whilst in a closed position, plug the car
charging unit into the cigarette lighter
socket and place the product into a safe
position within the car. (Charging will
take 8 hours).
DO NOT USE THIS PRODUCT TO
RETOUCH YOUR STYLE WHILST
PLUGGED INTO THE CAR POWER
SOURCE. THIS WILL DAMAGE THE
PRODUCT.
3 Always place the product safely on a
suitable heat resistant surface.
4 Never use the mobile straightener whilst
you are driving.
Adaptor
Use only the adaptors supplied with the
product.
5
After use
1 Switch off after use, allow to cool and
close the product.
2 To close twist to unlock and push
back into the barrel.
Do not leave turned on. This will
cause the batteries to go flat, and may
damage other items in contact with the
straightener.
Ensure the straightener is cool before
storing away.
Battery Disposal
The batteries in this product are not
replaceable.
This product contains sealed Nickel
metal hydride batteries. When it reaches the
end of its useful life they must be disposed of
at an authorised recycling plant. Your local
authority will have a centre which accepts
such waste for recycling.
Your straightener is powered by a
rechargeable battery. Follow the guidelines
below.
Charging and discharging
the battery
• A new battery’s full performance is
achieved only after two or three complete
charge and discharge cycles.
• When a charger is not in use, disconnect
it from the power source. Do not leave the
mobile straightener connected to a
charger for longer than 24 hours this may
shorten its life. If left unused a fully
charged battery will discharge itself over
time.
• Temperature extremes will affect the
ability of your battery to charge and its life
time.
• Try to keep the mobile straightener in an
area that is between 15 -25 oC.
• Never use the charger when damaged.
Cleaning
Clean when the product is discharged
and unplugged. Use a damp cloth and then
wipe with a dry cloth.
Don’t let moisture enter the inside of the
straightener or damage will occur.
6
Important Safeguards
When using your hair appliance, basic
safety precautions should always be
followed.
1 Read all instructions carefully.
2 Use the appliance for its intended
use only.
3 To protect against the risk of electric
shock, do not immerse the appliance in
water or in any other liquids.
4 It is recommended that this appliance
should not be used by children.
5 Be sure that your household voltage
corresponds to the voltage marked on
the mains charger.
6 Always unplug your appliance when it
is not in use.
7 Do not leave the straightener
switched on whilst unattended.
8 Do not take this product into a
bathroom or use near a water basin.
9 In the event of cable damage do not
attempt to replace the mains cable,
return to Morphy Richards.
10 After use do not store until the
product has cooled down.
11 Do not place the straightener on
surfaces likely to be easily damaged by
the heat.
12 For safety and to prevent product
damage, only use the charging units
provided.
13 The product generates heat and care
should be taken to avoid burns to
yourself and items placed in close
proximity to the straightener.
14 Do not use whilst plugged into the car
charger.
15 When using for the first time charge for
8 hours then subsequent charges will
be 4 hours from flat.
16 Do not allow metal objects to come
into contact with the charging socket
on your mobile straightener. This could
short circuit the batteries and damage
the product.
7
Two Year Guarantee
It is in your interest to retain the retailers receipt as proof of purchase. Please quote the model
number if the product develops a fault. This number can be found on the shaft of the product.
All Morphy Richards products are individually tested. In the unlikely event of any appliance proving
to be faulty within 28 days of purchase it should be returned to the place of purchase for it to be
replaced.
If a fault develops after 28 days and within 24 months of original purchase, you should contact the
helpline number quoting the model number of the product, or write to the address below. You will
be asked to return the product (in secure packaging) to the address below along with a copy of
proof of purchase.
Registered address
The After Sales Division
Morphy Richards Ltd
Mexborough
South Yorkshire
England
S64 8AJ
Helpline (8:30-5:00 Mon-Thur/ 8:30-4:00 Fri) UK 0870 060 2614
Republic of Ireland 1800 409119
Replacement parts 0870 167 6645
Morphy Richards Website www.morphyrichards.co.uk
Morphy Richards products are intended for household use only. Morphy Richards has a policy of
continuous improvement in product quality and design. The Company, therefore, reserves the right to
change the specification of its models at any time.
446/8001/45 Rev 4
Imported by : Morphy Richards Ltd, Talbot Road, Mexborough, S64 8AJ
