Morley QUAD Owner's Manual

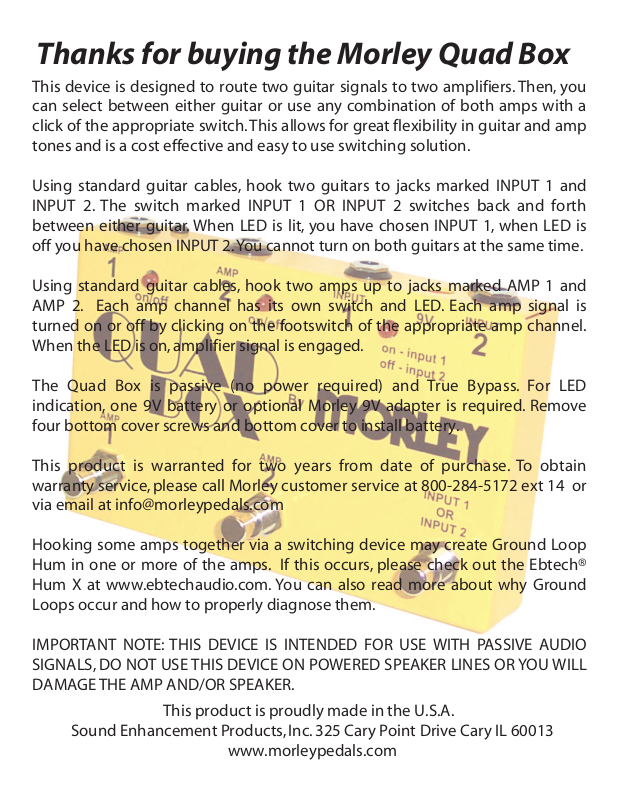

Thanks for buying the Morley Quad Box

This device is designed to route two guitar signals to two amplifiers. Then, you
can select between either guitar or use any combination of both amps with a
click of the appropriate switch. This allows for great flexibility in guitar and amp
tones and is a cost effective and easy to use switching solution.

Using standard guitar cables, hook two guitars to jacks marked INPUT 1 and
INPUT 2. The switch marked INPUT 1 OR INPUT 2 switches back and forth
between either guitar. When LED is lit, you have chosen INPUT 1, when LED is
off you have chosen INPUT 2. You cannot turn on both guitars at the same time.

Using standard guitar cables, hook two amps up to jacks marked AMP 1 and
AMP 2. Each amp channel has its own switch and LED. Each amp signal is
turned on or off by clicking on the footswitch of the appropriate amp channel.
When the LED is on, amplifier signal is engaged.

The Quad Box is passive (no power required) and True Bypass. For LED
indication, one 9V battery or optional Morley 9V adapter is required. Remove
four bottom cover screws and bottom cover to install battery.

This product is warranted for two years from date of purchase. To obtain
warranty service, please call Morley customer service at 800-284-5172 ext 14 or
via email at [e-mail]

Hooking some amps together via a switching device may create Ground Loop
Hum in one or more of the amps. If this occurs, please check out the Ebtech®
Hum X at www.ebtechaudio.com. You can also read more about why Ground
Loops occur and how to properly diagnose them.

IMPORTANT NOTE: THIS DEVICE IS INTENDED FOR USE WITH PASSIVE AUDIO
SIGNALS, DO NOT USE THIS DEVICE ON POWERED SPEAKER LINES OR YOU WILL
DAMAGE THE AMP AND/OR SPEAKER.

This product is proudly made in the U.S.A.

Sound Enhancement Products, Inc. 325 Cary Point Drive Cary IL 60013

www.morleypedals.com
