USER MANUAL
Industrial
Fan
MSF-20MI1
MFF-20MI2
Page 2
MSF-20MI1(IM)291216.qxp_Layout 1 1/6/17 5:45 PM Page 2
C O N T E N T S
3
GENERAL SAFETY PRECAUTIONS
4
PARTS IDENTIFICATION
GENERAL SAFETY PRECAUTIONS
Please read all instructions before using this product. Save these instructions for
easy reference. When using electrical appliances, basic precautions should always
be followed to reduce breakage, risk of fire, electric shock and injury to persons
including the following:
● When using it any electrical appliance, you should notice ensure that the circuit
electric voltage MUST correspond with the electric voltage displayed on the label
(Please allow electric voltage to deviate by ±5%）
4
SPECIFICATIONS
5
INSTALLATION INSTRUCTIONS
6
OPERATING INSTRUCTIONS
6
TROUBLESHOOTING
7
CARE AND CLEANING
● If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons to avoid a hazard.
● Do not hang any objects on the rail guard.
● Do not operate the fan directly adjacent to curtains, plants, window coverings, etc. to
avoid accidental entanglement.
● The fan should be placed on the ground with stable surface to prevent from
accidentally tipping over. Ensure that there are no other furniture or objects that may
obstruct the fan’s operation.
● Do not expose infants or seniors to prolonged periods of direct cold air.
● Avoid contact with all moving parts. Never insert your fingers, pencils or other objects
through the fan guard during operation.
● This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they
do not play with the appliance.
● Do not use gasoline, paint thinner or other chemicals to clean the fan.
2
3
Page 3
2
2
1
1
3
4
6
5
MSF-20MI1(IM)291216.qxp_Layout 1 1/6/17 5:45 PM Page 3
INDUSTRIAL
STAND FAN

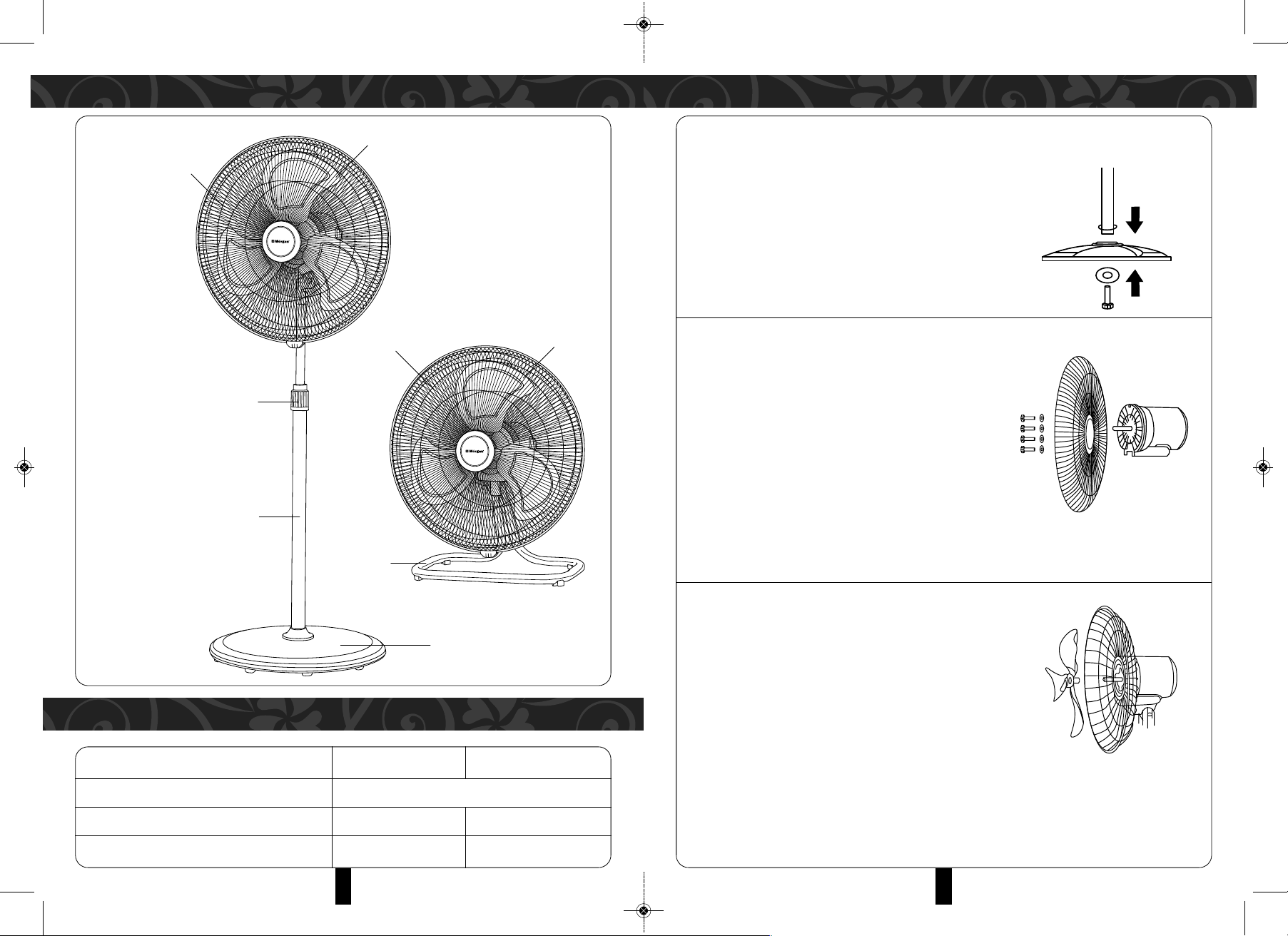

1. Fan Guard
2. Fan Blade
3. Pipe Screw
4. Fan Pipe
PARTS IDENTIFICATION
INDUSTRIAL
FLOOR FAN
INSTALLATION INSTRUCTIONS
Carefully unpack the fan base, motor head, fan guard (front and back) and fan blades
from the Styrofoam packing cradle and assemble in accordance with the instructions
below:
INSTALLING THE BASE
● Tighten the base screws.
● Insert the adjustable pipe into the round fan base.
● Tighten the base screws clockwise.
INSTALLING THE FAN MOTOR
● Insert the 2 screws on top of the fan pipe.
● Attach the fan motor to the upright fan base by
sliding down and aligning the screw holes
before tightening the screws.
INSTALLING THE REAR GUARD
● Loosen the 4 screws on the fan motor.
5. Base
6. Bracket
SPECIFICATIONS
MODEL MSF-20MI1 MFF-20MI2
RATED VOLTAGE / FREQUENCY 220-240V~ 50Hz
RATED WATTAGE 155W 155W
SIZE 50CM 50CM
4 5
● Align the rear guard to the holes on the motor unit.
● Tighten the 4 screws.
INSTALLING THE FAN BLADE
● Insert the fan blade and press into the motor axis.
● Tighten the blade screw into the axis indentation.
INSTALLING THE FRONT GUARD
● Place the front guard to correspond with the rear guard.
● Close the fastener clip to ensure that the front guard and
rear guard are securely fixed.
Page 4
MSF-20MI1(IM)291216.qxp_Layout 1 1/6/17 5:46 PM Page 4
OPERATION INSTRUCTIONS CARE AND CLEANING
● Set your fan on a level dry surface.
● Insert the power cord into 220-240V volley AC power supply.
● Your high velocity fan features 4 speeds designed to give you maximum flexibility and
to meet all your air circulation requirements, from low to med speed. These settings can
be used for most of your needs. However when you want to have maximum air
movement, use the high setting. Select the desired speed for your needs by using the
rotary control switch.
● Adjust to your desired air stream by tilling the fan assembly to the required position.
TROUBLESHOOTING
PROBLEM SOLUTION
The fan blade does not rotate when Have you inserted the power plug into the power
turned on supply?
Is the front/rear guard incorrectly assembled
thereby obstructing fan blade movement?
1. Turn the control to OFF and unplug the fan before cleaning.
2. Use only a soft, damp cloth to clean the fan.
3. Do not immerse the fan in water and never allow water to drip into the motor housing.
4. Do not use gasoline, paint thinner or other chemicals to clean the fan.
5. To clean the fan blade, use 2 screw-drivers to disengage the hooks (8 hooks) holding
the front guard to the rear guard.
6. Remove the front guard.
7. Wipe the blade and guard.
8. Reassemble the fan by snapping the front guard into place.
9. Store the fan in its original box or cover the fan to protect in from dust store it in a
cool dry place.
Has the motor short circuited or malfunctioned?
Abnormal noise during operation Is the blade assembled onto the shaft correctly
and securely tightened?
Is the front/rear guard incorrectly assembled
thereby obstructing fan blade movement?
Is the fan blade or the motor loose?
6 7
