USER MANUAL
Chiller
Showcase
MCS-288D
MCS-188D
MCS-288D(IM)131117.qxp_Layout 1 12/28/17 10:30 AM Page 1
3
PARTS IDENTIFICATION
1
2
3
4
5
6
7
8
9
10
11
2
1. Light box(10-15W lamp)
2. Fan
3. Shelf
4. Glass door
5. Bottom grill
6. Temperature control knob
7. Power indicator lamp
8. Operation indicator lamp
9. Lamp switch
10. Truckle
11. Adjustable leg
SPECIFICATIONS
Model MCS-288D MCS-188D
Rated Voltage / Frequency 220-240V~ 50Hz
Rated Wattage 140W 140W
Capacity 238L 192L
Refrigerant R134a/100g
Net Weight 56kg 39kg
Product Dimension(mm) 530 x 560 x 1971 530 x 485 x 1555
INTRODUCTION
Please read through the following safety precautions carefully before using the
a
ppliance and save it for future reference.
Thank you for purchasing a quality MORGAN appliance. We trust that you will have a
pleasant experience with your new product. To guarantee safety and best efficiency,
please read this manual carefully and keep a copy for future reference.
• This refrigerator showcase is built using a high-quality compressor and features a tubular
evaporator, and steel-wired condenser. This high- performance appliance has rapid
refrigeration speed; is energy-efficient, well-designed with superior build-quality for
convenience and use.
• The door is a hollow glass door. A pilot lamp is built into the interior cabinet and the
appliance is suitable for storing food, drinks and fruit.
• Read and follow all safety rules and operating instructions before first use of this
appliance.
WARNING:
Do not damage the refrigerant circuit
This appliance is intended for household use and similar applications such as:
• staff kitchen areas in shops.
• offices and other work environments
• Guest houses, hotels, motels and other residential type environments.
• catering and similar non-retail applications.
WARNING:
Do not use unapproved mechanical devices or other means to accelerate the defrosting
process other than those recommended by the manufacturer. Failure to adhere to this
warning may result in damage to equipment and/or personal injuries.
MCS-288D(IM)131117.qxp_Layout 1 12/28/17 10:30 AM Page 2
5
USING FOR THE FIRST TIME
44
1. Always ensure that the appliance is placed on stable surfaces to prevent vibration or
noise.
2. Place the refrigerator in a dry and well-ventilated room to increase refrigerator
efficiency and reduce energy consumption.
3. Always ensure to leave a space of at least 100mm from the rear of the appliance to the
wall
4. The two sides should be at least 200mm away from the wall with the top at least 300mm
away from the ceiling.
5. Avoid exposing the appliance to heated sources and direct sunshine.
6. Do not place appliance in damp or wet areas to prevent damage to electricity insulation
and damage.
7. Recommended power supply: Single-phase alternating power supply with the voltage
of 187V - 242V, and the frequency of (50±1) Hz.
8. This appliance must be earthed.
9. Do not use multiple adapter or extension cable.
10. Avoid splashing water on the electrical parts to prevent a short circuit or damaging the
appliance.
11. Do not store flammable objects into the refrigerator such as gasoline, propane,
adhesive, and so on.
12. Never tilt over when moving the refrigerator. The obliquity of the refrigerator should be
over 45°.
INSTALLATION AND SAFETY RULES
1. The temperature is nearly the same as the ambient temperature when the appliance
operates for the first time. In general, it takes around 2 hours to enable the temperature
inside to reach ambient temperature, of which the motor will automatically cut off.
2. After operating for 2 hours, refer to the following instructions to adjust the temperature
and close the door in order to operate optimally. (Thermostat controls compressor to stop
and start automatically.)
3. Now, you can store foods inside it.
NOTE: This table is a guide for adjusting the temperature of the refrigerator when
it is operating for the first time only.
OPERATING REQUIREMENT KNOB POSITION INDICATION
During first use Strong (Exceed ''6")
After 3 hours “3”
When it is necessary to reduce the “4 – 6”
temperature again
If temperature is too low “1 – 2”
NOTE: Do not store any food before the appliance operates optimally
MCS-288D(IM)131117.qxp_Layout 1 12/28/17 10:30 AM Page 3
7
6
OPERATING INSTRUCTIONS DEFROSTING

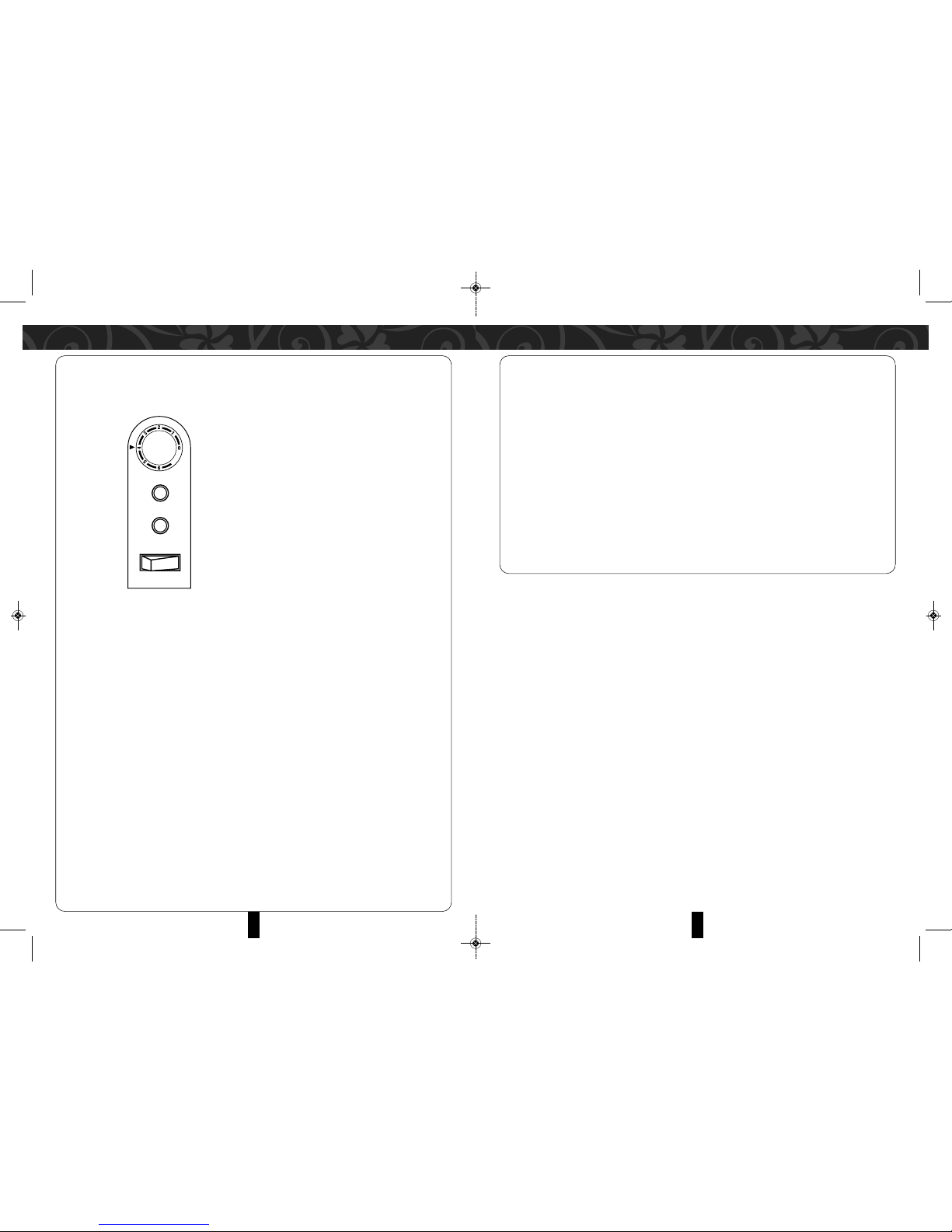

TEMPERATURE CONTROL
The temperature control is fixed on the veneer or on the tabletop of the refrigerator as
shown below.
• When the control knob is in "O" position the compressor will not operate.
• The temperature control is adjustable from "1" to "6", where the coldest is in ascending
order (6).
• For rapid refrigeration, set the control knob to "5" or "6".
Note:This function is for rapid refrigeration purposes only and should not be used
continuously as it may damage the contents inside it.
LAMP REPLACEMENT
• First, cut off the power supply and loosen the screws on lampshade at the top.
• Liner with a screwdriver and remove the lampshade. Then remove the lamp and replace
with a new one. Finally, assemble the lampshade and secure it with screws and connect
the power supply to inspect the lamp.
Frost will form on the surface wall inside the refrigerator after continuous use and will
affect its performance of the refrigerant. It is recommended to defrost whenever frost
is thicker than 5mm.
TO DEFROST
• Set the control knob to "O" or disconnect the power supply before defrosting the
refrigerator.
• Open the refrigerator door and remove its contents.
• Gently knock on the frost to dislodge it.
• Wait until the defrosted water is drained before cleaning with a soft cloth dipped in warm
water or neutral pH cleansers.
• Never attempt to scrape/remove ice /frost with sharp objects such
as knives or shovels to avoid damaging the evaporator.
• Connect the refrigerator to the power supply after defrosting.
MCS-288D(IM)131117.qxp_Layout 1 12/28/17 10:30 AM Page 4
