USER MANUAL
Air
Cooler
MAC-COOL9
E-mail: electrical.appliance@dksh.com
www.morgan.my
Market Expansion
Services by
www.dksh.com.my
facebook.com/morganappliances
MAC-COOL9(IM)140814_Layout 1 8/22/14 10:09 AM Page 1
3
C O N T E N T S
4
4
5
5-8
9-10
11
Product Features
Parts Identification
Specifications
Operating Instructions
Safety Precautions
Maintenance and Cleaning
MAC-COOL9(IM)140814_Layout 1 8/22/14 10:09 AM Page 2
5
SPECIFICATIONS
OPERATING INSTRUCTIONS
MODEL MAC-COOL9
RATING VOLTAGE / FREQUENCY 220-240V~ 50Hz
RATED WATTAGE 170W
MAX AIR FLOW 2200m³/h
MAX WATER VOLUME 30L
NET WEIGHT 10.7Kg
DIMENSIONS(mm) 550 X 420 X 1110
Note: Due to continuous improvement to our products, we reserve the right to modify
and upgrade the specification and design without prior notice.
4
Thank you for choosing a quality air cooler from Morgan. Please read this Instruction
Manual carefully before using it, and please the user manual for future reference. We
believe our easy-to-use air cooler will make your life comfortable and more
pleasurable.
PRODUCT FEATURES
1. Humidification and cooling function
2. Timer function: 0.5-7.5H cumulative timer
3. Infrared remote control
4. Automatic water filling and stopping, low water protection.
5. Four levels speed: Turbo, high, medium, and low
6. Air modes: normal, natural, and sleep
7. Electronic key control, LED display
8. Automatic left/right swing, manual up/down adjusting
9. Universal wheel design, easy to move
10. Power, shutdown, key press tone alert (Buzz on power/key press/power off)

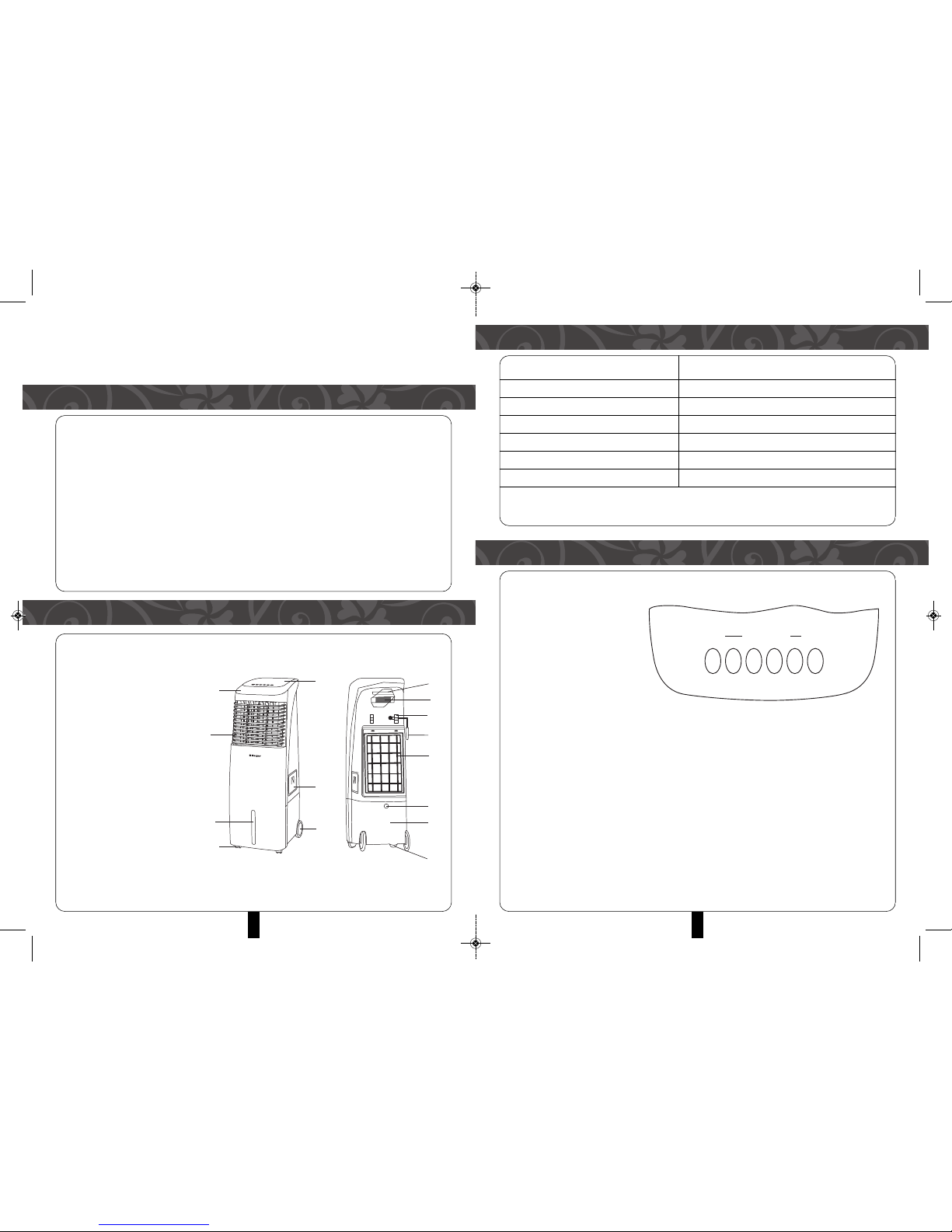

PARTS IDENTIFICATION
2
3
5
7
6
4
1
8
9
10
11
12
13
14
15
1. Operation panel
2. Function display window
3. Air outlet
4. Water filling box
5. Water level display
window
6. Roller
7. Caster
8. Remote control storage area
9. Handle
10. Power cord winding frame
11. Power cord
12. Air filter screen
13. Automatic filling
component
14. Water tank
15. Water plug
• The keys are tapping type.
You can tap the operation
panel to trigger a desired
function.
• When power is initially
turned on, the buzzer
beeps twice and enters
standby mode; except power/speed keys, other keys are inoperational.
POWER ON / SPEED
In standby mode, all keys except the Power on / Speed key are inoperational. Press the
Power on/Speed key to turn on the device, and the circuit becomes operational. The
initial speed of the device is medium, and turns to low automatically after 3 seconds.
Corresponding LED lights will illuminate. This is normal mode, but timer, wind
direction, and cooling/humidification functions remain inoperational. In power on
state, press this key to switch the wind speed in the sequence: LowMid High
Strong Low etc. The speed LED indicator in this process will also change
accordingly.
POWER OFF
In power on state, press this key to turn off the device, and the system returns to
standby mode.
SWING TIMER MODE OFF
COOLER
HUMIDIFIER
ON
SPEED
0.5h
1h 2h 4h
The product can be used directly after unpacking
(without installation).
1. OPERATION PANEL
MAC-COOL9(IM)140814_Layout 1 8/22/14 10:09 AM Page 3
6 7
OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS

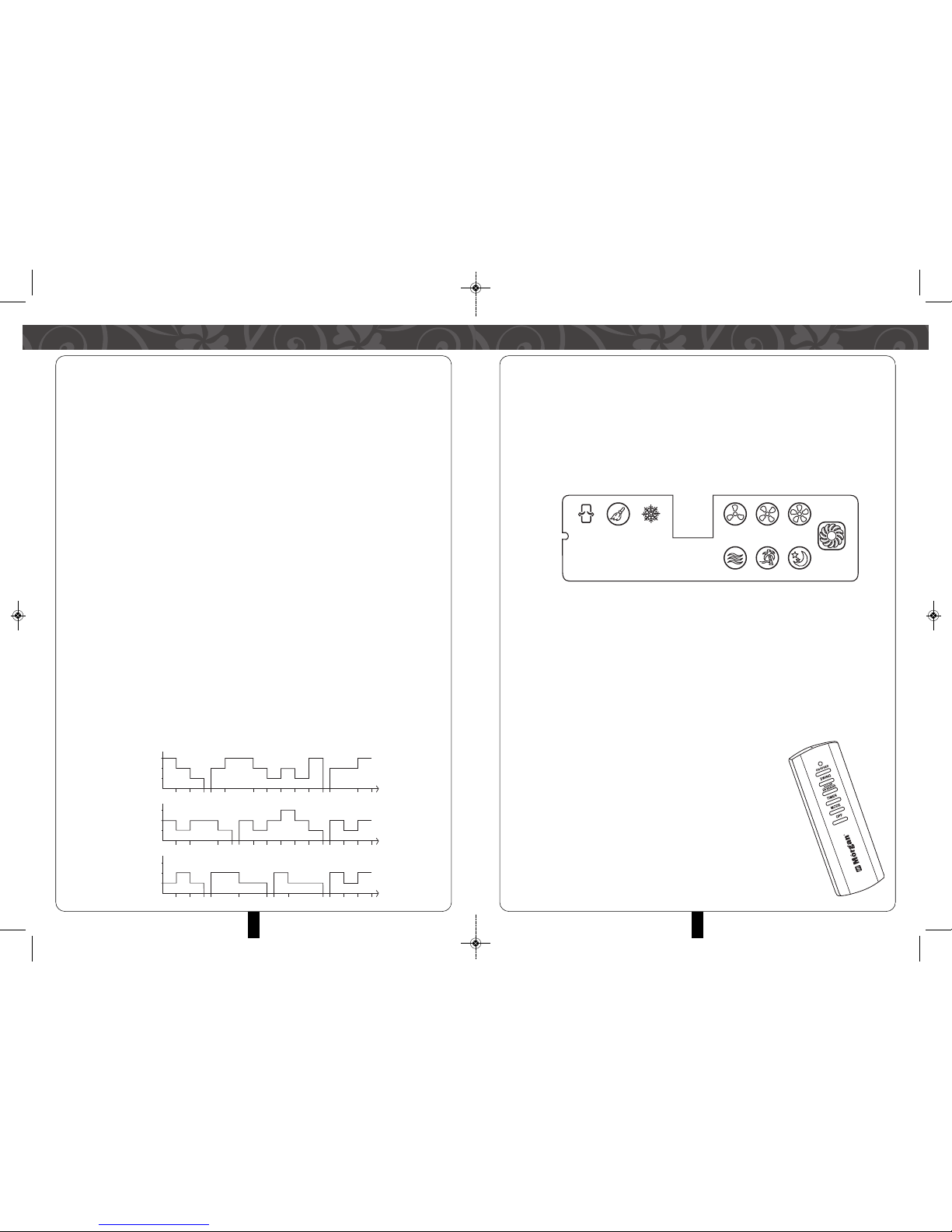

3. SLEEP WIND:
High speed: 30 minutes high speed natural wind -30 minutes medium speed natural
wind – low speed natural wind (maintain)
Medium speed: 30 minutes medium speed natural wind – low speed natural wind
(maintain)
Low speed: Low speed natural wind
2. DISPLAY PANEL
3. REMOTE CONTROL OPERATION PANEL
USING THE REMOTE CONTROL
1. Open the battery cover of the remote control, and insert
two 1.5V AAA batteries.
2 Point to the receiver on the appliance when using the
remote control.
3. If the battery voltage is low, open the battery cover as shown
in the figure and replace with new batteries corresponding
to its positive and negative poles. Close the battery cover.
AIR FILTER CLEANING WARNING
After operating for 200 hours, the “Clean Filter” indicator will blink to clean up the air
filter. Clean the filter according to the instructions and press the “Cooler/Air Washer”
for 3 seconds to reset the “Clean Filter” warning.
The device and Cooler/Air Washer function will still be powered on as per normal,
working when the “Clean Filter” indicator blinks. To cancel the blink function, press
“Cooler/Air Washer” for 3 seconds.
This appliance features low water protection; if the water level is low, it will
automatically turn off the cooling and humidification function and the buzzer will
beep continuously for five seconds.
COOLER / HUMIDIFIER
In power on state, press this key to switch on/off the cooling / humidification function,
press this key once to turn on the cooling / humidification function, open the pump,
and turn on cooling / humidification LED light, and press this key again to turn off the
cooling / humidification function.
SWING
After power on, press this key to switch on/off the left and right vane adjustment
function; press swing key once to turn on the swing function and swing LED light, and
press it again to turn off the swing function.
TIMER
After power on, the timer is not turned on by default, and timer LED is not displayed.
Press timer key to set timer: 0.5h 1.0H1.5h 2.0h ….. 7.5h no timer 0.5h;
in this process, the timer LED indicator also changes accordingly.
MODE
After power on, the initial mode is normally by default; press mode key to activate the
sequence:
normal natural sleep normal etc.; in this process, the mode LED indicator also
changes accordingly (no natural and sleep mode in Turbo level).
Press the Mode key to switch the wind mode, and operation is as follows:
1. NORMAL WIND:
Turbo wind Turbo---------------High speed wind High ----------------Medium wind speed Medium ------------Low speed wind Low ------------------
2. NATURAL WIND:
0.5h
1h 2h 4h
HI
HIGH
6S 6S 6S 3S 6S 6S 6S 6S 6S 6S 3S 12S 6S
T=90S
12S
6S 6S 6S3S6S 6S 6S 6S 6S 6S 3S 6S6S6S
T=90S
12S
6S 6S 6S 3S 6S 15S 6S 6S3S3S 6S
T=90S
12S 12S
MED
LOW
STOP
MED
HIGH
MED
LOW
STOP
LOW
HIGH
MED
LOW
STOP
MAC-COOL9(IM)140814_Layout 1 8/22/14 10:09 AM Page 4
9
SAFETY PRECAUTIONS
To avoid the dangers caused by negligence and to use the device more conveniently,
several considerations are given through the following icons. Please get familiar with
the icons below, and read the User Guide.
1. If the product has any malfunctions, please send it to the repair station or notify
the service center; do not disassemble or replace the parts. Do not touch the power
cord or plug with wet hands
2. Disassembly or modification without permission will affect the safety and warranty
of the appliance. Risk of electric shock
3. Never insert wooden sticks, metal sticks and other objects into the inlet and the
outlet. It may cause leakage, short circuit and damage to the product.
4. Do not spray insecticides and flammable sprays around the product.
5. Do not yank the power cord when removing it from the power supply. It may cause
power cord damage, electric leakage and other hazards.
6. Ensure that no foreign objects stick to the power plug to prevent any risk of electric
leakage when inserting it into the power supply.
7. When the appliance emits an unpleasant odour or abnormal noise during normal
operation, immediately power off and unplug the appliance from the power
supply.
8. Do not use exposed or damaged power cord as it may cause electric leakage, short
circuit or fire.
9. If the power cord is damaged, have it replaced by the manufacturer, authorized
service center or qualified personnel in order to avoid hazards.
10. Do not bend the power cord or place heavy objects on it to prevent the risk of
electric leakage.
11. The water level of the tank should not exceed the maximum level, nor should it be
lower than the minimum level when the cooling / humidification function is turned
on. After water is filled, do not tilt or collide while placing or moving, to prevent
water splashing.
12. If the appliance has been tilted and there is water inside, immediately pull out the
plug and wait for 24 hours before starting.
13. Shut down the appliance and disconnect the power plug from the outlet if it is not
to be used for a long duration.
14. Do not use the appliance when there is unattended child, animal or handicapped
person.
8
OPERATING INSTRUCTIONS

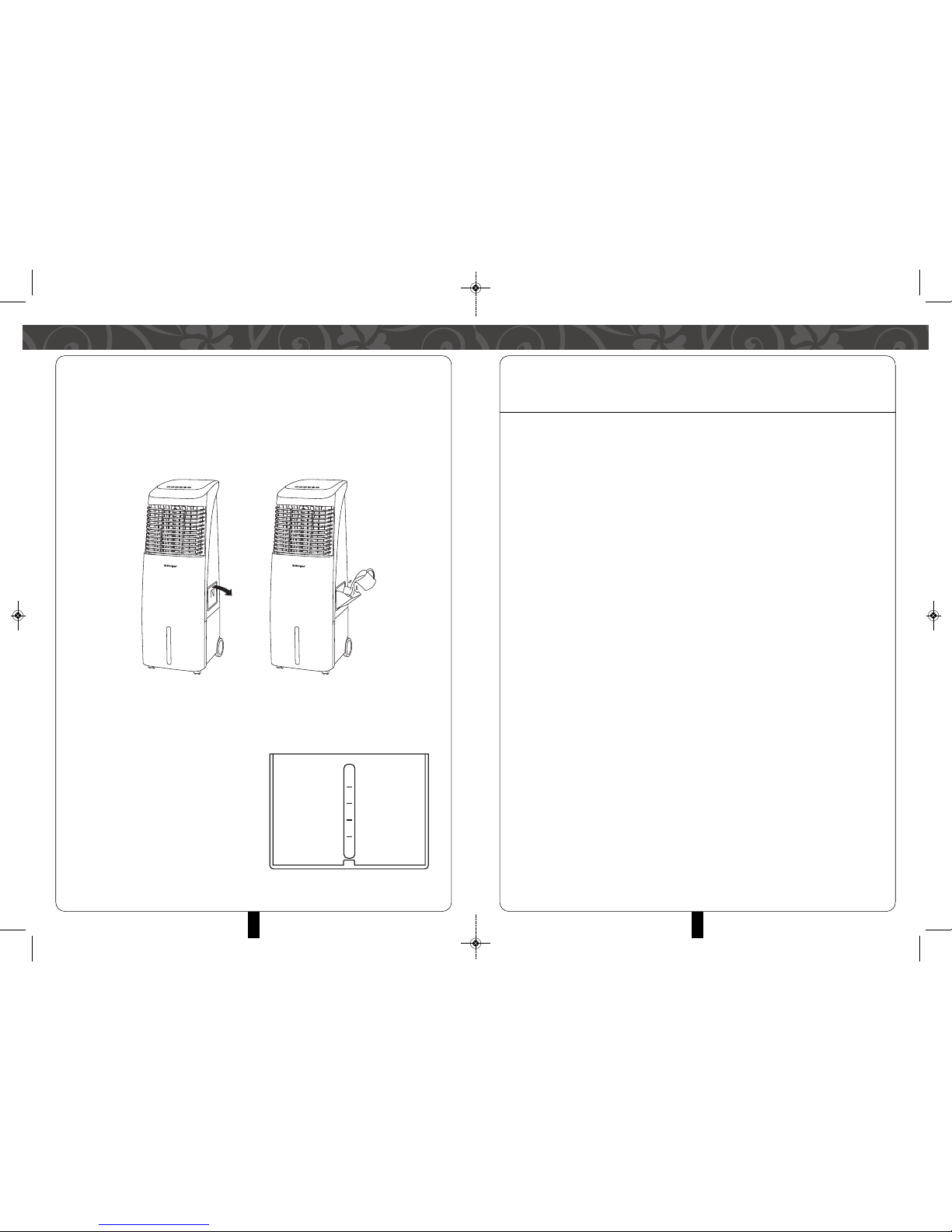

4. FILLING WATER
• Remember to always add water to the tank before turning on the cooling and
humidification function. Automatic filling and manual filling are available.
• Automatic filling: Connect the device to the faucet with a water hose, and then turn
on the faucet.
• Manual filling: Before filling water, open the water box, fill water into the tank
slowly (Fig. 1&2), and then insert the water box back into its original position.
WATER LEVEL SCHEMATIC
IMPORTANT:
For manual water filling, please note the level indicator in the front of the
air cooler (Fig. 3).
1. Do not fill the water exceeding the
maximum water level
2. Ensure clean tap water is used.
3. TIP: It is normal, non-toxic, and not
harmful to health if the appliance gives
out a slight odour or the water in the
tank has a slight discoloration when used
for the first time.
PULL
Opening Water
Filling Box
(Fig. 1)
Filling Water
(Fig. 2)
Min
Max
(Fig. 3)
MAC-COOL9(IM)140814_Layout 1 8/22/14 10:09 AM Page 5
11
MAINTENANCE AND CLEANING
15. Use the appliance only with an approved power outlet with a power capacity not
lower than 10A/220V~
16. Always ensure that the voltage is consistent with the voltage specified on the
rating label.
17. Never use the appliance in the tub, shower or swimming pool.
18. Do not use the appliance by placing it directly below the power outlet.
19. Keep the appliance away from the wall, curtains and other combustible materials
when the appliance is being used in order to prevent a fire hazard.
20. To avoid overheating, do not cover the heater.
21. Do not place any objects on the device.
22. During humidifying, DO NOT remove or install air filter screen and wet curtain
bracket assembly. It may cause water drops spraying out of the air outlet.
23. For automatic water filling, the maximum pressure of the faucet is 0.5MPa.
DO NOT USE CHEMICAL AGENTS FOR CLEANING
1. Turn off the power and unplug the power plug from the power supply.
2. Always unplug the power plug before cleaning the device to prevent electric shocks.
3. If dust accumulates on the surface, wipe it with soft cloth. If the surface is dirty, mix
water lower than 50°C with neutral detergent, wipe with soft cloth and allow it to
dry naturally.
4.
WARNING:
Do not use gasoline, thinner and any substance that can damage the
surface easily during cleaning.

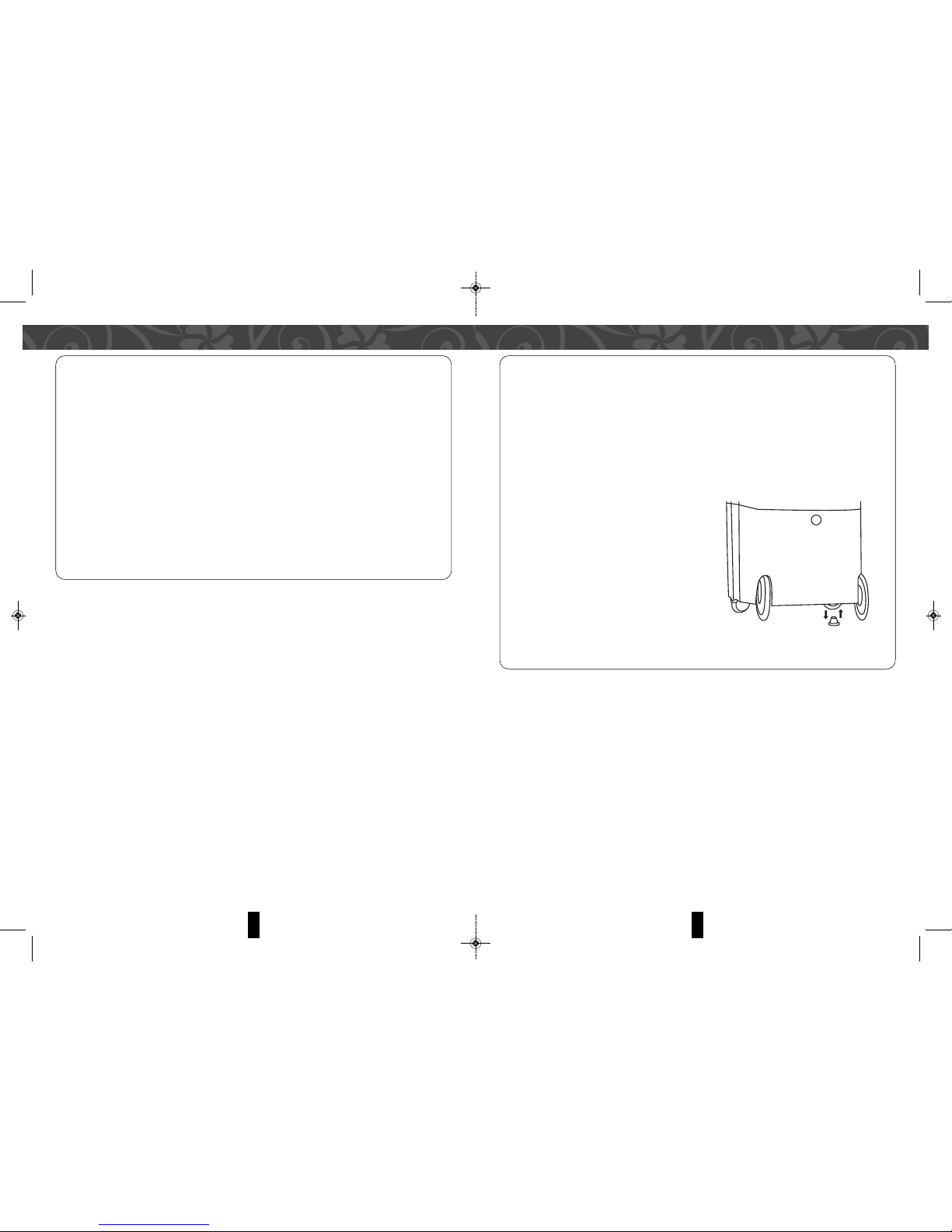

STORAGE:
If the product is not to be used for a long
time, pull out the bottom plug of the water
tank, drain the water inside the tank, and
re-insert the water plug. Blow with
constant wind, fully dry the wet curtain,
unplug the power cord, wrap the device to
prevent dust from entering, and place in
dry and ventilated place.
10
SAFETY PRECAUTIONS
MAC-COOL9(IM)140814_Layout 1 8/22/14 10:09 AM Page 6
