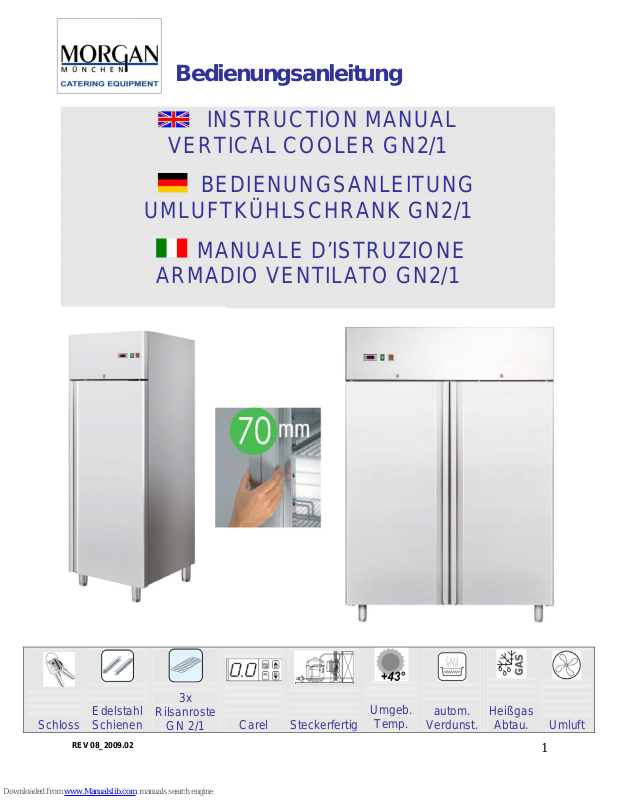

Morgan GN2/1 Instruction Manual

Bedienungsanleitung

BEDIENUNGSANLEITUNG

UMLUFTKÜHLSCHRANK GN2/1

MANUALE D’ISTRUZIONE

ARMADIO VENTILATO GN2/1

*Irrtum und technische Än

INSTRUCTION MANUAL

VERTICAL COOLER GN2/1

Schloss

Edelstahl
Schienen

Rilsanroste

GN 2/1

3x

REV 08_2009.02

Carel

Steckerfertig

Umgeb.

Temp.

autom.

Verdunst.

Heißgas

Abtau.

Umluft

1

OFFICIAL APPROVAL AND RULES

Our products full fill the present E.U. rules

ZULASSUNGEN UND VERORDNUNGEN

Unsere Geräte erfüllen die CE - Richtlinien

Auf Anfrage erhalten Sie von uns die Konformitätserklärung

OMOLOGAZIONI E NORMATIVE

I nostri prodotti rispettano le attuali normative della U.E. e sono

contraddistinti dal marchio CE

REV 08_2009.02

2

Serial N° _________________________________

1. Preface

This instruction manual provides all the necessary information regarding:

 use of the refrigerator
 technical specifications
 installation and handling
 operator procedures and instructions

 maintenance operation

The manual is to be considered an integral part of the refrigerator and should be stored
in a safe place for father consult to permit a good working life of the refrigerator.

**ATTENTION**

The manufacturer cannot be held liable in the following cases:

 improper installation (not in accordance with the guidelines indicated herein)
 misuse of the refrigerator
 power supply defects
 improper or inadequate maintenance
 unauthorised modification or tampering
 use of non-original spare parts
 partial or total failure to comply with the instructions

!! All electrical equipment can be hazardous to health. Current standards and legal
requirements must be complied with during the installation and use of any
equipment.

2. Use of the equipment

The refrigerator are for preserving fresh perishable foodstuffs, with an in-built
refrigerated unit.
The operating temperature for refrigeration is:

 between -2°C and +8°C at room temperature of +43°C an 60%RD.

The operating temperature for frozen food maintenance is:

 between –15°C and –22°C at room temperature of +43°C an 60% RD.

3. Technical features

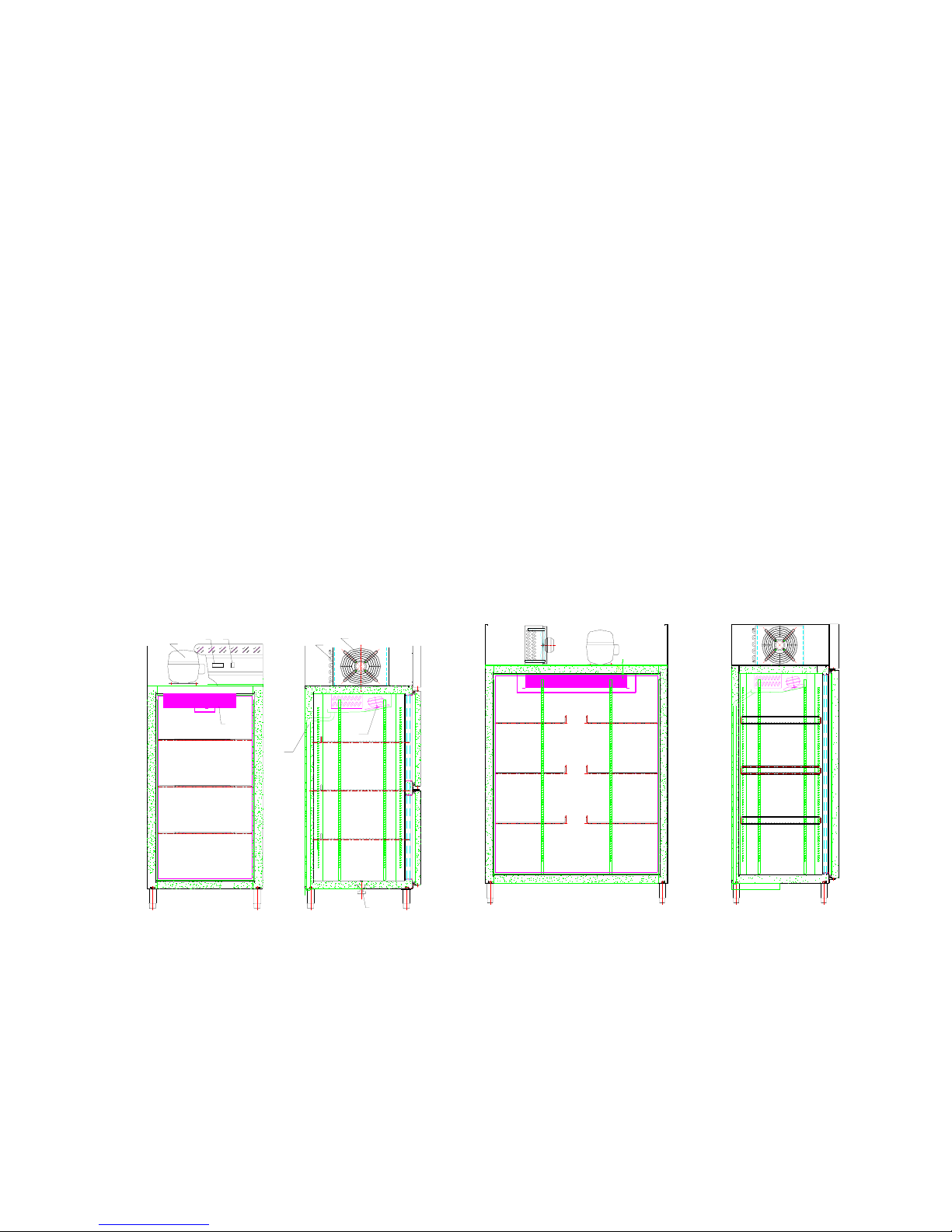

The refrigerator is a ventilated system, the evaporator is in a separate insulated box on
the top. All the materials used in the manufacture of this unit are guaranteed to be
suitable for use with foodstuffs. The gases used in refrigerator is R134a; in the
refrigerator for frozen food maintenance is R404a.
The refrigerating circuit are in compliance with the current normative.

REV 08_2009.02

3

4. Operation

The gas in the refrigerating circuit is in the first time compressed, liquefied and then
evaporated in the ventilated evaporator, situated on the top of the container.
This cycle involves the absorption of heath from the air in the refrigerator compartment
and the reason is cooled. The heat produced is then dissipated to the outside
environment by a condenser unit located on the top of the refrigerator.

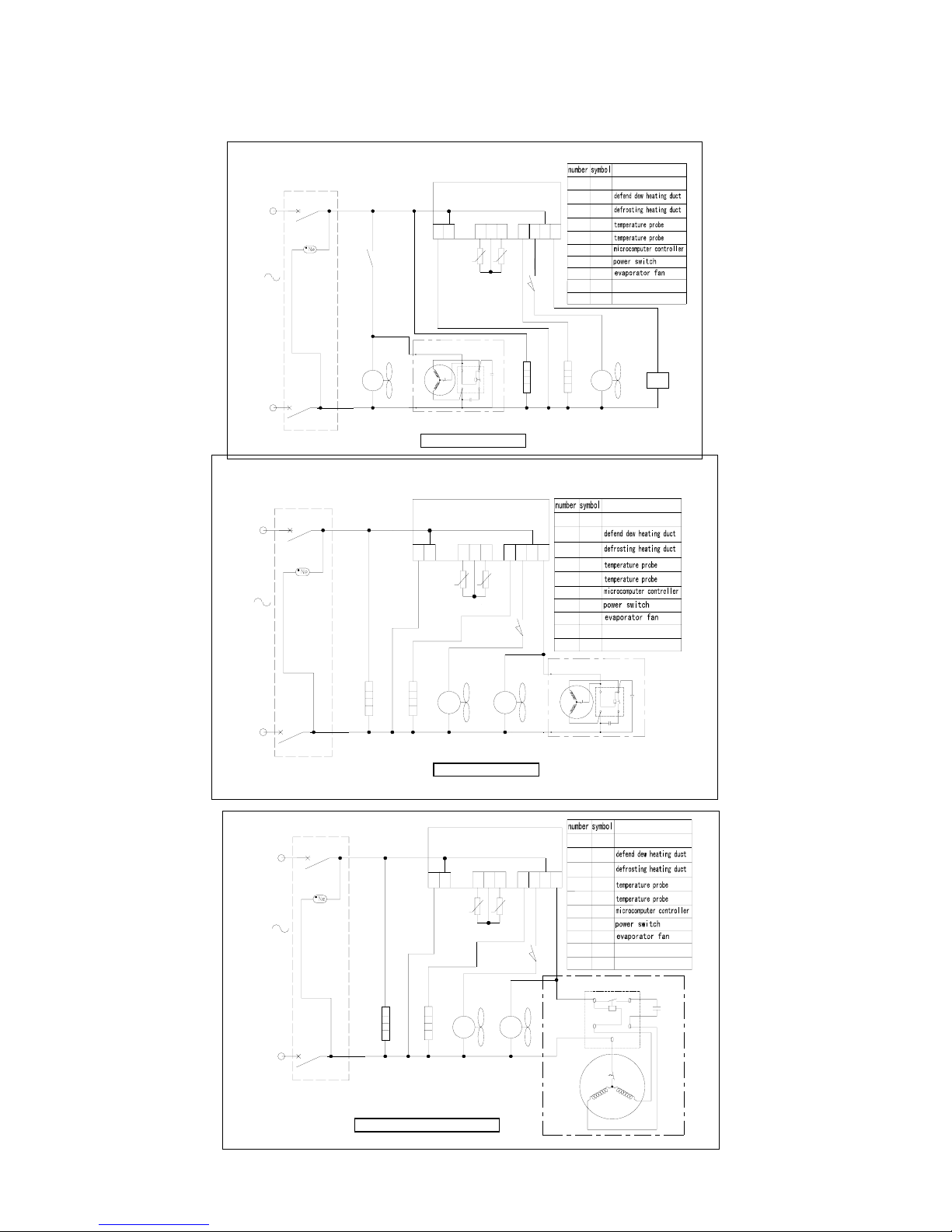

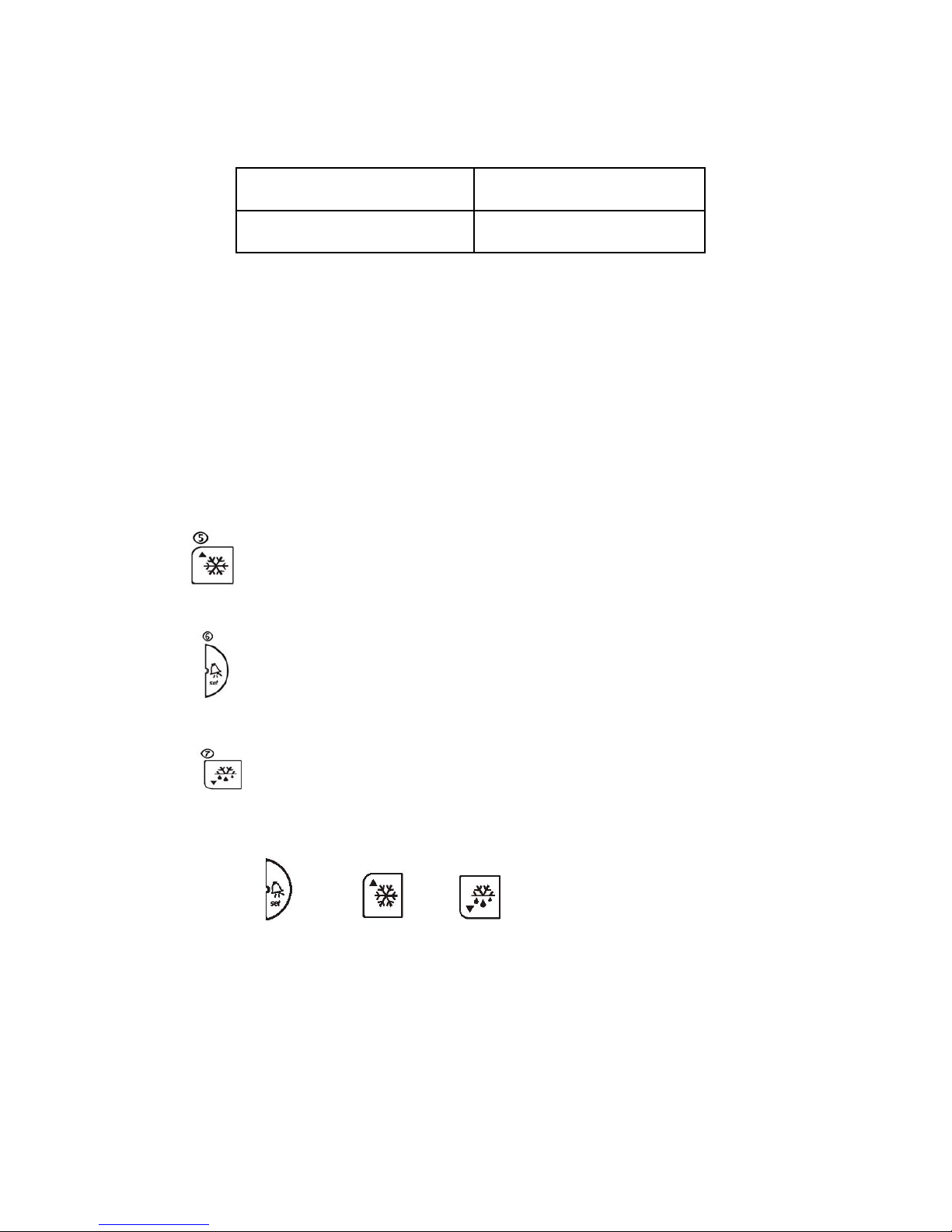

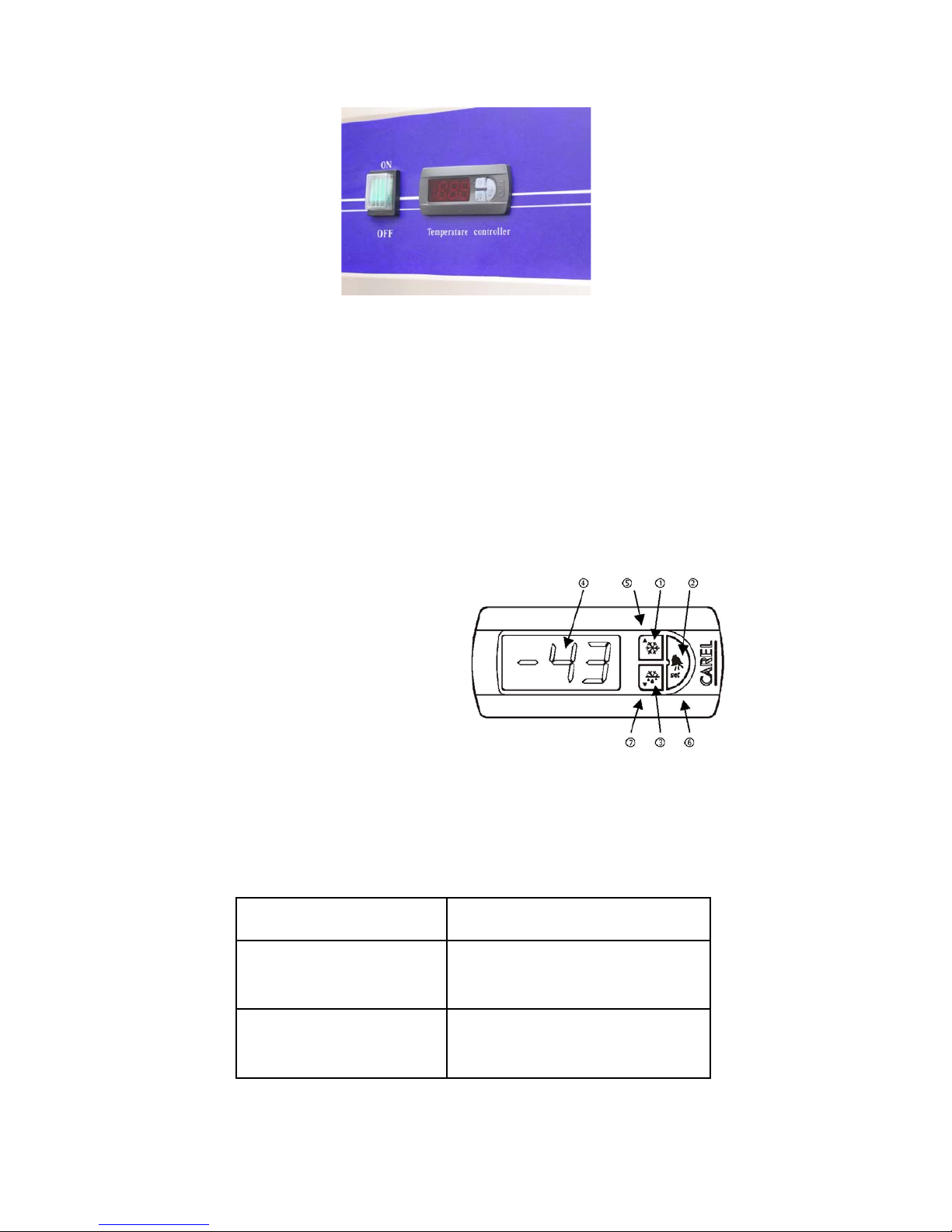

5. Control unit

The refrigerator is command from a “digital control unit” and a “main switch pilot light” in
the top panel of the refrigerator.

The “main switch pilot light” is for turning on the power supply.
The green pilot light comes on to indicate that the unit is connected to the main
electricity and to start work.
The green pilot light comes off to indicate that the unit is disconnected and don’t work.
The “digital control unit” is for the regulation of all parameters to provide the correct
working of the refrigerator. Please consult all parameters in the attachment manual of
the “digital control unit”.
This manual is part of the instruction manual and is very important in case of service.

6. Handling

The refrigerator arrive in PET film and packed in cardboard box on a wood pallet.

!! The refrigerator must be transported and handled with care to avoid posing a
hazard to persons or property. Never place a refrigerator with an in-built
refrigerated unit on its side or turn it upside down as this may damage or impair
operation of the refrigerated unit. We can not held liable for any damage or
defects arising directly or indirectly from improper handling of the equipment or
non-compliance with the safeguards illustrated above.

7. Installation procedure

a) Place the refrigerator in the coolest and best ventilated part of the room. Don’t

install the refrigerator in the near of heat and direct sunlight sources.
b) Remove the straps securing the cardboard packing
c) Remove the cardboard. Covering
d) Remove the PET protection film
e) Clean the refrigerator with mild detergent and then dry it with a soft cloth.

8. Connecting to the main power supply !!
This operation must be carried out by professionally and qualified persons.

The refrigerator are supplied complete with a power supply cable for the connection to
the main power supply. A thermomagnetic circuit breaker (not supplied) must be
installed between the mains power point and the power supply cable of the refrigerator.

REV 08_2009.02

4

Before proceeding make sure that:

 the mains voltage corresponds to the voltage on the refrigerator 240V/50Hz/1Ph;

to ensure proper operation it is essential for the power supply voltage to come
within a range of +/- 6% of the unit’s rated voltage

 the electric system to which the refrigerator is sized to cater for the rated electric

output of the buffet unit being installed

 the electronic system to which the refrigerator is connected is made in

compliance with current standard requirements

 the electric connections and the installation of the thermomagnetic circuit breaker

have been done by qualified person.

Connecting steps: 1. Install a thermomagnetic circuit breaker suited to the rated output
of the unit being installed 2. Connect the refrigerator unit to the thermomagnetic circuit
breaker outlet 3. Check that the refrigerator is in order as demonstrated by the pilot light
incorporated in the main switch coming on

9. Maintenance instructions

The smooth operation and life of the equipment are mainly determined by correct and
regular maintenance

!! Disconnect the refrigerator power supply cable from the mains prior to carrying

out any type of cleaning operation.

10. Cleaning

Regular cleaning of the refrigerator unit is strongly recommended each month. Please
follow the instructions below.
!! Disconnect the refrigerator power supply cable from the mains prior to carrying

out any type of cleaning operation.

11. Cleaning the refrigerator surface

Clean the refrigerator with mild detergent and then dry it with a soft cloth.

Do not use abrasive detergents!

12. Cleaning the inside of the refrigerator

Clean the inside area min. each month with a detergent suitable for use with foodstuffs.

13. Cleaning the condenser

For an efficient operation of the refrigerator it is advisable to clean the condenser
regularly approx. every 4 months with a dry brush or vacuum cleaner.

REV 08_2009.02

5

14. Troubleshooting

1. Refrigerator stops working (light off)
A) Power supply failure

Remedies:

A) Check that the plug is inserted properly in the socket
B) Check that the switch on/off
C) Check that the mains voltage powers the plug

2. Refrigerator temperature go up
A) Unit to near to a heat source
B) Condenser dirty or close

Remedies:

A) Move the counter or the heat source further away
B) Clean the condenser

15. Technical service

For technical service please contact the dealer technical department and give him the
serial n°, and the date of buy.

REV 08_2009.02

6
