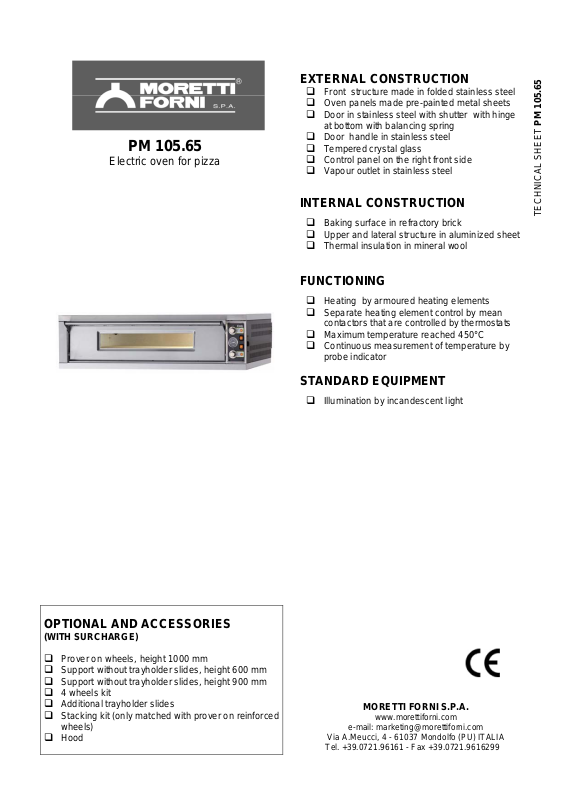

PM 105.65
Electric oven for pizza
OPTIONAL AND ACCESSORIES
(WITH SURCHARGE)
Prover on wheels, height 1000 mm
Support without trayholder slides, height 600 mm
Support without trayholder slides, height 900 mm
4 wheels kit
Additional trayholder slides
Stacking kit (only matched with prover on reinforced
wheels)
Hood
EXTERNAL CONSTRUCTION
Front structure made in folded stainless steel
Oven panels made pre-painted metal sheets
Door in stainless steel with shutter with hinge
at bottom with balancing spring
Door handle in stainless steel
Tempered crystal glass
Control panel on the right front side
Vapour outlet in stainless steel
INTERNAL CONSTRUCTION
Baking surface in refractory brick
Upper and lateral structure in aluminized sheet
Thermal insulation in mineral wool
FUNCTIONING
Heating by armoured heating elements
Separate heating element control by mean
contactors that are controlled by thermostats
Maximum temperature reached 450°C
Continuous measurement of temperature by
probe indicator
STANDARD EQUIPMENT
Illumination by incandescent light
MORETTI FORNI S.P.A.
www.morettiforni.com
e-mail: marketing@morettiforni.com
Via A.Meucci, 4 - 61037 Mondolfo (PU) ITALIA
Tel. +39.0721.96161 - Fax +39.0721.9616299
TECHNICAL SHEET PM 105.65
06/10
PM 105.65
(assembled with support height 900 mm)
UPPER VIEW REAR VIEW RIGHT SIDE VIEW
1320
1056
(O 150 mm)
RACCOLTA VAPORI CAPPA
135890
O
1
8
230 530 130
(83)
HOOD STEAM COLLECTOR
15129015
(660)
660
100
O INT. 157 mm
SCARICO VAPORI
STEAM EXHAUST
64
O 12mm
SCARICO CONDENSA
CONDENSATE EXHAUST
M6
VITE EQUIPOTENZIALE
180
EQUIPOTENTIAL SCREWS
PASSACAVI
FAIRLEADS
145
145
Note: The dimensions in the views are in millimetres.
(200)
(150)
1026
188
1025
660
140
55
903 363
SPECIFICATIONS
The appliance is constituted by one baking deck and eventually by prover or support. The baking surface is in refractory material that allow a perfect distribution of
heat on the whole surface making able the oven especially for the pizza baking directly on the ground or in trays. The temperature adjustment is electromechanic,
the control of the heating elements of the ceiling and the ground are independent. The door has shutter with hinge at bottom with balancing spring and tempered
crystal glass to control the baking point of the product. The support is in painted metal structure, the prover is in stainless steel equipped bay thermostat for
heating. The temperature of the prover reach maximum 65°C and the backing deck reach maximum 450°C.
_____________________________________________________________________________________________________________________________________________________________________
All the data here under are referred to one baking deck composition
DIMENSIONS
External height 463 mm
External depth 1025 mm
External width 1320 mm
Weight 123 kg
Total baking surface 0,7 m
2
TOTAL BAKING CAPACITY
Pizzas diam. 300 mm (12”) 6
Pizzas diam. 450 mm (18”) 2
Trays (600x450) mm 2
SHIPPING INFORMATIONS
Packed oven sizes
Maximum height 550 mm
Maximum depth 1110 mm
Maximum width 1500 mm
Weight 144 kg
POWER SUPPLY AND POWER
A.C. V230 3Ph 60Hz
Maximum power 8,2 kW (22 amps)
1001266
*This value is subject to variation according to the way in which the equipment is used
-NOTE: Moretti Forni Spa reserves the right to modify the characteristics of the products illustrated in this publication without prior notice
