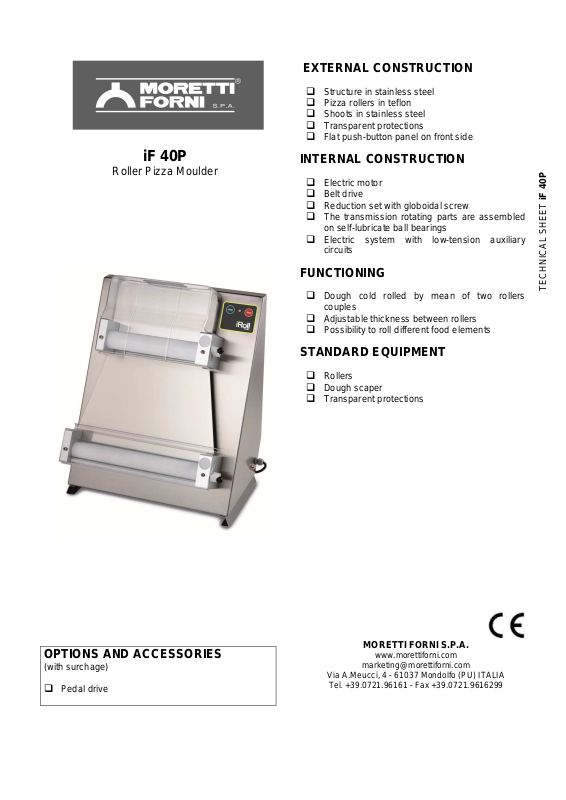

iF 40P
Roller Pizza Moulder
OPTIONS AND ACCESSORIES
(with surchage)
Pedal drive
EXTERNAL CONSTRUCTION
Structure in stainless steel
Pizza rollers in teflon
Shoots in stainless steel
Transparent protections
Flat push-button panel on front side
INTERNAL CONSTRUCTION
Electric motor
Belt drive
Reduction set with globoidal screw
The transmission rotating parts are assembled
on self-lubricate ball bearings
Electric system with low-tension auxiliary
circuits
FUNCTIONING
Dough cold rolled by mean of two rollers
couples
Adjustable thickness between rollers
Possibility to roll different food elements
STANDARD EQUIPMENT
Rollers
Dough scaper
Transparent protections
MORETTI FORNI S.P.A.
www.morettiforni.com
marketing@morettiforni.com
Via A.Meucci, 4 - 61037 Mondolfo (PU) ITALIA
Tel. +39.0721.96161 - Fax +39.0721.9616299
TECHNICAL SHEET iF 40P
mm
mm
mm
mm
mm
m
kg
min 100gr/max 700gr
mm
mm
mm
(45+5)kg
2/13
iF 40P
TOP VIEW RIGHT SIDE VIEW FRONT VIEW
SPECIFICATIONS
Roller pizza moulder realized to resolve problems for formation round dough for pizza, focaccia, pies, bread etc.. The pizza moulder allows to economize times and
above all don’t need specialized staff. The cold working don’t change dough peculiarità, the thickness and width of dough are adjustable. Thickness dough
adjustable by mean of two rollers couples until max 5mm. The lower rollers are equipped with dough scraper, easy disassembly for cleaning. Structure in stainless
steel, pizza rollers in teflon, transparent protections. The machine has an electric motor provided of belt drive and two reduction set with globoidal screw.
_______________________________________________________________________________________________________________________________________________________________________
Nota: The dimensions indicated in the views are in millimetres
TECHNICAL FEATURES
DIMENSIONS
Ext height 750
Ext depth 450
Ext width 520
Upper rollers width
Lower rollers width
300
420
Rollers diameter 56/48m
SHIPMENT INFORMATIONS
Packed machinery:
Max height 475
Max depth 830
Max width 620
Weight
FEEDING AND POWER
Standard feeding
A.C. V230 1N 50Hz
Power 0,375kW
On request frequency 60Hz
Weight 45
MACCHINA CAPACITY
Dough weight
Dimen. pizza
from 14 to 40cm
- NOTE: MORETTI FORNI S.P.A. reserves the right to modify the characteristics of the products illustrated in this publication without prior notice
