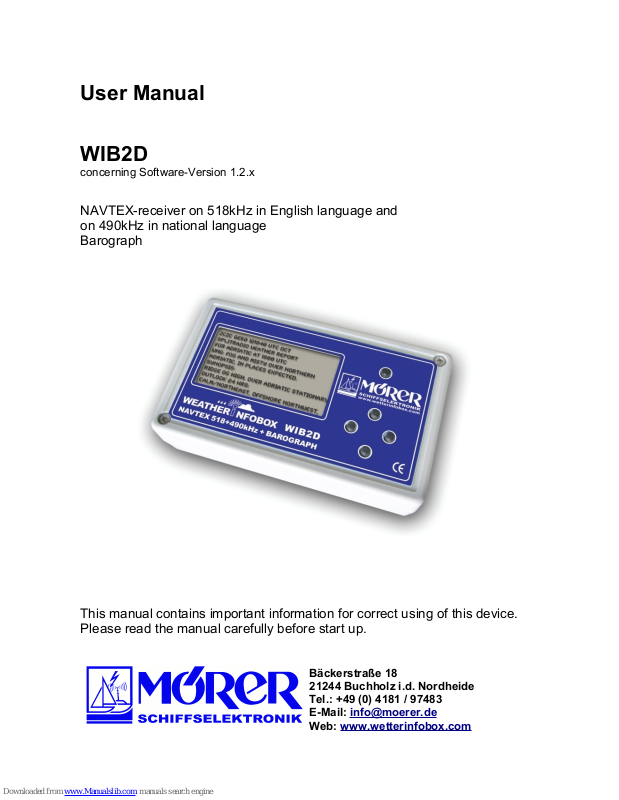

Morer WIB2D User Manual
User Manual
WIB2D
concerning Software-Version 1.2.x
NAVTEX-receiver on 518kHz in English language and
on 490kHz in national language
Barograph
This manual contains important information for correct using of this device.
Please read the manual carefully before start up.
Bäckerstraße 18
21244 Buchholz i.d. Nordheide
Tel.: +49 (0) 4181 / 97483
E-Mail: info@moerer.de
Web: www.wetterinfobox.com
All rights are reserved.
Technical ones are subject to change.
An liability for the correctness of the contents of this publication cannot be taken over.
In spite of careful processing and programming a defect and/or complete failure of the
WIB2D can not be completely excluded. Due to atmospheric disturbances or to
disturbances of other electrical and electronic devices, contents of messages can be
falsified. The operators of the transmitting plants can change or stop the broadcasting
service (temporarily or permanent).
Therefore no liability for availability and correctness of the indicated messages are taken
over. In particular no liability for possible damages resulting from use of the WIB2D and
information of this manual will be taken over.
In this manual trademark, trade names, customer names, etc. are used. Even if these are
not particularly characterized, the appropriate protection regulations are effective.
Note
Software updates for this product are available in the Internet:
http://www.weatherinfobox.com/english/Downloads.htm
2
Contents
Scope of delivery....................................................................................................................3
Introduction.............................................................................................................................4
Operation................................................................................................................................4
Menu Overview..................................................................................................................5
NAVTEX Messages...........................................................................................................6
Barograph..........................................................................................................................7
Station List.........................................................................................................................7
Display Settings.................................................................................................................8
Barograph Settings............................................................................................................9
System Information..........................................................................................................10
Software...............................................................................................................................10
Software installation.........................................................................................................10
Operating instructions..........................................................................................................10
Environment.....................................................................................................................10
Hints to radio reception....................................................................................................11
Rechargeable batteries....................................................................................................11
Specifications.......................................................................................................................12
Warranty...............................................................................................................................12
Appendix NAVTEX Stations.................................................................................................13
Scope of delivery
The following parts belong to the scope of delivery of the WIB2D:
• 1 x WIB2D,
• 1 x USB cable,
• 1 x 12V recharge adapter,
• 1 x CD with WIB2 software,
• 3 x NiMH rechargeable batteries AAA, 800mAh (are placed inside the device),
• 1 x User Manual.
3
Introduction
The WIB2D is a small portable NAVTEX receiver. The device receives simultaneously
NAVTEX-messages on medium wave frequencies 518 kHz (international, English) and on
490 kHz (national, national language).
The NAVTEX messages are displayed on 128 x 64 pixel LCD. The WIB2D equiped with
an inserted precision air pressure sensor, is able to record the air pressure during a period
of up to seven days. On the device display only the air pressure of the last two days can
be seen.
An antenna installation is not necessary, since the WIB2D is equipped with an internal
ferrit rod antenna. The device is equipped with rechargeable batteries (3 x NiMH, Typ
AAA). The battery capacity lasts for approx. three days of operation.
The device can be connected to the PC via an USB interface. The data of the WIB2D will
be displayed by a comfortable Windows software. The software is working with the
operating systems Windows 2000, XP and Vista, available in German, English and French
version.
Operation
The WIB2D is handled by five buttons. Press the power button ( ) to
switch the device on or off. In order to switch off, the power button must
be pressed during approx. 2.5 seconds.
Use the four cursor buttons (▲▼◄►) to navigate within the menus.

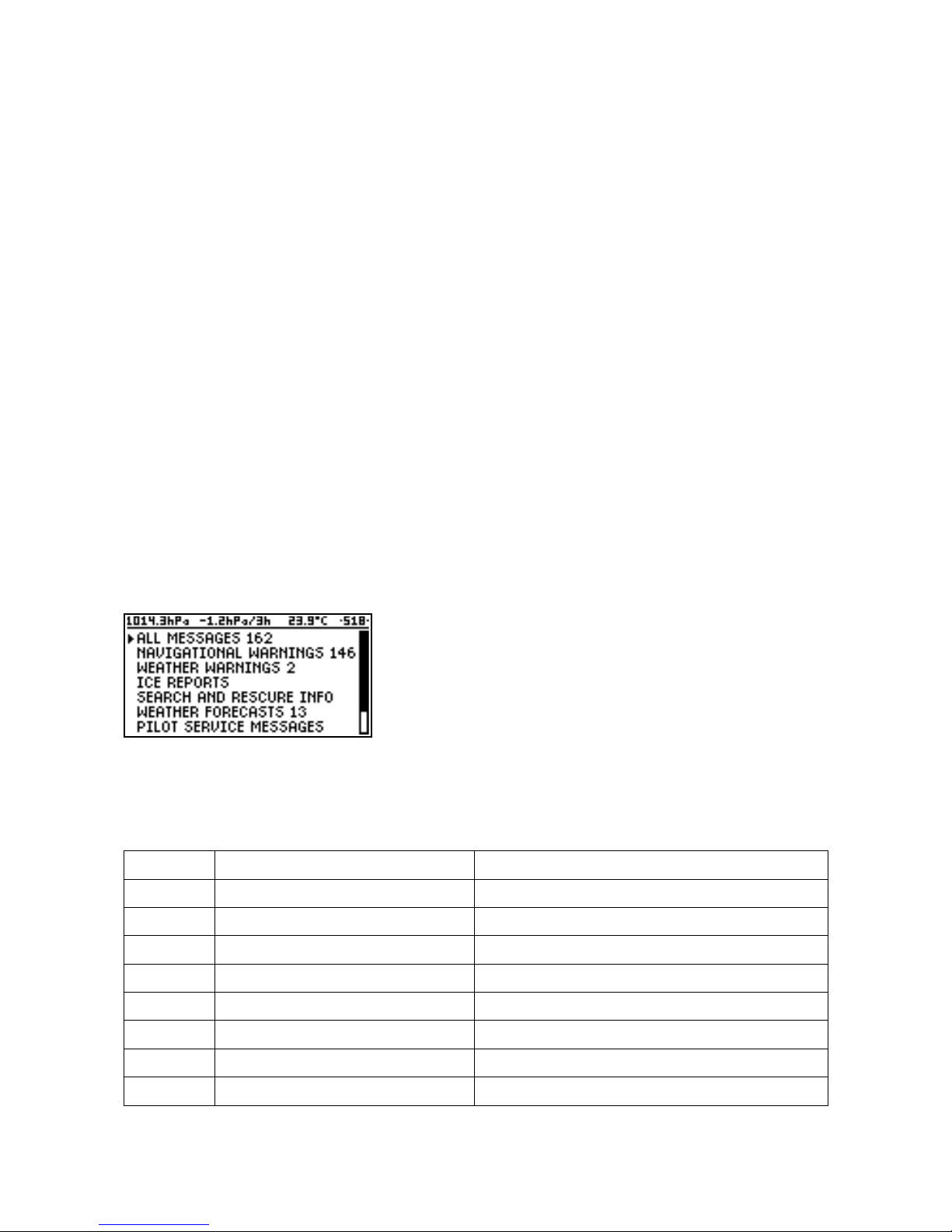

After switch on the WIB2D displays the main menu (see figure below).
On the left beside the menu entries an arrow is located which can be
moved by the buttons ▲ and ▼.
With the button ► the menu entry beside the arrow is
selected. With the button ◄ the previous menu step can
be reached until the main base.
Practice a while with the handling of the cursor buttons,
until you are familar.
On top of the display the actual air pressure, the air pressure tendency and the
temperature are displayed. The displayed values are updated every minute.
The battery icon (on top of the right) displays the state of charge of the batteries. If the
batteries are charged, the icon blinks in second cycle. Please note: The device heats up
with charging batteries. The displayed temperature is thereby corrupted.
The menu language of the WIB2D can be changed (see section Language, Page 8).
4
Menu Overview
The menu of the WIB2D is constructed as follows:
NAVTEX 518KHZ (ENGLISH)
ALL MESSAGES
NAVIGATIONAL WARNINGS
WEATHER WARNINGS
ICE REPORTS
SEARCH AND RESCURE INFO
WEATHER FORECASTS
PILOT SERVICE MESSAGES
ELEC. NAVAID MESSAGES
REMAINING MESSAGES
NAVTEX 490KHZ (NATIONAL)
ALL MESSAGES
NAVIGATIONAL WARNINGS
WEATHER WARNINGS
ICE REPORTS
SEARCH AND RESCURE INFO
WEATHER FORECASTS
PILOT SERVICE MESSAGES
ELEC. NAVAID MESSAGES
REMAINING MESSAGES
BAROGRAPH
SETTINGS
STATION LIST 518KHZ
STATION LIST 490KHZ
DISPLAY SETTINGS
CONTRAST
BACKLIGHT
SCREENSAVER
LANGUAGE
BAROGRAPH SETTINGS
BAROGRAPH POWER RESERVE
BAROMETER ALTITUDE
CALIBRATION
SYSTEM INFORMATION
In the following sections the functions of the menus are explained.
