Morel Harmony 10 Subwoofer Assembly Guide

10” HARMONY

PARFURATED IN-WALL SUBWOOFER
SELF-ASSEMBLY GUIDE.

PASSIVE

CROSSOVER

MSX 5.6

CUT OUT

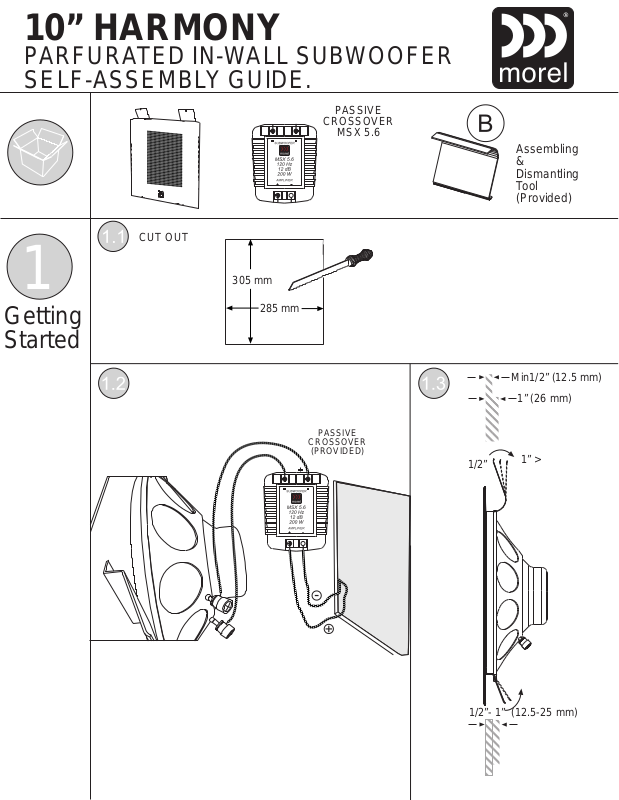

Assembling
&
Dismantling
Tool
(Provided)

1

Getting
Started

305 mm

285 mm

PASSIVE

CROSSOVER

(PROVIDED)

1/2”

Min1/2” (12.5 mm)

1” (26 mm)

1” >

1/2”- 1”

(12.5-25 mm)

10” HARMONY

PARFURATED IN-WALL SUBWOOFER
SELF-ASSEMBLY GUIDE.

2

Insert
into the
wall

Use the assembly

tool to pull down the sub

& grip it to the wall.

3

The
Final
Look

Assembling / Dismantling

SPECIFICATION

Woofer: 10” (250mm) rear vented w/ C.A.R loading filter.
Hybrid double magnet motor(neodymium and ferrite).
3”Aluminum Hexatech™
voice coil using Morel’s EVC™ technology.
Cone Type: Damped Polymer Cone (DPC)
integrated cone center and surround assembly.

Construction: Mild Steel
Sensitivity: 89 dB 1m/1W
Impedence: 8 ohm
Crossover: 120 Hz 12dB (using the MSX 5.6 crossover)
Fs: 32Hz
Re: 6.5Ohm
Frequency Response: 22-2500Hz
Power handling (RMS): 180W
Dimensions: 350mm X 330mm X 95mm
Weight: 4Kg/8.4Lbs
Finish: Zinc treated and epoxy spray enameled.
Colors: White
