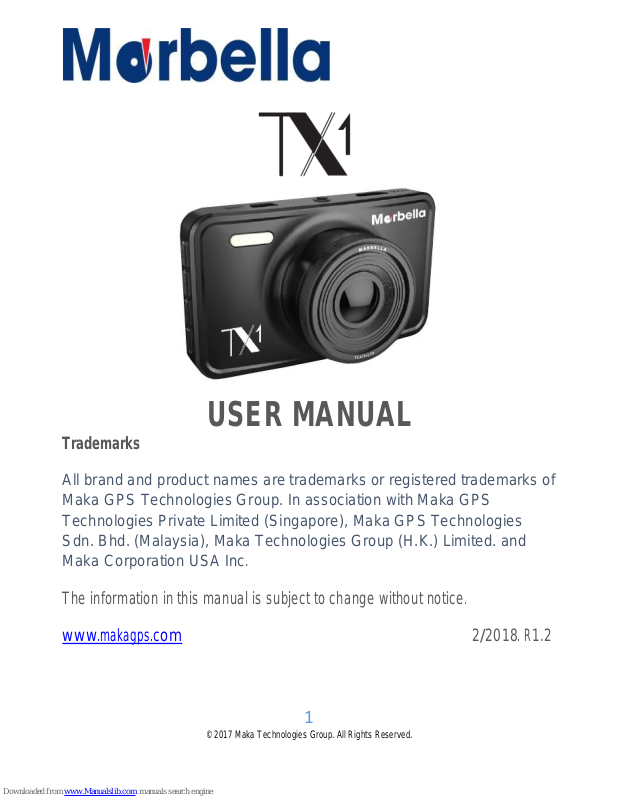

Morbella TX1 User Manual

Download

Page 1

hnologies Group

. A

ll Rights Reserved.

USER MANUAL

Trademarks

All brand and product names are trademarks or registered trademarks of Maka GPS Technologies Group. In association with Maka GPS Technologies Private Limited (Singapore), Maka GPS Technologies Sdn. Bhd. (Malaysia), Maka Technologies Group (H.K.) Limited. and Maka Corporation USA Inc

The information in this manual is subject to change without notice

www.makagps.com

2/2018

. R

1.2

Page 2

hnologies Group

. A

ll Rights Reserved.

afety info

rmat

ion

To prevent injury to yourself and others or damage to your device, read the safety information about your device before using the device.

ning

Failure to comply with safety warnings and regulations can cause serious injury or death.

Do not use damaged power cords or plugs, or loose electrical sockets

Unsecured connections can cause electric shock or fire.

Do not touch the car charger with wet hands or disconnect the charger by pulling the cord

Doing so may result in electrocution.

Do not bend or damage the car charger

Doing so may cause electric shock or fire.

Do not use your device while it is charging or touch your device with wet hands

Doing so may cause electric shock.

Do not short-circuit the charger or the device

Doing so may cause electric shock or fire, or the battery may malfunction or explode.

Page 3

hnologies Group

. A

ll Rights Reserved.

Use manufacturer-approved batteries, chargers, accessories, and supplies

•



Using generic batteries or chargers may shorten the life of your device or cause the device to malfunction. They may also cause a fire or cause the

battery to explode.

•



Use only Maka GPS Technologies Group-approved battery and charger specifically designed for your device. Incompatible battery and charger can cause serious injuries or damage to your device.

•



Maka GPS Technologies Group cannot be responsible for the user’s safety when using accessories or supplies that are not approved by Maka GPS Technologies Group.

Do not drop or cause an impact to the charger or the device. Handle and dispose of the device and charger with care

•



Never dispose of the battery or device in a fire. Never place the battery or device on or in heating devices, such as microwave ovens, stoves, or

radiators. The device may explode when overheated. Follow all local regulations when disposing of used battery or device.

•



Never crush or puncture the device.

•



Avoid exposing the device to high external pressure, which can lead to an internal short circuit and overheating.

Protect the device, battery and charger from damage

•



Avoid exposing your device and battery to very cold or very hot temperatures.

Page 4

hnologies Group

. A

ll Rights Reserved.

•



Extreme temperatures can damage the device and reduce the charging capacity and life of your device and battery.

•



Prevent the battery from coming into contact with metal objects, as this can create a connection between the + and

–

terminals of your battery and lead

to temporary or permanent battery damage.

•



Never use a damaged charger or battery.

Do not bite or suck the device or the battery

•



Doing so may damage the device or result in an explosion or fire.

•

Children

or animals can choke on small parts.

•



If children use the device, make sure that they use the device properly.

Do not handle a damaged or leaking Lithium Ion (Li-Ion) battery

For safe disposal of your Li-Ion battery, contact your nearest authorised service centre

Page 5

hnologies Group

. A

ll Rights Reserved.

Caut

ion

Failure to comply with safety cautions and regulations can cause injury or property damage

Do not use your device near other electronic devices

Most electronic devices use radio frequency signals. Your device may interfere with other electronic devices.

Do not expose the device to heavy smoke or fumes

Doing so may damage the outside of the device or cause it to malfunction.

Do not use your device near devices or apparatuses that emit radio frequencies, such as sound systems or radio towers

Radio frequencies may cause your device to malfunction.

If you notice strange smells or sounds coming from your device or the battery, or if you see smoke or liquids leaking from th e device or battery, stop using the device immediately and take it to a Maka Service Centre

Failure to do so may result in fire or explosion.

For your own safety, do not operate the controls of the product while driving.

Two window mounts are needed when using the recorder in a car. Make sure that you place the recorder in an appropriate place, so as not to obstruct the driver’s view.

Make sure that no object is blocking the camera lens and no reflective material appears near the lens.

Please keep the lens clean. If the

car’s

windscreen is tinted with a dark solar

film coating, it may affect the recording quality.

Page 6

hnologies Group

. A

ll Rights Reserved.

Do not store your device in very hot or very cold areas. It is recommended to use your device at temperatures from 0 °C

to 60 °C

and

humidity from 10% to 80%

Doing so may cause the screen to malfunction, result in damage to the device, or cause the battery to explode.

Do not use your device or applications for a while if the device is overheated

Prolonged exposure of your skin to an overheated device may cause low temperature burn symptoms, such as red spots and pigmentation.

Install mobile devices and equipment with caution

•



Ensure that any mobile devices or related equipment installed in your vehicle are securely mounted.

•



Avoid placing your device and accessories near or in an airbag deployment area. Improperly installed wired equipment can cause serious injury when airbags inflate rapidly.

Do not drop your device or cause impacts to your device

•



Your device may be damaged or may malfunction.

•



If bent or deformed, your device may be damaged or parts may malfunction.

Ensure maximum battery and charger life

•



Avoid charging your device for more than a week, as overcharging may shorten battery life.

•



Over time, unused device will discharge and must be recharged before use.

•



Disconnect the charger from power sources when not in use.

Page 7

hnologies Group

. A

ll Rights Reserved.

•



Leaving batteries unused over time may reduce their lifespan and performance. It may also cause the batteries to malfunction or explode, or cause a fire.

•



Your device may wear out over time. Some parts and repairs are covered by the warranty within the validity period, but damages or deterioration caused by using unapproved accessories are not.

Do not disassemble, modify, or repair your device

•



Any changes or modifications to your device can void your manufacturer’s warranty. If your device needs servicing, take your device to a Maka

Service Centre.

•



Do not disassemble or puncture the battery, as this can cause explosion or fire.

•



Turn off the device before removing the battery. If you remove the battery with the device turned on, it may cause the device to malfunction.

When cleaning your device, mind the following

•



Wipe your device or charger with a towel or an eraser.

•



Do not use chemicals or detergents. Doing so may discolour or corrode the outside the device or may result in electric shock or fire.

Do not distribute copyright-protected material

Do not distribute copyright-protected material without the permission of the content owners. Doing this may violate copyright laws. The manufacturer is not liable for any legal issues caused by the

user’s

illegal use of copyrighted

material.

Page 8

hnologies Group

. A

ll Rights Reserved.

Correct dispo

sal of t

his pr

odu

(Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product

and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed off with other household waste.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Page 9

hnologies Group

. A

ll Rights Reserved.

Disclaimer

Some content and services accessible through this device belong to third parties and are protected by copyright, patent, trademark and/or other intellectual property laws. Such content and services are provided solely for your personal non-commercial use.

You may not use any content or services in a manner that has not been authorised by the content owner or service provider. Without limiting the foregoing, unless expressly authorised by the applicable content owner or service provider, you may not modify, copy, republish, upload, post, transmit, translate, sell, create derivative works, exploit, or distribute in any manner or medium any content or services displayed through this device

“

THI

RD PARTY CONTENT AND SERVICES ARE PROVIDED “AS IS.” MAKA GPS

CHNOL

OGIES GROUP D

OES NOT

RRANT CONTENT OR SERVICES

PROVIDED, EITHER

EXPRESSLY OR IMPLIEDLY,

FOR ANY PUR

POSE. M

AKA

EXPRESSLY DISCLAIMS ANY IMPLIED WA

RRAN

TIES, I

NCLUDING BUT NOT

LIM

ITED

TO, WA

RRAN

TIES OF MERCHAN

TABILITY OR

FITNESS FOR A

PARTI

CULAR P

POSE. M

AKA GPS TE

CHNOL

OGIES GROUP D

OES NOT

GUARANTEE THE A

CCURACY,

VALIDITY, TIMELINESS, L

EGALITY, OR

COMPL

ETENESS OF ANY CONTENT OR SERVICE MADE

AVAILABLE THROUGH

THIS D

EVICE A

ND UNDER NO CI

RCUM

STA

ES, I

NCLUDING NEGLIGE

NCE,

SHALL MAKA GPS TE

CHNOL

OGIES GROUP BE L

IABLE, WHETHER IN CONTRACT

TORT, FOR ANY DIRECT, I

NDIRECT, INCIDEN

TAL, SPECIAL OR

CON

SEQUENTIAL DAMAGES, ATTO

RNEY

FEES, EXPENSES, OR ANY OTHER

DAM

AGES ARISING OUT OF, OR IN CONNEC

TION

WITH, ANY INFO

ATION

CON

TAINED IN, OR AS A RESULT

OF THE USE

OF ANY CONTENT OR SERVICE

BY YOU OR ANY THI

RD PARTY, EVEN IF AD

VISED OF THE

POSSIBILITY OF

UCH DAM

AGES.

”

Third party services may be terminated or interrupted at any time, and Maka GPS Technologies Group makes no representation or warranty that any

Page 10

hnologies Group

. A

ll Rights Reserved.

content or service will remain available for any period of time. Content and services are transmitted by third parties by means of networks and transmission facilities over which Maka GPS Technologies Group has no control. Without limiting the generality of this disclaimer, Maka GPS Technologies Group expres sly disclaims any responsibility or liability for any interruption or suspension of any content or service made available through this device.

Maka GPS Technologies Group is neither responsible nor liable for customer service related to the content and services. Any question or request for service relating to the content or servi ces should be made directly to the respective content and service providers.

Page 11

hnologies Group

. A

ll Rights Reserved.

bout this

nual

This device provides high quality digital recording device using Maka’s high standards and technological expertise. This user manual is specially designed to detail the

device’s

functions and features.

•



Please read this manual before using the device to ensure safe and

proper use. Descriptions are based on the

device’s

default settings.

•



Images and screenshots may differ in appearance from the actual product.

•



Content may differ from the final product, or from software provided by service providers and is subject to change without prior notice.

•



For the latest version of the manual, refer to the Maka website at www.makagps.com.

•



Available features and additional services may vary by device, softwa re.

•



Applications and their functions may vary by country, region, or hardware specifications.

•



Maka is not liable for performance issues caused by applications from any provider other than Maka.

•



Maka is not liable for performance issues or incompatibilities caused by not installing the device as stated in this manual. Attempting to customise the installation may cause the device or applications to work improperly. This may result in device malfunctions and data corruption or loss. These actions are violations of your Maka agreement and will void your warranty.

•



Default applications that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an application provided with the device, contact Maka Service Centre.

Page 12

hnologies Group

. A

ll Rights Reserved.

Table of C

tents

Product Specifications

14 Getting Started Overview of your TX1 FHD Digital Roadcorder

Device Layout / Button Function

15 Understanding of your TX1 FHD Digital Roadcorder

Buttons

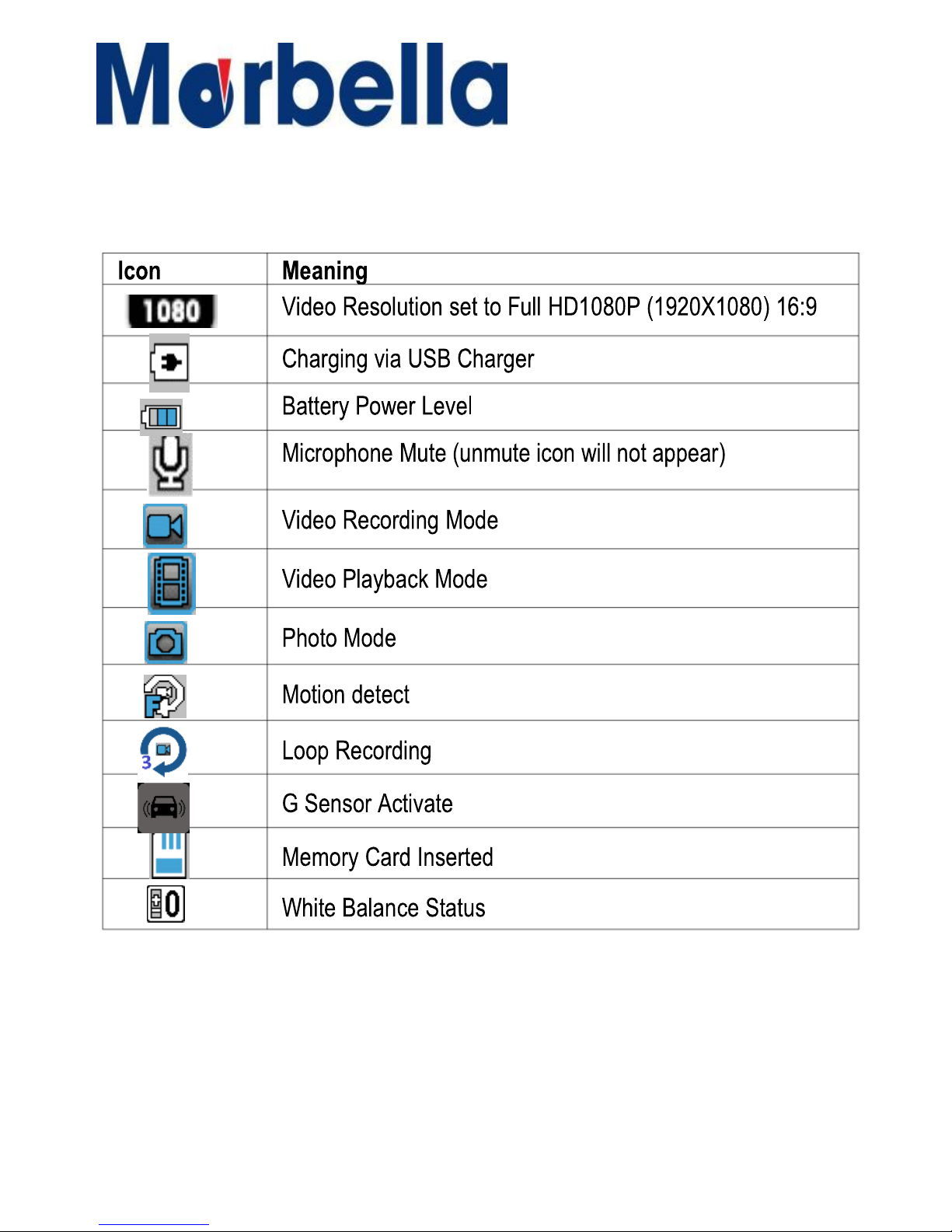

Status Icons

17 Standard Packaging of your TX1

FHD

Digital Roadcorder

Package Contents

18 Installation for your TX1 FHD Digital Roadcorder

Installation 19 Charging the Battery

Inserting Memory Card

Removing / Formatting Memory Card

Operation of your TX1 FHD Digital Roadcorder

)(

Video / System Setting

Turning the device on and off 23 Resolution 24 Loop Recording

24-25

HDR

25-26

Motion Detector 26 Record Audio

Date Stamp

27-28

Gravity Sensor

Date / Time

Car No Stamp

29-30

Page 13

hnologies Group

. A

ll Rights Reserved.

Table of C

tents

Operation of your TX1 FHD Digital Roadcorder

Auto Power Off

Beep Sound

30–31

Language

Frequency

LCD Time Out

32-33

Exposure 33 Anti-Shaking 34 Delay Shutdown 34-35 Format

Default Setting

Version

36 PHOTO SETTING

Capture Mode

Resolution

37-38

Sequence

Quality

38-39

Sharpness

White Balance

39-40

Color

ISO

Date Stamp

Playback Mode (Video/Photo)

Delete / ProtectFiles

43 General Troubleshooting

44 - 45

Page 14

hnologies Group

. A

ll Rights Reserved.

Produ

ct Sp

ecificat

ion

Sensor

3MP Sony323 sensor

Lens

Fixed focus, 4 layer glasses Lens

Aperture

F=2.2, f=2.1 , FOV : 170°

CPU

NTK96658

External Memory

Class 10 or above TF card( SDHC specification up to 64G)

Gravity sensor

Sensitivity low/medium/high/OFF

LCD

3.0 inch 16:9 TFT LCD

Audio

Built-in high sensitivity microphone/speaker

Motion detect

ON/OFF

Shutter

Electronic shutter

White balance

Auto Exposure

Auto ISO

Language

English,

Traditional

Chinese, Simplified Chinese, Russian

Battery (optional)

200mAh 3.7V rechargeable lithium battery

Video format

MOV

Video resolution

1920x1080P30, 1280x720P30

Loop recording

OFF/1 min/3 min/5 min

Microphone mute

ON/OFF

Page 15

hnologies Group

. A

ll Rights Reserved.

Getting Started

Overview of your

TX1

FHD Digital Roadcorder

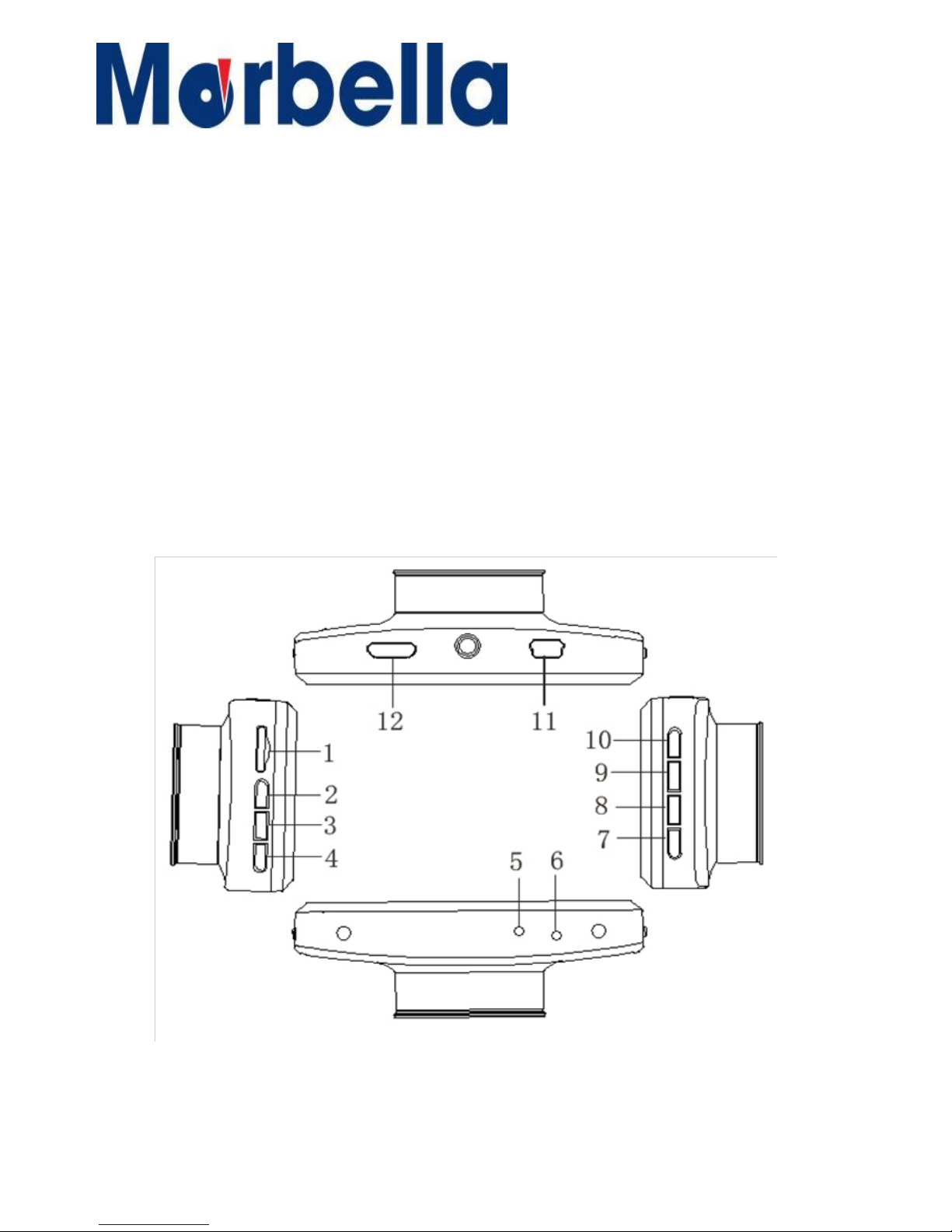

Device L

t / Button Function

1. Micro Sd Card Slot 07. Right Arrow (Scroll)

2. UP Arrow (Scroll) 08. Manual Lock Button

3. Menu Button 09. Mode Change Button

4. Down Arrow (Scroll) 10. Ok Button (Stop/Rec/Enter)

5. Mic 11. DC Power input

6. Reset 12. HDMI Slot

Page 16

hnologies Group

. A

ll Rights Reserved.

Button

Functions

Press and hold to turn the device on or off.

Hot Keys during recording mode:

• Press to manual turn off / on LCD screen when recording.

Press to start or stop recording. The OK button also acts as an OK button to confirm your selection in

setting mode.

Press

enter and exit Setting mode

Press to navigate to the preferred functions required during Setting.

Hot Keys during recording mode:

• Up – Press to mute/ unmute the microphone during recording.

MODE (“M”)

Press “

M”

for to toggle between

Recording/Photo/Playback mode

RESET

Press and hold for more than 3 seconds to reset the device if it has fatal errors or hang-ups, or freezes.

Getting Started

Understanding your TX1 F HD Digital Roadcorder

and Buttons

Butt

UP Down

Page 17

hnologies Group

. A

ll Rights Reserved.

Getting Started

Understanding your TX1 FHD Digital Roadcorder

and Buttons

tatus Icon

Page 18

hnologies Group

. A

ll Rights Reserved.

Getting Started

Standard Packaging of your TX1 FHD Digital Roadcorder

ackage c

tents

Check the product box for the following items:

•

TX1 Front Camera

•

Operating Manual

•

Mounting holder for camera (3M Stick / Suction Type)

•

Car Charger (5V output type)



The items supplied with the device and any available accessories may vary depending on the region. The supplied items are designed only for this device and may not be compatible with other devices.

Appearances and specifications are subject to change without prior notice. Malfunctions caused by using unapproved accessories are not covered by the warranty service. Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Maka GPS Technologies Group website.

Page 19

hnologies Group

. A

ll Rights Reserved.

Getting Started

Installation of your TX1 FHD Digital Roadcorder

stallat

ion

1 Fixing the camera to the window mount

It is compulsory for window mount to be fixed up before using the device in a car. Make sure that you place the recorder in an appropriate place, so as not to obstruct the driver’s view.

2 Connecting charger to the Power Port

Connect only the manufacturer-approved charger supplied with your device. Use only Maka GPS Technologies Group-approved charger specifically designed for your device. Incompatible charger can cause serious injuries or damage to your device.

3 Inserting a memory card

You have to insert a memory card before you can start recording. The recorder supports Micro SD cards with up to 64GB capacity. You are advised to use a Class 10 memory card with at least 8GB capacity. DO NOT insert or remove the memory card when

operating the device.

Page 20

hnologies Group

. A

ll Rights Reserved.

Getting Started

Installation of your TX1 FHD Digital Roadcorder

Char

ging the b

attery

Use the charger to charge the battery before using it for the first time. Charge the device by connecting front camera via the USB car charger. Use only Makaapproved charge rs, batteries, and cables. Unapproved chargers or cables can cause the battery to explode or damage the device.

Conne ct the Micro USB car charger to a charging port output that support 12V to 24V.

•



When device detects no power supply, it will automatically switch off in 5 seconds time. To turn on the device again, you will need to press on the

on/ off button to manually switch it on.

•



If the battery is completely discharged, the device cannot be turned on immediately when the charger is connected. Allow a depleted battery to charge for a few minutes before turning on the device.

Conne cting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty.

•



The device can be used while it is charging, but it may take longer to fully charge the battery.

•



While charging, the device may heat up. This is normal and should not affect the

device’s

lifespan or performance.

•



If the device is not charging properly, take the device and the charger to a Maka Service Centre.

Page 21

hnologies Group

. A

ll Rights Reserved.

Getting Started

Installation of your TX1 FHD Digital Roadcorder

sert

ing a memory car

Your device accepts memory cards with maximum capacities of 64 GB. Depending on the memory card manufacturer and type, some memory cards may not be compatible with your device.

Some memory cards may not be fully compatible with the device. Using an incompatible card may damage the device or the memory card, or corrupt the data stored in it.

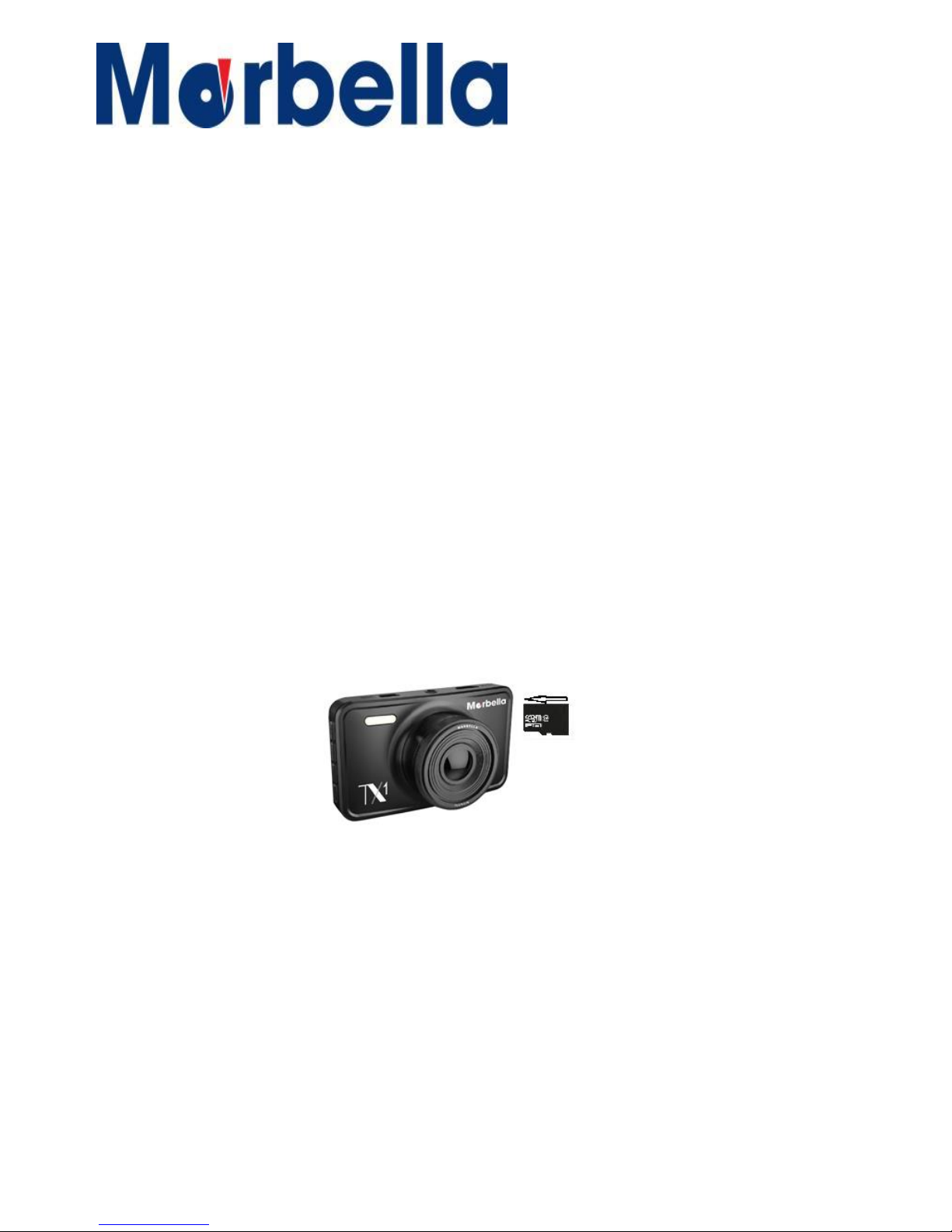

Use caution to insert the memory card right-side up as shown in the image below.

•



Insert a memory card with the gold-coloured contacts facing downwards.

•



Push the memory card into the slot until it locks in place.

It is recommended to reformat a memory card every time images are transferred from it to a computer, or at least once every 2 weeks.

Reformatting a memory card keeps data and the structure of files stored on it clean, helping to prevent error messages and missing images. Reformatting also restores the memory card, which can prevent it from becoming corrupted.

Page 22

hnologies Group

. A

ll Rights Reserved.

Getting Started

Installation of your TX1 FHD Digital Roadcorder

Remov

ing the memory car

Before removing the memory card, first unmounts it for safe removal. On the device

1 Press on the

button to stop the device from recording (Blue light will

stop blinking.

2 Press on the

ON/OFF button for 2 to 3sec to switch off the device

3 Remove the Micro SD memory card from the slot. Do not remove the memory card while the device is transferring or accessing

information. Doing so can cause data to be lost or corrupted or damage to the memory card or device. Maka GPS Technologies Group is not responsible for losses that result from the misuse of damaged memory cards, including the loss of data.

rmatt

ing the memory car

You may choose to format your memory card on a computer or on the device. Before formatting the memory card, remember to make backup copies of all

important data stored on the device. The manufacturer’s warranty does not cover loss of data resulting from user actions.

Page 23

hnologies Group

. A

ll Rights Reserved.

Getting Started

Operation of your TX1 FHD Digital Roadcorder

Turning the d

evice on a

nd o

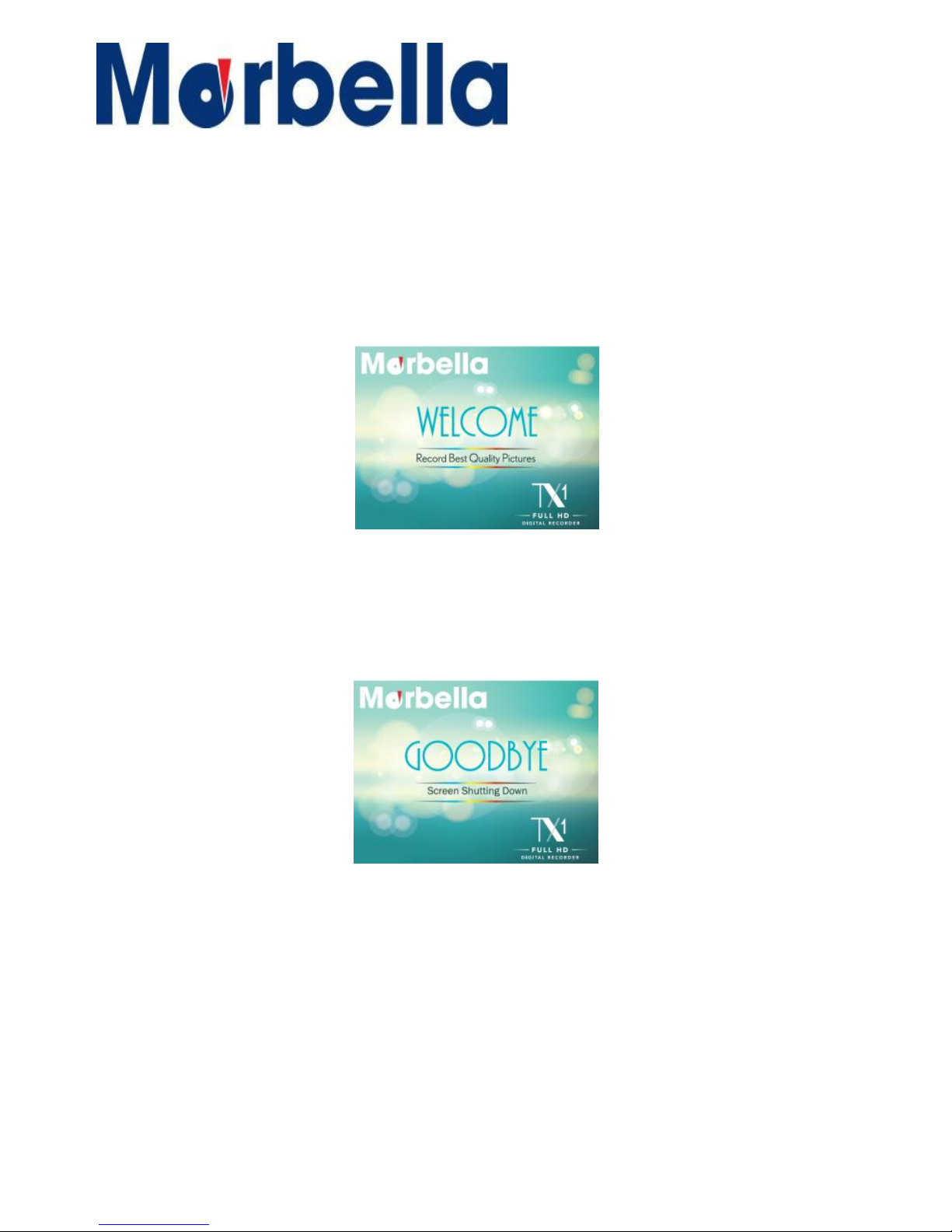

Press and hold the Power button for a few seconds to turn on the device. A welcome message will be displayed on screen as shown in the image below.

To turn off the device, press and hold the Power button for a few sec onds again to turn off the device. A goodbye message will be displayed on screen as shown in the image below.

Note : TX1 FHD Digital Roadcorder

will be switch on and off automatically if

you have permanently connected it to the car charger.

Page 24

hnologies Group

. A

ll Rights Reserved.

Getting Started

Operation of your TX1 FHD Digital Roadcorder

VIDEO/SYSTEM SETTNG

Access the following settings to change the

device’s

video recording quality. The

better the quality, the higher the capacity of the sd card used is higher.

Resolution

1 Press OK to stop recording.

2. Press

once to enter into video setting

3 Press on Up or Down button to navigate to the function that shows

Resolution

4 Press on OK to enter showing 1920x1080 30P or 1280x720 30P etc 5 Press on the Up or Down button to make your selection 6 Press on OK to confirm your entry and exit to setting

7 Press on

button twice to

exit Setting and back recording mode 8 Start recording by pressing OK button 9 Stop recording by pressing OK button again

Loop Recording

The device will continue to record by erasing the previously recorded oldest video. All old videos will be replaced with the new ones.

It is recommended to reformat a memory card every time images are transferred from it to a computer, or at least once every 2 week to keep data and the structure of files stored on it clean, helping to prevent error messages and missing images.

Page 25

hnologies Group

. A

ll Rights Reserved.

Getting Started

Operation of your TX1 FHD Digital Roadcorder

It is important to make backup copies of all important data stored on the device. The manufacturer’s warranty does not cover loss of data resulting from user actions.

1 Press OK to stop recording.

2. Press once to enter into video setting 3 Press on Left or Right button to navigate to the function that shows

Loop Recording

4 Press on OK to enter for next selection : off/ 1min/3min/5min. 5 Press on the Up or Down button to make your selection 6 Press on OK to confirm your entry and exit to setting

7 Press on

button twice to

exit Setting and back recording mode 8 Start recording by pressing OK button 9 Stop recording by pressing OK button again

HDR (High Dynamic Range)

This function enables you to have a better recording quality when it comes to over brightness or lowly dim lighting which it will provide you a balance lighting exposure to have a clearer recording view.

1 Press OK to stop recording.

2. Press once to enter into video setting 3 Press on Up or Down button to navigate to the function that shows

HDR

4 Press on OK to enter for next selection : Off / On.

Page 26

hnologies Group

. A

ll Rights Reserved.

Getting Started

Operation of your TX1 FHD Digital Roadcorder

5 Press on the Up or Down button to make your selection 6 Press on OK to confirm your entry and exit to setting

7 Press on

button twice to

exit Setting and back recording mode 8 Start recording by pressing OK button 9 Stop recording by pressing OK button again

Mot

ion Detector

This function enables you to use your device as a remote surveillance camera with motion detection functionality. It uses the built-in camera to detect movements in the surrounding area using an advanced motion detection algorithm. Camera will auto record If it detects any movement.

1 Press OK to stop recording.

2. Press once to enter into video setting 3 Press on Up or Down button to navigate to the function that shows

Motion Detection

4 Press on OK to enter and show : OFF/ ON 5 Press on the Up or Down button to make your selection 6 Press on OK to confirm your entry and exit to setting

7 Press on

button twice to

exit Setting and back recording mode 8 Start recording by pressing OK button 9 Stop recording by pressing OK button again

Page 27

hnologies Group

. A

ll Rights Reserved.

Getting Started

Operation of your TX1 FHD Digital Roadcorder

Record Audio

You may choose to turn off the microphone so that all the recorded videos will be muted.

1 Press OK to stop recording.

2. Press once to enter into video setting 3 Press on Up or Down button to navigate to the function that shows

Record Audio

4 Press on OK to enter for next selection : Off / On. 5 Press on the Up or

Down button to make your selection

6 Press on OK to confirm your entry and exit to setting 7 Press on

button twice to

exit Setting and back recording mode 8 Start recording by pressing OK button 9 Stop recording by pressing OK button again

Alternatively, you can choose using the hot keys for shortcuts

Hot Keys during recording mode:

•



Press on

button

–

Press to mute / unmute the microphone during

recording. During mute, icon will appear on the screen.

Date Stamp

You have an option to display your time and date in your videos. Date and Time stamp will not be able to remove once you have activated this feature.

1 Press OK to stop recording.

Page 28

hnologies Group

. A

ll Rights Reserved.

Getting Started

Operation of your TX1 FHD Digital Roadcorder

2. Press once to enter into video setting 3 Press on Up or Down button to navigate to the function that shows

Date Stamp

4 Press on OK to enter and see : ON/OFF 5 Press on the Up or Down button to make your selection 6 Press on OK to confirm your entry and exit to setting

7 Press on

button twice to

exit Setting and back recording mode 8 Start recording by pressing OK button 9 Stop recording by pressing OK button again

Gravity Sensor

Thisfunction acts like an accelerometer. It measures the acceleration and gravity forces detected on the camera. At such case during recording, the device will auto do a file lock. We recommend you to set [low]

1 Press OK to stop recording.

2. Press once to enter into video setting 3 Press on Up or Down button to navigate to the function that shows

Gsensor

4 Press on OK to enter and see : Off / Low / Medium / High 5 Press on the Up or Down button to make your selection 6 Press on OK to confirm your entry and exit to setting

7 Press on

button twice to

exit Setting and back recording mode 8 Start recording by pressing OK button 9 Stop recording by pressing OK button again

Page 29

hnologies Group

. A

ll Rights Reserved.

Getting Started

Operation of your TX1 FHD Digital Roadcorder

Date/ Time Setup

Access the following settings to change the

device’s

time and date.

If the battery remains fully discharged or removed from the device, the time and date is reset.

1 Press OK to stop recording.

2. Press once to enter into video setting 3 Press on Up or Down button to navigate to the function that shows

Date / Time

4 Press on OK to enter and see in : YY/MM/DD 5 Press on the Up or Down button to make your selection 6 Press on OK to confirm and next entry made follow by exit setting and

back to recording mode 7 Start recording by pressing OK button 8 Stop recording by pressing OK button again

Car No Stamp

This function enable you to enter car plate number of your own vehicle for video recording information.

1 Press OK to stop recording.

2. Press once to enter into video setting 3 Press on Up or Down button to navigate to the function that shows

Car No Stamp

4 Press on OK to enter and show : Off / On 5 Press on the Up or Down button to make your selection

Page 30

hnologies Group

. A

ll Rights Reserved.

Getting Started

Operation of your TX1 FHD Digital Roadcorder

6 Press on OK (if selection On) to confirm your entry and enter to set the

number plate 7 Press on the Up or Down button to make your selection

and

OK button

to make the next entry

8 Press on

button Once to

exit Setting once last entry made

9 Press on

button Once

again to exit Setting and back recording mode 10 Start recording by pressing OK button 11 Stop recording by pressing OK button again

Auto Power Off

This function enable you to select the auto shut down of the device if the unit is not in the recording mode which help to alert driver.

1 Press OK to stop recording.

2. Press once to enter into video setting 3 Press on Up or Down button to navigate to the function that shows

Auto Power Off

4 Press on OK to enter and show : OFF/ 1min/ 3min / 5min/ 10min 5 Press on the Up or Down button to make your selection 6 Press on OK to confirm your entry and exit to setting

7 Press on

button once to

exit Setting and back recording mode 8 Start recording by pressing OK button 9 Stop recording by pressing OK button again

Page 31

hnologies Group

. A

ll Rights Reserved.

Getting Started

Operation of your TX1 FHD Digital Roadcorder

Beep Sound

This function is to turn on/off of the the button sound. 1 Press OK to stop recording.

2. Press once to enter into video setting 3 Press on Up or Down button to navigate to the function that shows

Beep Sound

4 Press on OK to enter and see : Off / On 5 Press on the Up or Down button to make your selection 6 Press on OK to confirm your entry and exit to setting

7 Press on

button once to

exit Setting and back recording mode 8 Start recording by pressing OK button 9 Stop recording by pressing OK button again

Language

The available language may vary depending on the region. 1 Press OK to stop recording.

2. Press once to enter into video setting 3 Press on Up or Down button to navigate to the function that shows

Language

4 Press on OK to enter and see : English etc. 5 Press on the Up or Down button to make your selection 6 Press on OK to confirm your entry and exit to setting

7 Press on

button once to

exit Setting and back recording mode

Page 32

hnologies Group

. A

ll Rights Reserved.

Getting Started

Operation of your TX1 FHD Digital Roadcorder

8 Start recording by pressing OK button 9 Stop recording by pressing OK button again

Frequency

Please set according to the local power supply respectively; 50Hz or 60Hz. 1 Press OK to stop recording.

2. Press once to enter into video setting 3 Press on Up or Down button to navigate to the function that shows

LIGHT FREQ.

4 Press on OK to enter and show : 50Hz/ 60Hz 5 Press on the Up or Down button to make your selection 6 Press on OK to confirm your entry and exit to setting

7 Press on

button once to

exit Setting and back recording mode 8 Start recording by pressing OK button 9 Stop recording by pressing OK button again

LCD Display (Screen Saver)

Select timer duration for the LCD to turn off after recording starts. 1 Press OK to stop recording.

2. Press once to enter into video setting 3 Press on Up or Down button to navigate to the function that shows

LCD Time Out

4 Press on OK to enter and show : OFF/ 30sec/ 1min/ 3min 5 Press on the Up or Down button to make your selection

Page 33

hnologies Group

. A

ll Rights Reserved.

Getting Started

Operation of your TX1 FHD Digital Roadcorder

6 Press on OK to confirm your entry and exit to setting 7 Press on

button once to

exit Setting and back recording mode 8 Start recording by pressing OK button 9 Stop recording by pressing OK button again

Alternatively, you can choose using the hot keys for shortcuts

Hot Keys during recording mode:

•



Press on

button

–

Press to manual turn off / turn back on when off

mode during recording time.

Exposure

Adjust exposure according to your preference. Default setting is set as +0.0 and recommended not to change unless changes made on your preference liking.

1 Press OK to stop recording.

2. Press once to enter into video setting 3 Press on Up or Down button to navigate to the function that shows

Exposure

4 Press on OK to enter and show

: +0.0/ +1/3 or -1/3 etc

5 Press on the Up or Down button to make your selection 6 Press on OK to confirm your entry and exit to setting

7 Press on

button once to

exit Setting and back recording mode 8 Start recording by pressing OK button 9 Stop recording by pressing OK button again

Page 34

hnologies Group

. A

ll Rights Reserved.

Getting Started

Operation of your TX1 FHD Digital Roadcorder

Anti-Shaking

1 Press OK to stop recording.

2. Press once to enter into video setting 3 Press on Up or Down button to navigate to the function that shows Anti-

Shaking

4 Press on OK to enter and show

: Off/ On

5 Press on the Up or Down button to make your selection 6 Press on OK to confirm your entry and exit to setting

7 Press on

button once to

exit Setting and back recording mode 8 Start recording by pressing OK button 9 Stop recording by pressing OK button again

Note ; This function is only used on photo taking and not applicable to video recording.

Delay Shutdown

This function will allow the device to shut down after the set timer when the engine is off

1 Press OK to stop recording.

2. Press once to enter into video setting 3 Press on Up or Down button to navigate to the function that shows

Delay Shutdown

4 Press on OK to enter and show

: 15sec/30sec/1min/5min

5 Press on the Up or Down button to make your selection

Page 35

hnologies Group

. A

ll Rights Reserved.

Getting Started

Operation of your TX1 FHD Digital Roadcorder

6 Press on OK to confirm your entry and exit to setting 7 Press on

button once to

exit Setting and back recording mode 8 Start recording by pressing OK button 9 Stop recording by pressing OK button again

Format

This function allows device to format the Micro Sd card. Recommended to format the card once every 2 week.

1 Press OK to stop recording.

2. Press once to enter into video setting 3 Press on Up or Down button to navigate to the function that shows

FORMAT

4 Press OK

and enter showing

Cancel or OK.

5 Press on the Up or Down button to make your selection 6 Press on OK to confirm your entry and exit to setting

7 Press on

button once to

exit Setting and back recording mode 8 Start recording by pressing OK button 9 Stop recording by pressing OK button again

Page 36

hnologies Group

. A

ll Rights Reserved.

Getting Started

Operation of your TX1 FHD Digital Roadcorder

Restore Factory Setting (Default Setting)

Set the system parameters to the default value of the device origin install at. By doing so, any setting which needed to change accordingly to user preference will have to set the setting again.

1 Press OK to stop recording.

2. Press once to enter into video setting 3 Press on Up or Down button to navigate to the function that shows

DEFAULT SET

4 Press on OK 5 Press on the Up or Down button to make your selection 6 Press on OK to confirm your entry and exit to setting

7 Press on

button once to

exit Setting and back recording mode 8 Start recording by pressing OK button 9 Stop recording by pressing OK button again

Version

The function allow you to view the version of the firmware and any available version update will be release accordingly if there is. Version : TX1 XXXXXXXX

Page 37

hnologies Group

. A

ll Rights Reserved.

Getting Started

Operation of your TX1 FHD Digital Roadcorder

PHOTO SETTING Capture Mode

This setting allowed you to set pre-time the photo delay being taken when pressing the shot button

1 Press M button once

enter into Photo Mode

2 Press on Menu

once to enter Photo Setting

3 Press on Up or Down button to navigate to the function that shows

Resolution 4 Press on OK to enter showing Single/ 2S/ 5S/ 10S 5 Press on the Up or Down button to make your selection 6 Press on OK to confirm your entry and exit to photo setting

7 Press on Menu

twice to exit Setting

8 Press OK button for photo shooting

Resolution

This function enabled to change the picture quality taking.

1 Press M button once

enter into Photo Mode

2 Press on Menu

once to enter Photo Setting

3 Press on Up or Down button to navigate to the function that shows

Resolution 4 Press on OK to enter showing 12M,10M, 8M,5M, etc 5 Press on the Up or Down button to make your selection

Page 38

hnologies Group

. A

ll Rights Reserved.

Getting Started

Operation of your TX1 FHD Digital Roadcorder

6 Press on OK to confirm your entry and exit out to photo setting 7 Press OK button for photo shooting

Sequence

This function enable shooting of 3 photo in one single shot. 1 Press M button once

enter into Photo Mode

2 Press on Menu

once to enter Photo Setting

3 Press on Up or Down button to navigate to the function that shows

Sequence

4 Press on OK to enter showing ON/OFF 5 Press on the Up or Down button to make your selection 6 Press on OK to confirm your entry and exit to photo setting

7 Press on Menu

twice to exit Setting

8 Press OK button for photo shooting

Quality

This function enabled to set the quality of the photo to be taken. The lower the quality, the memory taken will be lesser.

1 Press M button once

enter into Photo Mode

2 Press on Menu

once to enter Photo Setting

3 Press on Up or Down button to navigate to the function that shows

Quality

4 Press on OK to enter showing FINE/NORMAL/ECOMONY

Page 39

hnologies Group

. A

ll Rights Reserved.

Getting Started

Operation of your TX1 FHD Digital Roadcorder

5 Press on the Left or Right button to make your selection 6 Press on OK to confirm your entry and exit to photo setting 7 Press on M twice to exit Setting 8 Press OK button for photo shooting

Sharpness

This function enabled to select the photo taking to be more distinctive or clearer picture during photo shooting.

1 Press M button once

enter into Photo Mode

2 Press on Menu

once to enter Photo Setting

3 Press on Up or Down button to navigate to the function that shows

Sharpness

4 Press on OK to enter showing STRONG/NORMAL/SOFT 5 Press on the Up or Down button to make your selection 6 Press on OK to confirm your entry and exit to photo setting

7 Press on Menu

twice to exit Setting

8 Press OK button for photo shooting

White Balance

This function enabled to select the balancing of the lighting effect on different environment. Recommended to be set as

(AUTO)

1 Press and hold on

M button for 2 to 3sec

into Photo Mode

2 Press on

M once to enter Photo Setting

Page 40

hnologies Group

. A

ll Rights Reserved.

Getting Started

Operation of your TX1 FHD Digital Roadcorder

3 Press on Left or Right button to navigate to the function that shows

White Balance

4 Press on OK to enter showing

AUTO/DAYLIGHT/CLOUDY/TUNGSTEN/FLUORESCENT

5 Press on the Left or Right button to make your selection 6 Press on OK to confirm your entry and exit to photo setting 7 Press on M twice to exit Setting 8 Press OK button for photo shooting

Color

This function enable to set the effect of the photo taken 1 Press M button once

enter into Photo Mode

2 Press on Menu

once to enter Photo Setting

3 Press on Up or Down button to navigate to the function that shows

Color

4 Press on OK to enter showing Color/Black & White/Sepia 5 Press on the Up or Down button to make your selection 6 Press on OK to confirm your entry and exit to photo setting

7 Press on Menu

twice to exit Setting

8 Press OK button for photo shooting

Page 41

hnologies Group

. A

ll Rights Reserved.

Getting Started

Operation of your TX1 FHD Digital Roadcorder

ISO

This function enabled to set the light sensitivity of the photo to be taken. Recommended to use as

(AUTO)

1 Press M button once

enter into Photo Mode

2 Press on Menu

once to enter Photo Setting

3 Press on Up or Down button to navigate to the function that shows

ISO

4 Press on OK to enter showing 100/200//AUTO 5 Press on the Up or Down button to make your selection 6 Press on OK to confirm your entry and exit to photo setting

7 Press on Menu

twice to exit Setting

8 Press OK button for photo shooting

Date Stamp

1 Press M button once

enter into Photo Mode

2 Press on Menu

once to enter Photo Setting

3 Press on Up or Down button to navigate to the function that shows

Date Stamp

4 Press on OK to enter showing : OFF/Date/Date & Time 5 Press on the Up or Down button to make your selection 6 Press on OK to confirm your entry and exit to photo setting

7 Press on Menu

twice to exit Setting

8 Press OK button for photo shooting

Page 42

hnologies Group

. A

ll Rights Reserved.

Getting Started

Operation of your TX1 FHD Digital Roadcorder

ayback M

e (Video)

1 Stop recording by pressing on the OK button 2 Press M button twice

to enter into playback Mode

3 Press on the Up or Down button to navigate thru the video files 5 Press on OK again to START playing 6 Press on OK again to PAUSE playing 8 FAST FORWARD:

Press and hold the

button to forward your video to

2X / 4X / 8X speed mode.

9 REWIND :

Press the Down button to slow forward your video to -2 X / -4 X

/ -8 X speed mode.

10 Press M button to return back to recording mode

ayback M

e (Photo)

1 Stop recording by pressing on the OK button 2 Press M button twice

to enter into playback Mode

3 Press on the Up or Down button to navigate thru the photo files 4 Press M button to return back to recording mode once photo view done.

Page 43

hnologies Group

. A

ll Rights Reserved.

Getting Started

Operation of your TX1 FHD Digital Roadcorder

Delete / Protect Fil

To delete, protect for one or all file 1 Stop recording by pressing on the OK button

2 Press

M button twice

to change from recording to playback mode

3 Press UP or Down button to navigate thru the files. 5 Press on Menu

to enter setting

6 Press on

UP or Down button

to make a selection Delete / Protect 7 Press on OK button once if select Delete or Protect 8 Delete selection selected next show (Delete Current / Delete All). If Protect

selection selected will show (Lock Current/ Unlock Current/ Lock All / Unlock All).

9 Make a selection and press

OK button

to enter for confirmation of selection.

10 Press on

Left or Right button to make a confirmation selection and exit

to playback mode.

11.

Press

M button to change mode back to recording mode.

Page 44

hnologies Group

. A

ll Rights Reserved.

General Troubleshooting

Question

Reason

Solution

The captured image is not stored

1 MicroSD card might be

full or maulfunction.

2 Image is not saved before

the power outage.

Reformat the card or replace a new MicroSD

Make sure to stop recording

All buttons are invalid

Procedural error or faulty Operation

MicroSD Card might be error or faulty

Press RESET button to restart the DVR. Change a new Sd card or reformat the card

Device cannot be turn on

Device might be low in battery.

Charge the Battery.

Screen Auto power-off

1 Screen Saver function is

enabled.

2 Low Battery.

1 Press on UP button disable

the screen saver mode.

2 Charge the battery

Unable to record videos

1 Memory card might be full. 2 If loop recording has been

enabled, memory card might be corrupted.

1 Check your memory card’s

space. Delete files if required.

2 Reformat your Memory

card , if issue still persists, replace a new memory Card

Auto stop recording in video mode

Use a compatible SDHC microSD card for HD video recording.

Get a microSD card that has minimum 8GB Class 10 speed.

Encounter “file error” when trying to playback pictures or videos

MicroSD card might be corrupted. There bad sectors in the card.

Reformat the memory card.

Page 45

hnologies Group

. A

ll Rights Reserved.

General Troubleshooting

Question

Reason

Solution

No image is displayed on a high-definition TV screen

1 Cable plug might not be plugged in properly.

2 Wrong TV Input mode

1 Ensure AV/HDMI cable is plug into the TV properly. 2 Refer to the back panel of your TV to Track the correct TV input. Make sure you have selected the correct input.

Hazy Images

Lens might be dirty.

Check if there are fingerprints or dust on the lens. Clean it with a micro fabric cloth if necessary.

There are horizontal stripes interference on the image

This could be due to

wrong light frequency setting

Please set according to the local power supply respectively;50Hz or 60Hz. For SG/MY:50hz

No image is displayed on a high-definition TV screen

1 Cable plug might not be

plugged in properly.

2 Wrong TV Input mode

1 Ensure AV/HDMI cable is plug

into the TV properly.

2 Refer to the back panel of your

TV to track the correct TV input. Make sure you have selected the correct input.
