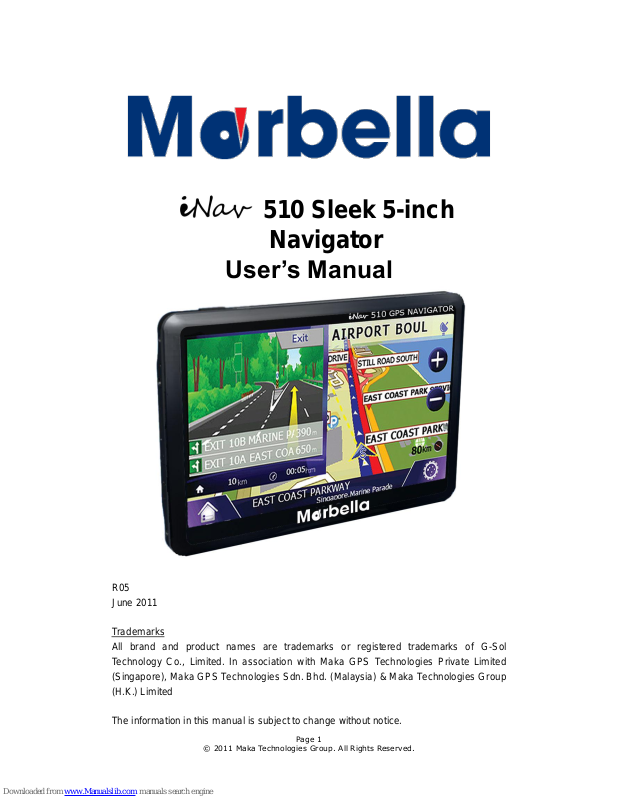

Morbella 510, iNav 510 User Manual

Page 1

510 Sleek 5-inch

Navigator

User’s Manual

R05 June 2011

Trademarks All brand and product names are trademarks or registered trademarks of G-Sol Technology Co., Limited. In association with Maka GPS Technologies Private Limited (Singapore), Maka GPS Technologies Sdn. Bhd. (Malaysia) & Maka Technologies Group (H.K.) Limited

The information in this manual is subject to change without notice.

Page 2

Before You Start

※ Precautions and Notices

※ DO NOT ADJUST THE “NAVI PATH” UNDER “SETTINGS” UNLESS YOU

NEED TO SWITCH IT TO OVERSEAS MAP.

※ Use this product prudently. The product is designed to be use only as a

navigation aid. It is not for precise measurement of direction, distance, location or topography.

※ The calculated route is for reference only. It is the user’s responsibility to follow

the traffic signs and local regulations along the roads.

※ When you get off the car, do not leave your device on the dashboard that is

subject to direct sunlight. The overheating of the battery can cause malfunction and/or danger.

※ GPS is operated by the United States government, which is solely responsible

for the performance of GPS. Any change to the GPS system can affect the accuracy of all GPS equipments.

※ GPS satellite signals cannot pass through solid materials (except glass). When

you are inside a tunnel or building, GPS positioning is not available. Tinted window, solar film or any form of sticker on the front windscreen will affect the performance of the GPS satellite reception. It will take slightly longer time than usual to fix your position.

※ A minimum of 4 GPS satellite signals is needed to determine current GPS

position. Signal reception can be affected by situations such as bad weather or dense overhead obstacles (e.g. trees and tall buildings).

※ GPS signal will be affected under bad weather condition.

※ A car holder is needed when using the device in a car. It is recommended that

you place the device in an appropriate place, so as not to obstruct the driver’s view, or deployment of airbags.

※ When battery run out, the device will automatically turn off the power. Kindly

plug the cigarette car charger to power it up.

Page 3

※ Overview

GPS Navigation Features

※ Preloaded with Mapking SLA (Singapore Land Authority) and Malaysia Maps

provided by Malsingmaps

※ GPS positioning ※ Optimal route calculation and trip plan ※ Friendly and efficient navigation with turn-by-turn, voice, and visual guidance ※ Various ways for searching a location on the map

- Using a known “Road” (e.g. Alexandra Road, Hougang Avenue 8, Jalan Bukit Bintang, )

- Using a POI (point of interest, including Postal Code, Full address search – e.g. 159919, Blk 13 Holland Drive, 271013 and etc…)

- Search using Malsingmaps for a much more detail map in both West and East Malaysia. For an example, If you are looking for Hotel, KLCC, Shopping Centre please search under “Find POI”. If you are looking for a street in

Malaysia, please take away the “Jalan” word when you enter under “Find Road”

- Using POI icon such “Restaurant”, “Building”, “Shopping” to locate the nearest point of interest near your current location.

- Using Favorites (personal stored locations)

- Using History (previous destinations)

※ Please refer to “Mapking Instruction Manual” stored inside the SD card /or

CD for a detail instruction on using the navigation software.

※ Viewing modes for different needs and situations:

- 2D or 3D (3D Landmark and Junction View)

- Daytime or night-time view

- Turn-by-turn view of the route

Page 4

Other Features

※ Audio Player ※ Photo Viewer ※ Movie Player ※ FM Transmitter ※ Calculator ※ Unit Converter ※ Game Player

About this Manual

This manual is divided into four major parts:

※ Part I “Basic Operations” tell you how to get your device running and

customize system settings.

※ Part II “Media” introduces Music Player, Photo Viewer, Video Player,

Bluetooth Communication, FM Transmitter” and etc...

※ Part III “Maintenance and Troubleshooting” ※ Part IV “Service Centre Location” ※ How to use the navigation? Please refer to Navigation Manual found

from either CD (if available) or inside the SD card.

You may download our both hardware and software instruction manual from online @ www.makagps.com.sg > Support > Download Instruction Manual for Marbella and choose your Marbella model.

Page 5

Part I. Basic Operations

Part I guides you through the process of getting your device running, familiarizes you with the external components, and tells you how to customize system settings

1. Getting Start

This chapter tells you step by step how to perform the initial start-up and introduces you to the external components of your device.

1.1 Understanding Hardware Features

The Marbella 510 Sleek 5inch GPS Navigator equipped with the features as follows;

◆ High performance, low-power consumption MediaTek MT3351 CPU；

◆ High performance memory RAM – 128MB DDRAM

◆ Simple and easy operate user interface

◆ SMART Power management: Smart Auto On/Off

◆ Data transmitting is strongly recommended to use a Micro-SD card reader

to ensure secure and fast data transmission.

◆ Excellent in receiving signal: accurate position fixing provides you the satisfied navigating service;

◆ Entertainment: MP3 and MP4 function can relieve your fatigue;

◆ FM Transmitter is the unique feature that allows you to transmit the sound

from your GPS speaker wirelessly to your car speaker. Please refer to pg. 31 for detail information. You can use it when driving, walking, riding, or waiting for a meeting; the

perfect “GPS + entertainment” function can make your life and work more

Page 6

splendid.

1.2 Package

The packing box contains the following accessories, please contact Maka GPS Technologies if there is any missing of accessories mentioned below;

1. GPS navigator

2. Car charger

3. CD (Hardware and Software Instruction Manual found inside)

4. MINI USB cable

5. Car bracket / Window mounting

6. Stylus will be located at the back of the car bracket for Marbella 510 (please refer to the image below)

1.3 Connecting to Car Power and Charging the Battery

Connect the adapter cable to your device and plug into a car charging slot or charge the device via connecting Ac adopter (optional) to Wall plug. When charging the battery for the first time, you should charge it for a couple of hours.

Page 7

NOTE:

● Depending on your region of purchase, the connector converter may not

look exactly the same as the picture shown.

● Marbella 510 Sleek 5inch will automatically switch ON during

charging.

1. If you will not use the product for a long period of time, be sure to fully charge the battery at least once every two weeks. Over discharge of the battery can affect the charging performance.

2. Standard battery life will last from 1 hour to 2 hours after a complete full charge. However, it is also depends on the Brightness of the screen, level

of the volume and etc... Please go to “Settings” under Backlight and adjust

the backlight.

3. Car charger is always an ideal tool to keep it standby with you just in case the battery goes out.

1.4 Using Your Device in a Vehicle

Using the Car Holder

※CAUTION:

1. Select an appropriate location for the car holder. Never place the holder

where the driver’s field of vision is blocked.

2. If the car’s windshield is tinted with a reflective coating, an external

antenna (optional) may be needed to route the antenna to the top of the car through a window. When closing the car window, be careful not to pinch the antenna cable. (Cars with an anti-jam window design may automatically leave adequate space as needed.)

Page 8

NOTE: Depending upon the specific model purchased, the car holder supplied with your device may not look exactly the same as the picture shown.

Important Notes for Use in a Vehicle

● Take care that the holder does not present any risk to safety, even in the

case of an accident, when installing it.

● Take care that the holder does not impede any safety components.

● The display of your navigation system may show “light re-flexions”. Please

take care of not being “blinded” during operation.

● Do not mount the components within the operating range of any airbags.

● Check the secure adherence of the suction cup at regular intervals.

● The power plug will consume power, even if no device is connected.

Remove it when not in use to avoid draining the battery.

● Check all safety equipment in your car after installation.

Connecting the Car Charger

The car charger supplies power to your device when you are using the device in a car.

※CAUTION : To protect your device against sudden surges in current,

connect the car charger only after the car engine has been started.

Page 9

NOTE: Depending upon the specific model purchased, the car holder supplied with your device may not look exactly the same as the picture shown.

1. Connect one end of the car charger to the power connector of your device.

2. Connect the other end to the cigarette lighter in the car to power and

charge your device and ensure that it will not lose contact while driving. This could cause a malfunction.

● Hint: Remove the car adapter from the cigarette lighter socket when

ending a trip or when parking the car for an extended period of time (even parking for a couple of hours is advise to do so).

IMPORATANT CLAUSE

● The voltage of the car engine will normally shoot up very high after parking

the car for a period of time (even a couple of hours). We strongly advise our customer to remove the car charger from their cigarette lighter after parking the vehicle or before switch on the engine. Such faults caused damage to Marbella GPS Navigator short circuited or any damages will be exempted from the warranty for such case.

Page 10

2. Features & Specification

This chapter guides you through the process of using your device and familiarizes you with the basic operations such as using the stylus pen and navigation pad.

2.1 Main features

◆ Operating system: Microsoft Windows CE 6.0；

◆ Only 9.99mm Sleek

◆ High performance, low-power consumption MediaTek MT3351 CPU；

◆ High performance memory RAM – 128MB DDRAM

◆ 5〞TFT LCD display with resolution of 480*272 pixels；

◆ Hi-Fi stereo earphone and built-in Hi-Fi speaker, volume adjustable；

◆ Button and touch-screen operation；

◆ Built-in sensitive GPS antenna；

◆ FREE FM Transmitter

◆ The navigating software could run the SD card directly；

◆ Video format supported: ASF, AVI, WMV, 3GP, MP4, FLV；

◆ Photo format supported: BMP, JPG, PNG；

◆ E-book format supported : TXT；

◆ MINI USB port；

◆ Built-in rechargeable Li-battery which can be powered by travel and car

charger.

Page 11

2.2 Specification

CPU

MediaTek MT3351

RAM

128 MB DDR

LCD display

5” TFT LCD display, Resolution :480RGB(H)x272(V)

Touch-screen

High-accuracy, endurable touch-screen

USB

USB Client 2.0, MINI USB port

External Storage

Micro-SD/TF card slot ， the maximum capacity of Micro-SD Card supported maximum up to

8GB

Audio

A: Built-in high fidelity speaker B: High fidelity stereo earphone

GPS

Cold start： <42s Hot start： <3s(in the open area) Warm start <36s

Battery

Built-in rechargeable Li-battery

Battery Charging port

DC 5V port

FM Transmitter

Active

Car Charger

DC9-24V, 5V／1.5A

Status of the LCD light

When charging, the red light is on; when charge finished, the blue light is on.

Operating System

Microsoft Windows CE 6.0

Navigation Software

Preloaded and Encrypted into Micro-SD Card

Video Player

ASF,AVI,WMV,3GP,MP4,FLV；

Audio Player

MP3 and WMA

Photo viewer

E-Album, JPG, GIF, BMP, PNG

EBook Viewer

TXT

Temperature

Operating Temperature ： 0℃ to 60℃ Storage Temperature ：-20℃ to 60℃

Working humidity range

45% to 80%RH

Page 12

3. Basic Function

3.1.1. Main menu

3-1

Click the top left corner of the interface Desktop display the date, show in Figure3-2

4-2

Double-click the date icon enter the date setting interface，show in Figure3-3

Page 13

3-3

Click the top left corner of the interface change the desktop theme，show in Figure3-4

3-4

3.1.2 Function introduction

Navigation

Provide navigation service

Video player

Support ASF, AVI, WMV, 3GP, MP4 and FLV format. Support progress adjust, pause and full screen play
