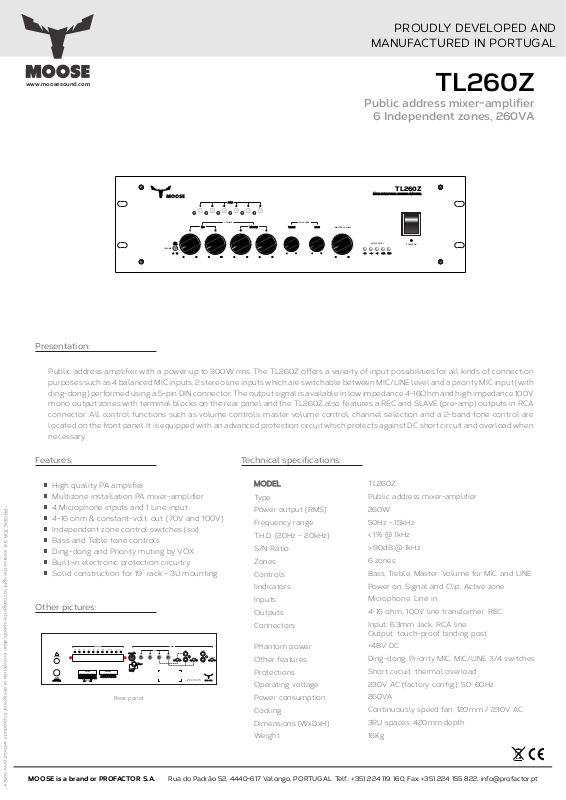

MOOSE TL260Z MOOSE_TL260Z_specs.pdf

PROUDLY DEVELOPED AND

MANUFACTURED IN PORTUGAL

www.moosesound.com

Presentation:

VOLUME

1

DING
DONG

0 10

ZONE

1 2 324 5 6

VOLUME EQUALIZER

MIC

MIC/LINE

3 4

TREBLE

BASS MASTER VOLUME

TL260Z

Public address mixer-amplifier

6 Independent zones, 260VA

TL260Z

MULTI-ZONE PUBLIC ADDRESS AMPLIFIER

OUPUT LEVEL

-13 -8 -3 0dB CLIP

POWER ON

Public address amplifier with a power up to 300W rms. The TL260Z offers a variaity of input possibilities for all kinds of connection
purposes such as 4 balanced MIC inputs, 2 stereo line inputs which are switchable between MIC/LINE level and a priority MIC input (with
ding-dong) performed using a 5-pin DIN connector. The output signal is available in low impedance 4-16Ohm and high impedance 100V
mono output zones with terminal blocks on the rear panel and the TL260Z also features a REC and SLAVE (pre-amp) outputs in RCA
connector. All control functions such as volume controls, master volume control, channel selection and a 2-band tone control are
located on the front panel. It is equipped with an advanced protection circuit which protects against DC short circuit and overload when
necessary.

Features:

High quality PA amplifier

* PROFACTOR S.A. reserve the right to change the specification in materials or designs of its products without prior notice *

Multizone installation PA mixer-amplifier
4 Microphone inputs and 1 Line input
4-16 ohm & constant-volt. out. (70V and 100V)
Independent zone control switches (six)
Bass and Teble tone controls
Ding-dong and Priority muting by VOX
Built-in electronic protection circuitry
Solid construction for 19” rack - 3U mounting

Other pictures:

FUSE F 10A

MAINS

230V AC

50HZ / 450VA

OUTPUT

0-100VZ6 Z5 Z4 Z3 Z2 Z1 COM

CAUTION WARNING

RISK OF ELECTRIC SHOCK. DO NOT OPEN. RISK OF ELECTRIC SHOCK. DO NOT OPEN.

To prevent electrical sh ock d o not remove Do not touch output terminals during
the cover. No user service able pa rts insid e. operation. High voltage may be present!
Refer service to q ualif ied pe rsonn el only.

4/16

123

45

DING DONG

(OPTIONAL)

Rear panel

Technical specifications:

MODEL

Type

Power output (RMS)

Frequency range

T.H.D. (20Hz - 20kHz)

S/N Ratio

Zones

Controls

Iindicators

Inputs

Outputs

Connectors

INPUT

LINE

PROUDLY DEVELOPED AND

MANUFACTURED IN PORTUGAL

SLAVE

PHANTOM

OFFON

MICMIC LINELINE

REC

MIC

1PRIORITY MIC

2 3 4

MIC INPUT

Phantom power

Other features

Protections

Operating voltage

Power consumption

Cooling

Dimensions (WxDxH)

Weight

TL260Z

Public address mixer-amplifier

260W

50Hz - 15kHz

< 1% @ 1kHz

> 90dB @ 1kHz

6 zones

Bass, Treble, Master, Volume for MIC and LINE

Power on, Signal and Clip, Active zone

Microphone, Line in

4-16 ohm., 100V line transformer, REC

Input: 6.3mm Jack, RCA line
Output: touch-proof binding post

+48V DC

Ding-dong, Priority MIC, MIC/LINE 3/4 switches

Short circuit, thermal overload

230V AC (factory config.), 50~60Hz

260VA

Continuously speed fan, 120mm / 230V AC

3RU spaces, 420mm depth

16Kg

MOOSE is a brand or PROFACTOR S.A.

Rua do Padrão 52, 4440-617 Valongo, PORTUGAL. Telf.: [phone], Fax: [phone], [e-mail]
