Page 1

www.moosesound.com

PROUDLY DEVELOPED AND

MANUFACTURED IN PORTUGAL

TL120D & TL200D

Public address amplifier

Mixer-amplifier

VOLUME

TL120D

PUBLIC

ADDRESS

VOLUME

MIC

DDIINNG DDOONNG

0010

MIC

G G

VOLUME

MIC/LINE

EQUALIZER

BASS

TTRREEBBLLE

EQUALIZER

MASTER VOLUME

OUPUT LEVEL

0dB

CLIP

0dB

CLIP

TL200D

PUBLIC

ADDRESS AAMMPPLLIIFFIIEERR

POWER ON

-13

BASS

MASTER VOLUME

OUPUT LEVEL

-13-8-8-3-3

MAN193_0

USER’S MANUAL

Page 2

TL120D & TL200D

PA mixer-amplifier

Introduction

Dear customer,

Thank for choosing MOOSE branded products!

MOOSE is a brand of professional audio & lighting products, proudly developed and manufactured in PORTUGAL.

In order to operate this product in a safe and reliable manner, please follow the instructions in this booklet and before operating the equipment read the instructions carefully and please note the technical information.

Our products undergo very rigorous testing under strict conditions and they are monitored continuosly during the manufacturing process. In order to guarantee the product function and safety, the original parts of the manufacturer's design must be used. If any parts other than those of the manufacturer are used, or the product is modified in any way, the user forfeits all warranty rights to claim.

Caution

1. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match

the values specified on the equipment.

2. If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.

3. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

4. Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an authorised service company.

5. Do not open or modify this equipment.

6. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping

hazards.

7. Do not turn on the Amplifier ON before checking that all volumes to zero .

IMPORTANT: Never remove the cover, because otherwise there may be a risk of electric shock. There are no user

serviceable parts inside. Have repairs carried out only by qualified service personnel.

The lightnin g flas h with arrowhead symbo l within an equilatera l triangle is intended to alert the u ser to the presence of uninsulated "dangerous voltage" within t he product's enclosure that may be of sufficient magnitude to constitute a risk o f electrica l shock.

The exclamation mark within an e quilateral triangle is intended to alert the use r to the presence of impo rtan t operating and maintenance instructions.

RIS K OF EL ECTRI C SH OCK. DO NOT OP EN.

CAUTION

The amplifie r is marked with this instruct ion so please proceed accordingly in order to avoid any hazard.

To pr event e lec tr ic al sh oc k do not rem ove the cov er. No us er se r vi cea bl e p ar ts in si de .

Refer ser vice to qu al ified personnel only.

www.moosesound.com 2

MAN193_0

Page 3

TL120D & TL200D

PA mixer-amplifier

Manufacturers Declaration

PROPER DISPOSAL OF THIS PRODUCT

(Valid in the European Union and other European countries with waste separation)

This symbol on the product, or the documents accompanying the product, indicates that this appliance may not be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled waste disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable economic activity.

Household users should contact either the retailer where they purchased this product, or their local government office, for details on where and how they can recycle this item in an environmentally friendly manner. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal .

ENVIRONMENTAL PROTECTION AND ENERGY CONSERVATION

Energy conservation is an active contribution to environmental protection. Please turn off all unneeded electrical devices. To prevent unneeded devices from consuming power in standby mode, disconnect the mains plug.

EC DECLARATION OF CONFORMITY

The equipment marketed by MOOSE complies (where applicable) with the essential requirements and other relevant specifications of Directives 1999/5/EC (R&TTE), 2004/108/EC (EMC) und 2006/95/EC (LVD). Additional information can be requested to info@profactor.pt.

PROUDLY DEVELOPED AND MANUFACTURED IN PORTUGAL

www.moosesound.com 3

MAN193_0

Page 4

Connections and Controls

Please refer to the following scheme and instructions:

VOLUME EQUALIZER

MIC MIC/LINE

1 2 3 4

DING DONG

VOLUME

0 10

TREBLE

BASS MASTER VOLUME

OUPUT LEVEL

-13 -8 -3 0dB CLIP

TL120D

PUBLIC ADDRESS AMPLIFIER

POWER ON

TL120D & TL200D

PA mixer-amplifier

FUSE F 6A

MAINS

230V AC

50HZ / 150VA

OUTPUT

4/16

0-100V

CAUTION

RISK OF ELECTRI C SHOCK. DO NOT OP EN.

To prevent ele ctric al shock d o not rem ove the cover. No use r servi ceable pa rts ins ide. Refer ser vice to qualif ied pe rsonn el only.

123

MIC INPUT

DING DONG

(OPTIONAL)

MIC

1PRIORITY MIC 2 3 4

INPUT

LINE

MICLINE

SLAVE

PHANTOM

REC

PROUDLY DEVELOPED AND

MANUFACTURED IN PORTUGAL

OFFON

1. POWER ON: Illuminated on/off switch. Before switching the system on, always adjust the volume to zero.

2. VOLUME 1: Channel 1 Volume Control.

3. VOLUME 2: Channel 2 Volume Control.

4. VOLUME 3: Channel 3 Volume Control.

5. VOLUME 4: Channel 4 Volume Control.

6. TREBLE: Master tone equalizer control - Treble.

7. BASS: Master tone equalizer control - Bass.

8. MASTER: Master Volume Control;

Main volume adjustment. Sets the relative level of input signal.

9. DING DONG: This Trimmer allows you control Ding Dong´s volume.

10. OUTPUT: 100V Line transformer terminal output for Speakers - respect polarity.

11. OUTPUT: Low impedance (4-16ohm) terminal output for Speakers - respect polarity.

12. MIC1: Channel 1 microphone input socket - Jack ¼’’.

13. MIC2: Channel 2 microphone input socket - Jack ¼’’.

14. MIC3: Channel 3 microphone input socket - Jack ¼’’.

15. MIC4: Channel 4 microphone input socket - Jack ¼’’.

16. MIC3 / LINE3: This switch allows you to choose between MIC3 or LINE3 Input. You can adjust Volume with

VOLUME3 Pot ( 4 ).

www.moosesound.com 4

MAN193_0

Page 5

TL120D & TL200D

PA mixer-amplifier

Connections and Controls

17. LINE 3: Signal Input to connect a CD Player or an AM/FM Transmitter ( Radio ).

18. LINE 4: Signal Input to connect a CD Player or an AM/FM Transmitter ( Radio ).

19. MIC4 / LINE4: This switch allows you to choose between MIC4 or LINE4 Input. You can adjust volume through

front panel volume pot ( 5 ).

20. SLAVE:

REC: Signal output in RCA for connections of a recorder device.

21.

Signal output in RCA for connection of another device such as an amplifier.

22. PHANTOM: This switch allows you to connect/disconnect Phantom Power supply.

23. PRIORITY MIC: Input Socket for connection of a Priority Mic.

24. MAINS IN: Power socket with fuse holder, AC 230V - 50~60Hz. Replace the fuse only with a fuse of the same type and rating. If the fuse blows repeatedly, please contact an authorised service company.

In order to ensure the right procedure, please folow as described:

1 - Verify that all Volume Control Pots ( 2 - 5 / 8 ) are at their minimum value ( 0 );

2 - Connect the Mains Supply Cable ( 24 );

3 - Connect all Microphones and Devices that will be working with TL120D/TL200D to their respective Inputs

just like next page´s picture;

4 - Connect the Speakers. If you have Low Impedance Speakers then you must connect them to Terminals ( 11 ). In case your Speakers have 100V Line Transformer then you must connect them to Terminals ( 10 ), always respecting polarity;

5 - Connect the Amplifier applying on the On/Off Power Switch ( 1 );

6 - Adjust Volumes and Equalization;

Your Amplifier is ready to start working. If something wrong occurs you must turn off the Amplifier and verify all connections and steps again.

Connection diagram

4 - 16ohm

FUSE F 6A

MAINS

230V AC

50HZ / 150VA

OUTPUT

4/16

0-100V

CAUTION

RISK OF ELECTRIC SHOCK . DO NOT OPEN.

To prevent electr ical sho ck do not r emove the cover. No user ser viceab le part s inside. Refer service to qua lifie d pers onnel o nly.

1PRIORITY MIC 2 3 4

123

MIC INPUT

DING DONG

(OPTIONAL)

INPUT

MIC

SLAVE

LINE

MICLINE

PHANTOM

REC

PROUDLY DEVELOPED AND

MANUFACTURED IN PORTUGAL

OFFON

YOU GET MAXIMUM OUTPUT POWER WITH 4Ohm

PRI ORI TY

MIC

MIC 1

MIC 2

MIC 3

MIC 4

LINE 3

LINE 4

REC ORD ER

AMP LIF IER

S SPEAKER´S POWER = AMPLIFIER RATED POWER

www.moosesound.com 5

OUTPUT

4/16

0-100V

OUTPUT

4/16

0-100V

100V

8Ohm

100V

8Ohm

MAN193_0

Page 6

TL120D & TL200D

Technical specifications

MODE L TL12 0D TL20 0D

TYPE Public address mixer-amplifier Public address mixer-amplifier

POWER OUTPUT (RMS) 120W 200W

FREQUENCY RANGE 50Hz - 14kHz 50Hz - 14kHz

T.H.D. (20Hz - 20kHz) < 1% @ 1kHz < 1% @ 1kHz

S/N RATIO > 90dB @ 1kHz > 90dB @ 1kHz

ZONES No No

CONTROLS Bass, Treble, Master, volume for MIC and LINE in

INDICATORS Power on, Signal and Clip Power on, Signal and Clip

INPUTS Microphone and Line Microphone and Line

OUTPUTS

CONNECTORS

Input in 6.3mm Jack, Link in RCA & Output: touch-proof binding post, REC in RCA

PHANTOM POWER

OTHER FEATURES

PROTECTIONS

Short circuit, thermal overload Short circuit, thermal overload

OPERATING VOLTAGE

POWER CONSUMPTION

COOLING

DIMENSIONS (WxDxH) 2RU space, 345mm depth 2RU space, 345mm depth

WEIGHT 7Kg 9Kg

4-16ohm, 100V 4-16ohm, 100V

+48V DC +48V DC

Ding-dong, priority MIC, MIC/LINE switch

230V AC (factory config.), 50~60Hz

150VA 220VA

Continuously speed fan, 80mm / 230V AC

PA mixer-amplifier

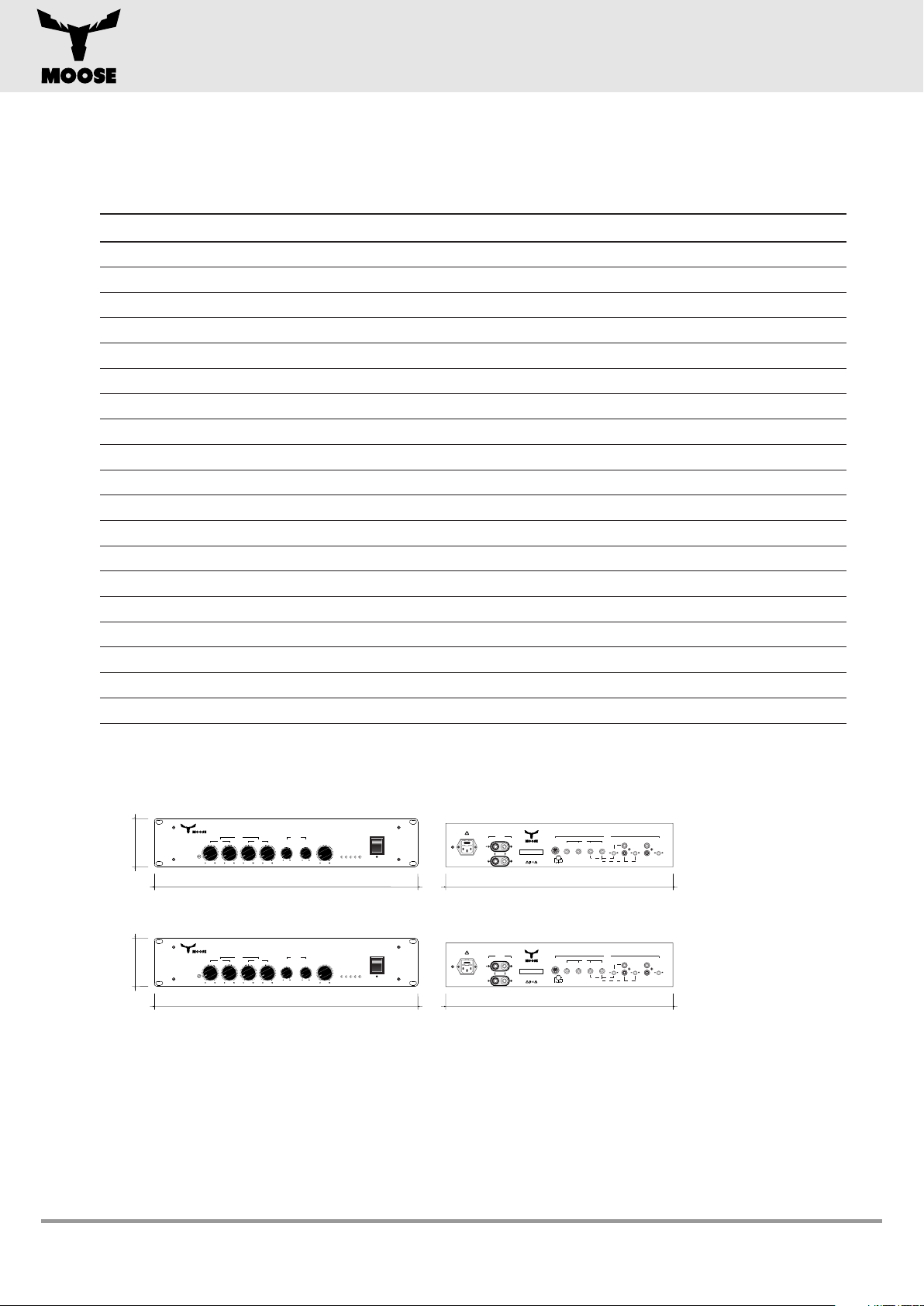

Dimensions

1122334

DDIINNG DDOONNG

VOLUME

0010

G G

VOLUME

TL120D

PUBLIC

VOLUME

MIC

EQUALIZER

BASS

MIC/LINE

MASTER VOLUME

TTRREEBBLLE

ADDRESS

OUPUT LEVEL

POWER ON

-13

0dB

CLIP

484

TL200D

PUBLIC

VOLUME

MIC

EQUALIZER

BASS

MIC/LINE

MASTER VOLUME

ADDRESS AAMMPPLLIIFFIIEERR

OUPUT LEVEL

POWER ON

-13-8-8-3-3

0dB

CLIP

484

FUSE F 6A

OUTPUT

4/16

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

To prevent electrical shock do not remove

MAINS

230V AC

50HZ / 150VA

the cover. No user serviceable par ts inside. Refer service to qualifie d personnel only.

0-100V

DING DONG

(OPTIONAL)

INPUT

MIC

11PRIORITY MIC

MIC INPUT

445

SLAVE

LINE

PHANTOM

MIC

LINE

OFF

MIC

LINE

REC

PROUDLY DEVELOPED AND

MANUFACTURED IN PORTUGAL

430

FUSE F 6A

OUTPUT

4/16

MAINS

230V AC

0-100V

50HZ / 150VA

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

To prevent electrical shock do not remove the cover. No user serviceable par ts inside. Refer service to qualifie d personnel only.

PRIORITY MIC223344

DING DONG

(OPTIONAL)

INPUT

MIC

MIC INPUT

SLAVE

LINE

PHANTOM

MIC

LINE

OFFONON

MIC

LINE

REC

PROUDLY DEVELOPED AND

MANUFACTURED IN PORTUGAL

430

Unit: mm (m ilime ters)

www.moosesound.com 6

MAN193_0

Page 7

MOOSE is a brand or PROFACTOR S.A.

PROFACTOR S.A

Rua do Padrão 52

4440-617 Valongo

PORTUGAL

Telf.: +351 224 119 160

Fax: +351 224 155 822

info@profactor.pt

PROUDLY DEVELOPED AND

MANUFACTURED IN PORTUGAL

www.moosesound.com
