PROUDLY DEVELOPED AND

MANUFACTURED IN PORTUGAL

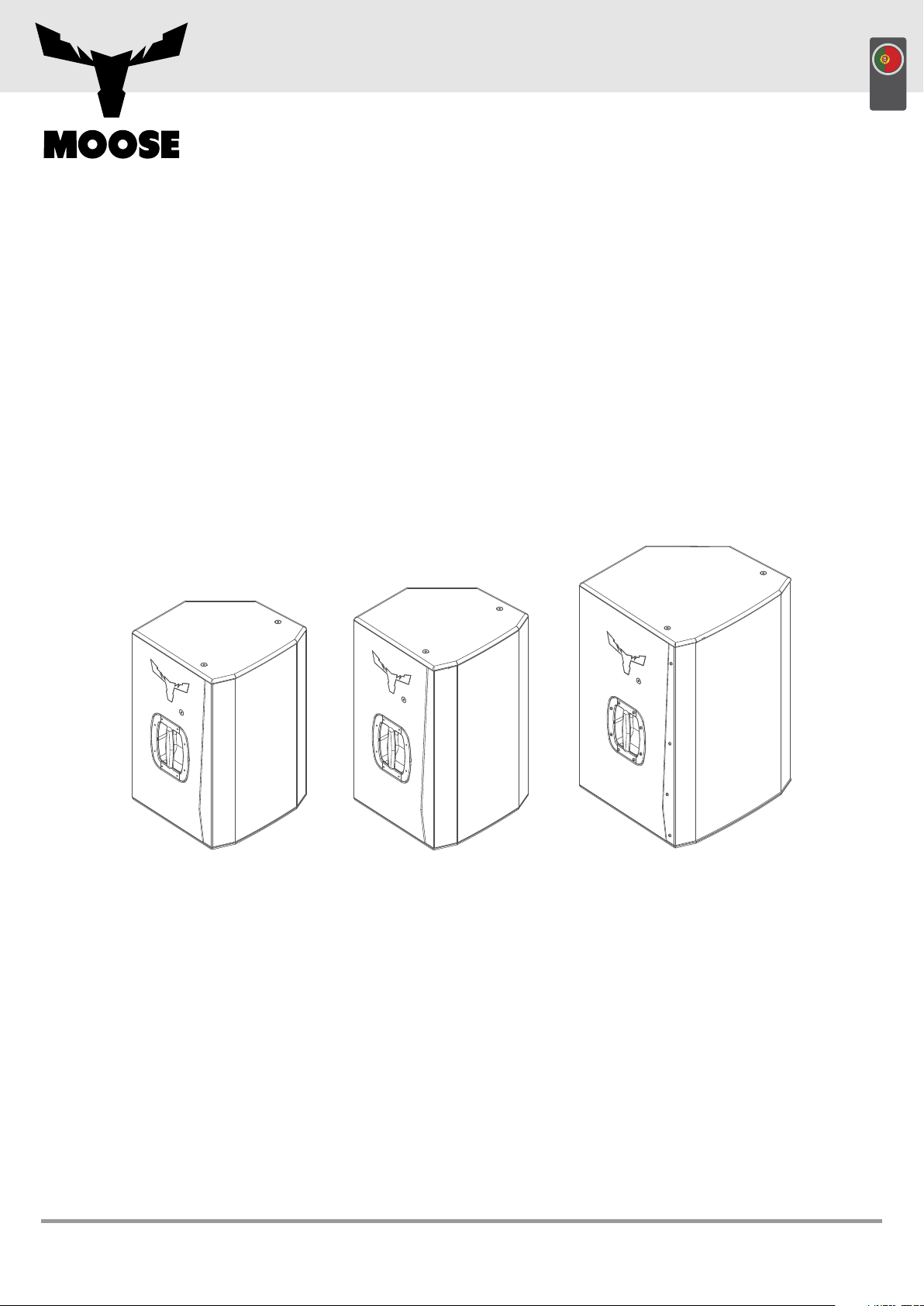

DUAL SERIES

C10, C12 & C15

Passive Full-Range speakers

MADE IN

PORTUGAL

100%

EUROPEAN

MAN198_1

USER’S MANUAL

C10, C12 & C15

Passive full-range speakers

Introduction

Dear customer,

Thank for choosing MOOSE branded products!

MOOSE is a brand of professional audio & lighting products, proudly developed and manufactured in
PORTUGAL.

In order to operate this product in a safe and reliable manner, please follow the instructions in this booklet and
before operating the equipment read the instructions carefully and please note the technical information.

Our products undergo very rigorous testing under strict conditions and they are monitored continuosly during the
manufacturing process. In order to guarantee the product function and safety, the original parts of the
manufacturer's design must be used. If any parts other than those of the manufacturer are used, or the product is
modified in any way, the user forfeits all warranty rights to claim.

Caution

1. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match

the values specified on the equipment.

2. If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet
with a protective ground. Never deactivate the protective ground of a power cord.

3. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before
extended periods of disuse.

4. Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an
authorised service company.

5. Do not open or modify this equipment.

6. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping

hazards.

7. Do not turn on the Amplifier ON before checking that all volumes to zero .

IMPORTANT: Never remove the cover, because otherwise there may be a risk of electric shock. There are no user

serviceable parts inside. Have repairs carried out only by qualified service personnel.

The lightnin g flash with arrowhead symbol within an equilateral triangle is intended
to alert the user to the presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude to constitute a risk o f
electrical shock.

The exclamation mark within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance instructions.

RIS K OF EL ECTRI C SH OCK. DO NOT OP EN.

CAUTION

The amplifie r is marked with this instruction so please
proceed accordingly in order to avoid any hazard.

To pr event e lec tr ic al sh oc k do not rem ove
the cov er. No us er se r vi cea bl e p ar ts in si de .

Refer ser vice to qu al ified personnel only.

www.moosesound.com 2

MAN198_1

C10, C12 & C15

Passive full-range speakers

Manufacturers Declaration

PROPER DISPOSAL OF THIS PRODUCT

(Valid in the European Union and other European countries with waste separation)

This symbol on the product, or the documents accompanying the product, indicates that this appliance may not
be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled
waste disposal. Please dispose of this product separately from other waste and have it recycled to promote
sustainable economic activity.

Household users should contact either the retailer where they purchased this product, or their local government
office, for details on where and how they can recycle this item in an environmentally friendly manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product should not be mixed with other commercial wastes for disposal .

ENVIRONMENTAL PROTECTION AND ENERGY CONSERVATION

Energy conservation is an active contribution to environmental protection. Please turn off all unneeded electrical
devices. To prevent unneeded devices from consuming power in standby mode, disconnect the mains plug.

EC DECLARATION OF CONFORMITY

The equipment marketed by MOOSE complies (where applicable) with the essential requirements and other
relevant specifications of Directives 1999/5/EC (R&TTE), 2004/108/EC (EMC) und 2006/95/EC (LVD). Additional
information can be requested to [e-mail].

PROUDLY DEVELOPED AND MANUFACTURED IN PORTUGAL

PROFACTOR S.A., all right s reserved. The tech nical data and the funct ion al produ ct characte ris tics can be subject
to mod ifi cations. The photocopying, the translation, and a ll other forms of co pying of f rag ments or of the integrlity
of this user's ma nua l is prohi bited.

www.moosesound.com 3

MAN198_1

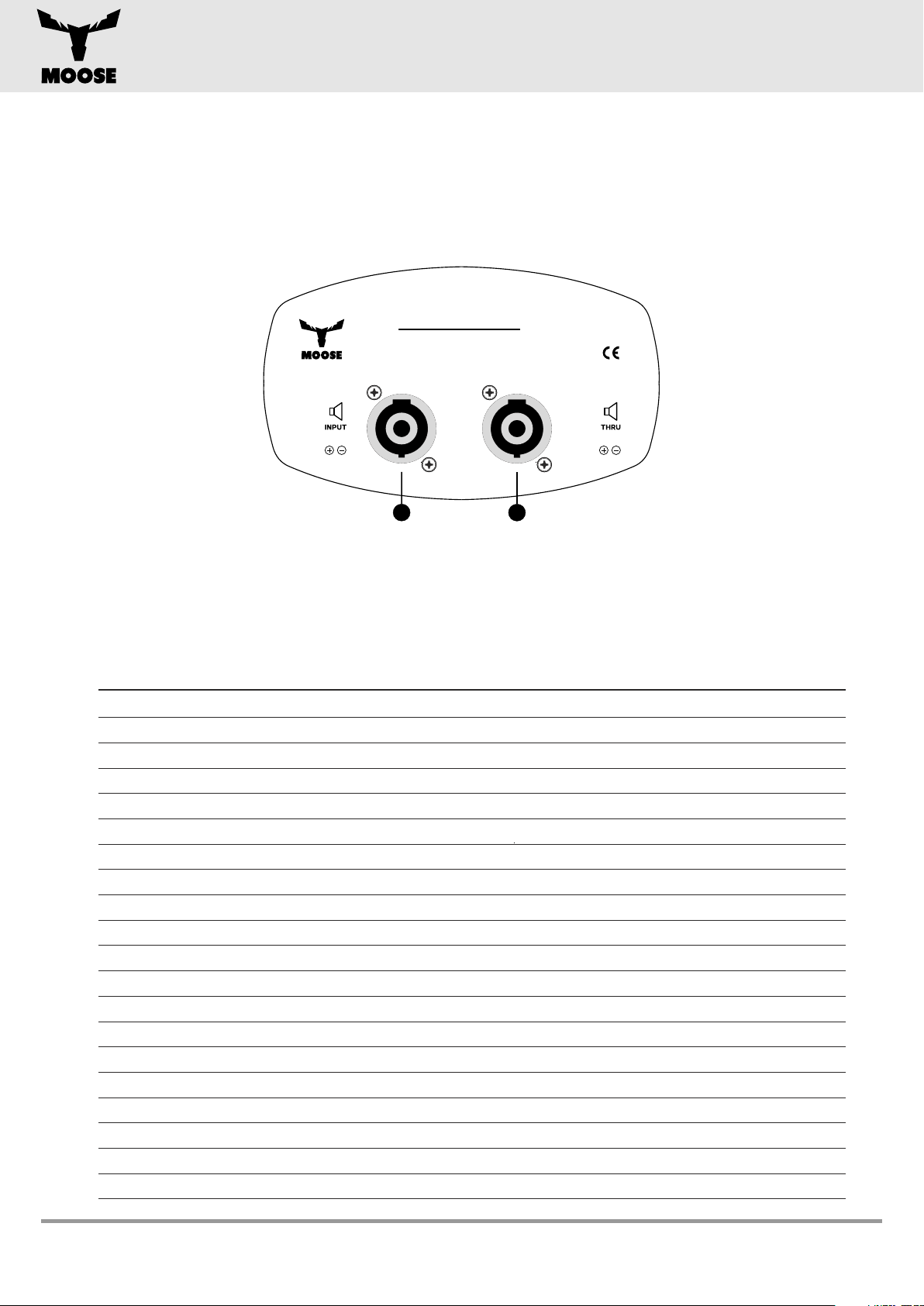

Connections and Controls

Please refer to the following scheme and instructions:

C10 Backpanel

Backpanel

C12

Backpanel

C15

Full range speaker

500W / 8Ohm

INPUT THRU

C15

PROUDLY DEVELOPED

AND MANUFACTURED

IN PORTUGAL

C10, C12 & C15

Passive full-range speakers

PIN
SIGNAL

+1 -1

1

2

PIN
SIGNAL

+1 -1

1. INPUT: Speakon NL4 compatible input.

2. THRU: Speakon NL4 compatible output (parallel wired with Speakon compatible input 1+/1-).

Technical specifications

MODE L C10 C12 C1 5

TYPE 2-way full range speaker 2-way full range speaker 2-way full range speaker

ENCLOSURE DESIGN Bass reflex, passive Bass reflex, passive Bass reflex, passive

POWER OUTPUT (RMS) 360W (AES) 360W (AES) 410W (AES)

510W (Program) 510W (Program) 560W (Program)

900W (Peak) 900W (Peak) 1100W (Peak)

FREQUENCY RANGE 75Hz - 18kHz 65Hz - 18kHz 50Hz - 18kHz

NOMINAL IMPEDANCE 8Ohm 8Ohm 8Ohm

TRANSDUCER TYPE* 10" (3in) MF + 1" HF (1.73in) 12" (3in) MF + 1" HF (1.73in) 15" (3in) MF + 1" HF (1.73in)

DISPERSION Rotatable, 90°x60° or 60°x90° (DUAL)

CROSSOVER FREQUENCY 2000Hz 2000Hz 2000Hz

MAX. S.P.L. (PEAK)

CONNECTORS

CONSTRUCTION 15mm birch plywood 15mm birch plywood 15mm birch plywood

GRILLE Custom perforated metal grille w/ acoustic foam

INSTALLATION, RIGGING, FLYING 4 rubber feet, Ø35mm pole socket, 5x M8 flying points

DIMENSIONS (WxHxD) 350x560x340mm 350x600x340mm 440x690x420mm

WEIGHT

128dB @ 1m

132dB @ 1m 134dB @ 1m

2x Neutrik®NL4 (parallel) 2x Neutrik®NL4 (parallel) 2x Neutrik®NL4 (parallel)

13.78x22.05x13.39in

12Kg

26.5lb

13.78x23.62x13.39in

16Kg

35.3lb

17.32x27.17x16.54in

20Kg

44.1lb

www.moosesound.com 4

MAN198_1

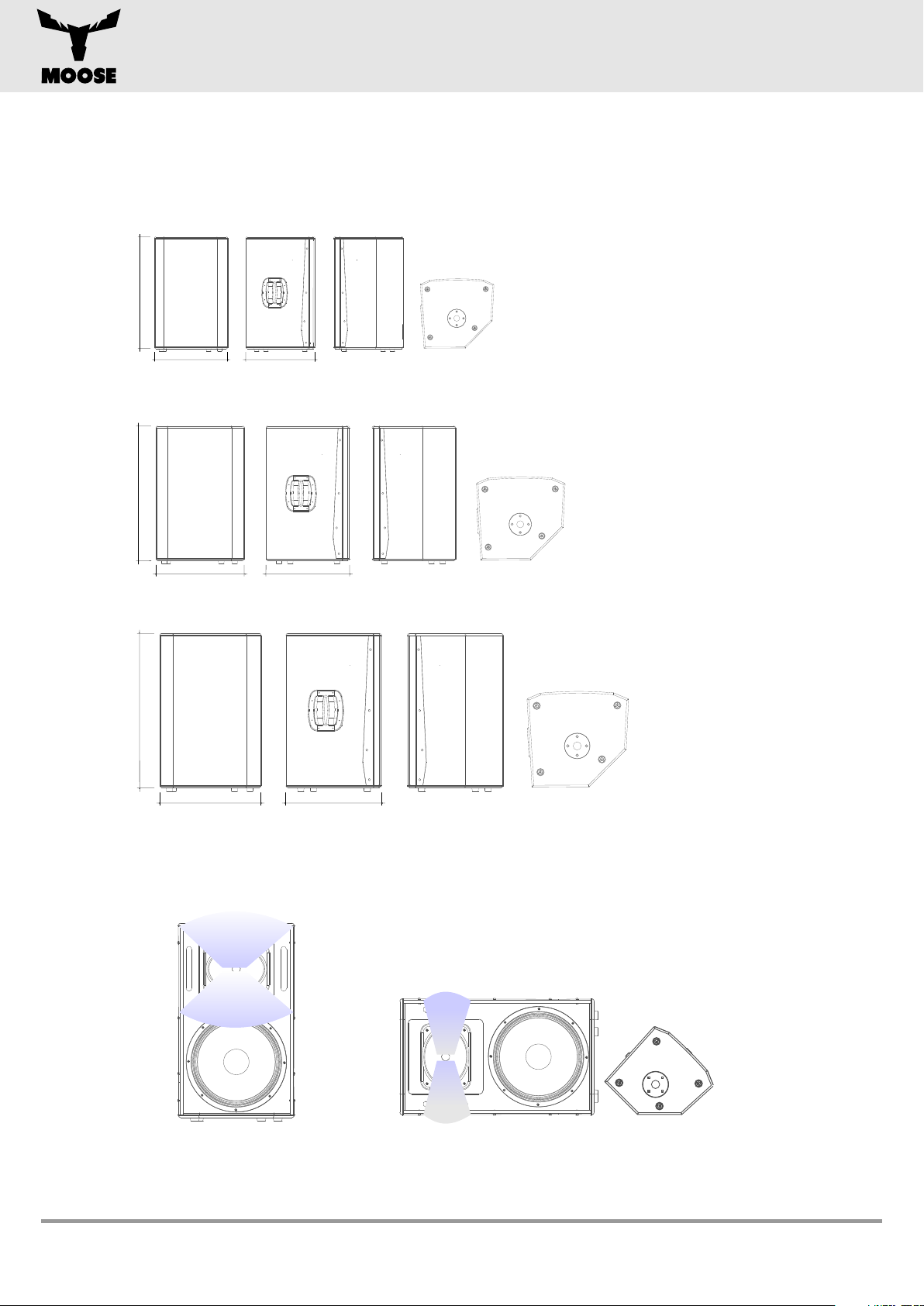

Dimensions

C10

560

C10, C12 & C15

Passive full-range speakers

C12

C15

600

680

350

350

430

340

340

Unit: mm (m ilime ters)

415

Horn configuration

FRONT OF HOUSE

90°x60° 60°x90°

For Front of House configuration the narrow opening of the HF horn has to point downwards.
For stage monitor configuration the HF horn has to be turned by 90 degrees, narrow opening pointing upwards.
Remove the front grille and loosen the 4 screws of the HF horn. Turn the HF horn by 90 degrees and tighten the 4 screws. Then
remount the front grille.

www.moosesound.com 5

MAN198_1

STAGE MONITOR
