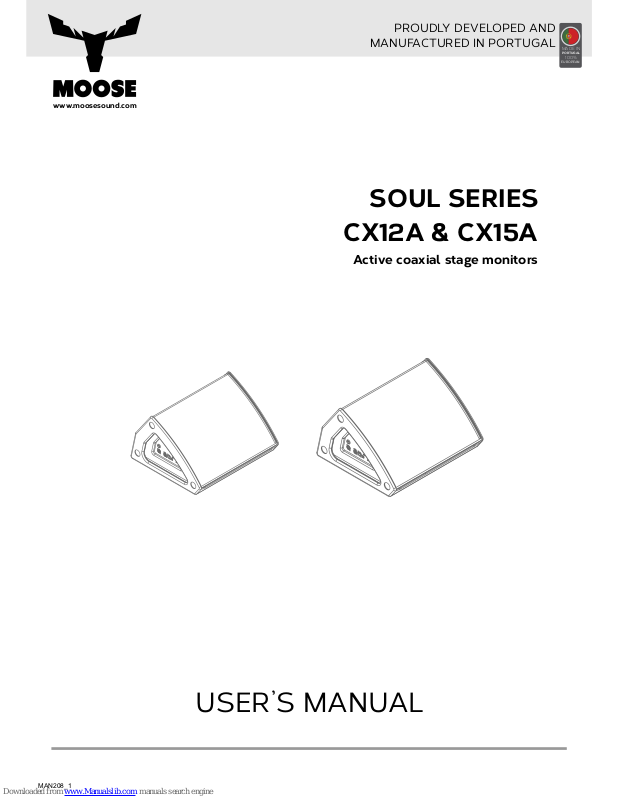

USER’S MANUAL
MAN208_1
www.moosesound.com
Active coaxial stage monitors
SOUL SERIES
CX12A & CX15A
PROUDLY DEVELOPED AND
MANUFACTURED IN PORTUGAL
MADE IN
PORTUGAL
100%
EUROPEAN
Dear customer,
Thank for choosing MOOSE branded products!
MOOSE is a brand of professional audio & lighting products, proudly developed and manufactured in
PORTUGAL.
In order to operate this product in a safe and reliable manner, please follow the instructions in this booklet and
before operating the equipment read the instructions carefully and please note the technical information.
Our products undergo very rigorous testing under strict conditions and they are monitored continuosly during the
manufacturing process. In order to guarantee the product function and safety, the original parts of the
manufacturer's design must be used. If any parts other than those of the manufacturer are used, or the product is
modified in any way, the user forfeits all warranty rights to claim.
CAUTION
RIS K OF EL ECTRI C SH OCK. DO NOT OPE N.
To pr eve nt ele ct ric al sho ck do not remov e
the cover. N o u se r se rv ice ab le p ar ts ins id e.
Refer ser vi ce to qu alified personnel only.
Introduction
www.moosesound.com 2
Caution
The light ning flash with a rrowhead symbol w ithin an equila teral triangle is intended
to alert t he user to the presence of u ninsulated "dangerous voltage" withi n the
prod uct's enclosure that may be of su fficient magnitu de to consti tute a ri sk of
electrical sho ck.
The exclamation mark within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance instruc tions.
The ampli fier is marked w ith this instructi on so ple ase
proc eed accordingly in order to avoi d any hazard.
1. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match
the values specified on the equipment.
2. If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet
with a protective ground. Never deactivate the protective ground of a power cord.
3. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before
extended periods of disuse.
4. Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an
authorised service company.
5. Do not open or modify this equipment.
6. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping
hazards.
7. Do not turn on the Amplifier ON before checking that all volumes to zero .
IMPORTANT: Never remove the cover, because otherwise there may be a risk of electric shock. There are no user
serviceable parts inside. Have repairs carried out only by qualified service personnel.
Active coaxial stage monitors
CX12A & CX15A
MAN208_1
www.moosesound.com 3
Manufacturers Declaration
PROPER DISPOSAL OF THIS PRODUCT
(Valid in the European Union and other European countries with waste separation)
This symbol on the product, or the documents accompanying the product, indicates that this appliance may not
be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled
waste disposal. Please dispose of this product separately from other waste and have it recycled to promote
sustainable economic activity.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details on where and how they can recycle this item in an environmentally friendly manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product should not be mixed with other commercial wastes for disposal .
ENVIRONMENTAL PROTECTION AND ENERGY CONSERVATION
Energy conservation is an active contribution to environmental protection. Please turn off all unneeded electrical
devices. To prevent unneeded devices from consuming power in standby mode, disconnect the mains plug.
EC DECLARATION OF CONFORMITY
The equipment marketed by MOOSE complies (where applicable) with the essential requirements and other
relevant specifications of Directives 1999/5/EC (R&TTE), 2004/108/EC (EMC) und 2006/95/EC (LVD). Additional
information can be requested to info@profactor.pt.
PROUDLY DEVELOPED AND MANUFACTURED IN PORTUGAL
PROFACTOR S.A., a ll rights res erved. The tech ni cal data an d the funct ional produ ct charac te ristics c an be subje ct
to modific ations. T he photocopyi ng, the tra nslation, a nd all othe r fo rms of copyin g of fragme nts or of the i nteg rlity
of this us er's manu al is prohi bited.
Active coaxial stage monitors
CX12A & CX15A
MAN208_1
www.moosesound.com 4

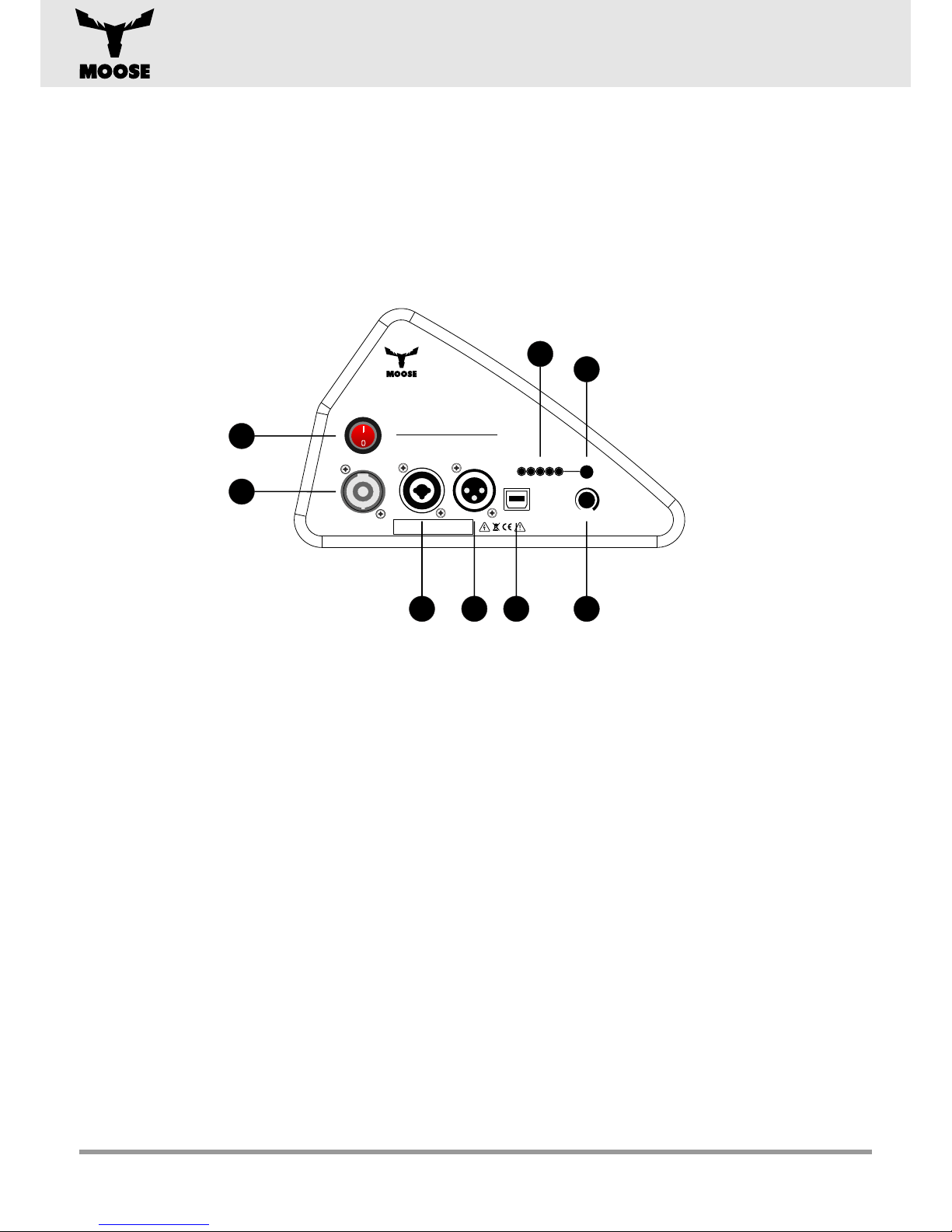

Connections and Controls
Please refer to the following scheme and instructions:
CX12A
CX15A
1. INPUT: Balanced signal input (Combi) for connection of an external audio source (e.g., mixer).
2. LINK: Balanced signal output (XLR 3p) for connection of another ACTIVE speaker.
3. USB: USB 2.0 port (type B) to connect the cable to establish communication between DSP and computer.
4. PRESET LED: Preset LED indicator, from A to E, there are 5 storable and selectable presets.
5. PREST: Preset push button to select one of the 5 storable presets on the DSP, from A to E. Single press to
select the desired preset and when flashing the preset LED wanted long press to confirm the selection. The DSP
is supplied with 5 factory presets stored.
6. VOLUME: Master LEVEL system adjustment.
7. MAINS IN: NEUTRIK powerCON socket, 85~264Vac, 50~60Hz Power-in (blue).
8. POWER ON: Illuminated on/off switch. Before switching the system on, always adjust the volume to zero.
Active coaxial stage monitors
CX12A & CX15A
A B C D E
1
7
8
2
3
6
5
4
A B C D E
EQ
AC INPUT
POWER ON
85-264Vac
50HZ
-80dB
0dB
INPUT
THROUGH
USB
PRESET
-80dB
0dB
MAN208_1
CAUTION
RISK OF ELECT RIC SHOC K. DO NOT OPEN.
To preven t elec trical shock do no t remov e
the cove r. No us er ser vicea ble par ts ins ide.
Refer ser vice to q ualifi ed p erson nel only.
2-way active coaxial monitor
Class D Amplifier
CX12A
Integrated DSP
IMP.
750W rms
4ohm
LOW
Technical specifications
MODE L CX12 A CX15 A
TYPE Coaxial stage monitor Coaxial stage monitor
ENCLOSURE DESIGN Bass reflex, ACTIVE Bass reflex, ACTIVE
POWER HANDLING CAPACITY
FREQUENCY RANGE 85Hz - 20kHz 80Hz - 20kHz
TRANSDUCER TYPE*
DISPERSION 80° Axisymetrical (conical)
CROSSOVER FREQUENCY
MAX. S.P.L. (PEAK) 124dB @ 1m
Adjustable by fully programmable DSP,
130dB @ 1m
CONSTRUCTION 15mm birch plywood 15mm birch plywood
GRILLE Custom perforated metal grille w/ acoustic foam
INSTALLATION, RIGGING, FLYING 4 rubber feet, Ø35mm pole socket
DIMENSIONS (WxHxD) 580x540x360mm 610x540x360mm
WEIGHT
22.83x21.26x14.17in
23.0Kg
50.7lb
24.01x21.26x14.17in
26.0Kg
57.3lb
www.moosesound.com 5
AMPLIFIER
POWER OUTPUT
Class D - SMPS Class D - SMPS
750W (continuous) 750W (continuous)
1500W (peak) 1500W (peak)
INDICATORS
OUTPUT/LINK
INPUT
Power, signal, preset in use
XLR 3p
XLR/Jack Combo connector
CONTROLS Master level, 5 selectable presets
PROTECTIONS
OPERATING VOLTAGE
Over current, short circuit, thermal, DC, HF
SMPS, 85-264Vac SMPS, 85-264Vac
AC MAINS CONNECTOR NEUTRIK powerCON, Power-in / Power-out
Active coaxial stage monitors
CX12A & CX15A
Dimensions
CX12A
CX15A
MAN208_1
580mm
540mm
360mm
610mm
540mm
360mm
400W / 80W (AES) 400W / 80W (AES)
800W / 160W (Program) 800W / 180W (Program)
1600W (Peak) 1600W (Peak)
12" CX, LF (4in) + HF (2.87in) 15" CX, LF (4in) + HF (2.87in)
www.moosesound.com
PROUDLY DEVELOPED AND
MANUFACTURED IN PORTUGAL
PROFACTOR S.A
Rua do Padrão 52
4440-617 Valongo
PORTUGAL
Telf.: +351 224 119 160
Fax: +351 224 155 822
info@profactor.pt
MOOSE is a brand or PROFACTOR S.A.
