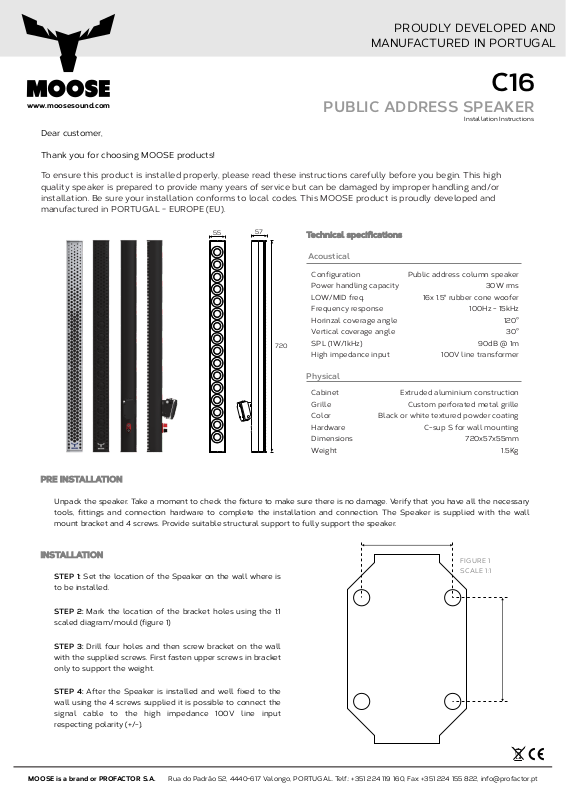

MOOSE CUE-C16 C16_installation-instruction.pdf

PROUDLY DEVELOPED AND

MANUFACTURED IN PORTUGAL

C16

www.moosesound.com

PUBLIC ADDRESS SPEAKER

Installation Instructions

Dear customer,

Thank you for choosing MOOSE products!

To ensure this product is installed properly, please read these instructions carefully before you begin. This high
quality speaker is prepared to provide many years of service but can be damaged by improper handling and/or
installation. Be sure your installation conforms to local codes. This MOOSE product is proudly developed and
manufactured in PORTUGAL - EUROPE (EU).

55

57

Technical specifications

Acoustical

720

Configuration
Power handling capacity
LOW/MID freq.
Frequency response
Horinzal coverage angle
Vertical coverage angle
SPL (1W/1kHz)
High impedance input

Public address column speaker

16x 1.5" rubber cone woofer

100V line transformer

Physical

30W rms

100Hz - 15kHz

120°

30°

90dB @ 1m

Cabinet
Grille
Color
Hardware
Dimensions
Weight

Extruded aluminium construction

Custom perforated metal grille

Black or white textured powder coating

C-sup S for wall mounting

720x57x55mm

PRE INSTALLATION

Unpack the speaker. Take a moment to check the fixture to make sure there is no damage. Verify that you have all the necessary
tools, fittings and connection hardware to complete the installation and connection. The Speaker is supplied with the wall
mount bracket and 4 screws. Provide suitable structural support to fully support the speaker.

INSTALLATION

STEP 1: Set the location of the Speaker on the wall where is

to be installed.

STEP 2: Mark the location of the bracket holes using the 1:1
scaled diagram/mould (figure 1)

STEP 3: Drill four holes and then screw bracket on the wall
with the supplied screws. First fasten upper screws in bracket
only to support the weight.

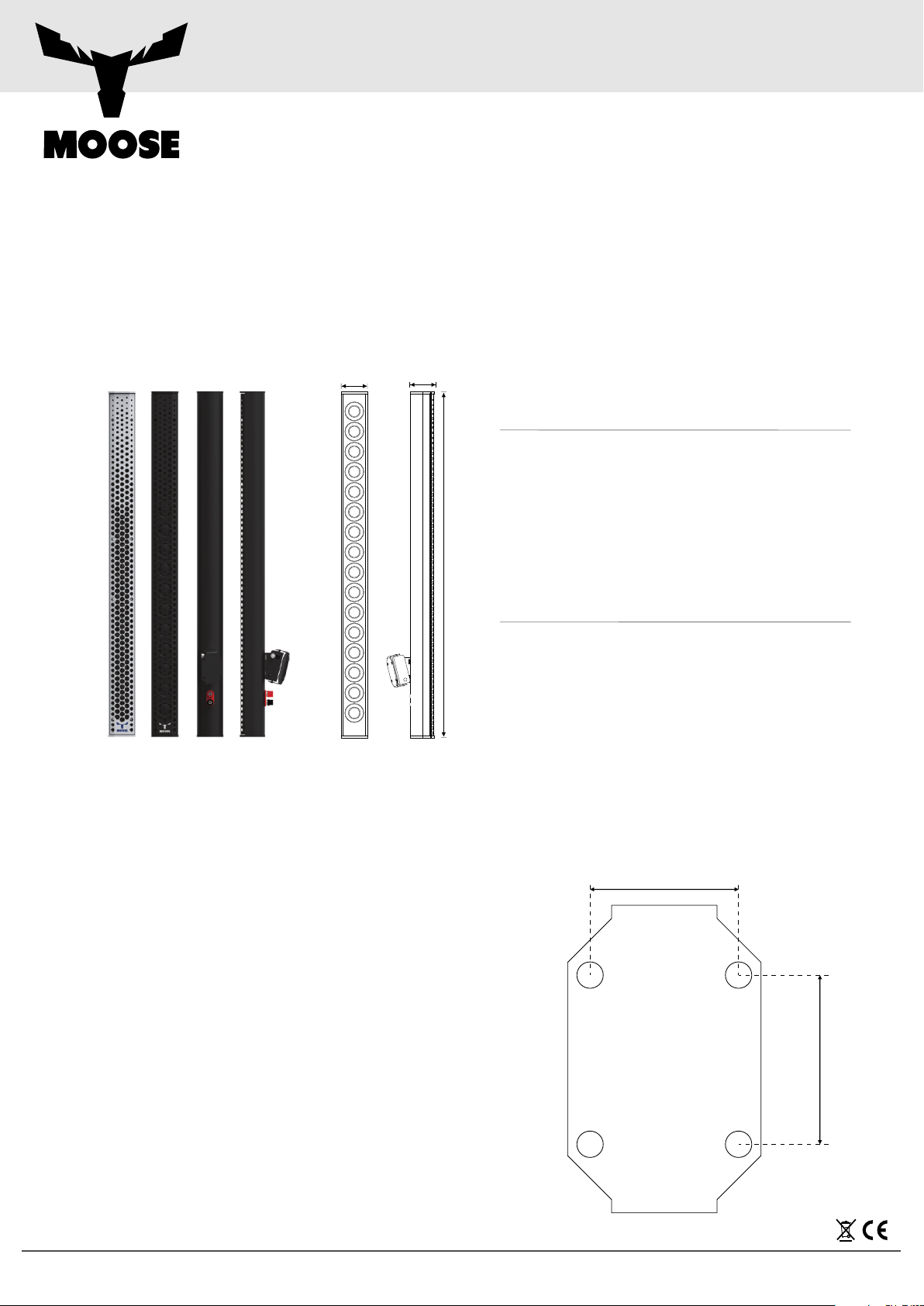

FIGURE 1
SCALE 1:1

1.5Kg

STEP 4: After the Speaker is installed and well fixed to the
wall using the 4 screws supplied it is possible to connect the
signal cable to the high impedance 100V line input
respecting polarity (+/-).
