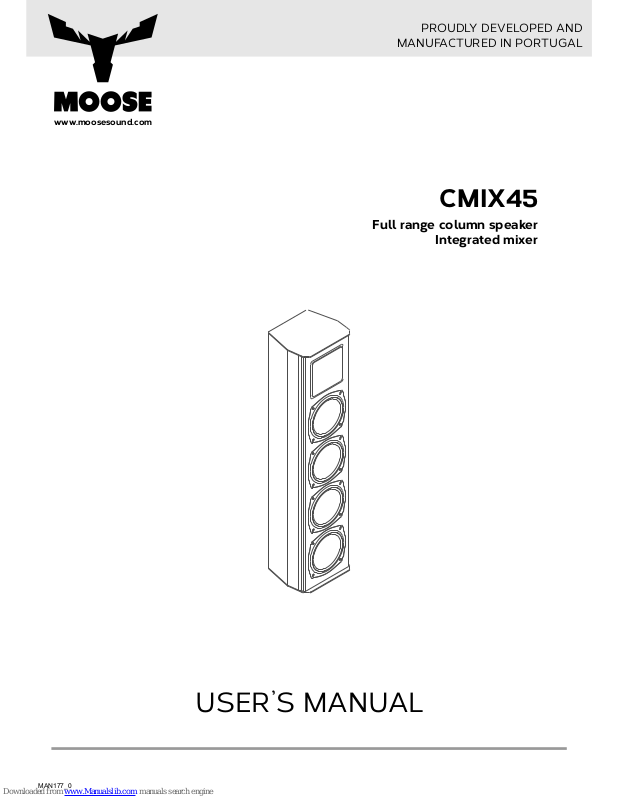

USER’S MANUAL
MAN177_0
www.moosesound.com
PROUDLY DEVELOPED AND
MANUFACTURED IN PORTUGAL
Full range column speaker
Integrated mixer
CMIX45
Dear customer,
Thank for choosing MOOSE branded products!
MOOSE is a brand of professional audio & lighting products, proudly developed and manufactured in
PORTUGAL.
In order to operate this product in a safe and reliable manner, please follow the instructions in this booklet and
before operating the equipment read the instructions carefully and please note the technical information.
Our products undergo very rigorous testing under strict conditions and they are monitored continuosly during the
manufacturing process. In order to guarantee the product function and safety, the original parts of the
manufacturer's design must be used. If any parts other than those of the manufacturer are used, or the product is
modified in any way, the user forfeits all warranty rights to claim.
MAN177_0
CAUTION
RIS K OF EL ECTRI C SH OCK. DO NOT OPE N.
To pr eve nt ele ct ric al sho ck do not remov e
the cover. N o u se r se rv ice ab le p ar ts ins id e.
Refer ser vi ce to qu alified personnel only.
Introduction
www.moosesound.com 2
Caution
The light ning flash with a rrowhead symbol w ithin an equila teral triangle is intended
to alert t he user to the presence of u ninsulated "dangerous voltage" withi n the
prod uct's enclosure that may be of su fficient magnitu de to consti tute a ri sk of
electrical sho ck.
The exclamation mark within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance instruc tions.
The ampli fier is marked w ith this instructi on so ple ase
proc eed accordingly in order to avoi d any hazard.
1. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match
the values specified on the equipment.
2. If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet
with a protective ground. Never deactivate the protective ground of a power cord.
3. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before
extended periods of disuse.
4. Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an
authorised service company.
5. Do not open or modify this equipment.
6. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping
hazards.
7. Do not turn on the Amplifier ON before checking that all volumes to zero .
IMPORTANT: Never remove the cover, because otherwise there may be a risk of electric shock. There are no user
serviceable parts inside. Have repairs carried out only by qualified service personnel.
Full range column speaker, with mixer
CMIX45
www.moosesound.com 3
Manufacturers Declaration
PROPER DISPOSAL OF THIS PRODUCT
(Valid in the European Union and other European countries with waste separation)
This symbol on the product, or the documents accompanying the product, indicates that this appliance may not
be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled
waste disposal. Please dispose of this product separately from other waste and have it recycled to promote
sustainable economic activity.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details on where and how they can recycle this item in an environmentally friendly manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product should not be mixed with other commercial wastes for disposal .
ENVIRONMENTAL PROTECTION AND ENERGY CONSERVATION
Energy conservation is an active contribution to environmental protection. Please turn off all unneeded electrical
devices. To prevent unneeded devices from consuming power in standby mode, disconnect the mains plug.
EC DECLARATION OF CONFORMITY
The equipment marketed by MOOSE complies (where applicable) with the essential requirements and other
relevant specifications of Directives 1999/5/EC (R&TTE), 2004/108/EC (EMC) und 2006/95/EC (LVD). Additional
information can be requested to info@profactor.pt.
PROUDLY DEVELOPED AND MANUFACTURED IN PORTUGAL
MAN177_0
Full range column speaker, with mixer
CMIX45
www.moosesound.com 4
Connections and Controls
Please refer to the following scheme and instructions:
MAN177_0
Full range column speaker, with mixer
CMIX45
FUSE F 2A
POWER ON
CAUTION
RISK OF ELECTRIC SHOC K. DO NOT OPEN.
To prevent ele ctrica l shoc k do n ot remo ve
the cover. No u ser se rvicea ble pa rts in side.
Refer ser vice to qualifi ed perso nnel only.
MAINS
AUX IN
230V AC
50HZ
70VA
SD
USBUSB/SD MP3 PLAYER P/P
PRE/V-
MODE
N/V+
C804DP
CM IX4 5
www.moosesound.com
PROUDLY DEVELOPED AND
MANUFACTURED IN PORTUGAL
LOW VOLUME
USB VOLUME
HI VOLUME MASTER VOLUME
AUX VOLUME MIC 1
555 5
5 5
666 6
6 6
444 4
4 4
777 7
7 7
333 3
3 3
888 8
8 8
222 2
2 2
999 9
9 9
101010 10
10 10
000 0
0 0
111 1
1 1
1. AUDIO MODULE: Audio module that works as a signal source, featuring a USB port and SD card to play Mp3
music on the speaker.
2. AUX IN: Signal input (Jack 3.5mm) for connection of an external audio source (e.g., Mp3 player).
3. LOW VOLUME: Low frequency volume adjustment. Sets the relative volume of the lower frequencies working
as an equalizer.
4. HI VOLUME: High frequency volume adjustment. Sets the relative volume of the higher frequencies working as
an equalizer.
5. MASTER VOLUME: Main volume adjustment. Sets the relative volume of column speaker.
6. USB VOLUME: USB port and SD card slot volume adjustment. Sets the relative volume of the USB working as
a MP3 player.
7. AUX VOLUME: Auxiliar volume adjustment. Sets the relative volume of the auxiliar input of (2).
8. MIC VOLUME: Microphone 1 volume adjustment. Sets the relative volume of the handheld microphone
supplied with the CMIX45 speaker.
9. POWER ON: Illuminated on/off switch. Before switching the system on or off, always adjust the volume to
zero.
10. MAINS IN: Power socket with fuse holder, AC 230V - 50~60Hz. Replace the fuse only with a fuse of the same
type and rating. If the fuse blows repeatedly, please contact an authorised service company.
1
2
53
4
86
7
910
www.moosesound.com 5
Dimensions
Unit: mm (mi limete rs)
Technical specifications
MODE L CMIX 45
TYPE Active full range column speaker
ENCLOSURE DESIGN Trapezoidal
Bass reflex
POWER OUTPUT (RMS) 150W
FREQUENCY RANGE 90Hz - 18kHz
TRANSDUCER TYPE 4x 5" MF + 1" HF
DISPERSION 120°x 30°
CROSSOVER FREQUENCY N/A
MAX. S.P.L. (PEAK) 85dB @ 1m
CONSTRUCTION Aluminum
GRILLE Custom perforated metal grille
INSTALLATION, RIGGING, FLYING Ø35mm insert for pole mount
DIMENSIONS (WxDxH) 180x150x735mm
WEIGHT
AMPLIFICATION
INPUT
OUTPUT
CONNECTORS
CONTROLS
PROTECTION
7.5Kg
2x 75W rms Class D - digital
USB port, SD card slot, AUX in
N/A
Jack 3.5mm - AUX IN
Low, Hi, Master, USB/SD, AUX and MIC
No
180
180
150
150
735
MAN177_0
Full range column speaker, with mixer
CMIX45
FUSE F 2A
POWER ON
CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
To prevent electrical shock do not remove
the cover. No user serviceable parts inside.
Refer service to qualified personnel only.
MAINS
AUX IN
230V AC
50HZ
70VA
SD
USBUSB/SD MP3 PLAYER P/P
PRE/V-
MODE
N/V+
C804DP
CMIX4 5
www.moosesound.com
PROUDLY DEVELOPED AND
MANUFACTURED IN PORTUGAL
LOW VOLUME
USB VOLUME
HI VOLUME MASTER VOLUME
AUX VOLUME MIC 1
555 5
5 5
666 6
6 644
4 4
4 4
777 7
7 733
3 3
3 3
888 8
8 822
2 2
2 2
999 9
9 9
101010 10
10 1000
0 0
0 0
111 1
1 1
www.moosesound.com
PROUDLY DEVELOPED AND
MANUFACTURED IN PORTUGAL
PROFACTOR S.A
Rua do Padrão 52
4440-617 Valongo
PORTUGAL
Telf.: +351 224 119 160
Fax: +351 224 155 822
info@profactor.pt
MOOSE is a brand or PROFACTOR S.A.
