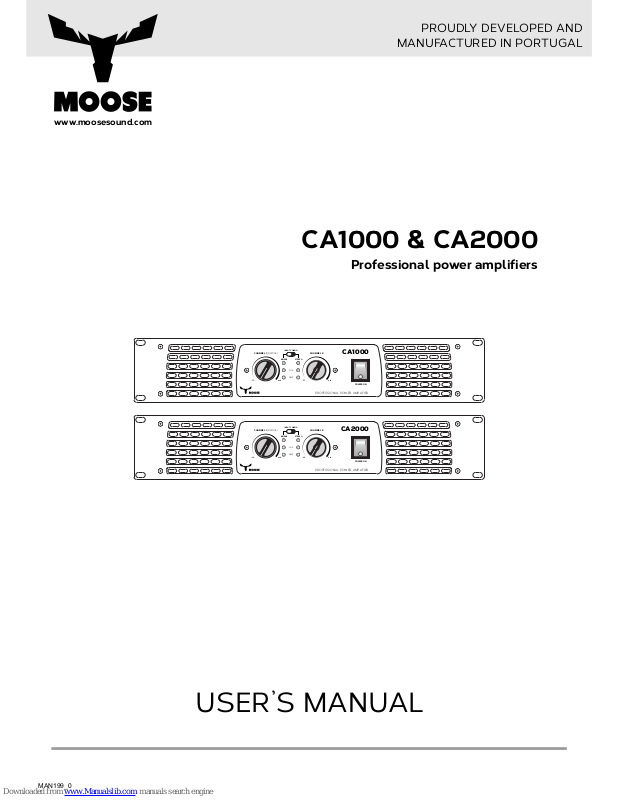

MOOSE CA1000, CA2000 User Manual

USER’S MANUAL

MAN199_0

www.moosesound.com

PROUDLY DEVELOPED AND

MANUFACTURED IN PORTUGAL

Professional power amplifiers

CA1000 & CA2000

INPUT CONFIG.

CHANNEL 1 (BRIDGE)

CHANNEL 2

CLIP

PROT

0dB- 0dB-

BRIDGE

STEREO

POWER ON

CA1000

PROFESSIONAL POWER AMPLIFIER

INPUT CONFIG.

CHANNEL 1 (BRIDGE) CHANNEL 2

CLIP

PROT

0dB- 0dB-

BRIDGE

STEREO

POWER ON

CA2000

PROFESSIONAL POWER AMPLIFIER

Dear customer,

Thank for choosing MOOSE branded products!

MOOSE is a brand of professional audio & lighting products, proudly developed and manufactured in
PORTUGAL.

In order to operate this product in a safe and reliable manner, please follow the instructions in this booklet and
before operating the equipment read the instructions carefully and please note the technical information.

Our products undergo very rigorous testing under strict conditions and they are monitored continuosly during the
manufacturing process. In order to guarantee the product function and safety, the original parts of the
manufacturer's design must be used. If any parts other than those of the manufacturer are used, or the product is
modified in any way, the user forfeits all warranty rights to claim.

MAN199_0

CAUTION

RIS K OF EL ECTRI C SH OCK. DO NOT OPE N.

To pr eve nt ele ct ric al sho ck do not remov e
the cover. N o u se r se rv ice ab le p ar ts ins id e.

Refer ser vi ce to qu alified personnel only.

Introduction

www.moosesound.com 2

Caution

The light nin g flash with a rrowhead symbol w ithin an equila teral t riangle is intended
to alert t he user to the p resence of u ninsulated "dangerous vo ltage" withi n the
prod uct's enclosure that m ay be of su ffi cient magnitu de to consti tute a ri sk of
electrical sho ck.

The exclamatio n mark within an equilateral triangle is intended to alert the user to
the presence of important operatin g and maintenance instruc tions.

The ampli fie r is marked w ith t his instructi on so p le ase
proc eed according ly in order to avoi d any hazard.

1. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match
the values specified on the equipment.

2. If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet
with a protective ground. Never deactivate the protective ground of a power cord.

3. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before
extended periods of disuse.

4. Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an
authorised service company.

5. Do not open or modify this equipment.

6. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping

hazards.

7. Do not turn on the Amplifier ON before checking that all volumes to zero.

8. Please refer all servicing to qualified personel only if the device is damaged, exposed to liquid/rain or if it does
not operate normally.

9. Please, do not expose to any kind of heat such as ovens, radiators, or any other devices (incl. amplifiers).
Please check for enough distance between amplifiers and walls, racks, etc. to prevent overheating.

IMPORTANT: Never remove the cover, because otherwise there may be a risk of electric shock. There are no user
serviceable parts inside. Have repairs carried out only by qualified service personnel.

Professional power amplifiers

CA1000 & CA2000

MAN199_0

www.moosesound.com 3

Manufacturers Declaration

PROPER DISPOSAL OF THIS PRODUCT

(Valid in the European Union and other European countries with waste separation)

This symbol on the product, or the documents accompanying the product, indicates that this appliance may not
be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled
waste disposal. Please dispose of this product separately from other waste and have it recycled to promote
sustainable economic activity.

Household users should contact either the retailer where they purchased this product, or their local government
office, for details on where and how they can recycle this item in an environmentally friendly manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product should not be mixed with other commercial wastes for disposal .

ENVIRONMENTAL PROTECTION AND ENERGY CONSERVATION

Energy conservation is an active contribution to environmental protection. Please turn off all unneeded electrical
devices. To prevent unneeded devices from consuming power in standby mode, disconnect the mains plug.

EC DECLARATION OF CONFORMITY

The equipment marketed by MOOSE complies (where applicable) with the essential requirements and other
relevant specifications of Directives 1999/5/EC (R&TTE), 2004/108/EC (EMC) und 2006/95/EC (LVD). Additional
information can be requested to [e-mail].

PROUDLY DEVELOPED AND MANUFACTURED IN PORTUGAL

Professional power amplifiers

CA1000 & CA2000

MAN199_0

www.moosesound.com 4

Connections and Controls

Please refer to the following scheme and instructions:

FRONT PANEL:

REAR PANEL:

1. POWER SWITCH: Illuminated on/off switch. Before switching on the system, always adjust the volume to zero.

2. CHANNEL 1: Gain control for Ch. 1. Turn clockwise to increase gain and counter clockwise to decrease gain.

3. CHANNEL 2: Gain control for Ch. 2. Turn clockwise to increase gain and counter clockwise to decrease gain.

4. CH. 1 CLIP: This LED will light dimly and increase in brilliance as clipping becomes more severe, staying on until
clipping ceases;

5. CH. 2 CLIP: This LED will light dimly and increase in brilliance as clipping becomes more severe, staying on
until clipping ceases;

6. CH. 1 PROTECT: When a problem occurs that causes a channel to go into a Protection Mode, this Led lights
and stays on until the problem is solved;

7. CH. 2 PROTECT: When a problem occurs that causes a channel to go into a Protection Mode, this Led lights
and stays on until the problem is solved;

8. BRIDGE/STEREO: Selector used to choose between STEREO and BRIDGE Operation Mode. In STEREO mode,
each channel within the pair remains independent, and each may be used for a different signal. In BRIDGE mode,
the setting combines both channels of a pair into a single channel with twice the output voltage. Use only the

input and gain control channel 1. Set the channel 2 gain control at minimum.

9. STEREO: This LED lights up when the Amplifier is operating in Stereo mode;

10. BRIDGE: This LED lights up when the Amplifier is operationg in Bridge mode;

Professional power amplifiers

CA1000 & CA2000

5 3

7

10

8

1

2017

15 16

11

13

14

12 18 19

S

U

E

F

INPUT CONFIG.

CHANNEL 1 (BRIDGE)

CHANNEL 2

CLIP

PROT

0dB- 0dB-

BRIDGE

STEREO

POWER ON

CA1000

PROFESSIONAL POWER AMPLIFIER

6

9

2 4

CAUTION

RISK OF ELECTR IC SHOC K.

DO NOT OPEN.

To prevent electrical shock
do not remove the cover.

No user serviceable parts inside.

Refer service to qualified

personnel only.

INPUT (BRIDGE) INPUT

+2 -2

+1 -1

BALANCED UNBALANCED

PIN

SIGNAL

2

1 / 2

31 2 31

GND

-

+

GND

+

3

12

INPUT

OUTPUT

CHANNEL 1

CH1

SPEAKER

+1 -1

CH2

SPEAKER

CHANNEL 2

BRIDGE

LIFT GND

+1 -1

4 Ohm

PIN

SIGNAL

MIN. LOAD

CHANNEL

+2 -2

8 Ohm

BRIDGE

moosesound.com

FUSE F A

230V AC

50HZ

VA

PROUDLY DEVELOPED
AND MANUFACTURED

IN PORTUGAL

MAN199_0

www.moosesound.com 5

Connections and Controls

11. CHANNEL 1 INPUT: Channel 1 signal input in 3-pin XLR. This is the input to be used if the amplifier is to be
used in BRIDGE mode.

12. CHANNEL 2 INPUT: Channel 2 signal input in 3-pin XLR.

13. CHANNEL 1 INPUT: Channel 1 signal input in Jack ¼’’. This is the input to be used if the amplifier is to be used

in BRIDGE mode.

14. CHANNEL 2 INPUT: Channel 2 signal input in Jack ¼’’.

15. CHANNEL 1 SPEAKER: Channel 1 Speakon loudspeaker connectors. The Speakon connector is designed

specially for highpower speaker connections.

16. CHANNEL 2 SPEAKER: Channel 2 Speakon loudspeaker connectors. The Speakon connector is designed
specially for highpower speaker connections.

17. BRIDGE: Speakon loudspeaker connector to be used if the amplifier is set to be operating in BRIDGE mode.
Please refer to the pinout printed on the rear panel of the amplifier.

18. SIGNAL GROUND LIFT/GROUND: Signal ground lift barrier strip. Ground lift means breaking a connection
between chassis earth and electrical earth. Use this feature only when 50Hz hum is excisting from loudspeakers.

19. FUSE: Power fuse.

20. MAINS SUPPLY:

Replace the fuse only with a fuse of the same type and rating. If the fuse blows repeatedly,

please contact an authorised service company.

Power cable AC 230V - 50~60Hz.

Professional power amplifiers

CA1000 & CA2000

+1

+1

-2 -2

+2 +2

-1 -1

XLR- type, JACK-type and SPEAKON-type connector pin-assigment:

Stereo: Bridge:

Balanced XLR Male Connector

2

3

1

POSITIVE (+)

GROUND

NEGATIVE (-)

Balanced ¼” Jack Connector

4-pin Speakon Connector

SIGNAL ( + )

SIGNAL ( - )

MASSA

GROUND

MAN199_0

www.moosesound.com 6

Technical specifications

PROFACTOR S.A., a ll rights res erved. The tech ni cal data an d the funct ional produ ct charac te ristics c an be subje ct
to modif ic ation s. T he photocop yi ng, the t ra nslatio n, a nd all ot he r fo rms of copyin g of fragme nts or of the i nt eg rlity
of thi s us er's ma nu al is prohi bited.

Dimensions

Unit: mm (mi limete rs)

MODE L CA10 00 CA20 00

TYPE

NO. OF CHANNELS

Professional power amplifier

2

Professional power amplifier

2

RMS POWER @ 8 , 1kHz, 0.1% T.H.D.Ω

RMS POWER @ 4 , 1kHz, 0.1% T.H.D.Ω

RMS POWER @ BRIDGE, 8Ω

2x 300W 2x 750W

2x 500W 2x 1000W

1000W 2000W

FREQUENCY RANGE 20Hz - 20kHz 20Hz - 20kHz

T.H.D. (20Hz - 20kHz) < 0.1% @ 1kHz < 0.1% @ 1kHz

S/N RATIO -100dB -103dB

GAIN 750mV 750mV

22k / 20KΩ Ω 22k / 20KΩ Ω

INPUT SENSITIVITY

CONTROLS

INDICATORS

Main switch (on/off), 2x volume/gain control

Bridge/stereo mode selector, ground/lift selector

Power on: green, Signal: yellow, Clip/protect; Red

INPUTS Balanced signal inputs Balanced signal inputs

OUTPUTS

CONNECTORS

PROTECTIONS

OPERATING VOLTAGE

POWER CONSUMPTION

COOLING

for Speaker for Speaker

Input: 3-pin XLR and Jack ¼’’ sockets, Output: Speakon Nl4 connector

Thermal overload, DC, short circuit, clip limiter

230V AC (factory config.), 50~60Hz

1200VA 2000VA

Continuously speed fan, automatic, 230V AC

DIMENSIONS (WxDxH) 2RU space, 360mm depth 2RU space, 460mm depth

WEIGHT 14Kg 18Kg

484

484

430

430

88

88

Professional power amplifiers

CA1000 & CA2000

INPUT CONFIG.

CHANNEL 1 (BRIDGE) CHANNEL 2

CLIP

PROT

0dB- 0dB-

BRIDGE

STEREO

POWER ON

CA1000

PROFESSIONAL POWER AMPLIFIER

INPUT CONFIG.

CHANNEL 1 (BRIDGE) CHANNEL 2

CLIP

PROT

0dB- 0dB-

BRIDGE

STEREO

POWER ON

CA2000

PROFESSIONAL POWER AMPLIFIER

S

U

E

F

S

U

E

F

CAUTION

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

To prevent

electrical

To prevent

electrical

INPUT (BRIDGE)

INPUT (BRIDGE)

INPUT

INPUT

+2 -2

+2 -2

+1 -1

+1 -1

BALANCED

BALANCED

UNBALANCED

UNBALANCED

PIN

SIGNAL

PIN

SIGNAL

2

2

1 / 2

1 / 2

331122331

1

GND

GND

-

-

+

+

GND

GND

+

+

3

3

112

2

INPUT

INPUT

OUTPUT

OUTPUT

CHANNEL 1

CHANNEL 1

CH1

SPEAKER

CH1

SPEAKER

+1 -1

+1 -1

CH2

SPEAKER

CH2

SPEAKER

CHANNEL 2

CHANNEL 2

BRIDGE

BRIDGE

LIFT

LIFT

GND

GND

+1 -1

+1 -1

4 Ohm

4 Ohm

PIN

PIN

SIGNAL

SIGNAL

MIN. LOAD

MIN. LOAD

CHANNEL

CHANNEL

+2 -2

+2 -2

8 Ohm

8 Ohm

BRIDGE

BRIDGE

moosesound.com

moosesound.com

FUSE F A

FUSE F A

230V AC

50HZ

VA

230V AC

50HZ

VA

PROUDLY

PROUDLY

www.moosesound.com

PROUDLY DEVELOPED AND

MANUFACTURED IN PORTUGAL

PROFACTOR S.A

Rua do Padrão 52

4440-617 Valongo

PORTUGAL

Telf.: [phone]

Fax: [phone]

[e-mail]

MOOSE is a brand or PROFACTOR S.A.
