MOOSE AMB-2 User Manual

USER’S MANUAL

MAN187_0

www.moosesound.com

PROUDLY DEVELOPED AND

MANUFACTURED IN PORTUGAL

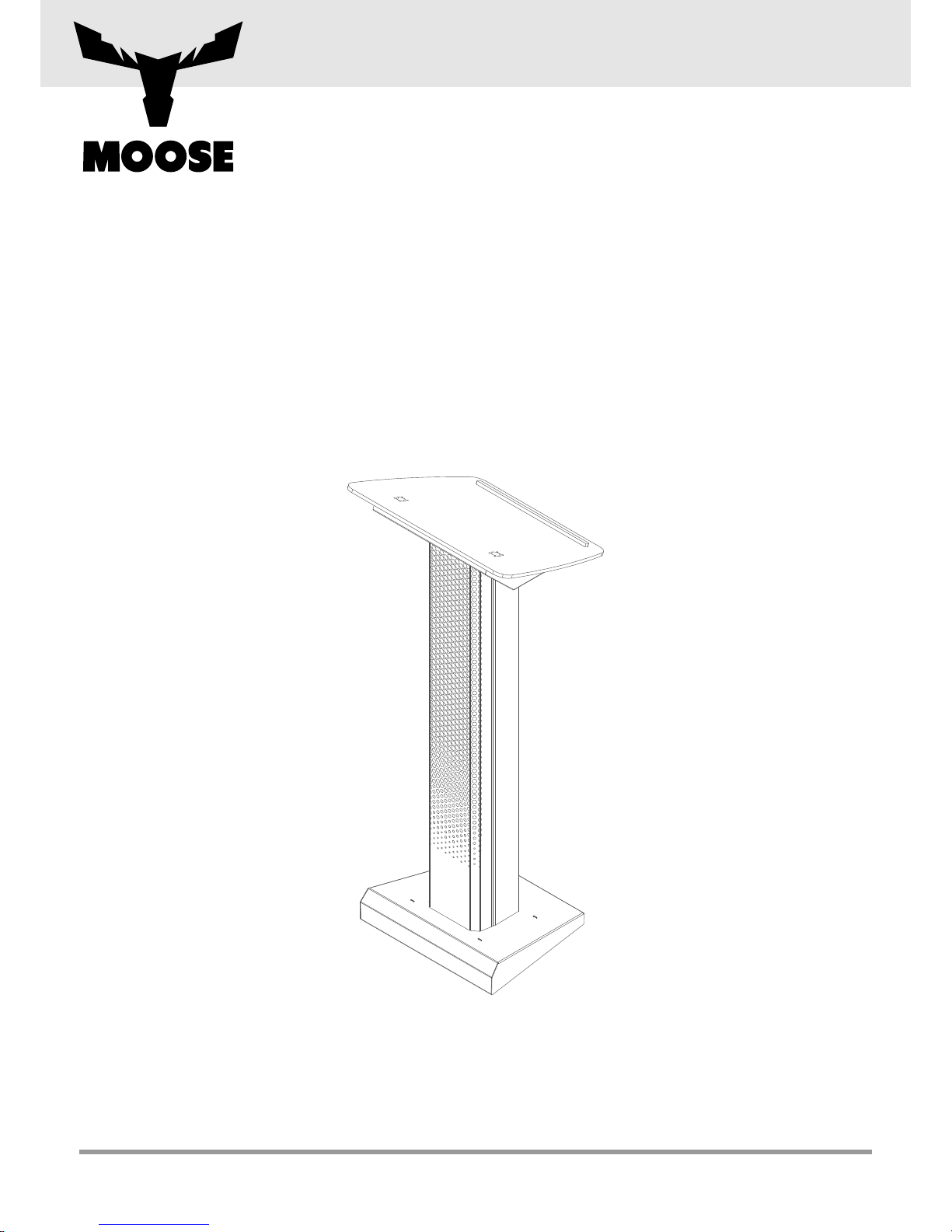

Portable active pulpit

Integrated mixer

AMB-2

Dear customer,

Thank for choosing MOOSE branded products!

MOOSE is a brand of professional audio & lighting products, proudly developed and manufactured in
PORTUGAL.

In order to operate this product in a safe and reliable manner, please follow the instructions in this booklet and
before operating the equipment read the instructions carefully and please note the technical information.

Our products undergo very rigorous testing under strict conditions and they are monitored continuosly during the
manufacturing process. In order to guarantee the product function and safety, the original parts of the
manufacturer's design must be used. If any parts other than those of the manufacturer are used, or the product is
modified in any way, the user forfeits all warranty rights to claim.

MAN187_0

CAUTION

RIS K OF EL ECTRI C SH OCK. DO NOT OPE N.

To pr eve nt ele ct ric al sho ck do not remov e
the cover. N o u se r se rv ice ab le p ar ts ins id e.

Refer ser vi ce to qu alified personnel only.

Introduction

www.moosesound.com 2

Caution

The light nin g flash with a rrowhead symbol w ith in an equila teral t riangle is intend ed
to alert t he us er to the p resence of u nin sulated "dangerou s vo ltage" withi n the
prod uct 's enclosure that m ay be of su ffi cient magnitu de to consti tute a ri sk of
electrical sho ck.

The ex clamatio n mark within an equilateral triangle is intended to aler t the user to
the prese nce of important operatin g and mainte nance instruc tio ns.

The ampli fie r is marked w ith t his instructi on so p le ase
proc eed a ccording ly in order to avoi d any haz ard.

1. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match
the values specified on the equipment.

2. If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet
with a protective ground. Never deactivate the protective ground of a power cord.

3. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before
extended periods of disuse.

4. Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an
authorised service company.

5. Do not open or modify this equipment.

6. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping

hazards.

7. Do not turn on the Amplifier ON before checking that all volumes to zero .

IMPORTANT: Never remove the cover, because otherwise there may be a risk of electric shock. There are no user

serviceable parts inside. Have repairs carried out only by qualified service personnel.

Portable active pulpit, with mixer

AMB-2

www.moosesound.com 3

Manufacturers Declaration

PROPER DISPOSAL OF THIS PRODUCT

(Valid in the European Union and other European countries with waste separation)

This symbol on the product, or the documents accompanying the product, indicates that this appliance may not
be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled
waste disposal. Please dispose of this product separately from other waste and have it recycled to promote
sustainable economic activity.

Household users should contact either the retailer where they purchased this product, or their local government
office, for details on where and how they can recycle this item in an environmentally friendly manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product should not be mixed with other commercial wastes for disposal .

ENVIRONMENTAL PROTECTION AND ENERGY CONSERVATION

Energy conservation is an active contribution to environmental protection. Please turn off all unneeded electrical
devices. To prevent unneeded devices from consuming power in standby mode, disconnect the mains plug.

EC DECLARATION OF CONFORMITY

The equipment marketed by MOOSE complies (where applicable) with the essential requirements and other
relevant specifications of Directives 1999/5/EC (R&TTE), 2004/108/EC (EMC) und 2006/95/EC (LVD). Additional
information can be requested to [e-mail].

PROUDLY DEVELOPED AND MANUFACTURED IN PORTUGAL

MAN187_0

Portable active pulpit, with mixer

AMB-2

www.moosesound.com 4

Connections and Controls

Please refer to the following scheme and instructions:

MAN187_0

FUSE F 2A

POWER ON

CAUTION

RISK OF ELECTRIC SHOCK . DO NOT OPEN.

To prevent elec trical shock do not remove
the cover. No us er ser viceab le par ts ins ide.
Refer serv ice to q ualifi ed p erson nel only.

MAINS

230V AC

50HZ
70VA

C804DP

AM B-2

www.moosesound.com

PROUDLY DEVELOPED AND

MANUFACTURED IN PORTUGAL

LOW VOL

USB/SD

AUX IN

HI VOL MASTER VOL

WIRELESS MIC FLEX MIC

555 5

5 5

666 6

6 6

444 4

4 4

777 7

7 7

333 3

3 3

888 8

8 8

222 2

2 2

999 9

9 9

101010 10

10 10

000 0

0 0

111 1

1 1

1. AUDIO MODULE: Audio module that works as a signal source, featuring a USB port and SD card to play Mp3
music on the speaker.

2. LOW VOLUME: Low frequency volume adjustment. Sets the relative volume of the lower frequencies working
as an equalizer.

3. HI VOLUME: High frequency volume adjustment. Sets the relative volume of the higher frequencies working as
an equalizer.

4. MASTER VOLUME: Main volume adjustment. Sets the relative volume of column speaker.

5. USB/SD & AUX IN VOLUME: USB port and SD card slot volume adjustment. Sets the relative volume of the

USB working as a MP3 player. If is there any external signal connected to AUX IN, then this volume pot is to
adjust the AUX signal input also.

6. WIRELESS MIC VOLUME: Handheld wireless microphone volume adjusment. Sets the relative volume of the
wireless microphone supplied with the system.

7. FLEX MIC: Flexible gooseneck microphone volume adjustment. Sets the relative volume of the gooseneck
microphone supplied with the system and that is to be connected on the 3-pin XLR socket available on the
black PMMA table board.

8. LINE OUT: Line output in RCA to link another AMB-2 or to connect to the existing sound installation.

9. AUX IN: Signal in in RCA for connection of an external audio source (e.g., MP3 player).

10. POWER ON: Illuminated on/off switch. Before switching the system on, always adjust the volume to zero.

11. MAINS IN: Power socket with fuse holder, AC 230V - 50~60Hz. Replace the fuse only with a fuse of the same

type and rating. If the fuse blows repeatedly, please contact an authorised service company.

1

4

9

2

3

75

8

6

1011

Portable active pulpit, with mixer

AMB-2

AUX INLINE OUT

SD

USBUSB/SD MP3 PLAYER P/P

PRE/V-

MODE

N/V+

www.moosesound.com 5

Dimensions

Unit: mm (mi limete rs)

Technical specifications

MODE L AMB- 2

TYPE Portable active pulpit

ENCLOSURE DESIGN Column speaker

POWER OUTPUT (RMS) 75W

FREQUENCY RANGE 90Hz - 18kHz

TRANSDUCER TYPE 4x 5" MF + 1" dome tweeter

DISPERSION N/A

CROSSOVER FREQUENCY N/A

MAX. S.P.L. (PEAK) 102dB @ 1m

CONSTRUCTION Aluminum

GRILLE Custom perforated metal grille

INSTALLATION, RIGGING, FLYING Steady metal base

DIMENSIONS (WxDxH) 400x340x1155mm

WEIGHT

AMPLIFICATION

INPUT

AC POWER SUPPLY

OUTPUT

CONNECTORS

CONTROLS

RECHARGEABLE BATTERY

16Kg

Built-in 75W rms amplifier

MIC, AUX IN, USB/SD

AC230V

LINE out

MIC - XLR 3p, LINE - RCA, LINE out - RCA

Low, Hi, Master, USB/SD, AUX and MIC

No

312

400

500

400

158

1155

MAN187_0

Portable active pulpit, with mixer

AMB-2

www.moosesound.com

PROUDLY DEVELOPED AND

MANUFACTURED IN PORTUGAL

PROFACTOR S.A

Rua do Padrão 52

4440-617 Valongo

PORTUGAL

Telf.: [phone]

Fax: [phone]

[e-mail]

MOOSE is a brand or PROFACTOR S.A.
